USER MANUAL GE2501 Eurom

Exterior view of a Eurom power supply unit with visible control panel and motor (no text or symbols on main body)

GE2501

Art.nr. 441635

Illustration of a mechanical tool emitting ribbed material with a cleaver and hanging hook (no text or symbols)

NL

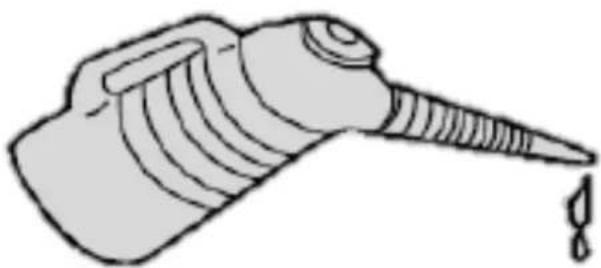

The generator is transported without oil. If you fail to fill the oil reservoir the generator will not start.

Ensure that the generator is completely level when filling up with oil. Tilting could result in overfilling and damage the engine.

FR

Technical diagram of a portable gas generator with numbered components for identification

1. Brandstoftank
2. Uitlaat
3. Aardpunt
4. AC-230V stopcontact
5. DC12V-stopcontact
6. Trekkoord

7. Brandstofkraan

8. Luchtfilter

9. Frame
10. Tankdop
11. Thermische beveiliging 230V
12. Thermische beveiliging 12V
13. Peilstok
14. Start/stopschakelaar

Technical diagram of a two-part electrical device with numbered components for identification.

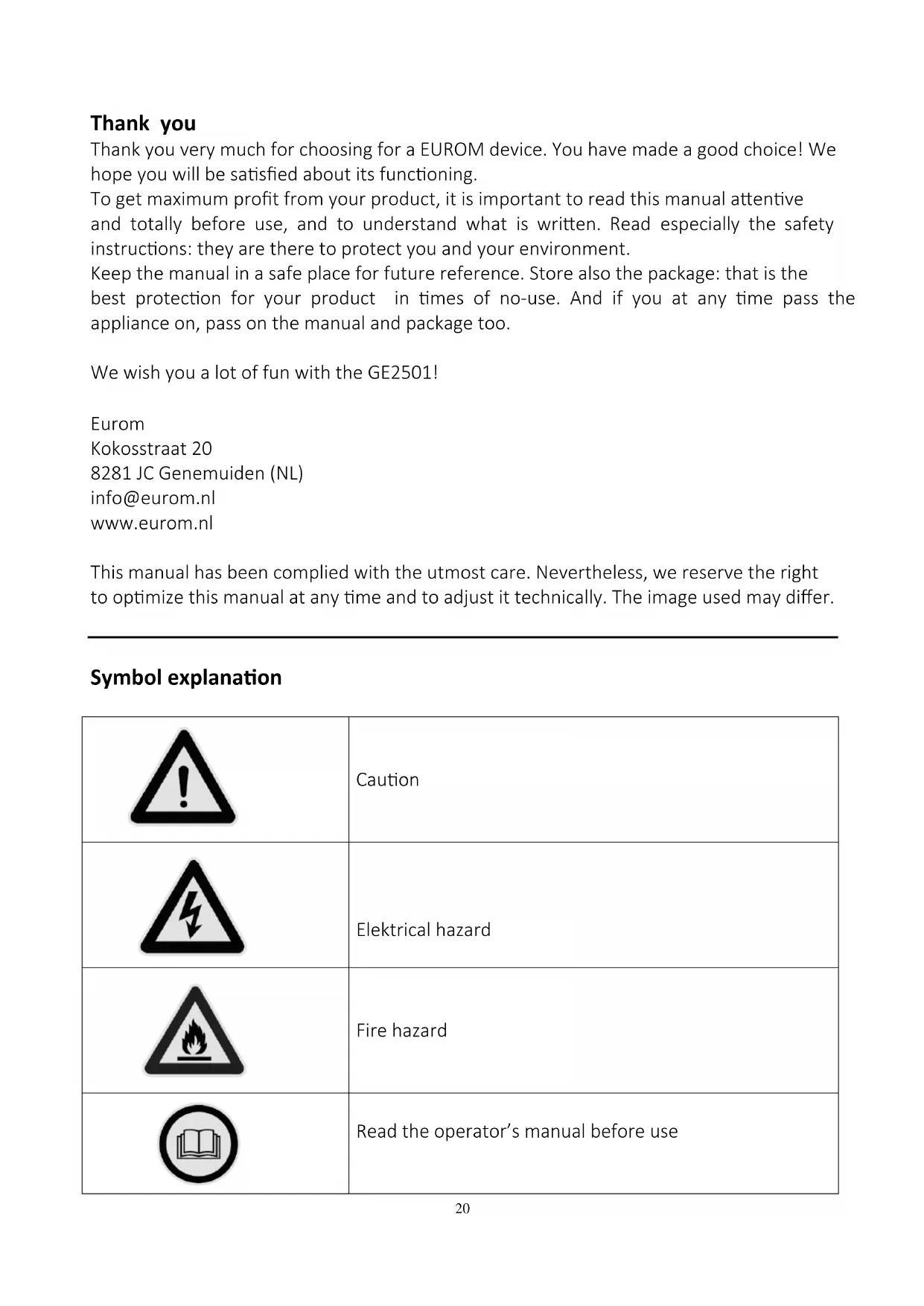

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the GE2501!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol explanation

	Caution
	Elektrical hazard
	Fire hazard
	Read the operator's manual before use
	Carbon monoxide (CO) danger
	Risk of being burnt

Technical specifications

Voltage	230V
Frequency	50 Hz
Indicated output	2000 Watt
Maximum output	2200 Watt
Motor	4-stroke, single cylinder., OHV, air cooled.
Fuel	petrol
cylinder capacity	208 cc
Ignition	No-contact transistor
Bore	70 x 54
Oil quantity	0.6 liter
Starter	Manual
Fuel tank capacity	15 liters
Sound level	Lwa=95 dB
Dimensions	58 x 43 x 45 cm
Weight	39 kg

Safety recommendations

1. Only use the generator outdoors; the exhaust gases contain toxic carbon monoxide! If indoor use is unavoidable, make sure that you have plenty of space with good ventilation and that any exhaust gases are emitted outdoors.
2. This generator incorporates a petrol engine; use Euro 95 or Euro 98 petrol. Always stop the engine before filling up with fuel and ensure naked flames are not in the vicinity (even cigarettes) during this process. Avoid spillages and remove all spilt petrol with a clean cloth before starting the generator.
3. Do not smoke when topping up the fuel!
4. Try to avoid spillages when topping up the fuel! Spilt fuel must be cleaned up immediately with a clean cloth.
5. This generator is not waterproof. To prevent short-circuits or electric shocks, do not use in wet conditions (rain/snow/mist).

6. Do not touch the generator with wet hands and prevent the device getting wet.

7. Keep the generator at least one meter from explosive and flammable substances and objects.

8. The generator must be earthed at all times; to this end, attach a conductive wire between the earthing point on the generator and an approved earthing pin.

9. Never connect the generator to the mains network or to another generator.

10. Never touch the outlet during or shortly after the generator has been in use. It will get extremely hot!

11. Do not connect any devices before the generator has been switched on.

12. Ensure that anyone who uses the generator knows how it works and how to stop it quickly.

13. During use wear protective shoes and clothing.

14. Ensure that there is careful supervision when this device is used in the presence of children, incapable individuals or pets. The device is not suitable for use by persons (including children) with a physical, sensual or mental limitation or a lack of experience and knowledge, irrespective of whether they are being supervised or have been issued with instructions in relation to the use of the device by a person who is responsible for their safety. Always ensure that children cannot play with the device.

15. Failing to adhere to the safety instructions could lead to serious damage or injury. The manufacturer, importer and supplier will not accept any liability in this context.

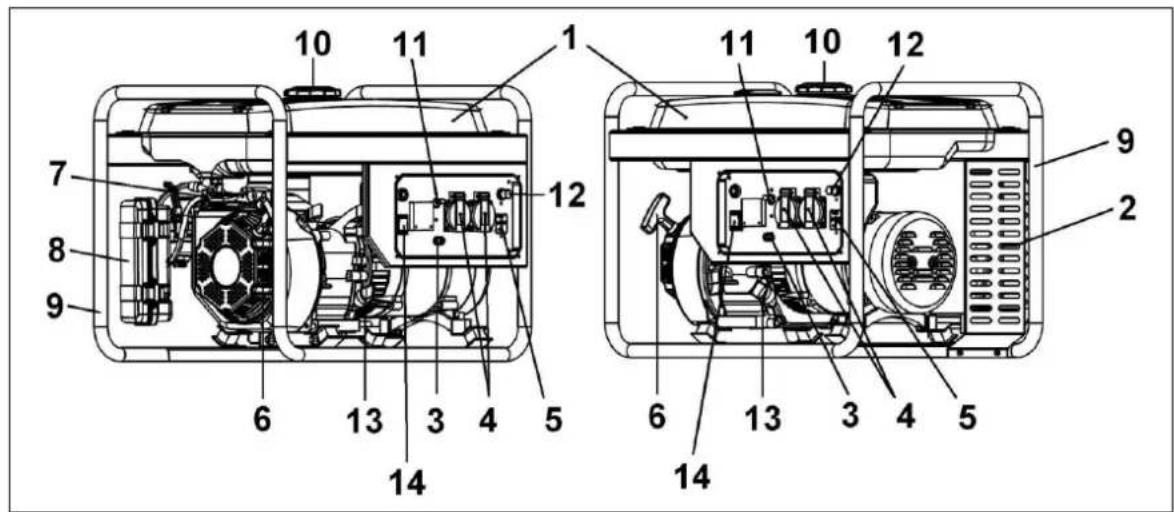

Description

Technical diagram of a two-part electrical device with numbered components for identification.

1. Fuel tank

2. Exhaust

3. Earthing point

4. AC-230V socket

5. DC12V socket

6. Pull cord

7. Fuel tap

8. Air filter

9. Frame

10. Tank cap

11. Thermal safeguard 230V

12. Thermal safeguard 12V

13. Dipstick

14. Start/stop switch

Inspections prior to use

Oil level

Make sure that the generator is on a sturdy surface and placed horizontally before you check the oil. The generator must be unplugged and have cooled down before you check.

• Undo the dipstick cap and take it out of the opening. Clean the dipstick with a damp cloth.
• Insert the dipstick back in the opening without doing it up.
• If the oil level is under the lowest mark on the dipstick, you must fill the oil until it reaches the upper mark. Use 15-W40 oil.
• Put the dipstick back and do up the cap.

Fuel level

• Open the fuel tank cap.
• Check the fuel level and fill up if necessary.
• Fill up to the top of the filter that is located in the opening, at most.
• Close the tank cap again carefully.

Air filter

• Undo the clamps and remove the air filter lid.
  • Take the filter out of the holder.
• Wash the filter in a substance such as petrol or a universal cleaning product. Wring it out well. Then sprinkle a little engine oil on the filter and wring out. Gently tap the filter a few times on a bench or similar to distribute the oil.
• Replace the filter and put everything back in its original place.

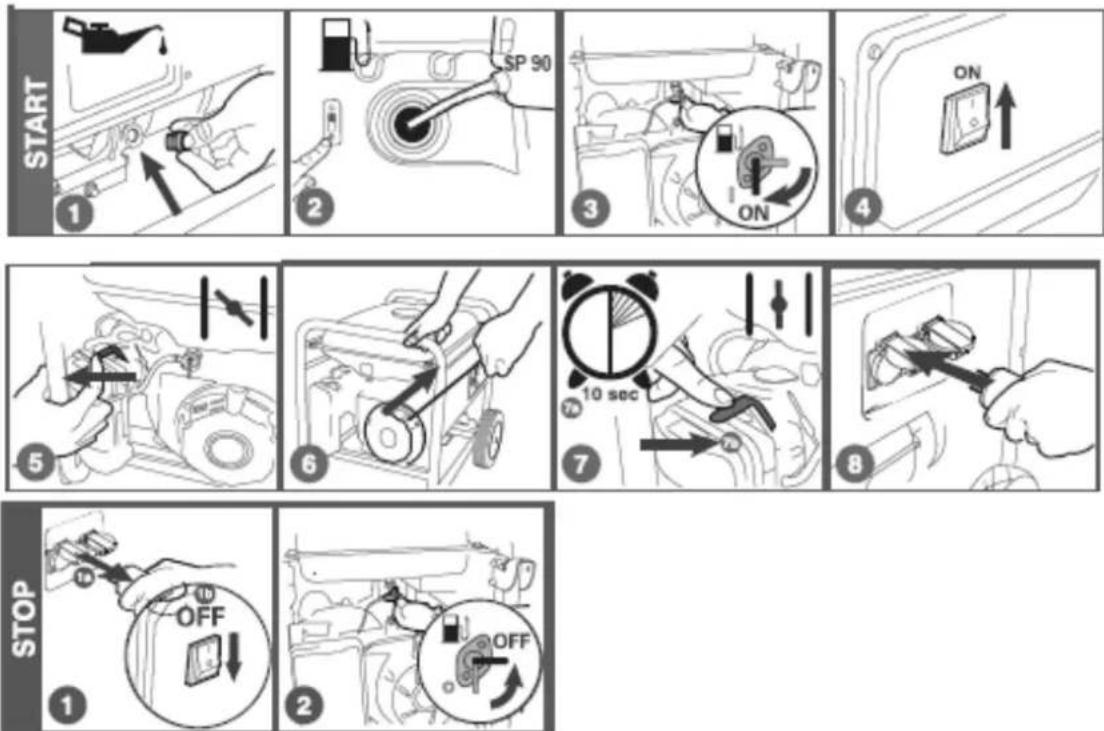

Starting and stopping the generator

Starting

• Take all plugs out of the sockets and switch the thermal safeguard OFF.
• Switch the fuel tap to the ON position
• Depress the choke handle to the 'choke' setting.
• Press the ON/OFF switch to ON.
• Pull the starter rope out until you feel resistance. Then pull the cord forcefully all the way out. Repeat this process until the engine starts.

! If there is no oil in the reservoir the generator will not start !

- Once the engine is warm, you can set the choke to 'run'.

Tips and warnings about use

1. After starting the engine, run without drawing any power for around 3 minutes. If the generator is being used to power more than one device, connect them one by one, the most demanding first. Most devices require more power when starting than during operation (peak flow); be careful that you do not exceed the maximum output of the socket!
2. Check to ensure that all devices you wish to connect are in good condition before connecting to the generator. If a device begins to work abnormally (works slowly or stops suddenly), switch the start/stop switch on the device to OFF immediately. Disconnect the device and check it is working correctly.
3. In the event of overloading, the thermal safeguard will switch the generator off. If this happens, disconnect all of the devices, wait a few minutes and then resume operation with a lower power demand. If the voltmeter indicates a voltage that is too high/low, switch the generator off and try to find the cause. The generator can work if the voltmeter indicates voltage between 210 and 250V (50Hz).
4. The direct current socket (DC 12V) can only be used for charging 12V batteries. Do not change the cables around as this can cause serious damage to the generator and/or battery! Do not draw 12V-DC and 230V-AC simultaneously.
5. Any connection from the generator to a household mains network must be carried out by a qualified electrician. Incorrect connection could damage the generator or device or cause a fire.

Warning: never draw mains power and generator power at the same time for a domestic network!

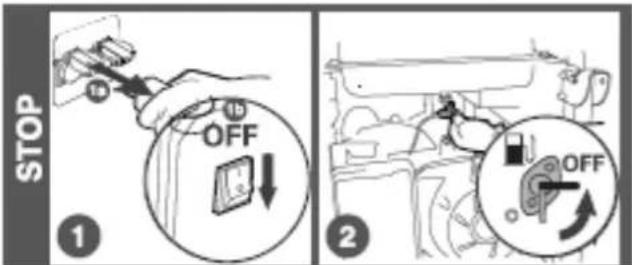

Stopping

• Switch off the thermal safeguard.
• Press the start/stop switch on the generator to OFF.
• Connect the fuel tap.

NB: turn off the stop switch for an emergency stop.

Regular checks and maintenance

Regular checks and maintenance are very important in order to keep the engine running reliably and in good condition. The generator set comprises a petrol engine, generator, control panel and frame. Always switch the engine off when doing any maintenance. If the engine is running, ensure it is located in a well ventilated area. The exhaust gases contain toxic carbon monoxide gas. After use, the engine must be cleaned with a clean cloth to prevent rust formation and deposits.

	Before each use	After 1st month and every 20 hours	Every 50 hours or 3 months	Every 100 hours or 6 months	Every 300 hours or every year
Check the oil level	C
Change the oil		V		V
Check air filter	C
Clean air filter			R
Oil filter holder				R
Oil filter				R
Spark plug				R
Cylinder head					R
Fuel tank	R when necessary

C = check

R = clean

V = replace

B = adjust

Change the oil

• Undo the dipstick and remove.
• Undo the drainage plug and let the oil run out of the crank case. Make sure that all of the oil has drained out.
• Do up the drainage plug.
• Pour new oil into the device up to the top mark; use SAE 15-W40 oil for a 4-stroke petrol engine.
• Replace dipstick and do up securely.

Clean air filter

• Undo the clamps and remove the air filter lid.
  • Take the filter out of the holder.
• Wash the filter in a substance such as petrol or a universal cleaning product. Wring it out well. Then sprinkle a little engine oil on the filter and wring out. Gently tap the filter a few times on a bench or similar to distribute the oil.
• Replace the filter and put everything back in its original place.

Clean spark plug

- Remove the spark plug cap.

• Undo the spark plug using a plug spanner and remove the carbon deposits from the plug.
  • Measure the space between the electrodes: they should be 0.7 to 0.8 mm.
• Secure the spark plug and replace the cap.

Maintaining fuel filter

• Turn the fuel tap to OFF (closed) and take the fuel filter out of the tank opening.
  • Thoroughly clean the filter.
• Secure a new rubber washer to the filter and replace carefully back into the opening.

Storage

If the generator is to be stored for a long period, you must take the following measures:

1. Undo the fuel drainage cap and let the fuel run out of the carburettor.
2. Undo the drainage plug and let the oil run out of the crank case.
3. Replace the oil drainage plug.
4. Fill the generator with oil to the upper mark on the dipstick.
5. Pull the starter rope out until you feel resistance.

Problems and solutions

The engine fails to start

• Too little fuel: check and fill if necessary.
  • The start/stop switch is not set to ON: switch to on.
• Too little oil: check and fill if necessary.
• The speed and/or power with which you pull the cord is insufficient: pull the cord forcefully.
• The spark plug is contaminated with carbon: check and clean.

The generator is not supplying power

• The start/stop switch is not set properly: set it to ON.
• The socket is not connected properly: check. If you discover any irregularities, consult a supplier or qualified electrician to check/repair the device.
• The generator will not achieve the correct revolutions because it is heavily loaded: disconnect some of the devices and try again.

Disposal

At its end of life, discard the device according to the local laws and regulations, or deliver the device to your supplier.

Attachments

An overview of possible uses and the EU Declaration of Conformity can be found at the end of this manual.

Remerciements

Technical diagram of a two-part electrical device with numbered components for identification.

Technical diagram of a portable air conditioner unit with numbered components for identification

Diagram illustrating vehicle engine toolpath steps with numbered instructions and a 10-second speed indicator.

STOP 1 1b OFF 2 OFF

Sätta på

Technical diagram of a portable air conditioner unit with numbered components for identification

		GE720	GE2501	Independ 800	Independ 1200	Independ 2000	Independ 2500	Independ 3100
	Continuous power	650 W	2000 W	700 W	1000 W	1700 W	2200 W	2600 W
	maximum power >	720 W	2200 W	800 W	1100 W	1800 W	2500 W	3100 W
Application	WATT
LED light	10	V	V	V	V	V	V	V
Television	250	V	V	V	V	V	V	V
Jigsaw	650	V	V	V	V	V	V	V
Vacuum cleaner	780	X	V	V	V	V	V	V
Drill	850	X	V	X	V	V	V	V
Refrigerator	1000	X	V	X	V	V	V	V
Microwave	1000	X	V	X	V	V	V	V
Coffee-maker	1200	X	V	X	X	V	V	V
Circular saw	1500	X	V	X	X	V	V	V
Grill	1800	X	V	X	X	X	V	V
Freezer	2000	X	V	X	X	X	V	V
Angle grinder	2000	X	V	X	X	X	V	V
Washing machine	2700	X	X	X	X	X	X	X

LED light (10 W) +
Example combination television (250 W) = Microwave (1000 W) + 5x LED (50 W) + jigsaw 5x LED (50 W) + drill W) + jigsaw (650 W) = W) + refrigerator (1000 vacuum cleaner (780 260 W) drill (850 W) = 1850 W (650 W) = 700 W (850 W) = 900 W 1430 W W) = 2200 W W) = 2580 W

	Appliances may use more energy while being switched on. This is the peak current discharge. The appliance will not work if the peak current discharge is greater than the aggregate's capacity, even if the normal power is equal to the aggregate's power. The following list contains common products and their coefficient. Multiply the power of the appliance by the coefficient. This will give you the required amount of power for your aggregate.
Applications	Lighting (light bulb, fluorescent tube and halogen light)	radio, tv, coffee-maker, microwave	vacuum cleaner, mixer, fan heater	drill, electric shaver, circular saw, angle grinder	Lawn mower, chainsaw, chipper, hedge trimmer	compressor, pressure washer, concrete mixer, water pump	airconditioner, refrigerator, freezer, washing machine	welder
Coefficient	1	1	11/4 - 2	11/4 - 2	2 - 3	3 - 4	31/2 - 5	5 - 10

EU Declaration of Conformity

We, the manufacturer:

Company name: Euromac BV

Postal address: Kokosstraat 20

Postcode: 8281 JC

City: Genemuiden

Country: The Netherlands

Declare that the DoC is issued under our sole responsibility and belongs to the following product:

Product: petrol generator Picture of product

Brand name: Eurom

Model: GE2501

Item number: 441635

Exterior view of a portable electricity generator unit (no visible text or symbols)

The object of declaration described above is in conformity with the following relevant Union harmonization legislation:

Machinery Directive: 2006/42/EC

Electromagnetic compatibility Directive: EMC 2014/30/EU

Euro V Directive: 2016/1628

and that the product is in conformity with the following standards and/or other normative documents:

EN ISO8528-13:2016

EN 55012:2007+A1

EN 61000-6-1:2007

AfPS GS 2014:01

Signed for and on behalf of:

Genemuiden, 28-02-2022

W.J. Bakker, alg. Dir.

akker.

EUROM

Kokosstraat 20

8281 JC Genemuiden

The Netherlands

[e-mail]

www.eurom.nl

280222
