USER MANUAL MyBebè Foppapedretti

Line drawing of a two-tiered outdoor furniture basin with mesh backrest and curved legs (no text or symbols)

EN 1130:2019

EN CRIB - Assembly instructions

EN. IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

FR. IMPORTANT – A LIRE ATTENTIVEMENT ET A CONSERVER POUR REFERENCE ULTERIEURE.

ES. IMPORTANTE - LEER DETENIDAMENTE Y MANTENERLAS PARA FUTURAS CONSULTAS.

PT.

IMPORTANTE! LEER ATENTAMENTE Y CONSERVAR PARA FUTURAS REFERENCIAS.

EL.

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

STEP 1

Pure technical line drawing of a mechanical joint or pipe connection without any text, numbers, or symbols

Simple line drawing of a vertical structure with two vertical supports and a horizontal beam (no text or symbols)

STEP 2

Technical line drawing of a mechanical frame structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

STEP 3

Line drawing of a hand opening a rectangular box with a mesh grille (no text or symbols)

STEP 4

Higher 6 5 4 3 2 Lower 1

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Mechanical component diagram showing a lever and shaft assembly with a blue directional arrow (no text or symbols)

Freno attivato

Line drawing of a mechanical component with blue directional arrows indicating movement (no text or symbols)

Freno disattivato

FRENO

Technical line drawing of a meshed fabric or mesh structure with a cylindrical component inserted (no text or symbols)

Line drawing of a mechanical component with mesh structure (no text or symbols)

Line drawing of a wicker chair with lattice backrest and wooden legs (no text or symbols)

Illustration of hands holding a triangular object with a grid pattern, no text or symbols present

Simple line drawing of a person standing on a textured surface with no text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a hand holding a string tied with a rope, no text or symbols present

Illustration of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand adjusting a mechanical component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand holding a tool with a circular component, no text or symbols present

Technical line drawing of a mechanical component with blue highlighted sections (no text or symbols)

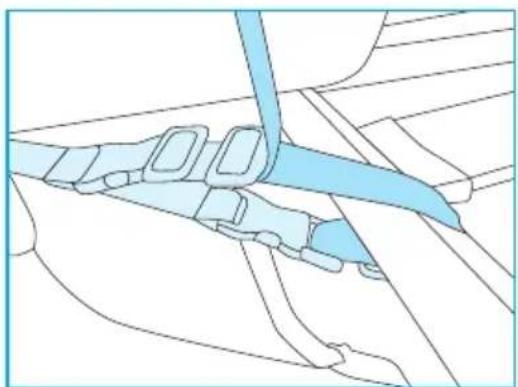

Diagram of a car seatbelt buckle being adjusted for a seatbelt (no text or symbols present)

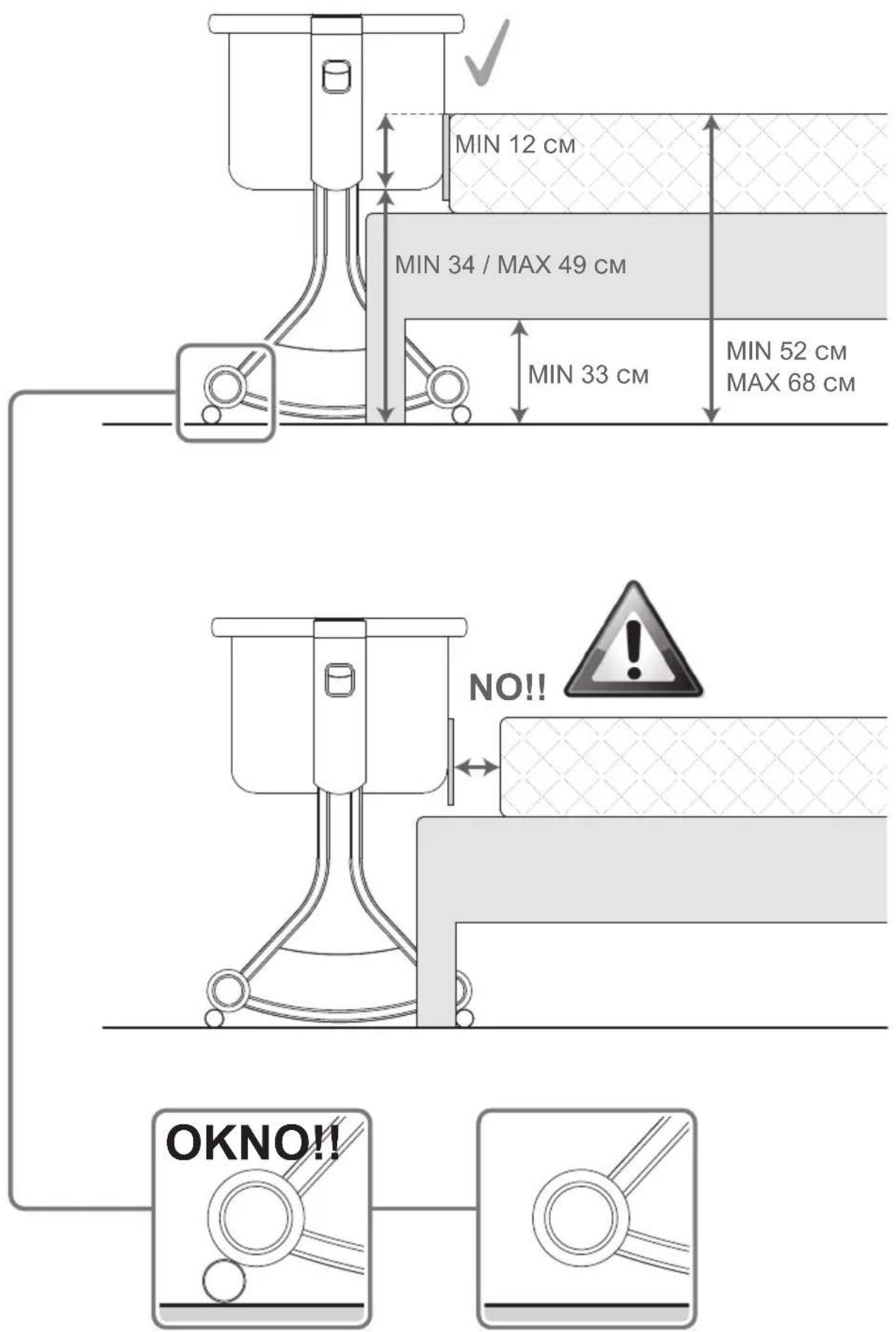

MIN 12 cm MIN 34 / MAX 49 cm MIN 33 cm MIN 52 cm MAX 68 cm NO!! OKNO!!

USO

NO!!OK

Line drawing of a standard bed with a backrest and two legs, no text or symbols present

OPTIONAL

Plush toy car with teddy bear and cloud-shaped accessories hanging from a curved arm (no text or symbols)

Modern baby incubator with transparent protective cover and matching blanket, no visible text or symbols

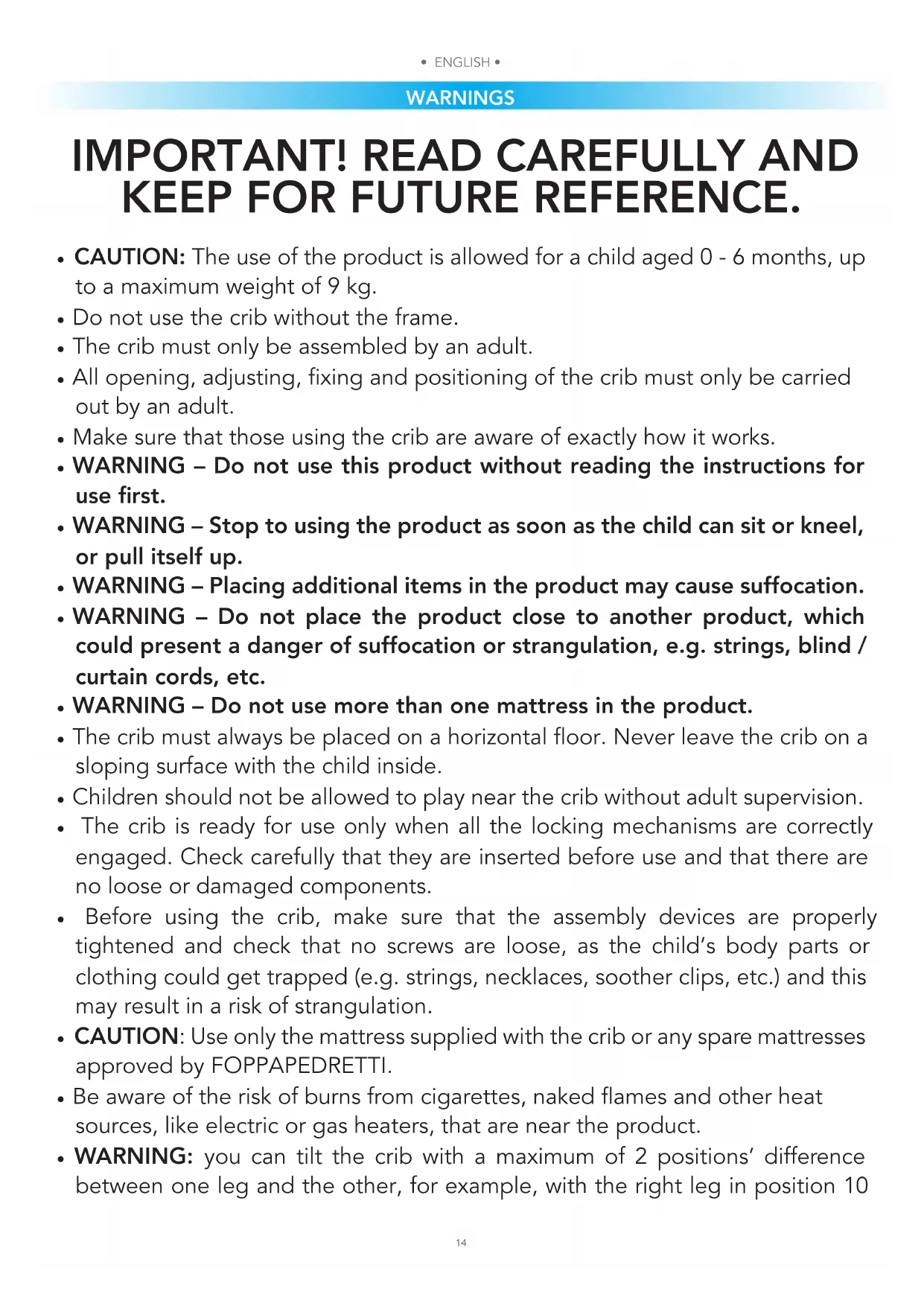

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• CAUTION: The use of the product is allowed for a child aged 0 - 6 months, up to a maximum weight of 9 kg.
• Do not use the crib without the frame.
• The crib must only be assembled by an adult.
• All opening, adjusting, fixing and positioning of the crib must only be carried out by an adult.
• Make sure that those using the crib are aware of exactly how it works.
• WARNING – Do not use this product without reading the instructions for use first.
• WARNING – Stop to using the product as soon as the child can sit or kneel, or pull itself up.
• WARNING – Placing additional items in the product may cause suffocation.
• WARNING – Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind / curtain cords, etc.
• WARNING – Do not use more than one mattress in the product.
• The crib must always be placed on a horizontal floor. Never leave the crib on a sloping surface with the child inside.
• Children should not be allowed to play near the crib without adult supervision.
• The crib is ready for use only when all the locking mechanisms are correctly engaged. Check carefully that they are inserted before use and that there are no loose or damaged components.
• Before using the crib, make sure that the assembly devices are properly tightened and check that no screws are loose, as the child's body parts or clothing could get trapped (e.g. strings, necklaces, soother clips, etc.) and this may result in a risk of strangulation.
• CAUTION: Use only the mattress supplied with the crib or any spare mattresses approved by FOPPAPEDRETTI.
• Be aware of the risk of burns from cigarettes, naked flames and other heat sources, like electric or gas heaters, that are near the product.
• WARNING: you can tilt the crib with a maximum of 2 positions' difference between one leg and the other, for example, with the right leg in position 10

WARNINGS

and the left in position 8. To adjust it, follow the instructions. You cannot adjust the two sides of the crib to be different heights.

• CAUTION: The child's head must always be placed on the most raised side
• WARNING: DO NOT USE the crib if any part is missing, damaged or broken. Contact FOPPAPEDRETTI for spare parts and user instructions if needed. DO NOT REPLACE missing, damaged or broken parts with original components or components not approved by FOPPAPEDRETTI.
• WARNING: Only use the mattress sold or any replacement mattresses approved by FOPPAPEDRETTI with the product. Do not add a second mattress, choking hazard.
• CAUTION: Check the crib periodically to make sure that there are no loose parts, damage or missing components.
• Only use spare parts approved by the manufacturer. Do not use any accessories to the product that have not been supplied by the manufacturer.
• Do not adjust the crib while the child is inside it.
• Do not move the crib while the child is inside it.
• Do not use the product for more than one child at a time.
• Do not leave any objects inside the crib that could reduce the height of the sides.
• Do not leave small objects inside the crib, as these could be swallowed by the child.
• Do not place the crib near walls and obstacles, to prevent the risk of the child getting trapped.
• When not in use, keep the crib out of the reach of children.

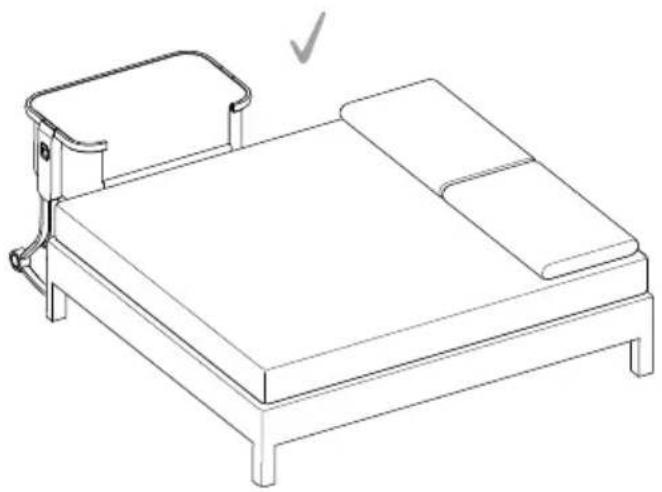

CO-SLEEPING MODE (FIXED TO THE BED)

• Always use all parts needed for each configuration of use.
• DO NOT USE the crib if any part is missing, damaged or broken. Contact FOPPAPEDRETTI for spare parts and user instructions if needed. DO NOT REPLACE missing, damaged or broken parts with original components or components not approved by FOPPAPEDRETTI.
• Use only the fastening straps included in the package.
• When the product is used in "Co-sleeping configuration (fastened to the bed)", the product must always be placed on a horizontal surface. Never leave the product on an inclined surface with the child inside of it.
• To prevent the risk of the head becoming trapped, when in the "Co-Sleeping

WARNINGS

Mode" (fixed to the bed) the crib must be correctly fixed to the parent's bed, as described in the instructions for use, using the fastening straps supplied.

• IMPORTANT: There must be no gap between the crib and the adult bed.
• Before each use, check that the crib is attached by pulling it away from the adult bed. Tighten the anchoring strap if necessary.
• DO NOT use the product if there is a gap between the crib and the adult bed.
• Do not fill any gap between the crib and the adult bed with cushions, blankets or other objects as they may cause suffocation.
• DANGER! The folding side must always be raised and locked when the product is not attached to the parents' bed.
• WARNING: To avoid hazards from the child's neck being caught on the top rail on the side that is next to the adult bed, the top rail must not be higher than the adult bed mattress.
• WARNING: To avoid the risk of your child being strangled the attachment system to the adult's bed shall always be kept away from and out the crib.

MATTRESS WARNINGS (EN 16890:2017)

• The dimension shall take into account that there shall be no gap more than 30 mm between the mattress and the sides end ends in any position of the mattress.
• Do not use the product if any part is broken, torn or missing and use only spare parts approved by the manufacturer.
• WARNING – Do not use more than one mattress in the crib (crib or suspended cradle).
• WARNING – To avoid a fire risk, never place the product near electric heaters, gas stoves or other sources of strong heat (crib or suspended cradle).
• Mattress dimensions: 81 × 41 × 4,5 cm.
• Suitable for cribs with maximum internal dimensions of 81 × 47 cm.

MAINTENANCE

Mattress maintenance

The mattress comes with a removable and washable fabric cover.

Check the product regularly for any wear and tear. In the event of damage, do not use it and keep it out of the reach of children.

When washing the fabric, carefully follow the instructions on the label.

Do not clean with solvents, abrasives or overly aggressive products.

After each wash, check the tolerance of the fabric and stitching.

WARNING: During covering and/or uncovering and assembly and/or disassembly, handle the fabric with care to avoid accidental breakage or damage.

WARNING: Covering, uncovering, assembly and disassembly must be carried out by an adult.

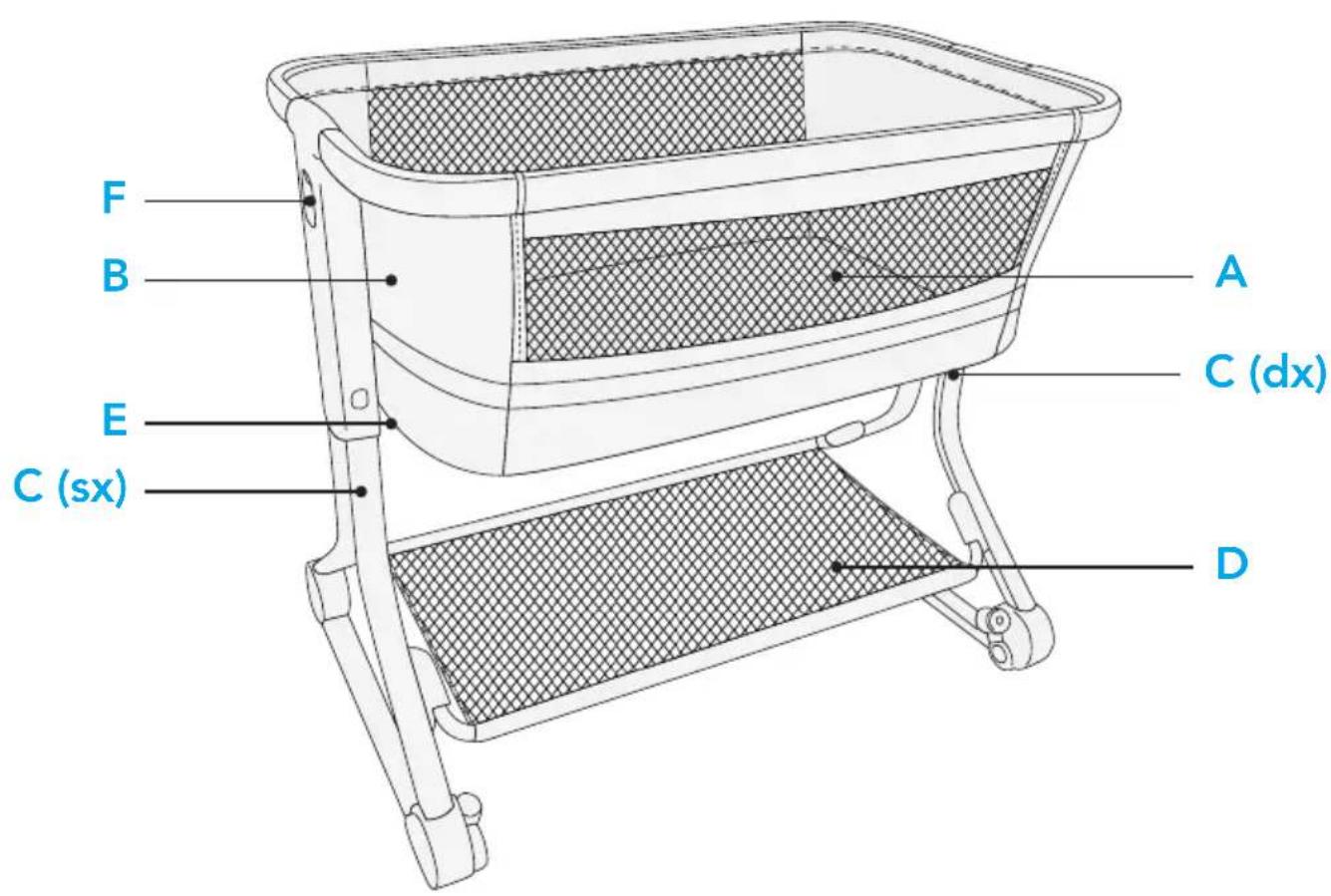

COMPONENTS

F B A C (dx) E C (sx) D

A. Mattress
B. Crib
C. Leg (L/R)
D. Basket
E. Stabiliser bar
F. Height adjustment lever (L/R)

ASSEMBLY

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

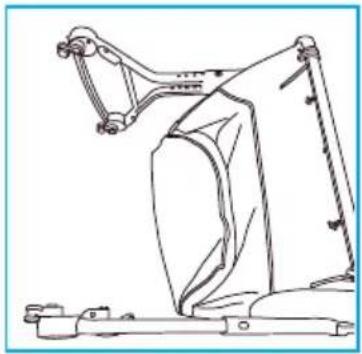

STEP 1

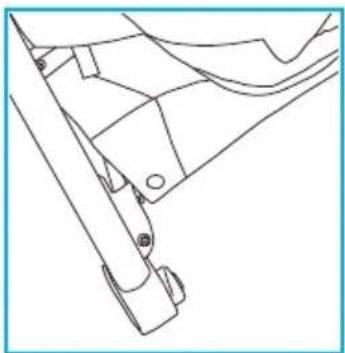

On a flat surface, turn the crib upside down and rotate the legs outwards. Insert the basket support tubes into the correct slots as shown.

Pure technical line drawing of a mechanical joint or pipe connection without any text, numbers, or symbols

Simple line drawing of a rectangular frame with vertical supports and a horizontal line at the bottom (no text or symbols)

STEP 2

Insert the stabiliser bar into the correct slot as shown.

Technical line drawing of a mechanical frame structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

STEP 3

Turn the crib the right way up and make sure it is stable.

Attach the crib fabric to the stabiliser bar using the ties.

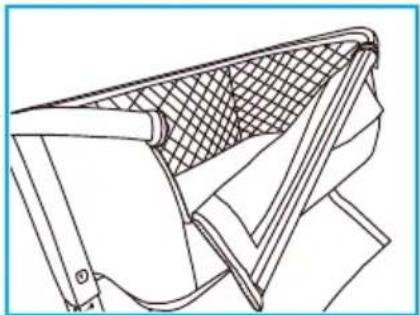

Line drawing of a hand opening a rectangular device with a mesh grille (no text or symbols)

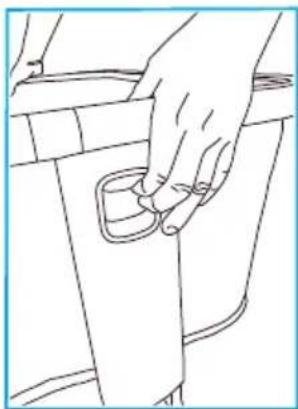

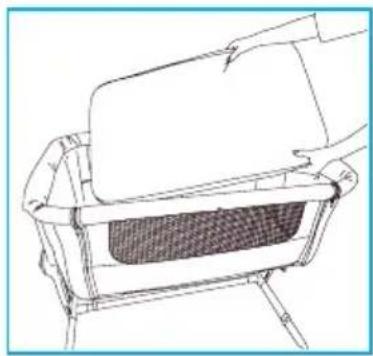

STEP 4

Insert the mattress.

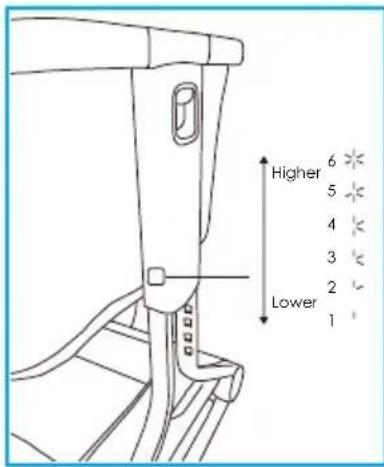

Higher 6 5 4 3 2 Lower 1

Line drawing of a hand opening a car seatbelt (no text or symbols)

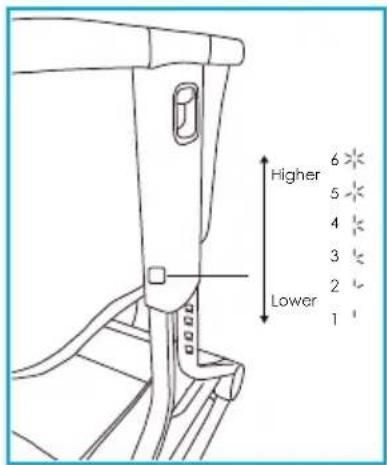

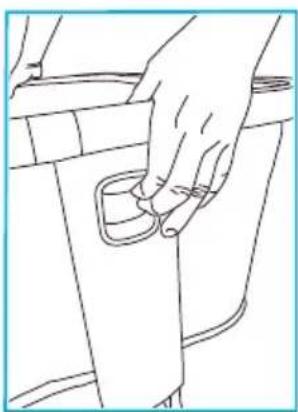

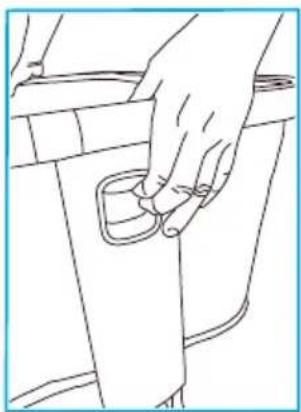

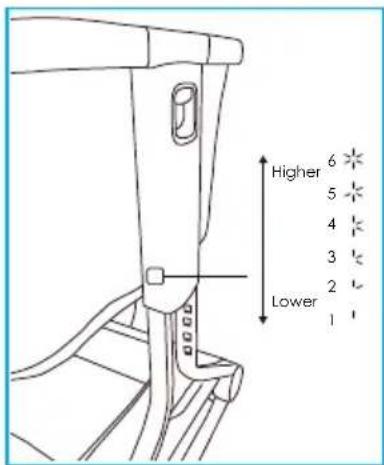

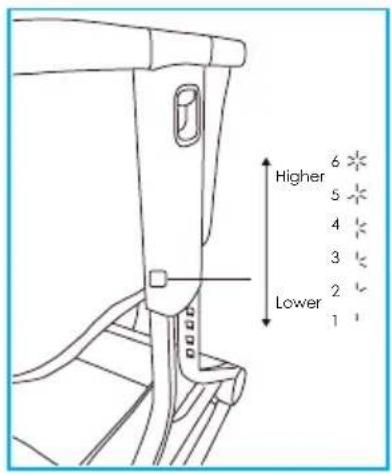

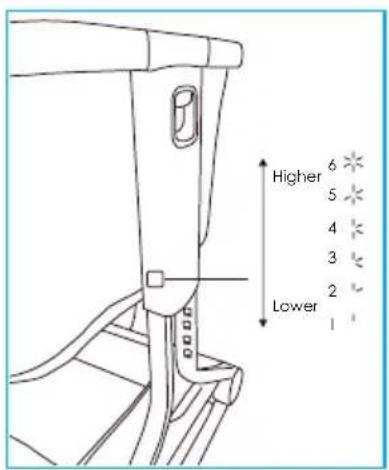

ADJUSTING THE HEIGHT OF THE CRIB

The crib height can be adjusted to different positions. To adjust its height, pull the adjustment lever (on the left and right) upwards and at the same time lift or lower the crib until you reach the desired position (fig. 1).

The base of the crib can be tilted slightly (fig. 2).

WARNING: you can tilt the crib with a maximum difference of 2 positions between one leg and the other, for example, with the right leg in position 10 and the left in position 8 (fig 2).

WARNING: the child's head must always be positioned towards the most elevated end.

USE

Mechanical component diagram showing a lever and gear assembly with a blue directional arrow (no text or symbols)

Brake activated

Diagram of a mechanical component with blue directional arrows indicating motion or force (no text or symbols)

Brake deactivated

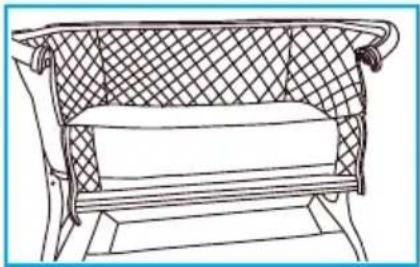

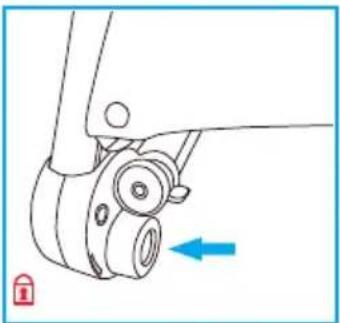

BRAKE

To brake, press the pedal and push the crib to check it has braked.

ROCKING FUNCTION

Press the button and rotate all 4 wheels by 180^ to rock the crib.

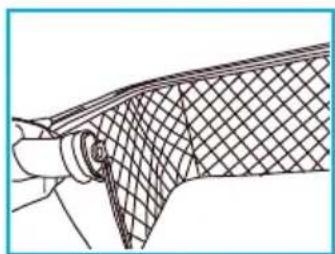

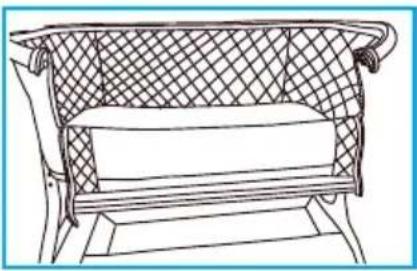

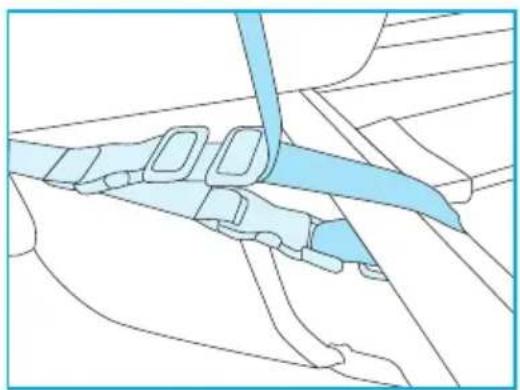

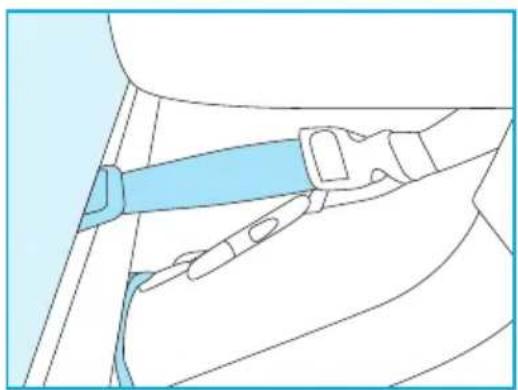

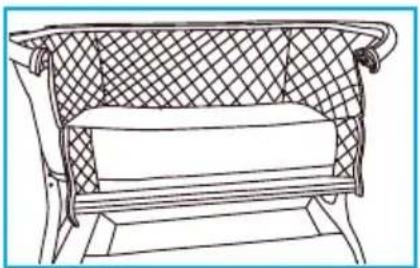

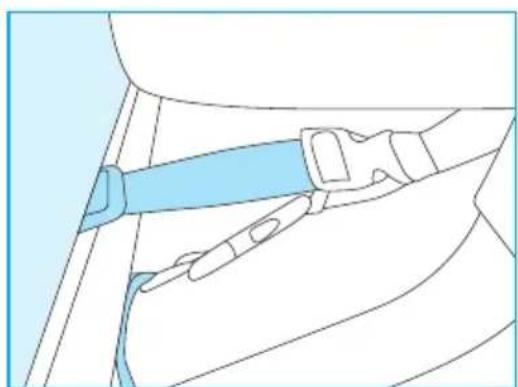

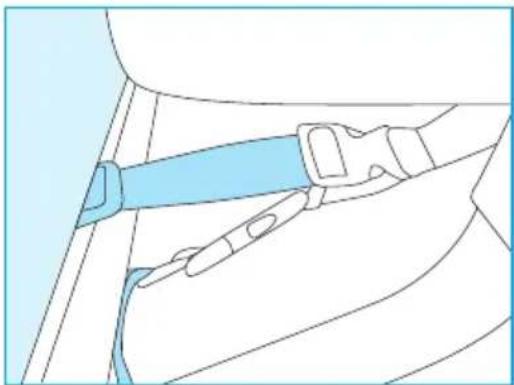

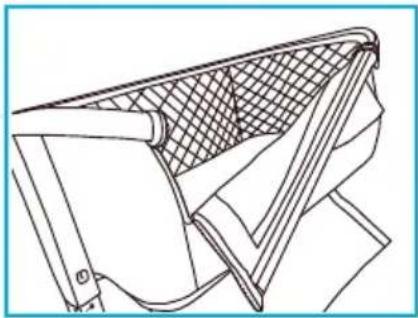

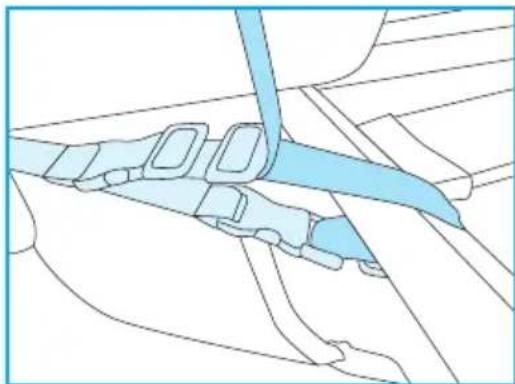

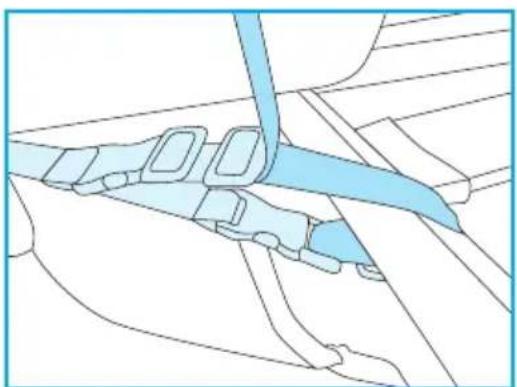

STEP CO-SLEEPING

Technical line drawing of a mechanical component with a meshed cross-section (no text or symbols)

Technical line drawing of a mechanical component with mesh pattern (no text or symbols)

Line drawing of a wicker chair with patterned backrest and wooden legs (no text or symbols)

Illustration of hands holding a triangular object with a mesh pattern, no text or symbols present

Simple line drawing of a person standing on a platform with a grid pattern, no text or symbols present.

Pure technical line drawing of a garment zipper or zipper mechanism without any text, numbers, or symbols

Line drawing of hands tying a knot around a string (no text or symbols)

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Illustration of a hand holding a small cylindrical object with an arrow indicating direction (no text or symbols present)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with blue highlighted parts (no text or symbols)

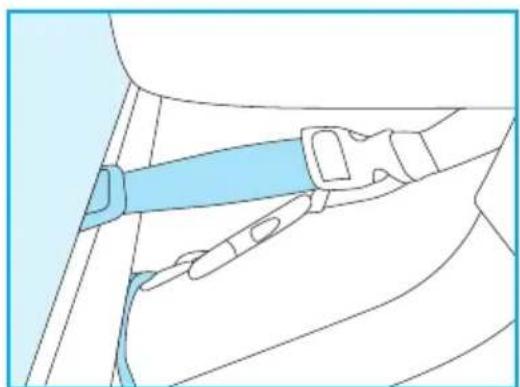

Diagram of a car seatbelt buckle being adjusted, showing blue banding and mounting bracket (no text or symbols)

USE

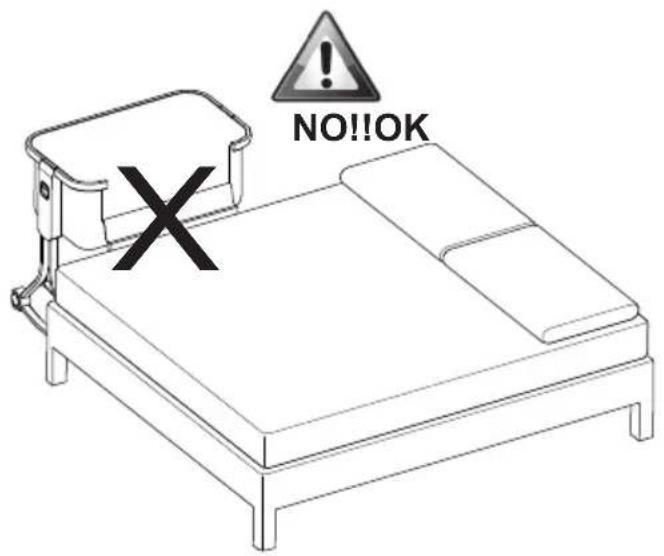

MIN 12 cm MIN 34 / MAX 49 cm MIN 33 cm MIN 52 cm MAX 68 cm NO!! OKNO!!

NO!!OK

Line drawing of a standard bed with a backrest and two legs, no text or symbols present

OPTIONAL

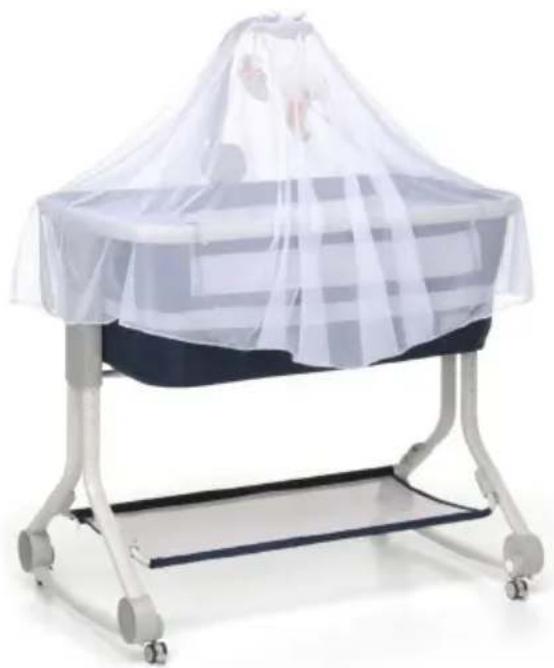

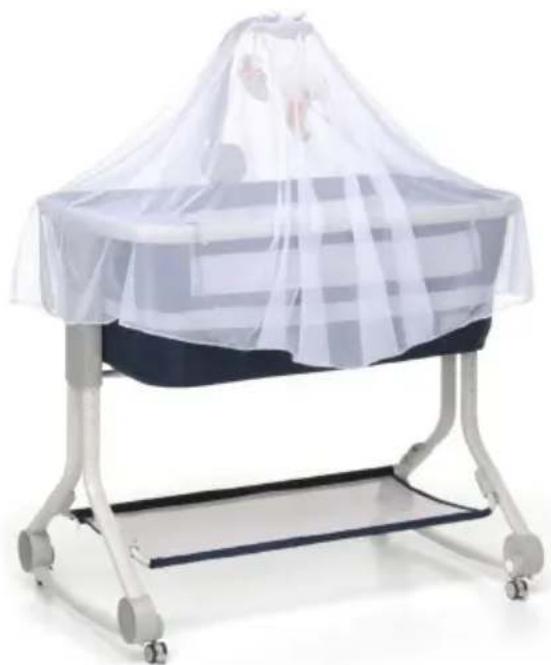

SET: Toy arch and mosquito net

Plush toy car with two teddy bears and a cloud-shaped ornament hanging from a curved arm (no text or symbols)

Modern baby incubator with transparent protective cover and matching blanket, no visible text or symbols

FORMAL GUARANTEE

The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A.

FORMAL GUARANTEE

Foppa Pedretti S.p.A. the head office of which located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer.

This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer's rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product.

To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer's address, the date of purchase of the Product with the Retailer's stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above.

The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product.

EXCLUSIONS TO THE FORMAL GUARANTEE.

The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat isor environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure.

In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manua I or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot: "Check your baby constantly.

Make sure that the sheets and blankets do not cover the baby's head...").

Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.

AVERTISSEMENTS

IMPORTANT - A LIRE ATTENTIVEMENT ET A CONSERVER POUR REFERENCE ULTERIEURE.

MODE CO-SLEEPING (FIXATION AU LIT)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

ÉTAPE 1

Pure technical line drawing of a mechanical joint or pipe connection without any text, numbers, or symbols

Simple line drawing of a vertical structure with a horizontal beam and two vertical supports (no text or symbols)

ÉTAPE 2

Technical line drawing of a mechanical frame structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ÉTAPE 3

Line drawing of a folding box with a mesh grille and handle, no text or symbols present

ÉTAPE 4

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

RÉGLAGE DE LA HAUTEUR DU BERCEAU

Mechanical component diagram showing a lever and shaft assembly with a blue directional arrow (no text or symbols)

Frein activé

Line drawing of a mechanical component with blue arrows indicating direction (no text or symbols)

Frein désactivé

FREIN

Technical line drawing of a meshed structural component with a cylindrical shaft (no text or symbols)

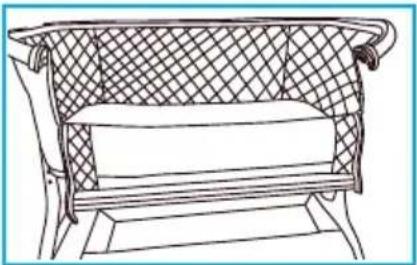

Line drawing of a mechanical device with mesh structure and mounting bracket (no text or symbols)

Line drawing of a wooden armchair with lattice pattern and side legs (no text or symbols)

Illustration of hands holding a tool over a shaded triangular object (no text or symbols)

Simple line drawing of a person standing on a curved surface with a grid pattern (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of hands tying a rope tied with a string (no text or symbols)

Illustration of a hand adjusting a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand holding a small cylindrical object, possibly a tool or component, with no visible text or symbols.

Technical line drawing of a car seatbelt assembly (no text or symbols)

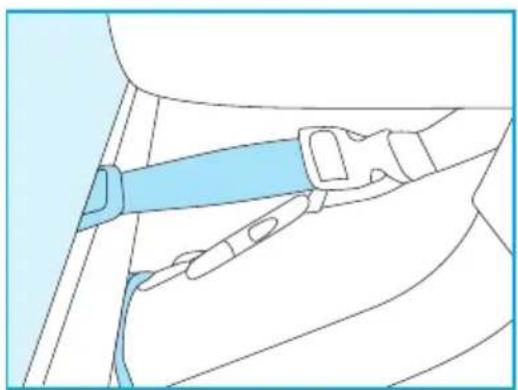

Diagram of a car seatbelt buckle being adjusted for a seatbelt (no text or symbols present)

MIN 12 cm MIN 34 / MAX 49 cm MIN 33 cm MIN 52 cm MAX 68 cm NO!! OKNO!!

UTILISATION

NO!!OK

Line drawing of a standard bed with a backrest and two legs, no text or symbols present

OPTIONAL

Plush toy car with two teddy bears and a cloud-shaped ornament hanging from a curved arm (no text or symbols)

Modern baby incubator with transparent protective cover and matching blanket, no visible text or symbols

Line drawing of a mechanical device with articulated arms and base mount (no text or symbols)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

PASO 1

Pure technical line drawing of a mechanical joint or pipe connection without any text, numbers, or symbols

Simple line drawing of a rectangular frame with vertical supports and a central horizontal bar (no text or symbols)

PASO 2

Technical line drawing of a mechanical frame or support structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

PASO 3

Line drawing of a portable stove or refrigerator with a mesh grille and handle (no text or symbols)

PASO 4

Colocar el colchón.

Higher 6 * 5 * 4 * 3 * 2 * Lower 1 *

Line drawing of a hand pressing down on a car seat (no text or symbols)

Mechanical linkage component diagram with blue arrow indicating direction (no text or symbols)

Freno activado

Diagram of a mechanical component with blue arrows indicating direction (no text or symbols)

Freno desactivado

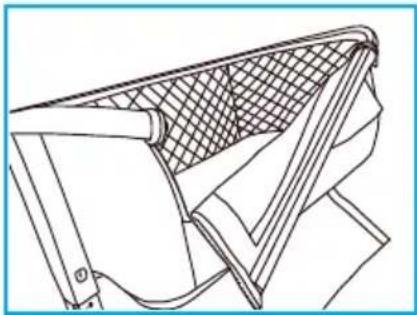

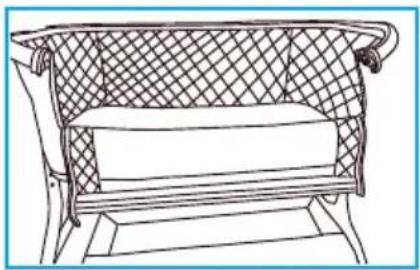

FRENO

Technical line drawing of a meshed fabric or mesh component with a cylindrical part inserted (no text or symbols)

Line drawing of a mechanical component with mesh structure and mounting bracket (no text or symbols)

Line drawing of a wooden bench with patterned backrest and side legs (no text or symbols)

Line drawing of hands holding a tool over a textured surface (no text or symbols)

Simple line drawing of a hand holding a small object above a textured surface (no text or symbols)

Pure technical line drawing of a mechanical joint or fastener without any text, numbers, or symbols

Line drawing of hands holding a string tied with a rope, no text or symbols present

Illustration of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool with circular components, no text or symbols present

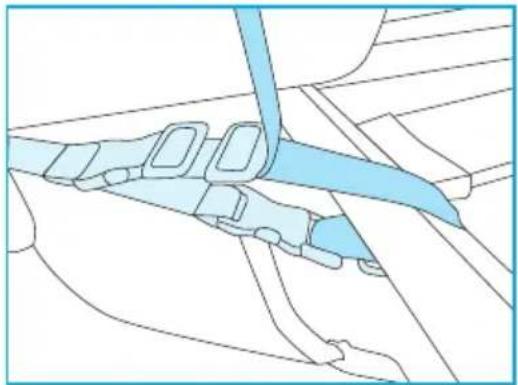

Technical line drawing of a mechanical component with blue highlighted parts (no text or symbols)

Illustration of a blue and white car seatbelt buckle securing a seat (no text or symbols)

USO

MIN 12 cm MIN 34 / MAX 49 cm MIN 33 cm MIN 52 cm MAX 68 cm NO!! OKNO!!

NO!!OK

Line drawing of a standard bed with a backrest and two legs, no text or symbols present

OPTIONAL

SET: Arco porta-juguetes y mosquitera

Plush toy car with teddy bear and cloud-shaped accessories hanging from a curved arm (no text or symbols)

Baby crib with transparent bedding and a patterned blanket, mounted on a metal frame (no text or symbols visible)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

PASSO 1

Pure technical line drawing of a mechanical joint or pipe connection without any text, numbers, or symbols

Simple line drawing of a rectangular frame with vertical supports and a horizontal line at the bottom (no text or symbols)

PASSO 2

Technical line drawing of a mechanical frame structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

PASSO 3

Line drawing of a portable stove with a mesh grille and handle (no text or symbols)

PASSO 4

Inserir o colchão.

Higher 6 * 5 * 4 * 3 * 2 * Lower 1

Line drawing of a hand holding a car seatbelt (no text or symbols)

Mechanical component diagram showing a lever mechanism with a blue arrow indicating direction (no text or symbols present)

Travão ativado

Diagram of a mechanical component with blue arrows indicating direction (no text or symbols)

Travão desativado

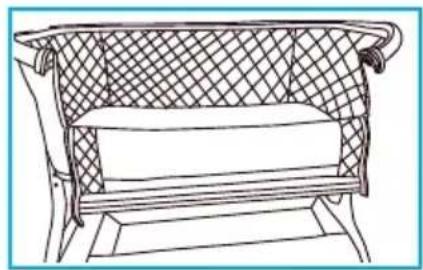

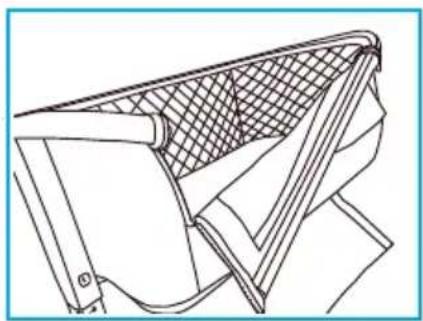

TRAVÃO

Technical line drawing of a mechanical component with a meshed cross-section (no text or symbols)

Line drawing of a mechanical component with mesh structure and mounting bracket (no text or symbols)

Line drawing of a wicker chair with patterned backrest and wooden legs (no text or symbols)

Illustration of hands holding a triangular object with a shaded section, no text or symbols present

Simple line drawing of a person standing on a curved surface with a grid pattern (no text or symbols)

Line drawing of a rope tied with a zipper, showing structural details (no text or symbols)

Line drawing of a hand holding a string tied with a rope, no text or symbols present

Illustration of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool with a circular component, no text or symbols present

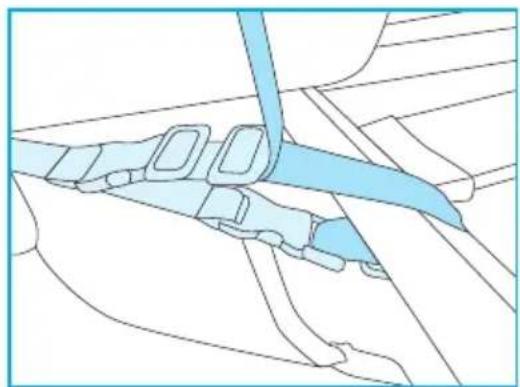

Technical line drawing of a mechanical component with blue highlighted sections (no text or symbols)

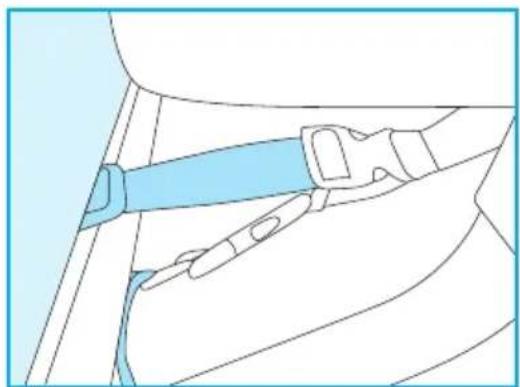

Line drawing of a car seatbelt buckle with blue bandages (no text or symbols)

MIN 12 cm MIN 34 / MAX 49 cm MIN 33 cm MIN 52 cm MAX 68 cm NO!! OKNO!!

UTILIZAÇÃO

NO!!OK

Line drawing of a standard bed with a backrest and two legs, no text or symbols present

OPTIONAL

Plush toy car with two teddy bears and a cloud-shaped ornament hanging from a curved arm (no text or symbols)

Modern baby incubator with transparent protective cover and matching blanket, no visible text or symbols

Line drawing of a mechanical device with attached brackets and mounting base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

BHMA 1

Pure technical diagram of a pipe joint or pipe connection without any text, numbers, or symbols

Simple line drawing of a rectangular frame with vertical supports and a horizontal line at the bottom (no text or symbols)

BHMA 2

Technical line drawing of a mechanical frame structure (no text or symbols)

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

BHMA 3

Line drawing of a portable stove or stove with a mesh grille and handle (no text or symbols)

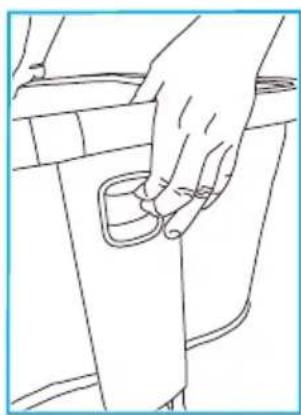

BHMA 4

Higher 6 5 4 3 2 Lower 1

Line drawing of a hand pressing down on a car intake compartment (no text or symbols)

Mechanical component diagram showing a lever and shaft assembly with a blue directional arrow (no text or symbols)

Diagram of a mechanical component with blue arrows indicating direction (no text or symbols)

Technical line drawing of a meshed mechanical component with a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical component with mesh structure (no text or symbols)

Line drawing of a wooden furniture chair with patterned backrest and side legs (no text or symbols)

Illustration of hands holding a shaded triangular object over a surface (no text or symbols)

Simple line drawing of a person standing on a platform with a grid pattern, no text or symbols present.

Line drawing of a garment collar with a zipper, no text or symbols present

Line drawing of hands tying a knot around a string (no text or symbols)

Illustration of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a coiled tube or pipe, with an arrow indicating direction (no text or symbols present)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with blue clamping mechanism (no text or symbols)

Diagram of a car seatbelt buckle with blue bandage (no text or symbols)

MIN 12 cm MIN 34 / MAX 49 cm MIN 33 cm MIN 52 cm MAX 68 cm NO!! OKNO!!

ΧΡΗΣΗ

NO!!OK

Line drawing of a standard bed with a backrest and two legs, no text or symbols present

ΠΡΟΑΙΡΕΤΙΚΟΣ

Product display featuring a baby incubator with teddy bear toys and a baby in a patterned blanket (no text or symbols visible)

Line drawing of a mechanical device with articulated arms and base mount (no text or symbols)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

ШАГ 1

Pure technical line drawing of a mechanical joint or pipe connection without any text, numbers, or symbols

Simple line drawing of a rectangular frame with vertical supports and a central horizontal bar (no text or symbols)

ШАГ 2

Technical line drawing of a mechanical support frame with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

ШАГ 3

Line drawing of a portable stove or refrigerator with a mesh grille and handle (no text or symbols)

ШАГ 4

Вложите матрасик.

Higher 6 * 5 * 4 * 3 * 2 * Lower 1 -

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Mechanical component diagram showing a lever and shaft assembly with a blue directional arrow (no text or symbols)

Тормоз активирован

Line drawing of a mechanical component with blue directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a meshed cross-section (no text or symbols)

Line drawing of a mechanical component with mesh pattern and triangular base (no text or symbols)

Line drawing of a wooden bench with lattice pattern and side supports (no text or symbols)

Illustration of hands holding a textured surface with a hatched pattern (no text or symbols)

Simple line drawing of a human figure standing on a textured surface (no text or symbols)

Line drawing of a garment collar with a zipper and fabric pattern (no text or symbols)

Line drawing of hands tying a knot around a string (no text or symbols)

Illustration of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool over a piece of paper or fabric, with no visible text or symbols.

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a blue ribbon and bracket (no text or symbols)

Diagram of a car seatbelt buckle with blue bandage (no text or symbols)

MIN 12 cm MIN 34 / MAX 49 cm MIN 33 cm MIN 52 cm MAX 68 cm NO!! OKNO!!

ИСПОЛЬЗОВАНИЕ

NO!!OK

Line drawing of a standard bed with a backrest and two legs, no text or symbols present

ПО ЖЕЛАНИЮ

Plush toy car with two teddy bears and a cloud-shaped ornament hanging from a curved arm (no text or symbols)

Baby incubator with transparent protective cover and patterned blanket, no visible text or symbols

Line drawing of a mechanical device with attached bracket and base plate (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

PRVI KORAK

Pure technical line drawing of a mechanical joint or pipe connection without any text, numbers, or symbols

Simple line drawing of a rectangular frame with vertical supports and a central horizontal line (no text or symbols)

DRUGI KORAK

Technical line drawing of a mechanical frame structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

TREĆI KORAK

Line drawing of a hand opening a rectangular box with a mesh cover (no text or symbols)

ČETVRTI KÓRAK

Umetnite madrac. Niža viša 123456

Higher 6 5 4 3 2 Lower 1

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

PODEŠAVANJE VISINE KREVETIĆA

Visina krevetića može se prilagoditi različitim položajima. Da biste prilagodili njegovu visinu, povucite ručicu za podešavanje (lijevo i desno) prema gore i istovremeno podignite ili spustite krevetić dok ne dođete do željenog položaja (sl. 1).

Mechanical component diagram showing a lever and shaft assembly with a blue directional arrow (no text or symbols)

Kočnica aktivirana

Line drawing of a mechanical component with blue directional arrows indicating movement (no text or symbols)

Kočnica deaktivirana

KOČNICA

Technical line drawing of a meshed fabric or mesh component with a cylindrical opening (no text or symbols)

Line drawing of a mechanical component with mesh structure (no text or symbols)

Line drawing of a wicker chair with mesh backrest and wooden legs (no text or symbols)

Illustration of hands holding a triangular object with a grid pattern, no text or symbols present

Simple line drawing of a person standing on a textured surface with no text or symbols

Line drawing of a garment collar with a zipper and fabric pattern (no text or symbols)

Line drawing of a hand holding a string tied with a rope, no text or symbols present

Illustration of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand adjusting a mechanical component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand holding a tool with a circular component, no text or symbols present

Technical line drawing of a mechanical component with blue highlighted sections (no text or symbols)

Diagram of a car seatbelt buckle being adjusted for a seatbelt (no text or symbols present)

KORIŠTENJE

MIN 12 cm MIN 34 / MAX 49 cm MIN 33 cm MIN 52 cm MAX 68 cm NO!! OKNO!!

KORIŠTENJE

NO!!OK

Line drawing of a standard bed with a backrest and two legs, no text or symbols present

OPTIONAL

Plush toy car with two teddy bears and a cloud-shaped ornament hanging from a curved arm (no text or symbols)

Baby incubator with transparent protective cover and patterned blanket, no visible text or symbols

FORMALNO JAMSTVO
