USER MANUAL Baby Carrier Free BabyBjörn

KEEP FOR FUTURE REFERENCE.

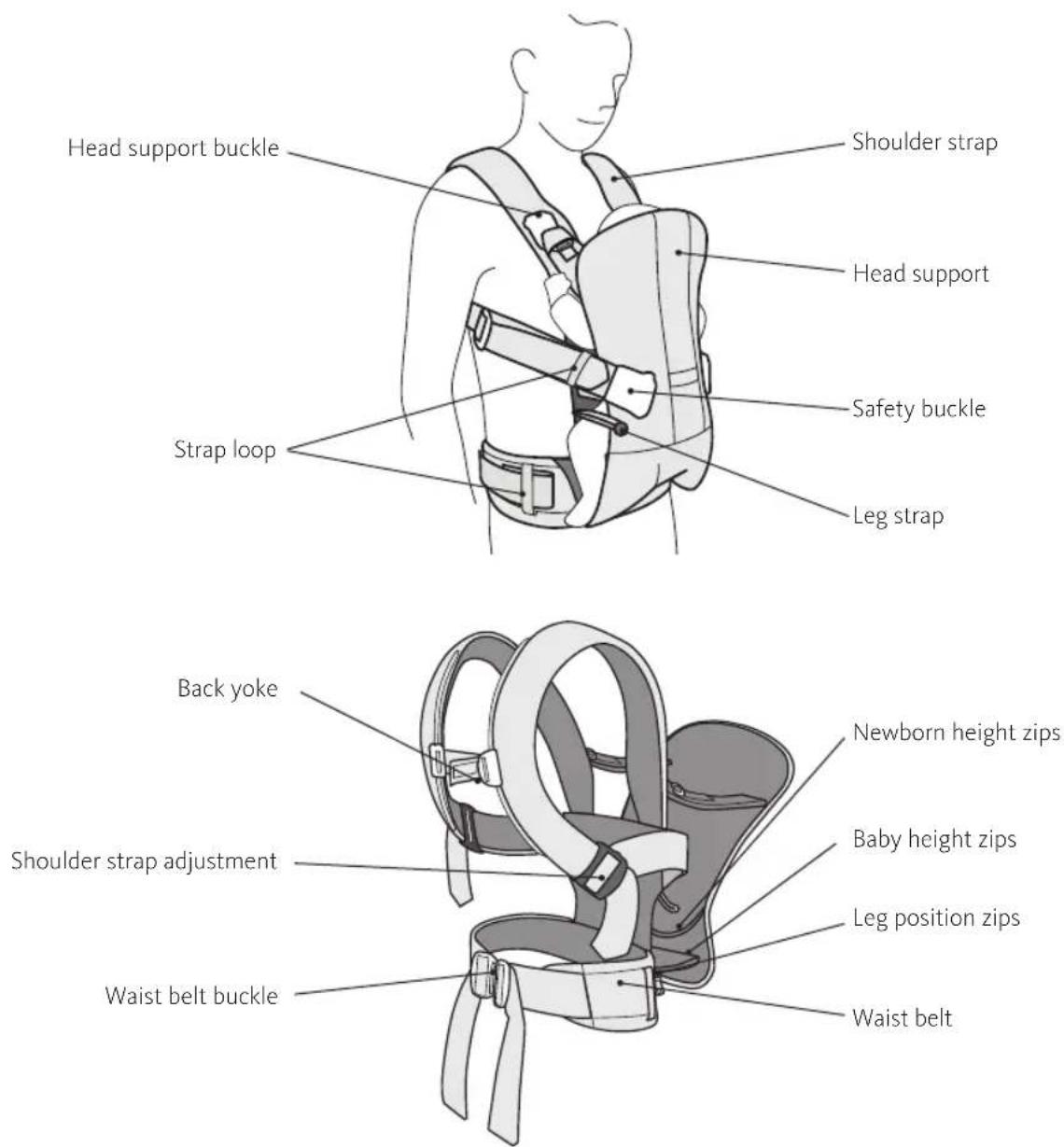

The baby carrier’s parts Head support buckle Strap loop Back yoke Waist belt buckle Shoulder strap adjustment Shoulder strap Head support Safety buckle Leg strap Leg position zips Waist belt Newborn height zips Baby height zips Baby Carrier One is all you need Congratulations! Choosing BABYBJÖRN Baby Carrier One will ensure long-lasting ergonomic carrying and maximum comfort for you and your child from newborn up to approx. three years. Min. 3.5 kg/53 cm, max. 15 kg/100 cm. This baby carrier has been developed in consultation with paediatricians and provides correct support for your growing child’s head, back and hips. We hope you and your child will be satisfied, and we welcome your questions or comments.Ny bild nr 2

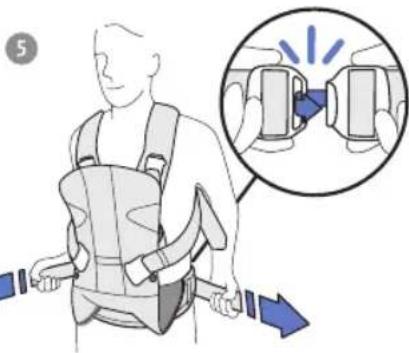

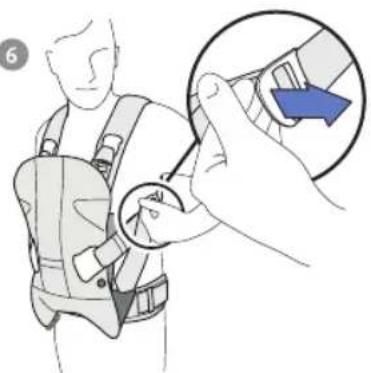

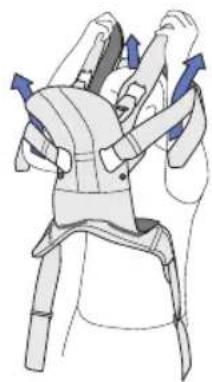

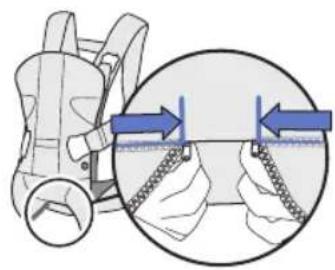

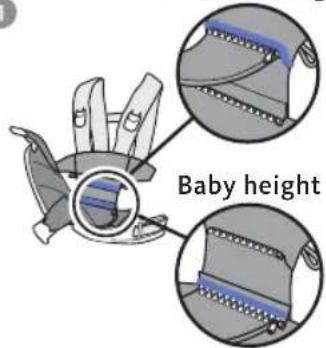

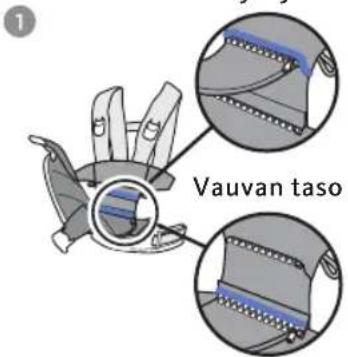

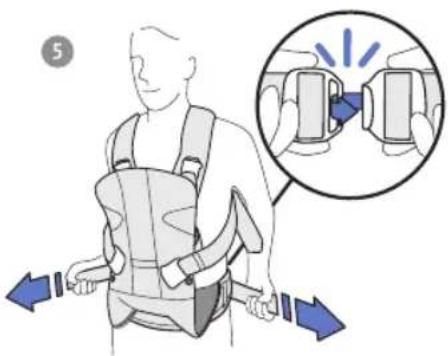

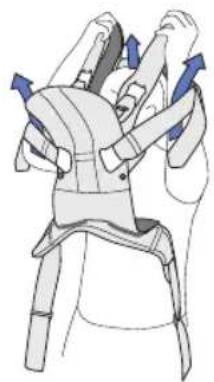

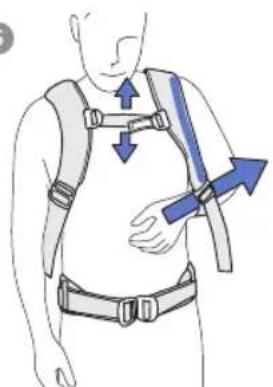

Front and back carrying positions NEWBORN 62~68 CM UP TO 100 CM FROM 1 YEAR Facing inwardsNewborn height–approx. monthsMin. . kg/ cm Facing inwardsBaby heightApprox. months Max. kgFacing outwardsBaby heightMin. approx. months Max. kgFacing inwards Baby heightApprox. monthsMax. kgBack carryingBaby heightapprox. months Max. kg/ cm Put on the baby carrier like a pullover sweater. For newborn use upper newborn height. From ~ cm use lower baby height. Always check that the entire zip is closed. Use normal leg position for newborn. Open zips on both sides. From cm you can start using wide leg position in inward-facing position. The zips can be locked in normal and full wide leg position. Baby height Newborn height Place the back yoke just below your shoulder blades. Adjust height and width vertically and sideways. Buckle the waist belt at your back. It is locked when you hear a click. Tighten by pulling the straps. Loosen the shoulder straps by lifting the outer edge of the buckles. How to use the baby carrier11

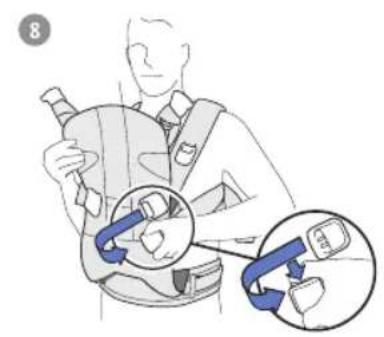

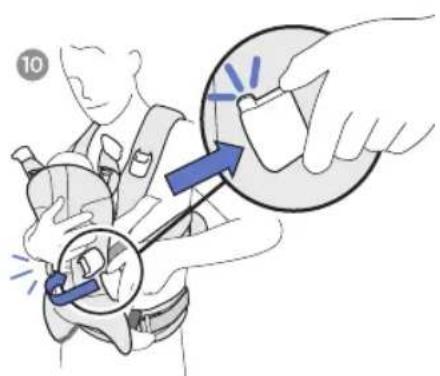

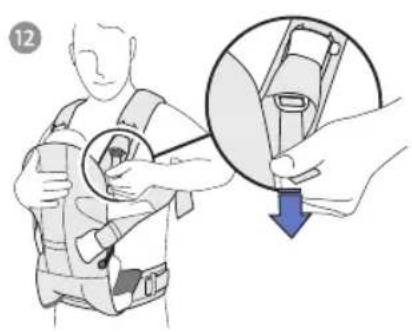

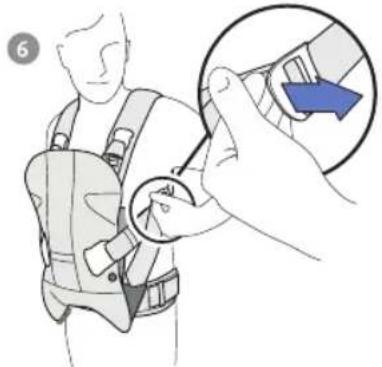

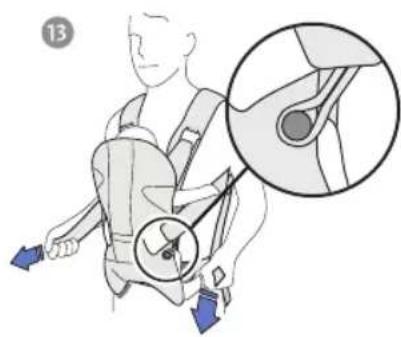

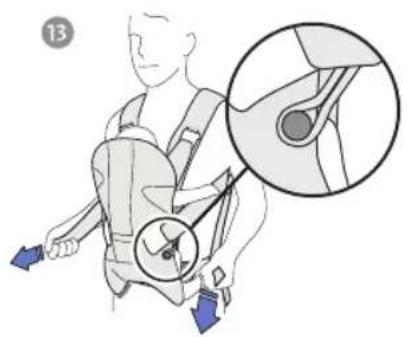

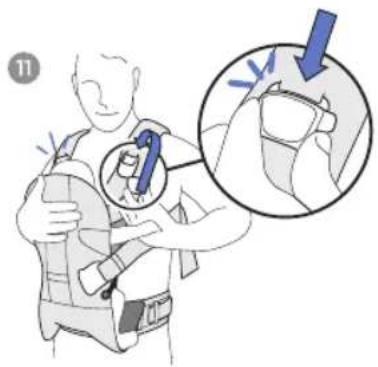

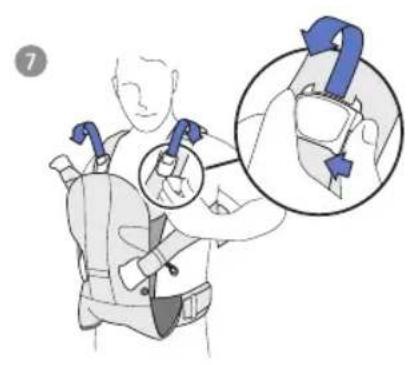

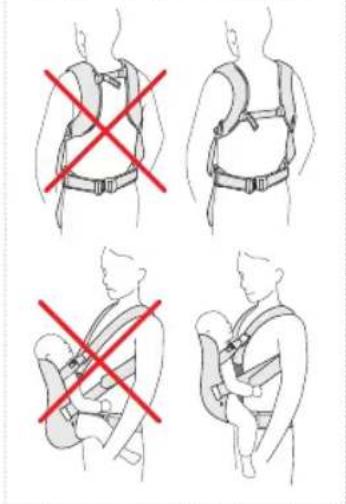

Fasten the safety buckle. It is locked when you hear a click. Fasten the head support on both sides. It is locked when you hear a click. Adjust the head support. To tighten, carefully pull the adjustment straps. To loosen, lift the outer edge of the buckles. How to use the baby carrier Unbutton the safety buckle on one side. Push button and pull downwards/inwards. Place the child in the baby carrier facing you, with the legs on either side of the front and the arms through the armholes. Unbutton the head support on both sides. Push button and pull upwards. Tighten the shoulder straps. Fasten the leg straps on both sides for a child smaller than 4.5 kg. HELPFUL HINT! If you want to carry your child higher up, lift from underneath and place the waist belt higher up. Tighten the shoulder straps again. CARRY COMFORTABLY! IMPORTANT! A child too big to use the armholes can rest their arms above the armholes.11

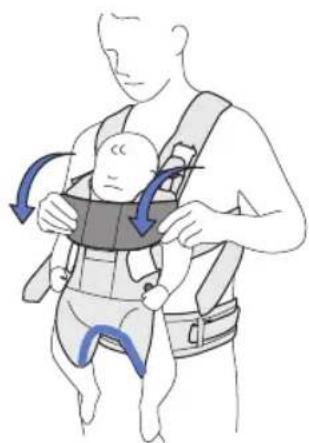

Unfasten the leg straps if they are being used. Unfasten the head support buckles. Loosen the shoulder straps and unfasten the safety buckles on one or both sides. Remove your child. Facing inwards Facing inwards Back carryingFacing outwards Fold down the head support. Remember to always use normal leg position when carrying your child facing outwards. We recommend carrying your child facing inwards at least up until 5 months. Around that age your child’s neck, spine and hips will be strong enough for you to either carry your child facing inwards or outwards. Max. weight for carrying outwards 12 kg. How to carry your child facing outwards Choose between normal and wide leg position by opening or closing the leg position zips. How to remove your child How to choose leg position

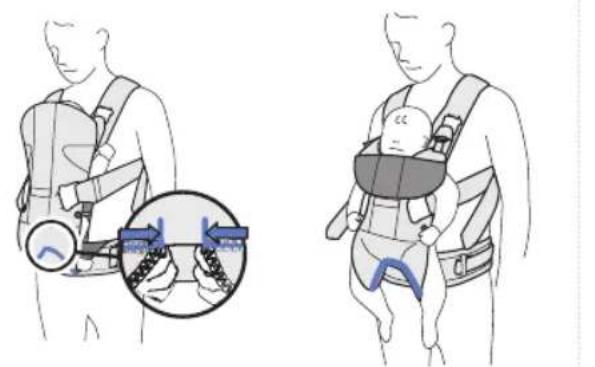

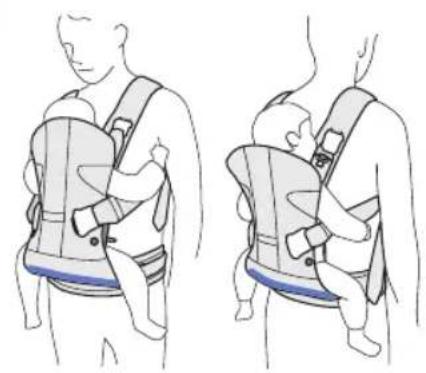

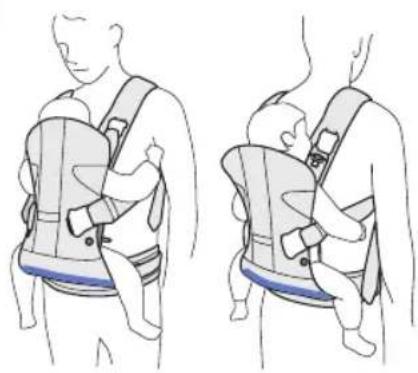

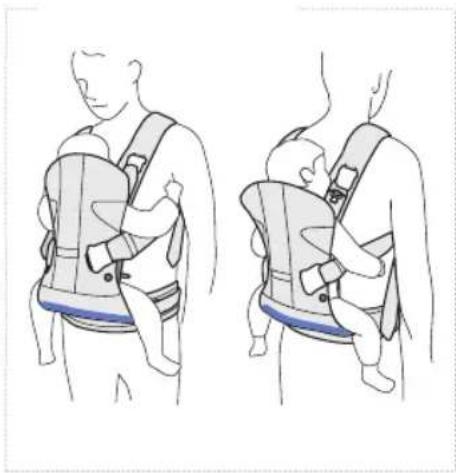

NORMAL LEG POSITION WIDE LEG POSITION

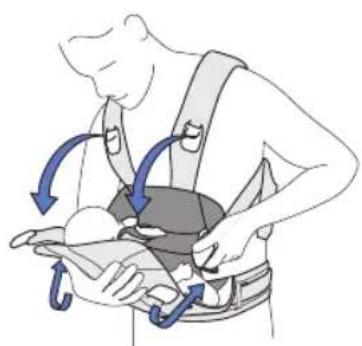

NOTE! Always use the normal leg position when carrying your child facing outwards. NOTE! Always use the wide leg position when carrying your child on your back. Don’t forget to lock the zips in wide leg position. HELPFUL HINT! Open the front on both sides to lift out your sleeping child without waking him or her.IMPORTANT! Do not hold onto the safety buckle when moving your child round to your back.

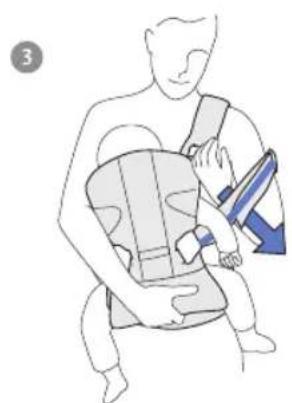

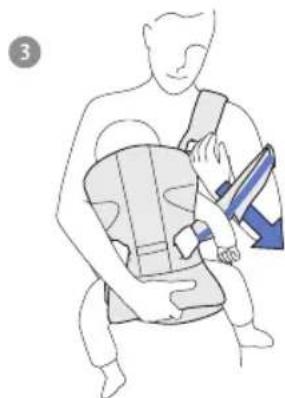

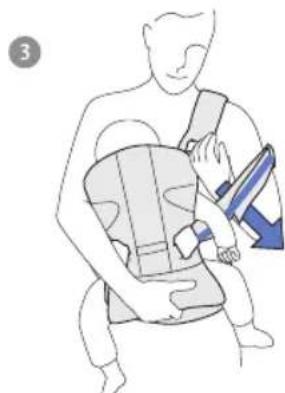

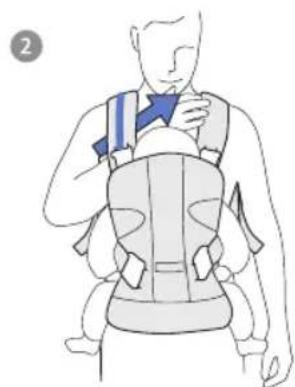

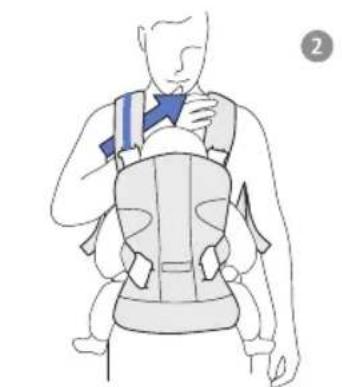

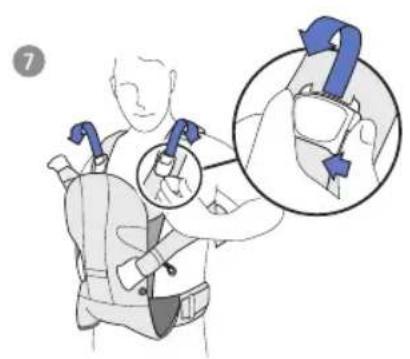

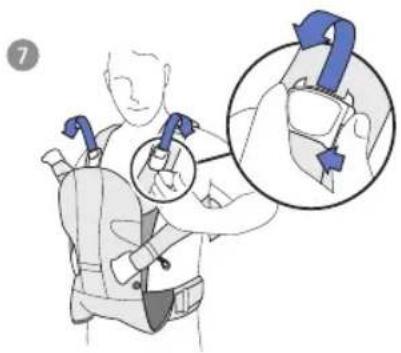

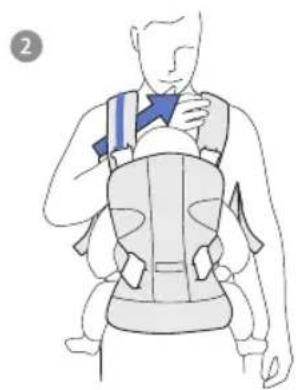

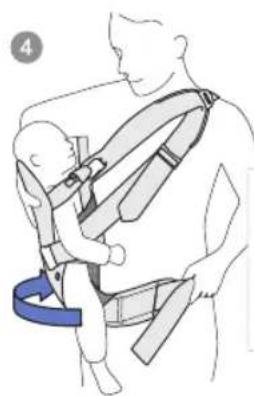

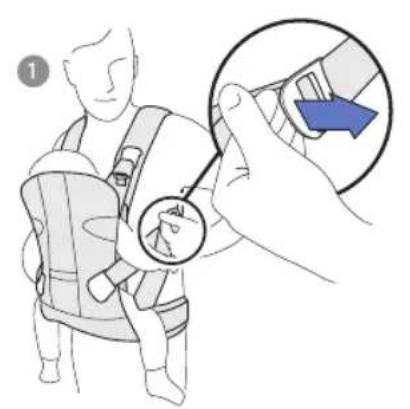

Baby Carrier One/Cotton Mix Main fabric: 60% cotton, 40% polyester Lining: 100% cotton Waist belt lining: 100% cotton Baby Carrier One Air/Mesh Main fabric: 100% polyester Cover for leg position zip: 100% cotton Baby Carrier One Outdoors Main fabric: 100 % polyamide Fabric coating: 100% polyurethane Mesh fabric: 100% polyester Cover for leg position zip: 100% cotton How to carry your child on your back Fabric information From 12 months of age your child is big enough to be carried on your back. Start by placing your child in the baby carrier facing you, see Pics 1-13 on previous pages. Use the wide leg position. Then follow the instructions below. Slip your right arm upwards under the shoulder strap. Loosen the shoulder straps by lifting the outer edge of the buckles. Slide the shoulder straps back in place. Make sure they are not twisted. Place the back yoke where it is comfortable by adjusting it vertically and sideways. Tighten the waist belt and finally the shoulder straps by pulling backwards. Slip your left arm downwards under the lower part of the shoulder strap. The shoulder strap is now a closed loop around your body. Lift your child from underneath and carefully move him or her round to your back under your lifted right arm. This product comes in three collections.

Baby Carrier One Outdoors Main fabric: polyamide Fabric coating: polyurethane Mesh fabric: polyester Cover for leg position zip: cotton WASHING INSTRUCTIONS Wash separately. Use an eco-friendly, gentle, bleach-free detergent. We recommend using a washing bag. Do not use drying cabinet. SAFETY APPROVAL BABYBJÖRN Baby Carrier One, One Air and One Outdoors meet the safety requirements of EN-:. Baby Carrier One/Cotton Mix Baby Carrier One Air/Mesh Baby Carrier One Outdoors WARNING!

• This carrier is intended for use by adults only.

• For low birthweight babies and children with medical conditions, seek advice from a health professional before using the product.

• Only use this carrier for children weighing . kg.

• For children of –approx. months always use the upper newborn height.

• Small children can fall through a leg opening. The leg straps must be used for children weighing .. kg.

• The child must face you (inwards) until they can hold their head upright (approx. months).

• This carrier may only be used when you are walking, sitting or standing.

• This carrier is NOT suitable for use during sporting activities.

• This carrier must not be used as a car seat.

• Your balance may be adversely aected by your movement and that of your child.

• Take care when bending or leaning forward or sideways. Remember to bend at the knees NOT the waist.

• Make sure the child’s nose and mouth have sucient space for breathing in the carrier.

• Avoid dressing your child too warmly.

• Check that all buckles are securely fastened before using the carrier.

• Stop using the carrier if parts are missing or damaged.

• Never lie down or sleep with your child in the carrier.

• Regularly check that your child is comfortably and securely seated in the carrier, especially when using as a back carrier.

• Be aware of hazards in the domestic environment e.g. heat sources, spilling of hot drinks.14

Baby Carrier One Outdoors
