USER MANUAL Baby Carrier Harmony BabyBjörn

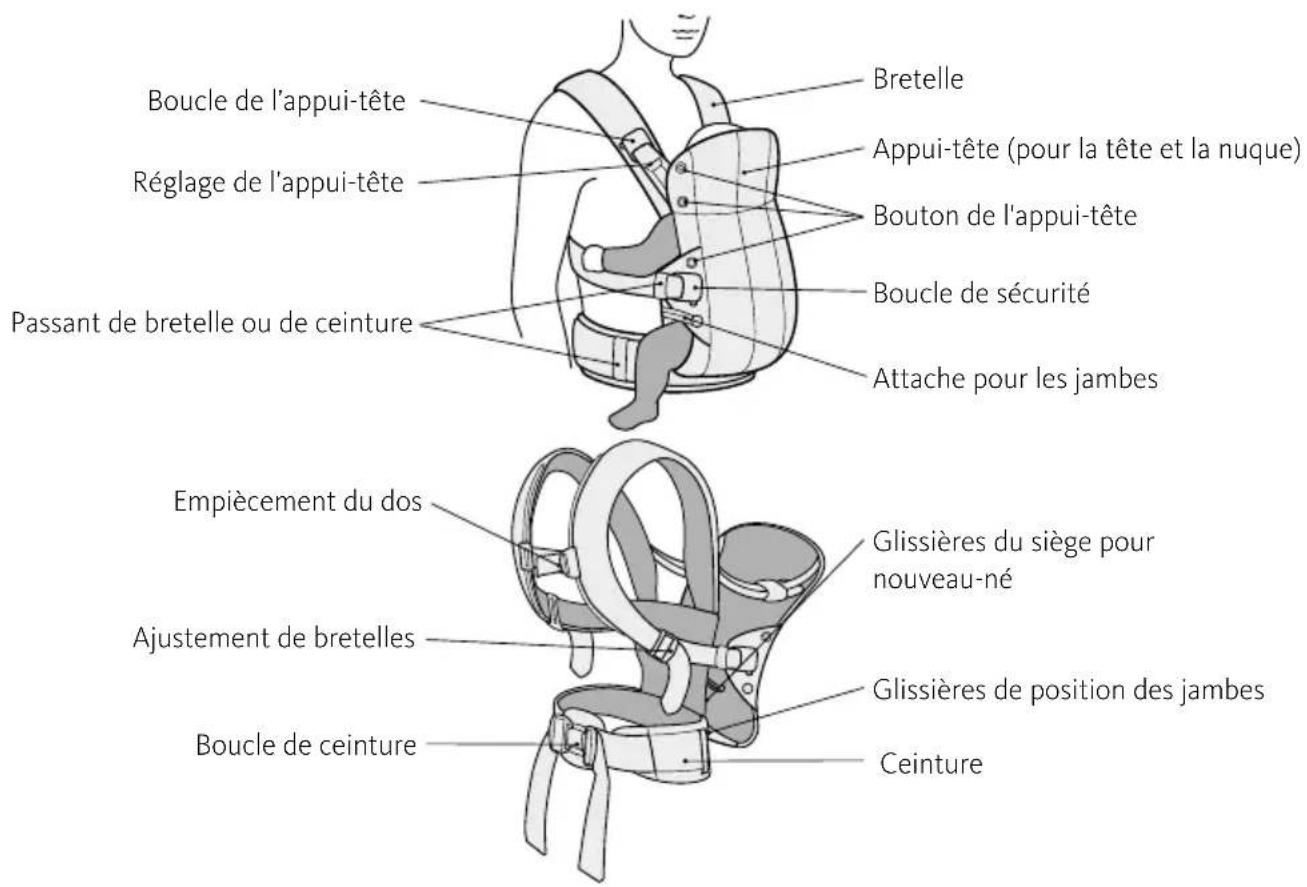

Back carrying Baby seat 12– approx. 36 months. Max 40 lbs, 40” Head support buckle Strap loop Shoulder strap Neck and Head support Head support button Safety buckle Leg strap Back yoke Waist/hip belt buckle Shoulder strap adjustment Leg position zips Waist/hip belt Newborn seat zips Head support adjustment NEWBORN When carrying newborn, place waist belt higher up around stomach to be able to kiss top of their head. Adjust shoulder straps accordingly. Facing-in position Newborn seat 0– approx. 4 months. Min. 7 lbs, 21” Leg straps for babies smaller than 10 lbs

From newborn 0 months, 7 lbs / 21” to 40 lbs / 40”, approx. 36 months Facing-out position When child can hold head upright unaided. Approx. 5–15 months Max 26 lbs Facing-in position Approx. 4–36 months. Max. 40 lbs Smaller children is preferred higher up in kissing position4 5 ADJUSTMENTS

NEWBORN 24.4–26.8” UP TO 40”

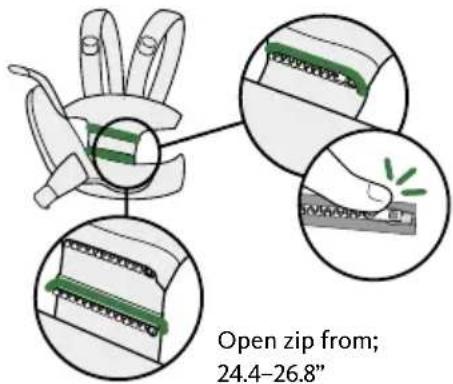

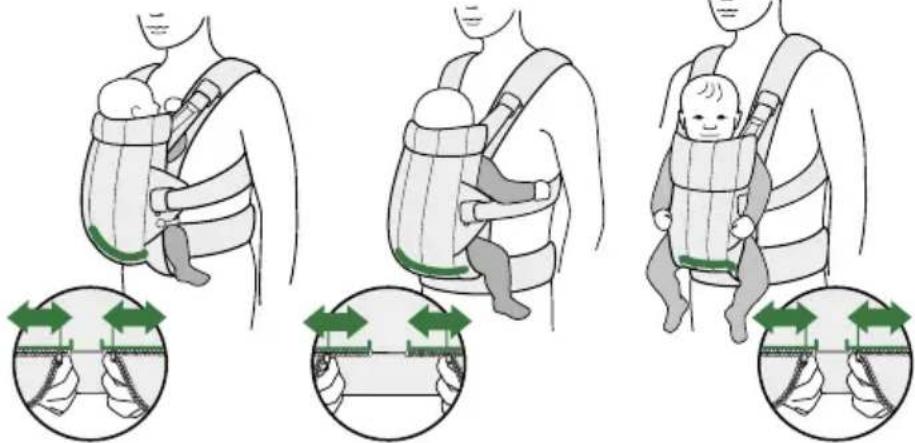

Open zip from; 24.4–26.8” Newborn- fully closed locked zip 7 lbs, 21”–24.4-26.8”

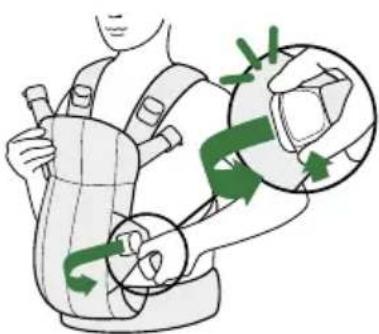

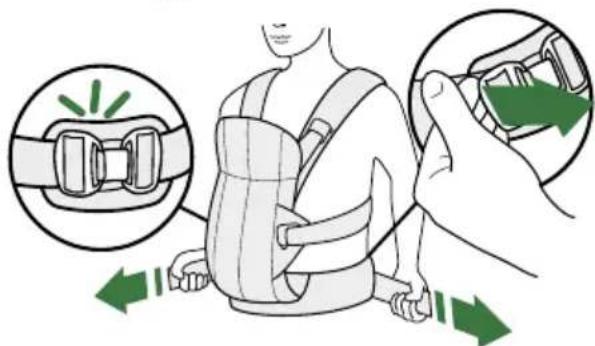

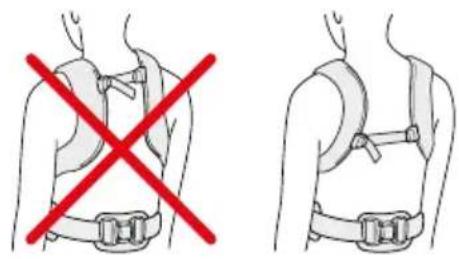

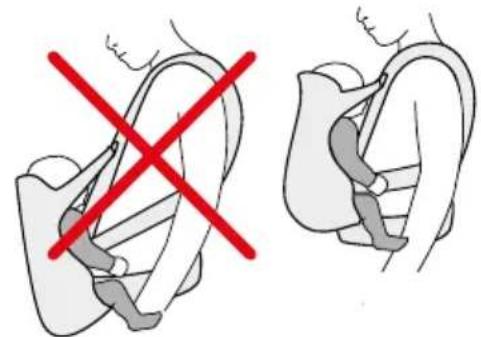

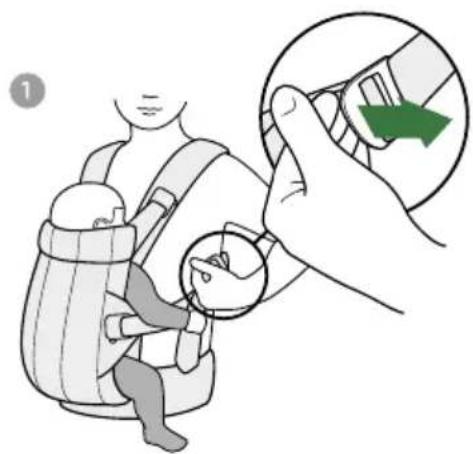

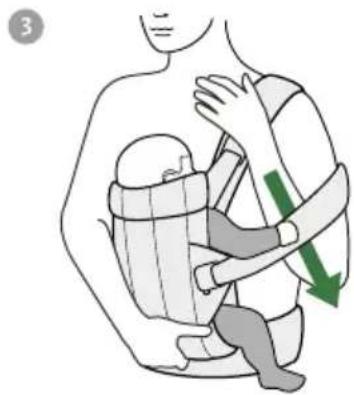

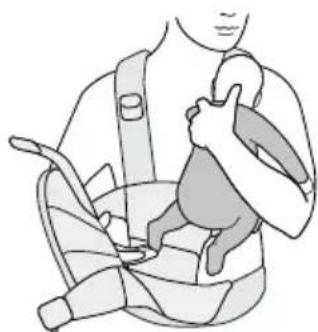

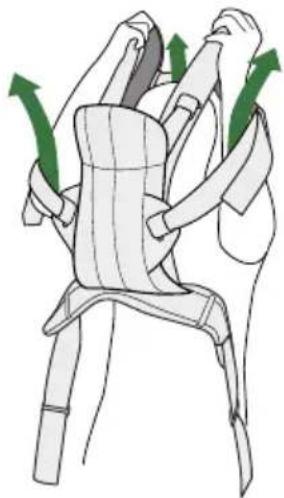

Seat width can be adjusted by two zips on outside. Open zips to allow child to move lower legs freely. Zips can be locked in any position. Buckle waist belt in back. If too tight, lift outer edge of buckle. Place child facing you with their legs on either side of front and arms through armholes.CARRY SAFELY AND COMFORTABLY

To avoid buttons to detach. Do not pull the straps of the neck and head support to tight.

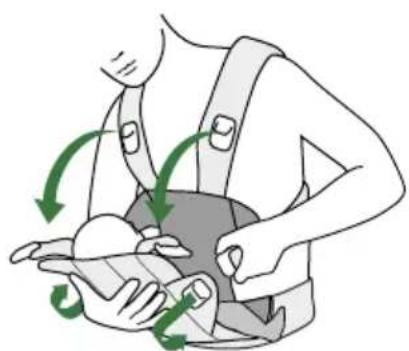

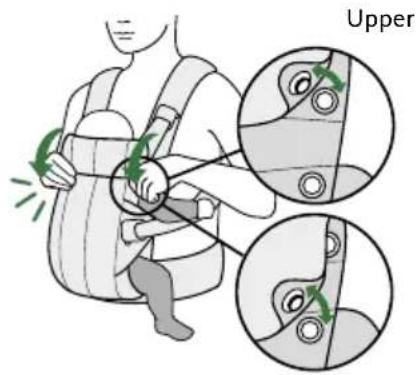

Adjust the head support to give child’s neck sucient support. Adjust head support by pulling straps to desired position. Make sure there is sucient space around the baby’s nose and mouth for unobstructed breathing in the baby carrier. Attach leg straps on both sides for babies smaller than 10 lbs. In order to reduce size of leg openings and preventing child to fall out of leg openings. Leg openings shall fit baby’s legs snugly. Lower UpperEN TIP! Open the front completely to lift out your sleeping child without waking them.

HOW TO REMOVE YOUR CHILD

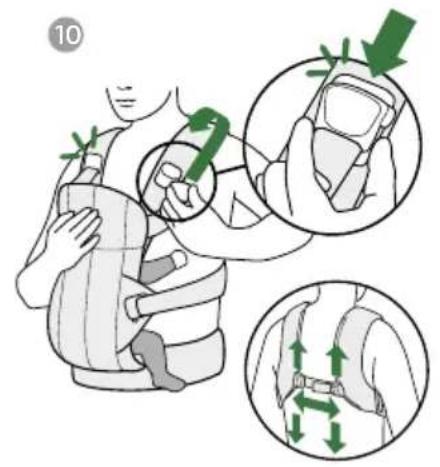

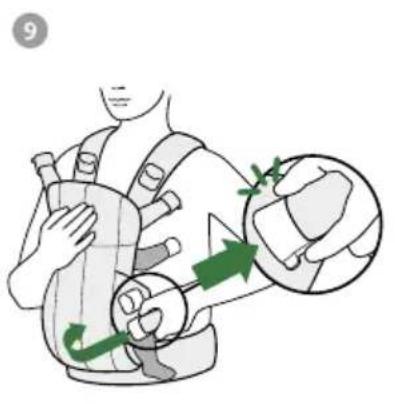

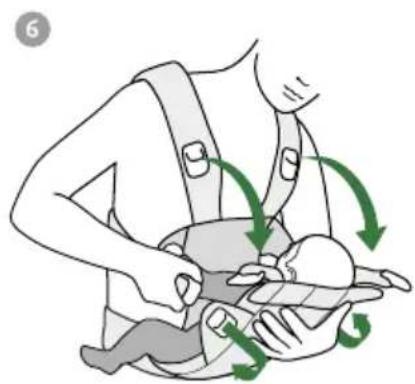

Unfasten leg straps if they are being used. Unfasten head support buckles. Loosen shoulder straps and unfasten safety buckles on one or both sides. Remove your child.

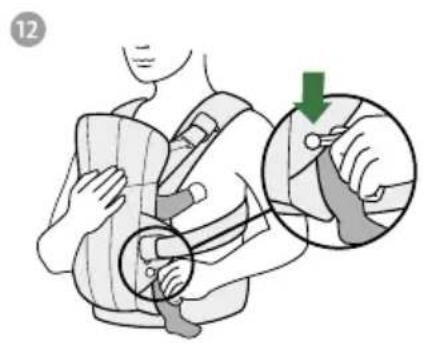

Open leg position zips on both sides. Child must face you (inwards) until he/she can hold his/her head upright unaided. (approx. 5 months), around that age your child´s neck, back and hips will be strong enough to face forward. Max. weight for facing-out position is 26 lbs. Lower

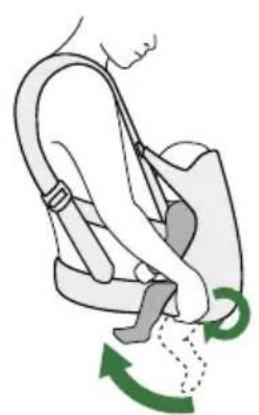

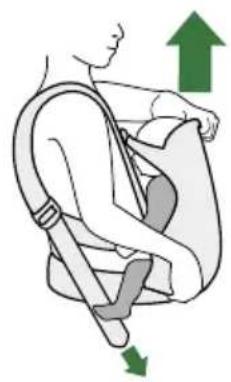

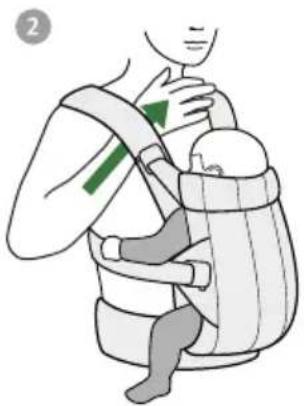

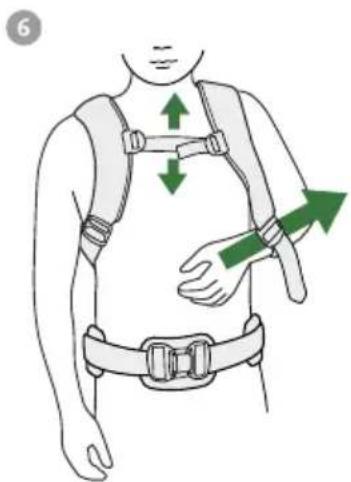

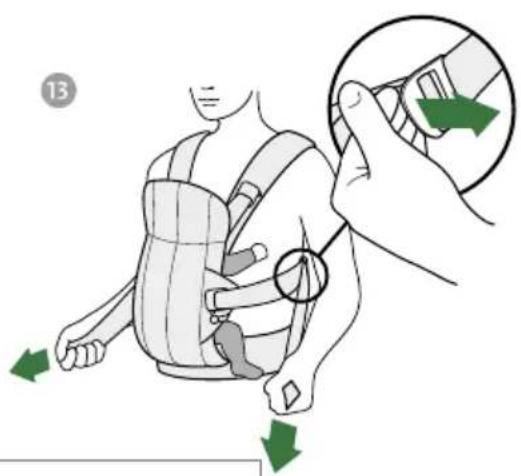

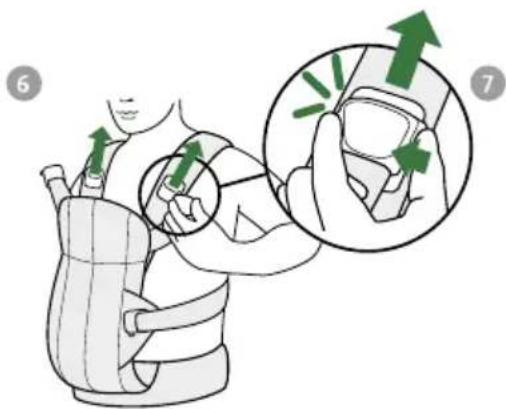

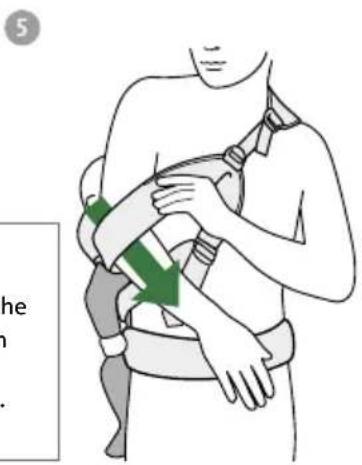

HOW TO ADJUST THE CHILD’S POSITION Slide hands inside the baby carrier and place them under the child’s bottom and thighs. Lift child slightly and gently fold their thighs in towards you. Child’s knees should be placed in a high position and they should be able to move their lower legs freely. Keep one hand under child and pull head support. Finally adjust shoulder straps. Doing this will ensure better carrying comfort.8 HOW TO CARRY YOUR CHILD ON YOUR BACK BackCarrying 12 months- approx. 36 months, Max 40lbs, 40” Start by placing child facing you, see Pics 1–13. Make sure that zips that adjust the seat width are completely closed. Slip right arm upwards under shoulder strap. Loosen shoulder straps by lifting the outer edge of the buckles. Slide shoulder straps back in place. Check that they are not twisted. Place back yoke where it feels comfortable. Adjust height and width by pulling vertically and sideways. Tighten waist belt /shoulder straps by pulling backwards. Slip left arm downwards under lower part of shoulder strap. The shoulder strap is now a closed loop around your body. Lift child from underneath and carefully move round to your back under your lifted right arm. IMPORTANT! Do not hold on to the safety buckle when moving your child round to your back. IMPORTANT! Adjust head support to prevent child’s head from tilting backwards8 9

SAFETY APPROVAL BABYBJÖRN Baby Carrier Harmony meets the safety requirements of EN 13209-2:2015 and ASTM F2236. FABRIC INFORMATION Main material: 100% Polyester Other fabric: 80% Polyester, 16% Cotton, 4% Elastane Leg Zip Cover: 100% Cotton All materials used meet the criteria for Oeko-Tex Standard 100, Class 1 for baby products. This means that they are safe for baby’s skin and safe to chew on. WASHING INSTRUCTIONS Fabric Machine wash separately warm, mild detergent, gentle cycle and line dry (do not tumble dry). Do not use chlorine bleach or fabric softener. NEVER IRON! We recommend mashine wash this product in a wash bag.

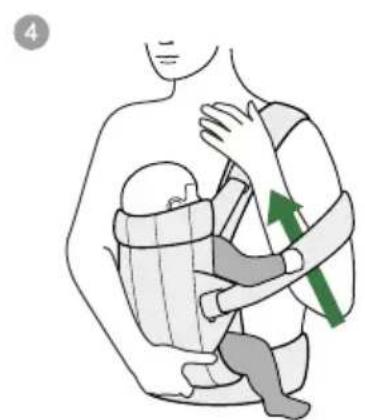

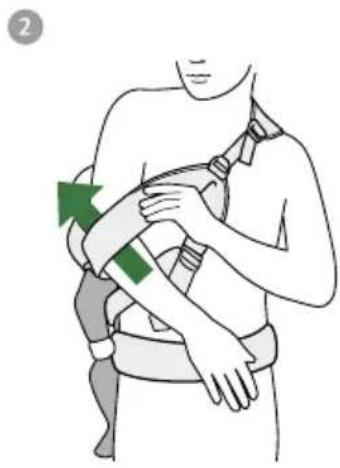

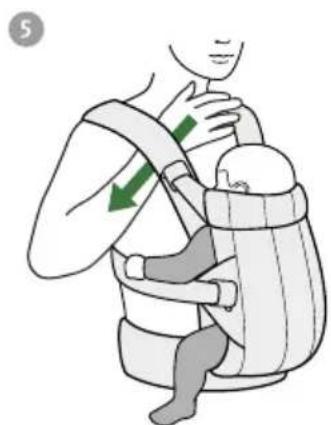

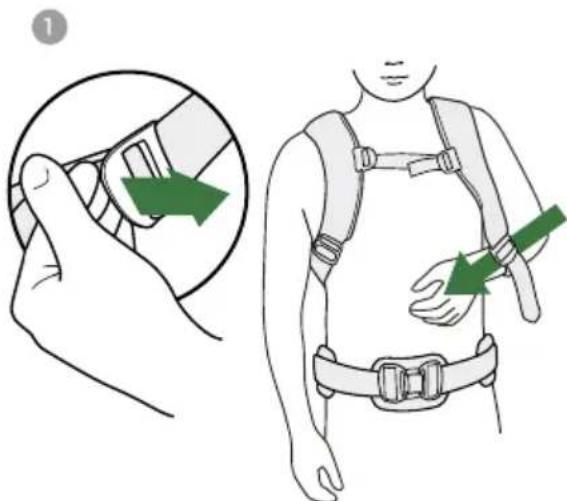

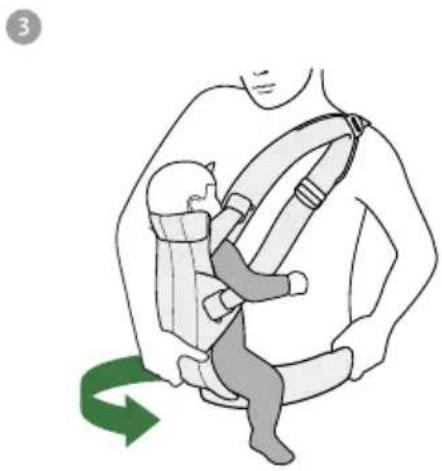

TO REMOVE CHILD, TURN BACK TO YOUR FRONT FIRST Loosen straps. Slide left arm downwards under shoulder strap. Carefully move child from your back to your front, underneath your lifted right arm. Slide shoulder straps back in place (check that they are not twisted.). Tighten waist belt. Unfasten head support buckles and unfasten safety buckles on one or both sides. Remove your child. Slide right arm upwards under shoulder strap. Slide left arm downwards under lower part of shoulder strap. (the shoulder strap is now a closed loop around your body.10 WARNING! FALL AND SUFFOCATION HAZARD FALL HAZARD - Infants can fall through a wide leg opening or out of carrier

• Adjust leg openings to fit baby’s legs snugly.

• Before each use, make sure all buckles are secure.

• Take special care when leaning or walking.

• Never bend at waist; bend at knees.

• Only use this carrier for children between 8 lbs–40 lbs.

• Only use carrier for children 21”–40” SUFFOCATION HAZARD - Infants under 4 months can suocate in this product if face is pressed tight against your body

• Do not strap infant too tight against your body.

• Allow room for head movement.

• Keep infant’s face free from obstructions at all times.

• If you nurse your baby in carrier, always reposition after feeding so baby’s face is not pressed against your body. IMPORTANT - Read all instructions before assembling and using the soft carrier. Keep instructions for future use. Your balance may be adversely affected by your movement and that of your child Take care when bending or leaning forward or sideways This carrier is not suitable for use during sporting activities Read all instructions before assembling and using the soft carrier Keep instructions for future use When using the soft carrier monitor your child For low birthweight babies and children with medical conditions, seek advice from a health professional before using the product Stop using the carrier if parts are missing or damaged. Check for ripped seams, torn straps or fabric and damaged fasteners before each use Premature infants, infants with respiratory problems, and infants under 4 months are at greatest risk of suocation. Make sure the child’s nose and mouth have sucient space for breathing in the baby carrier. Avoid dressing your child too warmly. Never lie down or sleep with baby in baby carrier.10 11 Child must face you (inwards) until he/she can hold his/her head upright (approx. 5 months). Always adjust the baby carrier to your child’s size according to instructions. Check to assure all buckles, snaps, straps and adjustements are secure before each use. Ensure proper placement of child in product including leg placement The leg straps must be used for children weighing between 7–11 lbs. Small children can fall through a leg opening The baby carrier may only be used when you are walking, sitting or standing. Never use a soft carrier when balance or mobility is impaired because of exercise, drowsiness, or medical conditions. Never use a soft carrier while engaging in activities such as cooking and cleaning which involve a heat source or exposure to chemicals. Never wear a soft carrier while driving or being a passenger in a motor vehicle. This baby carrier is intended for use by adults only. Always adjust the baby carrier to your child’s size according to instructions. Only use this baby carrier for children weighing between 8–40 lbs Only use for children of height 21”–40” When using the soft carrier monitor your child. Regularly check that your child is securely seated in baby carrier, especially when using as back carrier. This baby carrier is intended for use by adults only. EN12 DE CM ,, PO À CM PO
