USER MANUAL Easy Go BabyBjörn

Line drawing of a simple rectangular stool or stand with four legs and a flat top (no text or symbols)

BABYBJÖRN®

ENGLISH 4-7

DEUTSCH 8–11

FRANÇAIS 12–15

ESPAÑOL 16–19

PORTUGUÊS 20–23

ITALIANO 24–27

NEDERLANDS 28–31

SVENSKA 32-35

DANSK 36–39

SUOMI 40-43

РУССКИЙ 44-47

POLSKI 48-51

한국어 52-55

简体中文 56-59

繁體中文 60-63

BABYBJÖRN TRAVEL COT

Congratulations on your choice of the BabyBjörn Travel Cot, which is a practical and stable travel cot that ensures your child can sleep securely and in comfort. The travel cot can be used for newborns and up until your child is around three years of age.

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

PARTS OF THE BABYBJÖRN TRAVEL COT

Refer to these parts when reading the instructions.

Line drawing of a modular folding table with mesh pattern and top panel (no text or symbols)

Mattress, consisting of:

- Cover

- Foam

- Base

Strap loops

Hinge

Removable fabric

Legs

Hooks

Foot plugs

IMPORTANT!

Do NOT use the travel cot without the original mattress with base from BABYBJÖRN. Non-usage of the stiffened base can result in your child overturning the cot.

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

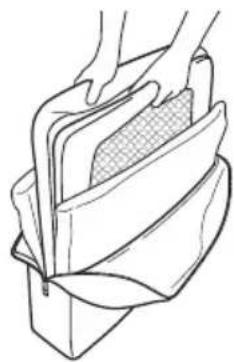

1. Open the bag. Lift out the cot.

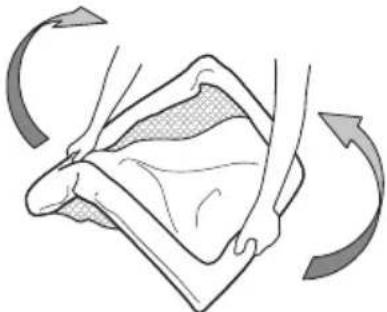

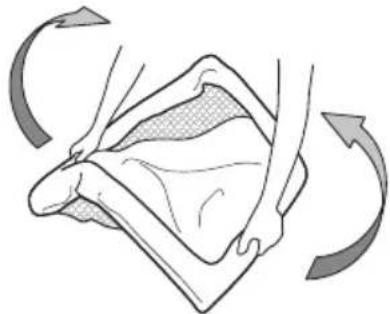

2. Hold the two short sides. Turn the cot so its legs are towards the floor and unfold it with one clear movement so that the legs unfold.

Diagram showing two steps of a mechanical assembly: step 1 with a handle and angle, step 2 with a tool and directional arrows (no text or symbols)

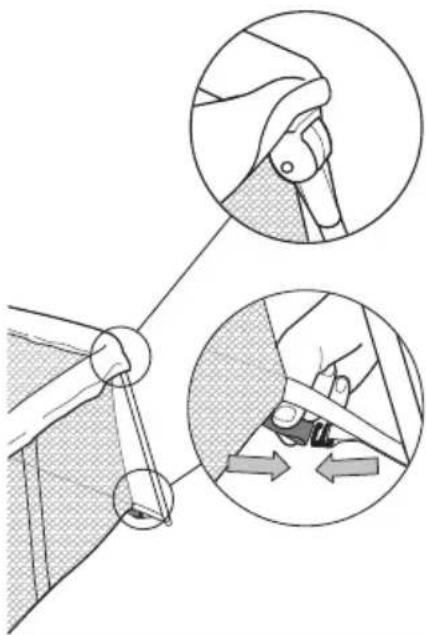

1. Make sure that each leg is securely in place by trying to push it back into its folded position without pulling the leg.

2. Place the mattress inside the cot. Pull the four red strap loops on the underside of the mattress cover through the holes in the bottom of the cot. Fasten each loop to a red hook.

TECHNICAL INFORMATION

• Weight: 6 kg (including case). Wooden leg version: 5,5 kg
• Height/length/width when transported: 49 x 60 x 14 cm
• Height/length/width when assembled: 82 x 112 x 64 cm
- Mattress: 60 × 105 ~cm
• Cot fabrics: 100% polyester
• Mattress cover: 70% polyester, 30% cotton
• Mattress cover in UK: 100% Trevira fabric (Polyester)
- BabyBjörn Travel Cot is approved for Oeko-tex Standard 100, product class 1 – for baby products.

FOLDING UP THE COT

1. Unfasten the hooks. Remove the mattress from the travel cot. Fold up the mattress with the base and place in the bag. Turn the cot upside down.

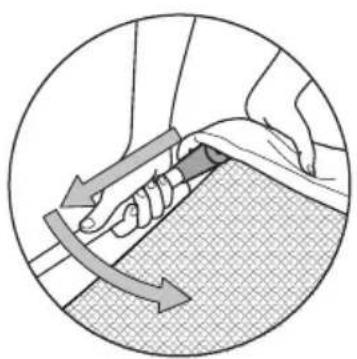

Release one leg at a time by pulling the legs out. PULL!

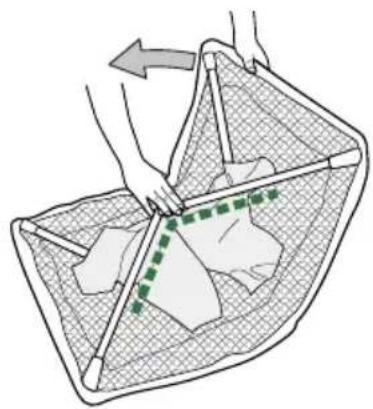

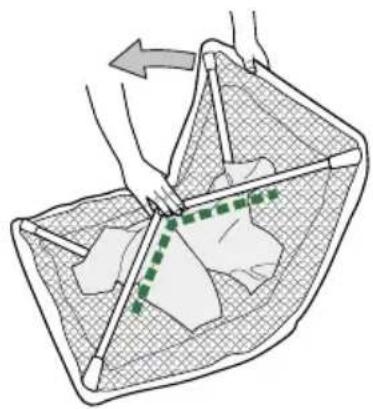

1. Once released, fold the legs down and lay them diagonally. The legs shall preferably be placed in a certain order, illustrated below.

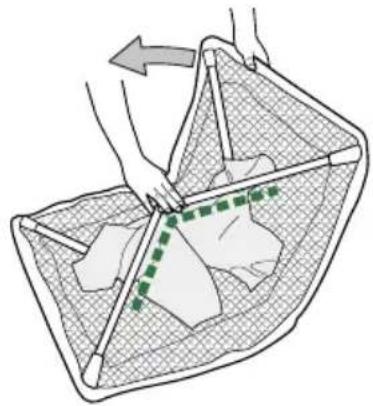

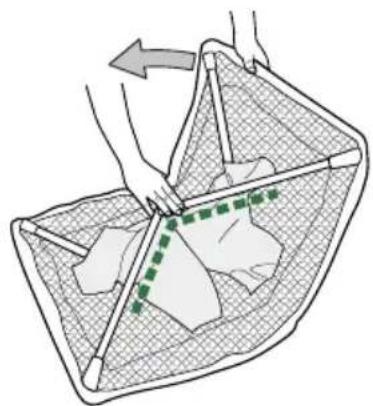

2. Fold up the travel cot. Place the cot in the bag between the folded mattress.

Illustration of hands using a tool to lift a textured surface, showing motion arrows (no text or symbols)

Illustration of a person using a net to catch or feed, with a green dashed line indicating the net's direction (no text or symbols present)

WASHING THE COT

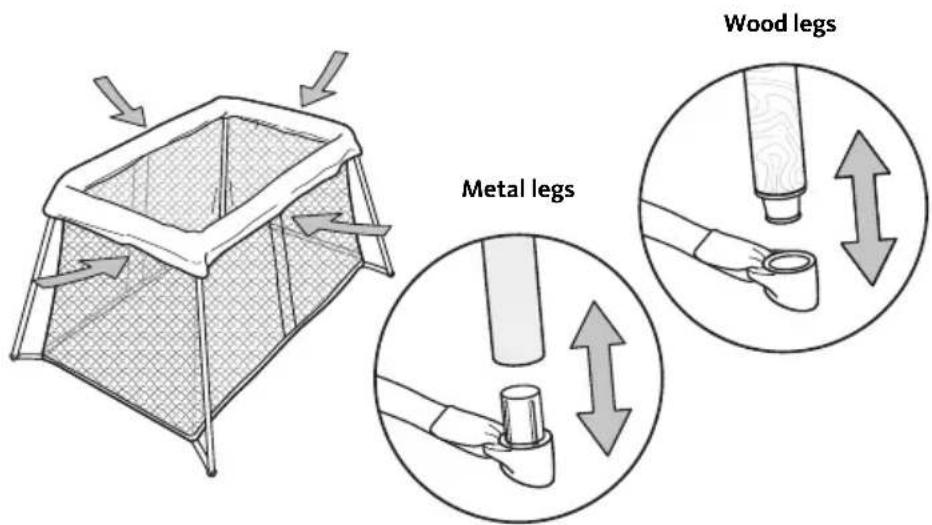

1. To wash the cot, remove the fabric by opening the four zips on each side of the upper edge.

2. Pull out each foot plug and release the fabric from the legs.

Wood legs Metal legs

WASHING INSTRUCTIONS

Cot fabric: Machine wash 40 °C. Do not tumble dry. The cot should be assembled when replacing the fabric. Reinsert the foot plugs and then close the zips.

Mattress cover: Machine wash 60 °C. (UK: Machine wash 40 °C)

Mattress foam: Do not machine wash.

⚠ WARNING

• Do NOT use the travel cot without the original mattress with base from BABYBJÖRN.
  • Non-usage of the stiffened base can result in your child overturning the cot.
• Do not use more than one mattress in the cot.
  • Always check on the child in the cot regularly.
• To prevent falls: do NOT use the travel cot when the child is able to climb in and out of the cot.
• Do NOT use the travel cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer.
• Do NOT use the travel cot if it is not correctly assembled: all of the legs must be locked in the extended position, all four zips closed and the mattress with the base downwards must be firmly against the bottom of the cot. Check all fittings regularly for security.
• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, radiator, etc., in the near vicinity of the cot.
• Do NOT leave anything in the cot or place the cot close to another product, which could provide a foothold or present danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.
• Do NOT let the child play with the cot when it is folded up, or if the fabric has been removed.
• Only use the mattress sold with this cot, do not add a second mattress on this one, suffocation hazards.

Line drawing of a modular furniture item with mesh netting and a top cover (no text or symbols)

Line drawing of a person stacking a stack of books into a folder (no text or symbols)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: step 1 with a handle and angle, step 2 with a tool and directional arrows (no text or symbols)

Illustration of hands using a coiled spring to lift a textured surface, no text or symbols present

Illustration of hands using a net to catch or handle a plastic bag, with a green dashed line indicating the net's direction (no text or symbols present)

BETT WASCHEN

Line drawing of a modular folding table with mesh netting and a top cover (no text or symbols)

Matelas, comportant :

• Housse

• Mousse

- Support

Sangles

Armature repliable

Toile amovible

Pieds

Crochets

Patins

IMPORTANT!

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two views of a mechanical component with arrows indicating motion or force direction (no text or symbols present)

Illustration of hands using a tool to lift a textured surface, showing motion arrows (no text or symbols)

Illustration of a person using a mesh net to catch a large piece of material, with a green dashed line indicating the net's edge (no text or symbols present)

NETTOYAGE DU LIT

Line drawing of a person stacking a stack of books into a folder (no text or symbols)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: step 1 with a handle and angle, step 2 with a tool inserted into a component (no text or symbols present)

Illustration of hands using a tool to lift a textured surface, no text or symbols present

Illustration of a person using a mesh net to catch or feed a bag, with a green dashed line indicating the net's direction (no text or symbols present)

LAVADO DE LA CUNA

Line drawing of a modular folding table with mesh netting and a top cover (no text or symbols)

Line drawing of a person handling a stack of books or documents (no text or symbols present)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical clamp or grip mechanism, with magnified views highlighting the process (no text or symbols present)

Illustration of hands using a tool to lift a rope or cable, with no text or symbols present.

Illustration of a person using a net to catch or feed from a plastic bag, with no text or symbols present.

LAVAR O BERÇO

Line drawing of a modular folding table with mesh netting and top panel (no text or symbols)

Line drawing of a person handling a stack of books or documents (no text or symbols present)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: step 1 with a handle and angle, step 2 with a tool inserted into a component (no text or symbols present)

DATI TECNICI

Illustration of hands using a tool to lift a textured surface, showing motion arrows (no text or symbols)

Illustration of a person using a net to catch plastic items, with a green dashed line indicating the net's edge (no text or symbols present)

COME LAVARE IL LETTINO

Line drawing of a modular folding table with mesh netting and top cover (no text or symbols)

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a person performing a medical or therapeutic procedure with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: step 1 with a handle and angle, step 2 with a tool and directional arrows (no text or symbols)

Illustration of hands using a tool to lift a textured surface, showing motion arrows (no text or symbols)

Illustration of a person using a mesh net to catch a large piece of material, with a green dashed line indicating the net's edge (no text or symbols present)

WASSEN VAN HET BEDJE

Line drawing of a modular folding table with mesh netting and a top cover (no text or symbols)

Line drawing of a person handling a stack of books or documents (no text or symbols present)

Illustration of a person performing a medical or therapeutic procedure with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: step 1 with a handle and angle, step 2 with a tool and directional arrows (no text or symbols)

Illustration of hands using a tool to lift a rope or cable, with no text or symbols present.

Illustration of a person using a mesh net to catch or feed a plastic bag, with a green dashed line indicating the net's edge (no text or symbols present)

TVÄTTA SÄNGEN

Line drawing of a modular folding table with mesh netting and a flat top panel (no text or symbols)

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: step 1 with a handle and angle, step 2 with a tool and directional arrows (no text or symbols)

Illustration of hands using a tool to lift a textured surface, showing motion arrows (no text or symbols)

Illustration of hands using a mesh net to catch or feed materials, with a green dashed square highlighting the net (no text or symbols)

SÅDAN RENG∅RES SENGEN

Line drawing of a modular folding table with mesh netting and a flat top panel (no text or symbols)

Patja, sisältää:

• Päällinen

• Vaahtomuovi

• Pohjalevy

Lenkit

Taittonivel

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: step 1 with a handle and angle, step 2 with a tool and directional arrows (no text or symbols)

TEKNISET TIEDOT

Illustration of hands using a tool to lift a textured surface, no text or symbols present

Illustration of hands using a mesh net to catch or feed a plastic bag, with a green dashed line indicating the net's edge (no text or symbols present)

SÄNGYN PESU

Line drawing of a modular folding table with mesh netting and a flat top panel (no text or symbols)

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a person performing a medical or therapeutic procedure with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: one with a handle and arrow indicating rotation, the other with a tool inserted (no text or symbols present)

Illustration of hands using a tool to lift a textured surface, showing a curved arrow indicating motion (no text or symbols)

Illustration of a person using a net to catch plastic items, with no text or symbols present.

Line drawing of a modular folding table with mesh netting and top panel (no text or symbols)

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

DANE TECHNICZNE

Illustration of hands using a tool to lift a textured surface, showing motion arrows (no text or symbols)

Illustration of hands using a mesh net to catch or feed material, with a green dashed square marking the net (no text or symbols)

PRANIE ŁÓŻECZKA

Line drawing of a modular folding table with mesh netting and top panel (no text or symbols)

매트리스 구성:

• 커버
  · 품
  -베이스

스트랩 루프

힌지(경첩)

분리 가능한 직물

레그

고리

/

풋 플러그

중요!

Line drawing of a person handling a stack of books or documents (no text or symbols present)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two views of a mechanical component with arrows indicating motion or force direction (no text or symbols present)

Illustration of hands using a tool to lift a rope or cable, with no text or symbols present.

Illustration of hands using a mesh to catch a large net with a green dashed square overlay (no text or symbols)

cyn 세척하기

1.

Line drawing of a modular folding table with mesh netting and top panel (no text or symbols)

床垫，包含：

• 床垫罩
• 泡沫
• 底板

带扣

铰链

可拆式布料

床脚

挂钩

脚座

重要!

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a hand performing a medical or anatomical maneuver with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: one with a handle and arrow indicating rotation, the other with a tool inserted (no text or symbols present)

技术信息

Illustration of hands using a tool to lift a textured surface, no text or symbols present

Illustration of a person using a net to catch or feed, with arrows indicating direction (no text or symbols)

清洗婴儿床

1.

Line drawing of a modular folding table with mesh netting and top panel (no text or symbols)

床垫，包括：

·床墊罩

- 泡沫

- 底板

帶扣

鉸鏈

可拆式布料

床腳

掛鉤

腳座

重要!

Line drawing of a person stacking a stack of books or documents (no text or symbols)

Illustration of a person performing a medical or therapeutic procedure with curved arrows indicating rotation (no text or symbols)

Diagram showing two steps of a mechanical assembly: one with a handle and arrow indicating rotation, the other with a tool inserted (no text or symbols present)

技術資料

Illustration of hands using a tool to lift a textured surface, no text or symbols present

Illustration of a person using a net to catch or feed, with arrows indicating direction (no text or symbols)

清洗嬰兒床

1.

To find the answers to most questions and contact our customer service, please visit www.babybjorn.com

BABYBJÖRN

Complies with EN 716, EN 16890

The Parallel Line Design is a sign of a genuine BABYBJÖRN product.

The mark BABYBJÖRN is protected by trademark registration in several countries.

This product is protected by design registrations in several countries.

Travel Cot Light (art. 040) © BabyBjörn AB, 2013-2018.

© BabyBjörn AB, 2018.

For more information, please contact [e-mail]
