USER MANUAL High Chair BabyBjörn

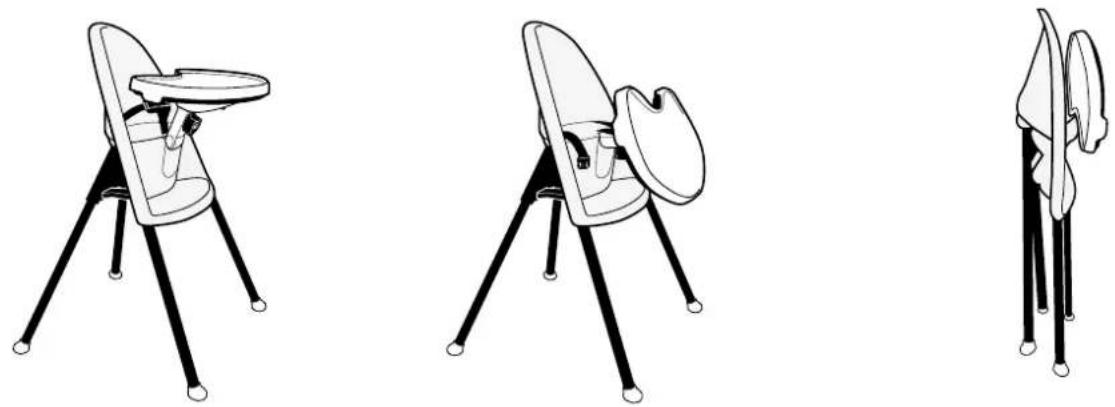

USER INSTRUCTIONS LOCKED “IN-USE” POSITION OPEN POSITION TRANSPORT POSITION BABYBJÖRN High Chair is an ergonomic and safe high chair. The High Chair has a unique design and a safety solution that holds the child in place, with a two-step lock that can only be opened by an adult. It has an adjustable table that also works as a safety lock, making it harder for the child to stand up in the chair. High Chair can be used when your child can sit unaided and they are between 6 months and approx. 3 years (max. 15kg, max. 95 cm tall). IMPORTANT!

READ CAREFULLY AND KEEP FOR FUTURE

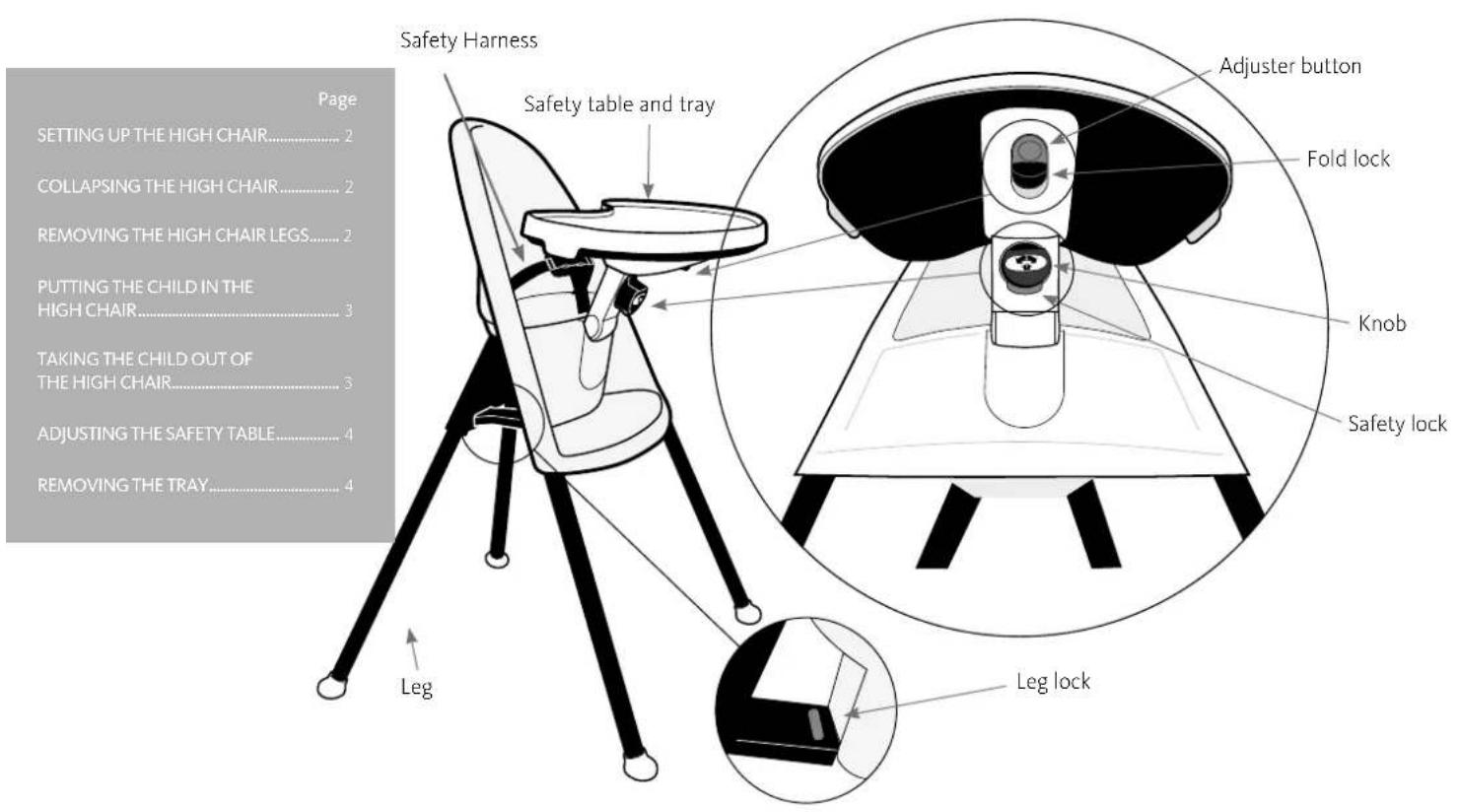

REFERENCE Safety table and tray Adjuster button Fold lock Knob Leg lock Leg Safety lock

Page Safety Harness2

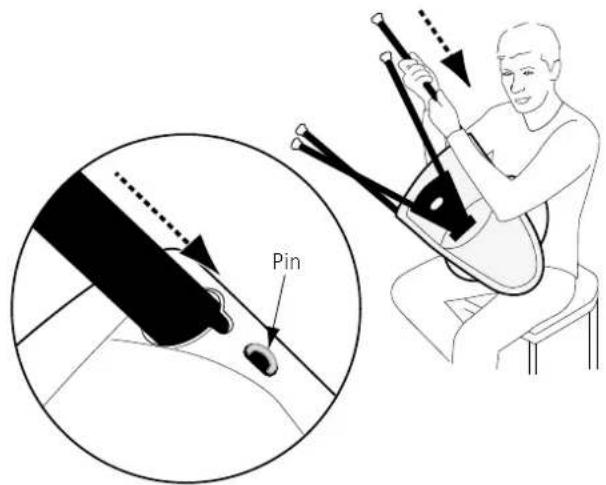

1. Push the legs in, one at a time.

Make sure that the pin snaps into place in the hole. Pin

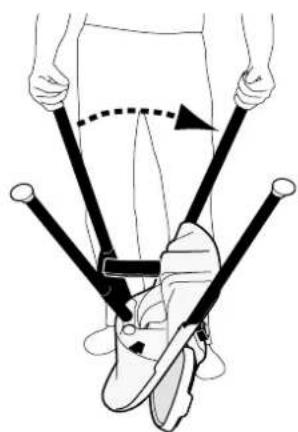

2. Fold out the legs until they lock into position.

You should hear a click. Turn the high chair over and make sure that every part of the red panel (”LOCKED”) is fully visible on the leg lock.

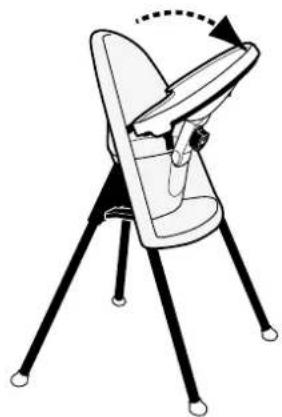

3. Fold down the safety table until

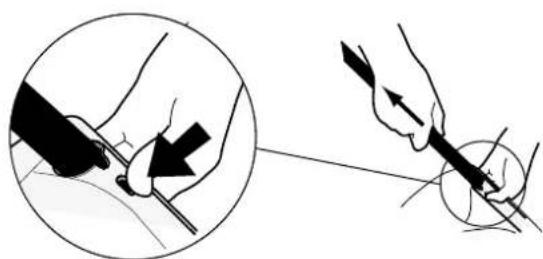

it locks firmly into the "in-use" position. Push the pin in and pull the chair legs out, one at a time.

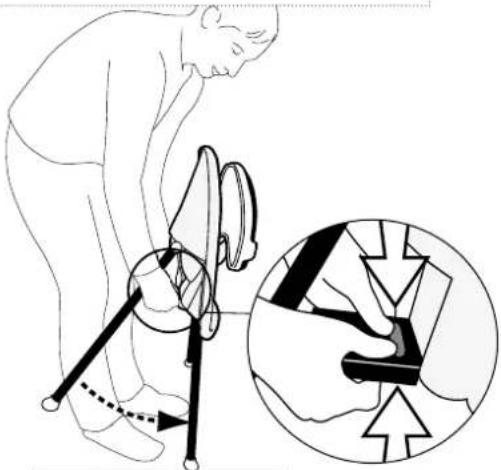

3. Press the leg locks together so that

the legs can be collapsed.

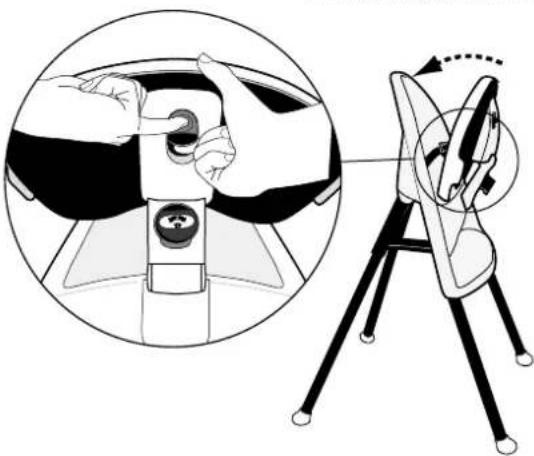

2. Push in the adjuster button under the safety

table and then pull the fold locks outwards. Fold up the safety table as far as it will go.

1. Start with the safety table in

its locked “in-use” position. The safety table must be in its furthest out position before it can be fully collapsed. Adjust the position by holding the red adjustment button on the underside and pulling the safety table inwards or outwards. Please note!

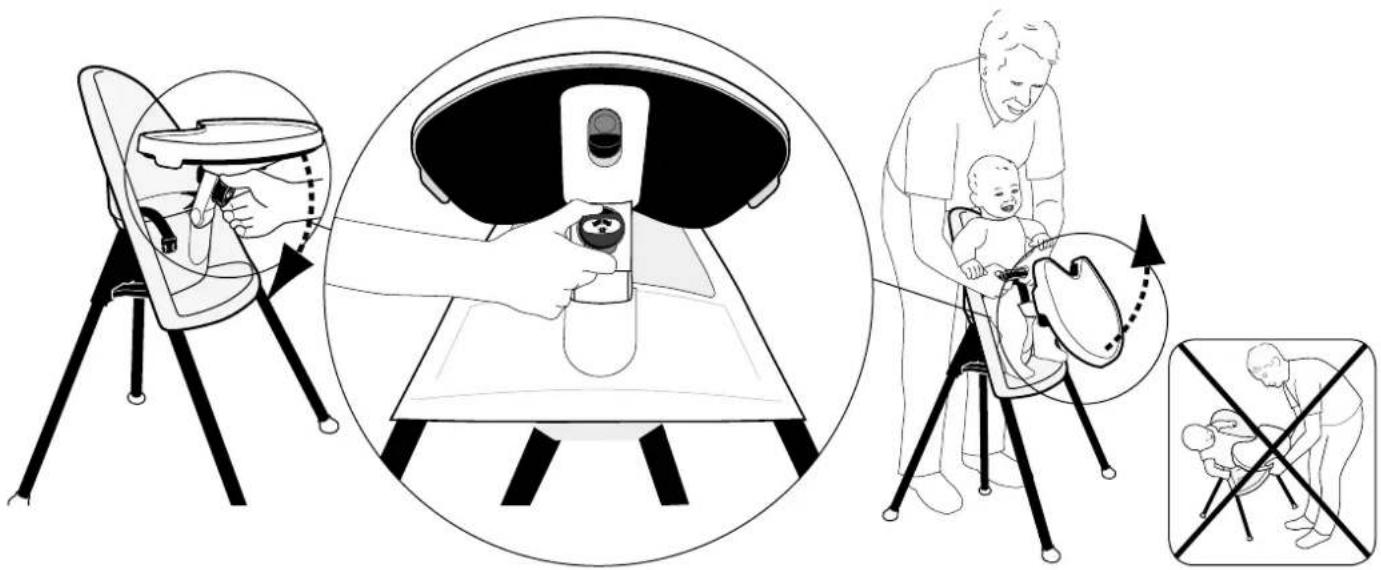

PUTTING THE CHILD IN THE HIGH CHAIR TAKING THE CHILD OUT OF THE HIGH CHAIR Hold the child securely and open the safety table by pushing in the safety lock and turning the knob. Unfasten the safety harness and lift out the child.

1. Push in the safety lock first, and then turn

the knob so that the safety table falls down into the open position.

2. Put the child in the high chair. Hold the child securely

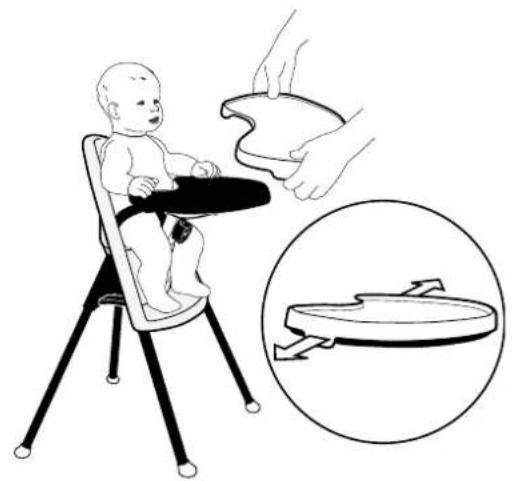

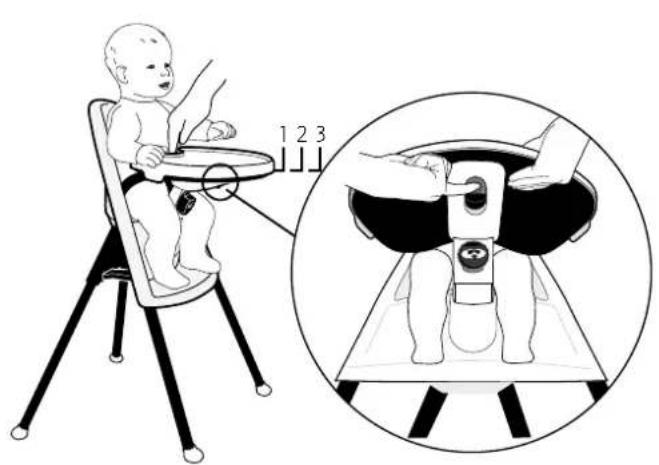

at all times and make sure that their feet and legs are correctly positioned. Fasten the safety harness and make sure it's adjusted to fit snugly around the child's body. Close the safety table and lock it into position. Make sure that the safety table is in the locked “in-use” position before letting go of the child. Remember to hold the child securely at all times when putting them into or taking them out of the chair. Important! Important! The safety table must always be in the locked "in-use" position and the safety harness must always be fastened when the child is sitting in the high chair.4 The safety table has three positions. You can adjust the position by holding the red adjustment button on the underside and pulling the safety table inwards or outwards. Important! The safety table is designed to hold the child securely in the chair. Adjust it so that it fits snugly against the child. Pull outwards on the tray’s white handles and lift the tray o for cleaning. The detachable tray can be washed by hand or in a dishwasher. ADJUSTING THE SAFETY TABLE REMOVING THE TRAY

• Keep children away when unfolding and folding the product to avoid injury

• Never leave the child unattended

• Do not use the product until the child can sit up unaided

• Hold the child securely at all times when lifting them in or out of the chair. Make sure that the safety harness is fastened and the safety table is in the locked “in-use” position before you let go of the child

• Always adjust the safety harness and safety table snugly against the child to prevent them from climbing out of the product

• This product is not a toy. Strap loops can cause strangulation. Never let children play with the chair or use it unsupervised. CLEANING Wipe the high chair using a clean, damp cloth. The detachable tray can be washed by hand or in a dishwasher. TECHNICAL INFORMATION Weight: 5 kgHeight/width/depth in transport position:50 x 40 x 26 cmHeight when standing: 83 cmMaterial: Plastic and coated steel SAFETY APPROVAL BABYBJÖRN High Chair complies with the EN14988:2017 safety requirements.
• Falling hazard: Prevent your child from climbing on the product

• The child must not sit in the product when the safety table is in the open position

• Never attempt to move the product while the child is still in the chair

• The product should be placed on a level, horizontal floor. To avoid the risk of the high chair tipping over, make sure that the chair’s feet can slide on the floor

• Be aware of the risk of tilting when your child can push its feet against a table or any other structure

• Do not use the product unless all components are correctly fitted and adjusted

• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product

• To avoid the risk of pinching, ensure that the child is wearing – at a minimum – a nappy/diaper or trousers when sitting in the product

• Never push down on the safety table – doing so risks pinching the knees of larger children

• Do not use the product if any component is broken or missing

WAARSCHUWING! VALGEVAAR!
