Bouncer Bliss - Rocking chair BabyBjörn - Free user manual and instructions

USER MANUAL Bouncer Bliss BabyBjörn

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Congratulations on choosing a BABYBJÖRN Bouncer! It was developed in close collaboration with pediatricians and has a unique ergonomic shape that gives your child's head and back the correct support.

This BABYBJÖRN Bouncer may be used both as a bouncer and as a comfy chair. It can be used as a bouncer from newborn (at least 8 lbs/3.5 kg) until your child has learned to sit up without help. When your child can walk and sit on his or her own, you can turn the fabric around to create a comfy chair (up to 29 lbs/13 kg or approx. 2 years).

The bouncer has many features, and you will learn how to use it best by reading the following pages.

POSITIONS

It is easy to start using the bouncer. Place it in front of you and fold up the seat until you hear a click. Important! Only an adult shall unfold.

This BABYBJÖRN Bouncer has four positions. The lowest position, C, is recommended for newborns sitting in the bouncer. Positions A and B can be used when the child can hold his or her back and head upright in these positions without a problem. It is not dangerous to exceed the recommended maximum weight for a position, but the rocking function will not work as well.

PLEASE NOTE THE MAXIMUM WEIGHT FOR EACH POSITION

When the product is used as a bouncer, the maximum weight is 20 lbs/9 kg according to European Standard EN12790:2009. We therefore recommend the following maximum weights per position:

A. Highest position "Play" up to 20 lbs/9 kg.
B. Medium position "Rest" up to 20 lbs/9 kg
C. Lowest position "Sleep" up to 15.5 lbs/7 kg.
D. Transportation mode - when the product is not being used.

When the product is being used as a chair, we recommend the following maximum weights per position:

A. Highest position "Play" up to 29 lbs/13 kg.
B. Medium position "Rest" up to 22 lbs/10 kg.
C. Lowest position "Sleep" up to 15.5 lbs/7 kg.
D. Transportation mode - when the product is not being used.

This reclined cradle does not replace a cradle/ crib or a bed. Should your child need to sleep, then he or she should be placed in a suitable cot or bed.

TO CHANGE POSITION

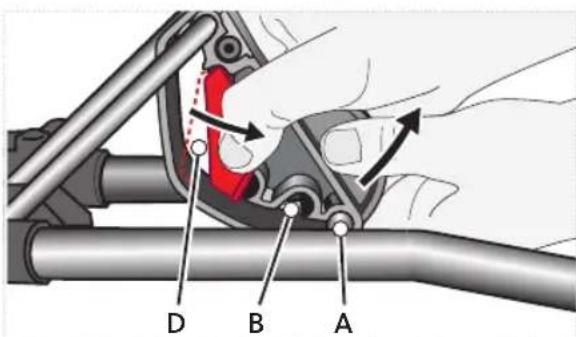

Lift the positioner and move it into the desired position, at the same time as you lift the backrest with your other hand.

Make sure that the positioner is securely locked into place before putting your child in the bouncer. If you adjust the bouncer's position when your child is sitting in it, make sure that the positioner is locked into place before letting go of the backrest.

TRANSPORTATION MODE

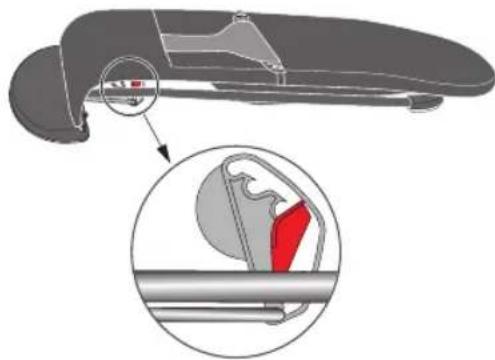

To fold the bouncer for travel or storage the positioner must be set to position A or B. Pull back the red safety latch and set the positioner to the transport mode, D.

BOUNCEOR CHAIR

Bouncer (max 20 lbs/9 kg)

Always use the restraint system. Make sure that both buttons are locked. You can adjust between two positions.

Stop using the product as a bouncer once your child can sit up without help.

Chair (max 29 lbs/13 kg)

Use as chair when your child can walk and sit on his or her own. In order to convert the product into a chair, all you have to do is turn the fabric around.

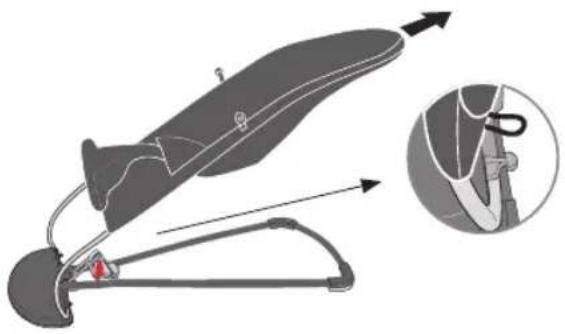

When you want to use the product as a chair, just turn the fabric seat around. Loosen the restraint system's buttons. After that, loosen the two elastic loops at the bottom and pull the fabric seat off from the frame.

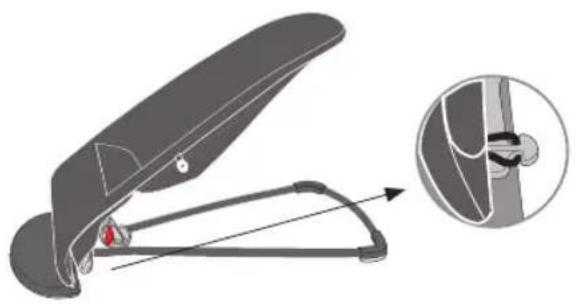

Turn the fabric seat over and slide it onto the frame again. The flat side should now be facing up. Fasten the fabric seat again with the two elastic loops at the bottom.

The restraint system will now wind up on the bottom side. Push it in as far as it can go.

Wipe the rubber strips underneath the bouncer with a damp cloth from time to time, in order to guarantee that it is fixed as firmly as possible to the floor.

TO WASH THE FABRIC

To wash the fabric seat, loosen the two elastic loops at the bottom and pull it off the frame. Wash separately, warm/40°C. Do not tumble-dry.

Do not use accessories or replacement parts other than those approved by the manufacturer.

TECHNICAL INFORMATION

Weight: 4.6 lbs/2.1 kg

Height/length/width:

Highest position: 22 × 31 × 15.5 in/56 x 79 x 39 cm Transport mode: 4.5 × 35 × 15.5 in/11 x 89 x 39 cm

Fabric collections

Cotton: 100% cotton

Cotton/Jersey: Cotton fabric: 100% cotton. Jersey fabric: 71% cotton, 24% viscose, 5% polyamide.

Mesh: 100% polyester

All padding is 100% polyester. UK version has no padding.

SAFETY INSTRUCTIONS

• Do not use the product if any components are broken or missing.
• Powerful sway: Make sure that older child are not allowed to rock the baby too forcefully.
• NEVER leave baby unattended.

Bouncer (max 20 lbs/9 kg):

• Do not use the bouncer once your child can sit unaided.
• Keep the toy out of the reach of children when it is not firmly attached to the product.

WARNING

FALL HAZARD: Babies have suffered skull fractures falling while in and from bouncer.

• Use bouncer ONLY on floor, dangerous to use on an elevated surface e.g. table.
• Child's activity may move the bouncer.
• NEVER lift or carry baby in bouncer or fitted toy bar.

SUFFOCATION HAZARD: Babies have suffocated when bouncers tipped over on soft surfaces.

• NEVER use on a bed, cushion or other soft surface.
• NEVER leave baby unattended.
• Child's activity may move the bouncer.

To prevent falls and suffocation:

• ALWAYS use restraints. Adjust to fit snugly.
• STOP using bouncer when baby starts trying to sit up.

Chair (max 29 lbs/13 kg):

• Use as chair when your child can walk and sit on her own.
• Do not use restraint system.

WARNING

AMPUTATION HAZARD: Chair can fold or collapse if lock is not fully engaged.

Moving Parts can amputate child's fingers.

Keep fingers away from moving parts. Completely unfold chair and fully engage locks before allowing child to sit in chair. Never allow child to fold or unfold chair.

BABYBJÖRN BABYWIPPE

Stuhl (max. 13kg

Viskose, 5% Polyamid

Babywippe (max 20 lbs/9 kg):

Stuhl (max 29 lbs/13 kg):

Transat (max 20 lbs/9 kg):

Fauteuil (max 29 lbs/13 kg):

WIPSTOELTJE OF STOEL

Hamaca (max 20 lbs/9 kg):

Silla (max 29 lbs/13 kg):

Cadeira (max. 13 kg)

Algodao: 100% algodao

Algodão /Jersey:

Tecido algodao: 100% algodao

Cadeira (max. 13 kg):

Sdraietta (max 9 kg)

Sdraietta (max 9 kg):

Babysitter (max 9 kg):

Stol (max. 13kg ):

Vippestol (maks. 9 kg):

Skråstol (maks. 9 kg):

HEIb3r IcNoJIb3OBaTb N3dEJIne Ha KPOBaTn, NOdyUke IN DpyRnx MmRkNx NOBepxHOCTax.

HEb3OCTabJIaTb pe6eHka 6e3 npcMOTpa. DaHHoe n3dJIne MOKe T CMeCTnTBcB B pe3yJIbTaTe DnKHeHn pe6eHka.

UTo6bI He donyctntb nadeHn ydyweHn: BCErA nCnoB3yIte cNCTeMy fNKcaun. OtperynpuYte e e nloTHoe noLOXeHne. HEnb3ra nCnoB3OBaTb n3dEInne c pe6EHKOM, KOtOpB MoKeT CaM caNTbcra.

O6bHoe Kpecno (MaKc.13 Kr):

• IcnoIb3yIte daHHe n3eIe N B KauecTbe 06bIuHoro Kpecna, ecn BaIpe6EHK yMeet camOCToRrJIbHO cNDeTb N XODNTb.
  He nCnoJIb3yIte cncTeMy fNkcaun.

BHUMAHNE

ONACHOCTb 3AUEMJEHN! Ecnn 3aMOK He 3aФNKCnPOBaH NaIeXaUIM o6pa3OM, KpeCNO MoKET CLOXHTbcr nn ynaTb. POnBnXhIe KOMNoHEtbl CnOCo6HbI OTceYb NaIbUpe6EHaKa.

CneNyET 6epeyb PnabciOT NOBHXbIX KOMNoHENTOB. IpeTe TM KaK yCaAnTb pe6EHa, CneNyET NOHocTbIO pa3NOxNtB KpeCNo HAnIeKaUIM o6pa3OM 3aФNKcnpoBaTb 3aMkn. He pa3peShaTe DeTAM CKNaDbIBaTb INI paKNaDbIBaTb KpeCNo.

LEZACZEK BABYBJÖRN

Fotelik (maks. 13 kg):

BEBI|BvBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnB

大用以

Suunluiu

SAH

扎吉伸 贬

IeIiNnBnHbAeBnBwHnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBn

把运子托在的

BaRsT (3)2049kg)
HgStAn AnTeBtTo 100
Ji, TnAe TaMn
JnTnAe TaN
JnTnAe TaN

自者（30294013kg）
aaiihahataoohao houhao 1
sucnssuohnna.

aiihaaslohueoufoanrre

BaRsH 2000
BraRsH 2000
40°C的默羅多默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默

賊藥則號起早，

經濟

制吾多：4.6可运/2.1kg

全01//全01/

= 22× 31× 15.5 in/56x79x39cm

The Parallel Line Design is a sign of a genuine BABYBJORN product. The mark BABYBJORN is protected by trademark registrations in several countries. US TM Reg. Nos. 1385135, 4511202 & 4518181. The parallel lines design is protected by trademark registration in the USA. US TM Reg. No. 3,633,481. This product is protected by design and patent registrations in several countries. US Patent Design Nos. D560374 and D692680. US Patent Nos. 7780236 and 7779490. Canada TM Reg. Nos. TMA328091 & TMA839628. Canada Design Reg. No. 148380. Patent No. 2654690 & 2654691
