USER MANUAL Baby Carrier Free BabyBjörn

Man holding a baby wearing a black BARRONI carrying (no text or symbols visible)

BABYBJÖRN®

_

| _

一

1

ENGLISH	8-13
DEUTSCH	14-19
FRANÇAIS	20-25
ITALIANO	26-31
ESPAÑOL	32-37
PORTUGUÊS	38-43
NEDERLANDS	44-49
SVENSKA	50-55
NORSK	56-61
DANSK	62-67
SUOMI	68-73
PYCCKИЙ	74-79
POLSKI	80-85
SLOVENŠČINA	86-91
ČESKY	92-97
MAGYAR	98-103
ΕΛΛΗΝΙΚΑ	104-109
한국어 110-115
中文繁体	116-121
中文简体 122-127
πιντόψη	128-133

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

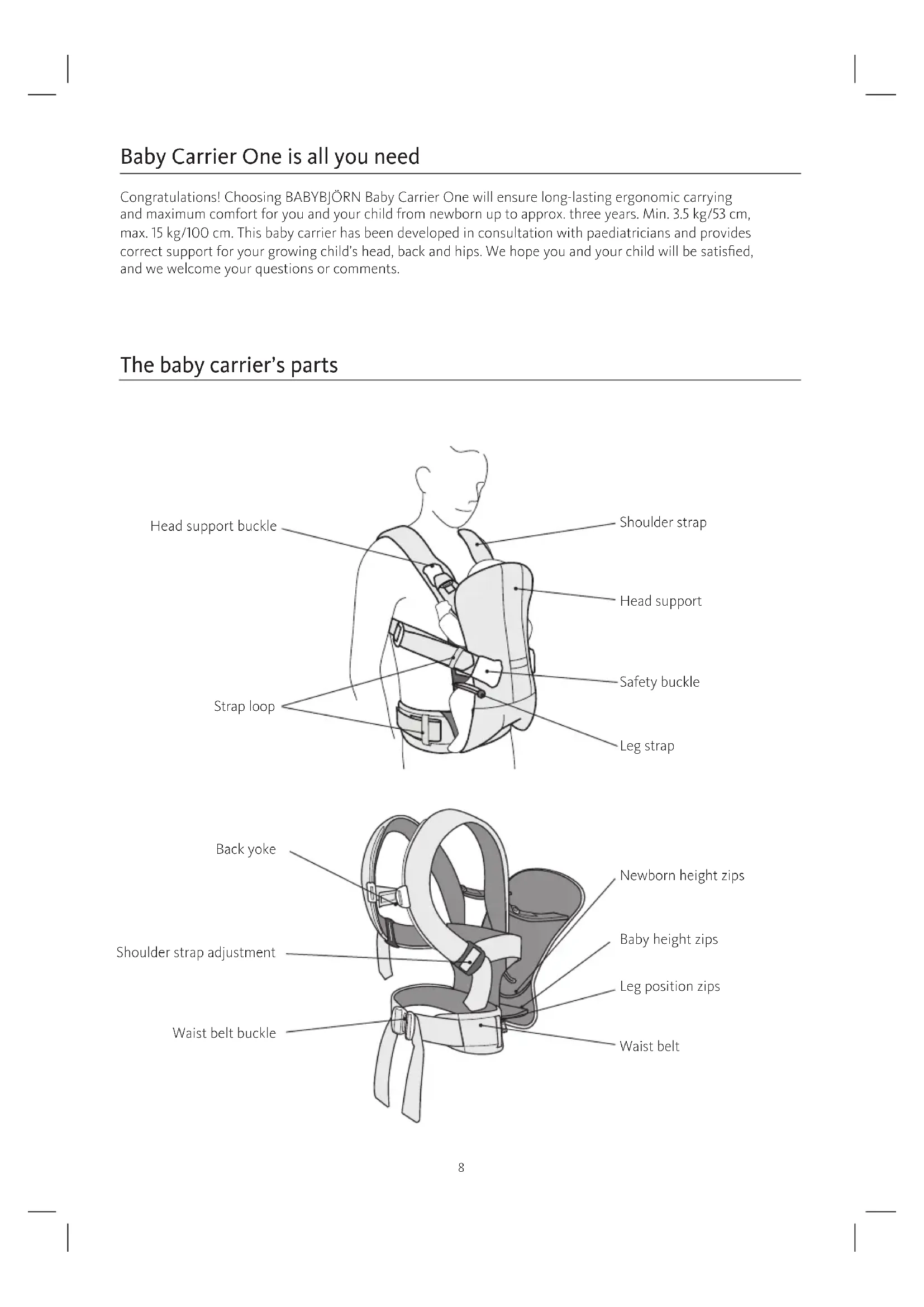

Baby Carrier One is all you need

Congratulations! Choosing BABYBJÖRN Baby Carrier One will ensure long-lasting ergonomic carrying and maximum comfort for you and your child from newborn up to approx. three years. Min. 3.5 kg/53 cm, max. 15 kg/100 cm. This baby carrier has been developed in consultation with paediatricians and provides correct support for your growing child's head, back and hips. We hope you and your child will be satisfied, and we welcome your questions or comments.

The baby carrier's parts

Head support buckle Shoulder strap Head support Safety buckle Leg strap Strap loop Back yoke Newborn height zips Shoulder strap adjustment Baby height zips Leg position zips Waist belt buckle Waist belt

Front and back carrying positions

NEWBORN 62\~68 CM UP TO 100 CM FROM 1 YEAR

Line drawing of a person wearing a full-body medical backpack (no text or symbols)

Facing inwards Newborn height
O-approx. 4 months Min. 3.5 kg/53 cm

Line drawing of a person wearing a full-body backpack and holding an object, with no visible text or symbols.

Facing inwards Baby height
Approx. 4–15 months Max. 12 kg

Line drawing of a person wearing a baby's seatbelt (no text or symbols)

Facing inwards Baby height
Approx. 4–36 months Max. 15 kg

Line drawing of a person wearing a baby in a full-body gait (no text or symbols)

Facing outwards Baby height
Min. 5-approx. 15 months Max. 12 kg

Illustration of a person in a baby car seat with a blue bandage, no text or symbols present

Back carrying Baby height
12-approx. 36 months Max. 15 kg/100 cm

How to use the baby carrier

1
Newborn height

Baby height

For newborn use upper newborn height. From 62\~68 cm use lower baby height. Always check that the entire zip is closed.

2

Illustration of a hand holding a chain, with an inset showing a magnified view of the chain being cut (no text or symbols present)

Use normal leg position for newborn. Open zips on both sides. From 62 cm you can start using wide leg position in inward-facing position. The zips can be locked in normal and full wide leg position.

3

Illustration of a person in a seatbelt with blue arrows indicating movement or force direction (no text or symbols)

Put on the baby carrier like a pullover sweater.

4

Diagram of a human torso with two blue arrows indicating pressure points on the chest (no text or symbols present)

Place the back yoke just below your shoulder blades. Adjust height and width vertically and sideways.

Illustration showing a person wearing a seatbelt with a magnified inset highlighting the belt buckle adjustment.

Buckle the waist belt at your back. It is locked when you hear a click. Tighten by pulling the straps.

6

Illustration of a person wearing a full-body safety harness, with a hand holding a blue object near the chest (no text or symbols present)

Loosen the shoulder straps by lifting the outer edge of the buckles.

Illustration showing a person using a device with a magnified inset highlighting the hand holding a device, labeled with number 7.

Unbutton the head support on both sides. Push button and pull upwards.

Illustration showing a person using a device to interact with a blue belt switch, with magnified inset highlighting the device's side view.

Unbutton the safety buckle on one side. Push button and pull downwards/inwards.

Illustration of a person in a full-body seatbelt holding a baby, no text or symbols present

Place the child in the baby carrier facing you, with the legs on either side of the front and the arms through the armholes.

10

Fasten the safety buckle. It is locked when you hear a click.

Illustration showing a person adjusting a helmet with a magnified inset highlighting the joint detail and motion direction.

Fasten the head support on both sides. It is locked when you hear a click.

Illustration showing a person using a device to adjust a seatbelt, with an inset magnified view highlighting the mechanism.

Adjust the head support. To tighten, carefully pull the adjustment straps. To loosen, lift the outer edge of the buckles.

13

Tighten the shoulder straps. Fasten the leg straps on both sides for a child smaller than 4.5 kg.

IMPORTANT!

A child too big to use the armholes can rest their arms above the armholes.

HELPFUL HINT!

If you want to carry your child higher up, lift from underneath and place the waist belt higher up. Tighten the shoulder straps again.

CARRY COMFORTABLY!

Illustration showing four scenarios of a person wearing a backpack, each with a red X symbol indicating no usage or exclusion.

How to choose leg position

Choose between normal and wide leg position by opening or closing the leg position zips.

NORMAL LEG POSITION WIDE LEG POSITION

Illustration showing two scenarios of a baby in a person using a life vest, with a magnified inset highlighting the device's internal mechanism.

Facing inwards Facing inwards Back carryingFacing outwards

Illustration of a person wearing a baby in a two-step photo of the same back (no text or symbols)

NOTE!

Always use the wide leg position when carrying your child on your back. Don't forget to lock the zips in wide leg position.

NOTE!

Always use the normal leg position when carrying your child facing outwards.

How to carry your child facing outwards

Fold down the head support. Remember to always use normal leg position when carrying your child facing outwards.

We recommend carrying your child facing inwards at least up until 5 months. Around that age your child's neck, spine and hips will be strong enough for you to either carry your child facing inwards or outwards. Max. weight for carrying outwards 12 kg.

Illustration of a person in a baby's gait with blue arrows indicating motion or movement (no text or symbols)

How to remove your child

Unfasten the leg straps if they are being used. Unfasten the head support buckles. Loosen the shoulder straps and unfasten the safety buckles on one or both sides. Remove your child.

HELPFUL HINT!

Open the front on both sides to lift out your sleeping child without waking him or her.

Illustration of a person in a full-body medical harness with blue arrows indicating motion or force (no text or symbols)

How to carry your child on your back

From 12 months of age your child is big enough to be carried on your back. Start by placing your child in the baby carrier facing you, see Pics 1-13 on previous pages. Use the wide leg position. Then follow the instructions below.

Illustration showing a person in a baby suit being assisted by a hand, with a magnified inset highlighting the device's internal structure.

Loosen the shoulder straps by lifting the outer edge of the buckles.

Illustration of a person carrying a baby in a life vest, no text or symbols present

Slip your right arm upwards under the shoulder strap.

Illustration of a person sitting on a chair holding a seatbelt, with a blue arrow indicating direction (no text or symbols)

Slip your left arm downwards under the lower part of the shoulder strap. The shoulder strap is now a closed loop around your body.

Illustration of a person wearing a baby's vest and carrying a blue circular object (no text or symbols)

Lift your child from underneath and carefully move him or her round to your back under your lifted right arm.

IMPORTANT!

Do not hold onto the safety buckle when moving your child round to your back.

5

Line drawing of a person wearing a harness and seatbelt (no text or symbols)

Slide the shoulder straps back in place. Make sure they are not twisted.

6

Illustration of a person wearing a full-body medical harness with blue arrows indicating movement or force direction (no text or symbols)

Place the back yoke where it is comfortable by adjusting it vertically and sideways. Tighten the waist belt and finally the shoulder straps by pulling backwards.

Fabric information

This product comes in three collections.

Baby Carrier One/Cotton Mix

Main fabric: 60% cotton, 40% polyester

Lining: 100% cotton

Waist belt lining: 100% cotton

Baby Carrier One Air/Mesh

Main fabric: 100% polyester

Cover for leg position zip: 100% cotton

Baby Carrier One Outdoors

Main fabric: 100 % polyamide

Fabric coating: 100% polyurethane

Mesh fabric: 100% polyester

Cover for leg position zip: 100% cotton

WASHING INSTRUCTIONS

Wash separately. Use an eco-friendly, gentle, bleach-free detergent. We recommend using a washing bag. Do not use drying cabinet.

Baby Carrier One/Cotton Mix

Baby Carrier One Air/Mesh

Baby Carrier One Outdoors

SAFETY APPROVAL

BABYBJÖRN Baby Carrier One, One Air and One Outdoors meet the safety requirements of EN13209-2:2015.

WARNING!

• This carrier is intended for use by adults only.
• For low birthweight babies and children with medical conditions, seek advice from a health professional before using the product.
• Only use this carrier for children weighing 3.5–15 kg.
• For children of O–approx. 4 months always use the upper newborn height.
• Small children can fall through a leg opening. The leg straps must be used for children weighing 3.5–4.5 kg.
  • The child must face you (inwards) until they can hold their head upright (approx. 5 months).
• This carrier may only be used when you are walking, sitting or standing.
  • This carrier is NOT suitable for use during sporting activities.
• This carrier must not be used as a car seat.
• Your balance may be adversely affected by your movement and that of your child.

• Take care when bending or leaning forward or sideways. Remember to bend at the knees NOT the waist.
- Make sure the child's nose and mouth have sufficient space for breathing in the carrier.
- Avoid dressing your child too warmly.
- Check that all buckles are securely fastened before using the carrier.
- Stop using the carrier if parts are missing or damaged.
- Never lie down or sleep with your child in the carrier.
- Regularly check that your child is comfortably and securely seated in the carrier, especially when using as a back carrier.
- Be aware of hazards in the domestic environment e.g. heat sources, spilling of hot drinks.
