USER MANUAL Cleantec CTL 48 AC FESTOOL

CTL 26 E, CTL 26 E SD, CTL 26 E AC, CTL 26 E SD E/A, CTL 36 E, CTL 36 E AC, CTL 36 E AC-LHS, CTL 36 E LE, CTL 48 E, CTL 48 E AC

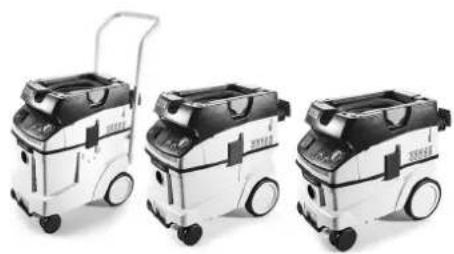

Three identical industrial vacuum cleaner units in a row, no visible text or symbols

1

CTL 36 E AC-LHS 1-7 max PLANEX AUTO 1-9 1-8

1-6 1-5 1-4 1-3 1-2 1-1 1-10 AUTOClean 1-11 1-13

Technical diagram of a robotic vehicle with numbered components and labeled parts

6

8

Line drawing of a small wheeled vehicle with wheels and a handle (no text or symbols)

Technical diagram of a robotic device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a vehicle chassis with labeled components and assembly steps (no text or symbols present)

Technical line drawing of a mechanical device with a hose and control panel (no text or symbols)

5

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Technical diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with downward arrows indicating force or movement (no text or symbols)

SC FIS-CT26

SC FIS-CT36

SC FIS-CT48

Mechanical assembly diagram showing a component with arrows indicating motion, no text or symbols present

Technical diagram of a mechanical component with arrows indicating motion or assembly (no text or symbols)

3

8

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram of a mechanical device inside a container with an arrow indicating direction (no text or symbols present)

Line drawing of a vehicle interior with gear and dashboard (no text or symbols)

8-2

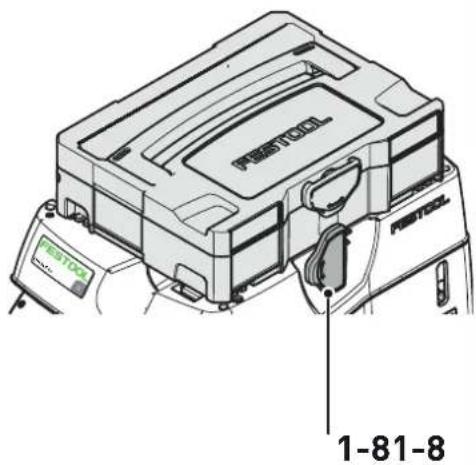

FESTOOL 1-81-8

9

ENS-CT26

ENS-CT36

ENS-CT48

Diagram showing a hand holding a tool with a crosshair overlay, no text or symbols present

1 X·X

2 XXXX

3 X.X.X

10

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

CT
HF-CT 26/36/48
CT AC
HF-CT 26/36/48 HP

Diagram of a hand operating a car engine compartment with directional arrows indicating motion (no text or symbols)

Illustration of hands assembling a mechanical component with a bag nearby (no text or symbols)

Diagram of a mechanical assembly with a grid-like structure and an arrow indicating a component (no text or symbols present)

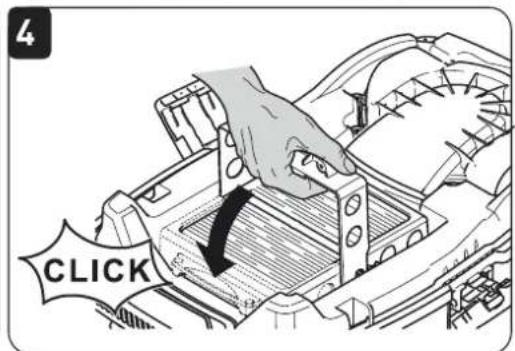

4 CLICK

Declaration of Conformity

We as the manufacturer Festool GmbH, Wertstraße 20, 73240 Wendlingen, Germany declare under our sole responsibility that the product(s):

Designation:

Designation of Type(s):

Serial number(s) 1):

Mobile dust extractor

CTL 26 E, CTL 36 E, CTL 26 E AC

202414, 202415, 202432, 202408, 202976

fulfills all the relevant provisions of the following UK Regulations:

S.I. 2008/1597
S.I. 2016/1091
S.I. 2012/3032
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and are manufactured in accordance with the following designated standards:

• BS EN 60335-1:2012 + A2:2019
• BS EN 60335-2-69:2012
• BS EN 55014-1:2017
• BS EN 55014-2:2015
• BS EN IEC 61000-3-2:2019
• BS EN 61000-3-3:2013
• BS EN IEC 63000:2018

1) in the specified serial number range (S-Nr.) from 400000000 - 499999999

Place and date of declaration: Wendlingen, 02.08.2021

Signed on behalf of and in name of Festool GmbH

ppa. N81

Markus Stark

Head of Productdevelopment

i.v. Boxard

Ralf Brandt

Head of Productconformity

AbsaugmobilMobile dust extractorsAspirateurs	Seriennummer *Serial number *N° de série *(T-Nr.)
CTL 26 E	202411, 202413, 202414, 202415, 202970, 202973
CTL 26 E SD (E/A)	202419, 202420
CTL 26 E AC	202409, 202407, 202408, 204891
CTL 26 E AC HD	203032
CTL 36 E	202429, 202431, 202432, 202974, 202976
CTL 36 E AC	202422, 204892, 204895
CTL 36 E AC-LHS	202424, 202426
CTL 36 E LE	202436, 202977
CTL 36 E AC HD	203033, 203036
CTL 48 E	202439, 202979
CTL 48 E AC	202438

de EG-Konformitätserklärung. Wir erklären in alleiniger Verantwortung, dass dieses Produkt allen einschlägigen Bestimmungen der folgenden Richtlinien einschließlich ihrer Änderungen entspricht und mit den folgenden Normen übereinstimmt:
en EC-Declaration of Conformity. We declare under our sole responsibility that this product is in conformity with all relevant provisions of the following directives including their amendments and complies with the following standards:
fr CE-Déclaration de conformité communautaire.
Nous déclarons sous notre propre responsabilité que ce produit est conforme aux normes ou documents de normalisation suivants:
es CE-Declaración de conformidad. Declaramos bajo nuestra exclusiva responsabilidad que este producto corresponde a las siguientes normas o documentos normalizados:
it CE-Dichiarazione di conformità. Dichiariamo sotto la nostra esclusiva responsabilità che il presente prodotto e conforme alle norme e ai documenti normativi seguenti:
nl EG-conformiteitsverklaring. Wij verklaren op eigen verantwoordelijkheid dat dit produkt voldoet aan de volgende normen of normatieve documenten:
SV EG-konformitetsförklaring. Vi förklarar i eget ansvar, att denna produkt stämmer överens med följan- de normer och normativa dokument:
fi EY-standardinmukaisuusvakuutus. Vakuutamme yksinvastuullisina, etta tuote on seuraavien standardien ja normatiivisten ohjeiden mukainen:
da EF-konformitetserklæring. Vi erklærer at have alene ansvaret for, at dette produkt er i overensstem-melse med de følgende normer eller normative dokumenter:

nb CE-Konformitetserklæring. Vi erklærer på eget ansvar at dette produktet er i overensstemmelse med følgende normer eller normative dokumenter:
pt CE-Declaração de conformidade. Declaramos, sob a nossa exclusiva responsabilidade, que este produto corresponde às normas ou aos documentos normativos citados a seguir:
RU Декларация соответствия ЕС. Мы заявляем с исключительной ответственностью, что данный продукт соответствует следующим нормам или нормативным документам:
CS ES prohlašeni o shodě. Prohlašujeme s veškerou odpovědnosti, že tento vyrobek je ve shodě s nasledujicimi normami nebo normativnimi dokumenty:
pl Deklaracja o zgodności z normami UE. Niniejszym oświadczamy na własną odpowiedzialność, że produkt ten spełnia następujące normy lub dokumenty normatywne:

2006/42/EG, 2014/30/EU, 2011/65/EU

EN 60335-1:2012 + A11:2014 + A13:2017, EN 60335-2-69:2012, EN 62233:2008, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50581:2012

C6 Festool GmbH

Wertstr. 20, D-73240 Wendlingen GERMANY

Head of Product Development

i.A.Q.B and

Ralf Brandt

Head of Product Conformity

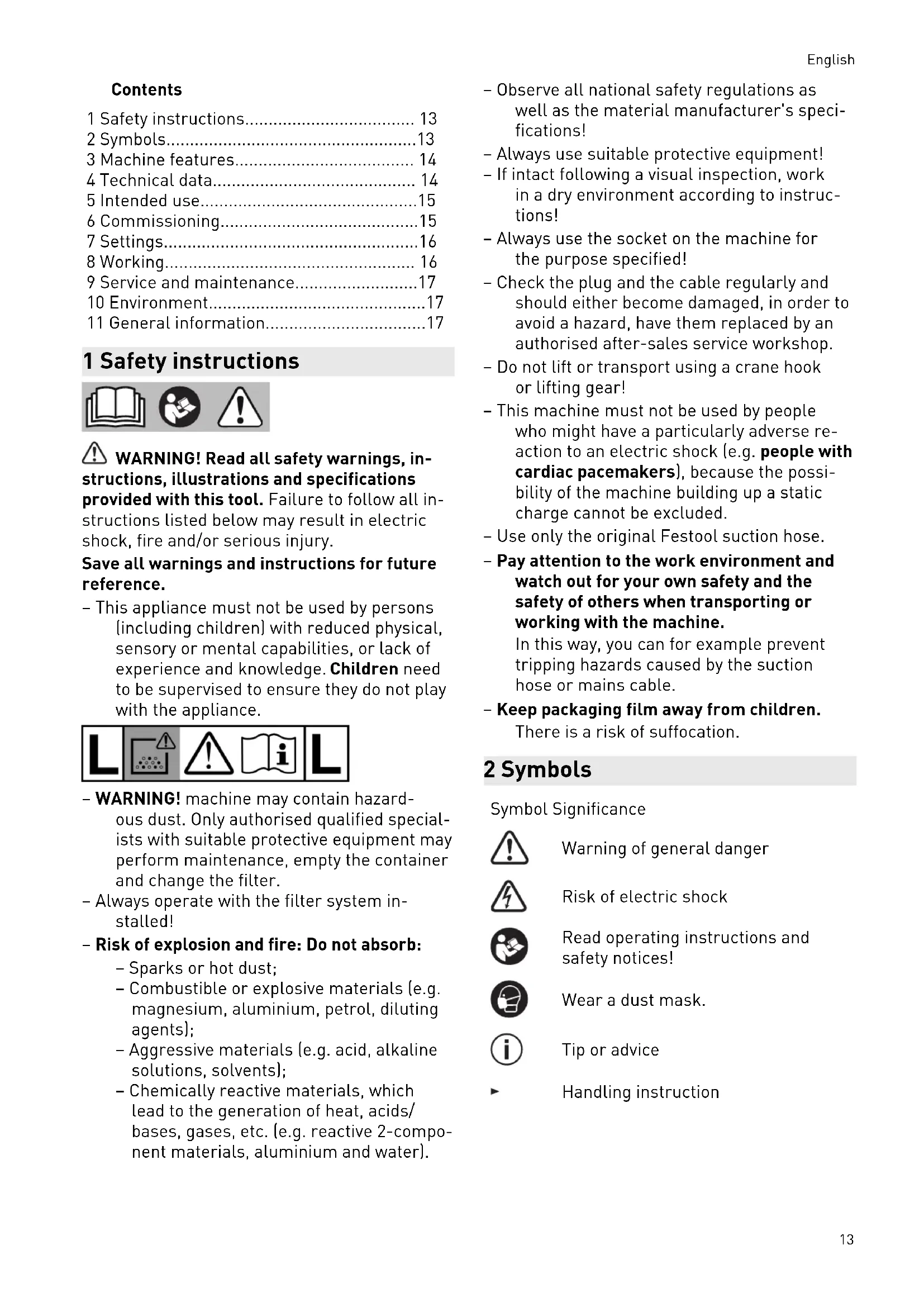

1 Safety instructions.... 13

2 Symbols....13

3 Machine features.... 14

4 Technical data.... 14

5 Intended use....15

6 Commissioning....15

7 Settings....16

8 Working.... 16

9 Service and maintenance....17

10 Environment....17

11 General information....17

1 Safety instructions

WARNING! Read all safety warnings, instructions, illustrations and specifications

provided with this tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

- This appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children need to be supervised to ensure they do not play with the appliance.

- WARNING! machine may contain hazardous dust. Only authorised qualified specialists with suitable protective equipment may perform maintenance, empty the container and change the filter.

- Always operate with the filter system installed!

– Risk of explosion and fire: Do not absorb:

• Sparks or hot dust;
• Combustible or explosive materials (e.g. magnesium, aluminium, petrol, diluting agents);
• Aggressive materials (e.g. acid, alkaline solutions, solvents);

• Chemically reactive materials, which lead to the generation of heat, acids/ bases, gases, etc. (e.g. reactive 2-component materials, aluminium and water).

• Observe all national safety regulations as well as the material manufacturer's specifications!

• Always use suitable protective equipment!
• If intact following a visual inspection, work in a dry environment according to instructions!
• Always use the socket on the machine for the purpose specified!
• Check the plug and the cable regularly and should either become damaged, in order to avoid a hazard, have them replaced by an authorised after-sales service workshop.
• Do not lift or transport using a crane hook or lifting gear!
• This machine must not be used by people who might have a particularly adverse reaction to an electric shock (e.g. people with cardiac pacemakers), because the possibility of the machine building up a static charge cannot be excluded.
• Use only the original Festool suction hose.
• Pay attention to the work environment and watch out for your own safety and the safety of others when transporting or working with the machine.

In this way, you can for example prevent tripping hazards caused by the suction hose or mains cable.

- Keep packaging film away from children.

There is a risk of suffocation.

2 Symbols

Symbol Significance

Warning of general danger

Risk of electric shock

Read operating instructions and safety notices!

Wear a dust mask.

Tip or advice

▶

Handling instruction

Symbol Significance

Warning! The machine may contain hazardous dust!

Do not dispose of as domestic waste.

UKCA marking: The United Kingdom Conformity Assessed symbol is a marking for products being placed on the market in the United Kingdom. It is a manufacturers indication that the product is in conformance with the relevant regulations in the UK.

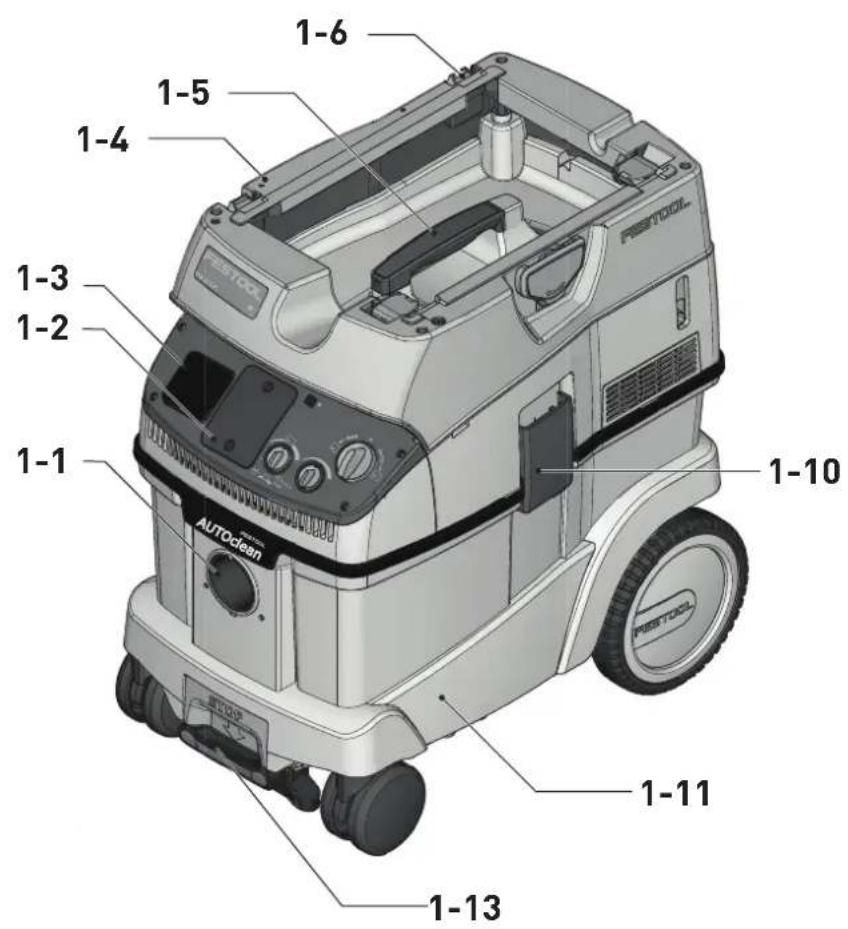

3 Machine features

[1-1] Intake opening

[1-2] Module slot

(compressed air module for CTL 36/48 E LE, CTL 36/48 E LE AC, socket module for CTL 26 E SD)

[1-3] Appliance socket

[1-4] Hose store

[1-5] Handle

[1-6] SysDoc

[1-7] Automatic cleaning (only versions with AutoClean)

[1-8] Switch

[1-9] Suction power adjuster

[1-10] Locking clip

[1-11] Dust container

[1-13] Brake

The specified illustrations appear at the beginning of the Operating Instructions.

4 Technical data

Mobile dust extractors
Power consumption 350 -1200 W
Maximum appliance socket connected load	EU	2400 W
	CH, DK	1100 W
	GB 230 V/ 110 V	1800 W/ 500 W
Max. suction capacity (air), extractor/turbine 130 m3/h / 234 m3/h
Max. vacuum, turbine 24000 Pa
Filter surface area 6318 cm2
Suction hose D 27/32 mm x 3,5 m-AS
Length of the net cable 7.5 m
Sound pressure level as per EN 60704-2-1 / Uncertainty K 71 dB(A) / 3 dB
Protection category IP X4
Container capacity CTL 26 E, CTL 26 E AC, CTL 26 E SD 26 l
CTL 36 E, CTL 36 E LE, CTL 36 E AC, CTL 36 E LE AC, CTL 36 E AC-LHS 36 l
CTL 48 E, CTL 48 E LE, CTL 48 E AC, CTL 48 E LE AC 48 l
Dimensions L x W x H CTL 26 E, CTL 26 E AC, CTL 26 E SD 630 x 365 x 540 mm
CTL 36 E, CTL 36 E LE, CTL 36 E AC, CTL 36 E LE AC, CTL 36 E AC-LHS 630 x 365 x 596 mm
CTL 48 E, CTL 48 E LE, CTL 48 E AC, CTL 48 E LE AC 740 x 406 x 1005 mm
Weight CTL 26 E, CTL 26 E SD	13.9 kg
	CTL 36 E, CTL 36 E LE	14.4 kg

Mobile dust extractors

CTL 48 E, CTL 48 E LE 18.8 kg

CTL 26 E AC 14.7 kg

CTL 36 E AC, CTL 36 E LE AC, CTL 36 E

AC-LHS

15.2 kg

CTL 48 E AC, CTL 48 E LE AC 19.6 kg

5 Intended use

Mobile dust extractor suitable for

• extracting dust up to 1mg / m^3 according to dust class L,
• extracting water,
• for increased loads during commercial use, according to IEC/EN 60335-2-69.

The user is liable for improper or non-in-tended use.

6 Commissioning

WARNING

Unauthorised voltage or frequency!

Risk of accidents

▶ Observe the specifications on the machine's name plate.
▶ Observe country-specific regulations.

6.1 Initial commissioning

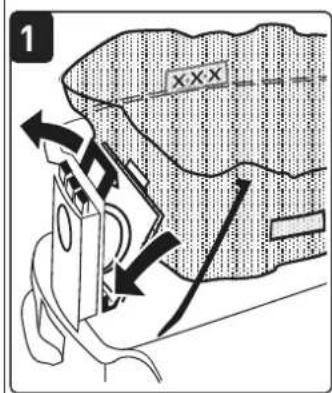

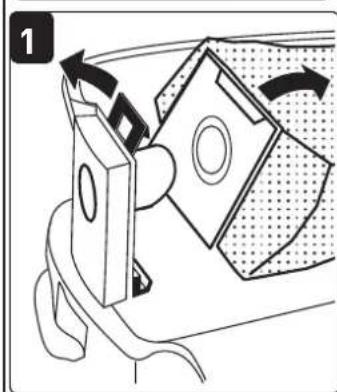

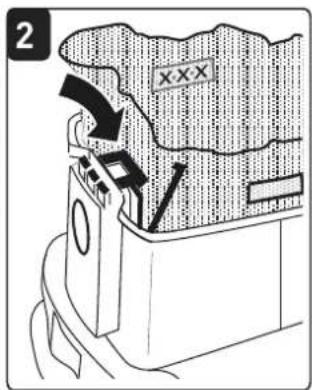

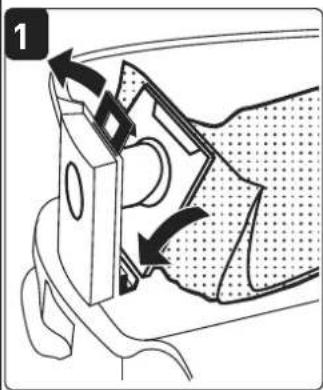

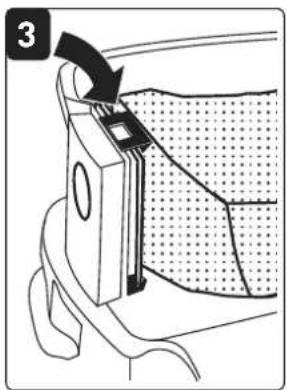

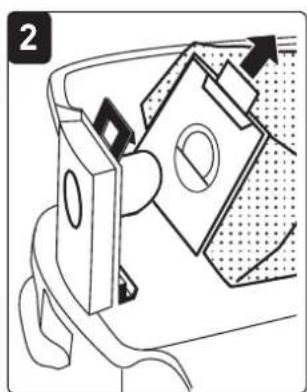

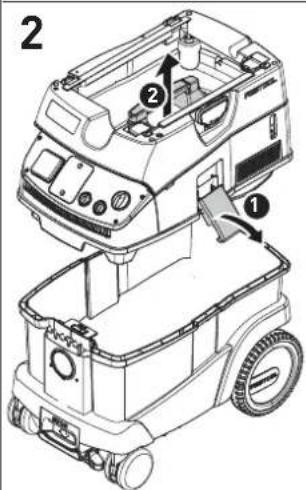

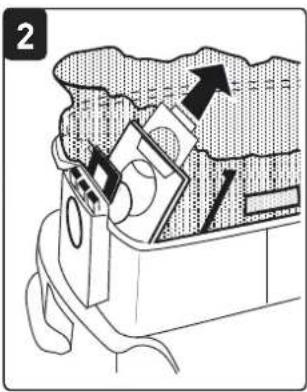

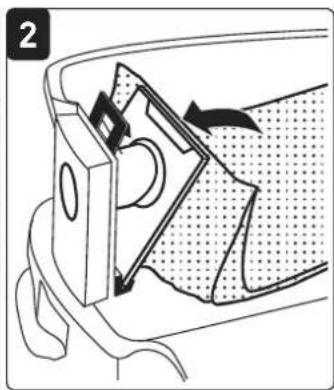

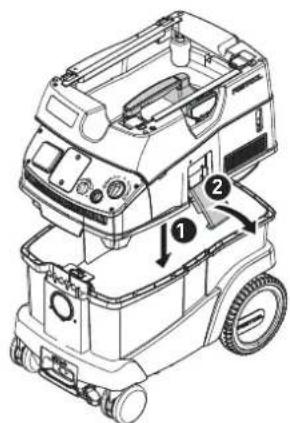

▶ Insert the filter/disposal bag [2].

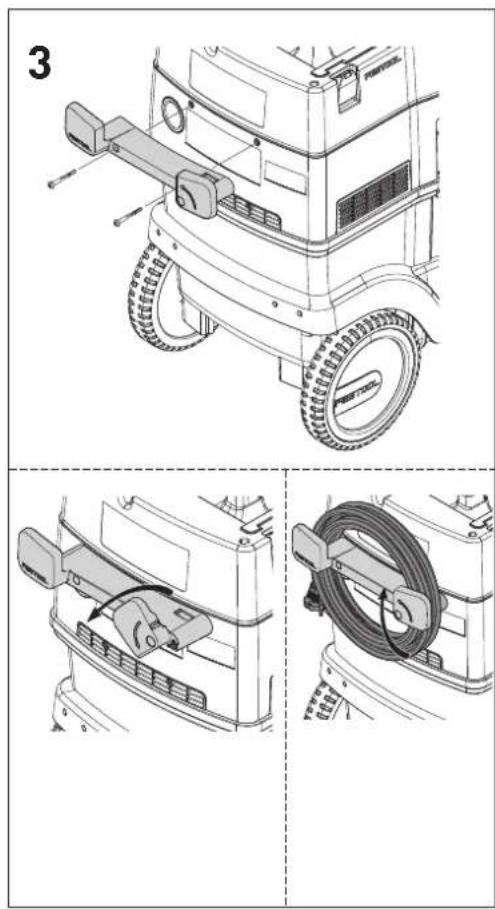

▶ Fit the cord holder [3].

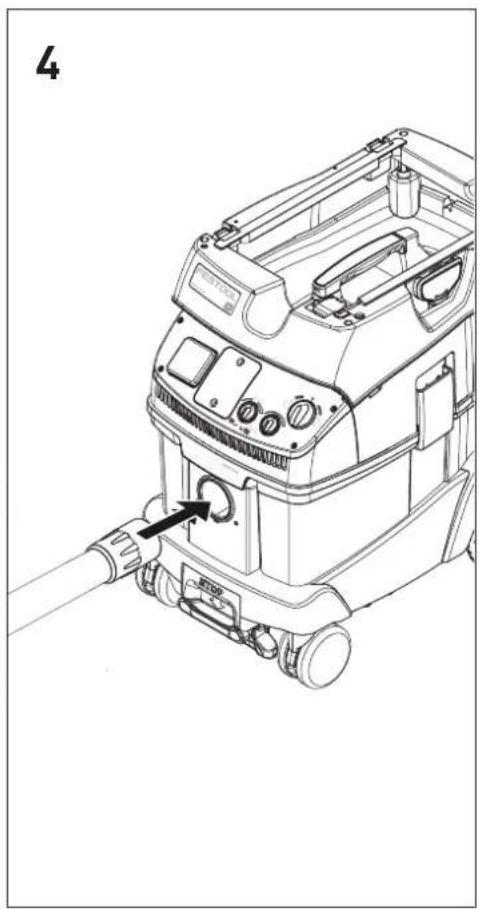

▶ Connect the suction hose [4].

6.2 Connecting the mobile dust extractor

WARNING

Risk of injury from tools starting up unexpectedly

Before setting the switch to the "AUTO" or "MAN" position, make sure that the connected tool is switched off.

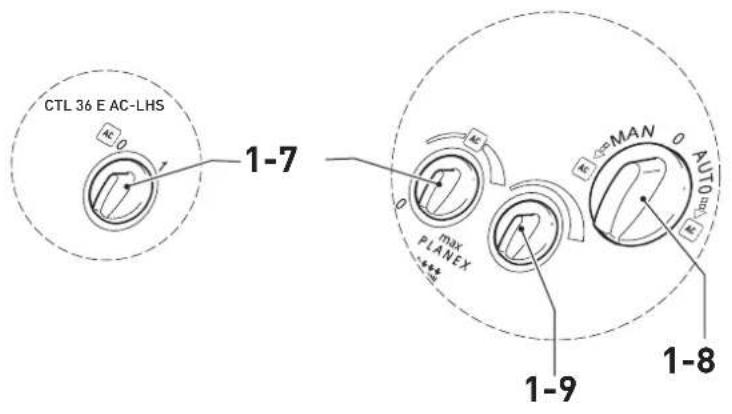

The switch [1-8] serves as an on/off switch.

Switch position "0"

Appliance socket [1-3] is disconnected from the power, mobile dust extractor is switched off.

"MAN" switch position

Appliance socket [1-3] is connected to the power, the mobile dust extractor starts.

"Auto" switch position

Appliance socket [1-3] is connected to the power, the mobile dust extractor starts when the connected tool is switched on.

▶ Insert the plug into an earthed socket.

Pull the plug from the socket when the machine is not in use and prior to main-ce and cleaning work.

6.3 Connecting electric power tools

WARNING

Risk of injury

▶ Observe the maximum appliance socket connected load (see chapter "Technical data")
▶ Switch off the electric power tool.

- Connect the electric power tool to the appliance socket [1-3].

Special features of CTL26 E SD

• CTL 26 E SD E/A: socket module with automatic switch-on function for the use of two electric power tools: e.g. 2 sanders, 1 jigsaw + 1 sander
• CTL 26 E SD: Socket module with permanent power supply for use as extension cable: e.g. charger, lamp, etc.

6.4 Connecting pneumatic tools

WARNING

Risk of injury

▶ Switch off the air tool.

Automatic on/off switch for air tools (CTL 36/48 E LE, CTL 36/48 E LE AC or accessories)

with compressed air module in module slot [1-2]

Recommendation:

• Attachment of service unit VE (495886): compressed air filtered and lubricated
• Use of IAS system with IAS connector (454757) for Festool air tools

English

Requirement: tool with operating pressure of 6 bar!

6.5 Special features of the CTL 36 E AC-LHS

To use the mobile dust extractor in combination with the PLANEX:

▶ Use kink-resistant suction hose D 36 mm x 3.5 m-AS.
▶ Use a special suction sleeve for connecting the PLANEX.
▶ Use closing slide CT-VS between the intake opening [1-1] and suction hose.
▶ Attach the tool holder.
▶ Always use with a disposal bag!

7 Settings

7.1 Adjusting the suction power

▶ at the rotary knob [1-9].

7.2 Applying the brake

Folding out the black brake lever [1-13] prevents the mobile dust extractor from rolling. To achieve this, lift the front end of the mobile dust extractor slightly and push the black brake lever downwards until it latches into place. Push the green lever to release.

7.3 Temperature cut-out

A temperature cut-out switches the mobile dust extractor off when it reaches a critical temperature to prevent overheating.

- Switch off the mobile dust extractor, allow to cool for about 5 minutes then switch on again.

① Not possible to switch on: contact Festool service workshop.

7.4 AUTOClean - Cleaning the main filter (only versions with AutoClean)

Only in conjunction with disposal bag

(compliance with dust class 'L'). Not suit-

able for wet extraction!

Automatic cleaning

Adjust the frequency using the rotary knob [1-7].

Only CTL for 36 E AC-LHS: switch on using the rotary knob [1-7].

Manual cleaning

Turn the switch [1-8] to the AC symbol.

Full manual cleaning

▶ Cover the end of the nozzle or suction hose with your hand or closing slide CT-VS (497926) for 2 seconds.

▶ Turn the switch [1-8] to the AC symbol.

8 Working

8.1 Handling

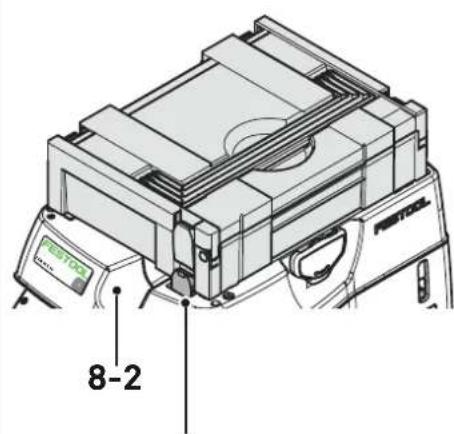

Hose holder: After finishing work, you can feed the suction hose through the opening [8-2] and place it in the hose holder.

SysDoc Systainer storage area: A Systainer can be fastened to the storage area with the four slides or the T-Loc lock [8-1].

8.2 Extracting dry materials

CAUTION

Hazardous dust

Damage to the respiratory passage

▶ Always use a filter or disposal bag!

When extracting dust that exceeds the permitted limit values, only extract from the machine (electric or air tool).

Observe the following when extracting dust generated by operating electric power tools:

Ensure there is adequate ventilation! Observe regional regulations!

Limit values: exhaust air max. 50% of the clear air volume

Formula: room volume V_R x air renewal rate L_W

8.3 Extracting wet materials/liquids

Remove the filter or disposal bag!

Recommendation: use special wet filter

(NF-CT).

The dust extractor stops automatically when the maximum level is reached.

After wet extraction, allow the main filter to dry!

CAUTION

Escaping foam and fluids

▶ Switch off and empty the machine immediately.

8.4 After finishing work

▶ Only versions with AutoClean: Clean the main filter automatically or manually (see chapter 7.4).
▶ Switch off the mobile dust extractor and pull out the mains plug.
▶ Wind up the mains power cable.
▶ Empty the dirt trap.
- Place the mobile dust extractor in a dry room inaccessible to unauthorised users.

9 Service and maintenance

WARNING

Risk of injury, electric shock

▶ Always pull the mains plug from the socket before performing any servicing and maintenance work.
▶ All maintenance and repair work which requires the motor housing to be opened should always be carried out by an authorised service workshop.

Customer service and repairs must only be carried out by the manufacturer or service workshops: Find the nearest address at: www.festool.com/service

Always use original Festool spare parts. Order no. at: www.festool.com/service

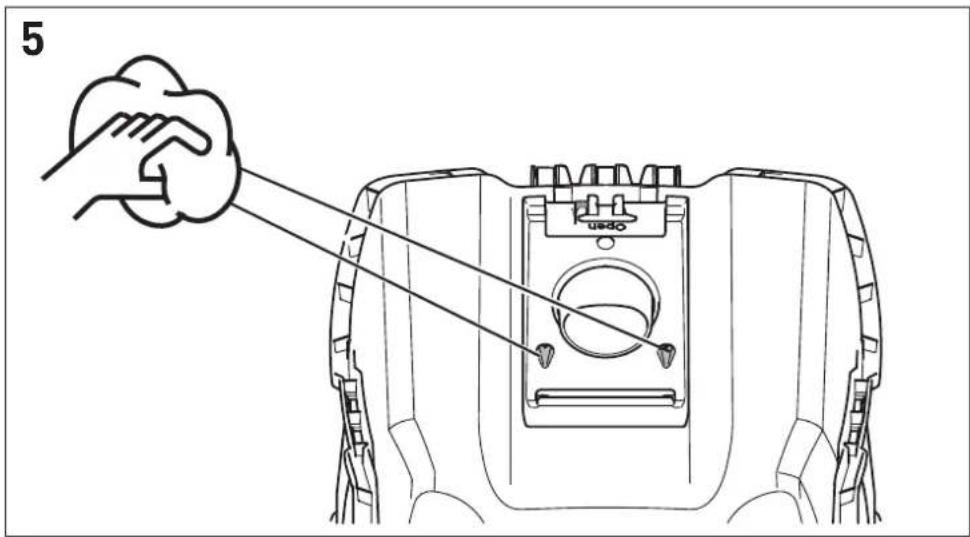

▶ Regularly clean the fill level sensors [5] and empty the dirt trap [1-11].

Observe the following information:

• Dust-related inspection (e.g. for filter damage, tightness of the machine and function of the control devices) by the manufacturer or an instructed person at least once a year.
• Dispose of components that cannot be cleaned. Use impermeable bags to do so. Observe the applicable disposal provisions!

9.1 Filter bag / disposal bag / main filter

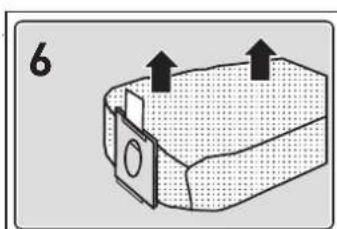

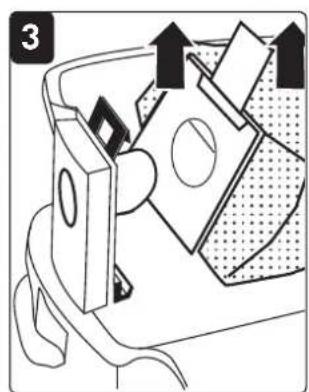

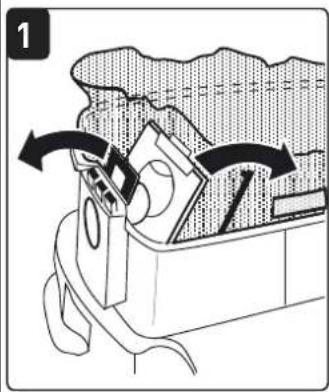

▶ Remove the filter bag [6].

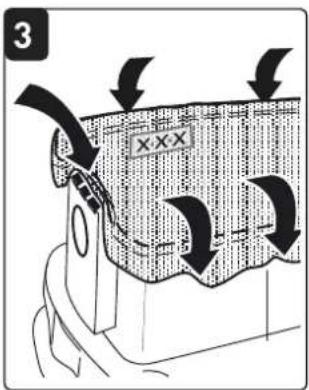

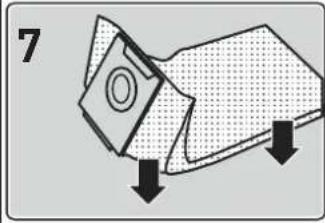

▶ Insert the filter bag [7].

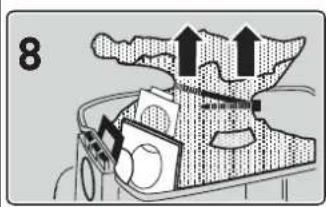

▶ Remove the disposal bag [8].

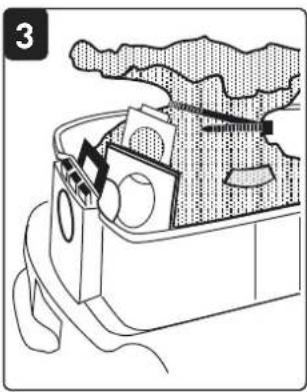

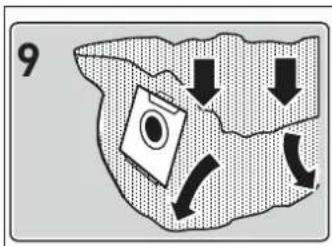

▶ Insert the disposal bag [9].

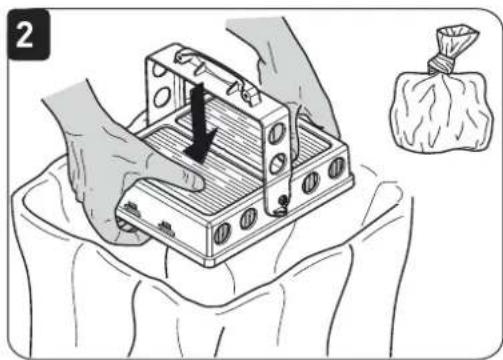

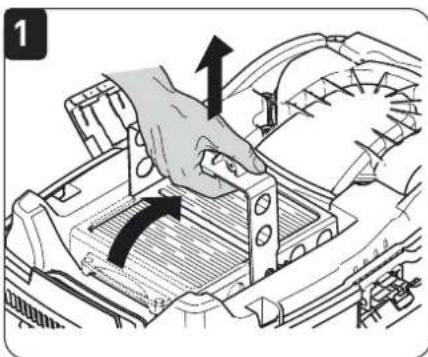

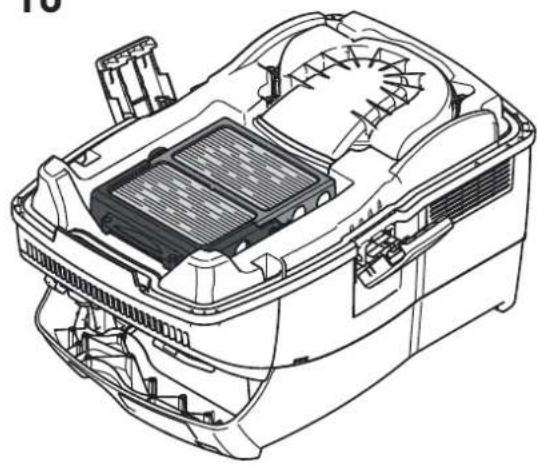

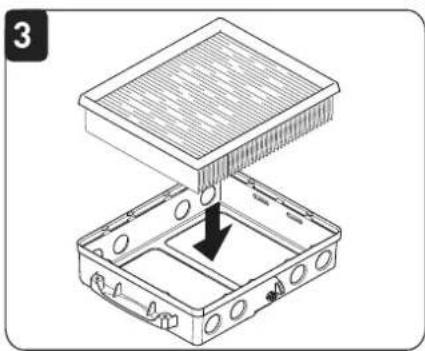

▶ Change the main filter [10].

Dispose of the used filter in accordance with statutory regulations.

The order numbers for accessories, filters and consumables can be found in the Festool catalogue or on the internet at www.festool.com.

10 Environment

Do not dispose of the device in the household waste! Recycle devices, accessories and packaging. Observe appli-national regulations.

EU only: In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used power tools must be collected separately and handed in for environmentally friendly recycling.

Information on REACH: www.festool.com/reach

11 General information

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way

Bury St Edmunds

IP30 9XH

Great Britain

Sommaire

CTL 36 E AC, CTL 36 E LE AC, CTL 36

E AC-LHS

15,2 kg

CTL 48 E AC, CTL 48 E LE AC 19,6 kg

CTL 36 E AC, CTL 36 E LE AC, CTL 36

E AC-LHS

15,2 kg

CTL 48 E AC, CTL 48 E LE AC 19,6 kg

CTL 36 E AC, CTL 36 E LE AC, CTL 36

E AC-LHS

CTL 48 E AC, CTL 48 E LE AC 19,6 kg

15,2 kg

5 Utilizzo conforme

[1-1] Aanzuigopening

CTL 36 E AC, CTL 36 E LE AC, CTL 36

E AC-LHS

15,2 kg

CTL 48 E AC, CTL 48 E LE AC 19,6 kg

6 Igangsetting....55

7 Innstillinger.... 55

8 Arbeid.... 56

CTL 36 E AC, CTL 36 E LE AC, CTL 36

E AC-LHS

15,2 kg

CTL 48 E AC, CTL 48 E LE AC 19,6 kg

CTL 36 E AC, CTL 36 E LE AC, CTL 36

E AC-LHS

15,2 kg

CTL 48 E AC, CTL 48 E LE AC 19,6 kg
