MC122866 - Mechanical chipper Emerio - Free user manual and instructions

Product type	Mechanical chopper with rechargeable battery
Brand	Emerio
Model	MC122866
Power supply	Built-in rechargeable battery; mains adapter: input 100-240 V ~ 50/60 Hz, output 13 V / 1 A
Motor power	200 W (main unit under 12 V DC)
Bowl capacity	Glass bowl (max 300 g meat, 120 g fruits/vegetables, 12 biscuits, 3 egg whites)
Speeds	2 speeds: slow (I) and fast (II)
Included accessories	2 sets of blades, whisk, storage lid, non-slip base, adapter
Operating time	Approximately 65 seconds per cycle, automatic stop; up to 5 cycles per charge
Charging time	Approximately 2.5 hours
Main functions	Chopping food (meat, vegetables, fruits, nuts, biscuits); whisking eggs
Safety	Safety switch (press 1 s before starting), automatic stop, very sharp blades with usage precautions
Care and cleaning	Bowl, lid, blades and whisk dishwasher safe; motor unit wiped with a damp cloth
Materials	Glass bowl, stainless steel blades, non-slip base
Warranty	2 years (subject to conditions described in the manual)
Country of origin	Denmark (company Fun Nordic ApS)

Frequently Asked Questions - MC122866 Emerio

How to charge the battery of the Emerio MC122866?

Use the supplied adapter. Plug it into the appliance via the charging port, then into a mains socket. The indicators flash during charging and stay on when finished. Charging takes about 2h30. The appliance cannot operate during charging.

What foods can I chop with this chopper?

You can chop meat (beef, pork, max 300 g), fruits and vegetables (max 120 g, cut into pieces), nuts (max 120 g), biscuits (max 12) and bread (1 slice at a time). Do not chop hard foods like bones, ice cubes, coffee beans or frozen foods.

How to assemble the blades?

The appliance comes with two sets of blades. Mount blade 1 (convex square) into the groove on the shaft of blade 2. Make sure the assembly is secure without overtightening. Note: The blades are very sharp.

How to use the two speeds?

Press the Speed I (slow) or Speed II (fast) button and hold it to operate the appliance. Release to stop. The speed button only works if you first press the safety switch for 1 second.

Can the parts be washed in the dishwasher?

Yes, the glass bowl, its lid, blades and whisk are dishwasher safe. For the blades, use a toothbrush for hand cleaning if necessary. Never wash the motor unit under water; wipe it with a damp cloth.

What to do if the appliance does not start?

Check that the battery is charged. Ensure the motor unit is correctly mounted on the lid. You must first press the safety switch for 1 second before activating a speed button. If the problem persists, contact customer service.

What is the operating time per cycle?

The appliance runs for approximately 65 seconds per cycle, then stops automatically. Wait at least 3 minutes between cycles to avoid overheating. It can perform up to 5 complete cycles on a full battery.

Is the glass bowl microwave safe?

No, the glass bowl cannot be used in a microwave oven. Also avoid washing it with water above 50°C.

How to store chopped food in the appliance?

After chopping, first remove the motor unit, lid and blades. You can then place the supplied storage lid on the bowl to store food in the refrigerator.

What is the warranty of this chopper?

The appliance comes with a 2-year warranty from the date of purchase, subject to presentation of the receipt. The warranty does not cover damages due to misuse, repair by an unauthorized third party, or normal wear of parts.

USER MANUAL MC122866 Emerio

Black and white photo of a hâws blender with clear glass casing (no text or symbols on body)

Instruction manual – English ...... - 27 -

F∅ R F∅ RSTE BRUG

Mechanical assembly diagram showing two components with labeled parts (1 and 2), no text or symbols present.

F∅ R F∅ RSTEGANGS BRUK

Diagram showing two black cylindrical components labeled 1 and 2 connected by coiled wires, with no visible text or symbols beyond labels.

FÖ RE FÖ RSTA ANVÄNDNING

VOR DEM ERSTEN GEBRAUCH

Mechanical assembly diagram showing two black cylindrical components with labeled parts, connected by coiled wires (no text or symbols present)

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read operator's manual.

2. Please read through the instruction manual carefully before using the device for the first time, and store it in a safe place for future reference. If you ever give the device to a new owner, ensure that you also pass on this instruction manual.

3. Detachable supply unit < BLJ15L130100P-V> WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

4. This appliance contains batteries that are non-replaceable.

5. Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.

6. Using any electrical appliance, especially when children are present basic safety precautions should always be observed.

7. There is a potential risk of injuries from misuse.

8. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

9. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

10. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

1. Children shall not play with the appliance.

2. The appliance is only to be used with the power supply unit provided with the appliance.

3. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

4. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

8. Ensure fingers are kept well away from moving parts.

9. Do not run the appliance if there is nothing in the bowl. Avoid the blades rub with the glass bowl.

10. Never attempt to take food or liquid into / out of the glass bowl when the blade is moving. Always wait until the blade stops completely.

11. Do not immerse the Motor Unit into water or under a tap or in a dishwasher.

12. Do not let cord hang over edge of table or hot surface.

13. Do not use appliance for other than intended use.

14. Do not use outdoors.

15. Regarding the instructions for cleaning the surfaces which come in contact with food, speed settings and operating times, please refer to the below paragraph of the manual.

16. Do not use the machine without the bowl lid.

17. Do not use the machine in high temperature environment.
18. Do not put hot food / ingredients (above 65^ C) into the bowl for processing.
19. The glass bowl cannot be used in microwave oven. Do not wash with warm water more than 50^ C.
20. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
21. Do not place on or near a hot gas or electric burner or in a heated oven.
22. The bowl lid can only be opened after the blades stop moving completely.
23. The motor cannot be used for other than intended use.
24. Never try to modify or damage the interlock mechanism of bowl lid.
25. CAUTION: After finishing chopping the food, firstly remove the blade and then handle the chopped food. Do not handle the chopped food before the blade is removed.

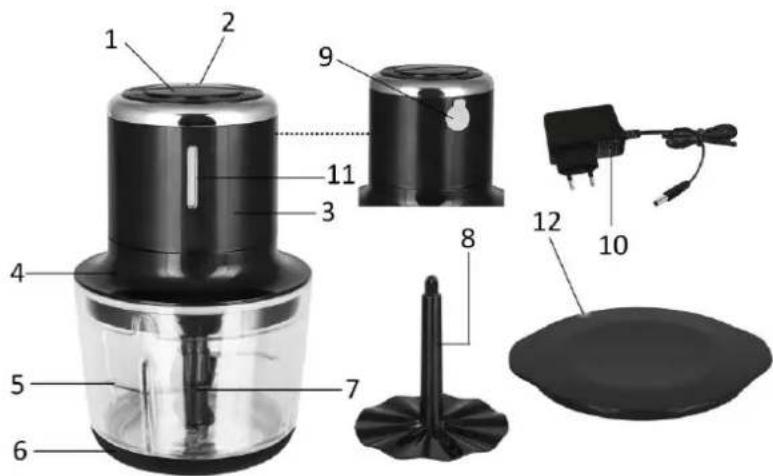

GENERAL DESCRIPTION

1. Speed button I (low speed)
2. Speed button II (high speed)
3. Motor unit
4. Bowl lid
5. Glass bowl
6. Non-slip mat
7. Blades
8. Whisk
9. Charger port and charger port cover
10. Adaptor
11. Battery indicators
12. Storage cover

BEFORE FIRST USE

1. Before using the product for the first time, please ensure that the battery is fully charged and the parts that come into contact with the food shall be cleaned thoroughly.
2. This appliance is equipped with a protection switch and it can be only operated by pressing and holding the speed button for 1 second later.
3. Clean the appliance as described in section "cleaning and maintenance". Take care when handling sharp blades.

NOTE: This set working time of the appliance for one cycle is around 65 seconds. After that, the appliance will stop working automatically.

BATTERY CHARGING

1. The appliance must be charged by the adaptor provided with the appliance.
2. Plug one end of the adaptor into the charging port and the other end into the power outlet.
3. When charging, the indicators illuminate alternately from bottom to top. When fully charged, the battery indicators will stay lit.
4. The appliance cannot be activated for working when it is being charged.

NOTE: After fully charged, the appliance can keep working for 5 cycles continuously, and minimum 3-minute rest time must be maintained between two consecutive cycles.

HOW TO CHOP FOOD

1. Make sure the non-slip mat is in place. Place the appliance on the table.
2. Place the blades onto the spindle of the bowl and pour in the food to be chopped. Take care the blades are very sharp.

NOTE: This appliance is equipped with two sets of blades. Attach the two sets of blades together; rotate to fix firmly by the groove on the shaft of blade 2 and square convex point on the blade 1. Do not over tighten.

1. Place the lid on to the bowl. Place the motor unit onto the lid. Make sure it fits properly.

Diagram showing two mechanical components with labeled parts, connected by a curved wire (no text or symbols present)

1. Press and hold the speed button I or speed button II to run the appliance. Release the button to stop the unit.

NOTE: After put the food in the bowl, if the blades cannot speed up in a few seconds; take out part of food, than continue.

1. After use, wait until the blade stops completely. Remove the motor unit, the lid and the blades. Then, empty the food.

2. You can also reserve the food in the bowl. Cover the bowl with storage cover.

Always make sure the motor unit is in place; otherwise the unit will not function.

This product cannot chop hard things, such as meat with bones, soya bean, pepper, coffee bean, ice cubes and freezing food.

HOW TO WHISK EGG

1. Make sure the non-slip mat is in place. Place the appliance on the table.
2. Install the whisk onto the spindle of the bowl, then add at most three egg whites into the bowl.
3. Place the lid on to the bowl. Place the motor unit onto the lid. Make sure it fits properly.
4. Press and hold the speed button I or speed button II to whisk egg white for 65 seconds. Release the button to stop the unit.
5. After use, wait until the whisk stops completely. Remove the motor unit, the lid and the whisk. Then, empty the food.

GUIDE FOR CHOPPING FOOD

Type of food	Operation
Bread: Fresh, baked, not fresh	Use one piece of bread at a time and tear it into pieces.Chop the bread in a cycle of 20S-ON and 1Min-OFF, and perform several cycles until the required chopping result is got.
Fruits and vegetables (Canned, boiled)	Add at most 120g fruits or vegetables and water or soup, and then process the food in a cycle of 20S-ON and 1Min-OFF, perform several cycles until the required processing result is got.Add at most 120g fruits or vegetables which are sliced into long pieces, and then process the food in a cycle of 20S-ON and 1Min-OFF, perform several cycles until the required processing result is got.
Fresh celery and other leafy plants	Clean and dry the leafy plants completely, and then process the food in a cycle of 20S-ON and 1Min-OFF, perform several cycles until the required processing result is got.
Nut	Add at most 120g nuts, and then process the nuts in a cycle of 30S-ON and 1Min-OFF, perform several cycles until the required processing result is got.
Biscuit	Add at most 12pcs of biscuits, and then process the cookies or biscuits in a cycle of 20S-ON and 1Min-OFF, perform several cycles until the required processing result is got.
Fresh beef or pork Cut into cubes of 60 mm * 20 mm * 20 mm	Add at most 300g beef or pork, and then process the beef or pork in a cycle of 30S-ON and 1Min-OFF, perform several cycles until the required processing result is got.

CLEANING AND MAINTENANCE

1. Unplug the appliance and remove motor unit.

2. Wash the bowl lid, glass bowl, blades and whisk in warm soapy water. They are dishwasher-proof.

3. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning as electrical shock may occur.
4. Do not use chemicals, steel, wood or abrasive materials to clean the appliance, otherwise it will damage the surface of the product.
5. Dry thoroughly.

Caution: The blades cannot be cleaned with hand directly. They can be cleaned by a toothbrush or similar tools. Blades are every sharp, handle with care.

PRODUCT SPECIFICATIONS

Main unit: 12V DC; 200W

Adaptor input: 100-240V\~ 50/60Hz; 0.5A

Adaptor Output: 13V DC; 1000mA

Charging time: Around 2.5hrs.

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

FUN NORDIC ApS

Bjerggade 2

6200 Aabenraa

Danmark

www.funnordic.dk
