MC111757 - Mechanical chipper Emerio - Free user manual and instructions

Product type	Multifunction chopper (mechanical mincer)
Brand	Emerio
Model	MC111757
Power supply	220-240 V ~ 50/60 Hz
Power	260 W
Bowl capacity	Max 270 g (solid foods), 200 ml (liquids)
Blade material	Stainless steel
Main functions	Chopping, blending, turbo function, activation by pressing the motor unit
Included accessories	Bowl, removable lid, motor unit, blade, blade guard, non-slip mat
Maintenance and cleaning	Bowl, lid and blades dishwasher safe; motor unit wipe with a damp cloth
Safety	Sharp blades, do not use by children, unplug before cleaning, do not immerse motor unit in water
Maximum usage time	1 minute continuous, then 2 minutes rest; after 3 cycles, 15 minutes rest
Foods not recommended	Meat with bones, soybeans, pepper, coffee beans, ice cubes, frozen foods
Warranty	2 years, subject to proper use and receipt
Customer service	Contact the seller or Emerio after-sales service

Frequently Asked Questions - MC111757 Emerio

How to use the Emerio MC111757 chopper?

Attach the blade to the bowl, add food cut into small pieces (about 2 cm), close the lid, place the motor unit, plug in and press the turbo button or push the motor unit down to activate.

What foods can be chopped with this appliance?

You can chop vegetables, meat, figs with honey, and blend liquids. Recommended quantities are 200 g for vegetables and meat, 270 g for figs, and 200 ml for liquids.

Can parts be washed in the dishwasher?

Yes, the bowl, removable lid and blades are dishwasher safe. The motor unit should be wiped with a damp cloth and never immersed.

What to do if the motor stalls during use?

Unplug the appliance immediately and remove some of the food to reduce the load. Make sure the food is cut into small pieces (about 2 cm) before trying again.

What is the maximum recommended usage time?

Do not use for more than one minute continuously. Let the appliance rest for 2 minutes between cycles. After 3 cycles, let it rest for 15 minutes to cool the motor.

Can I chop ice cubes or frozen foods?

No, this appliance cannot chop ice cubes, frozen foods, meat with bones, soybeans, pepper or coffee beans.

How to clean the motor unit?

Unplug the appliance, remove the motor unit and wipe it with a damp cloth. Never immerse it in water or put it in the dishwasher to avoid electric shock.

Is the appliance suitable for use by children?

No, this appliance should not be used by children. The blades are sharp and pose a risk of injury. Keep the appliance out of reach of children.

What to do in case of breakdown or manufacturing defect?

Contact Emerio after-sales service or the seller. The two-year warranty covers manufacturing defects but requires presentation of the receipt. Repairs by unauthorized third parties void the warranty.

How to change the chopper blades?

The blades are removable: carefully remove the used blade by holding it by the central plastic part and replace it with a new compatible blade. Caution, the blades are very sharp.

USER MANUAL MC111757 Emerio

White and transparent blender with volume markings (no visible text or symbols on body)

Instruction manual – English ...... - 6 -

Navodila za uporabo – Slovenian.... - 10 -

VOR GEBRAUCH

97084 Würzburg Germany

www.moemax.com

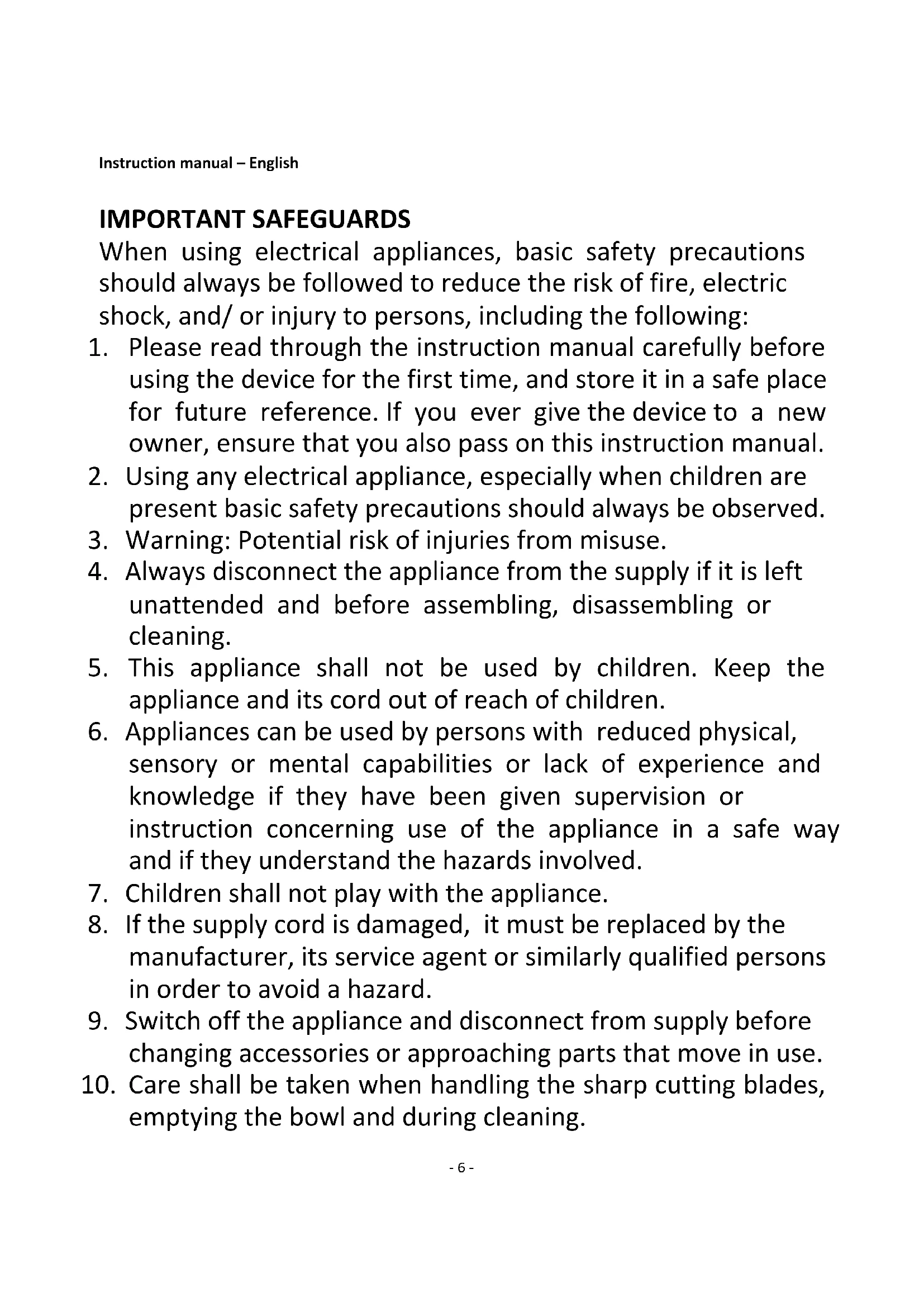

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Please read through the instruction manual carefully before using the device for the first time, and store it in a safe place for future reference. If you ever give the device to a new owner, ensure that you also pass on this instruction manual.
2. Using any electrical appliance, especially when children are present basic safety precautions should always be observed.
3. Warning: Potential risk of injuries from misuse.
4. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
7. Children shall not play with the appliance.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

10. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

11. Always unplug the appliance immediately after use. To unplug the cord by grasping the plug, do not pull on the cord.

12. Ensure fingers are kept well away from moving parts.
13. Do not use the multi chopper when it is empty.
14. Never attempt to take food or liquid into the Jar when the blade is moving. Always wait until the blade stops completely.
15. Do not immerse the Motor Unit into water or under a tap or in a dishwasher.
16. Do not let cord hang over edge of table or hot surface.
17. Do not use appliance for other than intended use.
18. Do not use outdoors.
19. Regarding the instructions for cleaning the surfaces which come in contact with food, speed settings and operating times, please refer to the below paragraph of the manual.
20. Do not use the machine without the lid.
21. Do not use the machine in high temperature environment.
22. Do not put hot food / ingredients (above 65^ C) into the jar for processing.

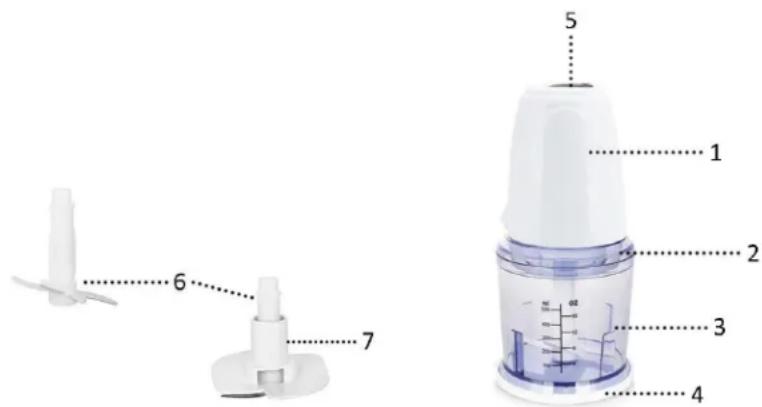

GENERAL DESCRIPTION

1. Motor unit
2. Lid
3. Jar
4. Non-slip mat
5. Turbo button
6. Stainless steel blade
7. Blade protection

BEFORE USE

Remove the appliance from the packaging.

Take care when handling sharp blades. Remove the blade protection from the blades.

Clean the appliance as described in section "cleaning and maintenance".

USE

1. Attach the blade on to blade support in the jar and pour in the food to be chopped.
   Hard food must be cut into small pieces (about 2cm). Otherwise, the motor may block. Press “TURBO” for processing.
2. Attach the removable lid on top of the jar and then the motor unit, plug the appliance in. Press down on the motor unit, and the multi chopper starts up immediately.
   NOTE: After put the food in the jar, if the blades cannot speed up in a few seconds, please unplug the unit and take out part of food, then continue.
3. After use, unplug the appliance and wait unit the blade stops completely. Remove the motor unit, the removable lid and the blade.

Always make sure the motor unit is in place; otherwise the unit will not function.

Take note of the following table:

Foodstuff	Filling quantity	Processing time	Speed
Fig + honey	≤270g	15 seconds	Turbo
Vegetables (cut into small pieces of 20x20x50mm)	≤200g	15 seconds	Normal
Meat (cut into small pieces of 20x20x50mm)	≤200g	30 seconds	Turbo
Liquid	≤200ml	1 minute	Turbo

Do not operate for more than 1 minute at a time. Stop and cool for 2 minutes then resume.

Please make sure the appliance rest more than 2 minutes between any two operations. After working 3 cycles, the unit has to stop 15 minutes to wait the main engine to cool down.

This product cannot chop hard things, such as meat with bones, soya bean, pepper, coffee bean, ice cubes and freezing food.

CLEANING AND MAINTENANCE

1. Unplug the appliance and remove motor unit.
2. Wash the removable lid and the jar in warm soapy water.
3. The jar, the blades and the lid are dishwasher-proof.
4. Wipe the motor unit with a dampen cloth. Never immerse it in water for cleaning as electrical shock may occur.
5. Dry thoroughly.

Caution: Blade is every sharp, handle with care.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 260W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
