USER MANUAL Azura M3 Capital Sports

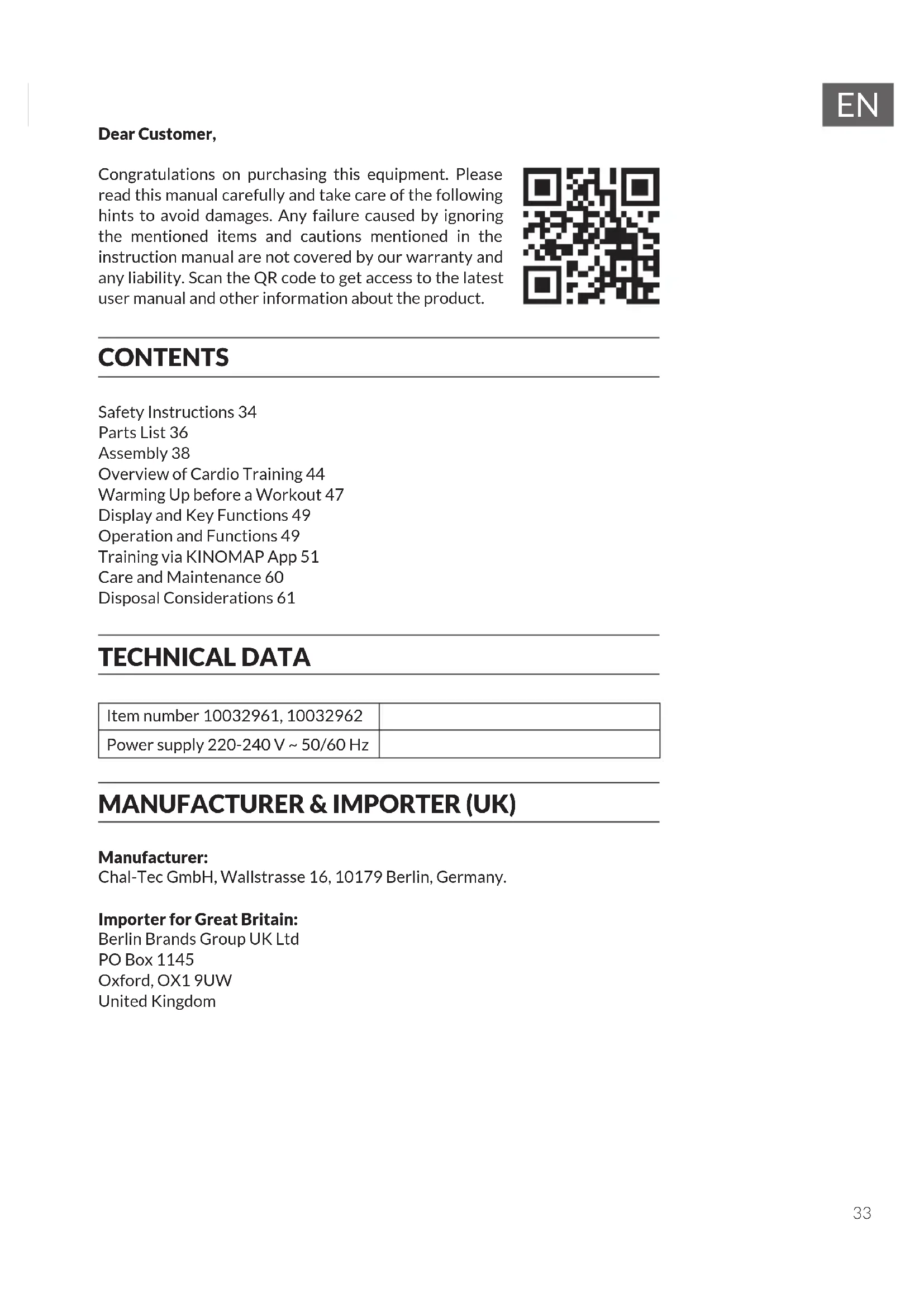

Dear Customer, Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product. CONTENTS Safety Instructions 34 Parts List 36 Assembly 38 Overview of Cardio Training 44 Warming Up before a Workout 47 Display and Key Functions 49 Operation and Functions 49 Training via KINOMAP App 51 Care and Maintenance 60 Disposal Considerations 61 TECHNICAL DATA Item number 10032961, 10032962 Power supply 220-240 V ~ 50/60 Hz MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom34

SAFETY INSTRUCTIONS Before operating this unit, please read this manual carefully to ensure optimum performance and safety. This is manual should be kept available for future reference. For product improvement, the company reserves the right to change the design and specication at any time without prior notice. Pictures are for reference use only and may differ from the actual product.

• Please keep this manual in a safe place for your reference when necessary.

• Please do not assembly or use this equipment until you read this manual thoroughly & carefully. The safety and efciency only can be achieved when the equipment is assembled ,maintained and used properly. It is your responsibility to ensure that all the users are informed of all the warnings and precautions.

• For totally safe use, a stable , leveled surface is required. Protect your oor with a mat. Do not use the equipment in a damp areas such as swimming pool sauna, etc. For safety space, the equipment must have at least 0.5 meter of free space all around it.

• Before starting any exercise program you must consult your doctor to determine if you have any physical or health conditions that could create a risk to your health and safety, or prevent you from using the equipment properly. Your doctor‘s advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.

• Be aware of your body‘s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experienced any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions you must consult your doctor before continuing with your exercise program.

• Do not workout immediately after meals.

• Keep children and pets away from the equipment, the equipment must be assembled and used by adults only.

• The equipment is designed for home use only. Note: Maximum weight of the user is 100 kg.35

• The equipment is not suitable for therapeutic use, may only be used for exercises indicated in the training instructions

• Wearing proper clothing and athletic shoes while using the equipment, Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movements.

• Keep your back straight while exercising.

• Before using the equipment, check the handle bar, seat, and the nuts & bolts are securely tightened.

• For adjustable parts, bear the maximum position in your mind, do not exceed the mark „stop“, otherwise will cause risk.

• Always use the equipment as indicated. If you nd any defective components while assembling or checking the equipment ,or if you hear any unusual noises coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been solved.

• Care must be taken when lifting or moving the equipment so as not to injure your back. always use proper lifting techniques and /or seek assistance if necessary.

• All moveable accessories(e.g. pedal, handlebar, saddle...etc.) require weekly maintenance. Check them before use every time. If anything broken or loose, please x them immediately. You may continue using them only after they return to good conditions.

• Keep power cord away from heat sources.

• Do not insert or drop any object into any opening.

• Unplug exercise bike before moving or cleaning it. To clean, wipe surfaces down with mild detergents and a slightly damp cloth only; never use solvents.

• Do not use the exercise bike in any location that is not temperature controlled, such as, but not limited to, garages, porches, pool rooms, bathrooms, car ports or outdoors.

• Use the bike only as described in this manual.

• Incorrect repair and structural modications(e.g. removal or replacement of original parts) may endanger the safety of the user.

• The rotating disk ywheel will get hot during the operation.

• Lock the equipment when stop using.36

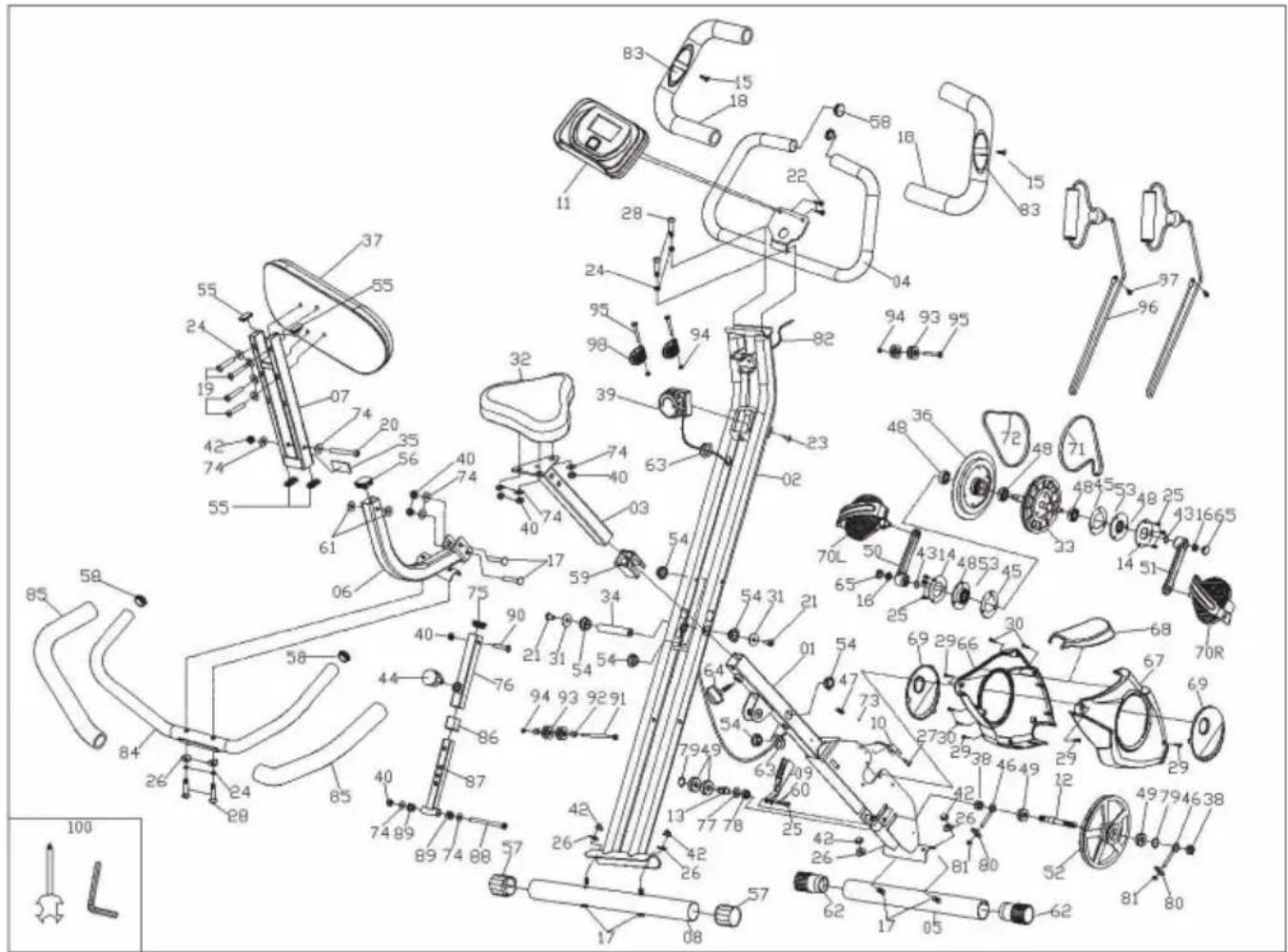

Idle bearing 1 26 Curved washer 837

Right cover 1 31 Washer 2

Front cover 1 32 Seat 1

Small cover 2 33 Main belt wheel 1

Adjusting support post 1

Axis with the spring 1

Axis with the spring 7

Bushing 1 50 Crank (L) 1

Adjusting post 1 51 Crank (R) 1 88 screw

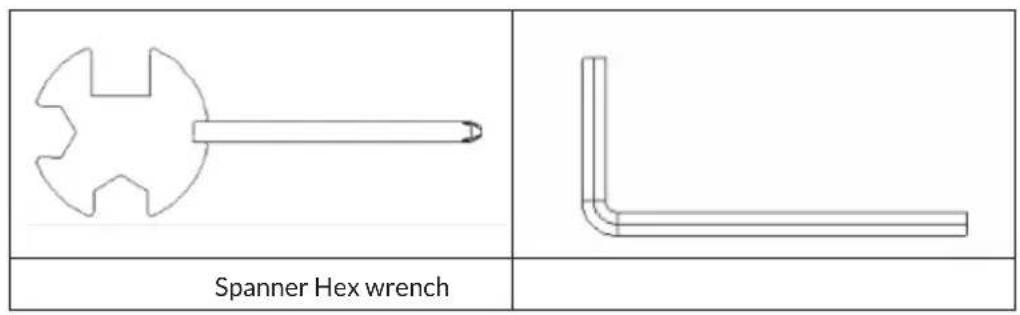

ASSEMBLY Tools included in delivery: Spanner Hex wrench

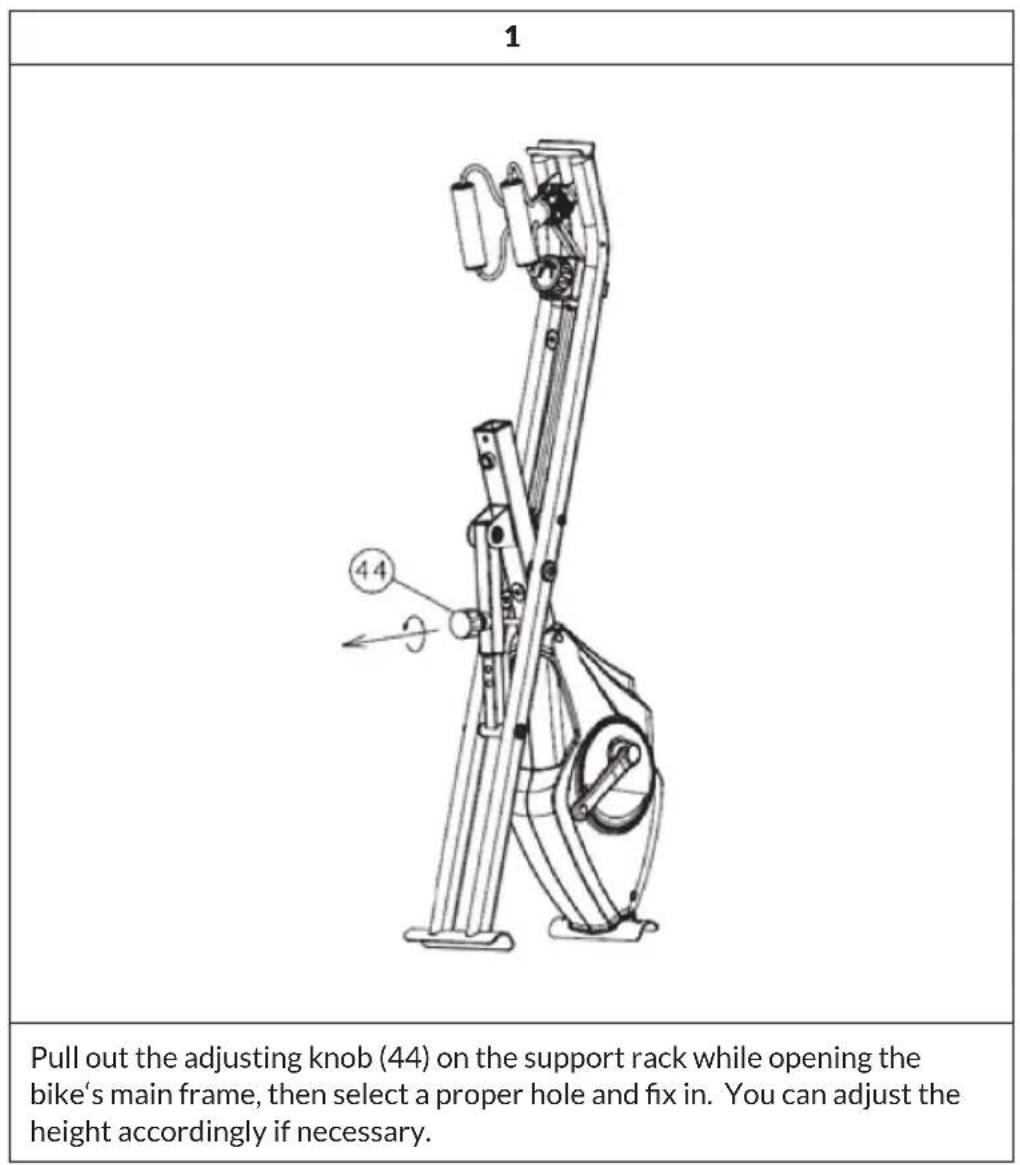

Pull out the adjusting knob (44) on the support rack while opening the bike‘s main frame, then select a proper hole and x in. You can adjust the height accordingly if necessary.39

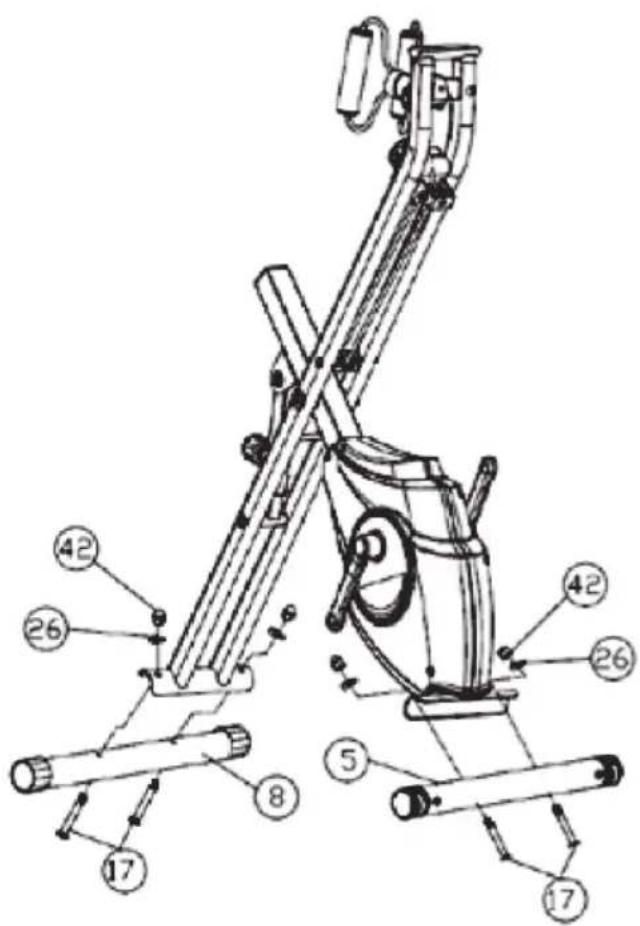

Attach the front stabilizer (5) to the main frame. Tighten it with bolt (17) securely by hex wrench. Then x the rear stabilizer (8) to the support rack with bolt (17), curved washer (8) and cap nut (42) by hex wrench. Note: The front stabilizer has transport wheels. But you can use the front or rear based on your preference.40

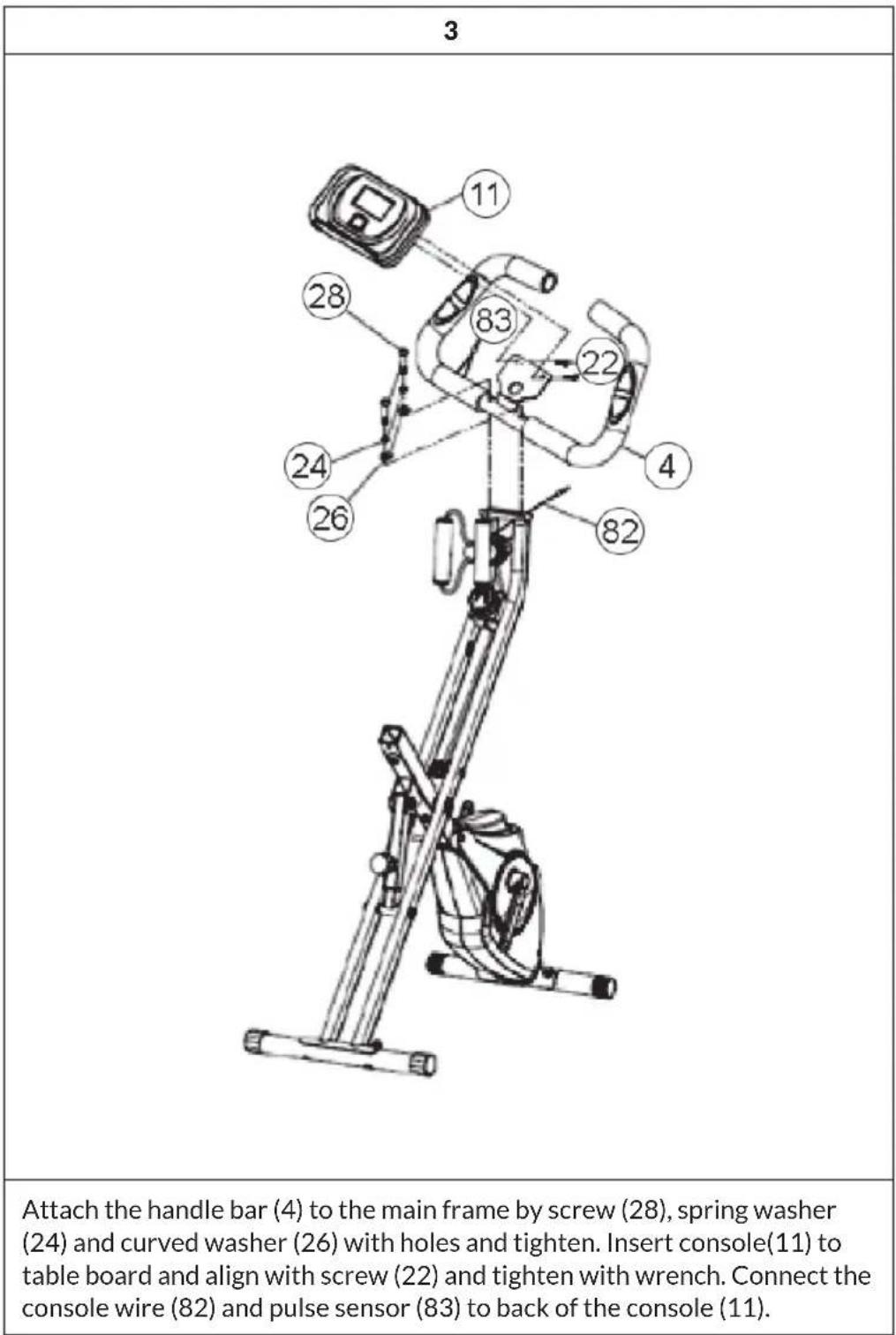

Attach the handle bar (4) to the main frame by screw (28), spring washer (24) and curved washer (26) with holes and tighten. Insert console(11) to table board and align with screw (22) and tighten with wrench. Connect the console wire (82) and pulse sensor (83) to back of the console (11).41

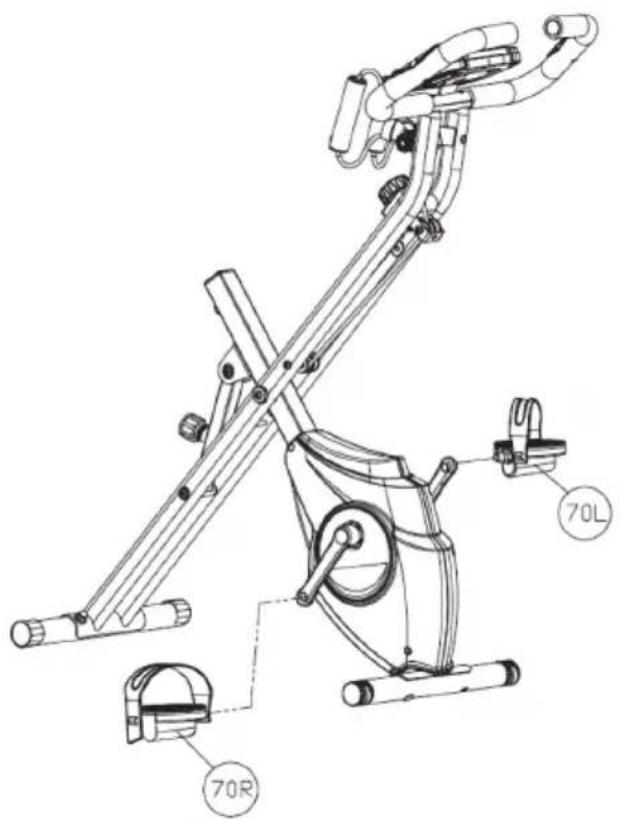

Fix the pedal (70L) which is marked ”L” on the crank marked ”L” with spanner tightly anticlockwise, then x the pedal (70R) which is marked “R” on the crank marked ”R” with spanner tightly by clockwise.42

Fix the seat (32) to the seat post (3) with nylon nut (40) and washer (74). Align screw (28) with the hole of rear handle bar (84), tighten securely with spring washer (24) and curved washer(26). Align screw (19) with the hole of backrest (37), through spring washer(24) and tighten securely. Back rest is connected with the seat tightly through nylon nut (40), washer (74) and bolt (17).43

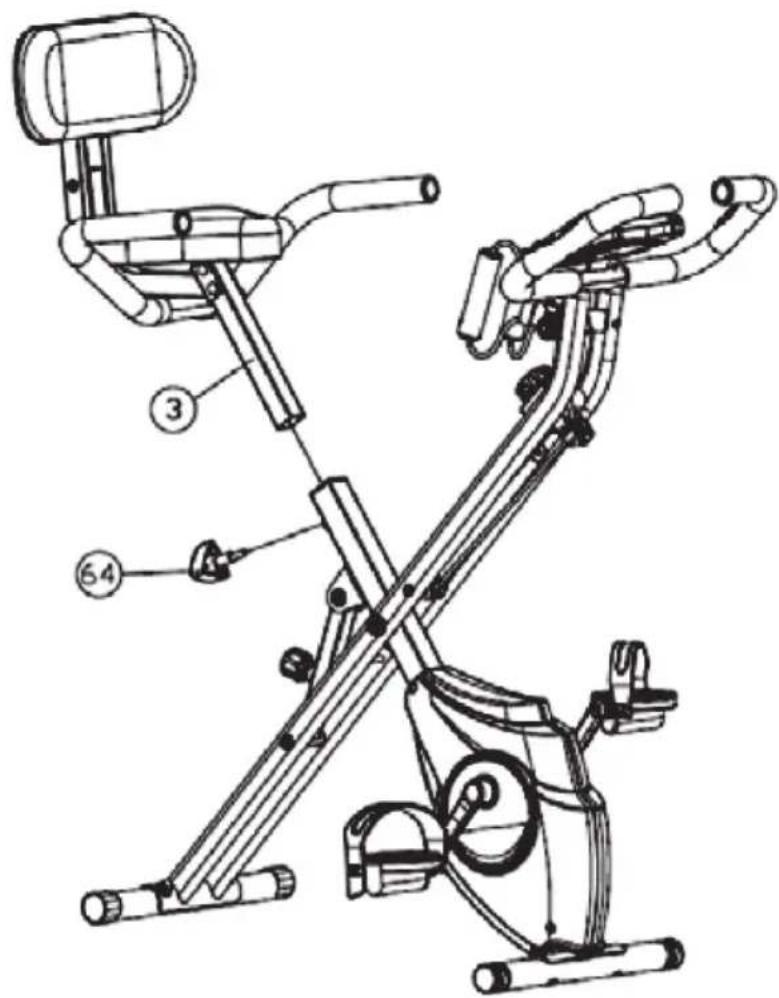

Attach the seat post (3) to the main frame,choose a suitable height, then fasten the seat adjusting knob (64). Note: When adjusting the height of the seat post, the maximum insert depth of mark line cannot be higher than the edge of bushing.44

Regular cardio training stimulates the cardiovascular (heart and blood vessels) and respiratory system. It improves your general health and helps you to burn fat. It is the recommended workout if you want to lose weight. When exercising, glucose is burned off rst, then the fat stored in the body. Intensive cardio training (e.g. circuit training, training with high resistance and long duration training) requires a greater amount of effort and also trains the muscular system and your endurance. As a rule, the more regular you train, the more effective the training is (even with short training sessions of 20 minutes). During the Training The level of resistance used during the workout determines the training intensity and the associated results. An optimal training session includes (1) a warm-up phase, (2) an intensive cardio training phase and nally (3) a cool down phase. If you want to progress or burn calories, you should go through these 3 phases as well as exercise for at least 20-30 minutes on the ergometer.

Always start your training session with a low resistance level. A warm-up phase of 5-10 minutes is important because your muscles need to be warmed up. During the warm-up phase, you should give your circulatory system and muscles time to prepare for the subsequent workout. As a beginner, you can train for the rst 3 minutes at the easiest level and then gradually increase the level to where you feel most comfortable.

2. Cardio Training Phase

After about 10 minutes, you can then begin the cardio training phase. When using the interval training program, the computer controls the resistance depending on the type of interval chosen and thus simulates changing intensities.45

The cardio training phase is considered aerobic or anaerobic training depending on the energy expenditure. These two types of training are dened as follows: Aerobic Training Zone While you are in this zone, you are improving your cardiovascular system and burning fat. Despite an increased heart rate, deeper breathing and light sweating, the body is not in a very stressed state, breathing is not signicantly accelerated—you could still talk to someone without going out of breath—and you feel that you could sustain the physical exertion for a long time. It‘s similar to when you briskly walk uphill. The muscles and heart work more intensely than when the body is at rest and can get most of their energy needs met via aerobic energy production, which utilizes oxygen to facilitate energy production. At the same time, the anaerobic production of energy is also active, but only to a small extent. The lactic acid produced in this process can be broken down to produce energy. Most of your training should be aerobic training. If you continue to increase the intensity, you will eventually come to the threshold where aerobic energy production is no longer able to increase its output. At this point, there is a shift towards anaerobic energy production being used to a greater extent. You are now doing anaerobic training. Anaerobic Training When in this zone, you are improving your performance and speed. When you increase the intensity while in this zone, the training becomes much more strenuous because of the rising lactate level in the body; you start sweating more; your breathing gets faster; and after some time depending on your tness level, your muscles tire and you feel totally exhausted and that you can no longer continue at this level of intensity.46

At the end of the cardio training phase, you begin the cool-down phase, which should last for at least 5 minutes. Here, you use low levels of resistance. The recovery or cool-down phase is also helpful with regard to preventing possible muscle soreness. It is also advisable to do active recuperation after an intensive training session, such as a hot bath, a sauna session or a massage. Training Progress Each month you can make the training more challenging by extending the duration of the cardio training phase, by using a higher level of resistance within that phase or by doing a more demanding interval training. Eating and Drinking

• Drink before, during and after training.

• Drink at least 2 sips of water (10 to 20 cl) every 10-15 minutes during a training session.

• If your workout lasts for more than 1 hour, you should drink a sports drink to protect the body from dehydration while training.

• For optimal cardio training, suitable nutrition before and after any physical activity is very important. Before training, it is best to eat carbohydrates, such as those found in rice and pasta, as they provide the body with an important source of energy. After training, you need to refuel with proteins, such as those found in eggs, yoghurt and dried fruits. Even if you want to lose weight, it is absolutely necessary to eat after training in order for your body to recuperate.47

Perform the movements before each workout to mobilize your joints and activate your muscles. Should a movement be uncomfortable or painful, skip this movement and consult your doctor or tness instructor about suitable warm-up movements. Each movement should be repeated (right and left) so that you can start the cardio training relaxed. Take about 5 minutes to do the following CapitalSports training routine:

1. Tilt the head sideways, slowly alternating from right to left. Then mobilize

your shoulders (circular movements and shrugging the shoulders).

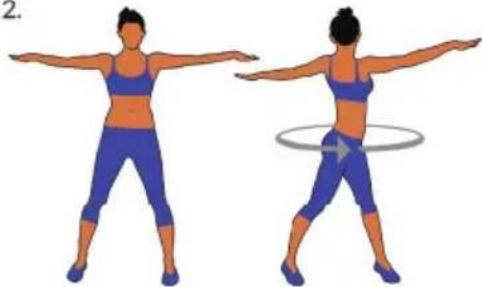

2. Turn the hips while the arms are stretched out. The feet are not rmly

xed to the ground (the ankles follow the body’s rotation).

3. Bend to the side and raise one arm straight up. Stay in this position for

several seconds on each side.

4. Bend to the side and raise both arms above your head with palms together.

Again, remain on each side for several seconds. The exercise is now a bit more intense with the second arm joining.

5. Stand on one leg and hold the instep of the other foot with your hand.

Mobilize it so as to stretch the thigh lightly. If necessary, hold onto something to keep your balance. Stand on one leg and trace a circle with your foot in the air in both directions (counter clockwise and clockwise).

6. Put one leg forward and with your arms support the weight of your upper

body on your thigh. Position your legs so as to provide a stretch for the rear leg’s calf muscles.

7. Repeat the previous exercise with more distance between your feet. The

stretch will now be more intense.

8. Bend forward while keeping your legs straight and alternatingly touch

each hand to the opposite foot. Finally, let yourself hang down and relax.49

This key lets you to select and lock on to a particular function you want. SET Can to proceed the data establish for “TIME” “DISTANCE” “CALORIES”. LÖSCHEN (RESET) The key to reset the value to zero by pressing the key.

OPERATION AND FUNCTIONS

Auto on/off The system turns on when any key is pressed or when it sensor an input from the speed sensor. The system turns off automatically when the speed has no signal input or on key are pressed for approximately 4 minutes. Reset The unit can be reset by either changing battery or pressing the MODE key for 3 seconds. Mode To choose the SCAN or LOCK if you do not want the scan mode, press the MODE key when the pointer on the function you want which begins blinking.50

Time: Press the MODE key until pointer lock on to TIME. The total working me will be shown when starting exercise. Speed: Press the MODE key until the pointer advanced to SPEED. The current speed will be shown. Distance: Press the MODE key until the pointer advanced to DISTANCE. The dis- tance of each workout will be displayed. Calorie: Press the MODE key until pointer lock on to CALORIE. The calorie burned will be displayed when displayed will be shown. Odometer (if have): Press the MODE key until the pointer advanced to ODEMETER. The total accumulated distance will be shown. Pulse (if have): Press the MODE key until the pointer advance to PULSE, User’s current heart rate will be displayed in beats per minute.Place the palms of your hands on both of the contact parts(or put ear-clip to ear), and wait for 30 seconds for the most accurate reading. Scan: Automatically display changes every 4 seconds. Battery: If improper display on monitor, please reinstall the batteries to have a good result.51

With the Kinomap app you can run, drive or row more than 100,000 km around the world with the help of real-life videos that are updated daily by the users themselves. Try to follow their pace under the same conditions as seen in the video. Use the KINOMAP portal and choose your own video to train to. Improve your tness by using your own interval in the resistance or in the power mode. You can connect your compatible devices directly. Alternatively, you can use the camera that provides you with an optical pedal, step or stroke sensor. Join our multiplayer training sessions and try to be the rst to nish. Create an Account If you want to use Kinomap, you must rst connect to your Kinomap account. If you have successfully registered, you can start training. If you do not sign out, you will still be logged in the next time you start the app. If you do not as yet have a Kinomap account, please sign in to get a free account.52

• The standard version is free and provides you with access to a number of free videos and interval training (not currently available on all devices).

• A subscription is required later on to gain access to all eligible content, including thousands of videos, a multiplayer mode and more.

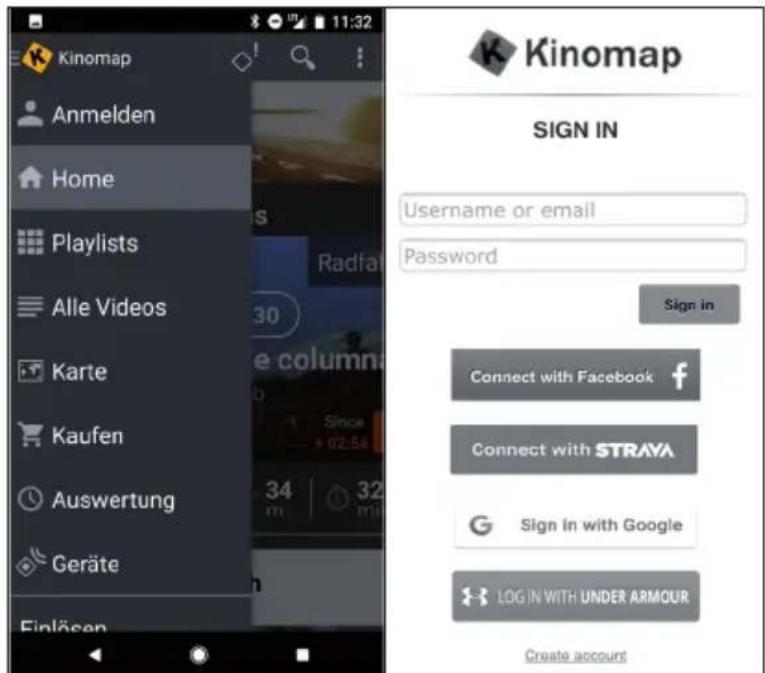

• After the rst login, the app will ask you for an activation code. If you have one, enter it in to activate your subscription to the app.

• You can also go to „Add Activation Code“ at a later time. Enter Activation Code Note: You can subscribe to the service on a monthly basis or as an annual subscription, which will provide you with access to advanced features. Go to „Subscribe Settings“. After the activation, you will see your subscription at „My subscription“. Connecting to the Training Machine How to connect the device with the KINOMAP app: 1 Go to the „Equipment“ menu. 2 Add new devices with the + button 3 Select your device type from the list (ergometer for the CapitalSports Azura M3 Pro). 4 Select the brand CapitalSports. 5 Select the model Azura M3 Pro. 6 If the device has been detected, touch the window to conrm. 7 Now press SAVE. Your device has now been added.53

• Your CapitalSports Epsylon product uses Kinomap‘s face recognition to determine the kick, step or beat frequency (the smartphone or table camera serves as a sensor).

• Kinomap determines and evaluates the intensity of movement by moving the head during training. When you start a training session, you will see your face in the lower right corner so that you can adjust the position of your TAB or smartphone if needed. Once your face is detected, the image will disappear, and the dashboard will appear. The app asks you to manually adjust the resistance according to the change of height. Data Preview The “Data Preview” feature lets you instantly see the data sent by the device. This feature is especially useful if you have trouble committing when you start a new activity. In accordance with the conguration, the app will receive some values.54

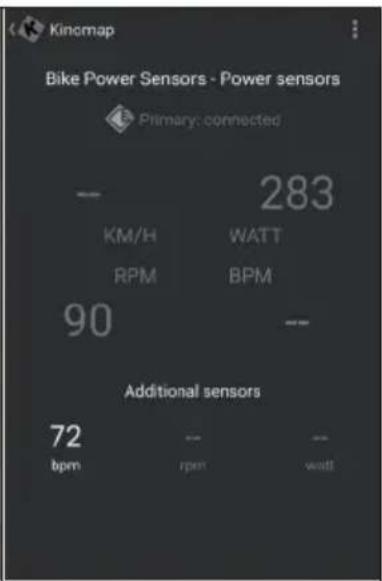

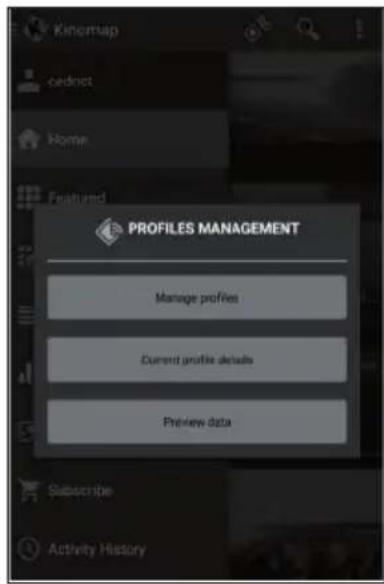

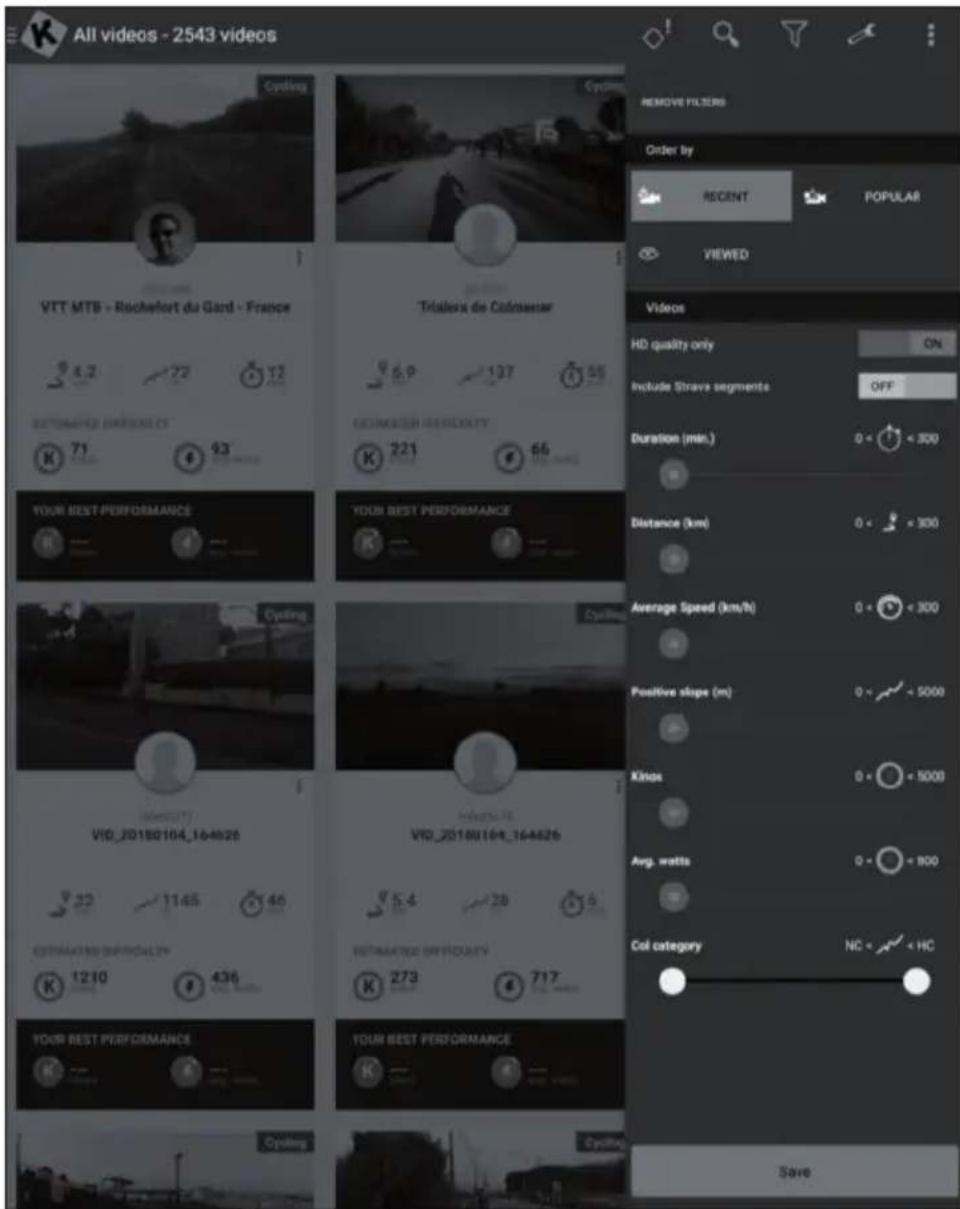

Training Video Selection

• There are several lists of videos from which you can select the desired video.

• There is a lter function to ensure that you nd the videos you wish to train to (featured, popular, most viewed, most recent, duration, distance, incline, among others).

• For each video, the following relevant information is available: name, contributor (who posted the video), country, duration, distance, average of positive slope and average speed.55

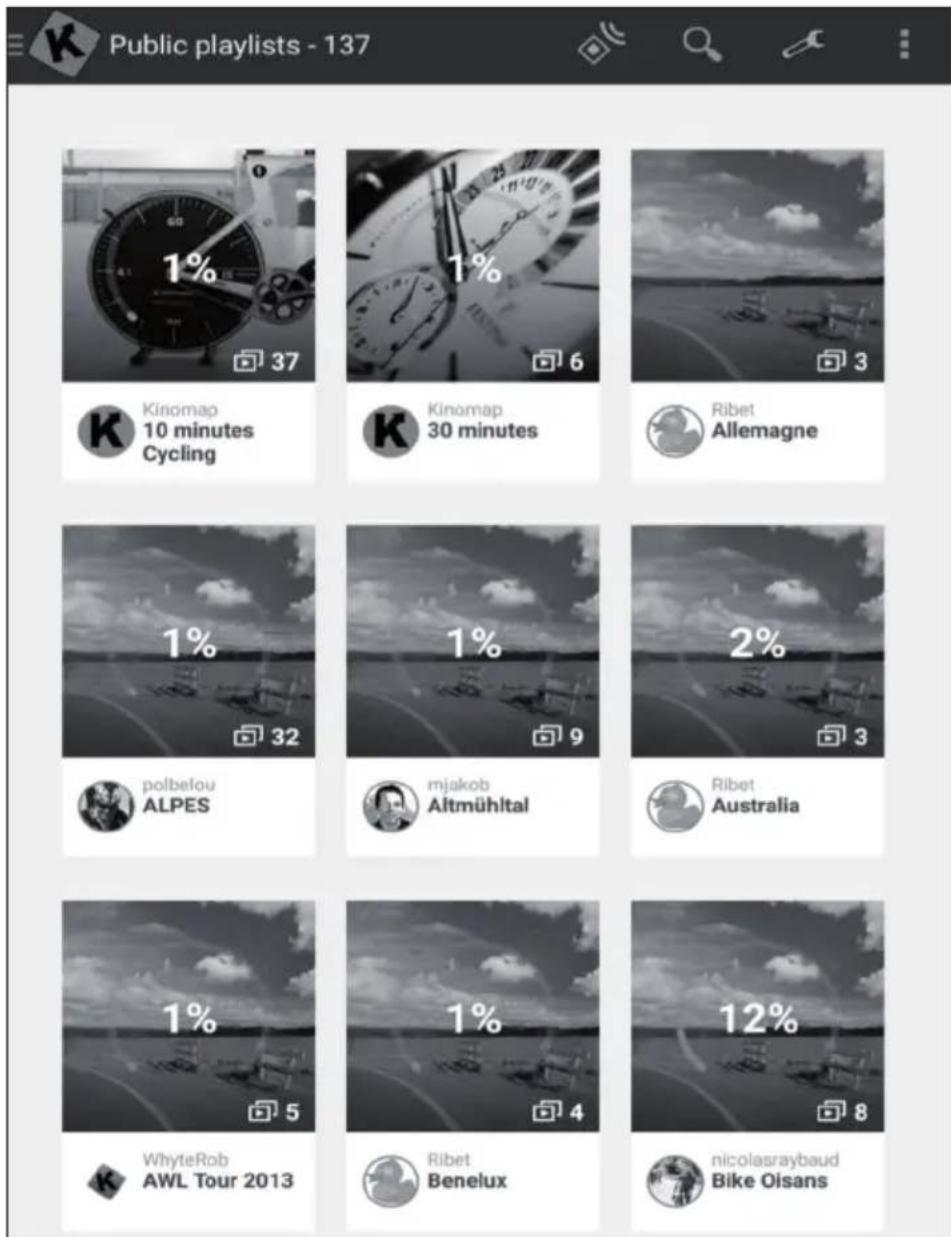

• There are also many playlists created by Kinomap or the users of Kinomap themselves.

• Each playlist has a specic theme, such as a 30-minute training session or visiting a country.

• You can track your progress on any playlist and any video.

• Currently, you cannot manage your playlists directly on the app.56

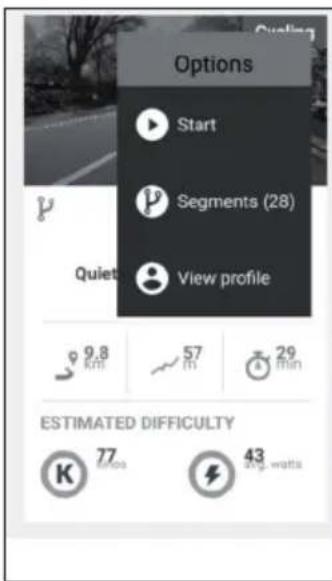

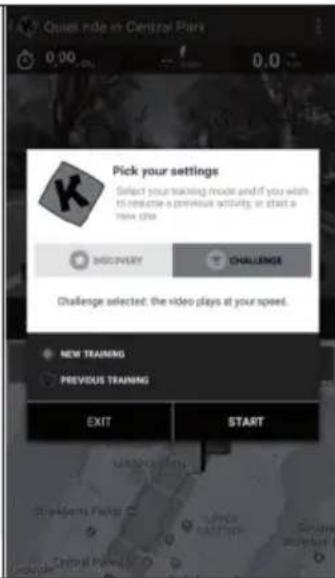

Beginning of Training Select the video you would like to train to. Choose the mode in which you would like to train. Just start pedaling to start training.57

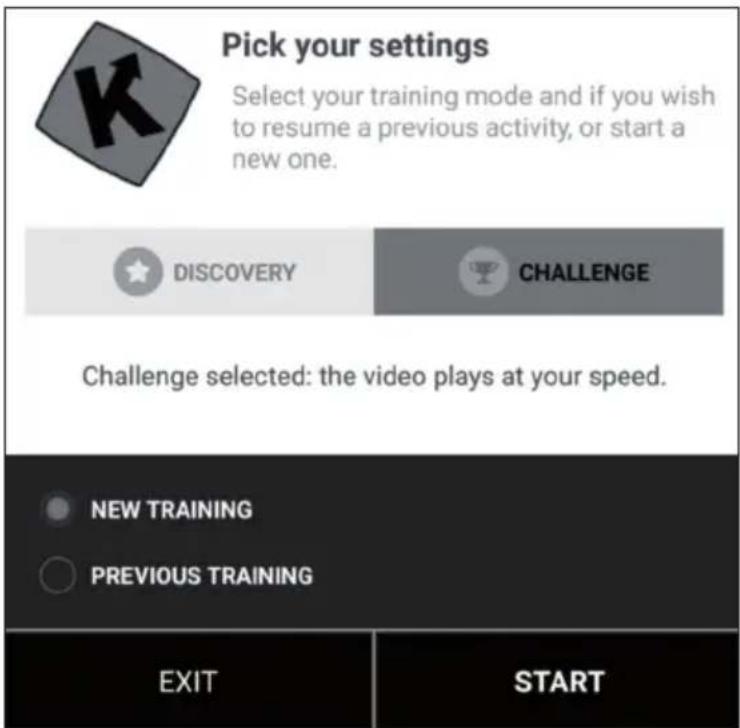

Discovery and Challenge Mode Challenge Mode: The video will be played at your speed so that you can achieve the same overall performance as the producer of the video. If you‘re not as fast, the video slows down the frame rate. If you perform better, the frame rate can be increased to twice the original speed. Use this mode to participate in challenges, such as indoor challenges, and to export a map complete with coordinates of your virtual ride to third-party sites, such as Strava. Discovery Mode: The video plays at its original speed and pauses when your speed reaches 0. Whatever your performance, the frame rate will not change. But you will still see if you perform well by looking at the energy performance data. Note that the data that can be exported to third-party sites, such as Strava, is limited to watts and additional data like cadence and heart rate; however, coordinates and a map are not included.58

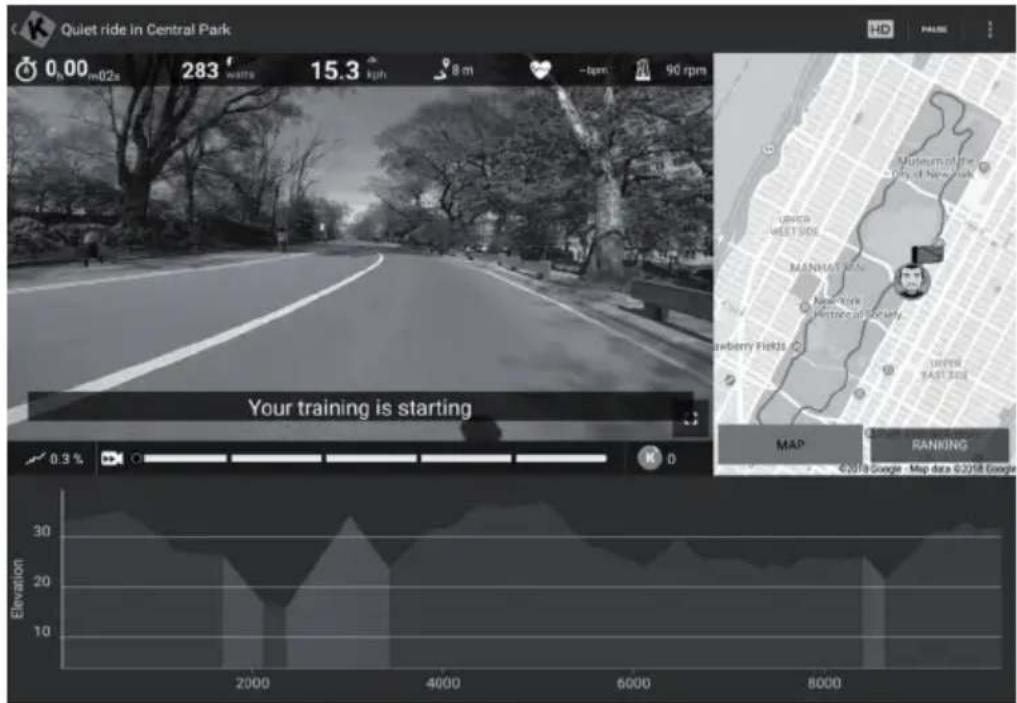

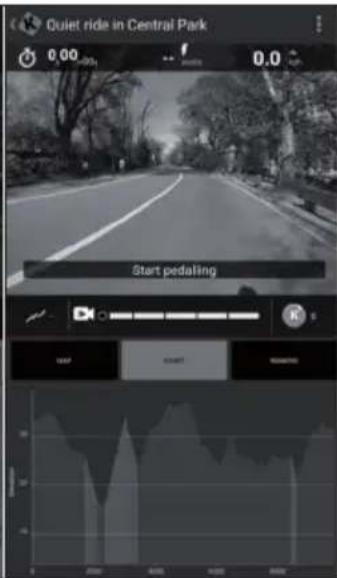

Training Display At the top of the screen, the following relevant information is displayed:

• The instantly produced power

• Your heart rate (only if you add an extra heart rate monitor belt or if your device has one already integrated)

• The instant pedal frequency

• Your position on the map is synchronized with the video. The tab “Ranking List” is only available in the multiplayer mode.

• Abscissa: height in meters

• Ordinate: distance in the KM in the challenge mode.

• Duration: in seconds in the discovery mode. Setting the Resistance/Gears On the screen you will nd instructions on how to set the resistance according to the altitude prole when using a speed/cadence sensor or an optical sensor.59

End of Training If you want to pause or stop exercising, just stop pedaling or use the pause button in the corner. Click the “Resume Session” button to continue the training session. If you want to stop completely, simply conrm by tapping on “Save and Exit”. Evaluations Activity History

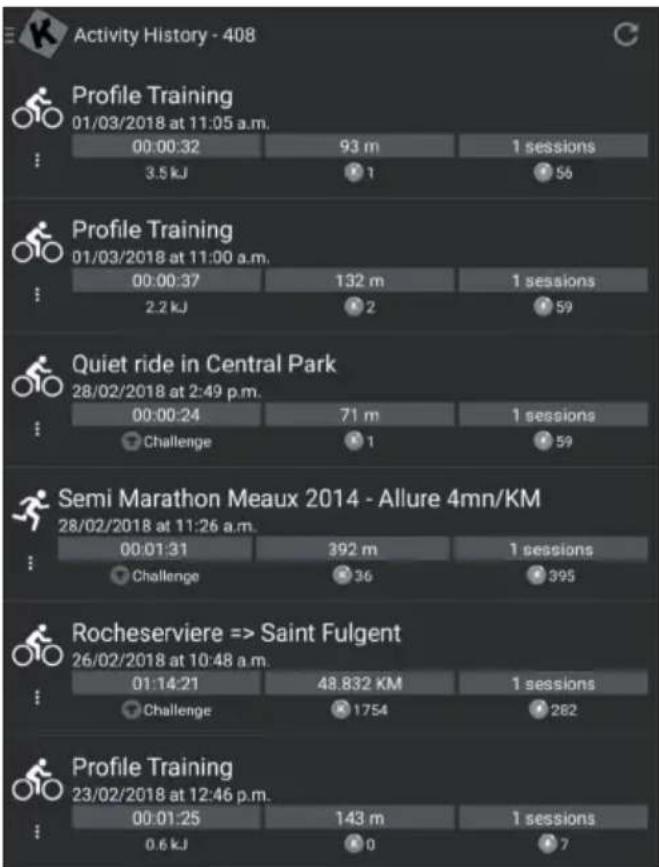

• Open the main menu on the left side to nd „Activity History“.

• You can see the history of your past workouts, including the name of the video you trained with, the date of the workout, the duration and the distance.

• Click on a specic training session to see all of the information.

• You can also visit http://www.kinomap.com/myactivities.

• Your activity history contains a map, a summary and a series of detailed graphs that show your current speed, power, cadence and heart rate. Note that the activity history can be automatically exported to various platforms, such as RunKeeper, Strava or Under Armor.60

Search This button is always available in the top right corner no matter which menu you are in for you to browse the available videos. There are several ways to nd the right video:

• You can search by clicking the Search button. Once you have entered at least 3 characters, an auto-complete search will be performed.

• You can also perform a geographic search. Choose „Map“ in the main menu.

• You can explore all available videos by clicking “Public Playlists” or “All Videos”. Settings User Settings

• Go to the Settings menu and input your user details, including your size, weight, birthday and sex.

• This information affects the speed calculation External Display Follow the instructions to view the display on your TV using Chromecast or Apple TV.

CARE AND MAINTENANCE

Note: As with all training machines with mechanical, moving components, screws may loosen due to frequent use. We therefore recommend that you check them regularly and, if necessary, retighten them with a suitable key. Clean your training device regularly with a damp cloth to clean the surfaces from sweat and dust.

• When you don’t use the exercise bike for a long time, please take out the console battery to avoid running out of battery.

• Often clean the exercise bike with clean cloth to keep the clean appearance.

• The safety level of61

• the equipment only can be maintained if it is regularly examined for damage and or /wear and tear.(e.g. handle bar, pedals and seat ...etc.).It is vital that any faulty parts are replaced and the it is not used until completed repaired.

• Regularly check that the elements fastened with nuts and bolts are correctly tightened.

• Remember regularly to grease moving parts.

• Special attention to the component, most of them are susceptible to wear like brake system, foot pad etc.

• As sweat is very corrosive, do not allow it to come into contact with the enameled or chromed parts of the equipment, particularly the computer. Immediately wipe the equipment after using. The enameled parts can be cleaned using a damp sponge. All aggressive or corrosive products must be avoided.

• Storing the equipment in a clean and dry environment away from children. DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.63
