Evo Comfort - Indoor bike trainer Capital Sports - Free user manual and instructions

Brand	Capital Sports
Model	Evo Comfort
Category	Indoor Cycle Trainer
Power Supply	220-240 V ~ 50/60 Hz
Maximum User Weight	110 kg
Display	LCD Screen
Training Programs	Manual, Beginner (4), Advanced (4), Sport (4), Cardio, Watts
Computer Functions	Time, Speed, RPM, Distance, Calories, Heart Rate, Watts
Heart Rate Measurement	Hand pulse sensors, Recovery test
Body Fat Measurement	Yes, via hand grips
Connectivity	Bluetooth Smart 4.0, compatible with Kinomap and iConsole+
Resistance	Electronically adjustable via Up/Down keys
Number of preset programs	12 (4 Beginner + 4 Advanced + 4 Sport)
Resistance Range (Watts)	0-999 Watts
Adjustable Distance	0.00 to 99.90 km or mi
Adjustable Duration	0 to 99 minutes
Calories Displayed	0 to 9999 kcal
Target Heart Rate	0 to 230 bpm, sound alarm
Assembly	Assembly required, tools provided
Maintenance	Clean with a damp cloth, regular check of screws and lubrication
Safety	Minimum distance 0.6 m, max weight 110 kg, domestic use only
Item Number	10035174
Country of Manufacture	Germany (Chal-Tec GmbH)
Warranty	Refer to the declaration of conformity

Frequently Asked Questions - Evo Comfort Capital Sports

How to assemble the Evo Comfort bike?

Follow the assembly steps in the manual: attach the stabilizers, seat, handlebars, pedals and connect the wires. Use the provided tools. Make sure all screws are tightened before use.

What is the maximum supported weight?

The maximum user weight is 110 kg. Do not exceed this limit to ensure safety and durability.

How to adjust the resistance?

Use the UP and DOWN keys on the computer to increase or decrease resistance during training. The value is displayed in the WATTS window.

How to connect the bike to the Kinomap app?

Enable Bluetooth on your tablet, open the Kinomap app, select your equipment (Capital Sports Evo Comfort) and connect. The console must be turned on. The console name is usually 'iConsole'.

What to do if the screen displays 'E-1'?

The 'E-1' message indicates that no heart rate signal is detected. Make sure your hands are properly placed on the pulse measurement grips. Clean the sensors if necessary.

How to use the body fat measurement function?

In stop mode, press the BODY FAT key. Enter your gender, age, height and weight. Then place both hands on the grips. The display first shows ["=" "="] then the fat percentage and BMI for 30 seconds.

What training programs are available?

The bike offers several modes: Manual, Beginner (4 profiles), Advanced (4), Sport (4), Cardio (with target heart rate) and Watts (constant power).

How to maintain the bike?

Clean regularly with a damp cloth to remove sweat and dust. Check screws and nuts, lubricate moving parts. Protect the device from moisture. Store it in a dry place.

Is the bike noisy?

Abnormal noise may indicate a problem. Check that all screws are tightened and that moving parts are lubricated. If the noise persists, stop using and contact customer service.

Can I use the bike if I have health issues?

Consult a doctor before starting any exercise program. Stop immediately if you experience pain, chest tightness, dizziness or extreme shortness of breath. Do not exercise after a meal.

USER MANUAL Evo Comfort Capital Sports

Training per Kinomap App 21

iConsole+ App 23

Download on the App Store

GET IT ON Google Play

Download on the App Store

GET IT ON Google Play

2. Cardio-Trainingsphase

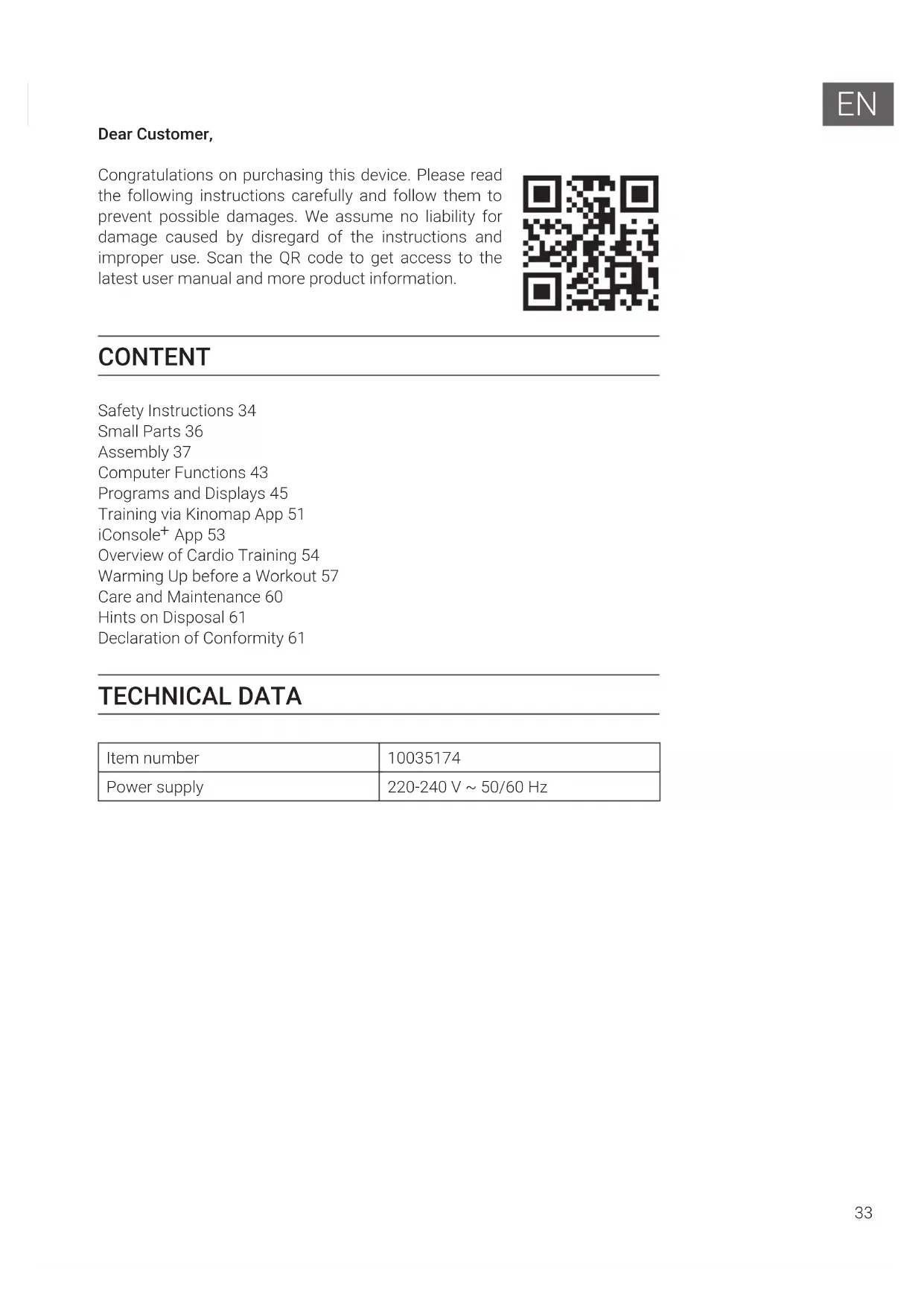

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 34

Small Parts 36

Assembly 37

Computer Functions 43

Programs and Displays 45

Training via Kinomap App 51

iConsole+ App 53

Overview of Cardio Training 54

Warming Up before a Workout 57

Care and Maintenance 60

Hints on Disposal 61

Declaration of Conformity 61

TECHNICAL DATA

Item number	10035174
Power supply	220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

Before operating this unit, please read this manual carefully to ensure optimum performance and safety. This is manual should be kept available for future reference. For product improvement, the company reserves the right to change the design and specification at any time without prior notice. Pictures are for reference use only and may differ from the actual product.

• Please keep this manual in a safe place for your reference when necessary.
• Please do not assembly or use this equipment until you read this manual thoroughly & carefully. The safety and efficiency only can be achieved when the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all the users are informed of all the warnings and precautions.
• For totally safe use, a stable, leveled surface is required. Protect your floor with a mat. Do not use the equipment in a damp areas such as swimming pool sauna, etc. For safety space, the equipment must have at least 0.6 meter of free space all around it.
• Before starting any exercise program you must consult your doctor to determine if you have any physical or health conditions that could create a risk to your health and safety, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experienced any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions you must consult your doctor before continuing with your exercise program.
• Do not workout immediately after meals.
• Keep children and pets away from the equipment, the equipment must be assembled and used by adults only.
• The equipment is designed for home use only.
• The equipment is not suitable for therapeutic use, may only be used for exercises indicated in the training instructions
• Wearing proper clothing and athletic shoes while using the equipment, Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movements.

• Keep your back straight while exercising.

• Before using the equipment, check the handle bar, seat, and the nuts & bolts are securely tightened.

• For adjustable parts, bear the maximum position in your mind, do not exceed the mark "stop", otherwise will cause risk.
• Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been solved.
• Care must be taken when lifting or moving the equipment so as not to injure your back. always use proper lifting techniques and/or seek assistance if necessary.
• All moveable accessories (e.g. pedal, handlebar, saddle...etc.) require weekly maintenance. Check them before use every time. If anything broken or loose, please fix them immediately. You may continue using them only after they return to good conditions.
• Keep power cord away from heat sources.
• Do not insert or drop any object into any opening.
• Unplug exercise bike before moving or cleaning it. To clean, wipe surfaces down with mild detergents and a slightly damp cloth only; never use solvents.
• Do not use the exercise bike in any location that is not temperature controlled, such as, but not limited to, garages, porches, pool rooms, bathrooms, car ports or outdoors.
• Use the equipment only as described in this manual.
• Incorrect repair and structural modifications (e.g. removal or replacement of original parts) may endanger the safety of the user.
• This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Before use, check the voltage on the device badge. Only connect the device to sockets that correspond to the voltage of the device.

Note: Maximum weight of the user is 110kg

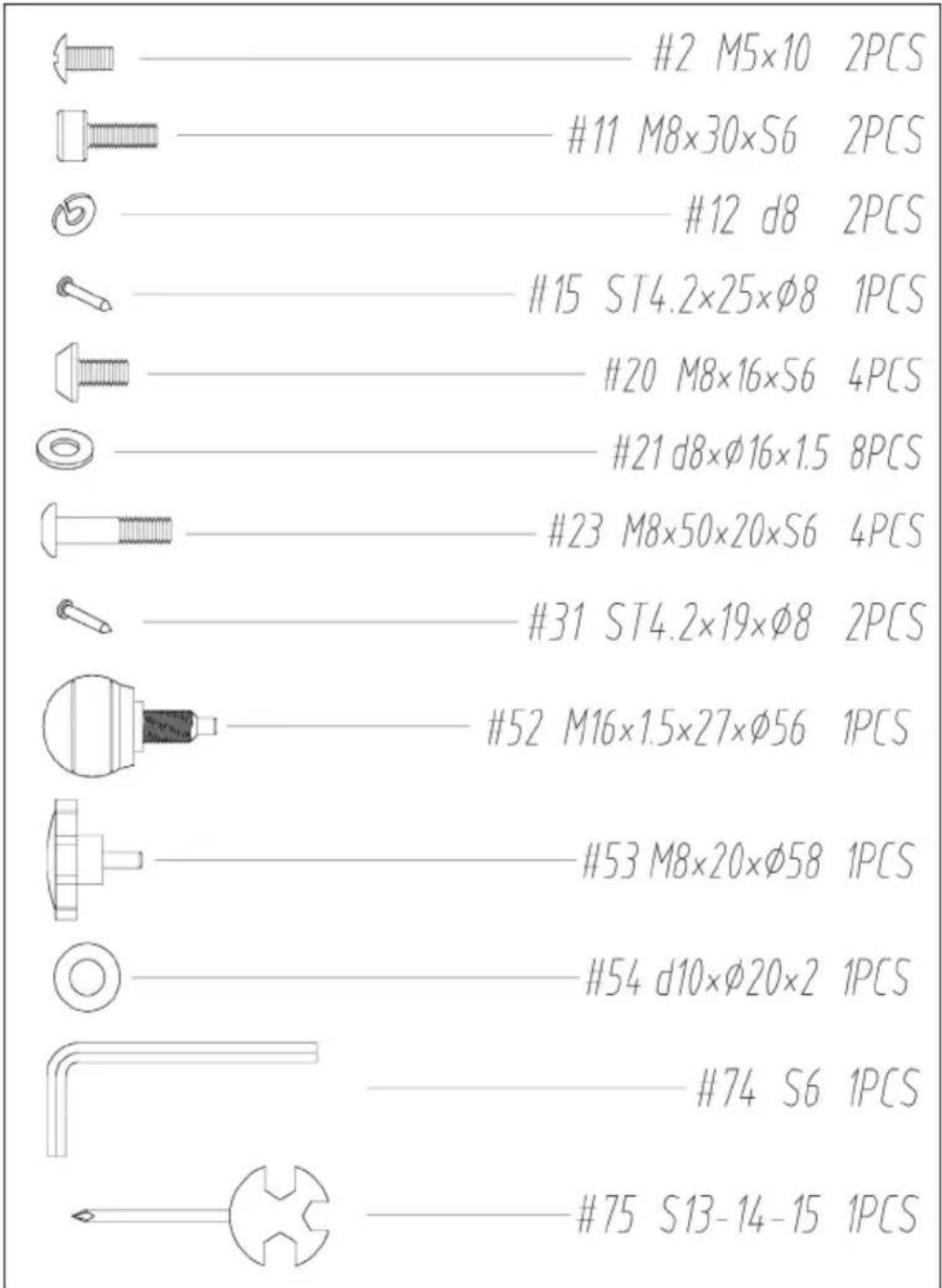

SMALL PARTS

ASSEMBLY

1

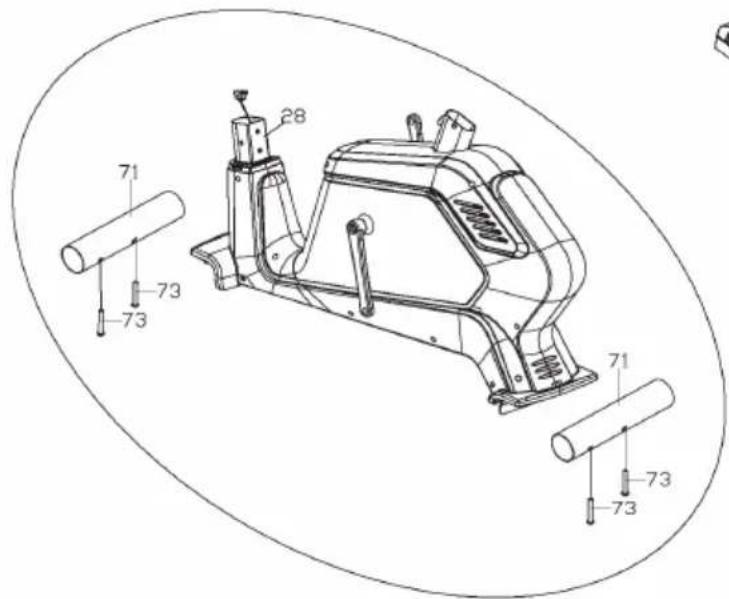

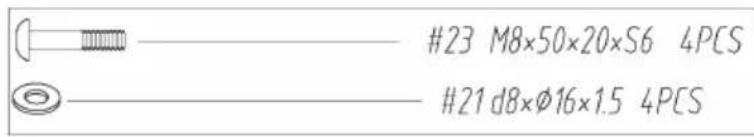

Remove the screws (73) with a wrench and take off the transport tubes (71). Keep pipes and screws in case you need to repack and transport the device one day.

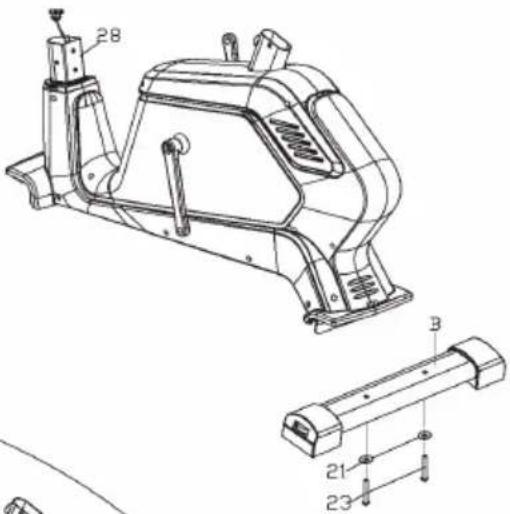

Attach the front anti-roll bar (A) and rear anti-roll bar (B) to the main frame (28) with screws (23) and washers (21).

2

Unscrew the knob (52). Insert the seat tube (51) into the main frame (28) and secure it in the correct position with the button (52).

Place the horizontal seat tube (55) on the vertical seat tube (51) and secure it in the correct position with the knob (53) and the washer (54).

Fix the seat (58) to the horizontal seat tube (55) with nuts (57) and washers (21).

Secure the pedals (76L) and (76R) to the crank using a wrench.

3

20 M8×16×S6 4PCS

21d8x016x1.54PCS

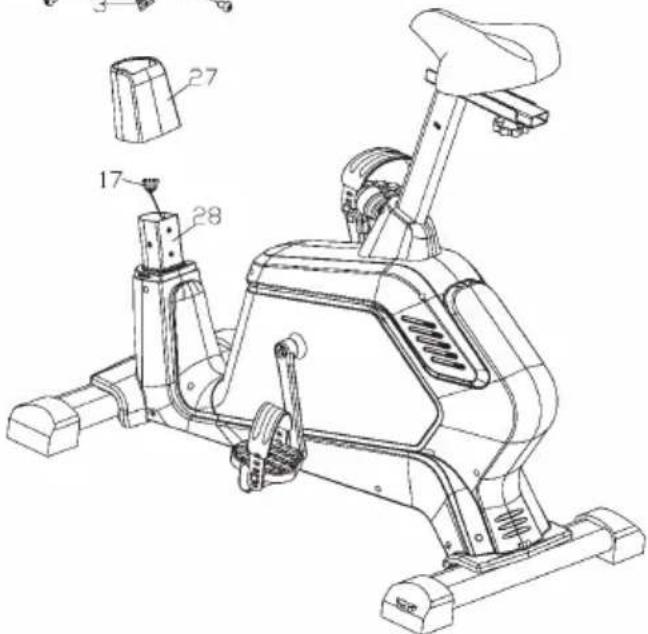

Connect the trunk wire (3) and the sensor wire (17).

Place the front plastic cover (27) on the support tube (16). Slide the support tube (16) into the main frame (28) and secure it with the screws (20) and washers (21).

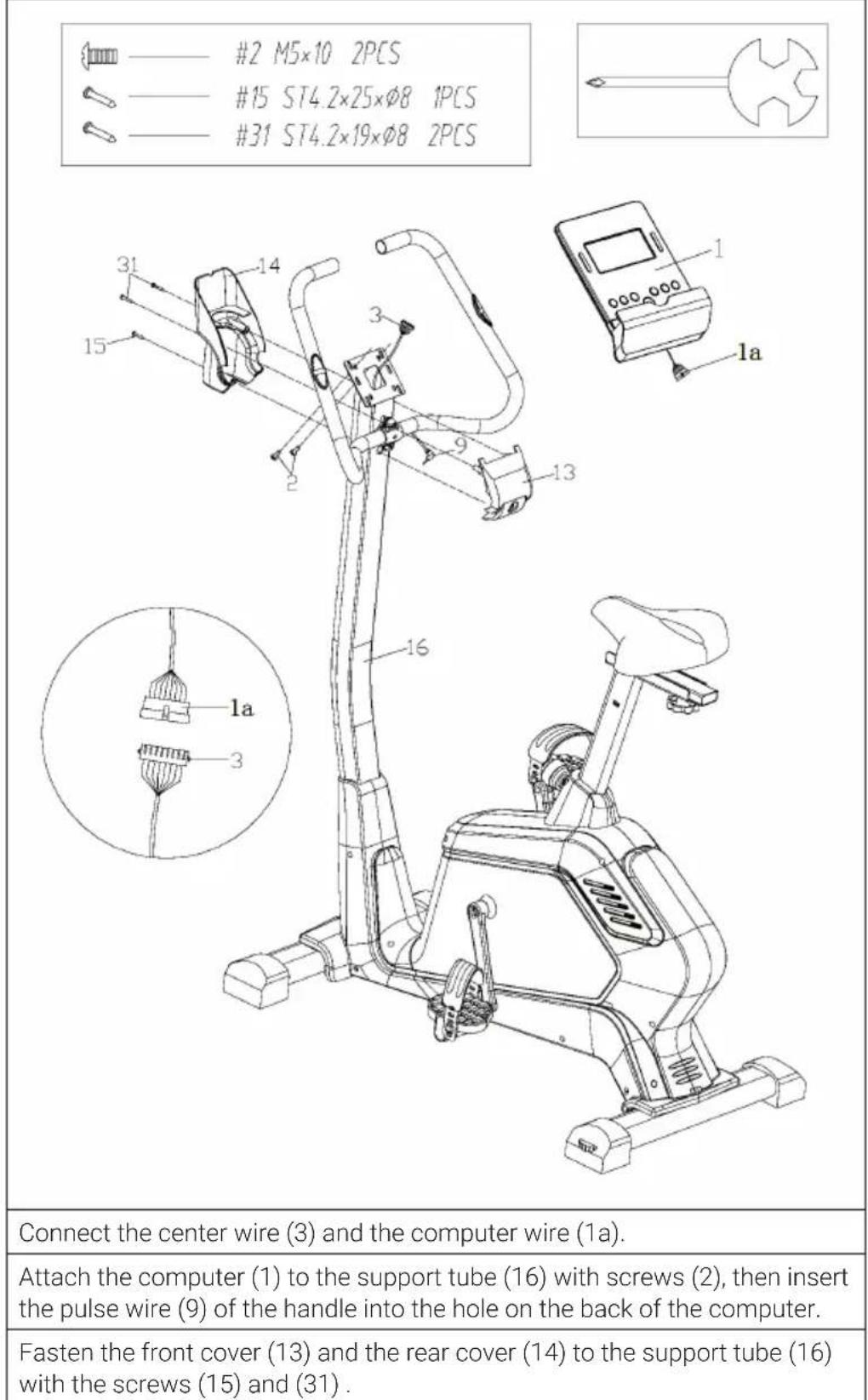

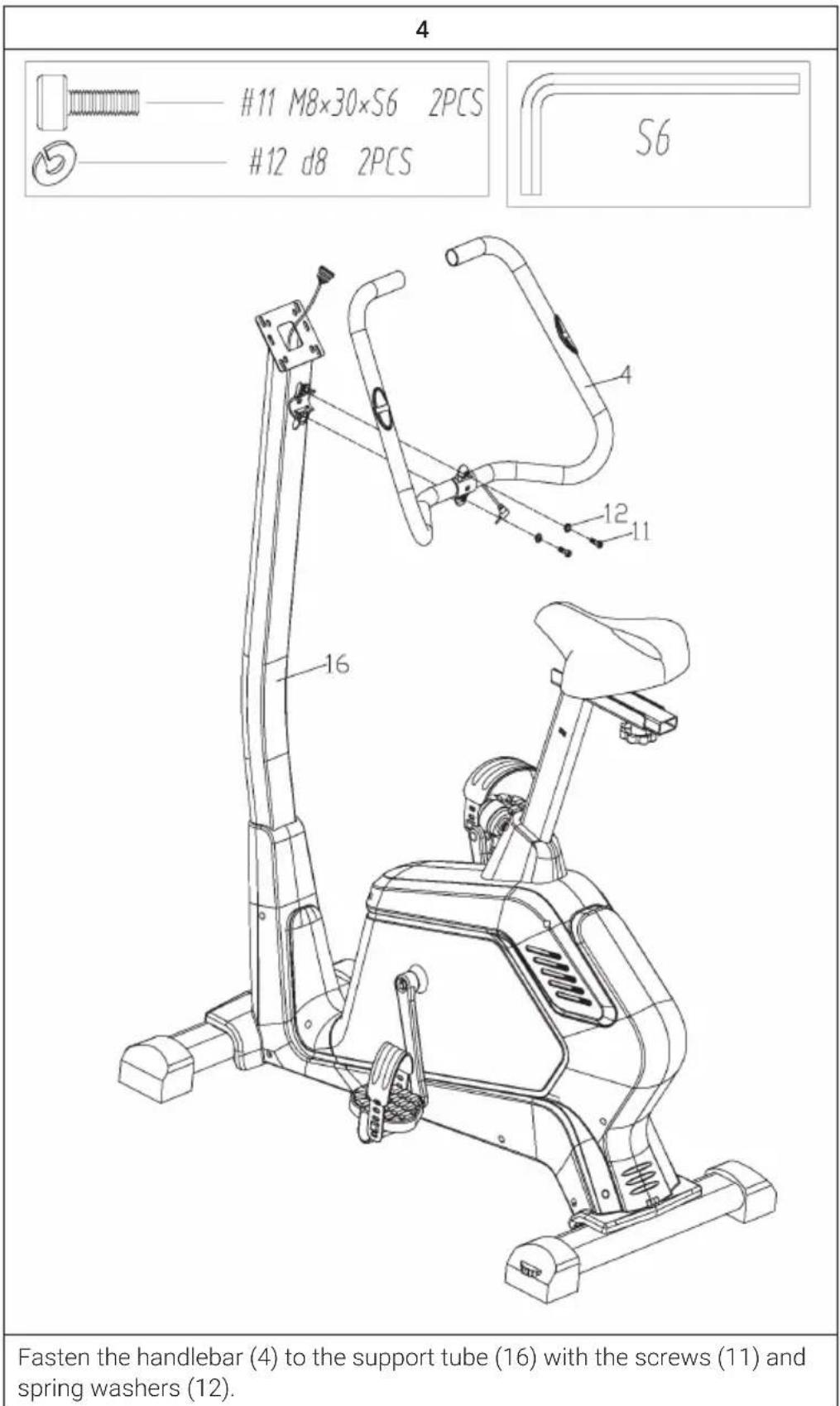

5

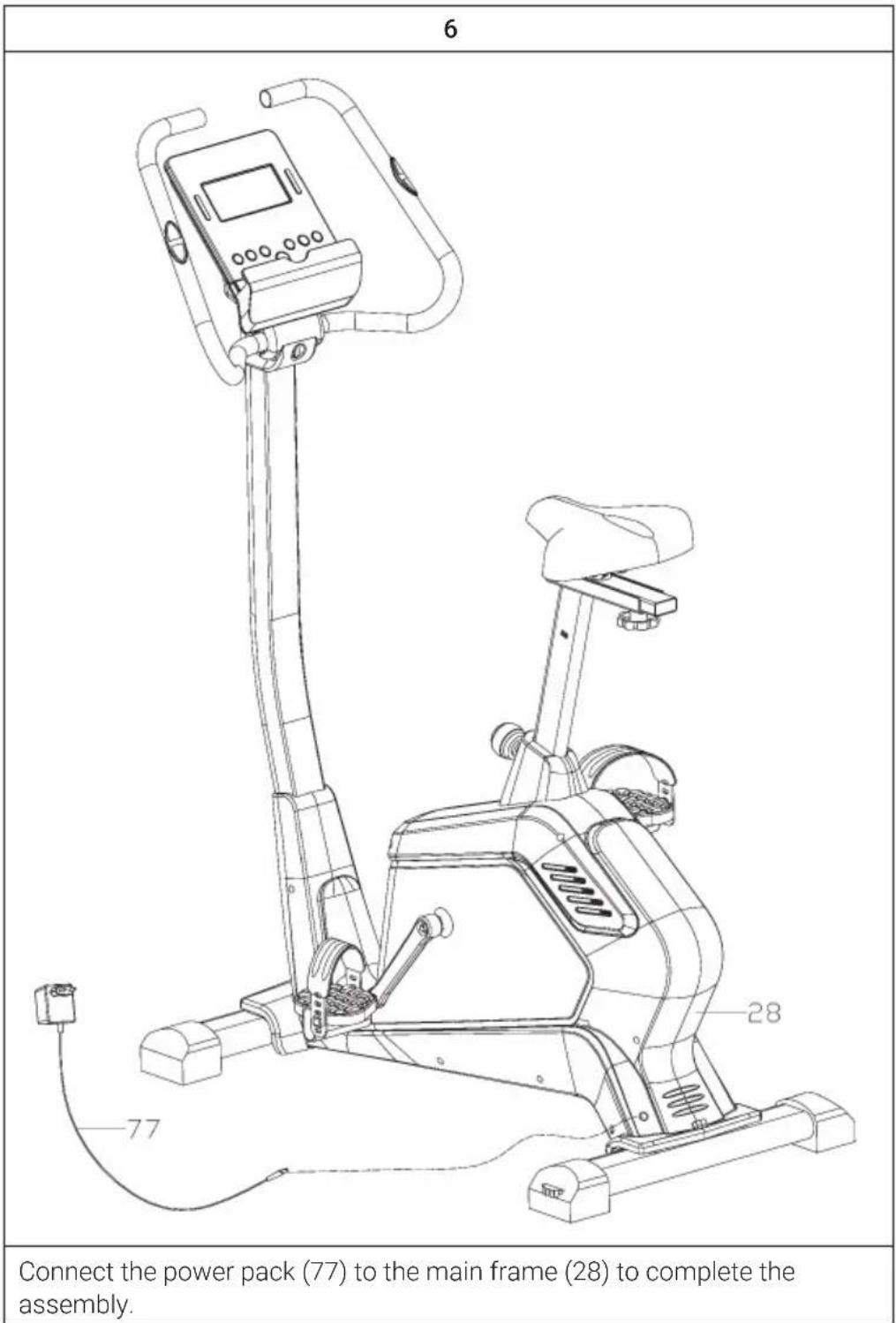

COMPUTER FUNCTIONS

Display functions

TIME Countup: No preset target, time is incremented from 00:00 to 99:59 maximum in 1-minute increments. Countdown: When exercising at the preset time, the time will count down from the preset time to 00:00 in 1-minute increments. The maximum adjustable time is between 00:00 and 99:00.

SPEED Shows the current training speed. The maximum speed is 99.9 km/h or mi/h.

RPM Displays the revolutions per minute. The display range is 0-999.

DISTANCE Displays the distance from 0.00 to 99.99 km (mi). The user can set the training distance between 0.00 and 99.90 with the UP/DOWN button in the 0.1 km/ mi range.

CALORIES Shows the calorie consumption during the workout from 0 to a maximum of 9999 calories. These data are a rough guide for comparing different exercise units that cannot be used in medical treatment.

PULSE The user can set a target pulse from 0-230. As soon as the target pulse is exceeded, the computer buzzer will sound.

WATTS Shows the training performance in the range 0~999.

MANUAL Training in manual mode.

BEGINNER 4 programs for selection.

ADVANCE 4 programs for selection.

SPORTY 4 programs for selection.

CARDIO Target heart rate training mode.

WATT PROGRAM Watt constant training mode.

Key functions

Up Increase resistance / Select setting.

Down Reduce resistance / Select setting.

Mode / Enter Confirm the setting or selection.

Reset Press and hold the button for 2 seconds, the computer will restart and start with the user settings. Return to main menu during the preset training value or in stop mode.

Start/ Stop Start or end training.

Recovery Test your heart rate.

Body fat Press this button in stop mode for body fat measurement.

PROGRAMS AND DISPLAYS

Switch on the device

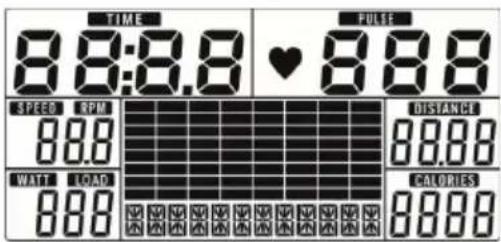

Plug in the power adapter, the computer will turn on and show all segments on the LCD for 2 seconds (1).

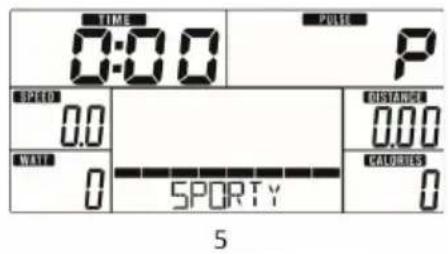

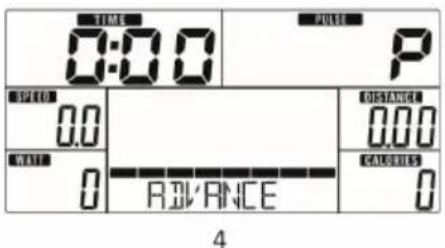

Selection of the training type

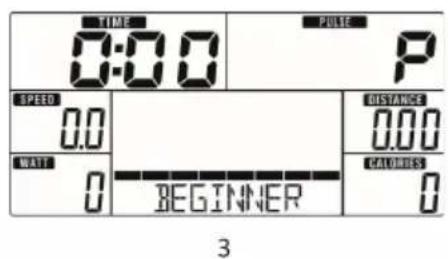

Use the UP/DOWN button to select the training type: Manual (2), Beginner (3), Advanced (4), Sporty (5), Cardio (6) or Watt (7).

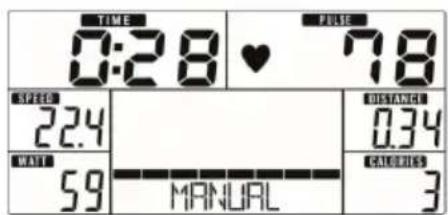

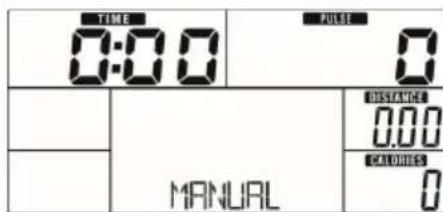

Manual mode

• Press START in the main menu to start the workout in manual mode.
• Use UP/DOWN to select the MANUAL training program and press MODE/ENTER to enter the program.
• Use UP/DOWN to set TIME (8), DISTANCE (9), CALORIES (10) and TARGET PULSE (11). Press MODE/ENTER to confirm.
• Press START/STOP to start exercising. Use UP/DOWN to adjust the resistance. You can see the resistance in the WATT window (12).
• Press START/STOP to end the workout.
• Press RESET to return to the main menu.

8

9

10

11

12

Beginner mode

• Press UP/DOWN to select the Beginner mode and press MODE/ENTER to enter the mode.
• Press to select the Beginner program 1-4 (13) and press MODE/ENTER to enter the program.
• Use UP/DOWN to adjust the TIME.
• Press START/STOP to start exercising. Use UP/DOWN to adjust the resistance.
• Press START/STOP button to end the workout.
• Press RESET to return to the main menu.

13

Advanced mode

• Press UP/DOWN to select the Advance Mode training program and press MODE/ENTER to enter the mode.
• Use UP/DOWN to select the advanced program 1-4 (14) and press MODE / ENTER to enter the program.
• Use UP/DOWN to adjust the TIME.
• Press START/STOP to start exercising. Use UP/DOWN to adjust the resistance.
• Press START/STOP button to end the workout.
• Press RESET to return to the main menu.

14

Sporty mode

• Use UP/DOWN to select the training program, select SPORTY and press MODE/ENTER to enter the mode.
• Select the sports program 1-4 (15) with UP/DOWN) and press MODE/ENTER to enter the program.
• Use UP/DOWN to adjust the TIME.
• Press START/STOP to start exercising. Use UP/DOWN to adjust the resistance.
• Press START/STOP button to end the workout.
• Press RESET to return to the main menu.

15

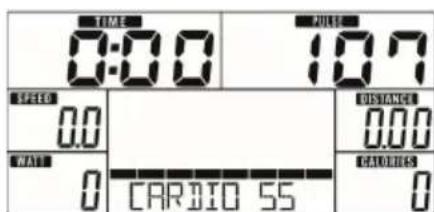

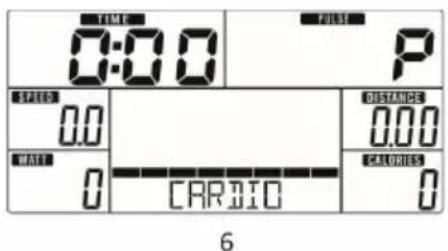

Cardio mode

• Use UP/DOWN to select the H.R.C. exercise program and press MODE/ENTER to enter the program.
• Use UP/DOWN to set the age (16).
• Use UP/DOWN to select 55% (17), 75%, 90% or DAY (TARGET H.R. = Target Heart Rate). The default setting is: 100.
• Use UP/DOWN to adjust the TIME.
• Press START/STOP- to start or stop the training
• Press RESET to return to the main menu.

16

17

Watt mode

• Use UP/DOWN to select the WATT training program and press MODE/ENTER to enter the program.
• Use UP/DOWN to set the WATT target. The default setting is: 120 (18).
• Use UP/DOWN to adjust the TIME.
• Press START/STOP to start exercising. Use UP/DOWN to set the watt number.
• Press START/STOP button to end the workout.
• Press RESET to return to the main menu.

18

Heart rate status

After your workout, hold the handles for a while and press the RECOVERY button.
- All function displays are stopped and the TIME window starts counting down from 00:60 to 00:00 (19). The display shows your heart rate status with the F1-F6 keys. F1 is the best, F6 is the worst result (20).
- Press RECOVERY again to return to the main display.

19

20

Body fat measurement

• In STOP mode, press the BODY FAT button to start the body fat measurement.
  The console prompts the user to enter the following values (21): GENDER, AGE, Height, Weight and then starts the measurement.
• Both hands must be on the handles during the measurement. The display shows [n = "n = "] for 8 seconds (22) until the computer has finished the measurement.
• The display shows the FAT (23) and BMI (24) symbols for 30 seconds.

21

22

23

24

25

26

Error messages:

The display shows [n = = n = = ] (25): The hands do not rest on the handles.
- The display shows [E-1]: No heart rate signal input is detected.
The display shows [E-4]: Occurs when FAT% is below 5 or above 50 and the BMI result is below 5 or above 50 (26).

TRAINING VIA KINOMAP APP

Kinomap turns your bike trainer, exercise bike, treadmill or rowing machine into a powerful and fun fitness device.

Choose a video and train on the Kinomap app. Watch your icon progress on the map as you follow the video. The app will change incline or resistance on your equipment to follow each video you choose in real time.

Join for FREE and get started now!

Download on the AppStore

GET IT ON Google Play

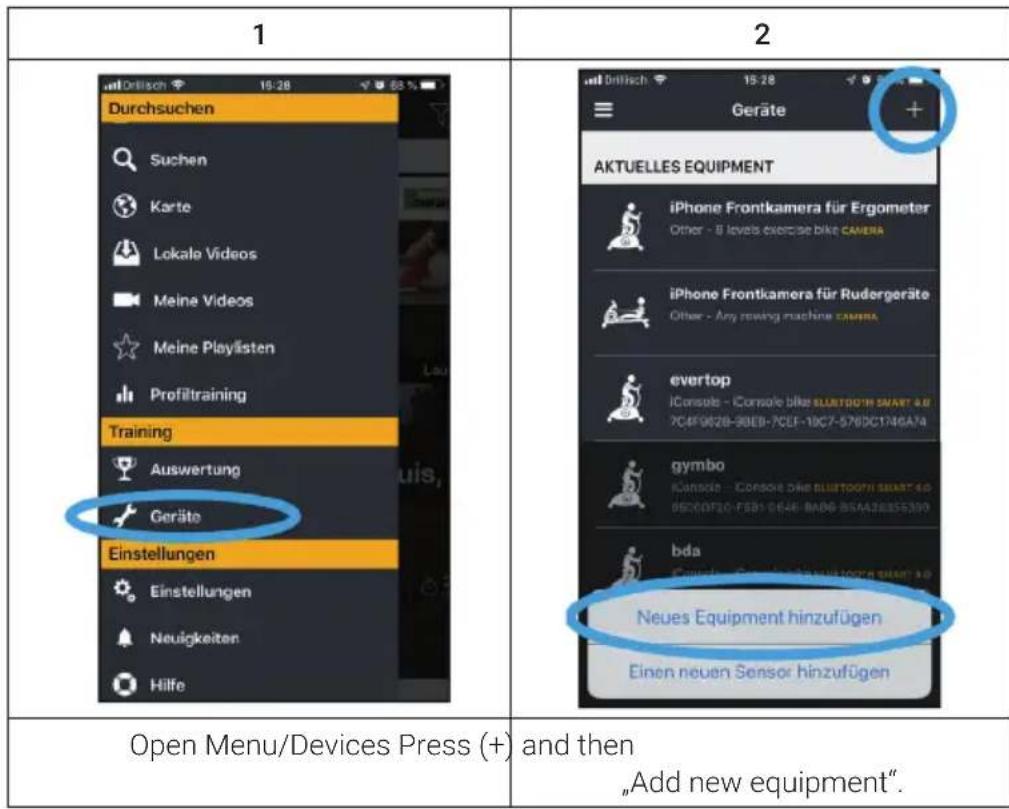

How to connect to Kinomap

3	4
Garäte Fitness EquipmentStufe 1/4Wähle dein richtig Fitness Equipment. ErgometerLaufbandCrosstrainerRudermaschine	Stufe 2/4ErgometerWähle die Marke deines Fitness Equipments. Camera BH Fitness CS Cepen Sports Care Fitness Care Fitness erkanntStufe 4/4Ergometer > Capital Sports > Evo Pro (Bluetooth Smart 4.0)...
Select the appropriate device(Ergometer = bicycle)	Select the brand
5	6
Stufe 3/4Ergometer > Capital Sports Wähle des Model dono fitness Equipments. CS Cepen Sports Interaktiv+ Evo Deluxe-Evo Pro BLUETOOTH SMART 4.0+ Evo Series+ Evo Track mit SensorFür diese Marke ist kein Sensor verfügbar	The Bluetooth search starts. Wait until the console is displayed and select it (the name is usually "iConsole").
Select the model, then pressBluetooth Smart 4.0.	The Bluetooth search starts. Wait until the console is displayed and select it (the name is usually "iConsole").

ICONSOLE+APP

Turn on BT on tablet, search for console device and press connect. Turn on iConsole+ app on tablet and start workout with tablet.

Note: Once the console is connected to the tablet via BT, it no longer displays any data. Close the app and turn off BT on the tablet. The console will automatically display data again.

Regular cardio training stimulates the cardiovascular (heart and blood vessels) and respiratory system. It improves your general health and helps you to burn fat. It is the recommended workout if you want to lose weight. When exercising, glucose is burned off first, then the fat stored in the body.

Intensive cardio training (e.g. circuit training, training with high resistance and long duration training) requires a greater amount of effort and also trains the muscular system and your endurance. As a rule, the more regular you train, the more effective the training is (even with short training sessions of 20 minutes).

During the Training

The level of resistance used during the workout determines the training intensity and the associated results.

An optimal training session includes (1) a warm-up phase, (2) an intensive cardio training phase and finally (3) a cool down phase. If you want to progress or burn calories, you should go through these 3 phases as well as exercise for at least 20-30 minutes on the ergometer.

1. Warm-up Phase

Always start your training session with a low resistance level. A warm-up phase of 5-10 minutes is important because your muscles need to be warmed up. During the warm-up phase, you should give your circulatory system and muscles time to prepare for the subsequent workout. As a beginner, you can train for the first 3 minutes at the easiest level and then gradually increase the level to where you feel most comfortable.

2. Cardio Training Phase

After about 10 minutes, you can then begin the cardio training phase. When using the interval training program, the computer controls the resistance depending on the type of interval chosen and thus simulates changing intensities.

The cardio training phase is considered aerobic or anaerobic training depending on the energy expenditure. These two types of training are defined as follows:

Aerobic Training Zone

While you are in this zone, you are improving your cardiovascular system and burning fat.

Despite an increased heart rate, deeper breathing and light sweating, the body is not in a very stressed state, breathing is not significantly accelerated--you could still talk to someone without going out of breath--and you feel that you could sustain the physical exertion for a long time. It's similar to when you briskly walk uphill.

The muscles and heart work more intensely than when the body is at rest and can get most of their energy needs met via aerobic energy production, which utilizes oxygen to facilitate energy production. At the same time, the anaerobic production of energy is also active, but only to a small extent. The lactic acid produced in this process can be broken down to produce energy. Most of your training should be aerobic training.

If you continue to increase the intensity, you will eventually come to the threshold where aerobic energy production is no longer able to increase its output. At this point, there is a shift towards anaerobic energy production being used to a greater extent. You are now doing anaerobic training.

Anaerobic Training

When in this zone, you are improving your performance and speed. When you increase the intensity while in this zone, the training becomes much more strenuous because of the rising lactate level in the body; you start sweating more; your breathing gets faster; and after some time depending on your fitness level, your muscles tire and you feel totally exhausted and that you can no longer continue at this level of intensity.

3. Cool-down Phase

At the end of the cardio training phase, you begin the cool-down phase, which should last for at least 5 minutes. Here, you use low levels of resistance. The recovery or cool-down phase is also helpful with regard to preventing possible muscle soreness. It is also advisable to do active recuperation after an intensive training session, such as a hot bath, a sauna session or a massage.

Training Progress

Each month you can make the training more challenging by extending the duration of the cardio training phase, by using a higher level of resistance within that phase or by doing a more demanding interval training.

Eating and Drinking

• Drink before, during and after training.
• Drink at least 2 sips of water (10 to 20 cl) every 10-15 minutes during a training session.
• If your workout lasts for more than 1 hour, you should drink a sports drink to protect the body from dehydration while training.
• For optimal cardio training, suitable nutrition before and after any physical activity is very important.

Before training, it is best to eat carbohydrates, such as those found in rice and pasta, as they provide the body with an important source of energy.

After training, you need to refuel with proteins, such as those found in eggs, yoghurt and dried fruits. Even if you want to lose weight, it is absolutely necessary to eat after training in order for your body to recuperate.

WARMING UP BEFORE A WORKOUT

Perform the movements before each workout to mobilize your joints and activate your muscles.

Should a movement be uncomfortable or painful, skip this movement and consult your doctor or fitness instructor about suitable warm-up movements.

Each movement should be repeated (right and left) so that you can start the cardio training relaxed.

Take about 5 minutes to do the following Capital Sports training routine:

2	3
Turn the hips while the arms are stretched. The feet are not firmly fixed to the ground; the ankles follow the body's rotation.	Bend at the hip with one arm stretched upward. Stay in this position for a few seconds on each side.

4
Stand on one leg and hold the instep of the other leg with your hand. While in this position, mobilize your ankle so as to stretch the thigh slightly. If necessary, hold on to something to keep your balance. Then Stand on one leg and draw a circle in both directions (clockwise and counterclockwise) with the ankle.
5	6
When squatting, place your feet about shoulder-width apart and lower your hips while keeping your arms straight. Try to also keep your back straight.	Sit with your legs bent so that the soles of your feet touch. Slightly flap the knees by moving the knees up and down while keeping the feet on the floor. Hold your ankles and keep your back straight.

CARE AND MAINTENANCE

Note: As with all training machines with mechanical, moving components, screws may loosen due to frequent use. We therefore recommend that you check them regularly and, if necessary, retighten them with a suitable key. Clean your training device regularly with a damp cloth to clean the surfaces from sweat and dust.

• When you don't use the exercise bike for a long time, please take out the console battery to avoid running out of battery.
• Often clean the exercise bike with clean cloth to keep the clean appearance.
• The safety level of the equipment only can be maintained if it is regularly examined for damage and or /wear and tear. (e.g. handle bar, pedals and seat ...etc.). It is vital that any faulty parts are replaced and the it is not used until completed repaired.
• Regularly check that the elements fastened with nuts and bolts are correctly tightened.
• Remember regularly to grease moving parts.
• Special attention to the component, most of them are susceptible to wear like brake system, foot pad etc.
• As sweat is very corrosive, do not allow it to come into contact with the enameled or chromed parts of the equipment, particularly the computer. Immediately wipe the equipment after using. The enameled parts can be cleaned using a damp sponge. All aggressive or corrosive products must be avoided.
• Storing the equipment in a clean and dry environment away from children.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/10035174

Estimado cliente:

PROGRAMAS E INDICADOS

Encender el aparato

Download on the App Store

GET IT ON Google Play

APPLICATION ICONSOLE+

Download on the App Store

GET IT ON Google Play

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.
