USER MANUAL Golden Portable IND Eurom

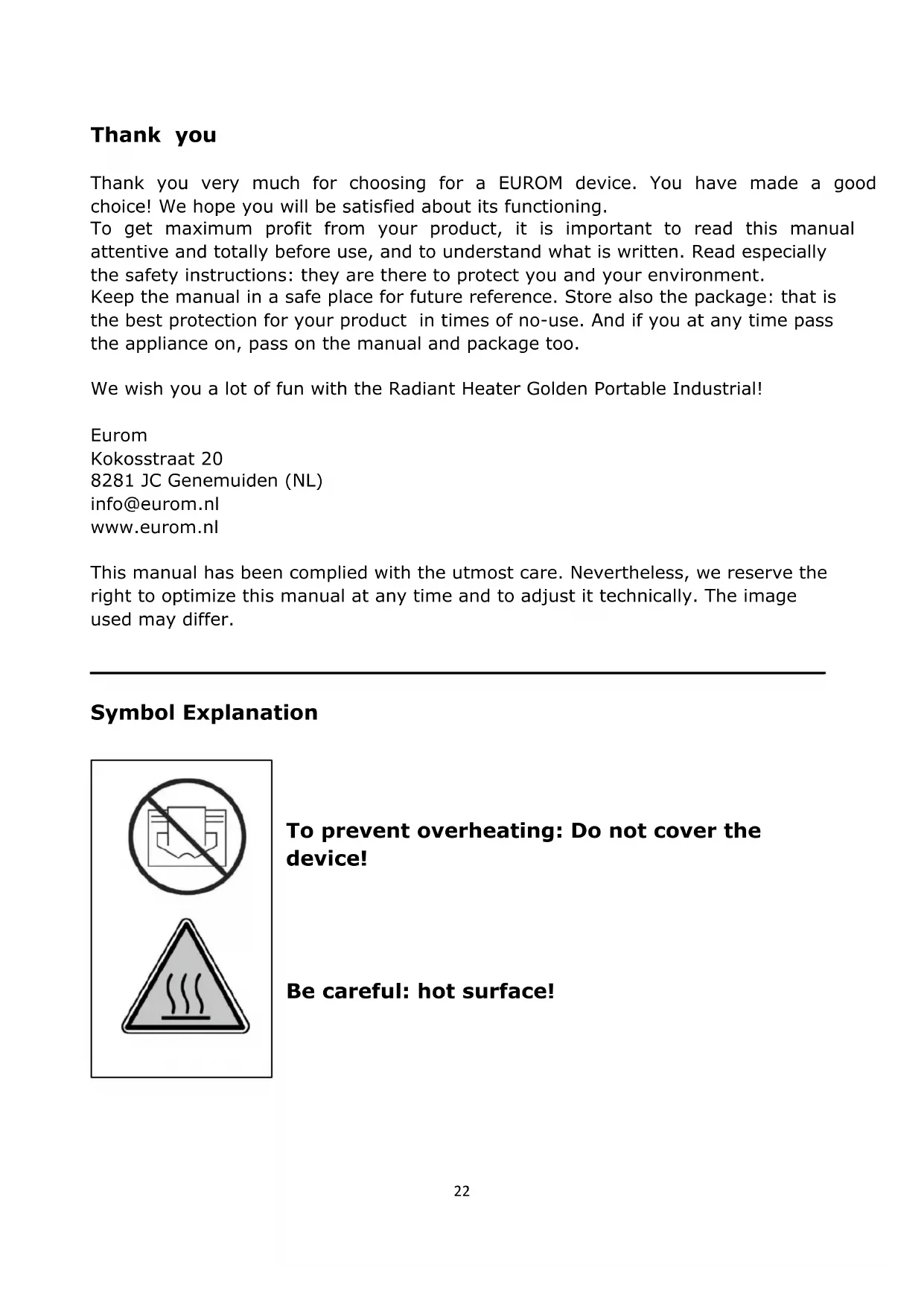

To prevent overheating: Do not cover the device!

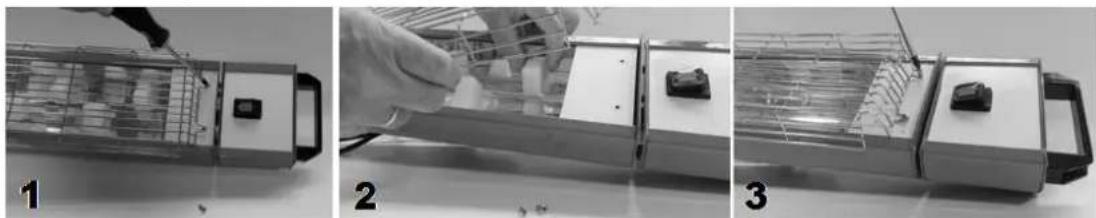

Be careful: hot surface!23 Important instruction to remove foam Before using the appliance, first remove all the foam lamp protectors used to protect the heating lamp during transport. Start working as follows:

1. Place the appliance horizontally with the protective grid facing upwards and

remove both screws. It is important to keep the protective grid in its original place!

2. Raise the protective grid slightly to the same side (the side where you removed

both screws). Make sure that the protective grid remains in the holders at the other side. Now remove all the foam lamp protectors.

3. Put the protective grid back in its original place and mount it firmly using both

screws. Set up the appliance upright and check the fastening of the protective grid. Technical data Supply Voltage 220-240V~50Hz Maximum capacity 1000 W Degrees of protection IPX5 Dimensions 76 x 25 x 18 cm Weight 5,2 kg

Warning electric heaters Safety warning – general

1. Read the user instructions carefully and completely before using

(and installing) this device. Keep the instruction leaflet somewhere safe so that you can consult it and pass it on in future.

2. Before use, check your new device (including cable and plug) for

any visible damage. Never use a damaged device but take it back to the supplier for a replacement.

3. In the event of incorrect usage or installation, there is a risk of

electric shocks and/or a fire hazard.24 Warnings device position

1. Only use the device with a fully extended expansion support. Check

this carefully before each use. The device is unstable if the expansion support has not fully folded out. Moreover, the device stands up too much if the expansion support is not fully folded out, so that the heat rays are also directed towards the surface. Attention, fire hazard.

2. This device is not suitable for wall or ceiling installation.

3. Do not use this device in the immediate vicinity of a bath, shower

4. This device is splash-proof but even though it is a mobile device, it

is not suitable for use in bathrooms or near a swimming pool. Do not place the device near water-points and/or water reservoirs. Make sure that the device cannot fall into water and that it cannot be penetrated by water. If the device does get wet make sure you remove the plug from the socket! Do not use a device that is wet inside but take it to be repaired. Never immerse the device, cable or plug in water or any other fluid and never touch device with wet hands.

5. The air around the device must be able to circulate freely. Never

install it too close to walls or large objects and never under a shelf, cupboard, curtains or similar. When locating the device, make sure you have the following minimum free space: Front, minimum free space 100 cm Back, minimum free space 50 cm Sides, minimum free space 50 cm Top, minimum free space 100 cm

6. Always place the unit on a sturdy, flat horizontal surface

7. The base on which the device is placed must not be made of

flammable materials. It must be resistant to temperatures of at least 125°C without burning, melting, deforming or bursting into flames. Check regularly to ensure that the surface is not overheating; this could be dangerous!

8. Never place the device on surfaces such as beds or deep-pile carpet

as openings could be blocked.

9. Do not place the device in the rain; do not place on wet surfaces

and avoid any liquids being spilt nearby. Do not place the device behind a door or along a walking route to avoid accidental trips.25

10. Do not place the device near, under or facing an electrical socket

and not in the vicinity of an open fire or heat source.

11. Do not use the device nearby or facing (garden)furniture, paper,

or other flammable materials. Keep at least 1 metre from device!

12. Only use the device outdoors.

13. The device contains hot and/or glowing and sparking components.

Do not, therefore, use where fuels, paint, flammable fluids and/or gases are stored. Do not use the device in an environment that poses a fire risk, e.g. near gas tanks, gas pipes or aerosols. This is an explosion and fire risk! Warnings – use

1. Do not use additions/accessories on the device that have not been

supplied or approved by the manufacturer.

2. Only use the device for its intended purpose and in the manner set

out in this instruction leaflet.

3. Some parts of this device will get very hot and could cause

burns. You must pay particular attention to children, vulnerable persons and pets that are present near the device. Never leave them alone with a working device.

4. Never cover or block the device; it will overheat and this could lead

to a fire risk. Never hang or place objects such as clothing, blankets, cushions, paper, etc. on the device. The minimum distance of 1 meter between the device and flammable materials must always be applied. Ventilation openings should never be blocked as this may pose a fire risk. Never use the device to dry clothing or place anything on it. Do not let anything lean against the device!

5. Do not set the device to come on automatically using a timer, clock

or other facility. You must always check for safe conditions before using the fireplace! Never use the device with an external voltage regulator such as a dimmer or similar, as this could be dangerous!

6. The connection voltage and frequency, as given on the device, must

correspond to that of the socket to be used. The electrical socket to be used must be an earthed connection. The electrical installation must be protected via a 30 mA earth leakage circuit breaker. The electrical socket that you are using must be to hand at all times in order to be able to remove the plug from the socket in the event of an emergency.26

7. To avoid overloading and/or fuses being blown, do not use any

other equipment on the same socket or electrical group as the one used for the device.

8. Unroll the electric cable for the device fully before inserting the plug

into the socket and ensure that the electrical cable does not come into contact with the fireplace or get hot. Do not run the electrical cable under carpet, cover with mats, runners or similar and do not place in areas that are walked on frequently. Ensure that it cannot be stepped on and that no furniture is placed on top of it. Do not bend the electrical cable around sharp corners and do not roll up too tightly after use! Prevent the electrical cable coming into contact with oil, solvents and sharp objects. Check the cable and plug regularly for damage. Do not bend or pinch the electrical cable and do not wind it around the device; this could damage the insulation!

9. The use of an extension cable is not advised as this can lead to

overheating and fire. If the use of an extension cable is unavoidable, make sure that it is not damaged and that it is an approved extension cable with a minimum diameter of 3x1,5mm² and a minimum permitted capacity of 1500 Watt. Always fully extend the cable in order to prevent overheating.

10. Only connect the device to a fixed socket. Do not use multi-plug

adapters or similar.

11. During use, the plug may begin to feel warm; this is normal. If it’s

really warm, there may be something wrong with the socket. Please contact your electrician.

12. Always turn off the device and remove the plug from the power

socket: Never turn the device off using the plug!

13. Prevent foreign objects entering the radiation/ventilation or outlet

openings on the device. This may cause electric shock, fire or damage.

14. Never leave a working device unattended but switch off and then

remove the plug from the socket.

15. Always remove the plug from the socket when the unit is not in

use! Always remove plug by pulling on the plug itself; never pull on the electrical cable!

16. This device gets hot during use. Never touch the device when it is

on or shortly thereafter; it could burn you.27

17. This device is not equipped to monitor the ambient temperature in

the room. Do not use the device in small rooms if these rooms are used by persons who are not capable of leaving the room independently, unless there is constant supervision.

18. The protective grille on this device is intended to prevent direct

contact with the heating elements; the grille must be in place when the device is being used.

19. The protective grille does not offer full protection for young people

and vulnerable persons.

20. Never operate the device with wet hands.

Who can use the device

1. Children younger than 3 must be kept out of the vicinity of the

device unless they are continuously supervised.

2. Children between the ages of 3 and 8 may only switch the device

on or off if it is set up or installed at its usual location and they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards. Children between the ages of 3 and 8 may not insert the plug into the socket, adjust the device settings or clean or maintain it.

3. This device can only be used by children from the age of 8 and

elderly persons and persons with diminished physical or mental capacities or a lack of experience and expertise if they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards.

4. Children may not clean or maintain the device without supervision.

5. Children may not play with the device.

Warnings for maintenance

1. Keep the device clean. Dust, dirt and/or deposits in the device often

lead to overheating. Ensure that this type of build-up is regularly removed.

2. Always switch the device off, remove plug from socket and let the

device cool down before you: - clean the device - users - maintain the device. - touch or move the device.

3. Never switch the device on if you have noticed damage to the

device itself, the cable or plug or if it does not work properly, makes strange noises, smells odd or you can see smoke, or if it has fallen or shows any other signs of damage. Remove the plug from28 the socket immediately. Take the entire device back to your supplier or a recognised electrician to be checked and/or repaired. Always ask for original parts to be used.

4. The device may only be opened and/or repaired by a competent

and qualified person. Do not carry our your own repairs as this could be dangerous! Repairs carried out by unauthorized persons or changes made to the device could damage the dust/waterproof capacity of the device and will nullify the guarantee and the manufacturer’s liability.

5. If the electrical cable is damaged, it must be replaced by the

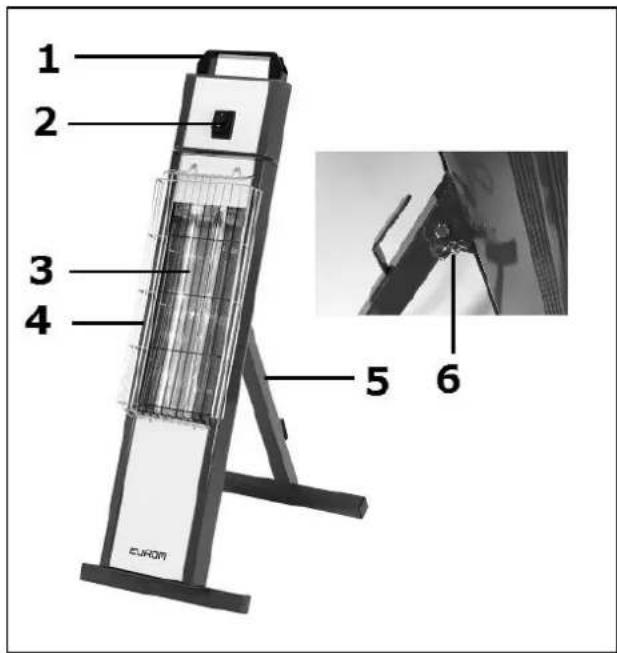

manufacturer, their service department or somebody with similar qualifications in order to prevent creating a hazard. Failing to adhere to points 3, 4, 5, could lead to damage, fire and/or personal injury. They will invalidate the guarantee and the supplier, importer and/or manufacturer shall not be liable for the consequences. Description

5. Expansion support

6. Securing the expansion support
