B-4 1800 - Heating Eurom - Free user manual and instructions

Brand	Eurom
Model	B-4 1800
Product type	Electric fan heater, supplementary heating
Dimensions (W x H x D)	25 x 25.5 x 14 cm
Weight	1.1 kg
Power supply	220-240 V ~ 50 Hz
Maximum power	1800/2000 W
Nominal power	1.8 kW
Minimum power (indicative)	0.034 kW
Power settings	0 - 900/1000 - 1800/2000 W (depending on version)
Thermostat	Mechanical, adjustable
Operating indicator light	Yes
Overheat protection	Yes, automatic shut-off in case of internal overheating
Fan	Yes, for heat distribution
Fan-only mode (without heating)	Yes
Mounting	Floor-standing, not suitable for wall or ceiling mounting
Minimum safety distances	Front and sides: 100 cm, rear: 30-50 cm, top: 100 cm
Required placement surface	Solid, flat, horizontal, heat-resistant (min. 125°C)
Authorized use	Indoors, dry well-insulated rooms, minimum volume 15 m³
Maintenance and cleaning	Exterior cleaning with a dry or well-wrung damp cloth; vacuum grills; no aggressive products
Repairability	Repairs only by qualified professional; original parts mandatory
Minimum age for unsupervised use	3 years under constant supervision, 8 years with instructions, 3-8 years: only turn on/off
Warranty and liability	Warranty void if instructions not followed, unauthorized repair
Manufacturer contact	Eurom, Kokosstraat 20, 8281JC Genemuiden, Netherlands, [e-mail]

Frequently Asked Questions - B-4 1800 Eurom

How to turn on the Eurom B-4 1800 fan heater?

Turn the thermostat knob to maximum (clockwise). Then turn the function selector knob to one of the positions: fan only ( ), medium power heating (900/1000 W) or full power (1800/2000 W). The indicator light comes on indicating the appliance is operating.

What are the safety distances to be observed around the appliance?

Front and sides: at least 100 cm. Rear: 30 to 50 cm. Top: 100 cm. Do not place the appliance under a shelf, curtains, or against a wall. Maintain a distance of at least 1 meter from any flammable material.

What to do if the appliance turns off by itself (overheat protection)?

Set the switch to '0' (off), unplug the appliance and let it cool down. Check that the intake and outlet grills are not blocked and that the appliance is not covered. Correct the cause and then use normally. If the problem persists, have the appliance checked.

Can I use the heater in a bathroom or humid room?

No, the appliance must not be used in humid rooms such as bathrooms, laundry rooms, or near water (bathtub, shower, pool). It must not fall into water or get wet. Use only in dry rooms.

How to clean the appliance?

Turn off the appliance, unplug it and let it cool. Clean the exterior with a dry or slightly damp well-wrung cloth. Do not use chemical, abrasive or solvent products. Gently vacuum the dust from the intake and outlet grills with a vacuum cleaner.

Can the heater be mounted on the wall?

No, the appliance is not designed for wall or ceiling mounting. It must be placed on a solid, flat, horizontal surface, with the feet down. However, it can be used in a horizontal position if the controls are facing upward.

What is the maximum power and how to adjust the temperature?

The maximum power is 1800 W (or 2000 W depending on version). Turn the thermostat knob to the desired position: to heat quickly, set it to maximum, then reduce as soon as the desired temperature is reached (turn slowly counterclockwise until the click). The thermostat then maintains the temperature.

Can I use an extension cord with this appliance?

The use of an extension cord is not recommended. If unavoidable, use an extension cord in good condition, certified, with a minimum cross-section of 2x2.5 mm² and a power rating of at least 2000 W. Unwind it completely to avoid overheating.

How to correctly turn off the appliance?

First set the control knob to '0' (off). The indicator light goes out. Then unplug the appliance by holding the plug, never the cable. Never unplug before turning off via the knob.

What to do if the power cord is damaged?

Do not use the appliance. The damaged power cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any danger. Do not attempt to repair it yourself.

USER MANUAL B-4 1800 Eurom

White electric heating fan with heat exchanger and control knobs (no visible text or symbols)

B-4 1800

Art.nr. White: 352160 / 352191 (Swiss plug) Art.nr. Blue 352153 / 352184 (Swiss plug) Art.nr. Green 352146 / 352177 (Swiss plug)

This product is only suitable for well insulated spaces of occasional use.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the B-4 1800!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol Explanation

Do not cover the device!

Technical data

Supply voltage	220-240V~50Hz
Maximum capacity	1800/2000 W
Settings	0-900/1000-1800/2000 W
Thermostat	+
Dimensions	25 x 14 x 25,5 cm
Weight	1,1 kg

Warning electric heaters

Safety warning – general

1. Read the user instructions carefully and completely before using (and installing) this device. Keep the instruction leaflet somewhere safe so that you can consult it and pass it on in future.
2. Before use, check your new device (including cable and plug) for any visible damage. Never use a damaged device but take it back to the supplier for a replacement.
3. In the event of incorrect usage or installation, there is a risk of electric shocks and/or a fire hazard.

Device position warnings

1. This device is not suitable for wall or ceiling installation.
2. Do not use this device in the immediate vicinity of a bath, shower or swimming pool.
3. This device is not suitable for use in damp spaces such as bathrooms, wash rooms etc. Never locate the device near water-points and reservoirs (tap, bath, shower, toilet, sink, swimming pool, etc.). Make sure that the device cannot fall into water and that it cannot be penetrated by water. If the device falls into water make sure you remove the plug from the socket! Do not use a device that is wet inside but take it to be repaired. Never immerse the device, cable or plug in water or any other fluid and never touch device with wet hands.
4. The air around the device must be able to circulate freely. Never install it too close to walls or large objects and never under a shelf, cupboard, curtains or similar. When locating the device, make sure you have the following minimum free space:

Front, minimum free space 100 cm Back, minimum free space 30-50 cm Sides, minimum free space 100 cm Top, minimum free space 100 cm

1. Always place the unit on a sturdy, flat horizontal surface

2. The base on which the device is placed must not be made of flammable materials. It must be resistant to temperatures of at least 125^ C without burning, melting, deforming or bursting into flames. Check regularly to ensure that the surface is not overheating; this could be dangerous!

3. Never place the device on surfaces such as beds or deep-pile carpet as openings could be blocked.

4. Do not place the device near an open window as rain could blow in; do not place on wet surfaces and avoid any liquids being spilt nearby. Do not place the device behind a door or along a walking route to avoid accidental trips.
5. Do not place the device near, under or facing an electrical socket and not in the vicinity of an open fire or heat source.
6. Do not use the device nearby or facing furniture, curtains, paper, clothing, bedding or other flammable materials. Keep at least 1 metre from device!
7. Do not use the heater outdoors or in areas that are smaller than 15m^3 .
8. The device contains hot and/or glowing and sparking components. Do not, therefore, use where fuels, paint, flammable fluids and/or gases are stored. Do not use the device in an environment that poses a fire risk, e.g. near gas tanks, gas pipes or aerosols. This is an explosion and fire risk!

Warnings - use

1. Do not use additions/accessories on the device that have not been supplied or approved by the manufacturer.

2. Only use the device for its intended purpose and in the manner set out in this instruction leaflet.

3. Some parts of this device will get very hot and could cause burns. You must pay particular attention to children, vulnerable persons and pets that are present near the device. Never leave them alone with a working device.

4. Never cover or block the device; it will overheat and this could lead to a fire risk. Never hang or place objects such as clothing, blankets, cushions, paper, etc. on the device. The minimum distance of 1 metre between the device and flammable materials must always be applied. Ventilation openings should never be blocked as this may pose a fire risk. Never use the device to dry clothing or place anything on it. Do not let anything lean against the device!

5. Do not set the device to come on automatically using a timer, clock or other facility. You must always check for safe conditions before using the fireplace! Never use the device with an external voltage regulator such as a dimmer or similar, as this could be dangerous!

6. The device is exclusively intended for normal, household usage. Only use for providing heat in your home.

7. Connection voltage and frequency, as given on the device, must correspond to that of the socket to be used and the electrical installation must be equipped with an earth leakage circuit breaker of 30 mA. The electrical socket that you are using must be to hand at all times in order to be able to remove the plug from the socket in the event of an emergency.

8. To avoid overloading and/or fuses being blown, do not use any other equipment on the same socket or electrical group as the one used for the device.

9. Unroll the electric cable for the device fully before inserting the plug into the socket and ensure that the electrical cable does not come into contact with the fireplace or get hot. Do not run the electrical cable under carpet, cover with mats, runners or similar and do not place in areas that are walked on frequently. Ensure that it cannot be stepped on and that no furniture is placed on top of it. Do not bend the electrical cable around sharp corners and do not roll up too tightly after use! Prevent the electrical cable coming into contact with oil, solvents and sharp objects. Check the cable and plug regularly for damage. Do not bend or pinch the electrical cable and do not wind it around the device; this could damage the insulation!

10. The use of an extension cable is not advised as this can lead to overheating and fire. If the use of an extension cable is unavoidable, make sure that it is not damaged and that it is an approved extension cable with a minimum diameter of 2x2,5 mm² and a minimum permitted capacity of 2000 Watt. Always fully extend the cable in order to prevent overheating.

11. Only connect the device to a fixed socket. Do not use multi-plug adapters or similar.

12. During use, the plug may begin to feel warm; this is normal. If it's really warm, there may be something wrong with the socket. Please contact your electrician.

13. Always turn off the device and remove the plug from the power socket: Never turn the device off using the plug!

14. Prevent foreign objects entering the radiation/ventilation or outlet openings on the device. This may cause electric shock, fire or damage.

15. Never leave a working device unattended but switch off and then remove the plug from the socket.

16. Always remove the plug from the socket when the unit is not in use! Always remove plug by pulling on the plug itself; never pull on the electrical cable!
17. This device gets hot during use. Never touch the device when it is on or shortly thereafter; it could burn you.
18. Never operate the device with wet hands.

Warnings by whom the device may be used

1. Children younger than 3 must be kept out of the vicinity of the device unless they are continuously supervised.
2. Children between the ages of 3 and 8 may only switch the device on or off if it is set up or installed at its usual location and they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards. Children between the ages of 3 and 8 may not insert the plug into the socket, adjust the device settings or clean or maintain it.
3. This device can only be used by children from the age of 8 and elderly persons and persons with diminished physical or mental capacities or a lack of experience and expertise if they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards.
4. Children may not clean or maintain the device without supervision.
5. Children may not play with the device.

Warnings for maintenance

1. Keep the device clean. Dust, dirt and/or deposits in the device often lead to overheating. Ensure that this type of build-up is regularly removed.
2. Always switch the device off, remove plug from socket and let the device cool down before you:
3. clean the device
4. users maintain the device.

5. touch or move the device.

6. Never switch the device on if you have noticed damage to the device itself, the cable or plug or if it does not work properly, makes strange noises, smells odd or you can see smoke, or if it has fallen or shows any other signs of damage. Remove the plug from the socket immediately. Take the entire device back to your supplier or a recognized electrician to be checked and/or repaired. Always ask for original parts to be used.

7. The device may only be opened and/or repaired by a competent and qualified person. Do not carry our your own repairs as this could be dangerous! Repairs carried out by unauthorised persons or changes made to the device could damage the dust/waterproof capacity of the device and will nullify the guarantee and the manufacturer's liability.

8. If the electrical cable is damaged, it must be replaced by the manufacturer, their service department or somebody with similar qualifications in order to prevent creating a hazard.

Failing to adhere to points 3, 4, 5, could lead to damage, fire and/or personal injury. They will invalidate the guarantee and the supplier, importer and/or manufacturer shall not be liable for the consequences

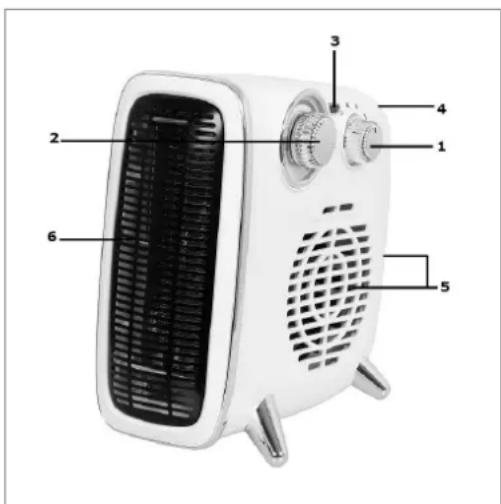

Description

1. control dial
2. thermostat dial
3. pilot light
4. handle
5. air intake grill
6. air outlet grill

Location and connection

Remove all packaging material and keep out of reach of children. After removing packaging, check the appliance for damage or other signs that could indicate a fault/defect/malfunction. In case of doubt, do not use the appliance, but contact your vendor for inspection or replacement.
Select a suitable location for the device taking into account all the aforementioned warnings in this manual.
This radiator cannot be hung but must stand: upright (on the feet) or possibly flat with the control dial and thermostat dial facing up.
Make sure a functioning heater is always placed on a solid, flat and horizontal surface.
➢ Check if the control dial is set to 'OFF' (O).
➢ Fully extend the power cord and plug into a suitable 220/240V socket. To prevent the circuit overloading, check that no other appliances are connected to the same group.

Set-up and operation

➢ Turn the thermostat dial to maximum (clockwise as far as possible).
Switch the heater on by turning the control dial to one of the following three positions:

	Fan only (thermostat always to maximum)
	Heating at half power (900 W/1000W)
	Heating at full power (1800W/2000W)

The light at the front will turn on.

It is most economical to heat the space at full power, then to switch to half power to maintain the temperature.

Both at half and full power, the fan rotates at the same speed; the difference between the two lies in the number of heating elements in use.
Once the desired temperature is reached, turn the thermostat dial back slowly until you hear a click. The temperature is now set. The heater will automatically switch on and off to maintain the set temperature. When the heater switches off, the pilot light turns off as well. To set a higher or lower temperature, turn the thermostat dial either clockwise or anticlockwise.
To switch the heater off, set the power dial to '0' (off). The pilot light will turn off. The pilot light, in other words, indicates that the heater is switched on, not that the heater is connected to the mains!
Unplug.

Safety features

In case of internal overheating, the overheating safeguard will switch the heater off. This may occur if the heater cannot give off enough heat or if it cannot draw in enough fresh air. As mentioned above, this is generally caused by (partially) covering the heater, obstructing the air intake and/or outlet grills or installing the heater too close to a wall or something similar. When the overheating safeguard switches the heater off, set the mode selector dial to '0' (off), unplug and allow the heater to cool down. Remove and/or amend the cause of overheating and reuse the heater as normal. If you cannot find a cause and overheating recurs, stop using the heater, and take it in for inspection/repair.

Cleaning and maintenance

Keep the heater clean. Deposits of dust and dirt in the appliance are a common cause of overheating so these should be removed regularly. Switch off the heater, remove the plug from the socket and allow the heater to cool down before cleaning or carrying out maintenance work.

Wipe the outside of the heater regularly with a dry or slightly damp cloth. Do not use aggressive soaps, sprays, cleaners or abrasives, waxes, polishes or chemical solutions!
Using a vacuum cleaner, carefully remove any dust and dirt from the grills and ensure that the air intake and outlet openings are clean. Be careful not to touch or damage any internal parts during cleaning!
The heater contains no other parts which need maintenance.
At the end of the season, store the cleaned heater in the original packaging if possible. Store upright in a cool, dry and dust-free place.

Removal

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-statement

See page 78.

Remerciements

Protection anti-surchauffe

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Prohibition symbol of a document with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Prohibition symbol of a document with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Zariadenie nezakrývajte!

Technické údaje

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

declares the following device in sole responsibility:

Product: fan heater

Brand name: EUROM

Model: B-4 1800

Item number: White: 352160 / 352191 (Swiss plug)

Blue: 352153 / 352184 (Swiss plug)

Green: 352146 / 352177 (Swiss plug)

Complies with the following harmonization rules:

Low Voltage Directive: LVD 2014/35/EU

Electromagnetic compatibility Directive: EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863

Framework Directive Ecodesign requirements: ERP 2009/125/EC

Regulation Ecodesign requirements for

Individual room heaters: (EU) 2015/1188

Regulation Ecodesign requirements Electricity

Consumption in standby and off state: 1275/2008/EC

Applied harmonized standards:

EN 60335-2-30:2009+A11

EN 60335-1:2012+A11+A13+A1+A14+A2

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Genemuiden, 27-05-2020

W.J. Bakker, alg. Dir.
