Information requirment for the electric local space heaters Model identifier(s): Orsa Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output Pnom

manual heat charge control, with integrated thermostat Not applicable Minimum heat output (indicative) Pmin

manual heat charge control with room and/or outdoor temperature feedback Not applicable Maximum continuous heat output Pmax,c

electronic heat charge control with room and/or outdoor temperature feedback Not applicable Auxiliary electricity consumption fan assisted heat output Not applicable At nominal heat output elmax 0,013 (fan motor)

Type of heat output/room temperature control (select one) At minimum heat output elmin 0,013 (fan motor

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control Yes

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

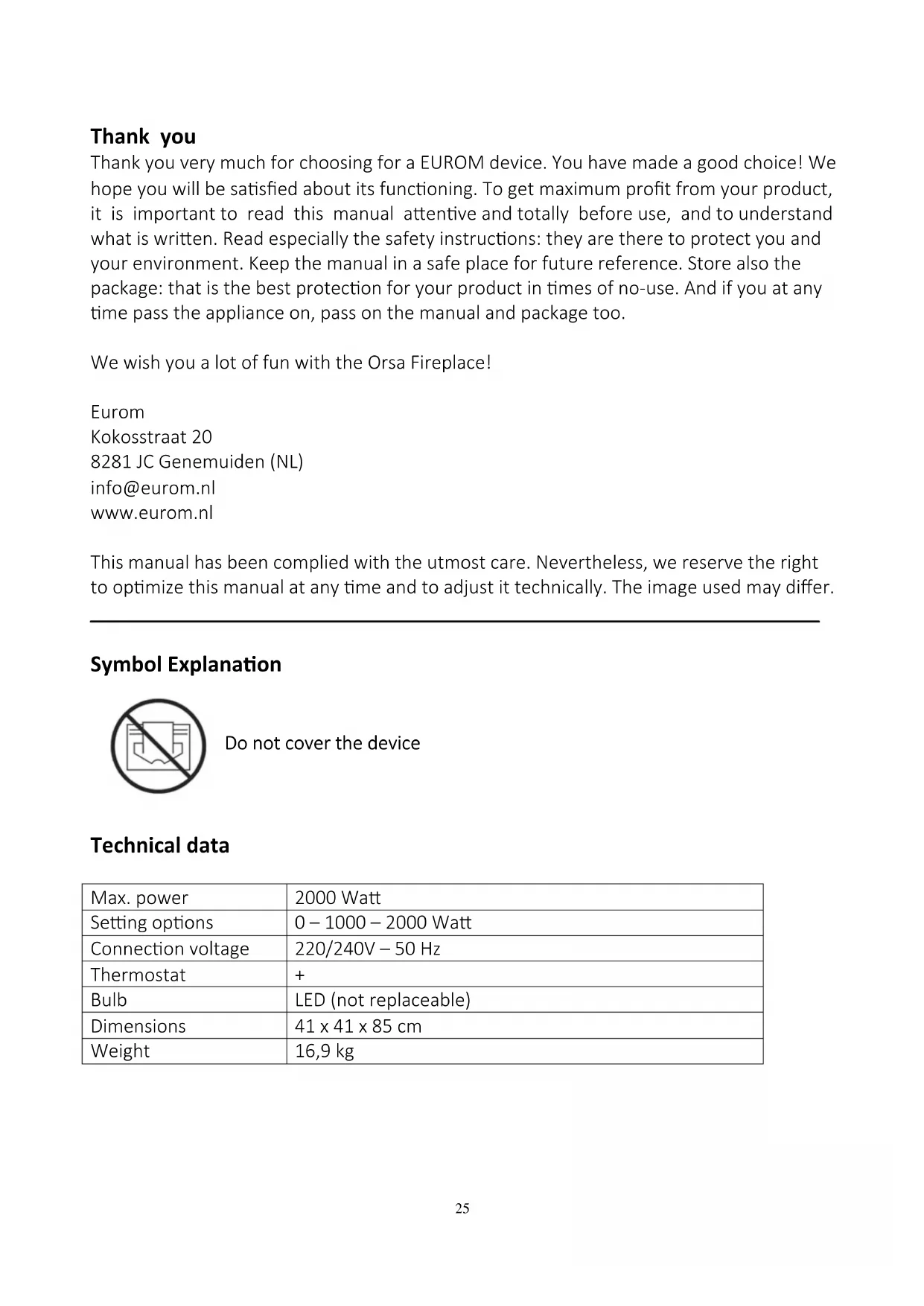

Thank you Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning. To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment. Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too. We wish you a lot of fun with the Orsa Fireplace! Eurom Kokosstraat 20 8281 JC Genemuiden (NL) info@eurom.nl www.eurom.nl This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Do not cover the device

Warning electric heaters Safety warning - general

1. Read the user instructions carefully and completely before using (and installing) this

device. Keep the instruction leaflet somewhere safe so that you can consult it and pass it on in future.

2. Before use, check your new device (including cable and plug) for any visible damage.

Never use a damaged device but take it back to the supplier for a replacement.

3. In the event of incorrect usage or installation, there is a risk of electric shocks and/or

a fire hazard. Warnings device position

1. Only use the device when the wood compartment is mounted. Using the device

without a wood compartment creates a significant risk of fire. Always remove the plug from the socket if you are installing/removing.

2. This device is not suitable for wall or ceiling installation.

3. Do not use this device in the immediate vicinity of a bath, shower or swimming pool.

4. This device is not suitable for use in damp spaces such as bathrooms, wash rooms

etc. Never locate the device near water-points and reservoirs (tap, bath, shower, toilet, sink, swimming pool, etc.). Make sure that the device cannot fall into water and that it cannot be penetrated by water. If the device falls into water make sure you remove the plug from the socket! Do not use a device that is wet inside but take it to be repaired. Never immerse the device, cable or plug in water or any other fluid and never touch device with wet hands.

5. The air around the device must be able to circulate freely. Never install it too close to

walls or large objects and never under a shelf, cupboard, curtains or similar. When locating the device, make sure you have the following minimum free space: Front, minimum free space 100 cm Back, minimum free space 25 cm Sides, minimum free space 100 cm Top, minimum free space 100 cm

6. Always place the unit on a sturdy, flat horizontal surface

7. The base on which the device is placed must not be made of flammable materials. It

must be resistant to temperatures of at least 125°C without burning, melting, deforming or bursting into flames. Check regularly to ensure that the surface is not overheating; this could be dangerous!

8. Never place the device on surfaces such as beds or deep-pile carpet as openings

9. Do not place the device near an open window as rain could blow in; do not place on

wet surfaces and avoid any liquids being spilt nearby. Do not place the device behind a door or along a walking route to avoid accidental trips.

10. Do not place the device near, under or facing an electrical socket and not in the

vicinity of an open fire or heat source.

11. Do not use the device nearby or facing furniture, curtains, paper, clothing, bedding or

other flammable materials. Keep at least 1 metre from device!27

12. Do not use the heater outdoors or in areas that are smaller than 15m³.

13. The device contains hot and/or glowing and sparking components. Do not, therefore,

use where fuels, paint, flammable fluids and/or gases are stored. Do not use the device in an environment that poses a fire risk, e.g. near gas tanks, gas pipes or aerosols. This is an explosion and fire risk! Warnings - use

1. Do not use additions/accessories on the device that have not been supplied or

approved by the manufacturer.

2. Only use the device for its intended purpose and in the manner set out in this

instruction leaflet.

3. Some parts of this device will get very hot and could cause burns. You must pay

particular attention to children, vulnerable persons and pets that are present near the device. Never leave them alone with a working device.

4. Never cover or block the device; it will overheat and this could lead to a fire risk.

Never hang or place objects such as clothing, blankets, cushions, paper, etc. on the device. The minimum distance of 1 metre between the device and flammable materials must always be applied. Ventilation openings should never be blocked as this may pose a fire risk. Never use the device to dry clothing or place anything on it. Do not let anything lean against the device!

5. Do not set the device to come on automatically using a timer, clock or other facility.

You must always check for safe conditions before using the fireplace! Never use the device with an external voltage regulator such as a dimmer or similar, as this could be dangerous!

6. The device is exclusively intended for normal, household usage. Only use for

providing heat in your home.

7. The connection voltage and frequency, as given on the device, must correspond to

that of the socket to be used. The electrical socket to be used must be an earthed connection. The electrical installation must be protected via a 30 mA earth leakage circuit breaker. The electrical socket that you are using must be to hand at all times in order to be able to remove the plug from the socket in the event of an emergency.

8. To avoid overloading and/or fuses being blown, do not use any other equipment on

the same socket or electrical group as the one used for the device.

9. Unroll the electric cable for the device fully before inserting the plug into the socket

and ensure that the electrical cable does not come into contact with the fireplace or get hot. Do not run the electrical cable under carpet, cover with mats, runners or similar and do not place in areas that are walked on frequently. Ensure that it cannot be stepped on and that no furniture is placed on top of it. Do not bend the electrical cable around sharp corners and do not roll up too tightly after use! Prevent the electrical cable coming into contact with oil, solvents and sharp objects. Check the cable and plug regularly for damage. Do not bend or pinch the electrical cable and do not wind it around the device; this could damage the insulation!28

10. The use of an extension cable is not advised as this can lead to overheating and fire. If

the use of an extension cable is unavoidable, make sure that it is not damaged and that it is an approved extension cable with a minimum diameter of 3x2,5 mm² and a minimum permitted capacity of 2500 Watt. Always fully extend the cable in order to prevent overheating.

11. Only connect the device to a fixed socket. Do not use multi-plug adapters or similar.

12. During use, the plug may begin to feel warm; this is normal. If it’s really warm, there

may be something wrong with the socket. Please contact your electrician.

13. Always turn off the device and remove the plug from the power socket: Never turn

the device off using the plug!

14. Prevent foreign objects entering the radiation/ventilation or outlet openings on the

device. This may cause electric shock, fire or damage.

15. Never leave a working device unattended but switch off and then remove the plug

16. Always remove the plug from the socket when the unit is not in use! Always remove

plug by pulling on the plug itself; never pull on the electrical cable!

17. This device gets hot during use. Never touch the device when it is on or shortly

thereafter; it could burn you.

18. Never operate the device with wet hands.

Who can use the device?

1. Children younger than 3 must be kept out of the vicinity of the device unless they are

continuously supervised.

2. Children between the ages of 3 and 8 may only switch the device on or off if it is set

up or installed at its usual location and they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards. Children between the ages of 3 and 8 may not insert the plug into the socket, adjust the device settings or clean or maintain it.

3. This device can only be used by children from the age of 8 and elderly persons and

persons with diminished physical or mental capacities or a lack of experience and expertise if they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards.

4. Children may not clean or maintain the device without supervision.

5. Children may not play with the device.

Warnings for maintenance

1. Keep the device clean. Dust, dirt and/or deposits in the device often lead to

overheating. Ensure that this type of build-up is regularly removed.

2. Always switch the device off, remove plug from socket and let the device cool down

before you: - clean the device - users maintain the device. - touch or move the device.

3. Never switch the device on if you have noticed damage to the device itself, the cable

or plug or if it does not work properly, makes strange noises, smells odd or you can29

see smoke, or if it has fallen or shows any other signs of damage. Remove the plug from the socket immediately. Take the entire device back to your supplier or a recognised electrician to be checked and/or repaired. Always ask for original parts to be used.

4. The device may only be opened and/or repaired by a competent and qualified

person. Do not carry our your own repairs as this could be dangerous! Repairs carried out by unauthorised persons or changes made to the device could damage the dust/waterproof capacity of the device and will nullify the guarantee and the manufacturer’s liability.

5. If the electrical cable is damaged, it must be replaced by the manufacturer, their

service department or somebody with similar qualifications in order to prevent creating a hazard. Failing to adhere to points 3, 4, 5, could lead to damage, fire and/or personal injury. They will invalidate the guarantee and the supplier, importer and/or manufacturer shall not be liable for the consequences. Description

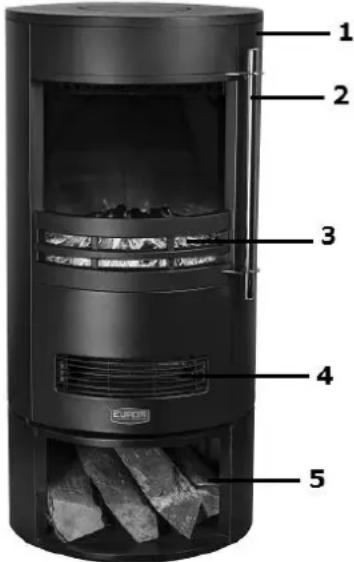

1. Suction grille, switches and thermostat button

5. Wood compartment (wood not included)

Installation and connection Remove the packaging materials and keep out of the reach of children. After removing packaging, check device for damage or any evidence that may point to a defect/failure. If in doubt, do not use the device but refer to your supplier for checks/repairs. Select a suitable location for the device taking into account all the aforementioned warnings in this manual.30

Place the heater upside down, use a blanket or the like. to prevent damage.

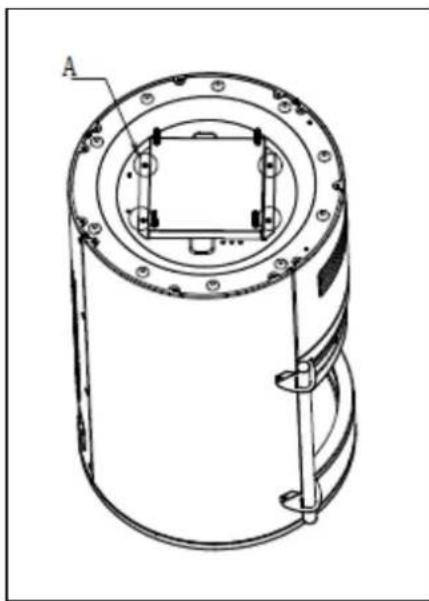

1. Using the 4 Phillips screws, mount the box-shaped

metal attachment to the bottom of the heater.

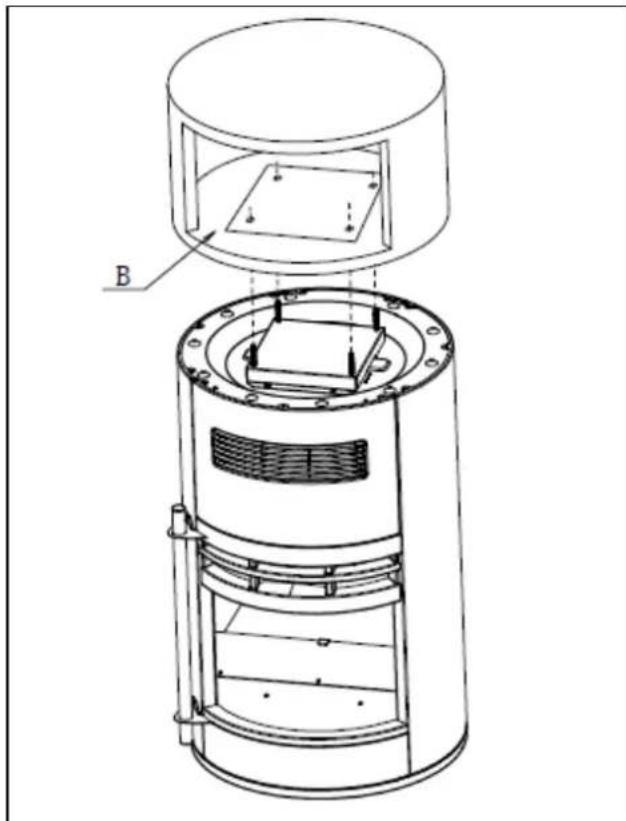

2. Place the wood compartment on the

heater, see drawing 2. Place the 4 screws of the box-shaped metal attachment through the 4 holes of the wood compartment. Note: Make sure that the opening of the wood compartment is at the front.31

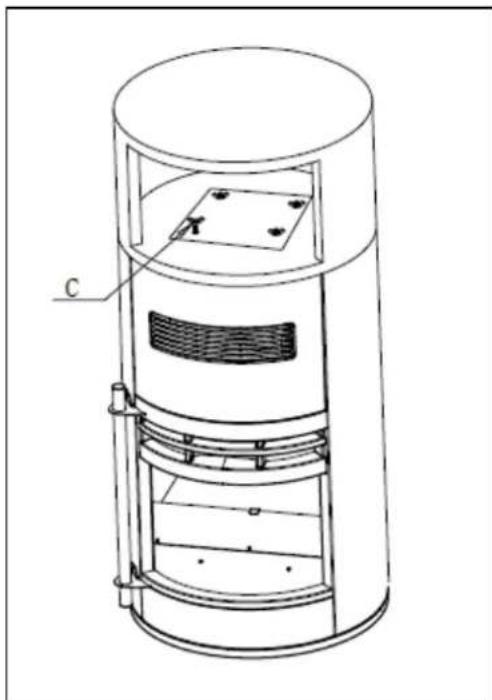

3. Place the metal plate with the 4 holes on the

inside of the wood compartment. Place the 4 screws through the holes of the metal plate. Screw the wing nuts firmly onto the screws and set the heater upright.

Completely unwind the electrical cable and insert the plug into a suitable 220-240V earthed socket. To prevent overloading, check that no other equipment is connected to the same group. Operating Check that the details on the data plate correspond to those of the electrical supply which you wish to use for the fireplace. Do not use the same connection for any other equipment. The control switches and the thermostat knob are located at the rear of the heater. By pressing the bottom switches you will make the following happen:

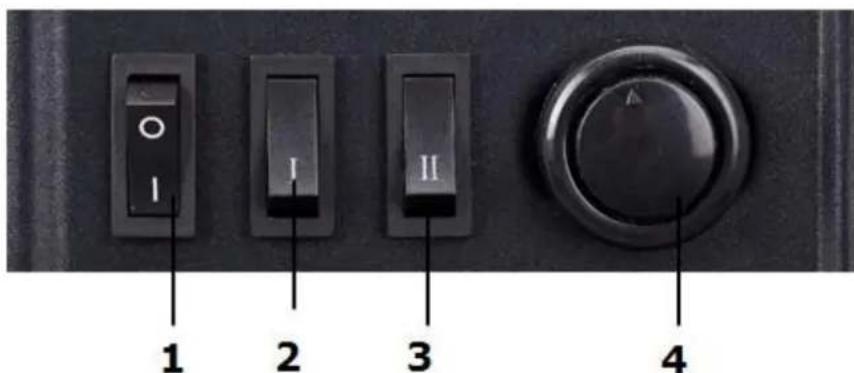

Switch 1: switch on the power supply to the heater and the flame effect (without heating) (O depressed is OFF - I depressed is ON). Switches 1+2: switch on 1000 Watt heating, with flame effect Switches 1+2+3: switch on 2000 Watt heating, with flame effect32

Check whether switch 1 is set to OFF (O depressed) Connect the plug to an earthed power outlet. Turn the thermostat dial to maximum (clockwise as far as possible). Press switch 1 and, depending on what you want, switches 2 and 3 to start using the heater. Once the desired temperature is reached, turn the thermostat dial back slowly until you hear a click. The temperature is now set. The heater will automatically switch on and off to maintain the set temperature. To set a higher or lower temperature, turn the thermostat dial either clockwise or anticlockwise. Switch off the heater by resetting all switches to the OFF position. Remove the plug from the power outlet; do this whenever the heater is not in use! Safeguards The Orsa Fireplace atmospheric fireplace is equipped with an overheating safeguard. The overheating safeguard switches the heater off if it overheats internally. This may occur if the heater cannot give off enough heat or if it cannot draw in enough fresh air. As mentioned above, this is generally caused by (partially) covering the heater, obstructing the air intake and/or outlet grills or installing the heater too close to a wall or something similar. If this happens, turn the fireplace off by switching the main switch to O and remove the plug from the socket. Leave the fireplace to cool down for at least 15 minutes and remove the cause of overheating. You can then switch the fireplace back on. If the device overheats again or you cannot ascertain the reason for this, take the fireplace to your service point to be checked/repaired. Important! For safety reasons the fire will not automatically restart after overheating. Check whether conditions are safe before switching it on! So never switch on the heater by means of a timer and never connect it to a power supply that regularly switches on and off. Cleaning and maintenance Always remove the plug from the socket and let the fireplace cool down before cleaning or touching. The Orsa Fireplace atmospheric fireplace does not need much maintenance. Always keep the in- and outlet openings clean and dust-free. Use a soft cloth or a soft brush to clean the outside of the metal case. Do not use abrasive cleaning fluids or special glass cleaners! The fireplace contains no parts which need to be replaced by the user. If the device malfunctions, immediately remove the plug from the socket and take to a service point. Do not carry out repairs yourself and always ask for original parts to be used. If the fireplace is to be stored after the winter period, clean it, pack it in original packaging if possible and store in a cool, dry and clean place. Make sure the fireplace is kept upright.33

Problems and solutions If the fireplace will not work check the electrical supply. Is the socket working properly? Has the fuse blown? The light is burning on the heater, but the heater does not provide heat? Check if the thermostat on the heater is higher than the current room temperature. If the fireplace stops working suddenly, it may mean that the overheating safeguard has been triggered (see under ‘Safeguards’). If the atmospheric lighting is not working or does not work properly, one or more of the bulbs may need to be replaced (see ‘Replacing a bulb’). In the event of other defects, immediately switch the fireplace off, remove the plug from the socket and consult a supplier or recognised electrician. Never carry out repairs yourself as this invalidates the guarantee and may be dangerous! Disposal At its end of life, discard the device according to the local laws and regulations, or deliver the device to your supplier. Attachments The CE declaration can be found at the end of this manual.34
