Product type	Stove fan
Brand	Eurom
Model	Kamin Vento 3
Category	Fireplace
Dimensions (L x W x H)	16 x 9.5 x 25.5 cm
Weight	0.54 kg
Blade diameter	16 cm
Operating temperature	65°C to 300°C
Starting temperature	65°C
Power source	Thermal (no batteries or mains)
Main function	Even distribution of heat from the stove in the room
Operating principle	Uses the heat from the stove to power the fan
Safety	Do not exceed 300°C; use a suitable thermometer; base lifts up in case of overheating
Material	Metal (steel/aluminum)
Handle	Yes, for transport
Cleaning	Slightly damp cloth; no abrasive or acid cleaners
Storage	Safe, dry place without extreme heat or cold (preferably original packaging)
Warranty	Does not cover damage due to overheating
Usage	Indoor only, on wood/coal stove
Certifications	CE, compliant with EMC (2014/30/EU) and RoHS (2011/65/EU)
Origin	Netherlands (Eurom headquarters)

Frequently Asked Questions - Kamin Vento 3 Eurom

How to install the Kamin Vento 3 fan?

Place the fan on a flat and horizontal surface of the stove, between 65 and 300°C. Make sure the cooling frame is not obstructed and the handle is raised. Do not place it in front of the stove or fireplace.

What is the maximum temperature it can withstand?

The maximum operating temperature is 300°C. Beyond that, the fan may be damaged. Use a suitable thermometer to monitor the temperature.

How to clean the fan?

Let the fan cool down, then clean it with a slightly damp cloth. Do not use abrasive or acid cleaners, and never immerse the device in liquid. Make sure it is completely dry before restarting.

What to do if the fan does not spin?

Check that the stove surface temperature is between 65°C and 300°C. If it is too low, the fan will not start. Also ensure that the blades are properly attached and that no obstacle hinders their rotation.

Can I use the fan on any type of stove?

The fan is designed for freestanding stoves (wood, coal) with a normal surface temperature between 65 and 300°C. It is not suitable for open fireplaces or gas stoves without a suitable flat surface.

Does the fan work without electricity?

Yes, it works without batteries or mains power. It uses the heat from the stove to generate its own electricity through a thermoelectric module.

How to transport the fan?

Always use the handle to move the appliance. Do not touch the base when it is hot. Avoid dropping or bumping the fan.

What to do if the base lifts?

The base is designed to lift slightly in case of excessive temperature to reduce contact with the surface and protect the fan. If this happens, move the fan to a cooler area of the stove.

Can I leave the fan unattended?

No, never leave a working appliance unattended. Supervise it especially in the presence of children or animals.

Where can I find spare parts?

Contact Eurom customer service ([e-mail]) or visit their website. Parts such as blades or the base may be available. Keep the original packaging for storage.

USER MANUAL Kamin Vento 3 Eurom

Black-and-white photo of a modern outdoor stove with a metallic chimney and a fan-shaped vent, showing visible flames inside the windows (no text or symbols)

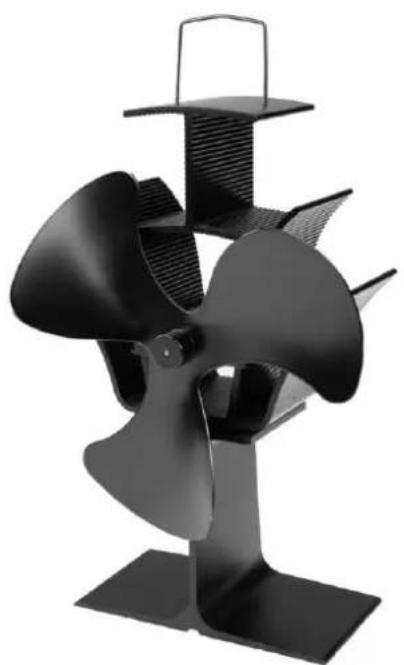

Black metal propeller with three blades and a handle, mounted on a stand (no text or symbols visible)

Kamin Vento 3

Art.nr. 365207

Kachelventilator / Ofenventilator / Stove fan / Ventilateur de poêle / Kaminfläkt / Ventilátor na kamna / Teplovzdušný ventilátor / Ventilator pentru cămin

Dank

Prohibition sign depicting a hand crushing grass under a diagonal line (no text or symbols)

of ere at .

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign depicting a hand breaking through a circular frame with grass at the base (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black base (no text or symbols)

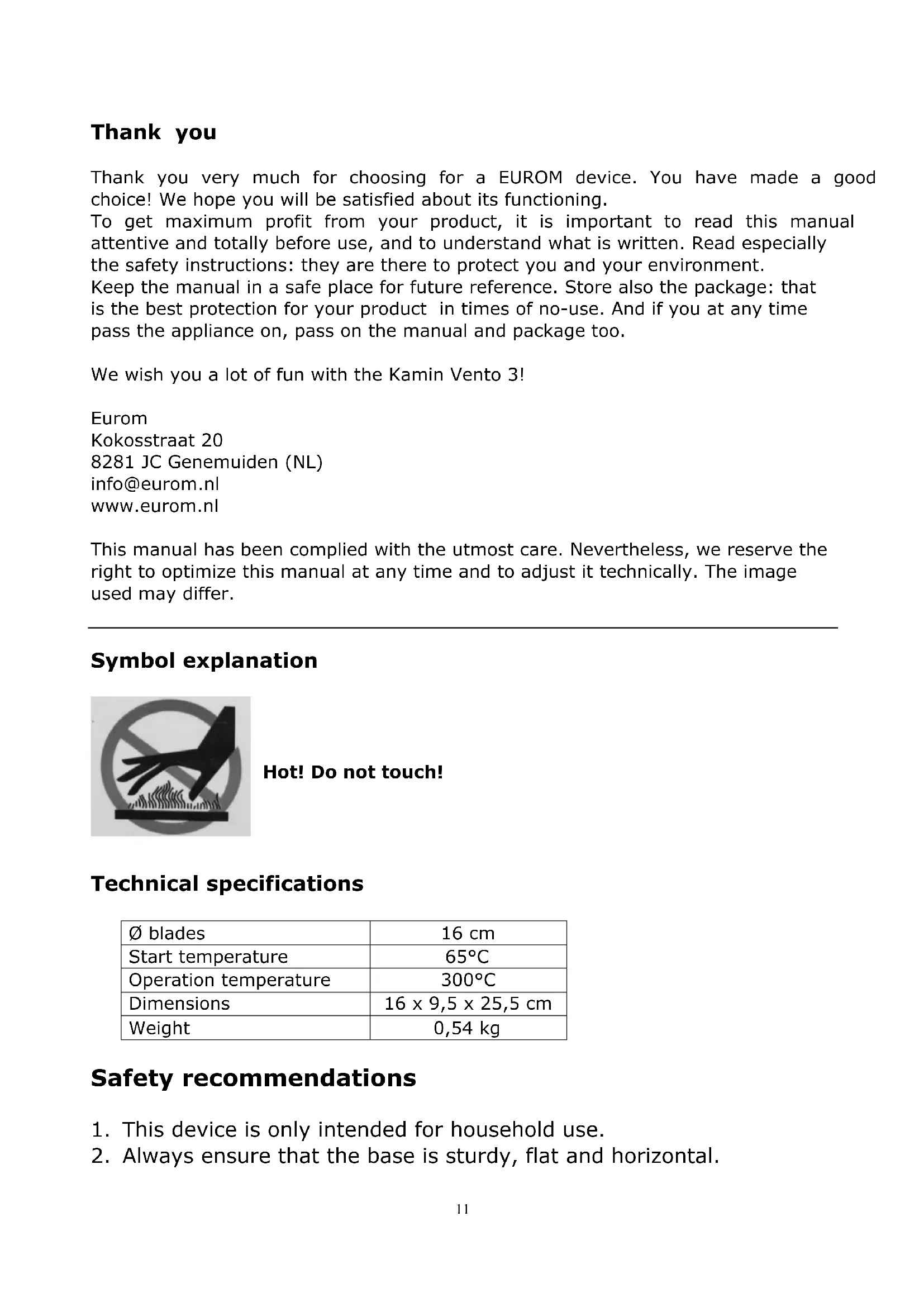

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Kamin Vento 3!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol explanation

Prohibition sign depicting a hand breaking through a barrier with smoke, enclosed in a circle (no text or symbols)

Hot! Do not touch!

Technical specifications

∅ blades	16 cm
Start temperature	65°C
Operation temperature	300°C
Dimensions	16 x 9,5 x 25,5 cm
Weight	0,54 kg

Safety recommendations

1. This device is only intended for household use.

2. Always ensure that the base is sturdy, flat and horizontal.

3. Check to ensure that the fan blades are secured correctly. If necessary, tighten them with an Allen key.

4. Never place the device on an unprotected surface when the feet are hot; it could damage the surface.

5. Check to ensure the handle is upright before placing the device on the heater.

6. The device is not intended to be used by persons (including children) with limited physical, sensual or intellectual capacities, or a lack of experience or knowledge unless under supervision and with the provision of suitable instructions regarding the correct use of the device by a person who is responsible for safety.

7. Keep the device out of the reach of children and monitor closely when it is used by children or when it is near children or pets.

8. This device is not a toy.

9. Never leave a working device unattended.

10. Never try to cool the device down quickly by submerging in water, or similar. This will damage the fan.

11. Do not allow the device to fall as this could damage the printed circuit board or slats.

12. Never put a finger, pen or any other object between the blades of the functioning ventilator!

13. Keep hair, clothing, jewellery and similar items out of the vicinity of the device.

14. Only move the device using the handle.

15. Prevent the device falling or being knocked and do not expose it to draughts, in order to prevent damage.

16. This device works between temperatures of 65^ and 300^ C. Temperatures above 300^ C could damage the device. Use a suitable thermometer to ensure that the temperature above the heater does not exceed 300^ C.

17. The device gets hot when in use and could potentially cause burns. Always use the handle on the device to move it and never touch the foot of the heater fan.

18. The guarantee does not cover damage caused by overheating.

This device should only be used for the purposes and in the manner set out in the instructions. All other uses could present a risk (fire, injury, damage, etc.) and will invalidate the guarantee and no liability will be taken by the supplier.

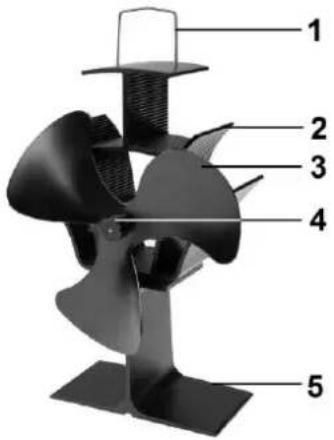

Description and working

1. Handle
2. Cool frame
3. Fan blade
4. Socket screw
5. Base

Intended use

1 2 3 4 5

The heater fan is intended to be used on top of a free-standing heater with a normal surface temperature of 65–300°C, to save fuel and ensure that heat is distributed effectively throughout the room. The heater fan is ideal for rooms with unusual layouts or environments that are particularly cold or damp. The heater fan does not work on mains electricity or batteries; it uses the heat from the heater to activate the fan. The unique design of the fan ensures it is stable and functions quietly. Place the heater fan on top of the heater so that cool air is drawn across the cool frame. Do not place the heater fan in front of the heater or directly in front of the chimney; the cool frame will become too hot. If the surface temperature exceeds 300°C, place the fan on a part of the heater that is not quite as hot to prevent damaging the device. Use a thermometer that is suitable for very high temperatures. The foot is designed so that it tilts slightly when the temperature gets too high; this ensure there is less contact with the surface. It also prevents the f being damaged by high temperatures. This works up to a point but it is still important to ensure the temperature limit is exceeded.

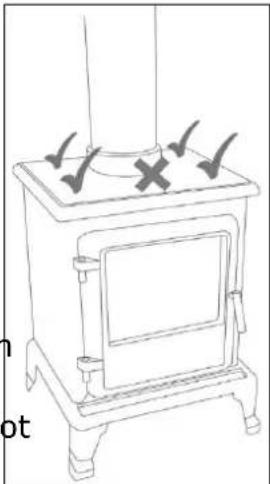

Line drawing of a portable stove with checkmarks and X marks on top (no text or symbols)

Cleaning and maintenance

• Let the fan cool down before cleaning it or carrying out maintenance.
• Clean the fan with a damp cloth. Do not use any abrasive or corrosive cleaning products that could damage the material. Do not submerge the fan in liquids!
• Let the fan dry out thoroughly before using it again.
• Store the fan at the end of the season in a safe, dry place that is not subject to extremes of temperature, preferably in its original packaging.

Removal

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE - declaration

It is hereby declared by Eurom bv., Kokosstraat 20, 8281 JC Genemuiden that the devices below:

Make: EUROM

Model: Kamin Vento 3

Description: Stove Fan

complies with the EMC guideline and meets the following standards:

EMC 2014/30/EU:

RoHS 2011/65/EU&(EU)2015/863

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:2015

Genemuiden, 06-06-2019

W.J. Bakker, alg. dir.

aluker.

Remerciements

Prohibition sign showing a hand breaking through a barrier with no text or symbols

CHAUD! Ne touche pas!

Informations techniques

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign depicting a hand breaking through a barrier with grass and smoke (no text or symbols)

HOT! Rör inte!

Tekniska uppgifter

∅ blad	16 cm
Starttemperatur	65°C
Driftstemperatur	300°C
Mått (cm)	16 x 9,5 x 25,5 cm
Vikt	0,54 kg

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign depicting a hand breaking through a barrier with smoke, enclosed in a circle (no text or symbols)

Line drawing of a portable stove with doors and a chimney, showing airflow direction arrows (no text or symbols)

Čištění a údržba

Simple line drawing of a trash bin with two crossed lines and a horizontal bar at the bottom (no text or symbols)

Prohibition sign showing a hand breaking through a circular background with no text or symbols

Line drawing of a portable stove with a chimney and control panel, marked with checkmarks and an 'X' symbol (no text or labels)

Čistenie a údržba

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign depicting a hand holding a tool over grass, enclosed in a circle (no text or symbols)

HOT! Nu atinge!

Detalii tehnice

∅ pale	16 cm
Temperatura de pornire	65°C
Temperatura de functionare	300°C
Dimensiuni	16 x 9,5 x 25,5 cm
Greutate	0,54 kg

Line drawing of a portable stove with three directional arrows indicating airflow or movement (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.
