Product type	Gas cartridge heater
Brand	Eurom
Model	Outsider 322569
Category	Outdoor heating
Dimensions (W x D x H)	45 x 35 x 17 cm
Weight	4.24 kg
Gas supply	Butane/propane gas cartridge, EN417 threaded connection (7/16")
Nominal power	2000 W
Gas consumption	140 g/h
Nozzle diameter	0.75 mm
Ignition	Integrated piezo
Safety devices	Flame monitoring, oxygen depletion safety, anti-tilt protection
Safety distance (front/top)	100 cm
Safety distance (sides/back)	50 cm
Use	Exclusively outdoors (category A)
Cleaning	Dry cloth; interior dusting with compressed air or vacuum cleaner
Maintenance	Regular check of the rubber seal
Repairability	No user-serviceable parts. Contact a qualified professional.

Frequently Asked Questions - Outsider 322569 Eurom

Where can I use the Outsider 322569 appliance?

This appliance must be used exclusively outdoors. It is not suitable for domestic use, nor in caravans, motorhomes, boats, or enclosed spaces. Indoor use is dangerous and prohibited due to the risk of carbon monoxide poisoning.

What type of gas cartridge should I use?

Use only gas cartridges compliant with standard EN-417 with a 7/16 inch threaded connection. Never use a damaged or refilled cartridge.

How to install a gas cartridge?

Always install the cartridge outdoors, away from any ignition source. Open the compartment door, check the rubber seal, screw the cartridge in by hand clockwise, then test for leaks with soapy water or a leak detector spray.

How to turn on the appliance?

Make sure the control is set to OFF. Turn it to the pilot/ignition position, press it fully for 30 seconds to purge the lines, then press until you hear a click. Keep pressed for an additional 10 seconds after the flame ignites. Then, turn to the desired heat level.

What to do if the appliance turns off automatically?

Possible causes: empty gas cartridge, low pressure (cold weather), or oxygen depletion. Replace if empty; if low pressure, use a full cartridge. If oxygen depletion is suspected, use the appliance only outdoors with good ventilation.

What safety distances must be observed?

Observe the following minimum distances from flammable materials: front and top: 100 cm, sides and back: 50 cm. Always place the appliance on a non-flammable surface.

How to clean the appliance?

Clean the appliance regularly with a dry cloth. Use compressed air or a vacuum cleaner to dust the interior without disassembling. Never immerse the appliance in water and do not use solvents.

What to do in case of a gas leak?

If you smell gas or hear a hissing sound, turn off the appliance immediately. Move it outdoors away from any ignition source, remove the gas cartridge, and do not use it until the leak is repaired by a professional.

Can the appliance be used in strong wind?

It is not recommended to use the appliance in strong wind as it may tip over or extinguish the flame. If necessary, take measures to stabilize the appliance and protect it from wind.

How to store the appliance off-season?

Always remove the gas cartridge. Store the appliance in a cool, dry, well-ventilated place, out of reach of children, ideally in its original packaging. Protect the cartridge from sunlight and temperatures above 50 °C.

USER MANUAL Outsider 322569 Eurom

Exterior view of a black industrial fan or electrical heater with ventilation grilles and handle (no visible text or symbols)

Gebruiksaanwijzing

Instruction manual

Gebrauchsanweisung

04. VEILIGHEIDSWAARSCHUWINGEN EN VOORSCHRIFTEN

ZEER BELANGRIJ KE VEILIGHEIDSWAARSCHUWINGEN

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN EN VOORSCHRIFTEN

Close-up of a mechanical device with internal components and ventilation grilles (no visible text or symbols)

1.

1a.

2. 5.

Exterior view of a black portable air conditioner unit with ventilation grilles and handle (no visible text or symbols)

1. 2a.

Close-up of a metallic mechanical component with concentric rings and a central hole (no visible text or symbols)

UIT

Laag verwarmingsniveau

Close-up of a metallic mechanical component with a central bore and textured surface (no visible text or symbols)

Close-up of a white EUROM switch knob with no visible text or symbols on the knob itself

Close-up of a hand inserting a gas can into a hooded air conditioner (no visible text or symbols)

Close-up of a white rotary knob with leaf symbols, next to a circular diagram with water droplets (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Outsider!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

02. EXPLANATION OF SYMBOLS

Use only outdoors.

Attention: accessible parts of the appliance could become very hot.

Before use, read the manual carefully and completely.

Keep this appliance out of reach of children.

03. TECHNICAL DATA

Appliance category/Gas type Direct pressure by the butane/propane mix
Gas container	Gas cartridge (not supplied), screw connection EN417 (7/16")
Nozzle diameter 0.75 mm
Consumption 140 g/h
Appliance category A (exclusively for outdoor use)
Nominal output 2000 Watt
Safety measures	Flame monitoring, protection against lack of oxygen, secured against falling over
Dimensions 45 x 35 x 17 cm
Weight 4,24 kg

04. SAFETY WARNINGS AND INSTRUCTIONS

VERY IMPORTANT SAFETY WARNINGS

1. Attention! Danger of suffocation and/or carbon monoxide poisoning. This appliance must be used outdoors exclusively. The appliance is not intended for indoor use. It is not meant for heating inhabitable areas in residential buildings. Never use the appliance in a living, work or sleeping area. The appliance may not be used in mobile homes, caravans, campers and boats. The use of this appliance in a closed space is DANGEROUS and FORBIDDEN!

2. Use only gas cartridges according to the EN-417 norm with a 7/16" screw thread connection. Never use a gas cartridge with another type of connection! Use only non-damaged, non-refilled gas cartridge with a mix of propane/butane. Carefully comply with all the safety warnings stipulated on the gas cartridge. Every time you install a gas cartridge, first check the connection between the gas cartridge and the appliance for gas leakage by using a leak detector spray or a soapy solution.

3. Always install the gas cartridges in the appliance outdoors, remote from any sources of ignition, such as fire, pilot flames, cigarettes, electrical appliances, etc.
4. Every time you install a gas cartridge in the appliance, check whether the rubber sealing ring between the appliance and the gas cartridge is present and in good condition (see photo 2a in the Description chapter).
5. Attention! Do not touch hot parts of the appliance. Let the appliance cool down sufficiently before you move it and/or store it.
6. Attention! Accessible parts of the appliance could become very hot. Keep this appliance out of reach of children.
7. Attention! This appliance must be used at a safe distance from flammable materials. Make sure that you comply with the following safe distances from all flammable materials:
8. Front side: 100 cm
9. Top side: 100 cm
10. Sides: 50 cm
11. Rear side: 50 cm
12. Always place the appliance on a non-flammable surface. Never use the appliance on a wooden surface or another type of flammable surface and regularly check whether the surface is not becoming overheated; this could be dangerous!
13. Store tent canvasses / plastic objects, etc. or make sure you have taken an extra large distance from these objects so that they can never stand within the aforementioned distances.
14. Do not use the appliance close to flammable or explosive materials such as paint, etc., highly flammable liquids and gases such as fuels, thinners, diesel, benzene, turpentine, alcohol or volatile and gaseous fuels. These can cause fire or an explosion.
15. Do not use the appliance in places that have flammable materials scattered about (paper, wood chips, crumbs, fibreglass waste, etc.). These materials can cause a fire. Do not use any spray cans near an operating appliance. The propellant can cause an explosion.
16. If you smell gas or hear a hissing sound, switch off the appliance immediately. Do not use the appliance and bring it immediately to a place with no sources of ignition, such as fire, pilot flame, cigarettes, electrical equipment, etc. and remove the gas cartridge from the appliance.

GENERAL SAFETY WARNINGS AND INSTRUCTIONS

1. Before using the appliance, read and understand all the instructions and warnings in this user manual and on the appliance.

2. Safety measures are essential when operating an appliance that uses gas. By using the

appliance carefully and observing the warnings, you reduce the risk of damage or serious injury to yourself and to others.

1. Be careful when using the appliance. Use your common sense and always be very mindful. Do not use the appliance when you are tired, when taking medication that makes you sleepy or if you have used alcohol or drugs.

2. The appliance is not suitable for use by people (including children) with physical, sensory or mental disabilities. It is also not suitable for use by people who lack knowledge and experience, regardless of whether there is supervision or instructions given (prior to use) by a person responsible for their safety.

3. Do not use the appliance for any purpose other than the purpose for which it is intended.

4. Improper use can lead to fire, explosion, severe injury, carbon monoxide poisoning or even death.

5. Incomplete combustion or lack of oxygen can cause carbon monoxide poisoning. Carbon monoxide is deadly. The initial symptoms of carbon monoxide poisoning resemble flu-like symptoms: headache, dizziness, burning eyes and nose, dry mouth and throat and nausea. If you detect these symptoms, then your appliance is probably not functioning properly or there is insufficient ventilation. Get fresh air immediately! Have the appliance checked and/or make sure there is sufficient ventilation. Some people are more susceptible than others to carbon monoxide poisoning. Pregnant women, people with heart or lung problems or anaemia, elderly persons and people under the influence of alcohol have an increased risk.

6. Do not use the appliance if you have observed damage or malfunction. Do not use an appliance with damaged or worn-out sealers. Do not use the gas cartridge if it shows damage or rust.

7. Do not overload the appliance.

8. Do not make any changes to the appliance.

9. Never try to repair the appliance by yourself, but turn to a qualified person for repairing it.

10. Always unscrew the gas cartridge from the appliance if you do not use the appliance for a long time or if you want to move it.

11. When not using the appliance, store it in a safe cool, dry and well-ventilated place and out of reach of children.

12. Never leave an operating appliance unsupervised.

13. Place and operate the appliance only on an even, horizontal and firm surface.

14. Do not smoke while changing the gas cartridges.

15. Never point the appliance towards the gas cartridge.

16. Check the appliance's gas-tightness only outdoors.

17. Never search for a leak using a flame. Use a leak detector spray or a soapy solution.

18. Use the appliance only for heating, never for drying. Do not hang clothing, towels, etc. in front or above the appliance. Danger of fire!

19. Never move, touch or carry out maintenance on an operating appliance. If you want to move the appliance, to check it, clean it or maintain it or to change the gas cartridge, first switch off the appliance and let it cool down completely.

20. Do not use the appliance in case of strong winds and take measures to prevent it from falling over.

21. Children, unauthorised persons and animals are not allowed near the appliance, unless they are strictly supervised. Be especially cautious when igniting the heater.

The user accepts all the risks related to using this appliance. Not following the warnings and instructions in this user manual can cause damage and lead to serious injuries. The manufacturer, importer and supplier cannot be held liable in case of negligence by the user.

05. DESCRIPTION

1. Compartment for gas cartridge
   1a. Door

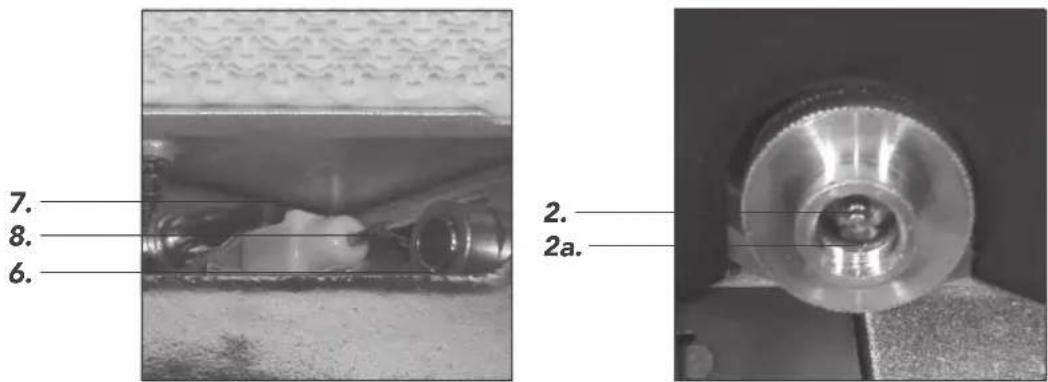

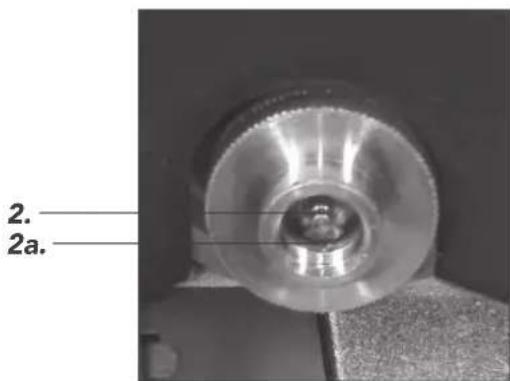

2. Gas valve on the appliance for connecting the gas cartridge
   2a. Rubber sealing ring

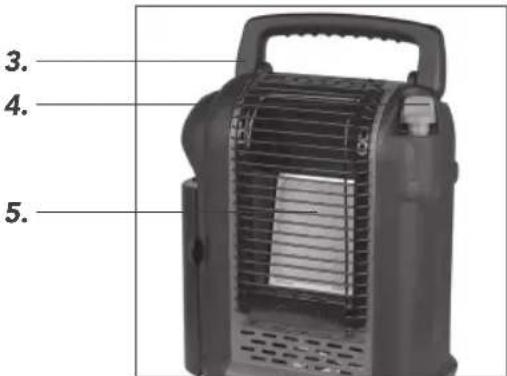

3. Handle
4. Operating knob
5. Ceramic heating plate

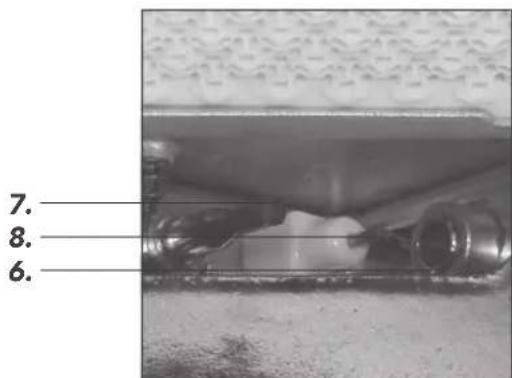

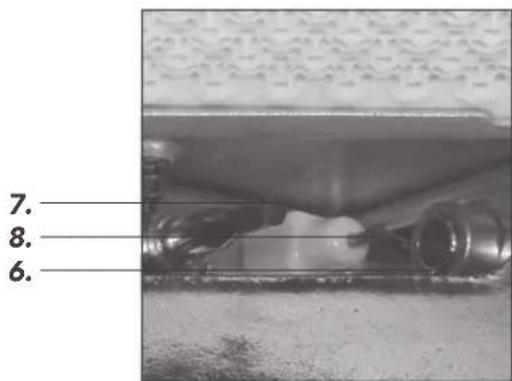

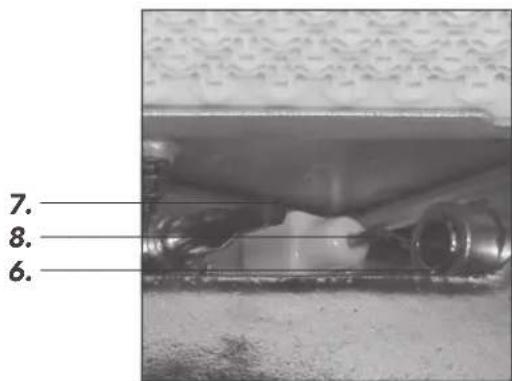

6. Ignition mechanism of piezo ignition
7. Sensor for monitoring the flame
8. Pilot flame, safeguarding lack of oxygen

9. Grid

11. 1a.
13. 5.

Close-up of a mechanical device with internal components and ventilation grilles (no visible text or symbols)

Black industrial air purifier device with mesh chamber and handle (no visible text or symbols)

OFF

Low heating level

Pilot fl ame, piezo ignition

High heating level

06. PUTTING INTO OPERATION / MOUNTING THE GAS CARTRIDGE

• Remove all the packaging materials and keep these out of children's reach. After removing the packaging of the appliance, check whether there are no damages or signs that indicate a fault/defect/malfunction. In case of doubt, do not use the appliance and turn to your supplier for checking/replacing.
• Place the appliance on an even, horizontal and firm surface, taking into account all the safety precautions stipulated in this user manual and on the appliance.

Close-up of a metallic cylindrical mechanical component with a central bore and textured surface (no visible text or symbols)

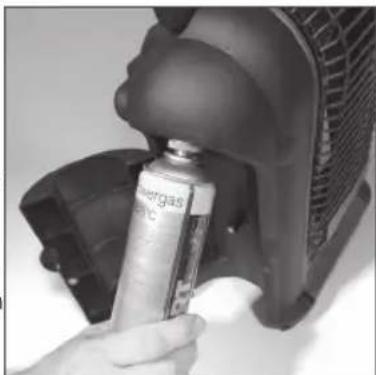

Connecting the gas cartridge (always outdoors and remote from any sources of ignition)

• Let the appliance cool down for approx. 15 minutes.
• Open the door of the compartment that holds the gas cartridge.
• Before connecting the gas cartridge, move the gas valve upwards in order the easily mount the gas cartridge.

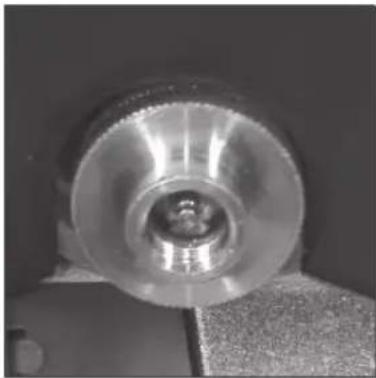

• Check whether the rubber sealing ring in the gas valve is present and is in good condition.
  • Make sure that the operating knob is positioned at OFF.
• Check that the screw thread of the gas cartridge fits and is undamaged: EN417-7/16"

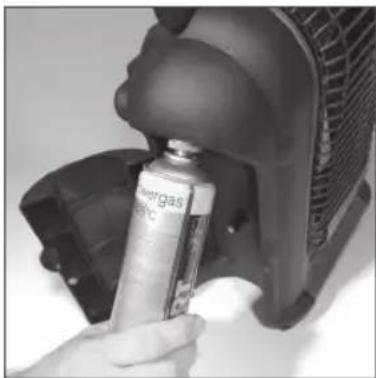

• Hold the screw thread of the gas cartridge parallel to the screw thread of the appliance's gas valve and manually tighten the gas cartridge clockwise into the gas valve so that the connection is sealed. Do not use any tools for this connection.
• Check the connection between the gas cartridge and the gas valve on the appliance for gas-tightness. For this task, use a soapy solution or leak detector spray on the connection. If bubbles appear, then the connection is not completely sealed and there is a gas leak.

Close-up of a white EUROM switch knob with no visible text or symbols on the knob itself

Close-up of a hand holding a spray bottle next to a hooded air conditioner (no visible text or symbols)

If gas escapes (gas odour or bubbles during the leak test), take the appliance immediately to a place with good air circulation (outside), where there are no fl ammable sources and where the leak can be localised and solved. Check the tightness of the appliance outdoors. Never search for a leak using a flame. Use a leak detector spray or a soapy solution. Never use an appliance with a gas leak. Remove the gas cartridge from the appliance and turn to a certified technician.

- When there is no more gas leak(s), then the appliance is ready for used.

Replacing the gas cartridge (always outdoors and remote from any sources of ignition)

• Press the operation knob lightly and turn it clockwise to the OFF position.
• Let the appliance cool down for approx. 15 minutes.
• Open the door and unscrew the gas cartridge counter clockwise.
• Connect the new gas cartridge to the appliance as described above (including a leak test!).

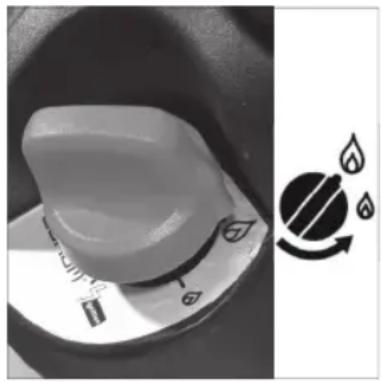

To have the appliance provide heat and to set the height of the flame, do the following: Place the appliance outdoors on an even, horizontal and firm surface, away from any flammable materials. Comply with all the aforementioned safety regulations and warnings that are stipulated.

1. Make sure that the operating knob is in the OFF position. If not, press the operating knob

slightly and turn the knob counter clockwise to the position (pilot fl ame/piezo ignition). In this position, push the operating knob completely. Press and hold the knob and wait maximum 30 seconds for the gas pipes to aerate.

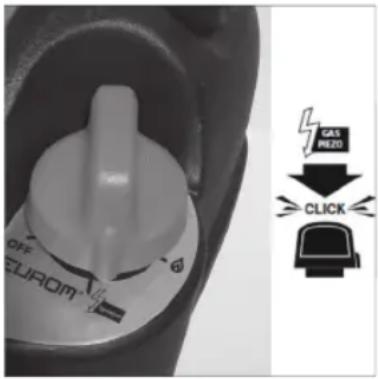

1. Release the operating knob and press it once again until you hear a click. If necessary, press more than once until you determine that the pilot fl ame is burning. Now keep the knob pressed for another 10 seconds. Subsequently, release the operating knob and check whether the pilot fl ame continues to burn. If the pilot fl ame is out, the start again at point 3.
2. Press the knob slightly and turn the operating knob counter clockwise to the highest level.

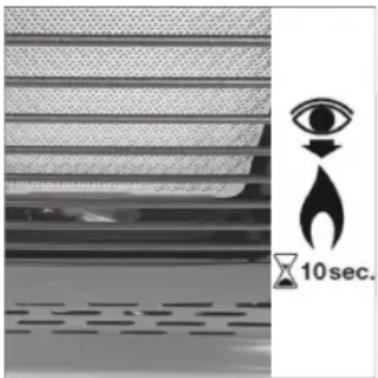

3. The appliance is now on and after a short time, you will see that the ceramic heating plate turns orange.
4. After approx. 5 minutes, the appliance provides the full heating output. Now if you wish, you can press the operating knob slightly and turn it clockwise to a lower heating level.
5. To switch off the appliance, press the operating knob slightly and turn it clockwise to the OFF position.

Attention: Under unfavourable conditions (for example, very low outside temperature, a frozen gas cartridge) the appliance might switch off automatically before the gas cartridge is completely empty. This is normal and can be explained by the physical characteristics and the natural pressure of liquid gas. In that case, install a new gas cartridge as described above. You can use the excess gas from the first cartridge as soon as the temperature is higher.

Close-up of a white rotary knob with leaf symbols, next to a circular diagram with water droplets (no text or labels)

08. OPERATING METHODS FOR THE SAFETY PROVISIONS

Flame monitoring & protection against lack of oxygen:

The gas supply is automatically disrupted under the following circumstances:

• If the flame dims during heating, for example because the gas cartridge is empty or nearly empty or the flame is blown out.
• If the oxygen content in the environment becomes too low.

Look for the cause of the automatic switch-off and solve the problem before you try to switch on the appliance once again.

Falling-over safeguard:

The gas supply is disrupted if the appliance is not in an upright position, for example if it falls over.

09. MAINTENANCE, CLEANING AND STORAGE

Maintenance:

• The appliance requires almost no maintenance.
• Regularly check the rubber sealing ring.
• Never make changes to the appliance and/or to the gas cartridge.

Cleaning:

• Clean the appliance regularly with a dry cloth. Do not use any aggressive scouring agents, solvents or benzene. Do not soak the appliance in water or any other liquids and do not spray it. The appliance and certainly the openings must stay dust-free.
• Remove dust from the inside of the appliance using moderate compressed air and/or a vacuum cleaner, but without dissembling the appliance.

Storage:

• If you are not using the appliance, remove the cartridge and store the appliance in a safe, cool, dry and well-ventilated place out of reach of children; if possible in its original packaging.
• Protect the gas cartridge against sunrays and never expose it to temperatures above 50°C.
• If you don't use or move the appliance for a long period, always unscrew the gas cartridge.
• The national regulations for operating, transporting and storing must be observed.

10. MALFUNCTION SOLUTIONS

Probleem Oorzaak Oplossing
The appliance does not ignite.	The operating knob is not set correctly.The gas has not yet reached the outlet of the pipe.Gas cartridge is empty.	Druk de bedieningsknop licht in en draai naar de positie "waakvlam / piëzo-ontsteking".Druk de bedieningsknop volledig in en houd de bedieningsknop maximaal 30 seconden ingedrukt om de gasleidingen te ontluchten.Ontsteek nu opnieuw.Vervang de gascartridge.
The appliance switches off by itself during operation.	Gas cartridge is emptyPressure in the gas cartridge is too low (e.g., due to low temperatures).Oxygen content is too low.	Replace the gas cartridge.Use a new full gas cartridge. The first gas cartridge can be reused once the temperatures become higher.The appliance is suitable only for outdoor use. If it is mistakenly used in a closed room, then open all the windows and evacuate the room immediately. Danger of suffocation!

11. REMOVAL

Symbol of a trash bin crossed with two crossed lines, no text or labels present

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

12. CE DECLARATION

Hereby, the undersigned Eurom, Kokosstraat 20, 8281 JC Genemuiden - NL declares that the Gas Cartridge Heater known by the brand: EUROM, type Outsider complies with the requirements of the following norm(s):

Gas directive EU/2016/426

EN521:2019+AC

Close-up of a mechanical device with internal components and ventilation grilles (no visible text or symbols)

05. BESCHREIBUNG

1. Gaskartuschenfach

Black portable air conditioner unit with heat sink and ventilation grilles (no visible text or symbols)

2.

2a.

Close-up of a mechanical component with a central circular feature and textured surface (no visible text or symbols)

AUS

Close-up of a metallic mechanical component with a central bore and textured surface (no visible text or symbols)

Close-up of a white EUROM switch knob with no visible text or symbols on the knob itself

Close-up of a hand holding a gas canister inside a hooded air fan (no visible text or symbols)

Close-up of a white rotary knob with leaf symbols, next to a circular diagram with water droplets and arrows (no readable text)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

02. EXPLICATION DES SYMBOLES

Close-up of a mechanical device with internal components and ventilation grilles (no visible text or symbols)

2. 5.

Exterior view of a black portable electric heater with ventilation grilles (no text or symbols visible)

1. 2a.

Close-up of a mechanical component with a central circular feature and textured surface (no visible text or symbols)

ARRÊT

Niveau de chauffage bas

Close-up of a metallic mechanical component with a central bore and textured surface (no visible text or symbols)

Close-up of a white EUROM switch knob with no visible text or symbols on the knob itself

Close-up of a hand inserting a spray can into a fan-shaped device (no visible text or symbols)

Close-up of a white rotary knob with leaf symbols and a circular icon, next to a directional arrow symbol (no readable text or labels)

Protection anti-basculement:

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Directive gaz UE/2016/426

EN521:2019+AC

Genemuiden, le 18-09-2019

02. SYMBOLFÖRKLARING

Black portable electric vehicle with ventilation grilles and handle (no visible text or symbols)

2.

2a.

AV

Close-up of a metallic mechanical component with a central bore and flange (no visible text or symbols)

Close-up of a white EUROM switch knob with no visible text or symbols on the knob itself

Close-up of a hand holding a spray bottle labeled 'Charges' inside a hooded device (no visible text or symbols on the device itself)

Close-up of a white rotary knob with leaf symbols, next to a circular diagram with water droplets and arrows (no readable text)

08. SÄKERHETSANORDNINGARNAS FUNKTION

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Close-up of a metallic mechanical component with a central hole and textured surface (no visible text or symbols)

Close-up of a white EUADM rotary knob with a black handle and control buttons (no readable text beyond branding)

Close-up of a hand inserting a spray can into a hooded air conditioner (no visible text or symbols)

Close-up of a white rotary knob with leaf symbols, next to a circular icon with water droplets (no text or labels)

08. ANVENDELSE SIKKERHEDSANORDNINGER

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

02. VYSVĚTLENÍ SYMBOLŮ

Close-up of a metallic mechanical component with a central bore and textured surface (no visible text or symbols)

Close-up of a white EUROM switch knob with no visible text or symbols on the knob itself

Close-up of a hand holding a spray can inside a hooded air conditioner (no visible text or symbols)

Close-up of a white rotary knob with leaf symbols, next to a circular diagram with water droplets and arrows (no readable text)

08. ZPŮSOB FUNGOVÁNÍ BEZPEČNOSTNÍCH PRVKŮ

Symbol of a trash bin crossed with two crossed lines, no text or labels present

02. VYSVETLENIE SYMBOLOV

Close-up of a metallic mechanical component with a central bore and textured surface (no visible text or symbols)

Close-up of a white EUADM rotary knob with 'OFF' and 'EUROM' branding (no additional text or symbols)

Close-up of a hand holding a spray can with label 'Energas' and 'PAC', next to an open hood (no visible text or symbols on the object itself)

Close-up of a white rotary knob with leaf symbols, next to a circular diagram with water droplets and arrows (no readable text)

Symbol of a trash bin crossed with two crossed lines, no text or labels present

02. LEGENDĂ SIMBOLURI

Close-up of a mechanical device with internal components and ventilation grilles (no visible text or symbols)

1.

1a.

3.

4.

5.

2.

2a.

Close-up of a metallic mechanical component with concentric rings and central bore (no visible text or symbols)

OPRIT

Close-up of a metallic mechanical component with a central bore and textured surface (no visible text or symbols)

Close-up of a white EUROM switch knob with no visible text or symbols on the knob itself

Close-up of a hand holding a spray can inside a hooded air conditioner (no visible text or symbols)

Close-up of a white rotary knob with leaf symbols, next to a circular diagram with water droplets and arrows (no readable text)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present
