USER MANUAL SI120718 Emerio

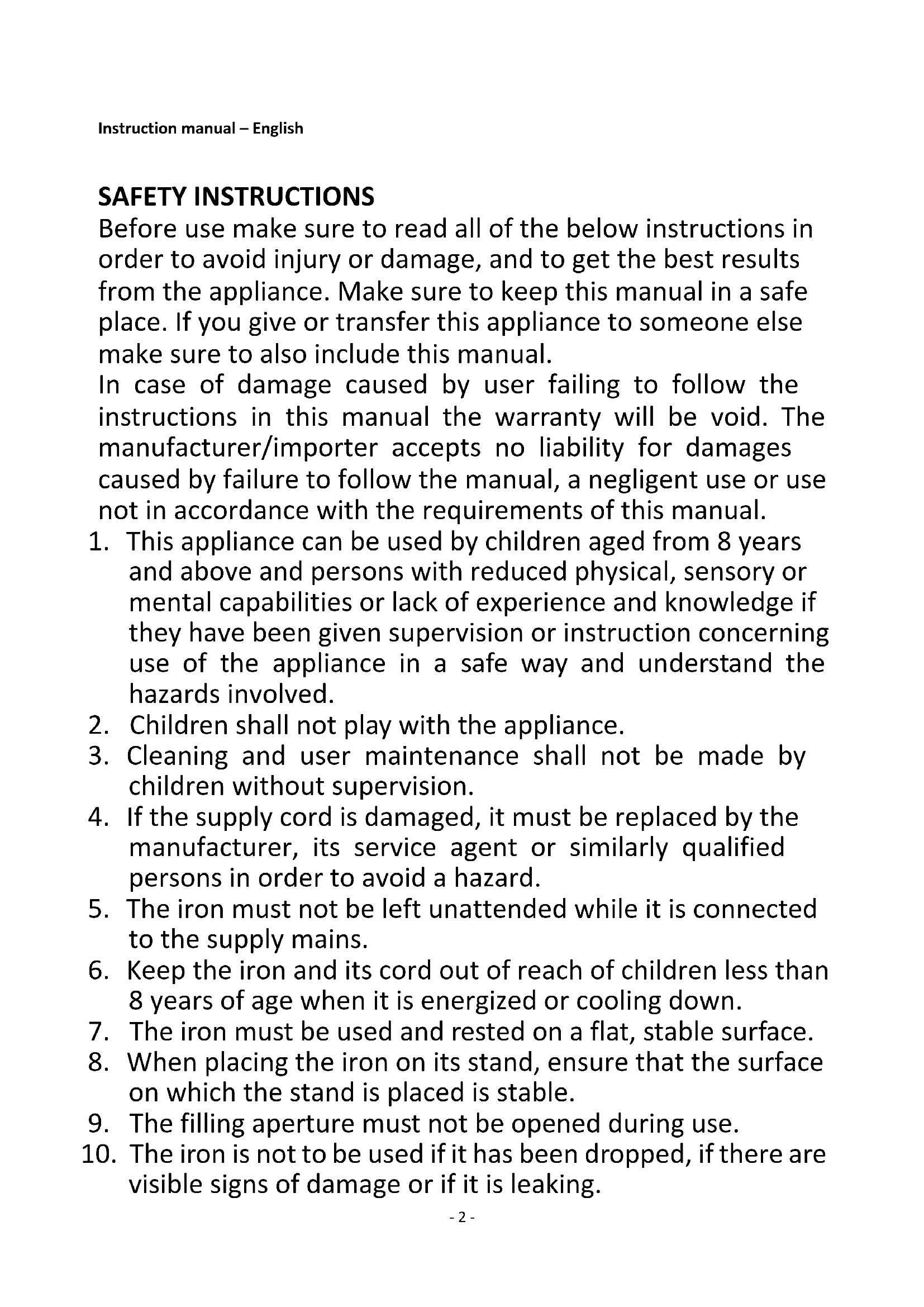

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. The iron must not be left unattended while it is connected

to the supply mains.

6. Keep the iron and its cord out of reach of children less than

8 years of age when it is energized or cooling down.

7. The iron must be used and rested on a flat, stable surface.

8. When placing the iron on its stand, ensure that the surface

on which the stand is placed is stable.

9. The filling aperture must not be opened during use.

10. The iron is not to be used if it has been dropped, if there are

visible signs of damage or if it is leaking.- 3 -

11. The plug must be removed from the socket-outlet before

the water reservoir is filled with water.

12. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

13. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

14. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

15. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

16. Do not immerse the appliance or the mains plug in water or

other liquids. There is danger to life due to electric shock!

17. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

18. Do not touch the appliance if it falls into water. Remove the

plug from its socket, turn off the appliance and send it to an authorized service center for repair.

19. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

20. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

21. Never leave the appliance unattended during use.

22. This appliance is not designed for commercial use.

23. Do not use the appliance for other than intended use.

24. Do not wind the cord around the appliance and do not bend

25. The iron should always be off before plugging or unplugging

from the wall socket.

26. Never use the appliance if damaged in anyway.

27. When leaving, even when only for a short while, always

unplug the iron.- 4 -

28. Burns can occur from touching hot metal parts, hot water

29. Use caution when you turn a steam iron upside down-there

may be hot water in the reservoir.

30. Always place the iron standing on a firm flat surface when

interrupting ironing and after use.

31. Keep the soleplate smooth. Avoid hard contact with a metal

32. The cord should not be allowed to touch the soleplate when

33. Prevent water overflow. Do not fill over max level.

34. When using the iron for the first time use it on an old piece

of fabric to check if the soleplate and water from the water tank are completely clean.

35. Remove the plug from the socket before filling or emptying

36. The iron shall be used on a stable ironing board.

37. Regarding the instructions for cleaning and maintenance,

please refer to the below paragraphs.- 5 - SI-120718.2 EN

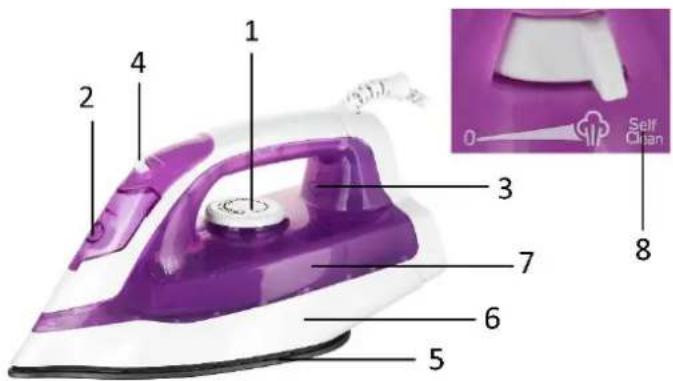

1. Temperature regulator

8. Self-clean position

BEFORE INITIAL USAGE

Remove all packaging material. Make sure the appliance is unplugged and the temperature regulator is set at position “OFF”. Fill water into the water inlet opening up to the max level marked on the water tank. For this, use the measuring cup. Do not use chemically de-calcified water. Insert the power plug in to a designated outlet and set the temperature regulator on the highest temperature setting. After the indicator light goes off, set the steam control knob to position “ ” for steam ironing and iron on an old piece of cloth to remove possible residue. With first use, these can be slight odour or smoke. But this is harmless and only of short duration. Make sure there is adequate ventilation. OPERATION Before selecting the temperature, read the instruction manual for the iron or the care advice on the tag of the clothing. Note: If there is no care advice on the piece of clothing, then you should begin ironing with the lowest temperature. With lower temperatures, there will be less steam. Caution: Synthetic fabrics can melt. OFF

Wool, silk …MAX Linen, cotton, highest temperature

1. Connect the iron to a suitable mains supply outlet.

2. Ensure that the steam control knob is in position “0” for dry ironing.

3. Select the setting on the temperature regulator.

4. When the indicator light goes off, the required temperature is reached. The iron is ready for use.

5. To turn off the iron, turn the temperature regulator counter-clockwise to position “OFF”, set the iron upright,

and pull out the power plug.- 6 - STEAM IRONING

1. Fill the water tank, as described before initial usage.

2. Steam ironing can be used in the temperature ranges ●●, ●●● MAX. For the reliable functioning of the steam

ironing, the water tank must be at least ¼ filled.

3. Select the setting on the temperature regulator.

4. When the indicator light goes off, the required temperature is reached. The iron is ready for use.

5. Set the steam control knob to position “ ” for steam ironing; steam starts coming out from the holes in

the soleplate while ironing.

6. The iron surface must always be kept in an upright position.

7. To turn off, turn the temperature regulator counter-clockwise to “OFF” and pull out the power plug.

8. Turn the appliance upside down and carefully pour the remaining water out of the water tank. Carefully

shake the appliance. Notice: With conventional steam ironing, water may leak from the soleplate if a too low temperature has been selected. If this happens, turn the temperature regulator to the advised position. Steam will recommence as soon as the appropriate temperature has been reached.

AUTOMATIC ELECTRICITY INTERRUPTION FOR SECURITY

In case the installed thermostat gets out of order, the appliance will be automatically cut off to avoid the overheating. If this happens, send the appliance for repair. SELF-CLEAN FUNCTION According to frequency of use it is recommended that you should monthly clean the steam iron - this will increase the steam iron’s life span. If the water is very hard in your area, use the self-clean function every two weeks.

1. Make sure the appliance is unplugged.

2. Fill the water tank to maximum level.

3. Select the maximum ironing temperature.

4. Put the plug in the wall socket.

5. Unplug the iron when the temperature indicator light goes off.

6. Hold the iron over the sink, turn and hold the steam control knob to position “self-clean”, and gently shake

the iron to and fro. (Steam and boiling water will come out of the soleplate. Impurities and flakes (if any) will be flushed out).

7. Repeat the self-clean process if the iron still contains a lot of impurities.

CLEANING ⚫ Before cleaning the iron ensure it is disconnected from the power supply and has completely cooled down. ⚫ Deposits on the soleplate may be removed with a rough cloth soaked in a vinegar water solution. ⚫ The casting may be wiped with a damp cloth and then polished with a dry one. ⚫ Do not use abrasives on the soleplate. ⚫ Keep the soleplate smooth. Avoid hard contact with metal objects. TIPS Which type of water to use? Your appliance has been designed to function with untreated tap water. If your water is very hard, it’s possible to mix untreated tap water with storebought distilled or demineralised water in the following proportion: 50% tap water / 50% distilled water. Which type of water not to use? The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining, or leakage: water from clothes dryers, scented or softened water, water from air conditioners.- 7 - If problems occur? Water drips from the holes in the soleplate. The chosen temperature is too low and does not allow for the formation of steam. Position the thermostat to the maximum temperature setting. You are using steam while the iron is not hot enough. Wait until the control light goes out. You have stored the iron horizontal, without emptying it and without switching off the steam function. Empty the iron after each use, and store it vertical. Brown streaks come through the holes in the soleplate and stain the linen. You are using chemical descaling agents. Do not add any descaling agents to the water. Fabric fibers have accumulated in the holes of the soleplate and are burning. Let the iron cool down and clean the soleplate with a sponge. Vacuum the holes of the soleplate from time to time. Your linen has not been rinsed sufficiently or you have ironed a new garment before washing it. Make sure that your laundry is rinsed sufficiently so as to remove any deposits of soap or chemical products on new clothes. The soleplate is dirty or brown and can stain the linen. You are ironing with a too high temperature. Let the iron cool down and clean the soleplate with a sponge. Select the appropriate program. The soleplate is scratched. You have placed your iron flat on a metal rest-plate or ironed over a zip. Always set your iron on its heel. Do not iron over zips.

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

1. Regulator temperature
