Product type	Blender
Brand	Electrolux
Model	Explore 6 E6TB18ST
Main jar capacity	1.75 L
Take-away bottle capacity	0.6 L
Main jar material	Borosilicate glass
Automatic programs	Smoothie, Hot soup, Crushed ice
Pulse function	Yes
Variable speed	Yes (speed selector)
Power supply voltage	220-240 V, 50/60 Hz
Power	Not specified (estimated 800-1000 W)
Cleaning of parts	Jar, lid, blade, bottle: dishwasher; base: damp cloth
Safety	Automatic stop, motor protection, very sharp blades
Included accessories	2-in-1 take-away bottle, measuring lid, blade assembly
Maximum liquid temperature (main jar)	100 °C (boiling water)
Maximum liquid temperature (bottle)	60 °C
Recommended use	Domestic, smoothies, soups, crushed ice

Frequently Asked Questions - Explore 6 E6TB18ST ELECTROLUX

How to use the Hot soup program?

Place the ingredients in the main jar (max capacity 1.4 L), lock the lid, then select the Hot soup program. The blender runs at reduced speed for 60 seconds. Note: the program does not heat, it blends already hot liquids.

Can I blend hot liquids in the take-away bottle?

No, the take-away bottle supports a maximum temperature of 60 °C. For hot liquids, use the main borosilicate glass jar (up to 100 °C).

How to clean the blades safely?

Unplug the appliance. The blades are very sharp. Disassemble the blade assembly from the jar and rinse it. You can place it in the dishwasher or wash it by hand with caution. Do not fully immerse the blade assembly in water.

What to do if the blender does not start?

Check that the appliance is plugged in and the jar is correctly locked onto the base. Make sure the knob is turned to ON. If the problem persists, wait 20 minutes (motor protection) or contact after-sales service.

What is the maximum capacity for the Smoothie program?

For the main jar: 1.75 L. For the take-away bottle: 0.6 L. Do not exceed the maximum fill volume indicated on the container.

Can I blend ice cubes?

Yes, use the Crushed ice program or the pulse function. For the main jar: 8 to 10 cubes. For the bottle: 5 to 7 cubes.

How to use the 2-in-1 take-away bottle?

Place ingredients in the bottle, attach the blade assembly (center blade + blade holder) by turning clockwise, then turn the bottle over and lock it onto the base. Select a program. After blending, quickly remove the blade assembly and screw on the lid to take away.

The blender stops during use, what to do?

This may be due to overload. Unplug the appliance, let it cool down for at least 20 minutes, reduce the amount of food and restart. The motor is protected against overheating.

Can I blend meat or dough?

No, the blender is designed for beverages (fruits, vegetables, ice). Never blend meat, dough, mashed potatoes or other solid and dry foods (except ice cubes).

How to clean the blender base?

Unplug the appliance. Clean the base with a damp cloth. Never immerse it in water and do not use abrasive products. Other parts (jar, lid, blade, bottle) can go in the dishwasher.

USER MANUAL Explore 6 E6TB18ST ELECTROLUX

Explore 6 High Power Blender

User Manual

E6TB1-6ST

E6TB1-8ST

HR KORISNICKI PRIRUCNIK

CZ NAVOD KPOUZITI

DK BRUGSANVISNING

EN INSTRUCTION BOOK

EE KASUTUSJUHEND

FI KAYTTOOHJE

FR NOTICE D'UTILISATION

2 Main blender jar	Smoothie	MAX 1.75L	Max Speed 90sec
	Hot Soup	MAX 1.4L	Low Speed 60sec
	Ice crush	MAX 8-10pcs	10x pulse
	Carrot Soup	700gr 1050gr	Max Speed 60sec
Takeaway bottle	Smoothie	MAX 0.6L	Max Speed 90sec
	Warm liquid (max 60°C)	MAX 0.4L	Max Speed 60sec
	Ice crush	MAX 5-7pcs	10x pulse
	Carrot Soup	240gr 360gr	Max Speed 60sec

CLEANING AND CARE

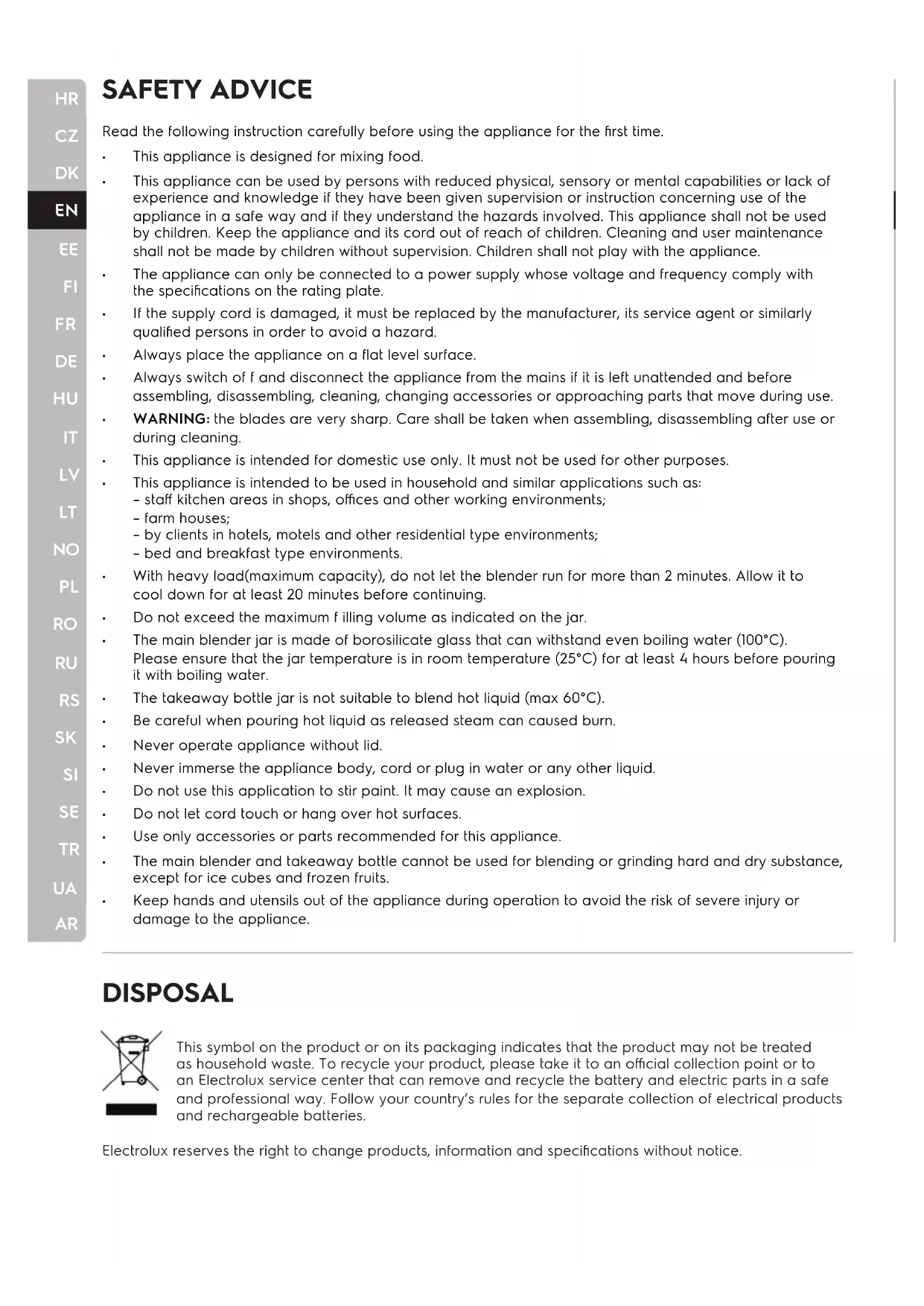

SAVJETI ZA SIGURNU UPOTREBU

Before using the appliance for the first time, carefully read these instructions.

Read the following instruction carefully before using the appliance for the first time.

This appliance is designed for mixing food. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Cleaning and user maintenance shall not be made by children without supervision. Children shall not play with the appliance. The appliance can only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Always place the appliance on a flat level surface. Always switch off and disconnect the appliance from the mains if it is left unattended and before assembling, disassembling, cleaning, changing accessories or approaching parts that move during use. WARNING: the blades are very sharp. Care shall be taken when assembling, disassembling after use or during cleaning. This appliance is intended for domestic use only. It must not be used for other purposes. This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments; -farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• With heavy load (maximum capacity), do not let the blender run for more than 2 minutes. Allow it to cool down for at least 20 minutes before continuing.
• Do not exceed the maximum filling volume as indicated on the jar. The main blender jar is made of borosilicate glass that can withstand even boiling water (100°C). Please ensure that the jar temperature is at room temperature (25°C) for at least 4 hours before pouring it with boiling water. The takeaway bottle jar is not suitable to blend hot liquid (max 60°C).
• Be careful when pouring hot liquid as released steam can cause burns.
• Never operate appliance without lid.
• Never immerse the appliance body, cord or plug in water or any other liquid. Do not use this appliance to stir paint. It may cause an explosion. Do not let cord touch or hang over hot surfaces. Use only accessories or parts recommended for this appliance. The main blender and takeaway bottle cannot be used for blending or grinding hard and dry substance, except for ice cubes and frozen fruits.
• Keep hands and utensils out of the appliance during operation to avoid the risk of severe injury or damage to the appliance.

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

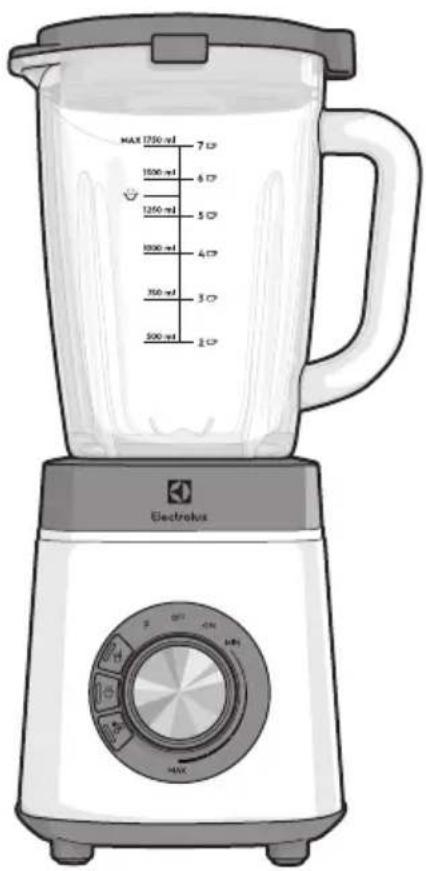

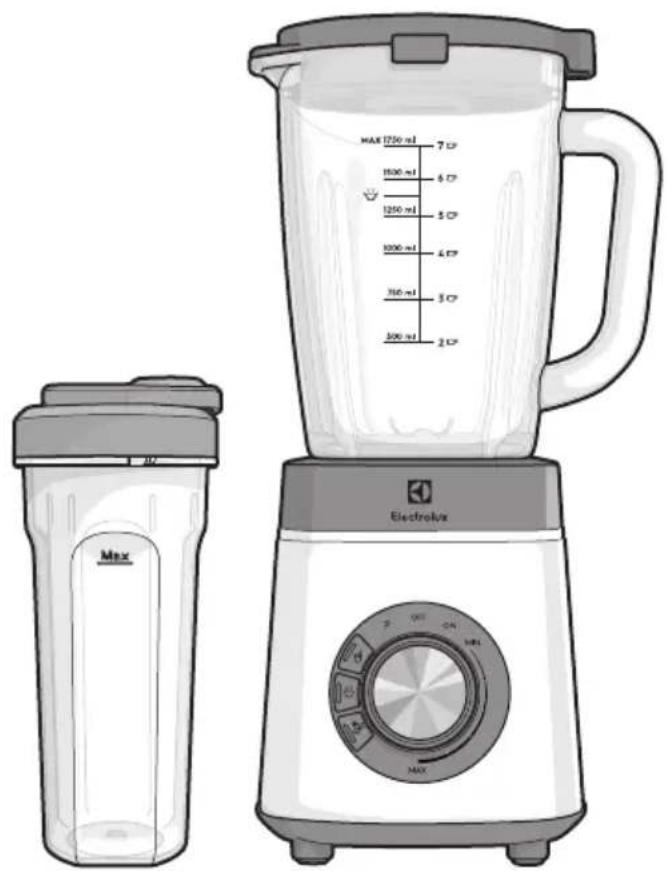

COMPONENT (picture page '2')

1 Measuring lid

8 Ice crush program

2 Lid

9 Speed selector

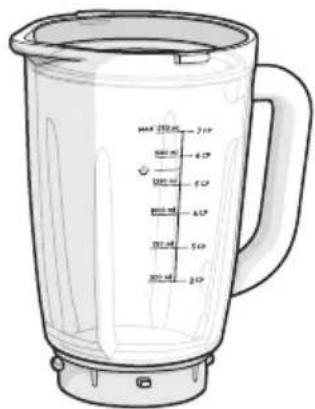

3 Borosilicate glass jar

10 Non-slip feet

4 Blade assembly

11 Takeaway bottle*

5 Blender base

12 Takeaway bottle central blade*

6 Smoothie program

13 Takeaway bottle blade holder*

7 Hot soup program

14 Takeaway bottle lid*

*certain models only

HOW TO USE (picture page 2-4)

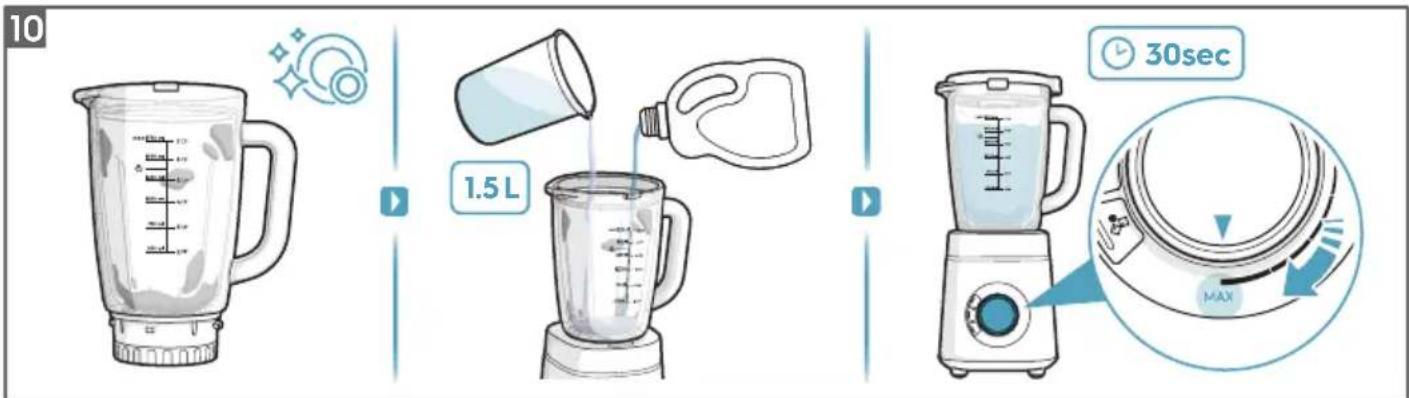

1 Cleaning - Make sure that you start with a clean jar before use. 2 Maximum capacity and program/speed setting.

Main blender jar

Program/Recipe Maximum Capacity Recommended Setting/program
Smoothie	1.75L Smoothie program OR Max speed for 90sec
Hot Soup	1.4L Hot soup program OR Low speed for 60sec
Ice crush	8-10pcs	Ice crush program OR 10x pulse
Carrot Soup	700gr carrot + 1050gr water	MAX speed for 60sec

Notes! The blender does not have the functionality of heating up liquid directly inside it. The hot soup program means that the blender is capable of mixing hot soup/liquid that is put inside without breaking the jar.

Takeaway bottle

Program/Recipe Maximum capacity Recommended setting/program
Smoothie	0.6L	Smoothie program OR Max speed for 90sec
Warm liquid (max 60°C)	0.4L	Max speed for 60sec
Ice crush	5-7 pcs	Ice crush program OR 10x pulse
Carrot Soup	240gr carrot + 360gr water	Max speed for 60sec

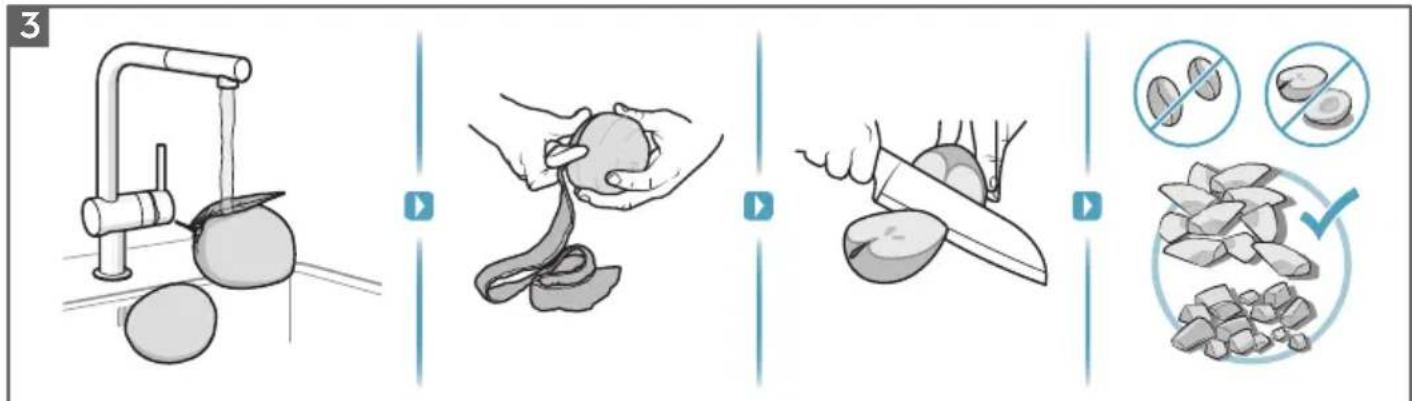

3 Prepare the ingredients by rinsing them thoroughly and cutting them into 4 to 6 pieces, and remove any hard or large seeds. Remove any thick peel from the fruit or vegetables.

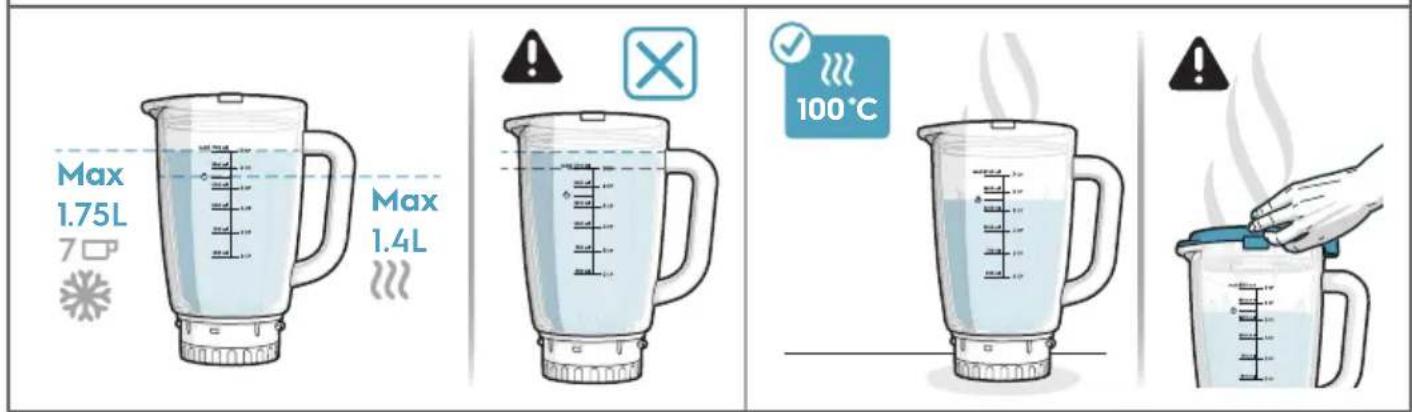

WARNING! Do not exceed the maximum filling volume as indicated on the jar.

Pro Tips: The jar is made of borosilicate glass that can withstand even boiling water (100°C).

Please ensure that the jar temperature is at room temperature (25°C) for at least 4 hours before pouring boiling water into it.

WARNING! Be careful when opening the lid (2) with hot liquid inside, as released steam can cause burns.

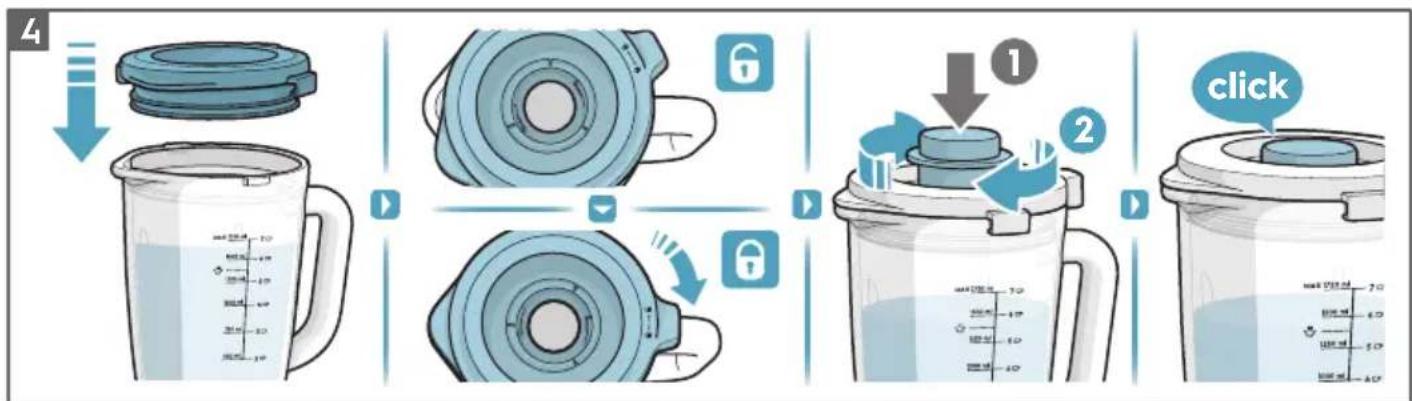

4 Place the lid (2) on the jar (3) with the cap on the right side of the jar handle, then turn it clockwise to make sure that it is securely locked. Fit the measuring cup (1) in the lid by rotating clockwise until it clicks into position.

Pro Tips: You can add ingredients through the filler hole while the blender is in operation.

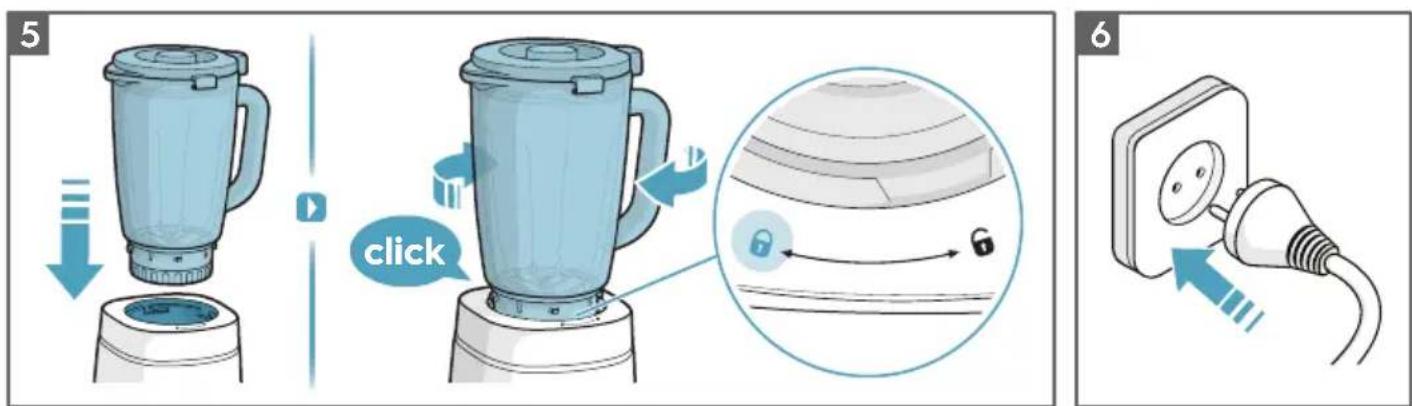

5 Place the jar (3) with attached blade assembly (4) on the blender base (5) with the handle to the right. Rotate it clockwise until it locks into position.

WARNING! The appliance can't be turned on unless the jar is perfectly fitted on the blender base.

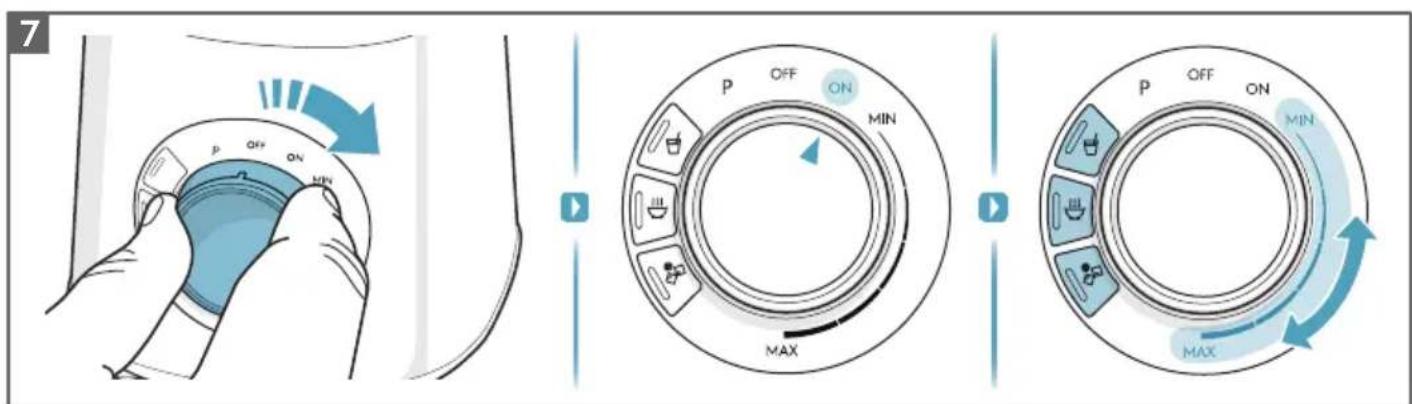

6 Plug into mains. 7 Turn the knob to the "ON" position then select the program accordingly, or Turn the knob over "ON" position onto the desired speed directly (see no.2 program/speed setting).

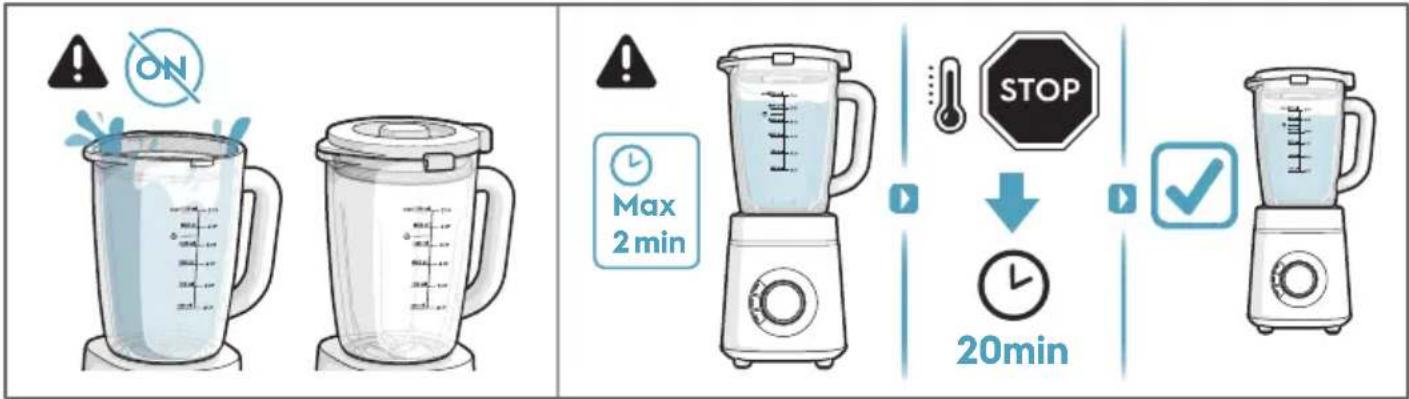

WARNING! Never operate appliance without lid. Never run the blender empty, running the blender empty can cause overheating and can damage the product. Keep hands and utensils out of the blender jar while blending.

WARNING! During operation, do not remove your jar from blender base. If it's necessary to remove the jar, please turn off the appliance first then remove it.

WARNING! With heavy load (maximum capacity), do not let the blender run for more than 2 minutes. Allow it to cool down for at least 20 minutes before continuing.

Pro Tips: With Pulse mode you can give the ingredients a quick mix to achieve your desired consistency.

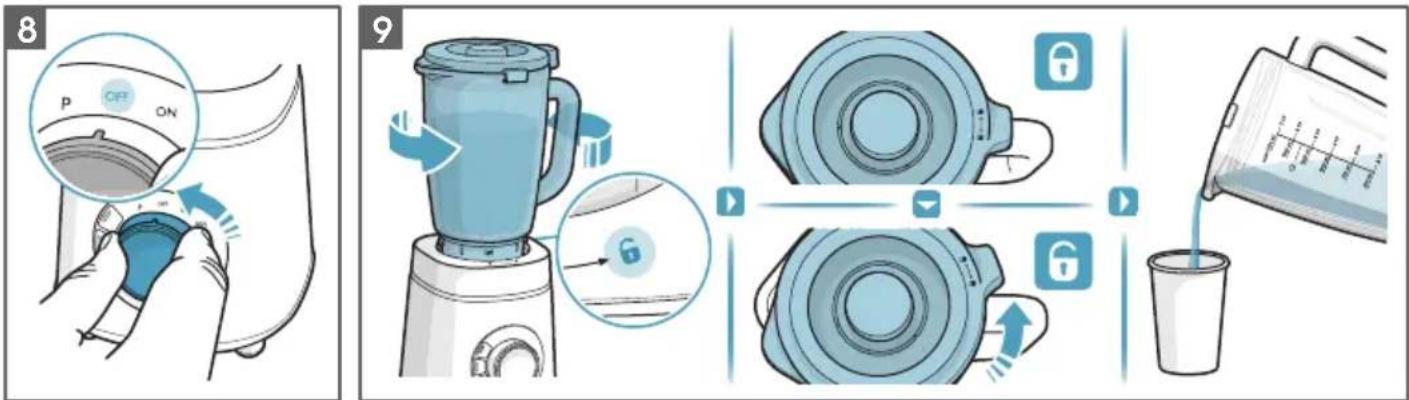

8 The blender will operate until the program is finished. To stop any program manually, turn the knob to OFF position. 9 Remove the jar (3) from blender base (5) by turning it counterclockwise and pull it off, then pour and serve. 10 Wash the components right after use in order to avoid drying of food residue on components.

Pro Tips: Always detach blade assembly with jar and rinse them clean even before placing it into the dishwasher. Fill the jar with 1.5L lukewarm water and dishwasher liquid then run MAX speed for 30 seconds for rinsing purpose.

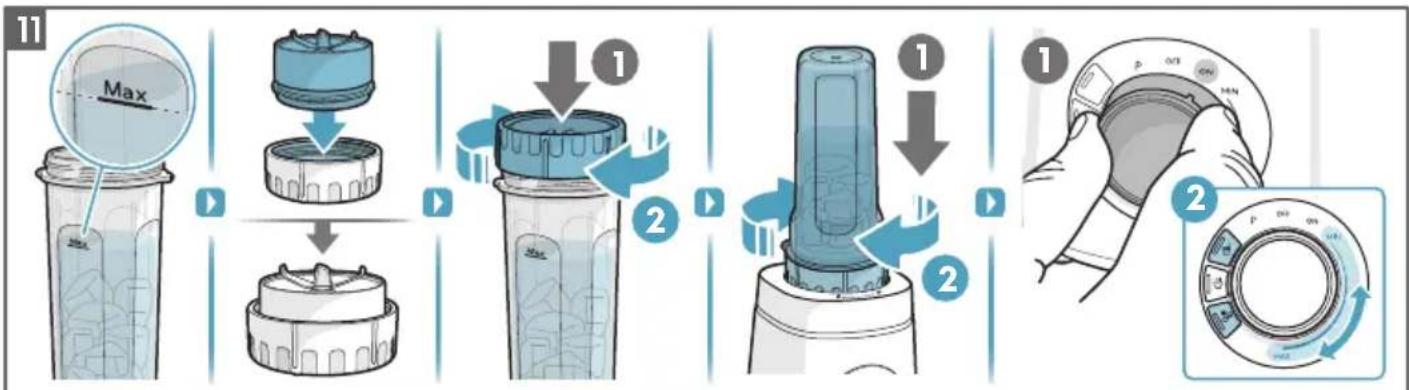

Using 2-in-1 takeaway bottle.

a. Fill the ingredients in the takeaway bottle (11). b. Push the central blade (12) to blade holder (13) to create a blade assembly.

WARNING! The blades are very sharp!

c. Fasten the blade assembly on the open end of the bottle by turning it clockwise. Turn the takeaway bottle upside down. d. Push down the assembled takeaway bottle onto the blender base (5) and rotate it clockwise to lock until it clicks into position. e. Turn the knob to the "ON" position then select the program accordingly, or Turn the knob over "ON" position onto the desired speed directly (see no.2 program/speed setting). Once done, turn the knob to OFF position. f. Turn the assembled takeaway bottle counterclockwise to release it off from blender base. g. Take off the blade assembly by turning it counterclockwise.

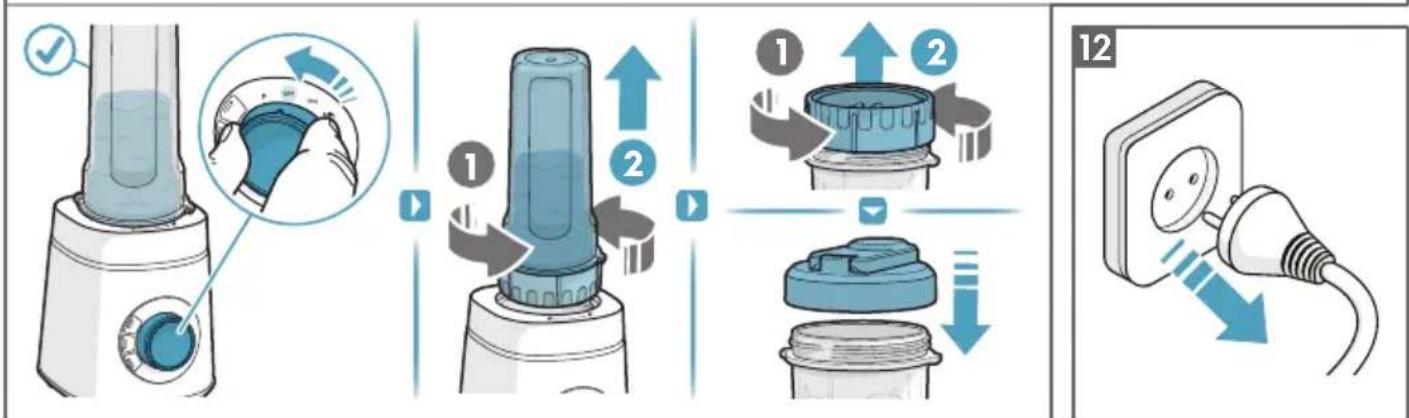

WARNING! Always take off the blade assembly within 1 minute after blending to avoid hard disassemble afterwards.

h. Attach the lid (14) to enjoy your blending on-the-go

12 Unplug the appliance.

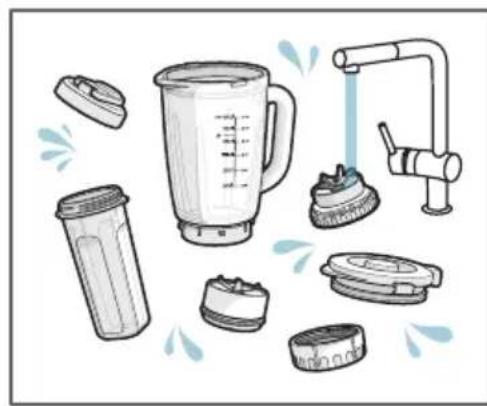

CLEANING AND CARE (picture page '5')

Always unplug the appliance before cleaning.

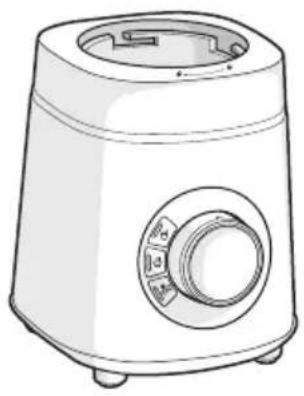

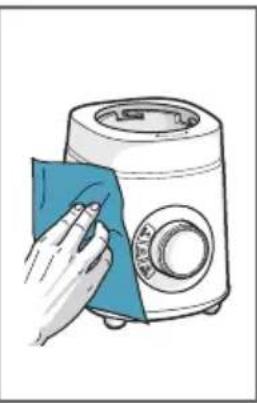

1 Motor Housing. Never immerse the blender base in water! Clean it only with a damp cloth. Do not use abrasive cleaners, scouring pads or abrasive detergents while cleaning the appliance. 2 Jar (3), blade assembly (4), lid (2), measuring cup (1), and all parts of takeaway bottle (11-14) are dishwasher safe.

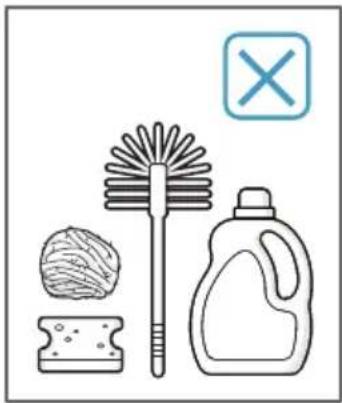

If washing by hand, don't use wire brush, steel wool or bleach to avoid rust.

Notes: Always detach the blade assembly with jar for cleaning to ensure no leftover food stuck in between. Don't immerse the Blade assembly into water completely.

WARNING! the blades are very sharp. Handle carefully during cleaning.

TROUBLESHOOTING

PROBLEM POSSIBLE	CAUSE SOLUTION
You cannot activate or operate the blender.	Blender is not connected to electrical supply.	Check your home power supply and replug.
	Safety switch is not activated.	Make sure the blade assembly is fastened and the jar is locked in the right position of blender base.
	The knob position is not turned to “ON” yet.	Turn the knob to the “ON” position.
	There is functional problem. Contact authorized service centre.
Blades do not turn when processing.	Blade is stuck, due to the pieces of food are too large or too much food in jug.	Cut food into smaller pieces or reduce some food.
Machine stops in the middle of blending process.	Loading is too heavy hence motor protector is automatically activated.	Unplug, wait for minimum 20 minutes, reduce some food, then restart.
	Wrong ingredients put inside jar.	Main blender jar and takeaway bottle intended use is production of beverages. Add fruits, vegetables or similar. Never mix ingredients such as dough, mashed potatoes, meat or similar.

SAFETY INFORMATION

Before using the appliance for the first time, read the following instructions carefully.

13 Blade holder for takeaway bottle*

7 Hot soup program

14 Detachable container*

*only on certain models

OPERATING INSTRUCTIONS (picture on page '2-4')

COMPONENTS (figure, page 2)

1 Measuring cup 2 Lid 3 Bowl made of toughened glass 4 Blade 5 Base of blender 6 "Pulse" program 7 "Smoothie" program

8 "Crushed ice" program 9 Speed selector 10 Non-slip feet 11 Travel bottle* 12 Central blade for travel bottle 13 Blade holder for travel bottle 14 Travel bottle lid

*only on certain models

Note: Always remove the blade from the bowl before cleaning to prevent food residue from getting stuck between the blades. Do not immerse the blade in water completely.

WARNING! The blades are very sharp. Be careful when cleaning.

TROUBLESHOOTING

COMPONENTS (see figure, page 2)

1 Measuring cup 8 Program for crushing ice 2 Lid 9 Ventilation slots 3 Bowl made of toughened glass 10 Non-slip feet 4 Blade assembly 11 Bowl for chopping 5 Base of blender 12 Central blade for chopping bowl 6 "Pulse" program 13 Blade holder for chopping bowl 7 "Smoothie" program 14 Lid for chopping bowl *see certain models

HOW TO USE (see figure, pages 2-4)

1 Before first use, check that the bowl is intact. 2 Maximum capacity: see program/speed table.

Blender bowl

CLEANING AND MAINTENANCE (see figure, page 5)

Always unplug the appliance before cleaning.

1 Motor unit. Never immerse the blender base in water! Only wipe it with a damp cloth. Do not use abrasive cleaners, scouring pads, or abrasive detergents to clean the appliance. 2 The bowl (3), blade assembly (4), lid (2), measuring cup (1), and all parts of the chopping bowl (11-14) can be washed in a dishwasher. To avoid damage when washing by hand, do not use a wire brush, steel wool, or bleach. Note: Always remove the blade assembly from the bowl before washing to prevent and remove food residue. Do not rinse the blade assembly under running water.

WARNING! Do not immerse the appliance in water. Use a damp cloth to clean it.

SOLVING PROBLEMS

11 Take-away flask*

5 Motor unit

12 Mixer blade for take-away flask*

6 Smoothie program

13 Blade holder for take-away flask*

7 Hot soup program

14 Lid for take-away flask*

*only on certain models

COMPONENTS (ILLUSTRATION ON PAGE 2)

1 Measuring cup

8 Program for heating water

2 Lid

9 Liquid mixing

3. Speed control knob

10. Ventilation slots

4. Lock button

11. Handle, which is removed

5. Blade guard

12. Center blade, removed

6. Program switch

13. Blade guard, which is removed

WARNING! The handle does not move if it is not installed securely on the base of the blender.

6. Insert the plug into the socket.

7. Turn the switch to the ON position, then select the desired program or turn the switch to the ON position directly to the required speed (see section 2 'Setting the program/speed').

WARNING! Using the device without the lid is prohibited. Never start the blender without the lid, as this may cause interruptions and damage the device. Do not forget to keep your hands and the device's stand away from the blender blade during operation.

WARNING! Do not remove the bowl from the blender base during operation.

If you need to remove the bowl, first turn off the device, then remove the bowl.

WARNING! At high load (maximum capacity), ensure that the blender does not operate for more than 2 minutes. Then let it cool down for about 20 minutes before continuing work.

Tip from experts: You can change the ingredients to adjust the consistency of the dish.

8 Before operating the blender, make sure the program is selected. To turn off the blender, turn the switch to the "OFF" position. 9 Remove the lid (3) from the base of the blender (5), turn it counterclockwise, and pull it out. After that, you can add and remove food. 10 After each use, clean the blades and their parts.

Tip from experts: Before removing the blade block, unplug the appliance and wait until it stops, before placing it in the dishwasher. Pour 1.5 L of warm water and a drop of dishwashing liquid into the dishwasher, then set the MAX speed for 30 seconds for cleaning.

11 Using the 2-in-1 whisk.

a. Place the removable whisk (11). b. Press the center of the whisk (12) to insert it into the whisk holder (13) to assemble the blade block. WARNING! The blade is very sharp!

c. Close the blade block on the open end of the whisk, turning it clockwise. Check that the whisk is securely attached. d. Insert the assembled whisk into the base of the blender (5) and turn it clockwise until it clicks to lock it in place. e. Turn the switch to the "ON" position, then select the appropriate program or turn the switch to the "ON" position directly to the desired speed (see section 2: Program/speed selection). After that, turn the knob to the "OFF" position. f. Turn the assembled whisk counterclockwise to remove it from the base of the blender. g. Remove the blade block by turning it counterclockwise.

WARNING! Before removing the blade block, wait at least 1 minute after blending to avoid difficulty in removing it.

h. Install the hook (14) to facilitate the removal of the blade block.

12 Disconnect the appliance from the power supply.

TROUBLESHOOTING
