Product type	Workshop bike stand
Brand	Crivit
Model	IAN 326459
Maximum load	30 kg
Compatible frame diameter	2.5 cm to 5.5 cm
Main material	Steel
Approximate weight	5 kg
Adjustable height	Yes, via telescopic bar
Support rotation	Yes, via articulation joint
Front wheel stabilizer	Included
Tool tray	With magnet for small parts
Clamping type	Quick-release lever
Intended use	Bicycle maintenance and repair
Maintenance	Clean with warm water and mild soap, dry with a dry cloth
Safety instructions	Do not exceed 30 kg, use on a flat and solid floor, do not step on the bike
Warranty	3 years from date of purchase
Customer service	Warranty hotline indicated in the manual

Frequently Asked Questions - IAN 326459 CRIVIT

What is the maximum load capacity of the bike stand?

The maximum load is 30 kg. Never exceed this limit to avoid risk of injury or damage.

How to properly attach the bike frame to the stand?

Place the frame in the clamping device, then turn the quick-release lever clockwise until you feel strong resistance. Make sure the clamping force is sufficient: the lever should require effort to operate. If necessary, adjust by turning the lever.

Can the stand be used for carbon bikes?

Yes, but be careful when clamping to avoid damaging the frame. Ensure not to pinch any cables or housings.

What types of frames are compatible with the stand?

The stand accepts frames with a diameter between 2.5 cm and 5.5 cm. It may not be suitable for all tube shapes.

How to maintain the bike stand?

Clean it regularly with warm water and mild soap, then dry with a dry cloth. Avoid aggressive chemicals like solvents.

What to do if the quick-release lever is too hard to operate?

If the lever is too hard, reduce the clamping force by turning the lever counterclockwise. Loosen half a turn, then try closing again. Repeat until you achieve maximum force with manageable operation.

Is the stand stable on all floor types?

No, it must be placed on a solid and level surface. Avoid loose or sloping floors. In case of instability, you can screw the feet to the floor or use the front wheel stabilizer.

How to use the front wheel stabilizer?

Attach the stabilizer (included) between the front wheel handlebar and the telescopic bar to prevent the wheel from turning and improve stability.

Can I leave the bike mounted on the stand for several days?

It is not recommended to leave the bike mounted for a long time as the weight may stress the parts. Use the stand only for the duration of maintenance. Store it unfolded in a dry and well-ventilated place.

What to do in case of defective or missing parts?

Contact customer service via the warranty hotline indicated in the manual. Essential spare parts are available during the 3-year warranty period.

USER MANUAL IAN 326459 CRIVIT

Before reading, find out the ilutione paper and qut to know all of the functions of your crit.

华

Kaplan erneut flattarumne og riden el, laowen eg gog deh foelfjgds hertig mad cie.
copeerts fondizien.

Doplace In page 26 has illustrations to be illustrated at the end of this section and the proofs are given in Appendix A.

中

GvIFINnInrions and Scnly Notice Pae 0

P5. Bateninas aakserhedhamnirg Sdo 09

FR/BE instructions on utilisation of securitie Page 12

NVE Gebruksgrwizgenen en veligheidsinstuctures

P5/N/6d

DyAICH 6eBrooNcOne SchneHnSnFwe

IAN 307559IAN 307559

H H H

H H D A

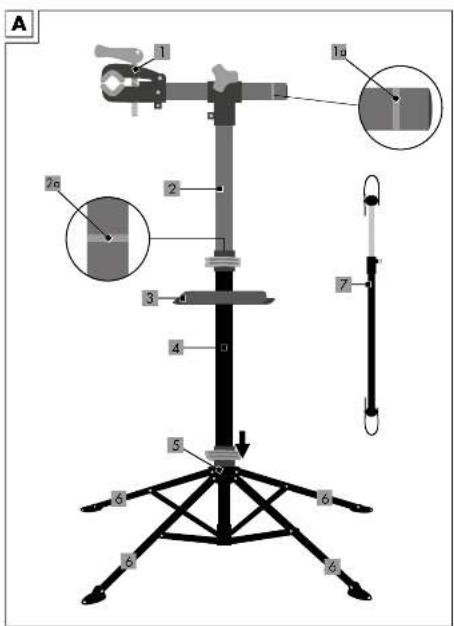

Overview of parts:

(1) Bicycle bracket
(2) Telescopic pole
(3) Tool tray
(4) Tripod
(5) Joint
(6) Feet
(7) Front wheel stabiliser

Deloversigt:

(1) Cykelholder
(2) Teleskopstang
(3) Vaerktjsskəl
(4) Stativ
(5) Led-forbindelse
(6) Fødder
(7) Stabilisator forhjul

Aperçu des pieces :

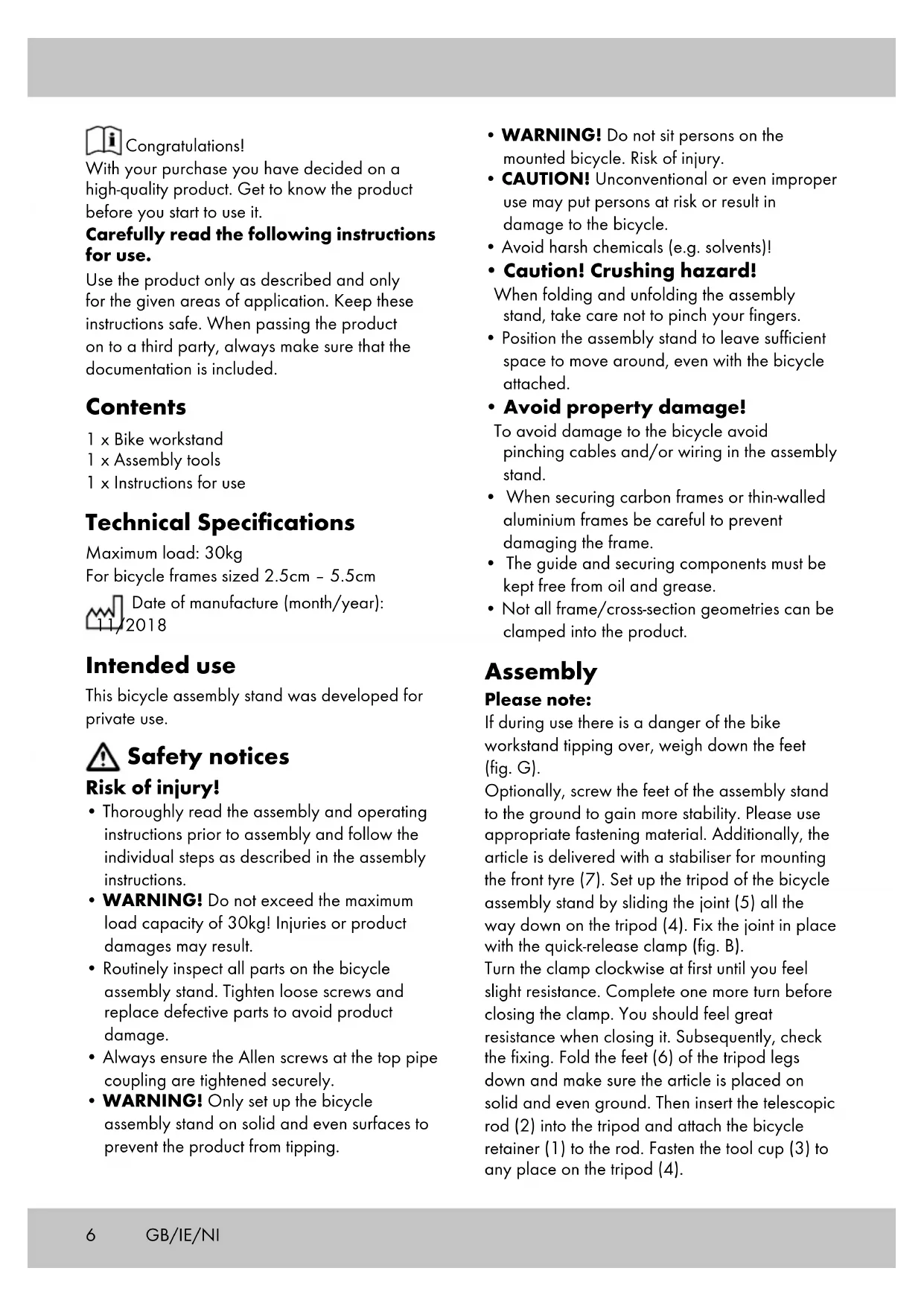

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Contents

1 x Bike workstand
1 x Assembly tools
1 x Instructions for use

Technical Specifications

Maximum load: 30kg

For bicycle frames sized 2.5cm - 5.5cm

Date of manufacture (month/year):

2018

Intended use

This bicycle assembly stand was developed for private use.

Safety notices

Risk of injury!

• Thoroughly read the assembly and operating instructions prior to assembly and follow the individual steps as described in the assembly instructions.
• WARNING! Do not exceed the maximum load capacity of 30kg Injuries or product damages may result.
• Routinely inspect all parts on the bicycle assembly stand. Tighten loose screws and replace defective parts to avoid product damage.
• Always ensure the Allen screws at the top pipe coupling are tightened securely.
• WARNING! Only set up the bicycle assembly stand on solid and even surfaces to prevent the product from tipping.

- Caution! Crushing hazard!

• WARNING! Do not sit persons on the mounted bicycle. Risk of injury.
• CAUTION! Unconventional or even improper use may put persons at risk or result in damage to the bicycle.
• Avoid harsh chemicals (e.g. solvents)!

When folding and unfolding the assembly stand, take care not to pinch your fingers.

• Position the assembly stand to leave sufficient space to move around, even with the bicycle attached.

- Avoid property damage!

To avoid damage to the bicycle avoid pinching cables and/or wiring in the assembly stand.
- When securing carbon frames or thin-walled aluminium frames be careful to prevent damaging the frame.
- The guide and securing components must be kept free from oil and grease.
- Not all frame/cross-section geometries can be clamped into the product.

Assembly

Please note:

If during use there is a danger of the bike workstand tipping over, weigh down the feet (fig. G).

Optionally, screw the feet of the assembly stand to the ground to gain more stability. Please use appropriate fastening material. Additionally, the article is delivered with a stabiliser for mounting the front tyre (7). Set up the tripod of the bicycle assembly stand by sliding the joint (5) all the way down on the tripod (4). Fix the joint in place with the quick-release clamp (fig. B).

Turn the clamp clockwise at first until you feel slight resistance. Complete one more turn before closing the clamp. You should feel great resistance when closing it. Subsequently, check the fixing. Fold the feet (6) of the tripod legs down and make sure the article is placed on solid and even ground. Then insert the telescopic rod (2) into the tripod and attach the bicycle retainer (1) to the rod. Fasten the tool cup (3) to any place on the tripod (4).

Attaching the bicycle

Instructions:

After positioning, make sure that the bicycle fits safely and that the assembly stand is stable.
- Please observe the maximum extension lengths of the telescopic rod (2) and the bicycle retainer (1); do not exceed the marking.
- If you attach the bicycle by a vertical frame tube (e.g. the seat tube), then the maximum load capacity is reduced to 25kg .
- Please ensure that the bicycle is attached at the centre of mass. Otherwise there is a risk that the bicycle will turn.
- If the centre of mass of the attached bicycle changes during work, then you need to readjust the bicycle in the cycle bracket so that the bicycle is attached at its centre of mass again. Otherwise the maximum load capacity is reduced to 25kg .

Choose the section of the bicycle frame you wish to clamp in the retainer of the bicycle assembly stand. This section of the frame must be located in the bicycle's centre by all means. Set the angle of the bicycle retainer (1) to fit the selected bicycle frame length (see examples in fig. C and fig. D) and tighten the screw on the clamping device of the retainer.

Turn the quick release lever anti-clockwise to open the clamping device (fig. F).

Put the bicycle frame into the clamping device and turn the quick release lever in a clockwise direction until the quick release lever can be moved around with force (fig. F).

Make sure to have an adequate clamping force.

Note: If the quick release lever can be moved around too easily, the clamping force is insufficient. In this case, push the quick release lever back into the open position and turn it in a clockwise direction again to increase the fixed clamping force. Close the quick release again.

If the quick release lever cannot be moved around, the clamping force is too strong. Reduce the clamping force by turning the lever anti-clockwise. Loosen the clamping device by half a turn and then try to close the quick release. Repeat this procedure until you find the maximum clamping force at which the lever can still be moved around.

We recommend carrying out the following step (height adjustment) with 2 people.

Extend the telescopic rod (2) to the desired height. By turning the rod you can also change the position of the clamped bicycle. As soon as you have reached the desired height and position, fasten the telescopic rod to the tripod with the quick release. Proceed in the same way as with the quick release on the tripod joint (fig. B). To stabilise the front tyre, clamp the front tyre stabiliser (7), that is included in the delivery, between the handlebar and the telescopic rod (fig. E).

Tool tray

A magnet is located inside the large compartment of the tool tray for securing small parts.

Care, storage

Routinely clean the bicycle assembly stand with warm water and pH-neutral soap. Always follow with a dry cloth! Avoid harsh chemicals (e.g. solvents)! Store the product in a dry and well-ventilated area.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN:307559
