IAN 278485 - Bike accessory CRIVIT - Free user manual and instructions

Product type	Foot pump
Brand	Crivit
Model	IAN 278485
Category	Bicycle accessory
Intended use	Inflation of bicycle tires (Schrader, Presta, quick valves), balls, air mattresses, and similar inflatable items
Material	Steel and plastic
Dimensions (approx.)	65 cm height, 14 cm width (base)
Weight (approx.)	0.8 kg
Maximum pressure	12 bar (174 psi)
Head type	Dual head with large and small openings, clamping lever
Included adapters	1 ball adapter, 2 inflation adapters
Pressure gauge	Yes (integrated in handle)
Hose length	Approx. 60 cm
Care and cleaning	Clean with a damp cloth, dry; do not submerge in water
Storage	In a dry, temperate place, protected from dust
Safety	Do not use by children or persons with reduced capabilities; use on a smooth surface; do not bend the hose; risk of friction burns
Warranty	3 years, valid for material and manufacturing defects
Customer service (France)	0800 919270 / [e-mail]
Spare parts / Repairability	Not user-repairable; at end of life, sort and dispose of environmentally

Frequently Asked Questions - IAN 278485 CRIVIT

What types of valves can I inflate with this pump?

The pump is compatible with Schrader (large opening), Presta (small opening) and quick valves. For Presta valves, first unscrew the valve nut before attaching the head.

How do I inflate a ball with this pump?

Insert the supplied ball adapter into the large opening of the dual head, then flip the clamping lever upwards to lock it. Then push the adapter into the ball valve.

What is the maximum pressure supported by the pump?

The pump can inflate up to 12 bar (approximately 174 psi). Make sure not to exceed the maximum pressure indicated on the tire or inflatable item.

How to clean the pump?

Use a damp cloth to clean the pump, then dry it thoroughly. Never submerge the pump in water, as this could damage it.

Where can I find the serial number or IAN?

The number IAN 278485 is printed on the packaging or on a label attached to the pump. Keep it for any claims.

Can the pump be used by a child?

No, the pump is not suitable for children or persons with reduced physical or mental capacity due to the high operating forces and risk of injury.

What to do if the hose bends or is damaged?

The pump hose must never be bent. If the hose is damaged, the pump cannot be repaired and must be disposed of according to applicable regulations.

How to activate the 3-year warranty?

Keep the receipt as proof of purchase. In case of material or manufacturing defects, contact customer service at 0800 919270 or by email at [e-mail] during the warranty period.

Can I inflate an air mattress with this pump?

Yes, use one of the supplied inflation adapters. Open the mattress valve, insert the adapter into the large opening of the head, lock with the lever, then connect to the valve.

Where should I store the pump after use?

Store the pump in a dry, temperate place protected from dust. Avoid extreme temperatures and humidity.

USER MANUAL IAN 278485 CRIVIT

www.lidl-service.com PDF online

POMPE À PIED

FR BE

POMPE À PIED

Instructions for use

A A B C D E F H G L

Données techniques

Pression nominale : 6 bars / 87 PSI

Dimensions: 22,5 x 14 x 63 cm (L x l x h)

Diagram showing two mechanical components with arrows indicating motion or movement, no text or symbols present

Two mechanical components with arrows indicating motion, no text or symbols present

Entretien, entreposage

A A B C D E F H G

Technische gegevens

Nominale druk: 6 bar / 87 PSI

Afmetingen: 22,5 x 14 x 63 cm (L x B x H)

Correct gebruik

Diagram showing two mechanical or electrical component assemblies with arrows indicating motion (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Two black-and-white diagrams showing a mechanical device with arrows indicating motion or rotation, no text or symbols present.

Onderhoud, opbergen

A A B C D E F H G L

Technische Daten

Diagram showing two mechanical or electrical component assemblies with arrows indicating motion (no text or symbols)

Two mechanical device diagrams showing lever mechanisms and motion arrows (no text or symbols)

Two mechanical device diagrams showing lever mechanisms with arrows indicating motion (no text or symbols)

Pflege, Lagerung

Congratulations on the purchase of your new product. You have decided on a high-quality product. These instructions for use are a part of the product. It contains important information about safety, use and disposal. Please familiarize yourself with all operating and safety instructions before using this product. Only use the product as described and for the specified application. If you pass this product on to others be sure to also include the documentation.

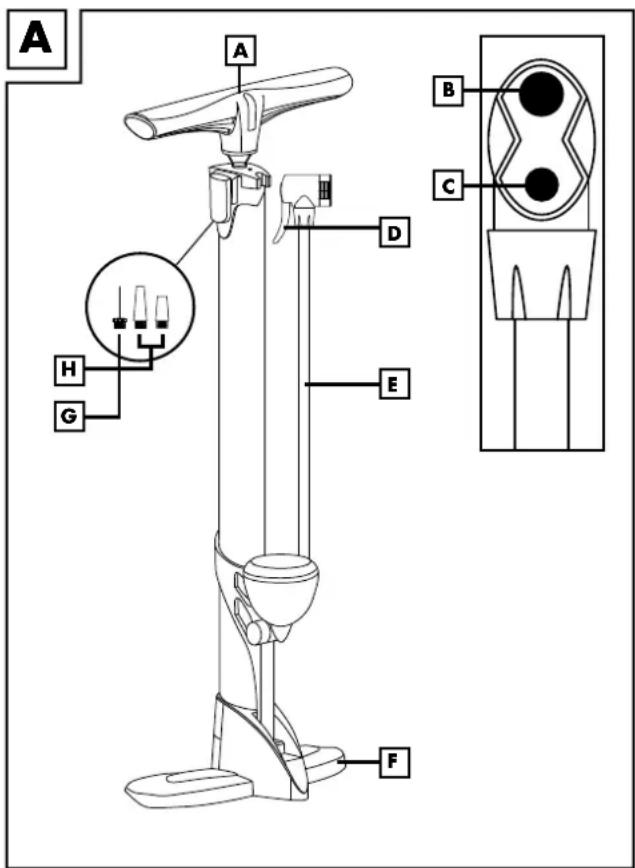

Contents

1x Instructions for use
1x Floor pump
1x Adapter for balls (G)
2x Adapter for inflatables (H)

A A B C D E H G F

Technical Data

Rated pressure: 6 bar / 87 PSI

Dimensions: 22.5 x 14 x 63cm (l x w x h)

Intended Use

This product is intended for private use to inflate all common bicycle tyres with Schrader valve, Dunlop valve and Presta valve, and to inflate balls, air mattresses and similar inflatables.

Safety Instructions Risk of Injury!

• Due to the high operating force and the associated risks this product is not suitable for use by children and individuals with physical and/or mental limitations.
• Before each use check the product for damage or wear. Discontinue use and dispose if the product is defective, as a defective product cannot be repaired.
• Risk of burning! Friction may cause the pump plunger and pump cylinder to heat up with extended pumping. Only touch the handle of the item after use.
• Only inflate items to the maximum pressure specified by the manufacturer. On bicycle tyres this information is typically found on the tyre wall.

Use

Only use this product on even ground. Always stand with both feet on the floor plate (F) whilst pumping to prevent the product from tipping. Do not bend the pump tube (E)! Operate the pump handle (A) evenly and not too fast.

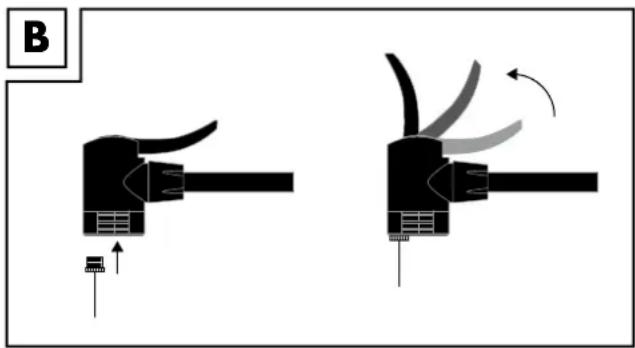

Inflating balls

Insert the ball adapter into the large opening (B) of the dual pump head. Flip the clamping lever (D) up to lock in the adapter. Then insert the adapter in the ball.

B

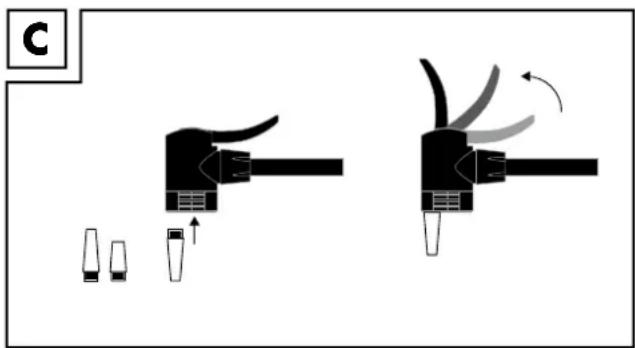

Inflatables

Open the valve on the inflatable. Insert the properly fitting inflatables adapter into the large opening (B) of the dual pump head. Flip the clamping lever (D) up to lock in the adapter. Then insert the adapter into the valve of the inflatable.

C

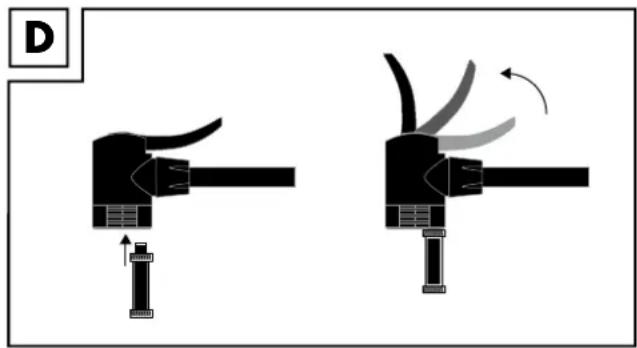

Inflating bicycle tyres with Dunlop valves

Remove the closure from the bicycle tyre. Place the small opening (C) of the dual pump head on the valve. Flip the clamp lever (D) up to lock the adapter.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Inflating bicycle tyres with Schrader valve

Remove the closure from the bicycle tyre. Place the large opening (B) of the dual pump head on the valve. Flip the clamp lever (D) up to lock the adapter.

E

Inflating bicycle tyres with Presta valves

Remove the closure from the bicycle tyre. Loosen the valve nut. Place the small opening (C) of the dual pump head on the valve. Flip the clamp lever (D) up to lock the adapter.

Two mechanical components with arrows indicating motion, no text or symbols present

Care, Storage

Do not immerse the product in water, as this will damage the product! Always store the product dry and clean in a temperate room.

Important! Only clean with a damp cleaning cloth, then wipe dry.

Disposal

Please dispose of packaging and the item in an environmentally friendly, single-variety manner! Dispose product through an approved waste management company or through your municipality. Always follow the current applicable regulations.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 73443

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6

D-22397 Hamburg

Version: 08/2012
