Product Type	Sterilizer / Water Dispenser
Brand	Klarstein
Model	Lady Marmalade
Capacity	27 liters (max 14 jars of 1 liter)
Power	1800 W
Power Supply	220-240 V ~ 50/60 Hz
Temperature Range	30°C to 100°C (adjustable in 1°C steps)
Timer	0 to 120 minutes (in 1 minute steps)
Main Functions	Sterilization, pasteurization, reheating, keep warm
Maximum Number of Jars	14 jars of 1 liter (smaller jars: higher number)
Tank Material	Stainless steel (estimated)
Dispensing Tap	Yes, with removable control lever for cleaning
Sterilization Rack	Included
Safety	Overheat protection (automatic shutdown if liquid is insufficient)
Cleaning	Clean with damp cloth; regular descaling required
Tap Maintenance	Unscrew the lever, clean with soapy water, rinse
Dimensions	Not provided
Weight	Not provided

Frequently Asked Questions - Lady Marmalade Klarstein

How to use the appliance for the first time?

Before first use, remove all packaging. Clean the appliance as described in the manual. Fill with about 5 liters of water and boil at 100°C for 20 minutes, then discard the water. This removes production residues.

What is the maximum capacity of the appliance?

You can sterilize up to 14 1-liter jars at a time. If you use smaller jars, the number can be higher. The total tank capacity is 27 liters.

How to set the temperature and sterilization time?

Press the TEMPERATURE button (6) then use the + (12) and - (13) buttons to set the desired temperature. Press TIMER (3) to set the time (default 2h). Then press START (7). The appliance heats up and the countdown is displayed.

Can I reheat liquids with pieces (soup, stew)?

Yes, you can reheat soups or stews, but do not drain them through the tap as the pieces could clog it. Use the tap only for liquids without solids. Stir regularly to prevent food from sticking to the bottom.

How to clean the dispensing tap?

For a thorough cleaning, unscrew the lever (11) counterclockwise. Clean it in soapy water. For the tap itself, circulate soapy water and use a pipe cleaner if necessary. Rinse then screw the lever back on clockwise.

What to do in case of overheating?

The appliance is equipped with overheat protection. If there is not enough water, it turns off automatically. Once cooled, fill with enough water and restart. Always check the water level before use.

How to descale the appliance?

Descale the appliance as soon as limescale deposits appear. Use a commercial descaling agent following its instructions. After descaling, rinse thoroughly with clean water. For light scale, wipe the inside with a cloth soaked in vinegar then rinse.

Can I use this appliance for home canning?

Yes, it is designed for sterilization and pasteurization. Use jars with rubber seals. Fill the jars, close them, place them on the rack, add water up to 3/4 of the top jars, then set the temperature and time according to the sterilization table in the manual.

How to drain the water after use?

Place a heat-resistant container under the tap (10) and lower the lever (11). The water drains by itself. Make sure the water is no longer scalding to avoid burns.

What to do if the appliance does not heat up?

First check that the appliance is plugged in and the outlet works. Make sure there is enough water in the tank. If the power indicator does not light up, check the fuse. If the problem persists, contact customer service. Do not attempt to repair it yourself.

USER MANUAL Lady Marmalade Klarstein

KLARSTEIN

www.klarstein.com

INHALTSVERZEICHNIS

Lieferumfang 4

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

LIEFERUMFANG

Close-up of a hand holding a metal valve with a flange, next to two metallic bolts (no text or symbols visible)

Close-up of hands using a tool to adjust or install a metal component (no visible text or symbols)

Four identical illustrations of a laboratory or storage tank with beakers inside, showing different internal compartments (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Packing Content 18

Safety Instructions 18

Device Overview and Function Keys 20

Installation 21

Getting Started and Operation 22

Cleaning and Care 27

Hints on Disposal 28

TECHNICAL DATA

Item number 10033825
Power supply 220-240 V ~ 50/60 Hz
Power consumption (watts) 1800 W
Capacity (Volume) 27 litres (14 x 1 litre preserving jars)

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

PACKING CONTENT

The appliance is delivered with the following components as standard:

• Preserving boiler
• Preserving grill
• Lid
• Pouring tap

SAFETY INSTRUCTIONS

CAUTION

Risk of burns! The unit becomes hot during use. Only touch the controls and handles so that you do not burn yourself.

• Read these operating instructions carefully before using the appliance for the first time and retain them for future reference. Pass these operating instructions for the appliance on to any future owner(s).
• Before using the product, familiarise yourself with all operating and safety instructions.
• Use the product only as described and for the range of applications specified.
  • This Preserving Cooker is suitable for:

- Preserving

- Heating and keeping drinks warm, and for their pouring

- Heating and keeping boiled sausages, or their like, warm

- Heating and keeping soups warm

• The appliance is intended for domestic use only, it is not suitable for commercial or industrial applications.
• Use the appliance exclusively for its intended purposes.
• Check the appliance and the power cord regularly for damage. Do not use the unit if the power cord or the appliance is damaged or has been dropped.
• To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or customer service.
• Do not attempt to repair the appliance yourself. Repairs may only be carried out by qualified specialists. Incorrect and/or incompetent repairs can result in significant risks for the user.
• Defective components may only be replaced with original replacement parts.
• Do not use any accessories other than those supplied.
• Never completely immerse the appliance in water or other liquids, as this may damage the electrical parts.
• Ensure that the base with the electrical connections never comes into contact with water! If it has unintentionally come into contact with water, first allow it to dry out completely before taking it into use.

• Ensure that the power cable never becomes wet or damp during operation. Lay the cable so that it cannot become trapped or damaged in any way.

• When not in use, turn off the power and unplug the appliance. Allow the appliance to cool completely before cleaning and storing.

• Ensure that the power cable does not come into contact with parts of the appliance that are hot.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Never leave the appliance unattended while it is being used.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision. Therefore, wear heat-resistant gloves. Touch the appliance only on the heat-insulated handles.
• Place the appliance on a stable, level and heat-resistant surface. Allow at least 20 cm of space around the appliance to walls and other equipment.
• Do not move the appliance after it has heated up and while it is in operation. Be very careful when moving equipment with hot liquids.
• Boiling liquid could splash out if the water boiler is overfilled.
  • After use, the surfaces of the heating element will still have some residual heat.
• Do not allow any liquid to run over the appliance connector.
• Ensure that the appliance, the power cable and the plug cannot come into contact with sources of heat such as hot plates or open flames.
• Do not use an external timing switch or a separate remote control system to operate the appliance.
• The appliance must not be cleaned using a water jet.

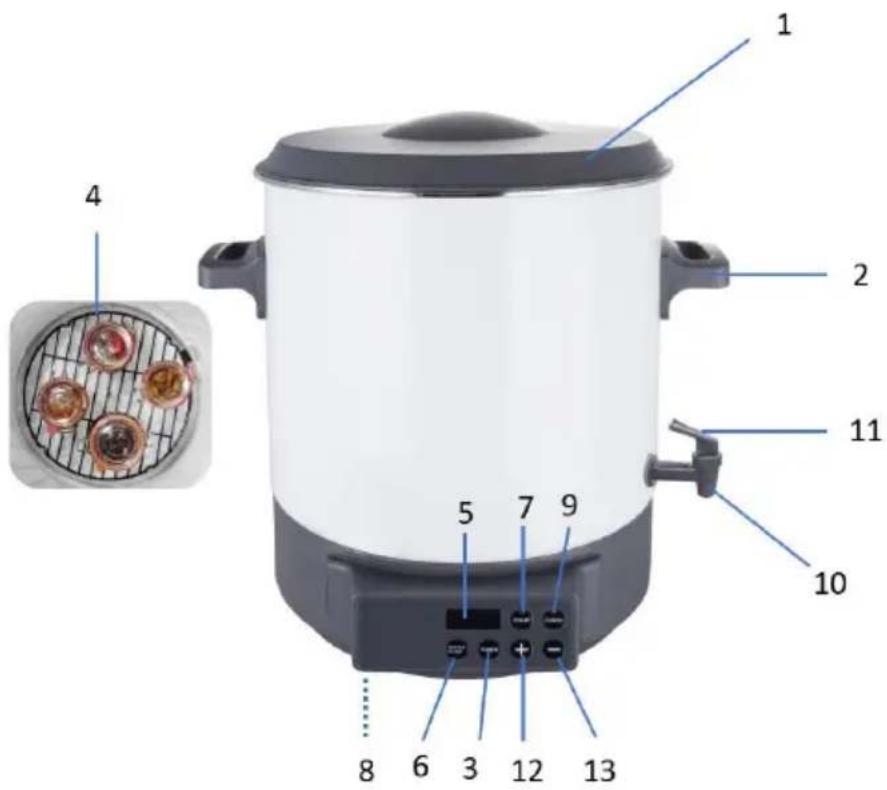

DEVICE OVERVIEW AND FUNCTION KEYS

1 Lid 8 Cable storage
2 Heat insulated handles 9 Cancel button
3 Control button TIMER for minute setting (MIN)
4 Preserving grill 11 Tap lever
5 Display indicator (display of minutes (MIN), current temperature (CURRENT TEMP) and temperature setting (SET TEMP))
6 Control button TEMPERATURE (temperatur setting in °C)
7 START button

10 Pouring tap
12 "+" button to increase temperature or cooking time during setting
13 "-" button to decrease temperature or cooking time during setting

INSTALLATION

• Remove all parts of the appliance and the operating instructions from the packaging.
• Remove all packing material.

Disposal of the packaging

• The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.
• The return of packaging into the material circuit saves on raw materials and reduces the amount of generated waste. Dispose of the packaging material that is no longer needed as per the locally established regulations.
• If possible, keep the original packaging of the product so that you can return it in its original packaging if necessary.

Note: Check the unit for completeness and visible damage before use. If any parts of the unit are missing or have been damaged in transit or packaging, contact Customer Service.

Appliance set up

• Completely unwind the power cable from the cable storage.
• Place the appliance on a level and slip-free surface. Ensure that a mains power socket is easily accessible.
• Clean the appliance as described in the chapter "Cleaning and Care".

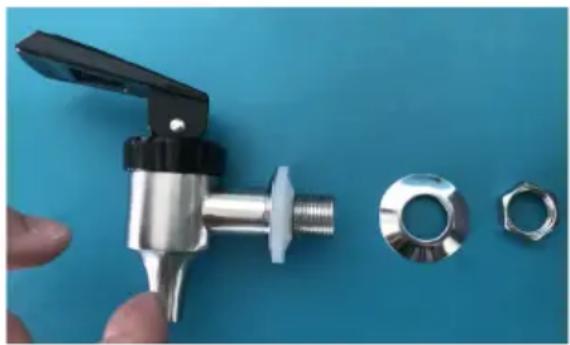

• Fix the pouring tap to the outside of the appliance using a washer and a nut from the inside (as shown in the figures below).

Close-up of a hand holding a metal valve with a black handle, next to two metallic bolts (no text or symbols visible)

Close-up of hands holding a metal tool near a curved pipe (no visible text or symbols)

- Insert the plug into a mains power socket. The display lights up, a signal tone is heard.

Note: Never operate the appliance in a no-load condition! The appliance could be irreparably damaged!

CAUTION

Risk of burns! During operation, hold the appliance only by the heat-insulated handles, as it becomes very hot during use and you may burn yourself.

- Add about 5 litres of water to the appliance and leave it to boil at 100^ for 20 minutes. After the water has boiled, pour it away.

- On the first use the generation of a slight smell may occur, this is due to residues from the production. It is completely harmless and disperses after a short time. Provide for sufficient ventilation, for example, open a window.

GETTING STARTED AND OPERATION

Preparing food/preserve jars

Preferably use preserving jars with a rubber seal and a lever clamp. The preserving jars must be free of damage.

1. The preserving jars must be free of germs and bacteria, otherwise the preserve could spoil prematurely. Preferably, boil the preserving jars for 5-7 minutes before adding the food.

2. Use a funnel when filling the preserving jars, if available. The edges of the preserving jars must be clean when the jars are sealed.

3. Seal the jars as quickly as possible after filling:

- Place the rubber seal on the upper rim of the preserving jar and place the glass lid on the preserving jar. The rubber seal is between them.

- Place the rubber seal on the upper rim of the preserving jar and place the glass lid on the preserving jar. The rubber seal is between them.

Switching the appliance on and off

1. Turn on the appliance, the "cancel" light is flashing and the screen displays "00:00". During operation, you can adjust the time or temperature first. In this sample, we set up the time first.

2. Press the TIMER button (3), the appliance displays the default cooking time "02:00" (2 hours).

3. Press the "+" or "-" button to adjust the cooking time. The time is set in 1-minute steps. Press and hold the respective button to reach the target time faster.

4. Press the TEMPERATURE button (6), the appliance displays the default cooking temperature "100" (100 °C).

5. Press the "+" or "-" button to adjust the temperature. The temperature is set in 1-degree steps. Press and hold the respective key to reach the target temperature more quickly.

6. After successfully adjusting the temperature and cooking time, press the START button (7).

7. The LED display alternately shows the remaining operating time and the current water temperature.

8. When the appliance reaches the target temperature and cooking time, the appliance will turn off by itself and beeps for 1 minute, without the warm-keeping function. All operating lights are switched off.

Note: If you only set the cooking temperature and not the cooking time, the appliance runs with the default operating time of 2 hours.

Press the CANCEL button to cancel the heating or boiling process.

Note: When the appliance is not in use, always remove the plug from the mains power socket.

Preserving

• To be understood under the term preserving is the conservation of foodstuffs by, amongst others, the effects of heat. Dependent upon the type and mass of the items to be preserved, a differentiation is made between the processes of sterilisation and pasteurisation. In sterilisation, the items to be preserved are heated to a temperature of at least 100 °C. With pasteurisation, the heating temperature lies at around 80 °C.
• For domestic purposes, pasteurisation is sufficient. For this, one needs the appropriate preserving jars, with screw-tops or lids with rubber rings.
• Preserve only fresh foods. Overripe fruits or vegetables are not suitable for preserving.

• Pay heed to the cleanliness of the jars! Ideally, boil the jars for around 5-7 minutes before filling them with foodstuffs. This will ensure all germs and bacteria have been killed.

• Place the preserving grill (4) in the preserving boiler.

• Place the filled and tightly sealed jars on the preserving grill (4). Stack the preserving jars on top of each other if required.

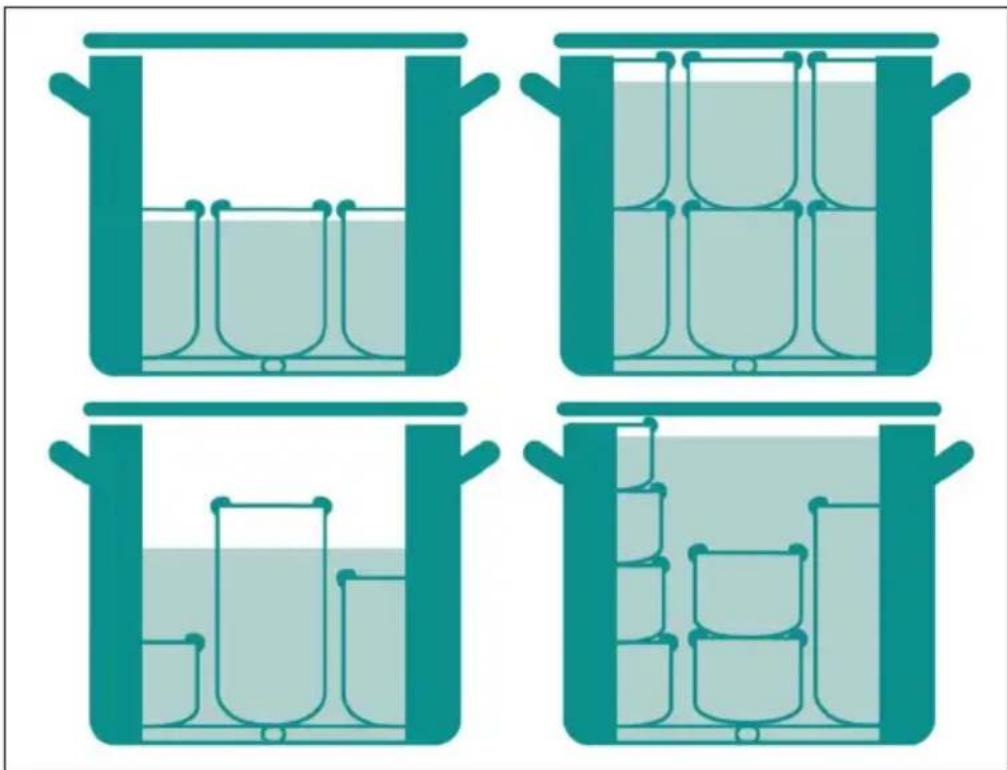

Note: A maximum of 14 glasses (with a capacity of 1 litre) can be boiled/sterilized at the same time! For smaller glasses, more glasses fit into the device.

Four identical illustrations of a laboratory or storage tank with beakers and containers, arranged in a 2x2 grid (no text or symbols)

1. Add water to the preserve maker until the upper preserving jars are around 34 covered. However, do not exceed the MAX marking. Ensure that the preserving jars on the lower level are properly closed so that no water can get in.
2. Close the preserving boiler with the lid (1).

CAUTION

Risk of burns! During operation, hold the appliance only by the heat-insulated handles, as it becomes very hot during use and you may burn yourself.

1. Using the TEMPERATURE button (6), set the desired temperature. Observe the following table when selecting a temperature setting. The timetable for cooking is for orientation only.

Cooking Table

Note: This information is recommendations. The approximate heating time in minutes depends on the size of the jars.

Fruit °C Min Meat °C Min
Apricots 80 30 Pieces of meat (raw) 100
Pears (soft) 90 30 Pre-cooked roast pie
Pears (hard) 90 50 Pre-roasted poultry
Strawberries	80	25
Blueberries	85	30
Rasberries	80	25

120

ces

00

0
100 90
65
Pre-cooked goulash	100	60
Minced meat (raw)	100	120
Sausage	100	120

Vegetables	°C Min
Cauliflower	100	90
Beans	100	120
Peas	100 130
Cucumber	80 30
Kohlrabi	100	120
Asparagus	100 100

Note: The preserving jars are hot after boiling. Use pliers or oven gloves to remove the jars. Keep preserves dry, cool and dark.

1. Use the TIMER button for the minute setting (3) to set the cooking time specified in the table.
2. Start the appliance by pressing the START button (7). Signal tones sound and the appliance begins to heat up. Once the heating up is complete, signal tones sound, the current temperature appears in the display and the remaining preparation time in minutes is counted down on the display. As soon as the set time period has expired, signal tones sound. The appliance switches itself off and the display shows "00:00".
3. Position a heat resistant container under the pouring tap (10) and press the pouring lever (11) down. The water drains itself.
4. When the water has drained away allow the preserving jars to cool down.

Heating and keeping liquids warm

Note: Fill the appliance with water only up to the MAX level marking. Otherwise, the liquid could overflow.

1. Pour the liquid (for example, mulled wine or cocoa) into the preserving boiler.
2. Place the lid (1) onto the preserving boiler.

CAUTION!

Risk for burns! During operation, hold the appliance only by the heat-insulated handles, as it becomes very hot during use and you may burn yourself.

1. Using the TEMPERATURE button (6), set the desired temperature.
2. Press the TIMER button (3), "02:00" appears in the display. It is now not necessary to set a cooking time. The appliance heats up continuously until it is switched off.
3. Regularly stir the liquid so that the heat is evenly distributed.
4. When the desired temperature has been reached, signal tones will sound. You can drain off liquids without solid particles through the tap (10).

Note: Do not pour off liquids with solid constituents, for example, soups. The solids will block the pouring tap.

1. Hold a cup or similar under the tap (10) and press the dispensing lever (11) downwards.
2. When the desired amount of liquid is in the cup, release the dispensing lever (11).

Note: You can also keep stews warm in the preserving boiler. They do however need to be stirred regularly to prevent them sticking to the bottom of the appliance.

Overheating protection

This appliance is fitted with an overheating protector. Overheating may occur if there is too little or no liquid in the preserving boiler. In this case, the appliance switches itself off immediately. Once you have topped it up with liquid you can restart the appliance.

CLEANING AND CARE

WARNING

Risk of elektric shock! Before cleaning, always remove the plug from the mains power socket!

CAUTION

Risk of burns! Let the appliance cool down before cleaning it.

• Never submerse the appliance in water or other liquids! The appliance could be irreparably damaged.
• The appliance must not be cleaned using a water jet.
• Do not use abrasive or aggressive cleaning materials. These could attack the upper surfaces and irreparably damage the appliance.
• Clean the appliance with a lightly moist cloth. For stubborn soiling use a mild detergent on the cloth.
• Clean the display with a soft, lint-free cloth.
• Clean the preserving grill (4) in a mild soapy solution and rinse it well with clear water.

Cleaning the pouring tap

To clean the tap (10) thoroughly, you can unscrew the tap lever (11). The tap (10) cannot be unscrewed as this could lead to problems with the seal.

1. Screw the tap lever (11) anticlockwise off the tap (10).
2. Place the pouring lever (11) in a mild soapy solution and swirl it back and forth.
3. Rinse it off with clear water.
4. To clean the pouring tap (10) allow a mild soapy solution to flow through it. Should there be stubborn soiling on the inside of the pouring tap (10) use a pipe cleaner or similar to remove it.
5. Afterwards, rinse the pouring tap (10) through with clear water.
6. Screw the tap lever (11) clockwise back onto the tap (10).

Scale removal

Deposits of scale on the bottom of the appliance lead to increased energy consumption and reduce the service life of the appliance. Descale the appliance as soon as scale deposits become apparent.

1. Use a standard commercial descaling product. Proceed as described in the instructions for usage of the descaler.
2. After descaling, rinse the appliance with lots of clean and clear water.

Note: At a low level of calcification (limescale), it is usually sufficient to wipe out the inside of the appliance with a cloth soaked with vinegar. Afterwards, rinse out the appliance with clean water and dry it.

Storage

• Wind the cable around the cable retainer (8) and insert the plug into the plug holder in the middle of the appliance base.
• Store the preserving boiler at a cool and dry location.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Chère cliente, cher client,

SOMMAIRE

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

CONTENU DE L'EMBALLAGE

Close-up of a hand holding a metal valve with a black handle, next to two metallic bolts (no text or symbols visible)

Close-up of hands cleaning a metal bowl with black plastic clips (no text or symbols visible)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

ÍNDICE

Partes suministradas 42

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Close-up of a hand holding a metal valve with a black handle, next to two metallic bolts (no text or symbols visible)

Close-up of hands using pliers to handle a metallic bowl (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

INDICE

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

VOLUME DI CONSEGNA

Close-up of a hand holding a metallic valve with a handle, alongside two small metal components (no text or symbols visible)

Close-up of hands using a tool to adjust or install a metal component (no visible text or symbols)

Four identical illustrations of a laboratory or storage tank with beakers and containers, arranged in a 2x2 grid (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

KLARSTEIN
