USER MANUAL KonfiSta Klarstein

Preserving Machine & Beverage Dispenser

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SICHERHEITSHINWEISE

VORSICHT

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12

Befor first Use 12

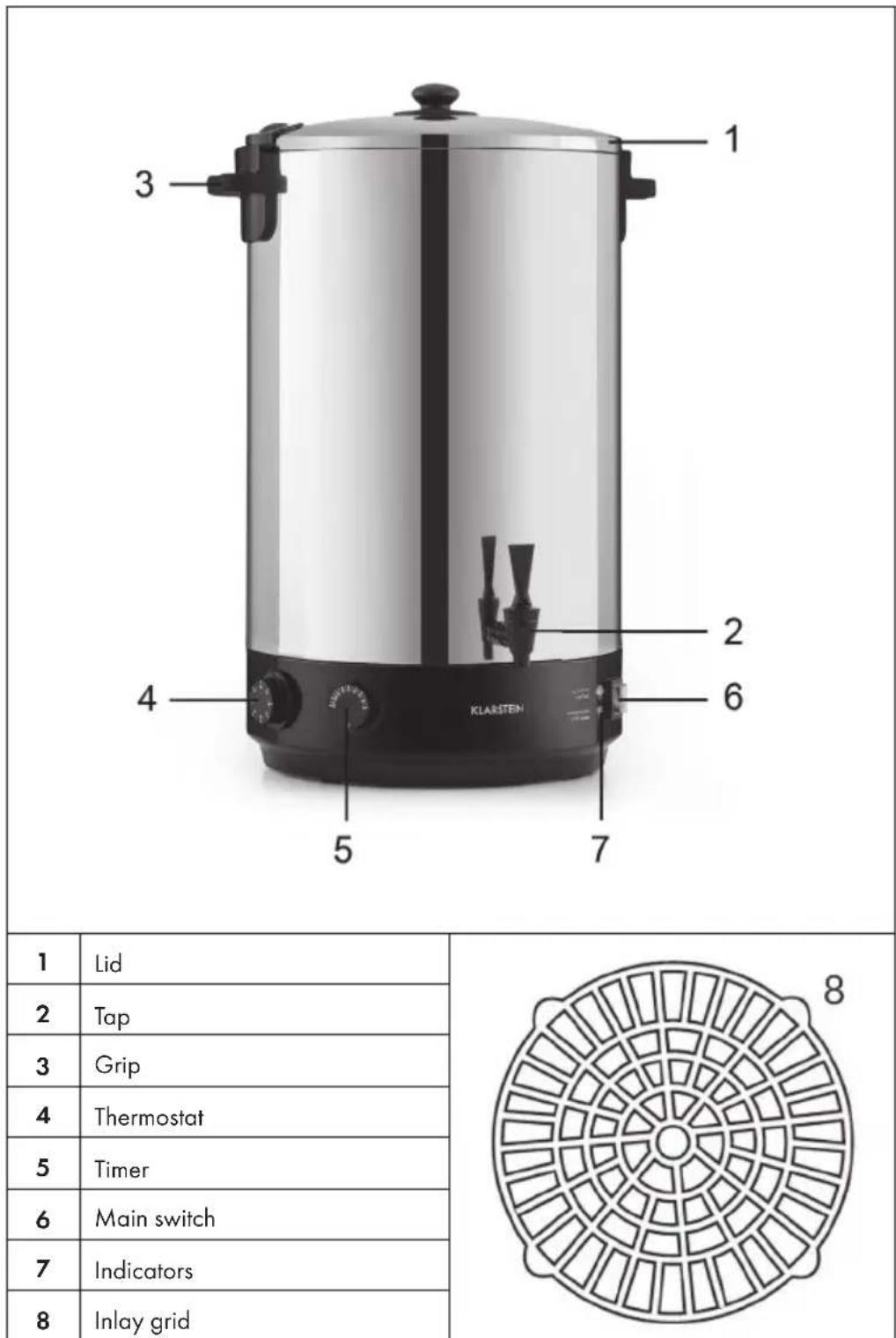

Product Overview 13

Operation 14

Cooking Table 15

Cleaning and Care 16

Hints on Disposal 16

TECHNICAL DATA

Item number 10033524, 10033525, 10033526

Power supply 220-240 V ~ 50 Hz

Adjustable temperature 30-110 °C

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

CAUTION

Risk of burns! The unit becomes hot during use. Only touch the controls and handles so that you do not burn yourself.

• Check the appliance and the power cord regularly for damage. Do not use the unit if the power cord or the appliance is damaged.
• When not in use, turn off the power and unplug the appliance. Allow the appliance to cool completely before cleaning and storing.
• Place the appliance on a stable, level and heat-resistant surface. Allow at least 20~cm of space around the appliance to walls and other equipment.
• Never completely immerse the appliance in water or other liquids, as this may damage the electrical parts.
• Children 8 years of age and older, mentally and physically handicapped persons may only use the device if they have been thoroughly familiarized with its functions and safety precautions by a supervisor responsible for them. Ensure that children do not play with the device. Children over 8 years of age may only clean the device under supervision.
• Do not attempt to repair the appliance yourself. Repairs may only be carried out by qualified specialists.
• Do not move the appliance while it is in operation. Be very careful when moving equipment with hot liquids.
• Do not use any accessories other than those supplied.

Note: To enjoy boiled meat and vegetables safely, always boil these foods twice: The second heating after at least 24 hours. You can find more information about this at: https://www.bzfe.de/inhalt/einkochen-1348.html (Federal Centre for Nutrition)

BEFOR FIRSTUSE

1 Before using the cooker for the first time, boil fresh water to remove dust and production residues. Add 6 litres of water and set the thermostat to MAX.
2 To start the cooker, set the TIMER to 60 minutes. When the time has elapsed, the appliance switches off automatically.
3 Allow the appliance to cool down and remove the water.
4 You can now use the cooker.

OPERATION

The appliance can be used both for boiling food and for heating water and other liquids.

Boiling

1. Place the rack in the cooker.
2. Fill the food into jars and close the jars.

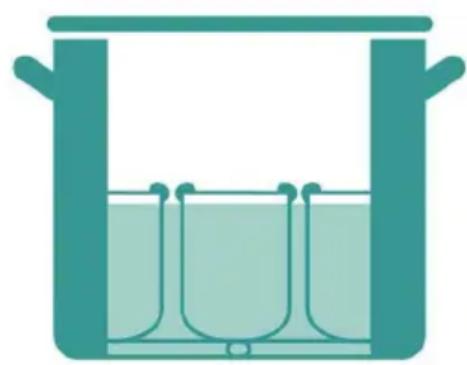

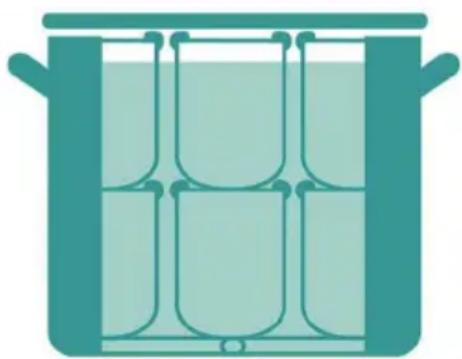

3. Stack the jars on the rack as shown in the illustration.

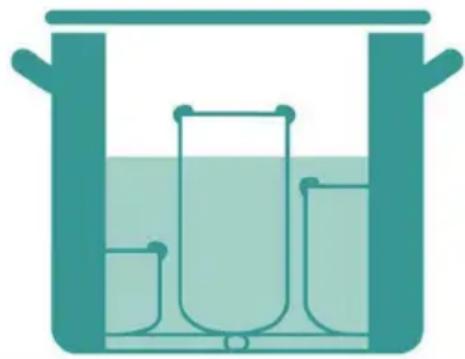

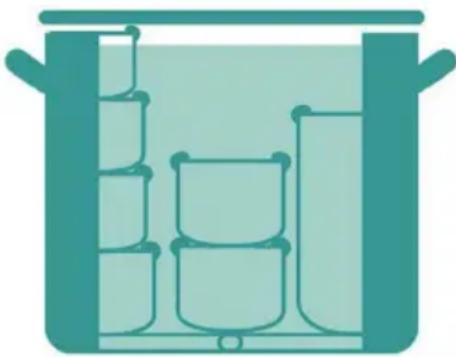

Note: For smaller glasses, more glasses will fit into the device.

1. Fill the cooker with enough water to cover the highest glass of 3/4 with water. Do not exceed the maximum mark.
2. Put on the lid and turn on the main switch (ON). Please note that a timer must be set for the appliance to start heating. Depending on the fill level and target temperature, this can take up to 90 minutes. As soon as the set temperature is reached, the appliance automatically switches from heating mode to warm-keeping mode.

3. Then set the temperature and time according to the cooking table. The time indicated there applies from the point at which the target temperature is reached. The timer does not take into account the lower temperature during the warm-up time due to the design.

4. After the set time has elapsed, the cooker automatically switches off and a signal tone sounds.

5. Turn off the thermostat and set the main switch to OFF before unplugging the appliance.
6. Place the appliance in the sink or tub and drain the water by pressing the tap down. Let the appliance cool down.
7. After the appliance has cooled down, remove the glasses with oven gloves or pliers as they will be hot for a long time. Allow the glasses to cool completely.

COOKING TABLE

Note: This information is recommendations.

Fruit °C Min Vegetables	°C Min
Apples soft / hard 90 30 Asparagus	ragus	100 90
Apple sauce	90	30
Apricots	80	30
Blueberries	90	30
Cherries	80	25
Currants / cranberries	100	30
Mirabelles / greengages	80	30
Peaches	90	25
Pears soft / hard	90	30
Plums / prunes	90	30
Quince	90	30
Raspberries / gooseberries	90	30
Rhubarb	95	25
Strawberries / blackberries	85	25

Note: The preserving jars are hot after boiling. Use pliers or oven gloves to remove the jars. Keep preserves dry, cool and dark.

Beans	100	120
Brussels sprouts / cabbage	100	120
Carrots	100	90
Cauliflower	90	30
Celery	90	30
Kohlrabi	100	90
Mushrooms	100	120
Peas	100	120
Pickled gherkins	100	110
Pumpkin	100	120
Tomatoes / tomato paste	90	30
Meat °C Min
Game / poultry, well-done	100	120
Meat broth	100	60
Meat, well-done	100	75
Minced sausage meat, raw	100	75
Roast meat, well-done	100	110

Heating Liquids

Note: When heating liquids, do not fill the stove more than 5cm below the top edge, otherwise liquid may leak during heating.

1. Add the desired drink or water to the stove.
2. Put on the lid, switch on the appliance and set the desired temperature. When the desired temperature is reached, the stove automatically switches to warm mode.
3. Stir the drink regularly to distribute the heat evenly.
4. If you want to fill the drink, hold a cup under the tap and push the tap down. When the cup is full, release the tap.

Note: Do not use the tap when heating liquids with pieces (fruit punch, soup). Otherwise it may clog.

CLEANING AND CARE

• Allow the unit and the unit to cool down completely before cleaning.
  Always unplug the appliance before cleaning.
• Clean the bottom of the pot with a soft brush or a damp cloth. Never use sharp or hard objects to avoid damaging the surface.
• Wipe the case with a damp, soft cloth. Then wipe with a dry cloth.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
