USER MANUAL IAN 280221 POWERFIX

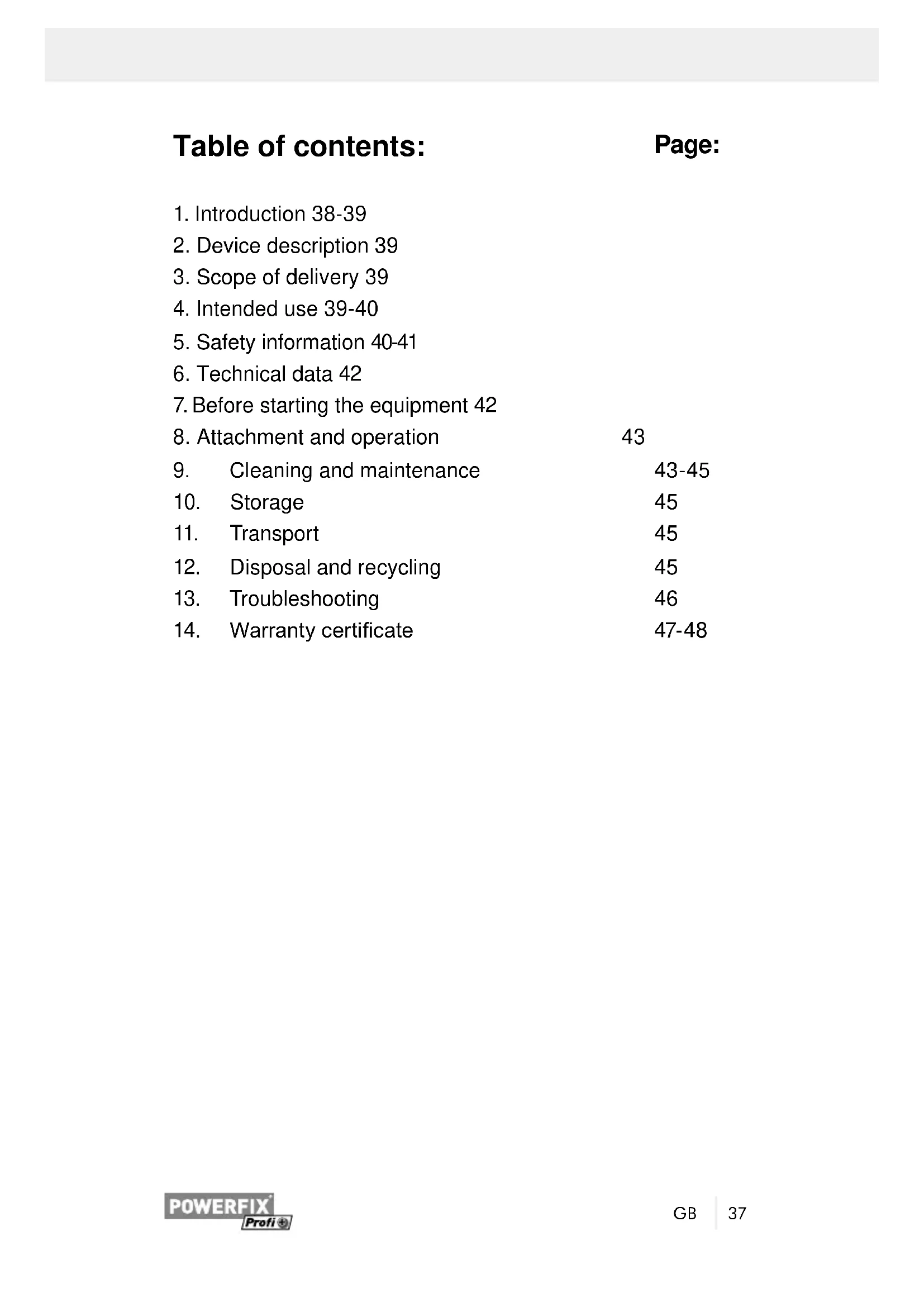

Table of contents: Page:

3. Scope of delivery 39

4. Intended use 39-40

7. Before starting the equipment 42

8. Attachment and operation 43

9. Cleaning and maintenance 43-45

12. Disposal and recycling 45

MANUFACTURER: scheppach Fabrikation von Holzbearbeitungsmaschine GmbH Günzburger Straße 69 D-89335 Ichenhausen DEAR CUSTOMER, we hope your new tool brings you much enjoyment and success. NOTE: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Non-compliance of the operating instructions,

• Repairs by third parties, not by authorized service technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied, m WE RECOMMEND: When using equipment, a few safety precautions must be observed to avoid injuries and damage. Read through the complete text in the operating instructions before install- ing and commissioning the device. If you give the equipment to any other person, give them these operating instructions as well. The operating instructions are intended to help the user to become famil- iar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine. In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions pack- age with the machine at all times and store it in a plastic cover to pro- tect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concern- ing the operation of the machine and who are informed about the asso- ciated dangers. The minimum age requirement must be complied with.39

Besides the safety instructions included in this operating manual and the special instructions of your country, the generally accepted technical rules for chain hoists should be followed for the operation. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

3. Scope of delivery

• Open the packaging and remove the device carefully.

• Remove the packaging material as well as the packaging and transport bracing (if available).

• Check that the delivery is complete.

• Check the device and accessory parts for transport damage.

• If possible, store the packaging until the warranty period has expired. m ATTENTION The device and packaging materials are not toys! Children must not

allowed to play with plastic bags, lm and small parts! There is a risk of swallowing and suffocation! Chain hoist, manual

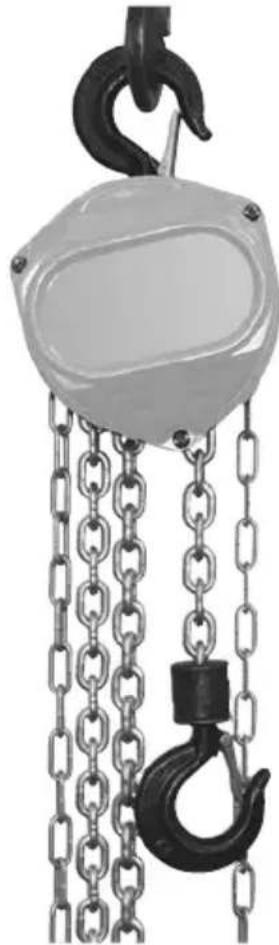

The Chain Hoist is a device for vertical lifting and lowering of loads. The chain hoist is provided for attachments (Attachment point - bottom) at altitudes from 3.0 to 3.5 meters. Outside this height, the hand chain must be shortened / extended accordingly.40

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been designed for use in com- mercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety information

1 The rated load limit must not be exceeded, as overload can damage the chain hoist or reduce the lifting capacity in the future. 2 Do not use electrical appliances to operate the chain hoist. The chain hoist is designed for manual use only. 3 Do not try to repair the load chain. If it is damaged, the load chain should only be replaced by an expert. The load chain must be replaced with a new one of the same welded and hardened steel, in the same size and strength/thickness. 4 The load chain should be greased before use. 5 The brake surfaces must not be greased. The brake must be kept dry 6 Make sure that the load chain has no knots. If there are knots in the load chain, these must be removed before use. 7 Make sure the load chain is hung on the chain pulley before each use. 8 When pulling the hand chain, stand in the same position and angle as the drive wheel. Do not pull at an oblique angle. A secure posture is necessary. 9 Do not lift the load so that it is above any persons. Do not allow any persons to walk underneath the load. If you wish to lift a load, please warn anyone in the surrounding area. 10 Do not lift any persons with the chain hoist. 11 The load must be held rmly in the hook. Try not to lift the load with the point of the load hook. 12 Pull the hand chain evenly, to avoid thrusts or entanglements. 13 If the chain is barred or cannot be pulled further, please stop. Exam- ine and resolve the problem. Do not attempt to use force on the chain hoist. Do not leave the load hanging in the air. 14 Please do not lower the load further than the usable length of the chain. If the chain between the chain wheel and the chain pulley is pulled too taught, this can cause damage. 15 Do not allow the load to come into contact with the chain hoist, other- wise free rotation will be blocked, which could cause damage, knots in the chain or barred wheels. 16 Regular checks and maintenance should be carried out. All damaged or faulty parts must be exchanged by an expert. 17 The chain hoist functioning in both “with load” as well as “without load” modes must be thoroughly and adequately checked.41

18 Make sure the load weight is smaller than the stated weight of the chain hoist. If in doubt, do not use the chain hoist. 19 Never overload the chain hoist. 20 Safety procedures, examinations and greasing should be carried out before and during operation. The chain hoist should only be used if it is in proper working order. 21 Always make sure the chain is vertical and straight, and there are no knots. 22 Never pull the hand chain and the load chain at an oblique angle. 23 Do not use the chain block in an explosive environment or damp rooms. 24 Examine the load chain (1), hand chain (2), fastening hook (3), load hook (4), load pin (5), drive wheel (6), and latch lock (7) for defects, especially after longer periods of standstill. 25 Adjust the hand chain (2) so that the point of chain reversal of the hand chain (2) is at a height of between 500 and 1000 mm above the ground. 26 Pay attention to any defects which may have occurred during use. If there are noticeable problems, immediately stop the chain block from operating. 27 The temperature of the surrounding atmosphere must be between -10°C and +50°C in order to operate.

ADDITIONAL SAFETY INFORMATION

Workplace safety 1 Keep the work area orderly. Disorder in the work area can lead to accidents. 2 Provide adequate lighting at work.. 3 Keep children and other persons away from the work area. Maintain a safe distance from the work area. 4 Secure the work area by means of lockable latches, lockable main switch, etc. against unauthorized access. 5 Wear proper clothing. Wearing loose clothing, gloves, scarves and jew- elry in the work area must be avoided, because they might get stuck in moving parts and can thus lead to serious injury. 6 Wear shoes with non-slip soles. 7 Wear a certied helmet as head protection. Long hair is fully covered under the head cover. 8 Wear safety goggles. 9 Provide a secure attachment of the chain hoist at the mounting point. The load capacity of this compound must be higher than the specied maximum load of the chain hoist. 10 Secure the chain hoist when leaving the work area. m This appliance is not intended for use by persons (including chil- dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.42

Force required at full load Nm

7. Before starting the equipment

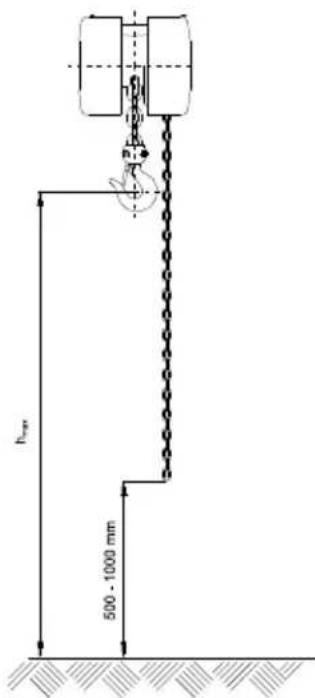

Adjustment of the hand chain The chain hoist is supplied with a hand chain whose length is proportional to the pass of the pulley. In case of normal installation it satises the condition of proper adjustment of the chain end. In cases in which the length of hand chain does not appeal the prescribed conditions, it is necessary to shorten or lengthen the chain. m Modikation of the machine only by a special- ist workshop. 1 Before you lift a load with the chain hoist, you should make yourself familiar with the “without load” function of the chain hoist. 2 Brake control system Test the brakes as follows:

• Lift and lower the load to various heights

• Check whether load holding in any position is ensured43

8. Attachment and operation

1 Make sure the chain hoist is securely fastened. Be careful when choos- ing fastening points. These points must be able to carry double the load. If you are unsure as to whether the chosen point is the right one, please choose a different one. 2 The chain hoist should be fastened so that it cannot change its posi- tion during operation. 3 The latch locks which are attached to the fastening hook and the load hook must always be closed during operation. 4 The maximum height of the anchor point must not be higher than 3.5

Lifting the load (Fig. 5) On the front side of the chain block there is an engraved arrow pointing upwards, labelled “U”. Pull the hand chain (2) on this side of the chain block in order to lift the load. (Fig. 5/B) Lowering the load (Fig. 5) On the front side of the chain block there is an engraved arrow pointing downwards, labelled “D”. Pull the hand chain (2) on this side of the chain block in order to lower the load. (Fig. 5/A) m Attention The braking system can become dangerously hot in exceptional cases (continuous and fast lowering). In these cases it is necessary to lower the load slowly and intermittently.

9. Cleaning and maintenance

• In order to achieve the longest possible operating efciency and reliability of the chain hoist, remove dirt regularly from your chain hoist, grease the relevant parts thoroughly after use and store the hoist in a dry place.

• Do not carry out any technical alterations or repairs to the chain hoist; have these carried out by an expert instead.

• The chain hoist must be regularly examined for damage.

• The working order of the chain hoist is to be checked regularly. Perform any servicing work after using and before storing the equip- ment: Clean the chain block thoroughly. Lubricate the chain block properly at all times. Lubricate the load hook chain and joint with oil. Special attention must be paid to servicing when installing the chain block outdoors.44

Adjusting the Brake (Fig. 6 - 7): m Attention: All settings and servicing at brake system let carried out only by trained specialist personnel!

• Remove the housing cover by loosening the 3 screws on the back of the unit

• Remove the safety splint (Fig. 6/E)

• Fix the wheel for guiding the chain (Fig. 7 / D) by hand

• Now turn the adjusting screw (Fig. 6 / C Fig. 7) in the desired direction m Note: The wheel for guiding the chain (Fig. 7 / D) must be able to rotate counterclockwise and clockwise. Do not tighten the adjusting screw (Fig. 6 / C) to strongly.

• Rotating the wrench (Fig. 7 / K) in a clockwise direction increases the braking effect.

• Turn the wrench (Fig. 7 / K) anti-clockwise to reduce the braking effect.

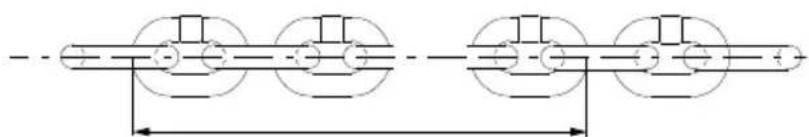

• Insert the safety splint back on and secure it by prying.. m Note: If the braking effect is losing return the unit to a specialist workshop for inspection. Let‘s check the thickness of the brake discs at regular intervals by a specialist workshop. Load chain The chain life is sufciently dimensioned. Nevertheless, the life is shortened due to external inuences. If a length of 21 chain links 400 mm is exceeded, the chain must necessarily be replaced. Length of 21 chain links45

Load hook The load hook gets deformed when handled unprofessionally or when overloaded. The load hook must immediately be replaced if the g dimension reaches the limit value of 26 mm. Safety will not be guaranteed if the above-mentioned provision is not provided. m Failure to observe the safety is no longer guaranteed. G-NEW = 23 mm ±5% G-Min. = 22 mm G-Max. = 24 mm G-Replacement necessary = 26 mm

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30˚C.

Transport the device in a suitable container. Pay attention to the security of all chain parts.

12. Disposal and recycling

The equipment is supplied in packaging to prevent it from being dam- aged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.46

Fault Cause Corrective action Load cannot be raised Load too heavy Brake system defective Customer service / service centre Repairs Use only accessories and spare parts recommended by the manufacturer. If the device fails in spite of our quality control and your maintenance, carry out repairs only with the help of an authorised and qualied mechanic. Waste disposal When disposing of the machine, the local statutory provisions must be followed.47

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed be- low. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not af- fect your statutory warranty rights. We do not charge you for this guaran- tee.

• Our guarantee only covers problems caused by material or manufac- turing defects, and it is restricted to the rectication of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Conse- quently, the guarantee is invalidated if the equipment is used in commer- cial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for trans- port damage, damage caused by failure to comply with the installation/ assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accesso- ries), failure to comply with the maintenance and safety regulations, in- gress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external inuences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. The guarantee is rendered null and void if any attempt is made to tamper with the device.

• The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work per- formed or parts tted will not result in an extension of the guarantee pe- riod, and no new guarantee will become active for the work performed or parts tted. This also applies when an on-site service is used.48

• In order to assert your guarantee claim, please send your defective de- vice postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of pur- chase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device. Of course, we are also happy offer a chargeable repair service for any de- fects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.495051
