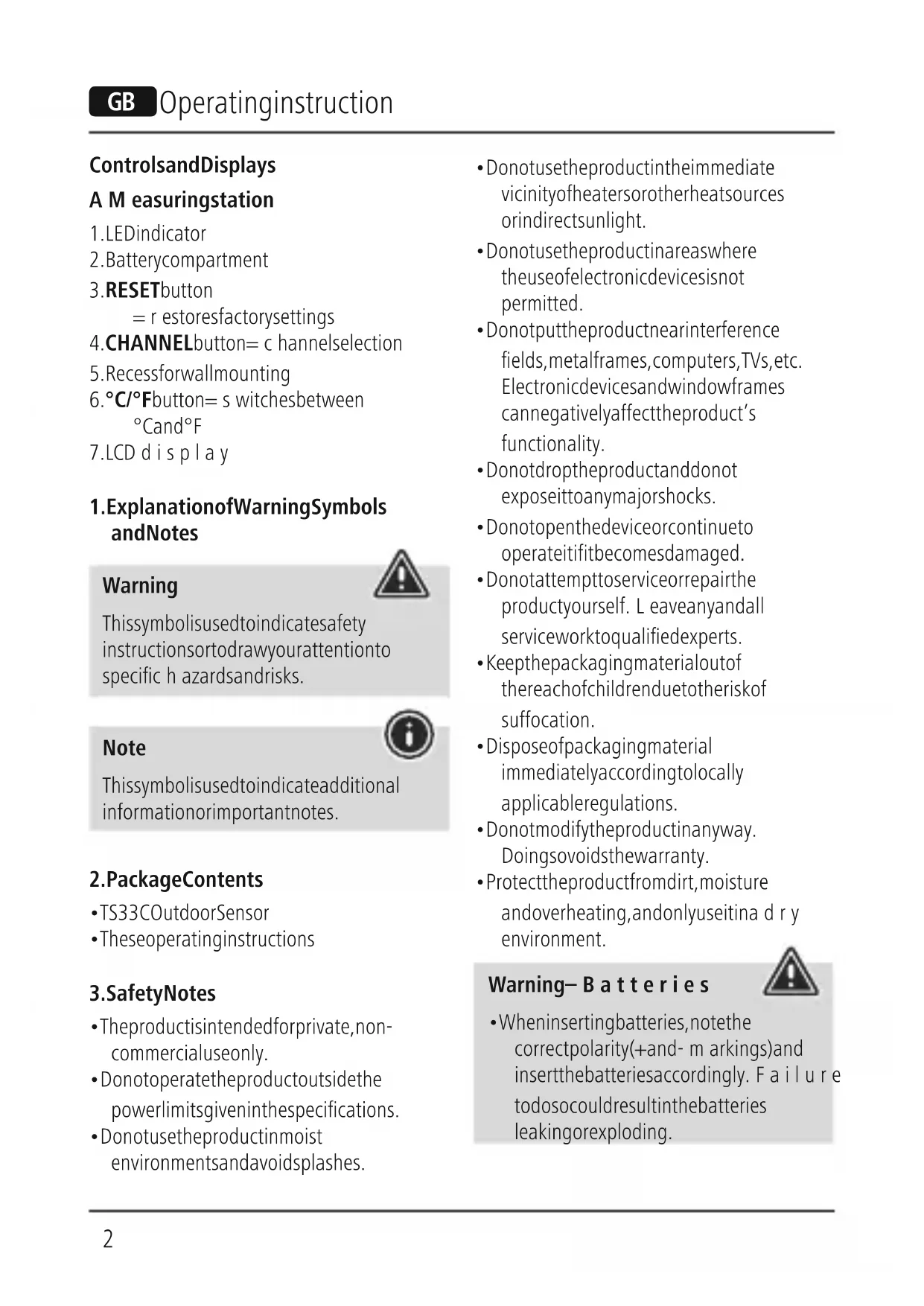

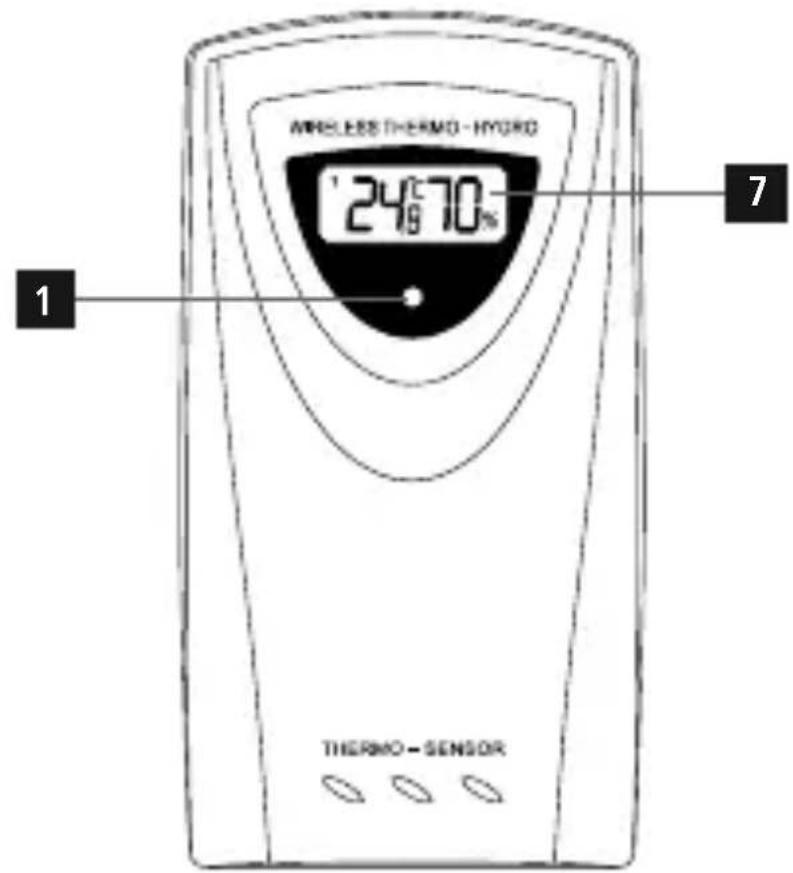

G Operating instruction Controls and Displays AMeasuring station

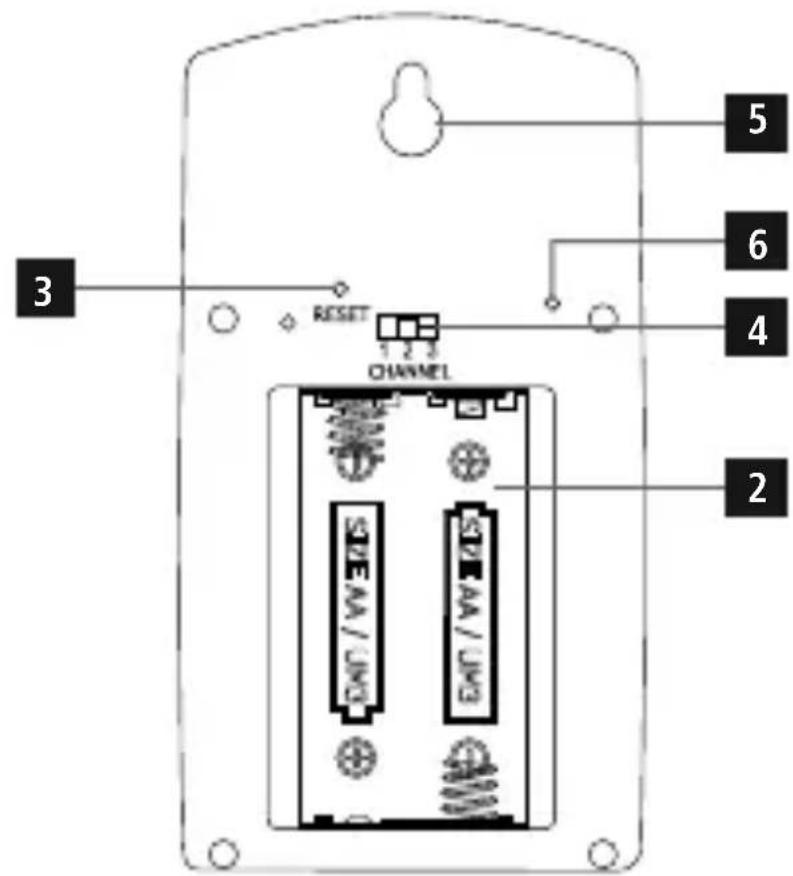

2. Battery compartment

=restores factory settings

4. CHANNEL button =channel selection

5. Recess for wall mounting

6. °C/°F button =switches between

1. Explanation of Warning Symbols

and Notes Warning This symbol is used to indicate safety instructions or to draw your attention to specichazards and risks. Note This symbol is used to indicate additional information or important notes.

• TS33C Outdoor Sensor

• These operating instructions

• The product is intended for private, non- commercial use only.

• Do not operate the product outside the power limits given in the specications.

• Do not use the product in moist environments and avoid splashes.

• Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.

• Do not use the product in areas where the use of electronic devices is not permitted.

• Do not put the product near interference elds, metal frames, computers, TVs, etc. Electronic devices and window frames can negatively affect the product’s functionality.

• Do not drop the product and do not expose it to any major shocks.

• Do not open the device or continue to operate it if it becomes damaged.

• Do not attempt to service or repair the product yourself.Leave any and all service work to qualied experts.

• Keep the packaging material out of the reach of children due to the risk of suffocation.

• Dispose of packaging material immediately according to locally applicable regulations.

• Do not modify the product in any way. Doing so voids the warranty.

• Protect the product from dirt, moisture and overheating, and only use it in adry environment. Warning –Batteries

• When inserting batteries, note the correct polarity (+ and -markings) and insert the batteries accordingly.Failure to do so could result in the batteries leaking or exploding.3 Warning –Batteries

• Only use batteries (or rechargeable batteries) that match the specied type.

• Beforeyou insert the batteries, clean the battery contacts and the polar contacts.

• Do not allow children to change batteries without supervision.

• Do not mix old and new batteries or batteries of adifferent type or make.

• Remove the batteries from products that arenot being used for an extended period (unless these are being kept ready for an emergency).

• Do not short-circuit batteries.

• Do not charge batteries.

• Do not throw batteries in a re.

• Keep batteries out of the reach of children.

• Never open, damage or swallow batteries or allow them to enter the environment. They can contain toxic, environmentally harmful heavy metals.

• Immediately remove and dispose of dead batteries from the product.

• Avoid storing, charging or using the device in extreme temperatures and extremely low atmospheric pressure (for example, at high altitudes).

Inserting the battery

• Open the battery compartment (2), insert the batteries with the correct polarity and close the battery compartment (2). The outdoor sensor is now ready for operation. Replacing the batteries

• Open the battery compartment (2), remove and properly dispose of the dead batteries and insert two new AA batteries with the correct polarity.Then close the battery compartment cover. Note Beforeuse, make surethat you insert the batteries in the measuring station rst and then in the base station.

• We recommend initially placing the base and measuring stations in the intended locations without installing them and making all the settings described in 6. Operation.

• Only installthe stations once the appropriate settings have been made and astable wireless connection is established.

• Do not mount the product above locations wherepersons might linger.4 Note

• The wireless transmission range between the measuring and base stations is up to 30 metres in open spaces. Beforeinstallation, ensure that wireless transmission will not be disrupted by interference or obstacles like buildings, trees, vehicles, high- voltage lines, etc.

• Beforethe nal installation, ensure that thereissucient reception between the intended installation locations.

• When installing the measuring station, ensurethat it is protected from direct sunlight and rain.

• The international standardheight for measuring air temperatureis1.25 m (4 ft) above ground. Warning

• Buy special or suitable installation material from aspecialised dealer for wall-mounting.

• Ensurethat no faulty or damaged parts areinstalled.

• Never apply force during installation. This could damage the product.

• Beforeinstallation, ensurethat the chosen wall is suitable for the weight to be installation, and make surethat thereare no electrical wires, water, gas or other lines in the wall at the installation site.

• Youcan position the measuring station on alevel outdoor surface using the base.

• We recommend installing the measuring station securely on an outdoor wall.

• Install an anchor,screw,nail, etc. in the wall of your choice.

• Hang the measuring station using the opening intended for this purpose (5).

• After opening the battery compartment, rst choose the channel using the CHANNEL button.

• Only then, insert the batteries into the battery compartment with the correct polarity.

• Press the RESET button.

• Then replace the battery compartment on the outdoor sensor. 6.2. Connection to the measuring station

• To connect the measuring station and the outdoor sensor,place the two devices as close together as possible.

• After you insert the batteries, the base station automatically searches for a connection to the measuring station and performs initial setup.

• If the device does not connect automatically,the manual search program on the base station must be started. Note

• Initial setup takes approx. 2minutes.5 Note

• During the connection attempt, the measuring station radio symbol (1) will ash.

• Do not press any buttons during setup. Otherwise, values may not be transmitted correctly and thereisarisk of value errors and inaccuracies.

• The setup process is completed when the indoor and outdoor measurement data is displayed on the base station.

• The measured value is automatically updated by the base device about every 45 seconds.

• If the temperatureisoutside of the measuring range, LL.L (lower than minimum temperature) or HH.H (higher than maximum temperature) will appear on the temperaturedisplay. 6.3. Selecting the channel/Other measuring stations Note

• Ensurethat the base and measuring stations areset to the same channel. Visit www.hama.com for suitable measuring stations.

• The transmission channel on the supplied measuring station can be changed/set (CH1, CH2, CH3). 6.4. Low battery charge Measuring station If the batteries need to be replaced, the symbol for low battery charge will appear next to the outdoor temperature display on the base device. Replace the batteries immediately. Note –Replacing the batteries

• Note that the stations have to be resynchronised each time after you change the batteries in the measuring or base station.

• To do this, remove the batteries from the other station and then reinsert them, or change them as required. 6.5. Reset Press the RESET button (3) to restart the station. The measuring station returns to the factory settings.
