USER MANUAL Freestyle Flex MEDELA

Electric breast pump Instructions for use

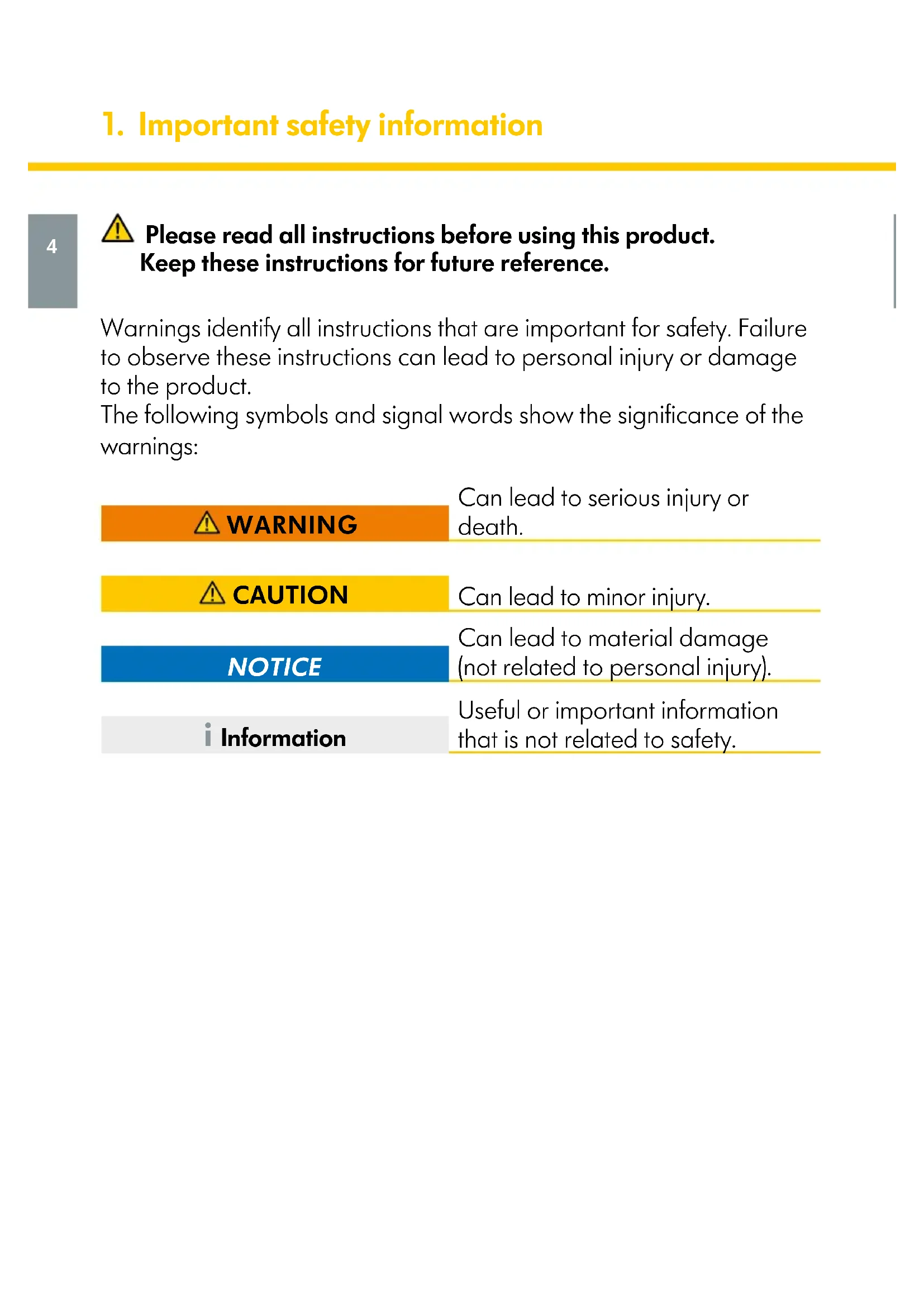

Please read all instructions before using this product. Keep these instructions for future reference.

Warnings identify all instructions that are important for safety. Failure to observe these instructions can lead to personal injury or damage to the product.

The following symbols and signal words show the significance of the warnings:

WARNING

Can lead to serious injury or death.

CAUTION

Can lead to minor injury.

NOTICE

Can lead to material damage (not related to personal injury).

nformation

Useful or important information that is not related to safety.

When using electrical products, especially when children are present, basic safety precautions must always be followed.

WARNING

To avoid fire, electric shock, or serious burns:

• The breast pump should never be left unattended when plugged into a power source.
• Never operate an electrical device if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. If damage is found, immediately discontinue use of power adapter and call Medela Customer Service.

• Do not use an electrical product that has been exposed to water or other liquids including:

• Do not use while bathing or showering.

• Never place or drop into water or other liquids.
• Do not run water over the breast pump.
• If an electrical product has been exposed to water or other liquids, do not touch, unplug the device from electrical outlet, turn off and contact the manufacturer.

WARNING

To avoid health risks and reduce the risk of severe injury:

• Do not use the Freestyle Flex breast pump while operating a moving vehicle.
• Pumping can induce labour. Do not pump until after giving birth. If you become pregnant while breastfeeding or breast pumping, consult with a licensed healthcare professional before continuing.
• If infected with Hepatitis B, Hepatitis C, or Human Immunodeficiency Virus (HIV), pumping breast milk will not reduce or remove the risk of transmitting the virus to your baby through your breast milk.
• Wash all parts that come into contact with your breast and breast milk after every use.
• Close supervision is necessary when the breast pump or accessories are used in the vicinity of children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Applicable for countries in the European Union:

• This device may be used by children eight years old and above and by people with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed in the safe use of the device and understand the resulting hazards.
• Cleaning and maintenance must not be performed by children without supervision.

CAUTION

To avoid fire or burns:

• Make sure the voltage of the power adapter is compatible with the power source. See chapter 19 for technical specifications.
• Always unplug electrical products immediately after use except for when charging.
• Do not place or store the product where it can fall or be pulled into a tub or sink.
• The breast pump and accessories are not heat-resistant. Keep away from heated surfaces or open flames.
• Do not use near flammable materials.

CAUTION

To avoid health risks and reduce the risk of injury:

• This is a single-user product. Use by more than one person may present a health risk and voids the warranty.
• This product cannot be serviced or repaired. Do not repair yourself. Do not modify the device.
• Never use a damaged device. Replace defective or worn parts.
• Use the breast pump only for its intended purpose as described in these instruction for use.
• Do not use the breast pump while sleeping or overly drowsy.
• If tubing becomes mouldy, discontinue use and replace tubing.
• Do not microwave or boil breast milk. Microwaving can cause severe burns to baby's mouth from hot spots that develop in the milk during microwaving (Microwaving can also change the composition of breast milk).

CAUTION

To avoid health risks and reduce the risk of injury:
- Clean and sanitise all parts that come into contact with your breast and breast milk prior to first use.
- Only use Medela recommended parts with your Freestyle Flex breast pump.
- If pumping is uncomfortable or causing pain, turn the unit off, break the seal between the breast and the breast shield with your finger and remove the breast shield from your breast.
- While some discomfort may be felt when first using a breast pump, using a breast pump should not cause pain. If you are unsure about correct breast shield sizing please visit www.medela.com or see a lactation consultant/breastfeeding specialist who can help you get a proper fit.
- Contact your healthcare professional or breastfeeding specialist if you can express only minimal or no milk or if expression is painful. See chapter 6 for more information.

NOTICE

Take appropriate care in handling bottles and components:

• Plastic bottles and parts become brittle when frozen and may break when dropped.
• Bottles and parts may become damaged if mishandled (e.g., dropped, over-tightened, or knocked over).

• Do not use the breast milk from bottles or components that show signs of damage.

• Important safety information 4

• Intended purpose 11
• Product description 11

3.1 Description of the Freestyle Flex breast pump 11
3.2 Your breast pump system includes 12

1. Getting started 14

4.1 First steps 14
4.2 Powering your breast pump 14

1. Cleaning 15

5.1 Cleaning overview 16
5.2 Disassembling 17
5.3 Washing 18
5.4 Sanitising 19
5.5 Cleaning the motor unit 20
5.6 Cleaning the tubing 21

1. Breast shield sizing 22

6.1 Selecting the correct Medela breast shield size 22
6.2 Optimising the breast shield size 23

1. Assembling your breast pump

7.1Assembling the pump set 24

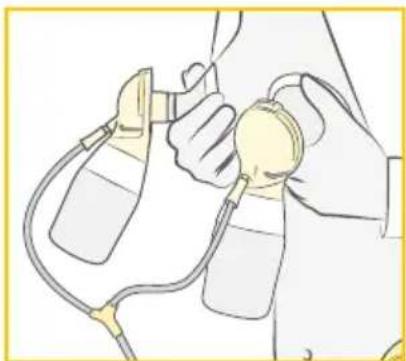

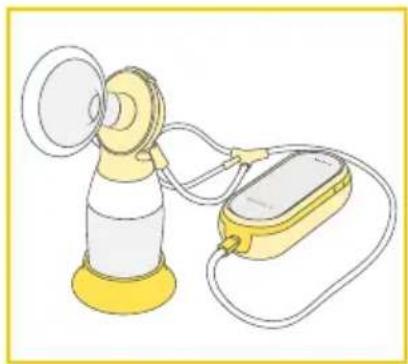

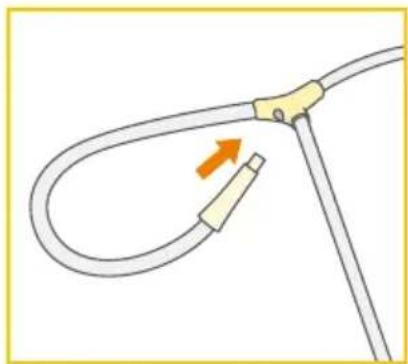

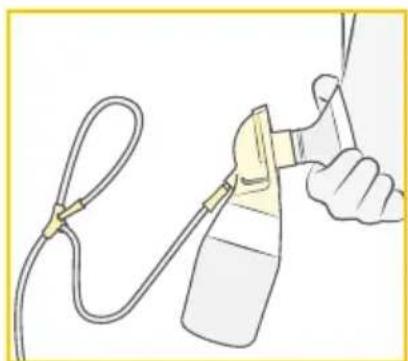

7.2 Preparing for single pumping 26
7.3 Preparing for double pumping 27

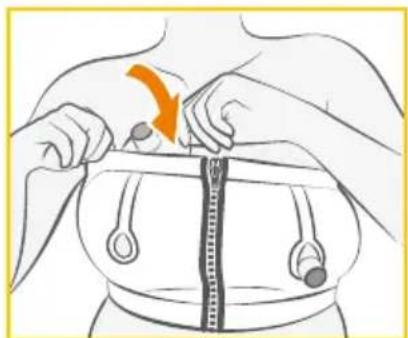

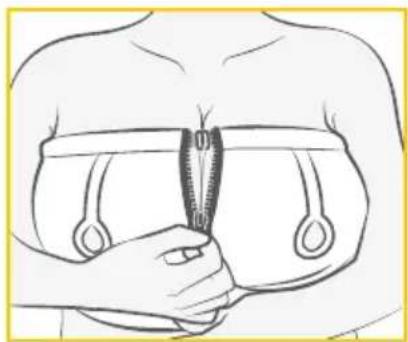

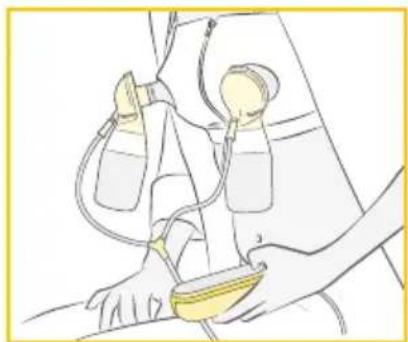

7.4 Hands-free expression with the Easy Expression Bustier 28

1. Operating your breast pump

8.1 Terms and designations 29

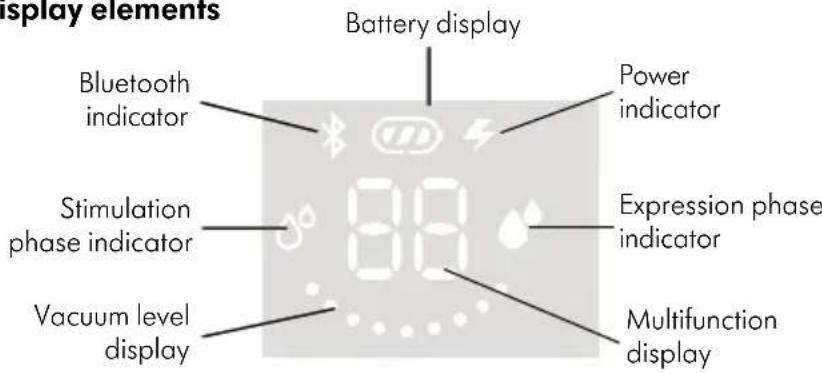

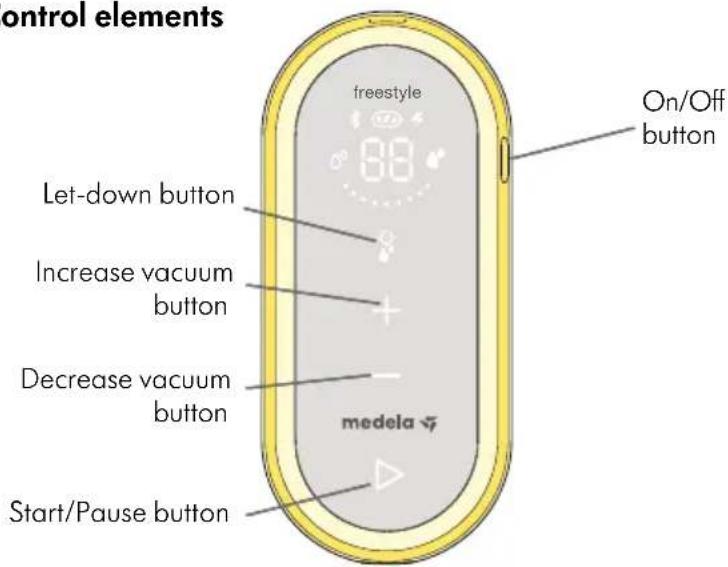

8.2 Operating and display elements 29
8.3Charging the battery 31
8.4 Expressing your breast milk 32

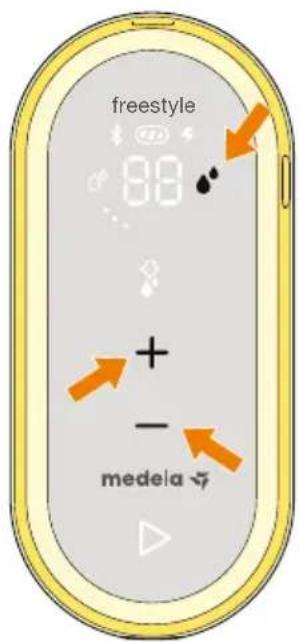

1. Finding your maximum comfort vacuum
2. Special features

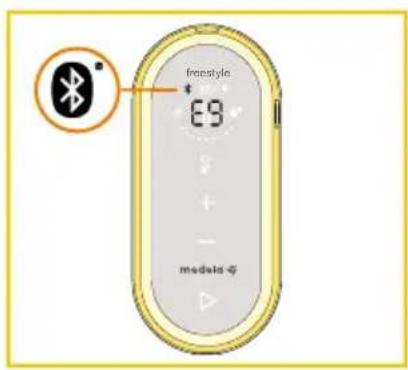

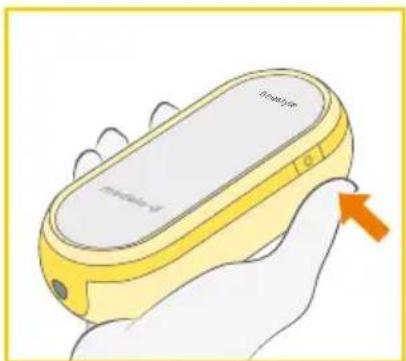

10.1 Bluetooth connectivity 36

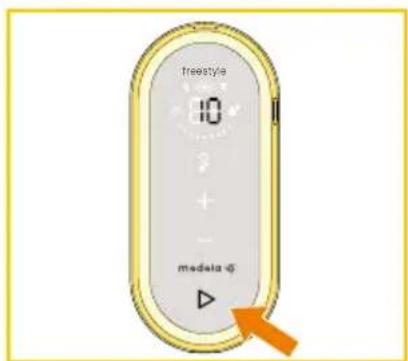

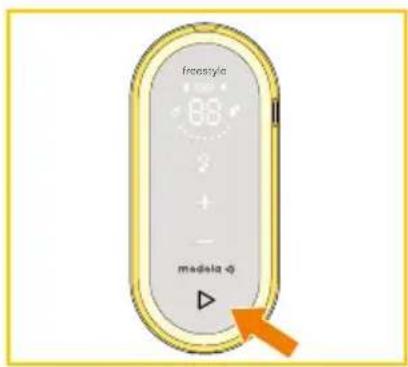

10.2 Delayed start 38

11. Storing and thawing breast milk 39

11.1 General storage guidelines 39
11.2 Storing breast milk in a Medela cooler bag 39
11.3 Freezing 40
11.4 Thawing 40
11.5 Feeding breast milk 40

12. Maintenance and care 41

12.1 Power adapter care 41
12.2 Battery maintenance 41
12.3 Long-term storage 42

13.Troubleshooting 43

14. Ordering information 45

15.Warranty 46
16. Disposal 46
17. Meaning of symbols 47

18. International regulations 50

18.1 Electromagnetic compatibility (EMC) 50
18.2 Drinking equipment 50

19. Technical specifications 51

2. Intended purpose

The Freestyle Flex breast pump is a powered breast pump to be used by lactating women to express and collect milk from their breasts. The Freestyle Flex breast pump is intended for a single user.

3. Product description

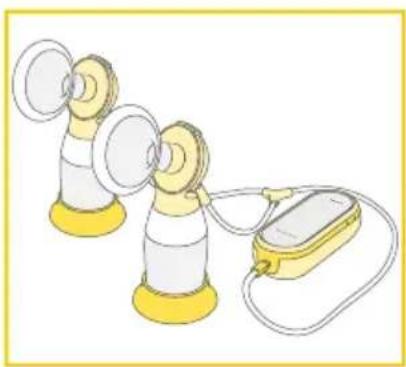

3.1 Description of the Freestyle Flex breast pump

The Freestyle Flex is a personal-use electric breast pump that includes 2-Phase Expression technology and is capable of single and double pumping.

The operating life of the Freestyle Flex breast pump is 250 hours.

12

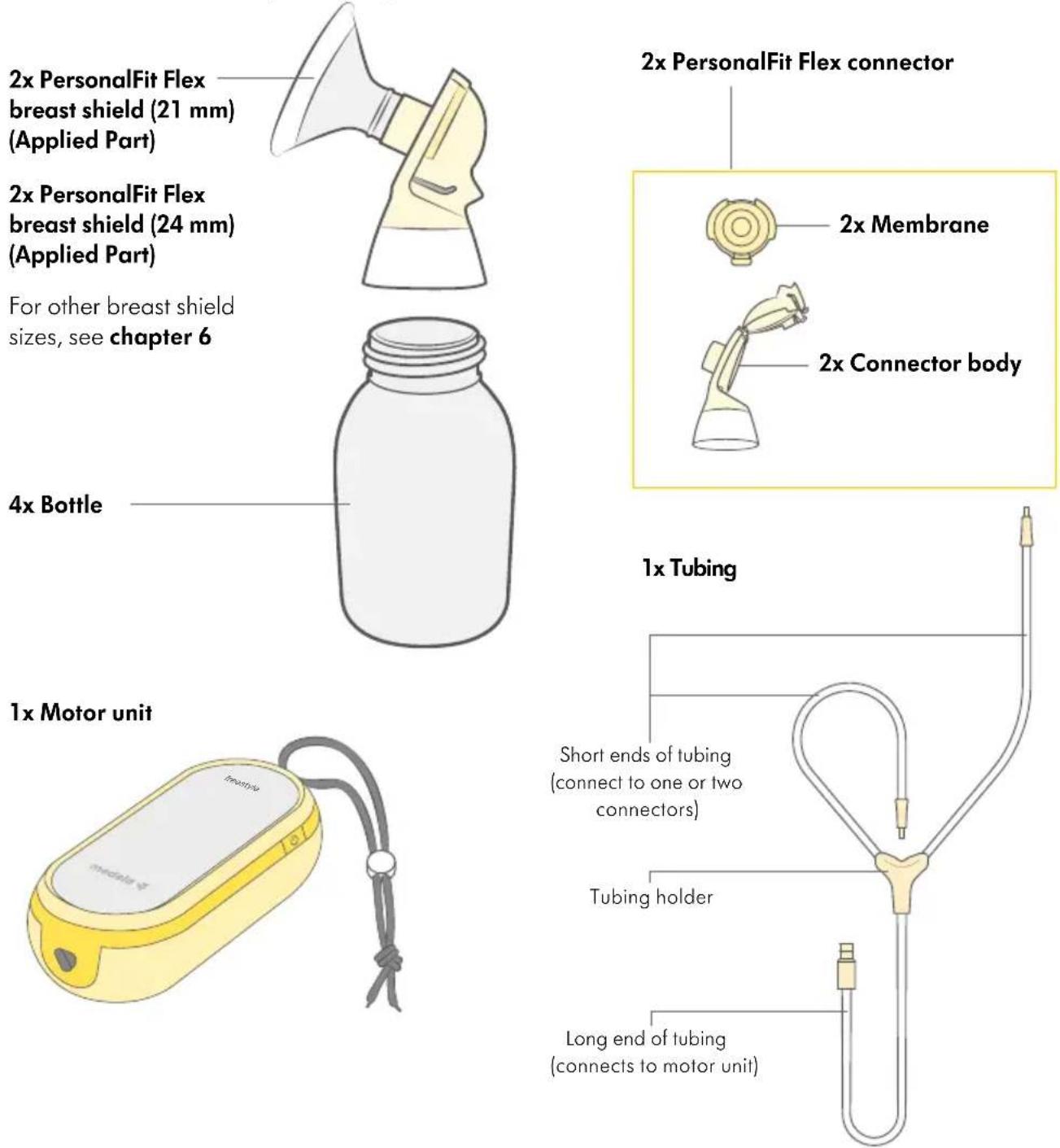

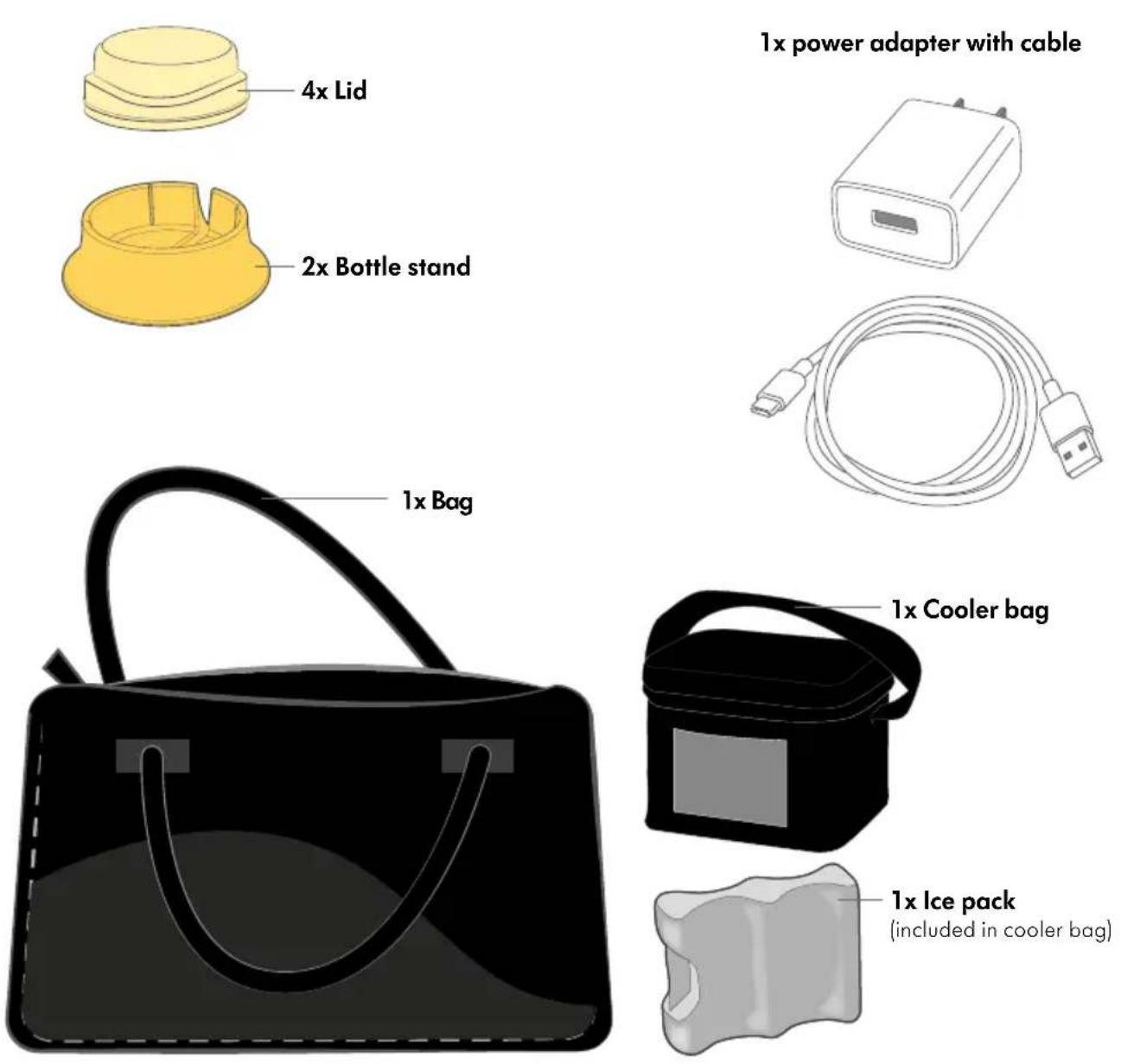

3.2 Your breast pump system includes

For ordering information about accessories see chapter 14.

For ordering information about accessories see chapter 14.

All pictures shown in these instructions are for illustration purpose only. The actual product may vary due to local differences or product enhancement.

Medela reserves the right to substitute any component or accessory with a replacement of equivalent performance.

14

4.1 First steps

To be ready for expressing milk do the following before using your breast pump for the first time:

1. Charge the battery of your Freestyle Flex breast pump for two hours - see section 8.3.
2. Separate all parts that are exposed to the breast or breast milk prior to cleaning - see section 5.2.
3. Clean and sanitise the parts - see section 5.3 and 5.4.

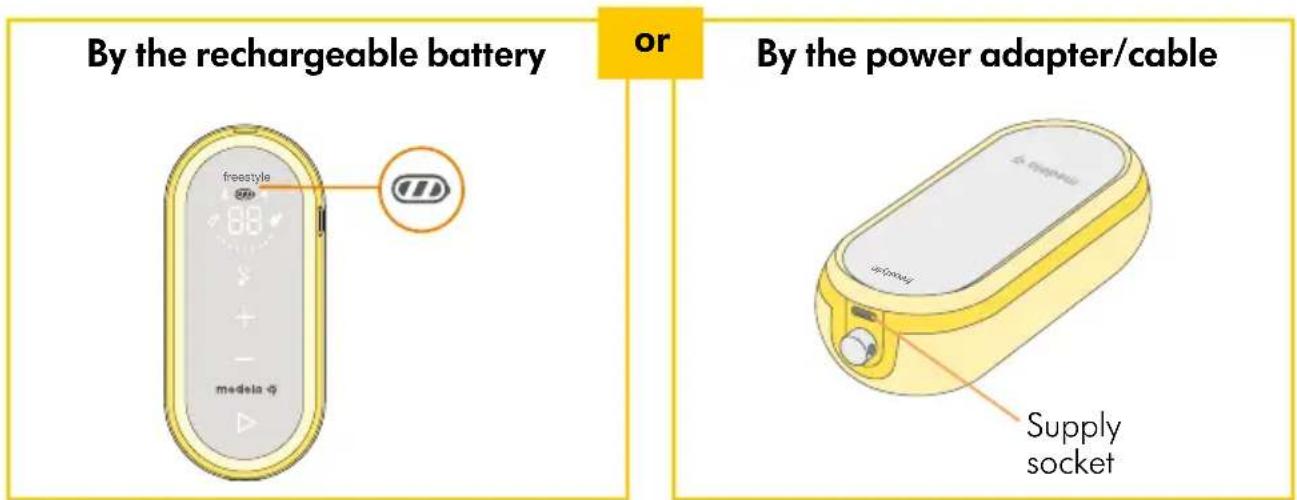

4.2 Powering your breast pump

There are two ways to power your breast pump for your pumping session:

Before first time use, charge the breast pump battery for two hours with the power adapter.

The battery display shows all three bars when charging is complete.

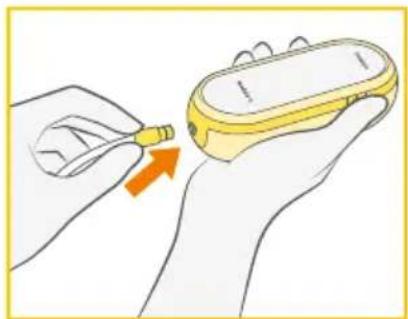

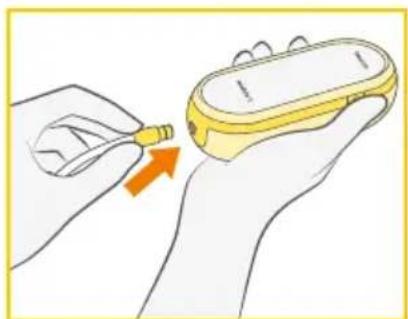

Plug the power cable into the supply socket on top of the motor unit.

For details on the battery display see section 8.2.

For details on powering your breast pump/ charging the battery see section 8.3.

Supplies needed:

• Mild washing-up liquid
• Clean soft brush
• Clean wash basin
• Drinking-quality water
• Clean pot for boiling water

Parts to wash or sanitise:

Breast shields
Breast milk bottles
Lids
- Connectors
- Membranes

CAUTION

Separate and wash all parts that are exposed to breast milk immediately after use. This will help to remove breast milk residue and prevent growth of bacteria.

• Wash hands thoroughly with soap and water.
• Only use drinking-quality tap water or bottled water for cleaning.
• Do not place pump parts directly in the sink to rinse or wash. Use a clean wash basin used only for infant feeding items.
• Do not use a dish towel to rub or pat items dry.
• Do not use disinfectants for cleaning.

NOTICE

To prevent damage to the tubing.

• Do not clean the tubing as described here or with Quick Clean bags in the microwave.

Follow the instructions in section 5.6.

NOTICE

Pay attention to the following:

• Take care not to damage parts of the breast pump set during cleaning.
• Store the dried breast pump set in a clean bag/container until next use.
• Do not store wet or damp parts as mould may develop.
• If you notice a white residue on your breast pump parts after boiling, your water may have a high mineral content. Remove residue by wiping parts with a clean towel and allow to air dry.
• Distilled water is recommended when boiling parts to prevent substantial mineral build-up over time, which may compromise your parts.

5.1 Cleaning overview

Washing and sanitising are two different activities. They must be done separately to protect you and your baby, and to maintain the performance of your breast pump.

Wash - To clean the surfaces of the parts by physically removing contamination.

Sanitise - To kill microorganisms, such as fungi, bacteria or viruses, that may be present on the surfaces of the parts.

When to clean	Breast shields	Connectors and membranes	Bottles & lids
Before first use	Disassemble the parts according to section 5.2 Wash the parts according to section 5.3 Sanitise the parts according to section 5.4
After each use	Disassemble the parts according to section 5.2 Wash the parts according to section 5.3
Once per day	Disassemble the parts according to section 5.2 Sanitise the parts according to section 5.4
When to clean	Tubing Motor unit
As needed	Normally, cleaning of the tubing is not necessary. Refer to section 5.6.	Wipe with clean, damp towel. Refer to section 5.5.

5.2 Disassembling

Before first use

Remove and dispose of the protective cover* from the breast shield.

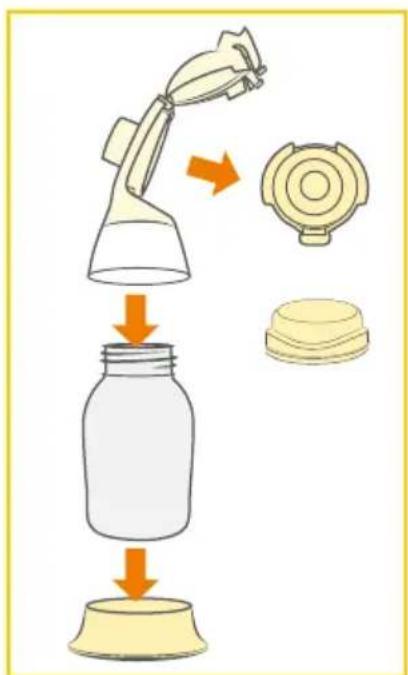

After each use

Disassemble the pump set into its individual parts (breast shield, connector and milk bottle) as follows:

1. Remove the breast shield from the connector.

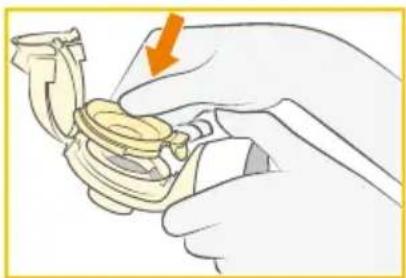

1. Open the back cap of the connector by squeezing both flaps and swivelling the cap upwards.

1. Remove the membrane from the connector body.
2. Separate the milk bottles, lids and bottle stands.

18

5.3 Washing

Washing is important for hygiene and serves to clean the surfaces of the parts by physically removing contamination. Wash the parts either by hand or in a dishwasher.

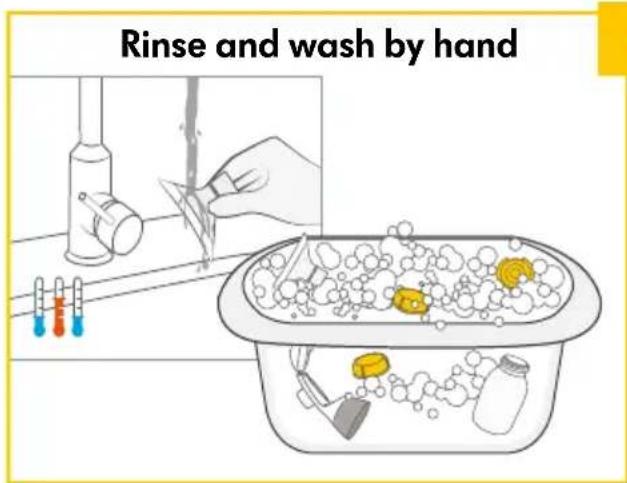

Before first use and after each use

or

Wash in dishwasher

Do not place the parts directly in the kitchen sink for rinsing and washing. Use a dedicated wash basin for infant feeding items.

1. Rinse the disassembled parts, except for the tubing, with cold, clear drinking-quality water (approx. 20^ ).
2. Clean these parts with plenty of warm, soapy water (approx. 30^ ). Use a commercially available washing-up liquid, preferably without artificial fragrances and colouring (pH neutral).
3. Rinse the parts with cold, clear drinking-quality water for 10 to 15 seconds (approx. 20^ ).

4. Allow to dry after washing.

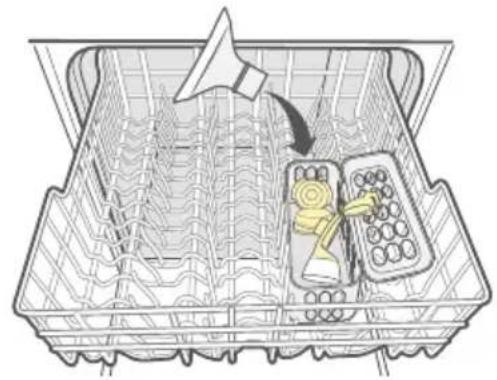

5. Place the disassembled parts, except for the tubing, on the top rack or in the cutlery section. Use a commercially available dishwashing detergent.

6. Allow to dry after washing.

Information

If using the dishwasher, parts may become discoloured. This will not impact the part function.

Do not routinely wash the tubing.

See section 5.6 for more details.

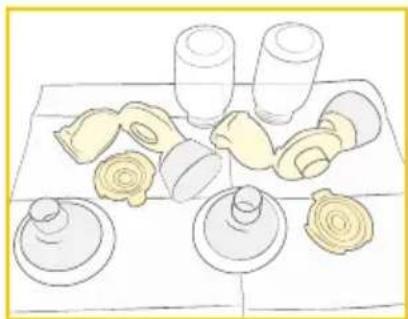

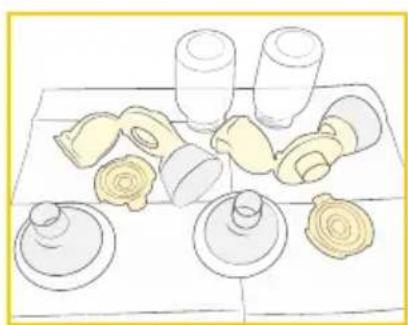

Drying

Allow to air-dry on a clean, unused dish towel or paper towel.

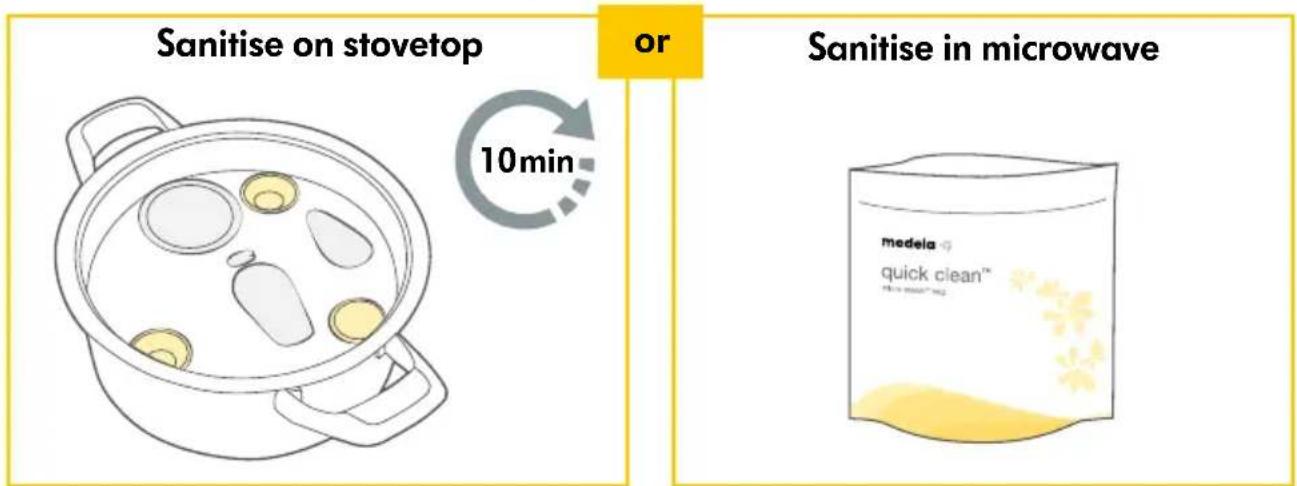

5.4 Sanitising

Sanitising is important for hygiene and serves to kill living organisms, such as bacteria or viruses. Boil the parts either on the stovetop or use Quick Clean microwave bags.

Before first use and once per day

1. Cover the disassembled parts, except for the tubing, with water and boil at least for 10 minutes.

2. Allow to dry after sanitising.

3. Use Quick Clean* bags in the microwave in accordance with the instructions on the bags.

4. Allow to dry after sanitising.

5. Refer to local website/shops for availability in your country.

Drying

1. Allow to air-dry on a clean, unused dish towel or paper towel.
2. Put the clean and dry parts in a clean storage bag or a clean environment. Do not store parts in an airtight container/bag if moist. It is important that all residual moisture dries.

20

5.5 Cleaning the motor unit

Supplies needed:

• Drinking-quality water
• Mild washing-up liquid
• Clean dish or paper towel

Parts needed:

• Motor unit

CAUTION

• Unplug the breast pump before cleaning the motor unit.
• Do not immerse the motor unit in water; do not run water over the motor unit.

NOTICE

• Do not spray or pour liquid directly onto the pump.
• When cleaning the motor unit display, only use a damp, soft towel with mild washing-up liquid. Other cleaners or abrasive clothes may degrade the display performance.

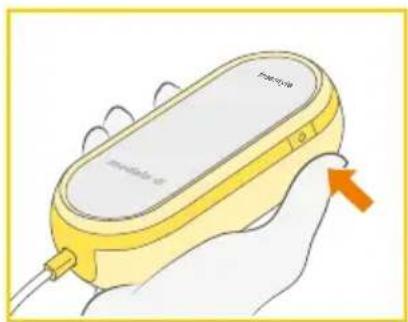

1. Switch the breast pump off.
2. Unplug the breast pump from the power source.

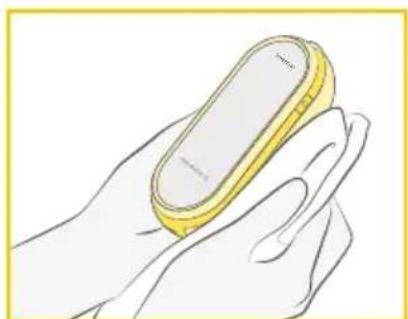

1. Wipe the motor unit with a clean towel moistened with drinking-quality water.
2. Wipe the motor unit dry with a clean, dry towel.

5.6 Cleaning the tubing

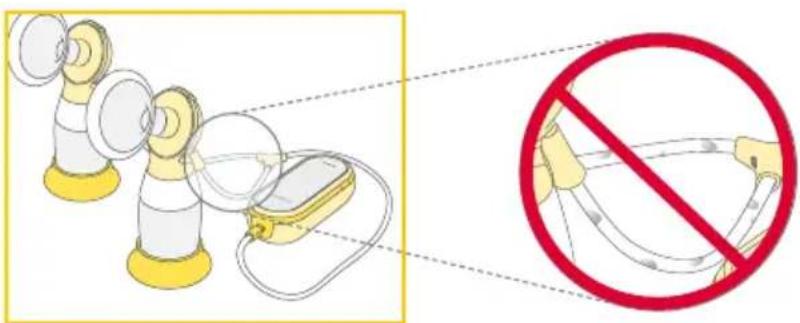

Normally, cleaning of the tubing is not necessary.

Information

Inspect the tubing. If you find condensation in the air tube, wash and dry it immediately or replace the tubing. If you see breast milk inside the tubing or tubing connector do not attempt to wash, clean or sterilize the tubing or tubing connect. Instead contact the manufacturer.

Supplies needed:

• Drinking-quality water
• Mild washing-up liquid

Parts needed:

• Tubing

Washing the tubing

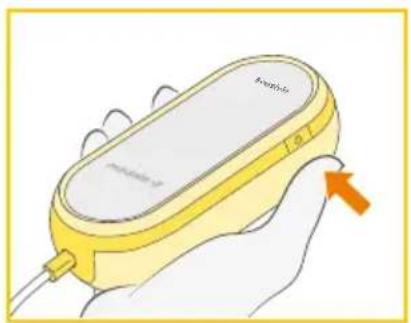

1. Switch the breast pump off.
2. Remove the tubing from the motor unit.

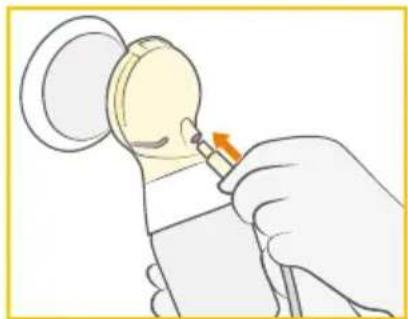

3. Remove the tubing from the connector cap.
4. Rinse the tubing by pouring cool water into both short tubing ends until it flows out of the long tubing end.
5. Wash the tubing in warm, soapy water.
6. Rinse the tubing with clear water.

Drying the tubing

1. Shake out any water droplets.
2. Hang the tubing to air dry.
3. Make sure that the tubing is completely dry before using it.

NOTICE

• If the tubing becomes mouldy, discontinue use and replace tubing. Refer to chapter 14 for ordering information.
• Do not use the breast pump with wet tubing; doing so will cause damage to your breast pump.

6.1 Selecting the correct Medela breast shield size

Make sure to use the correct breast shield size. It is an essential component of effective pumping, helping to optimise milk flow.

Understanding Medela's breast shield sizing

Pumping should not hurt. For maximum comfort and pumping efficiency, Medela offers multiple breast shield sizes*.

This guide is a starting point to help determine your optimal size based on your nipple diameter.

Step 1

Using a ruler or measuring tape, measure the diameter of the nipple at the base (across the middle) in millimetres (mm).

Do not include the areola.

Step 2

Based on the measurement, determine the Medela breast shield size.

Example: If the nipple size measures 16mm in diameter, the recommended Medela breast shield size is 21mm .

Information

The PersonalFit Flex breast shields are available in sizes up to 30mm . If you need a larger size breast shield (36mm) refer to your local Medela retailer or www.medela.com.

• See chapter 14 for ordering information.

6.2 Optimising the breast shield size

• Start with the breast shield that came with your pump, or the size determined by measuring
• Centre the nipple and gently hold the breast shield against the breast.
• Adjust for maximum comfort vacuum (refer to chapter 9) to achieve optimum suction level.
• Refer to the images below while pumping in the expression phase (after the stimulation phase).

The nipple rubs along the side of the tunnel.
Try a larger size.

The nipple is centred and moves freely.

The nipple and excessive areola are pulled into the tunnel.
- Try a smaller size.

Reasons for trying a new size

• If your nipple rubs against the tunnel sides to the point of causing discomfort.
• If excessive areola is being pulled into the tunnel.
  If there is any redness.
• If your nipple or areola is turning white.
• If you feel unexpressed milk after pumping.

If any of these conditions occur, consider trying a different size by following the measuring instructions above.

In case you are still unsure if you selected the correct size, see a lactation consultant or breastfeeding specialist.

7. Assembling your breast pump

24

Only use clean and dry parts for assembly. Refer to chapter 5 for cleaning.

7.1 Assembling the pump set

Parts needed:

• Tubing
• Motor unit
  Breast shields
• Breast milk bottles

Lids
- Connectors
- Membranes

CAUTION

To prevent contamination of your milk:

• Wash hands thoroughly with soap and water before touching the motor unit, parts of the pump set and breasts.
• Dry your hands with a fresh towel or a single-use paper towel.
• Avoid touching the inside of bottles and lids.

To make sure that your breast pump works properly and safely:

• Check pump set components for wear or damage before use. Replace if necessary.
• Always inspect all parts prior to use for cleanliness. If dirty, clean according to chapter 5.
• Only use genuine Medela parts. See chapter 14 for details.

NOTICE

To prevent damage to the breast pump all components must be completely dry before use.

1. Carefully insert the (dark yellow) membrane with the flap into the opening of the connector.

Make sure that the membrane forms a seal around the edge of the connector.

1. Close the lid of the connector until it audibly clicks.

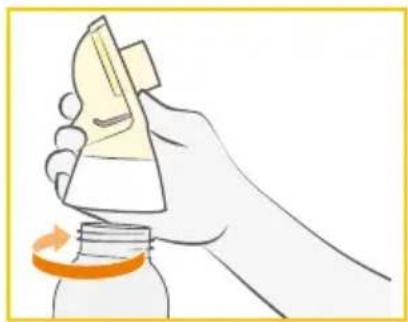

1. Screw the connector onto the bottle.

1. Carefully push the breast shield into the connector body. Choose a breast shield size that suits your needs. For proper sizing see chapter 6.

1. The oval breast shields can be rotated (360^) and placed in the desired position to have the most comfortable fit for you.

1. Insert the short end of the tubing into the opening of the connector lid.

1. Insert the long end of the tubing into the motor unit as far as it will go.

72 Preparing for single pumping

1. Insert the unused tubing end into the tubing holder.

Correctly assembled system (for single pumping).

1. Place the breast shield on the breast so that the nipple is properly centred in the tunnel.

1. Hold the breast shield and connector onto your breast with your thumb and index finger.
2. Support your breast with the palm of your hand.
3. Start pumping as described in section 8.4.

7.3 Preparing for double pumping

Information

• Double pumping saves time and increases the nutritional value of the milk.
• You may want to start the breast pump by means of the delayed start function, which allows you to have both hands free when pumping starts. For the delayed start function see section 10.2.
• For hands-free expression you can also put on the Easy Expression Bustier* available from Medela.

1. Assemble the second pump set as described in section 7.1.

Correctly assembled system (for double pumping).

1. Place the breast shields on the breasts so that the nipple is properly centred in the tunnel.

1. Hold the breast shields and connectors onto your breasts with your thumbs and index fingers.
2. Support your breasts with the palm of your hands.
3. Start pumping as described in section 8.4.

74 Hands-free expression with the Easy Expression Bustier

Information

The Easy Expression Bustier must be purchased separately. More information on www.medela.com.

1. Put the Easy Expression Bustier on and close it using the hook on top.

1. Leave the zip slightly open.

1. Place the breast shield on your breast under the bustier in such a way that your nipple is centred in the tunnel of the breast shield.

2. Close the zip for secure fit of the bustier.

1. Connect the assembled pump set to the breast shields.
2. Start pumping as described in section 8.4.

8.1 Terms and designations

2-Phase Expression	Through research, Medela found that babies nurse in 2 phases - Stimulation and Expression. This research is the basis for the technology in most Medela breast pumps.
Stimulation phase	Fast sucking/pumping mode to stimulate milk flow.
Expression phase	Slower sucking/pumping mode for gentle and efficient milk removal after milk has started flowing.
Maximum comfort vacuum	Highest vacuum setting where pumping still feels comfortable. Different for every mother.
Let-down	The reflex that makes the milk begin to flow from the breast.

8.2 Operating and display elements

Control elements

User guidance:

The control and display elements are not visible at all times.

When the breast pump is switched on, the active elements light up.

Display elements

The multifunction display shows, depending on the device state, the following information:

• Session time in seconds (first minute of pumping), then in minutes
• L1 to L9 for the vacuum level (along with the vacuum level display)
• Pairing code (during Bluetooth connection)
• Start delay in seconds

Power and battery status display

	The power indicator (lightning symbol) indicates if the power adapter is connected. → If it lights up the power adapter is connected.
	The battery display shows the state of the battery and its charging level. → The display of all three bars indicates that the battery is full.
	With decreasing battery capacity fewer bars appear. → Two bars: approx. 75% of the capacity is remaining. → One bar: approx. 40% of the capacity is remaining.
(flashing)	→ When the breast pump emits an audio signal and the last single bar is flashing the battery is almost empty.
(flashing)	→ After emitting a second audio signal while the outline of the battery display is flashing, the breast pump will stop operation and switches off completely after five seconds.
(flashing)	If all three bars and the outline of the battery display are flashing at the same time, this indicates that the battery is overheated or defective. See Troubleshooting (chapter 13) or call Medela Customer Service.

8.3 Charging the battery

WARNING

Only use the power adapter and cable that comes with the breast pump. An inadequate power source or cable may result in a fire hazard, electric shock or malfunction of the equipment.

Information

• You can use your breast pump while charging the battery. The battery will charge as soon as the breast pump is connected to a power source. However, it will charge in a slower mode when the pump is running.

1. Connect the power cable to the motor unit.

1. Plug the power cable into the power adapter.

1. Plug the power adapter into a wall outlet.

32

8.4 Expressing your breast milk

CAUTION

• Do not hold the pump set by the bottle. This can lead to compression and blockage of the milk ducts and engorgement.
• Do not try to express with vacuum that is too high and uncomfortable (painful). The pain, along with potential breast and nipple trauma, may decrease milk output.
• Contact your healthcare professional or breastfeeding specialist if you can express only minimal or no milk or if expression is painful.

NOTICE

Make sure that the tubing is not kinked or pinched while pumping.

1. If not already done, connect your assembled pump set to the tubing port on the front of the breast pump.
2. Make sure that the pump set is connected and positioned properly.

1. Press the On/Off button on the side until the breast pump emits an audio signal, then release the button. The breast pump is now in standby mode.

1. Press the Start/Pause button to start the pumping operation. The breast pump begins in the stimulation phase.

1. Adjust the vacuum with the Increase vacuum ( ) and Decrease vacuum ( ) buttons to find a comfortable level (for maximum comfort vacuum see chapter 9).

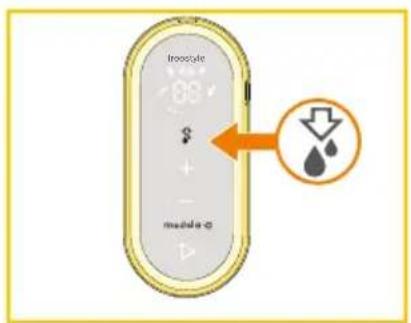

1. As soon as your milk begins to flow, press the Let-down button to go to the expression phase.

The breast pump proceeds with the expression phase.
If the Let-down button is not pressed within two minutes, your breast pump will automatically go to expression phase.

1. Adjust the vacuum with the Increase vacuum ( ) and Decrease vacuum ( ) buttons to find your maximum comfort vacuum (see chapter 9).

1. When your pumping session is over, press the Start/Pause button to stop the pumping operation.

The breast pump stops automatically after 30 minutes if there is no user interaction with the pump.

1. Press the On/Off button on the side to switch the breast pump off.

34

Pausing

In both stimulation and expression phase the breast pump can be paused. This allows you to readjust yourself or your breast pump set, or attend to your surroundings.

1. For pausing, press the Start/Pause button while the breast pump is running.
   The pumping operation stops and the Start/Pause button and the time display are flashing.
2. To resume pumping, press the Start/Pause button again.

If you want to start a completely new pump session, switch the breast pump off and on again by pressing the On/Off button twice.

Information

• If pumping is not resumed within two minutes, the breast pump switch off automatically.
• To resume pumping, you will need to start a new session.
• If you need to pause for more than two minutes, we recommend restarting with stimulation phase.
• Do not forget to record milk output in MyMedela.

After pumping

Prepare the milk for storage as follows:

1. Use the bottle stand to prevent the bottle from tipping over.

1. Close the bottle with a lid.

For information on storing the milk follow the instructions in chapter 11.

9. Finding your maximum comfort vacuum

Once you are pumping in the Expression phase Increase the vacuum with the Increase vacuum ( button until pumping feels slightly uncomfortable (not painful), then decrease the vacuum slightly with the Decrease vacuum ( button.

Information

Maximum comfort vacuum is the highest vacuum setting where pumping still feels comfortable. This is different for every mother.
- Stimulation should be at a comfortable vacuum level, striving for a maximum level is not necessary here.
- Reassess your maximum comfort vacuum throughout your pumping experience. It can change throughout each stage of lactation.

10.1 Bluetooth ® connectivity

Bluetooth is a wireless technology for exchanging data over short distances. This can be used to connect your Freestyle Flex breast pump via a personal device, such as a smart phone, to the MyMedela platform.

By connecting your breast pump to the MyMedela platform you can automatically transfer your pumping data (session length, phases & levels) and manually input the amount of milk expressed.

To benefit from the features of the platform you need to create an account in MyMedela.

Installing the MyMedela app

1. Download and install the MyMedela app to your mobile device. The app is available free of charge for Apple® iOS and Android™ operating systems.
2. Open MyMedela on your mobile device and register by means of the app.

Connecting (pairing) your Freestyle Flex breast pump

1. Make sure that Bluetooth is enabled on your mobile device.
2. In MyMedela, click on "More", navigate to "Connected breast pump" > "Set up a new breast pump" and follow the set-up and pairing instructions on the screen, which include the following steps:
3. Switch the Freestyle Flex breast pump on to standby mode.

1. Press and hold the On/Off button for two seconds to start the pairing procedure.

The Bluetooth indicator is flashing to show that the breast pump is ready for pairing with your Bluetooth device and the multifunction display shows the pairing code.

Trademark recognition

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Medela AG is under license.

Apple is a trademark of Apple Inc., registered in the U.S. and other countries.

Android is a trademark of Google LLC.

1. Read the pairing code from the multifunction display and select the corresponding device in the MyMedela app. After successful pairing the Bluetooth indicator on the breast pump lights up continuously. If the pairing is not successful within two minutes, the breast pump will switch off automatically.

Information

• By tracking your pump sessions on the MyMedela platform, you can stay on-target with daily highlights and custom content.
• Having visibility to your pumping history gives you the opportunity to plan efficiently each day and track changes in your body like an increase or decrease in milk output.
• After initial set-up, the Bluetooth indicator will automatically appear on your breast pump, when powered on, if your paired device is near and MyMedela is open.
• You can pair multiple mobile devices with your Freestyle Flex breast pump.
• Only one mobile device at a time can interact with the Freestyle Flex breast pump.
• The Freestyle Flex breast pump has the ability to store your last 30 pump sessions in its memory. If the pump is not connected prior to session 31 your history will be overwritten with new session data.
• When connected to the pump, your MyMedela account will log an infinite number of historical sessions.

Removing your Freestyle Flex breast pump from your mobile device

1. Navigate through the MyMedela platform.
2. Follow the instructions on the screen to remove (unpair) your Freestyle Flex breast pump

Information

• Removing the Freestyle Flex breast pump from your mobile device will not delete pumping information stored in MyMedela.
• If you reconnect your breast pump and mobile device the last 30 records stored within your pump will be transferred.

To learn more, please visit www.medela.com.

38

10.2 Delayed start

The Freestyle Flex breast pump features a delayed start function. With this, the pump only starts after a delay of ten seconds.

This is useful in case you want to have your hands free when pumping starts (e.g. for holding the breast shields while double pumping).

1. To activate the delay, press and hold the Start/Pause button for two seconds in either standby or pause mode.

The breast pump emits an audio signal to indicate that the delay is started.

During the delay time the Start/Pause button is flashing and the multifunction display shows the remaining time in seconds.

After the delay time has elapsed the breast pump starts operating.

1. To skip the delay, press the Start/Pause button

The breast pump starts operating immediately.

11.1 General storage guidelines

Storage guidelines for freshly expressed breast milk (for healthy term babies)

Room temperature 16 to 25 °C (60 to 77 °F)	Refrigerator 4°C (39°F) or colder	Freezer -18°C (0°F) or colder	Breast milk thawed in the refrigerator
Up to 4 hours is best	Up to 3 days is best	Up to 6 months is best	At room temperature: Up to 2 hours
*Up to 6 hours for milk expressed under very clean conditions	*Up to 5 days for milk expressed under very clean conditions	*Up to 9 months for milk expressed under very clean conditions	Refrigerator: Up to 24 hours Do not refreeze!

*Guidelines for expressing milk under very clean conditions:

Before expressing breast milk, mothers should wash their hands with soap and water or an alcohol-based hand sanitiser. The pump parts, bottles and pumping area must be clean.

Breasts and nipples do not need to be washed before pumping.

• These guidelines for storage and thawing of breast milk are a recommendation. Contact your lactation consultant or breastfeeding specialist for further information.
• Store breast milk in the coldest spot of the refrigerator (at the back of the glass shelf above the vegetable compartment).

112 Storing breast milk in a Medela cooler bag

Your Medela cooler bag requires one Medela contoured ice pack. Up to four 150 ml bottles of breast milk will stay cool for up to ten hours in a room temperature environment inside your pump bag. Up to four 150 ml bottles of breast milk will stay cool for up to eight hours in a room temperature environment, inside the cooler, stored outside of the pump bag.

• As soon as you are finished with pumping, place the breast milk bottle or breast milk storage bag in the cooler bag with the ice pack.
• Transfer breast milk bottles or breast milk storage bags to the refrigerator or freezer once you are at home.

11.3 Freezing

NOTICE

• Repeated freeze/thaw cycles destroy the structure of the milk. Therefore, never refreeze breast milk.
• Freeze expressed breast milk in plastic bottles or milk storage bags. Do not fill the bottles or bags more than 3/4 full to allow space for possible expansion.
• Label the bottles or bags with the date and volume of expression.
• Plastic bottles and parts become brittle when frozen and may break when dropped.
• Do not use the breast milk from bottles or components that show signs of damage.

114 Thawing

CAUTION

Do not thaw or warm breast milk in a microwave or a pan of boiling water. This helps preserve important components and prevents burns.

• To preserve breast milk components, thaw the milk overnight in the refrigerator.
• Alternatively, hold the bottle or bag under warm water (max. 37^ / 98.6^ ).

NOTICE

Gently swirl the bottle or bag to mix any fat that has separated. Avoid shaking or stirring the milk.

115 Feeding breast milk

It is recommended that breastfeeding is well established prior to bottle feeding your baby.

• Always inspect the bottle, the teat and other components immediately before and after each use. If the teat appears cracked or torn, discontinue use immediately.
• To prevent a possible choking hazard, test the strength of the teat by pulling on the end of the teat.
• Do not attempt to enlarge the teat hole.
• Infants must not be bottle fed without adult supervision.
• Do not use the teat as a pacifier.

For additional breast milk collection & storage information, please visit www.medela.com.

12.1 Power adapter care

NOTICE

To keep your power adapter and cable in good working condition, pay attention to the following:

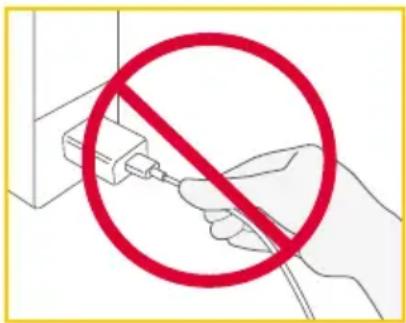

Do not unplug the cable or the power adapter by pulling on the cord, but hold it by the connector housing and adapter body.

Travelling internationally

Information

Hints on travelling with your breast pump

When travelling internationally, we recommend purchasing a travel adapter (not included) to match the corresponding wall outlet. Please consult with the country you are visiting to find out what type of adapter will work best. The power adapter of the breast pump is two-pronged and does not require a grounded outlet.

12.2 Battery maintenance

Your breast pump contains a built-in (not replaceable) lithium-ion rechargeable battery.

NOTICE

In case of a completely discharged battery the breast pump cannot be used instantly after connecting it to the power adapter. Allow the battery to be charged for at least 15 minutes before attempting to switch the pump on.

NOTICE

• For optimum pump and battery performance use the power adapter that comes with the breast pump
• Make sure that the voltage of the power adapter is compatible with the power source.

Maintenance and care (cont.)

Information

To preserve the battery life cycle:

• Keep your breast pump in a cool place.
• Recharge the battery before it completely drains. This is better for the life cycle of the battery.
• Fully charge the battery before storing your breast pump.

Refer to section 8.2 for information on the battery charging state.

• If your breast pump has been stored in a hot location, it may not run on battery power right away. To resume normal battery function, allow the breast pump to cool down for one hour. During this time, you can power your breast pump with the power adapter plugged into a wall outlet.

Travelling internationally

Information

This breast pump has a lithium-ion battery. Carrying such batteries on aeroplanes may be restricted by the country you are visiting. Please consult with the country you are visiting to find out if there are any restrictions that pertain to travelling with lithium-ion batteries.

12.3 Long-term storage

Your breast pump contains a rechargeable battery. To preserve your breast pump, when not in use for an extended amount of time, it will automatically transition into storage mode. To remove from storage mode, plug your breast pump into an external power source and charge the battery for two hours.

Before storing your breast pump for an extended amount of time remember to:

Clean the pump set and bottles (refer to chapter 5)

Clean the motor unit (refer to section 5.5)

Make sure that the battery is charged (see below)

It is best to fully charge the battery before storing your breast pump for an extended period of time. Refer to section 8.2 for information on the battery charging state.

In case of an unexpected behaviour of your breast pump check with the troubleshooting table if you find the issue in the column "Problem" and follow the instructions in the column "Solution".

Troubleshooting table

Problem Solution
The breast pump does not enter the standby mode after you pressed the On/Off button	You pressed the On/Off button for too short or too long a time. Press the On/Off button until you hear an audio signal, then release it. If the pump is in storage mode, it will take somewhat longer (approx. one second) until the audio signal is emitted.
The display does not light up after you pressed the On/Off button	To reset your breast pump, press and hold the On/Off button (on the side) for seven to ten seconds. If there is no change, make sure that the breast pump is connected to a properly working power supply. If there is still no change, contact the Medela Customer Service.
The timer does not count up after you pressed the Start/Pause button	Contact the Medela Customer Service.
The breast pump generates no vacuum (motor not working) after you pressed the Start/Pause button	Make sure that the breast pump is switched on. Contact the Medela Customer Service.
The breast pump generates only constant vacuum instead of sucking cycles	Contact the Medela Customer Service.
The breast pump stops operation or cannot be turned on (emits an audio signal and all elements of the battery display are flashing)	The breast pump refuses operation due to battery over-temperature. Allow the motor unit to cool down, then restart the breast pump.
All elements of the battery display are flashing when you are trying to charge your breast pump	• Charging is not possible when the battery temperature is too high. Allow the motor unit to cool down, then resume charging.
There is low or no suction	• Make sure that all pump set components are clean and dry and that connections are secure. • While pumping, make sure the breast shields form a complete seal around the breast. • When single pumping, make sure that the unused tubing end is correctly plugged into the tubing holder. • If suction does not improve after having followed these steps, contact Medela Customer Service.
The breast pump is not responding as expected	• To reset your breast pump, press and hold the On/Off button (on the side) for seven seconds. • If there is no change, contact the Medela Customer Service.
The breast pump exterior got wet	• Unplug the breast pump from the power source and switch it off. • Dry off the exterior of the breast pump.
The breast pump has been submerged in water	• Unplug the breast pump from the power source and switch it off. • Contact Medela Customer Service.
Data cannot be sent	• The Bluetooth function on the mobile device is turned off. Turn the Bluetooth function on and try to send the data again. • Pairing between the two devices has not been completed. Perform pairing instructions again. Refer to section 10.1. • The mobile device is too far away from the breast pump. Move the device and breast pump closer together. • The application on the mobile device is not ready. Check the application.

If you have not resolved the problem with your breast pump or you have further questions, please contact Medela Customer Service.
For contact data visit www.medela.com. Under "Contact" choose your country.

Accessories

Article number Product

Depending on your region, check local website/shops for availability.

PersonalFit Flex breast shield S (21 mm)*

PersonalFit Flex breast shield M (24 mm)*

PersonalFit Flex breast shield L (27 mm)*

PersonalFit Flex breast shield XL (30 mm)*

Freestyle Flex tubing

PersonalFit Flex connector

• If the result of expression is unsatisfactory or expression is painful, contact your lactation consultant or breastfeeding specialist. A different size of breast shield may help make expression more comfortable and successful.

In case of difficulties in finding your desired accessory, please contact Medela Customer Service.

For contact data visit www.medela.com. Under "Contact" choose your country.

For replacement of lost or defective parts please contact Medela Customer Service.

Other Medela products are available at www.medela.com.

The "International Warranty" brochure contains detailed warranty information.

16. Disposal

Disposal of your breast pump

At the end of its operating life, separate the parts of your breast pump and dispose of according to the following instructions.

Breast shields, connector, tubing and accessories

The parts are made of plastics that are not harmful to the environment when disposed of as household waste. Recycle or dispose of according to local regulations.

Motor unit and power adapter

m = 311

Do not dispose of electric or electronic equipment together with unsorted municipal waste, but collect it separately.

In the European Union the manufacturer or its vendor must take back waste equipment. Other countries may have similar collection and recycling systems. Dispose of the waste equipment according to local regulations.

Inquire at the point of sale or contact your local authority for appropriate collection points for waste equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

CAUTION

Hazardous materials present in electric/electronic equipment may harm human health and the environment if the waste equipment is not disposed of properly.

The following tables explain the meaning of the symbols found on the product parts and its packaging.

Symbols used in these instructions

General safety alert symbol, points to information related to safety.

Defines a temperature range (e.g. for operation, transport or storage).

Defines a relative humidity range (e.g. for operation, transport or storage).

Defines an atmospheric pressure range (e.g. for operation, transport or storage).

Indicates that this device contains Bluetooth wireless technology.

Symbols on the motor unit

Indicates the location of the On/Off button.

Identifies the manufacturer.

Indicates the date of manufacturing.

Indicates the part number of the device.

Indicates the serial number of the device.

Indicates compliance with international requirements for protection from electric shock (Type BF applied parts).

Do not dispose of electric/electronic devices together with unsorted municipal waste (dispose of the device in accordance with local regulations).

Read and follow the instructions for use.

Indicates that a specific separate power adapter is required for connecting the device to the supply mains and specifies its model/type.

Indicates the compliance with the requirements of the Federal Communications Commission.

Indicates that this device contains Bluetooth wireless technology.

The Regulatory Compliance Mark indicates the compliance with Australian EMC and radio transmission requirements.

The CE mark indicates conformity with the European low voltage, electromagnetic compatibility and radio equipment directive.

Symbols on the power adapter

Note: Symbols on the power adapter may vary depending on the market the unit is sold.

~	Indicates alternating current.
= = =	Indicates direct current.
+ = = =	Indicates the polarity of the USB power output.
	Indicates that the device is a Class II electrical appliance (double insulated).
	Indicates that the device is for indoor use only.
	Read and follow the instructions for use.
V VI	Indicates the efficiency level for external power supplies.
	Do not dispose of electric/electronic devices together with unsorted municipal waste (dispose of the device in accordance with local regulations).
CE	The CE mark indicates conformity with the European low voltage and electromagnetic compatibility directive. Indicates that the product complies with the European directives for reduction of hazardous substances.
	Indicates that the device is a short-circuit proof safety isolating transformer.
	Indicates that the electronic device incorporating transformer(s) and electronic circuitry(ies), converts electrical power into single or multiple power outputs.
EAC	The EAC (Eurasian Conformity) mark indicates that the product complies with the basic safety requirements according to the technical regulations of the Eurasian Customs Union.
cUL US LISTED	The UL LISTED mark indicates that the product is manufactured in compliance with UL safety requirements for USA and Canada.
FC	Indicates the compliance with the requirements of the Federal Communications Commission.
NOM	The NOM (Norma Oficial Mexicana) mark indicates that the product is found to be in compliance with the applicable Mexican requirements.
	The Regulatory Compliance Mark indicates the compliance with Australian EMC and safety requirements.
CCC-	Indicates the compliance with China Compulsory Certification.
10	Indicates that the Environment Friendly Use Period is ten years (China pollution control).
PS E	The PSE mark indicates that the product is certified according to the Japanese Product Safety Electrical Appliance and Material Safety Law.
SAFETY	The SAFETY mark indicates that the product is registered as controlled good according to the Singapore consumer protection regulation.

Symbols on the packaging

	Identifies the manufacturer.
REF	Indicates the part number of the product.
	Contains fragile goods. Handle with care.
	Keep away from sunlight.
	Keep away from rain. Keep in dry conditions.
	Defines the temperature range for transport or storage.
	Defines the relative humidity range for transport or storage.
	Defines the atmospheric pressure range for transport or storage.
	The packaging contains products intended to come in contact with food according to regulation EC 1935/2004.
CE	The CE mark indicates conformity with the applicable European directives.
	Read and follow the instructions for use.
	Do not dispose of electric/electronic devices together with unsorted municipal waste (dispose of the device in accordance with local regulations).
	Indicates that the material is part of a recovery/recycling process.
Karton Carton Board	Indicates that the package is made of cardboard.
MCMC	The MCMC (Malaysian Communications and Multimedia Commission) symbol indicates the compliance with radio transmission requirements of Malaysia.
EAC	The EAC (Eurasian Conformity) mark indicates that the product complies with the basic safety requirements according to the technical regulations of the Eurasian Customs Union.
	The NTC (National Telecommunication Commission) symbol indicates that the device has a type approval for radio transmission in the Republic of the Philippines.

18.1 Electromagnetic compatibility (EMC)

The Freestyle Flex breast pump complies with all requirements of the relevant standards and regulations with regard to electromagnetic emission and immunity to interference.

WARNING

The electric breast pump Freestyle Flex should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the electric breast pump Freestyle Flex should be observed to verify normal operation in the configuration in which it will be used. Wireless communications equipment such as wireless home network devices, mobile phones, cordless telephones and their base stations, walkie-talkies can affect the electric breast pump and should be kept at a distance of at least 30~cm away from the device.

18.2 Drinking equipment

Parts intended for infant feeding comply with the European Standard EN 14350.

Summary of important technical specifications

Vacuum performance (at 500 m above sea level [954.62 hPa ambient pressure])

-45 to -245 mmHg

45 to 111 cpm

Power adapter (Model: S010BL*0500200)

*country code

Input 100 to 240V

50/60 Hz

max. 0.4 A

Output 5 V

2A

10W

Average efficiency 79%

No-load power

Lower than 0.1 W

consumption

Operating temperature range

Operating humidity range

Ambient pressure range

Transport/storage temperature

Motor unit

Battery capacity

3.7V,2750mAh

and type

Li-ion

Size 148× 66× 46.5mm

Weight 273 g

Transport/storage humidity range

Transmission standard: Bluetooth version 4.0 LE

Frequency range: 2402-2480 MHz

Max. power output: +4 dBm (class 2)

Materials touching skin or coming in contact with milk

• Breast shield: Polypropylene, thermoplastic elastomer
• Connector: Polypropylene, silicone
• Bottle: Polypropylene
• Lid: Polypropylene

All parts that come in contact with breast milk are not made with BPA (Bisphenol A).

m = 311 ;

Installer I'application MyMedela

6340 Baar, Switzerland

www.medela.com

EU Representative:

85378 Eching, Germany

www.medela.com/support

International Sales

Medela AG

Lattichstrasse 4b

6340 Bgar

Switzerland

Phone [phone]

www.medela.com

United Kingdom

Medela UK Ltd.

Huntsman Drive

Northbank Industrial Park

Irlam, Manchester M44 5EG

United Kingdom

Phone [phone]

Fax [phone]

[e-mail]

www.medela.co.uk

Australia

Medela Australia Pty Ltd,

Medical Technology

3 Arco Lane,

Heatherton,Vic 3202

Australia

Phone [phone]

Fax [phone]

[e-mail]

www.medela.com.au

Germany

Netherlands & Belgium

Medela Benelux BV

Uilenwaard 31

5236 WB's-Hertogenbosch

The Netherlands

Phone [phone]

Fax [phone]

[e-mail]

[e-mail]

www.medela.nl

www.medela.be

France

Medela France
