USER MANUAL GV 4001 B Güde

Translation of the original instructions Scarifier

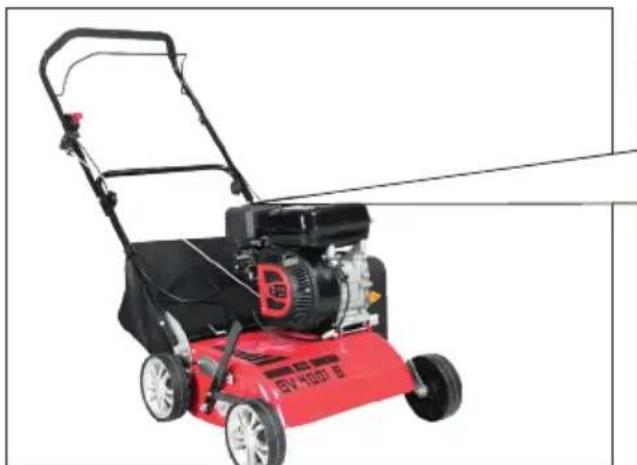

Red lawn mower with black engine and 'GV 4001 B' label, no visible text or symbols on the motor body

GV 4001 B
95133

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde

ENGLISH Please read the instructions carefully before starting the machine.

Red lawn mower with black engine and wheels, no visible text or symbols

2

Pure electrical circuit lines without any symbols

3

Simple black rounded rectangle outline on white background (no text or symbols)

4

5

Close-up of a mechanical component with a circular base and central shaft, no visible text or symbols

Close-up of a white plastic object mounted on a black circular base, with small circular items nearby (no visible text or symbols)

6

2x

7

Black leather jacket with a hanging hook, shown in a simple black-and-white photo (no text or symbols visible)

8

9

DE Montage

PL Montaż

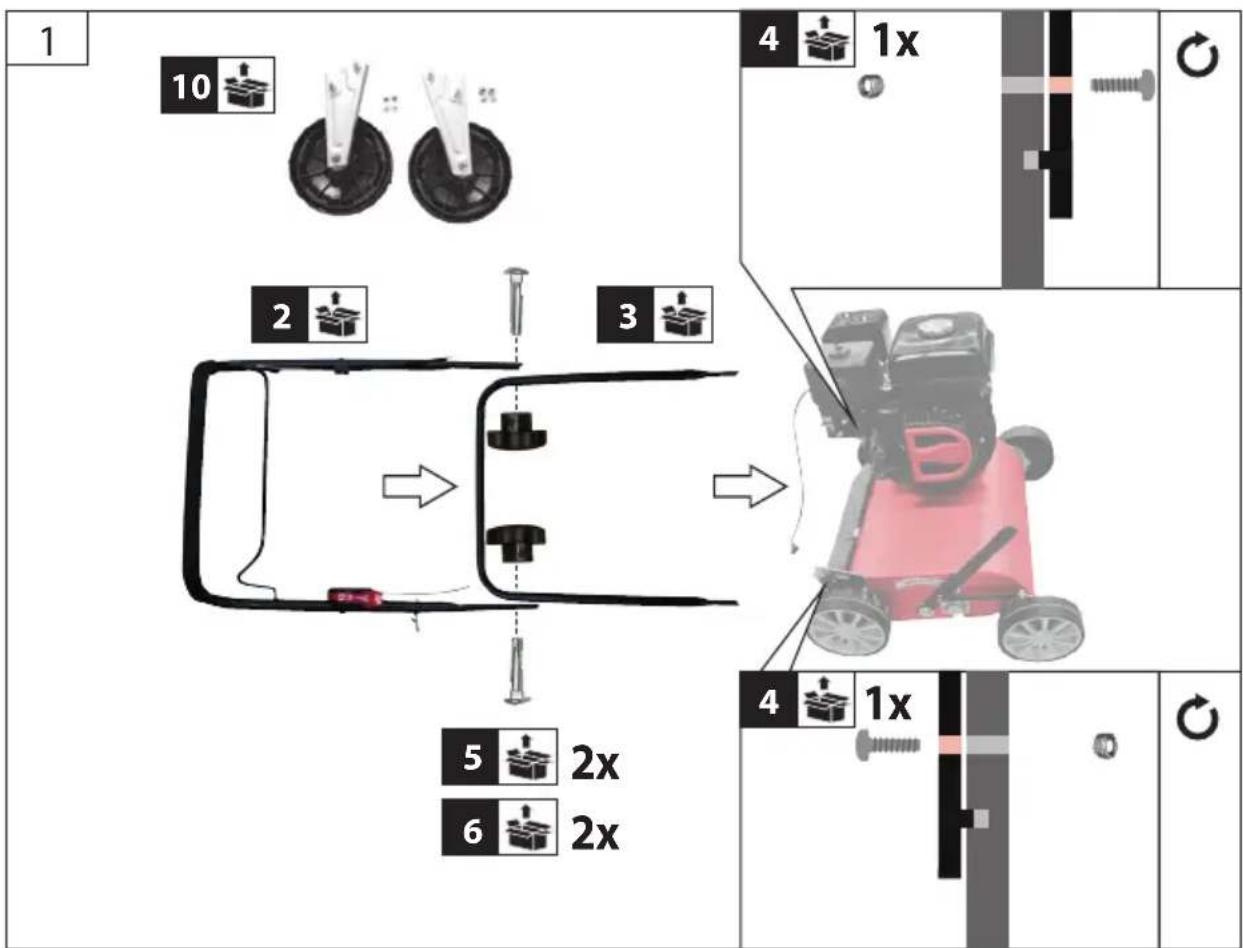

GB Assembly

ES Montaje

FR Montage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

1

2-3

DE Inbetriebnahme

PL Uruchomienie

GB Starting-up the machine

ES Puesta en marcha

FR mise en service

GB Cutting instructions

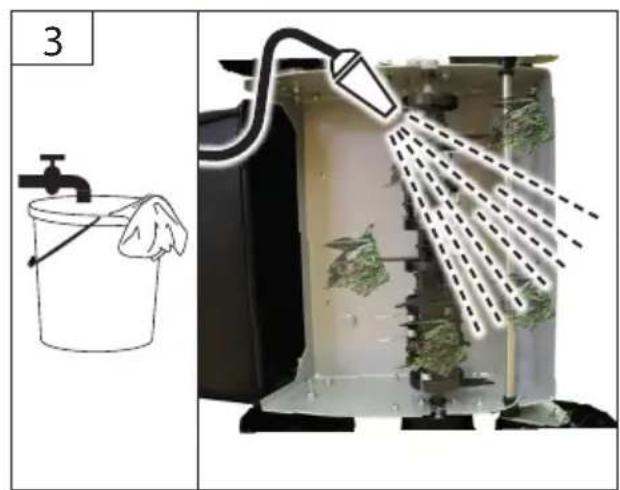

GB Cleaning / Maintenance

Illustration showing a cardboard box with an upward arrow and a red lawn mower on its side (no text or symbols)

Two identical mechanical components with white levers and black bases, labeled '1' in top-left corner (no text or symbols on parts)

Close-up of a mechanical component with a white arrow pointing to a feature, no visible text or symbols

Two circular objects with arrows pointing inward on a surface, no visible text or symbols

Close-up of two mechanical components with circular arrows indicating rotation (no text or symbols)

Close-up of a mechanical tool with a lock icon and a small bicycle (no text or symbols visible)

Close-up of a mechanical component with wrench and wrenches, no visible text or symbols

Close-up of a mechanical component with a red surface and white markings (no visible text or symbols)

Close-up of a car wheel and attached metal bracket with screw holes, no visible text or symbols

Close-up of a car wheel and attached mechanical component with a white arrow pointing to a small component (no visible text or symbols)

Close-up of a mechanical switch and lock mechanism with a red vehicle (no text or symbols visible)

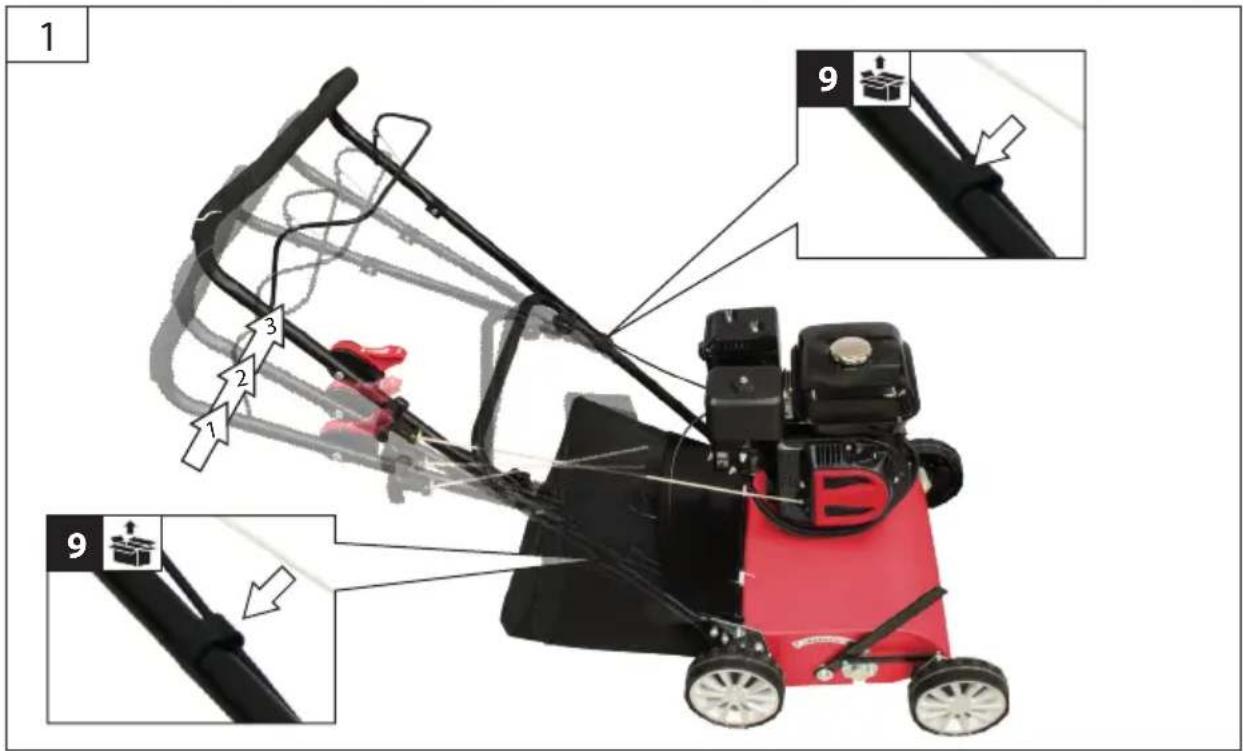

1 2 3 9 9

2

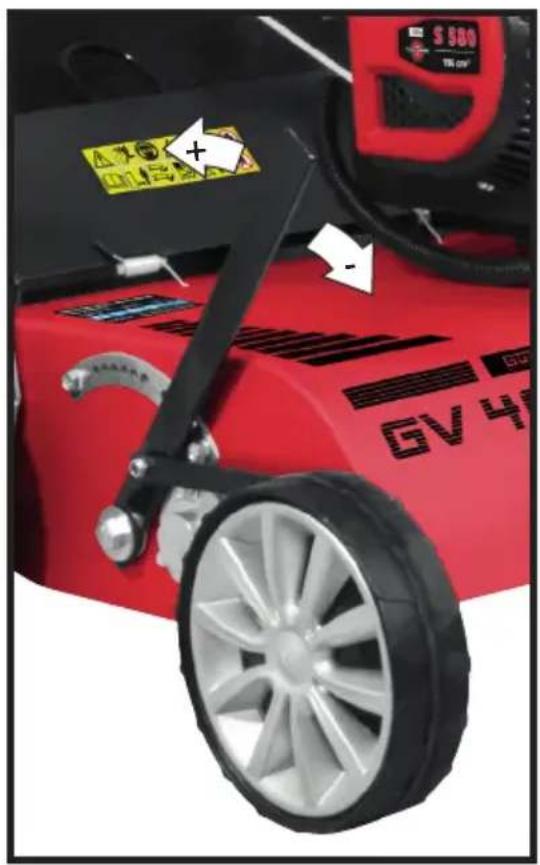

S 580 TEN 01° 470+ 415+2 - GV 4

Diagram showing a car with a long rod and a checkmark, alongside a vertical dashed line and angle marker.

-15

-13

-10

-8

-4

-2

+0

+10

START

DE Vertikutieren

GB Scarifying

FR Scarifier

IT Scarificare

NL Verticuteren

CZ Prořezávání

SK Prerezávanie

HU Vertikulálás

PL Wertykulowanie

ES Escarificar

DE Lüften

GB Aerating

FR Démousser

IT Arieggiare

NL Verluchten

CZ Provzdušnování

SK Prevzdušnovanie

HU Szellőztetés

PL Napowietrzanie

ES Ventilación

2

10W-40

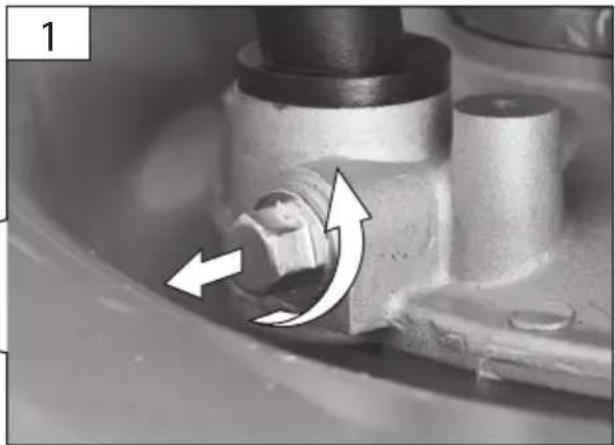

Close-up of a mechanical component with an orange plastic plug and directional arrows indicating motion (no text or symbols)

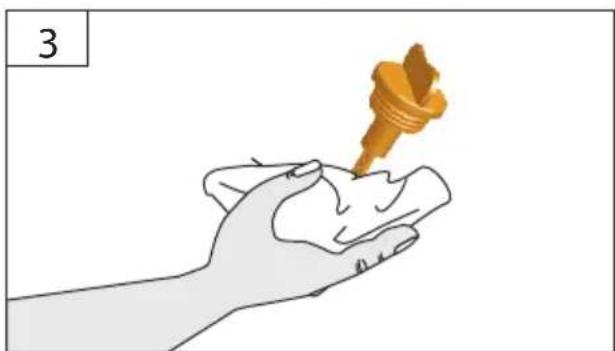

Illustration of a hand holding a piece of paper with a golden object above it, labeled '3' in the top-left corner (no other text or symbols)

Industrial machinery setup with orange tool and numbered arrows indicating components (no readable text or symbols)

2

5

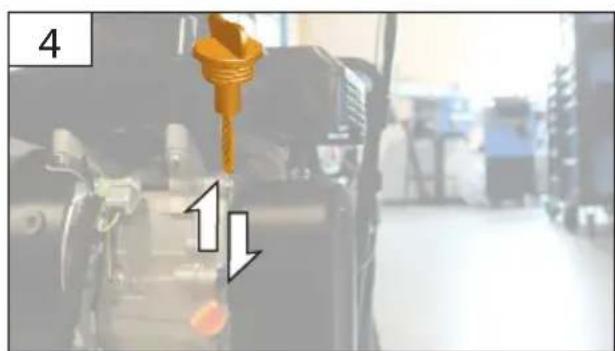

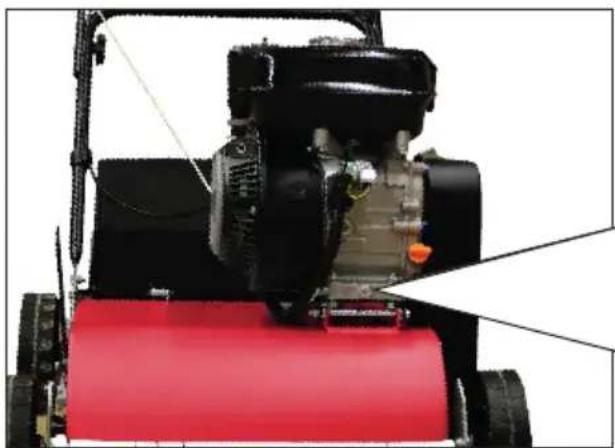

Correct oil level

korre Ölstand

Close-up of a mechanical device with a label reading 'Oil' and an orange flame, no readable text or symbols beyond the label.

10W40 max 0,6 l
6

Oil

10W-4010W-40
max 0,8 | max 0,6 |

Close-up of a mechanical assembly with orange tool and numbered annotation (7, 1) in background, no readable text or symbols on main subject

8

Yellow mechanical component with a textured base and central slot (no visible text or symbols)

MAX
0,61
MIN

2

GB To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dip stick. Please check carefully the oil level and add motor oil again.→5-6

Close-up of a black industrial component with a circular top and mechanical parts, no visible text or symbols

Safety warning illustration showing a hand pressing a device with a warning symbol and crossed-out valve

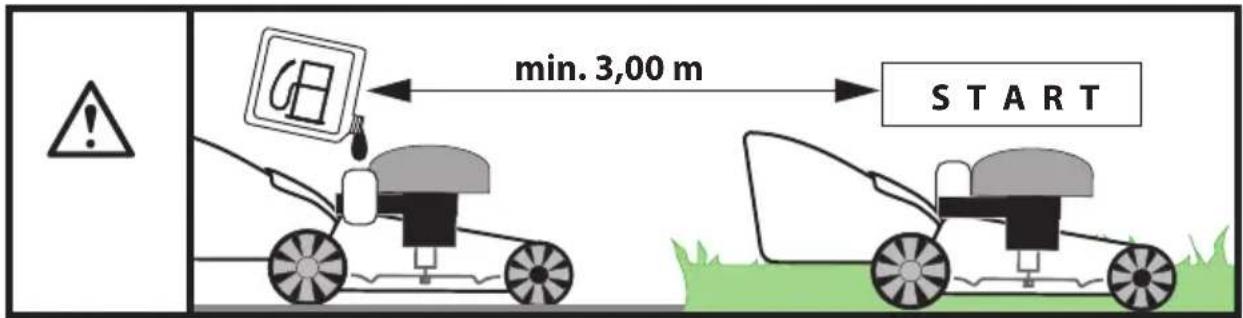

min. 3,00 m START

3

Safety warning illustration showing a person using a lawn mower to reduce noise and trash, with no symbols for no litter, crop, and waste.

Illustration showing a person using a lawn mower to walk, with correct and incorrect actions indicated by crossed and checked signs.

STOP

Safety warning illustration showing a person using a lawn law with a red cross symbol and directional arrow

Two-panel cartoon showing a person using a walker and a crosshair to measure a ball, with checkmarks indicating correct and incorrect actions.

Safety warning sign with Chinese characters and a pictogram of a person using a lawn saw, indicating hazard or hazard.

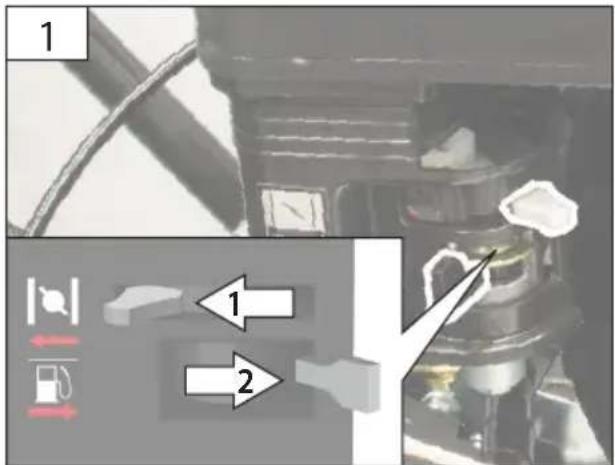

START 4 STOP

1 1 2

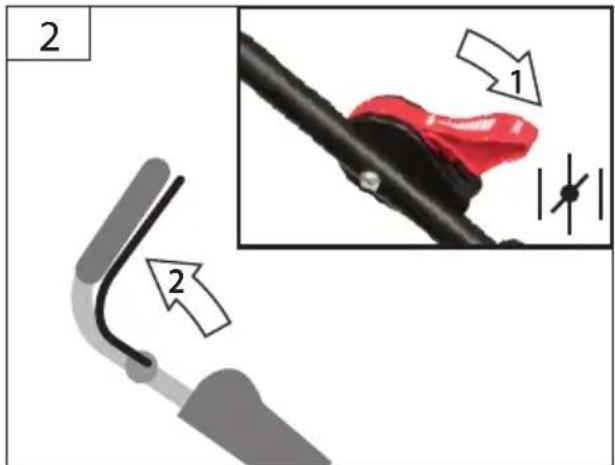

2 1 2

3	START

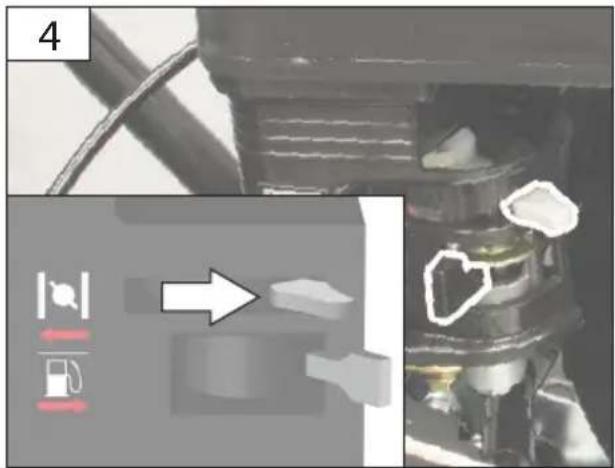

4

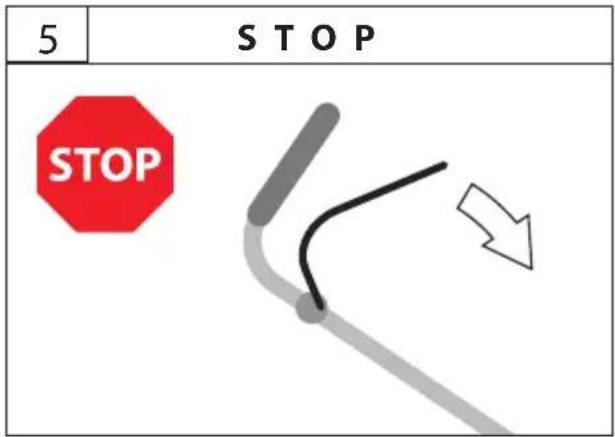

5 STOP STOP

Two red prohibition signs with cigarette icons: one without a fire and another with a smoking can.

1 ADDITIV

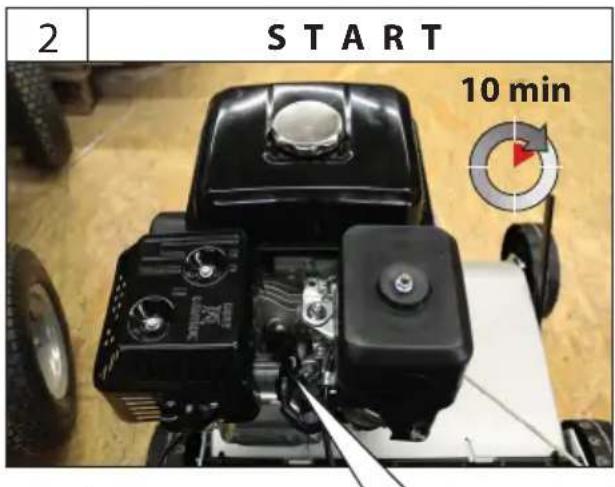

2 | START 10 min

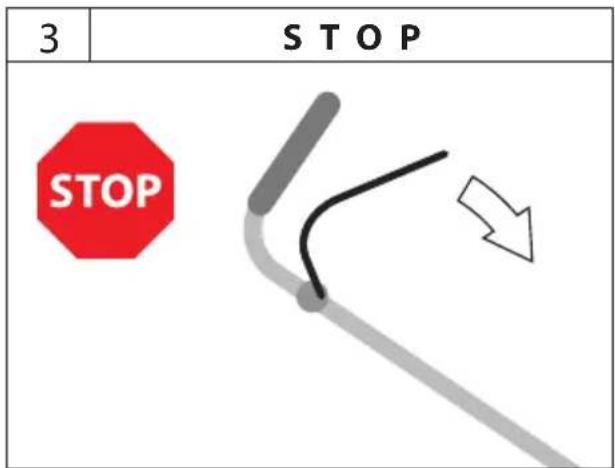

3 STOP STOP

4 °C V

5 ✓ No Snow No Smoker L

5

Black plastic bag with green leaves emerging from its side, no text or symbols visible

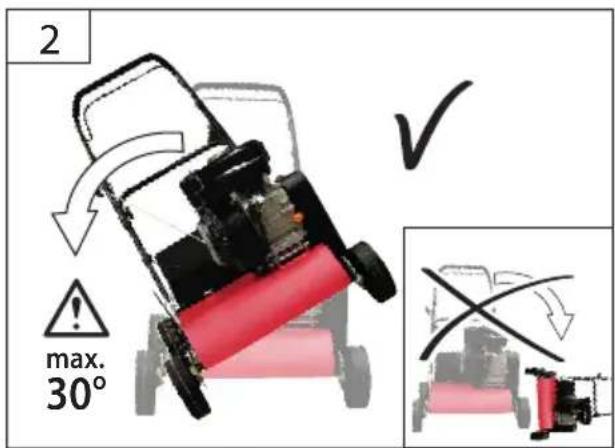

2 max. 30°

3

4 ✓ No No No

5

Warning symbols including warning sign, electrical hazard symbol, cigarette stopper, no-smoking, and lightning warning

Technical diagram showing a mechanical testing setup with temperature readings and a close-up of a connector with a probe.

1 8 2

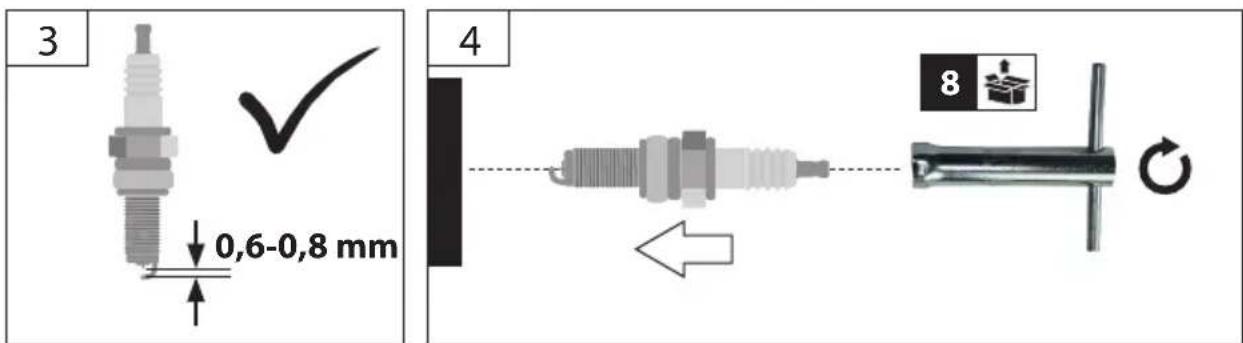

3 0,6-0,8 mm 4 8

5

6

Top-down view of a lawn mower with visible blades and control panel (no text or symbols)

Close-up of a mechanical component with directional arrows indicating motion or movement (no text or symbols)

2

Exterior view of a red lawn mower with attached black frame and power cord (no text or symbols visible)

5

Red and black lawn mower with attached power supply (no visible text or symbols)

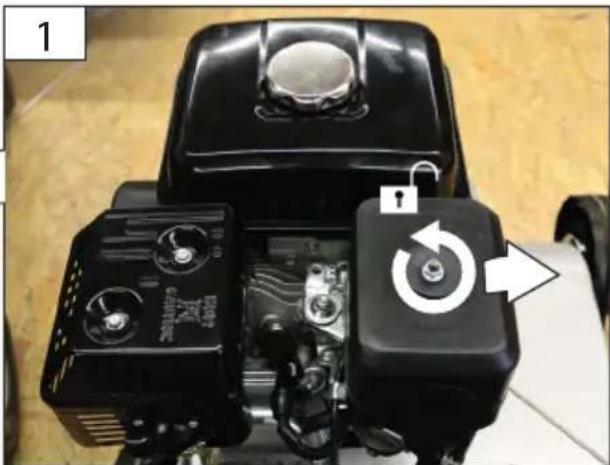

Close-up of a black industrial machine with a lock and power switch, no visible text or symbols

Close-up of a mechanical component with a metallic lid and cylindrical shaft, mounted on a black base (no visible text or symbols)

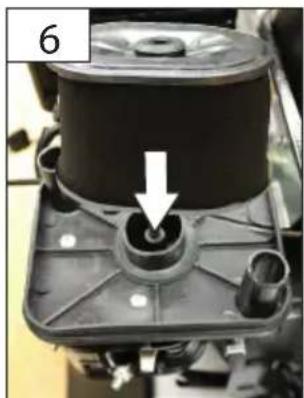

Close-up of a cylindrical container with a black plastic tool inserted, no visible text or symbols

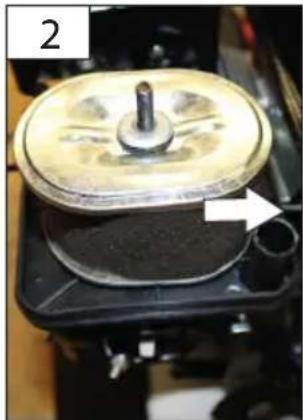

EN Paper filter to be cleaned with compressed air only! Never use water!

Illustration showing a hand holding water droplets above a sun and a bowl, with no text or symbols present.

Close-up of a mechanical component with a white arrow pointing to a circular opening, no visible text or symbols.

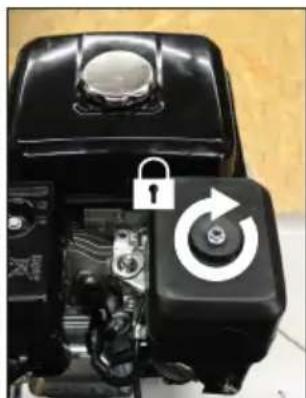

Close-up of a black industrial machine with a lock icon and circular switch symbol (no text or labels visible)

Technische Daten

Rated speed 3000 min

Cutting width 400 mm

Cutting depth....-15 / -13 / -10 / -8 / -4 / -2 / 0 / 10 mm

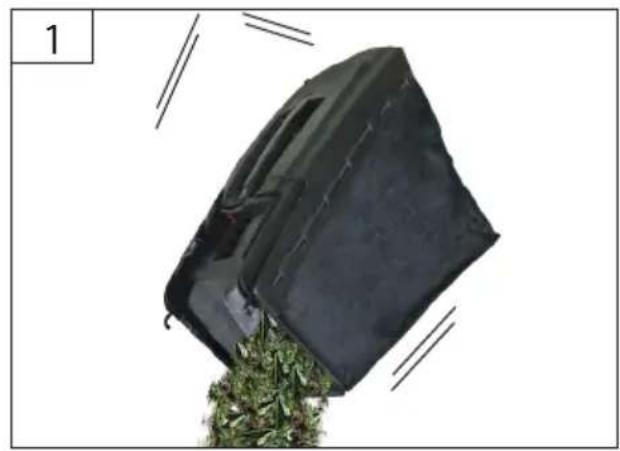

Collection bag capacity 30 l

Fuel tank capacity 3,61

Super/ Unleaded petrol/ E10

Weight....31,5 kg

Noise and Vibration Information

Sound pressure level L _PA^1) ......85 dB (A)

Sound power level L 98,65 dB (A)

Wear ear protectors!

Vibration emission value a_b^2) 9,549 m/s²

^1) Uncertainty K=2,5 dB (A)

2) Uncertainty K=1,5 m/s²

Measured according to 1) EN 836 2) 2000/14/EG

2005/88/EG

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Information on noise reduction

A certain level of noise from this device is unavoida-

ble. Carry out very noisy work during the permitted and specified times. Comply with any statutory rest periods and restrict the duration of work to what is necessary. For the protection of yourself and those around you, suitable hearing protection must be worn.

Specified Conditions Of Use

The scarifier is designed for scarifying and aerating small to medium lawn areas at homes and allotments.

The scarifier must not be used for any other purposes as it may present a risk of physical injury to the user and others.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The scarifier must not be used to trim bushes, hedges and shrubs, for cutting and shredding creepers or lawns on greened roofs or in balcony boxes. In addition, the scarifier must not be used as a shredder for shredding tree and hedge cuttings or for levelling uneven surfaces.

Requirements for operating staff

Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual risks

Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

Never touch under the housing body when the engine is running. Wear protective shoes. Never remove the collection bag when the machine is being operated.

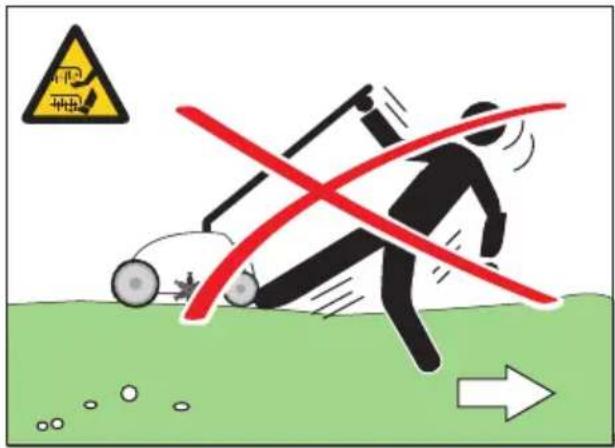

⚠️ Thrown-off stones or soil may lead to injuries.

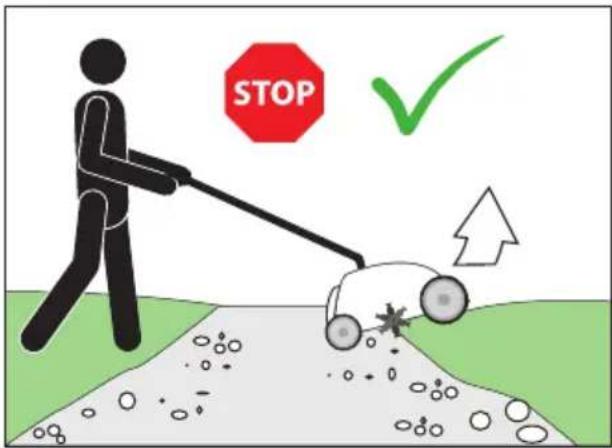

Before mowing, check the area to be mowed for any undesirable objects. Make sure the collection bag is properly suspended. Wear safety goggles when working.

⚠️ Poor lighting/light conditions represent a high safety risk.

Provide adequate lighting or good lighting conditions when working with the machine.

Emergency procedure

Danger of injury!

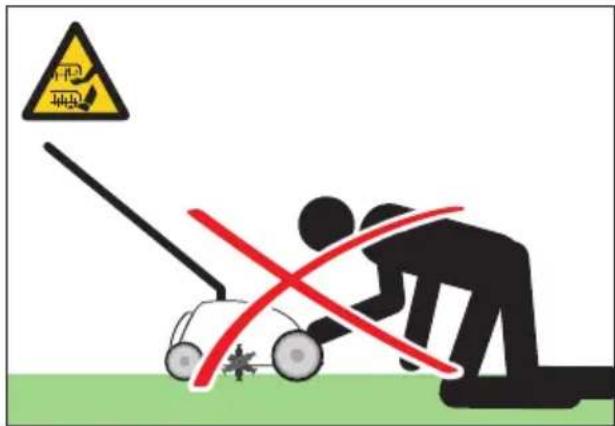

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Read the Operating Instructions

Wear ear protectors! Wear eye protective goggles!

Caution!Blades run down.Wait until all rotating parts have stopped.

Caution - hot surface! Danger of burns!

Warning against thrown-off items

Keep distance of persons! Observe to keep out of dangerous zone

Switch the engine off and remove the socket plug before any work on the engine.

Keep a sufficient distance from the cutting knife when operating the appliance.

Caution, risk of drawing-in!

Risk of explosion Refuel the engine only when switched off.

Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Always keep children and unauthorised persons out of reach of the appliance.

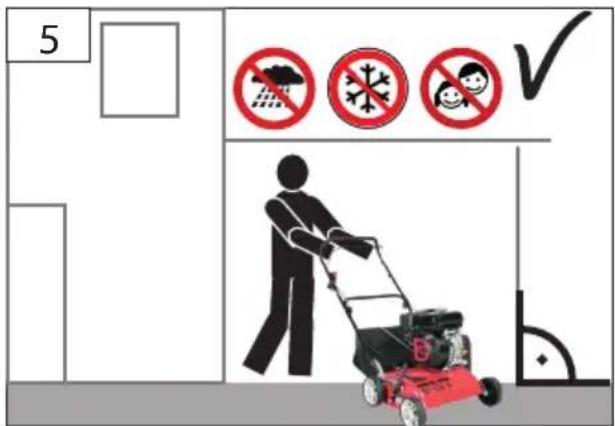

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

Wear safety cut through resistant shoes with safety sole and steel toe!

Caution - hot surface!

Warning against dangerous electric voltage

Fuel is highly flammable.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Batteries, oil, and similar substances must not enter the environment.

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions, including those given in the accompanying brochure. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear solid shoes and long trousers. Never use the appliance when bare-footed or in light sandals.

Wear protective gloves if necessary. Use the appliance in broad daylight or in a well-lit environment.

Check carefully the terrain where the appliance is being used and remove any items that could get

caught and be thrown away.

Avoid operating the equipment in wet grass, where feasible

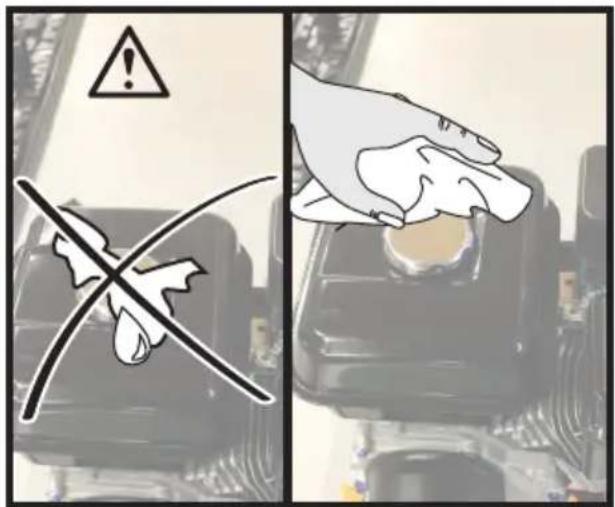

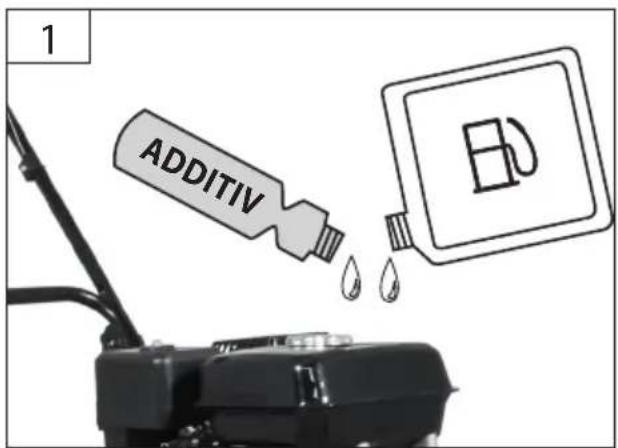

⚠️ Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

Replace all fuel tank and container caps securely.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

⚠️ Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not blunt, worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance;
The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.
⚠ The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.

Do not start the engine before your feet are in a safe distance from the cutting tools.

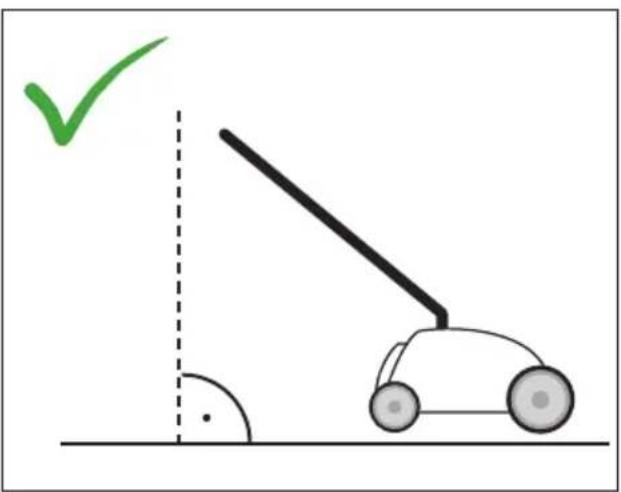

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

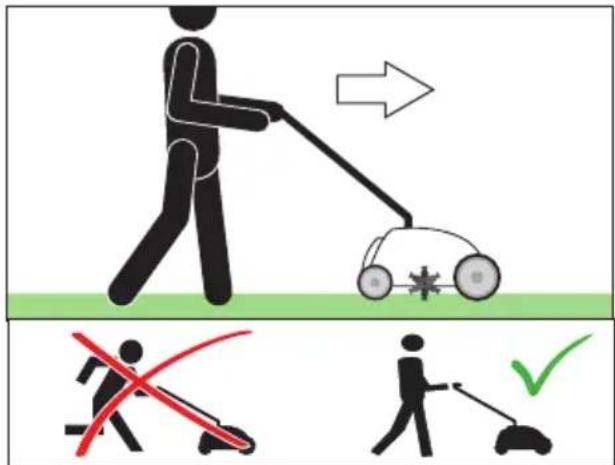

Walk! Never run!

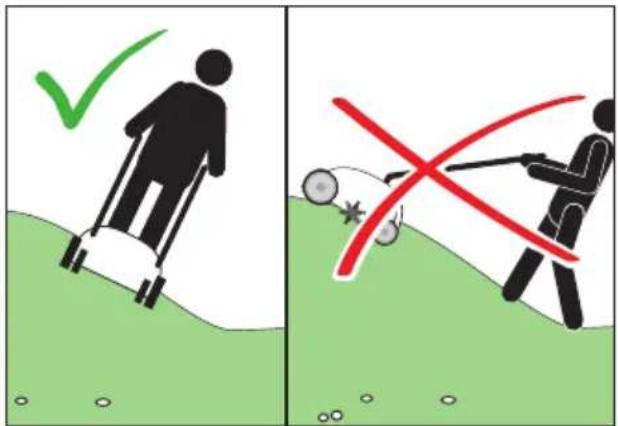

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Always switch off the machine when you are carrying it, tipping it or moving it when it is not on the lawn. Wait until all the rotating parts have reached a standstill. If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

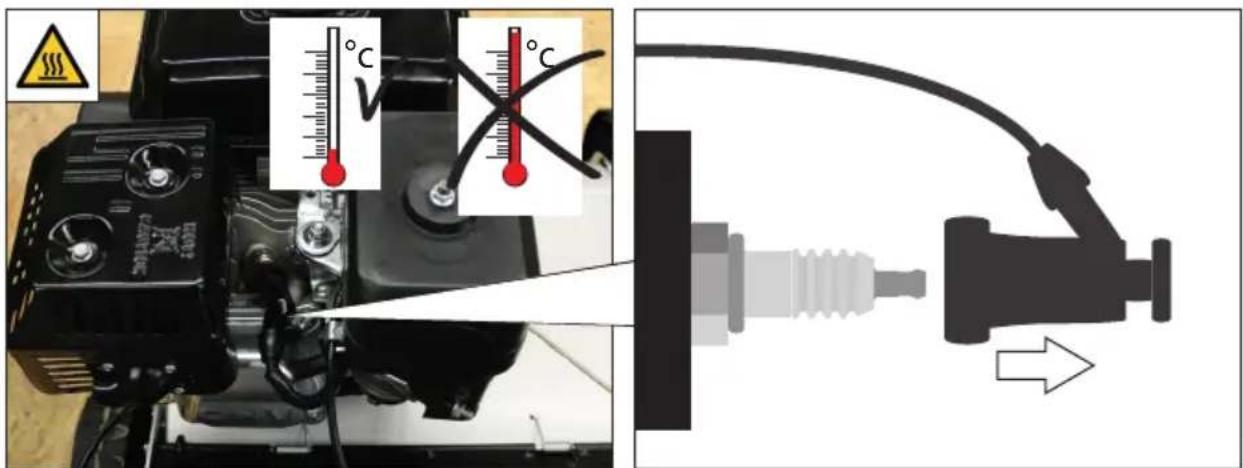

Stop the engine %and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted remove the key:

• whenever you leave the lawn - mower
• before refuelling

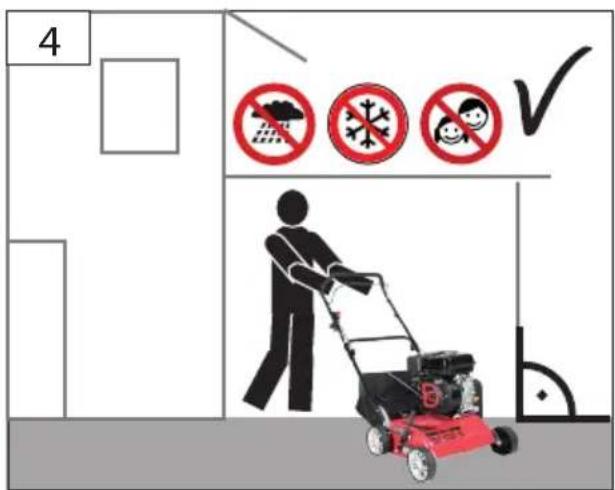

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

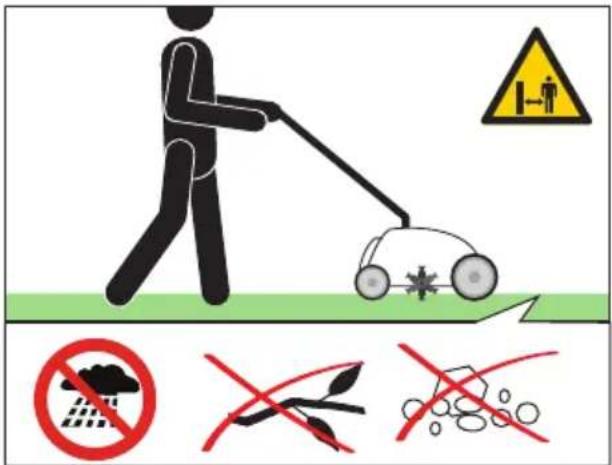

Do not use the machine in adverse weather conditions, particularly if there is a risk of lightning.

Maintenance

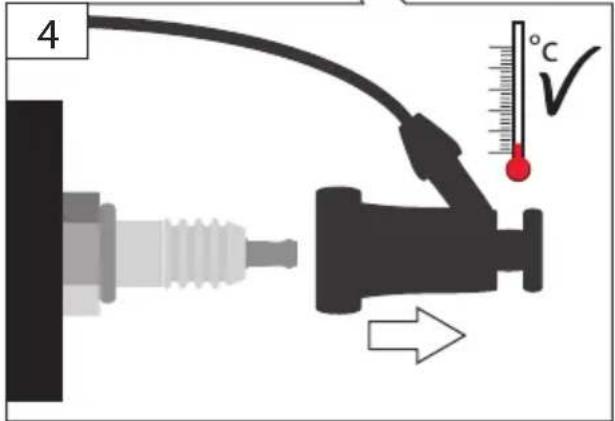

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and appliance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Apply environment-friendly oil to all moving parts. Check the collection bag at regular intervals for any wear and aging.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If the fuel tank has to be drained, this should be done outdoors.

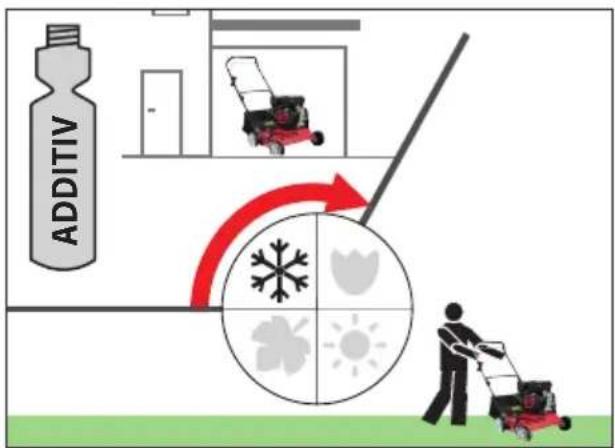

At the end of the season it is necessary to add an additive to the fuel/propellant and mix it with the fuel.→12

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Inspection and maintenance plan

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (10W-40)	Inspection	√
	Change		√		√
Air filter Inspection		√
		Change				√

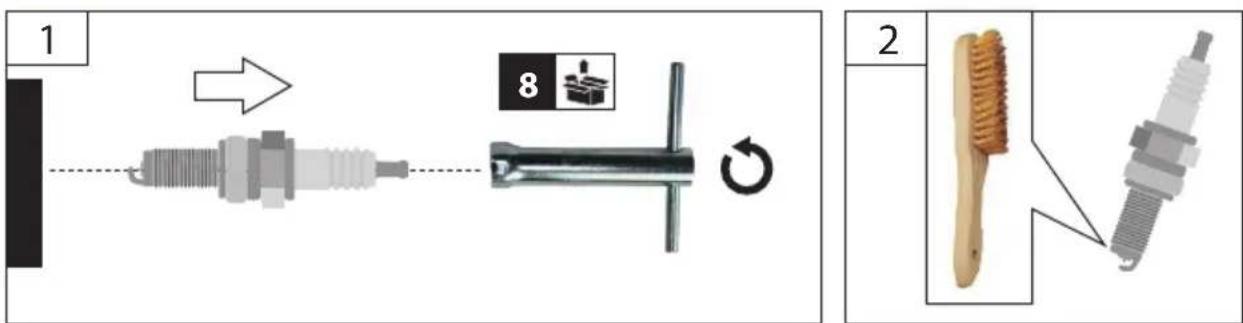

Spark plug	Inspection Clean					√
	Change						√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.

Defects searching

Defect	Cause	Measure
The motor does not start	Primary pump has not been used Use the primary pump
	Lack of fuel Add some fuel
	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
	Little oil in the engine Add oil
Grass is not collected	Blocked channelFull collection bagToo wet grass	Clean the ejection channelEmpty the collection bagCut in dry weather

Attention - surface chaude!

Super/ Loodvrije benzine/ E10

Gewicht 31,5 kg

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
