Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Data 44

Safety Instructions 45

Device Description 47

Remote Control 48

Connection 51

Getting Started 52

System Settings 55

Internet Radio 59

Podcasts 61

Spotify Connect 62

DAB Radio 63

FM Operation 66

CD Operation 68

USB Operation 70

BT Operation 71

Audio Input 72

NetRemote 72

Using Headphones 73

Sleep Setting 73

Setting the Alarm 74

Disposal Considerations 76

Declaration of Conformity 76

TECHNICAL DATA

Item number 10032753 10032754

Mains Adaptor 100-240 V \~ 50/60 Hz, 1 A

USB jack

5 V=,1 A

Audio output 2 x 5 W RMS

FM Radio

Frequency range 87,5 MHz - 108 MHz

Compact Disc

Frequency Response 20 Hz - 20 Khz

DAB

Frequency range 174-240 MHz

WLAN

Standard 802.11 b/g/n

Frequency band 2412–2472 MHz

Maximum radio-frequency power 19 dBm

BT

Frequency band 2402–2480 MHz

Maximum radio-frequency power 2 dBm

Power consumption in Standby

Standard standby mode <1.00 W (Wifi off)

Network standby mode <2.00 W (Wifi on)

SAFETY INSTRUCTIONS

General Safety Instructions

• Read all the instructions carefully before using the unit and keep them for future reference.
• Check that the voltage marked on the rating label matches your mains voltage.
• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires. Avoid exposure to direct sunlight and other sources of heat.
• Never place any type of candle or naked flame on the top of or near the unit.
• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.
• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure that a minimum of 10cm should be kept around the unit for ventilation.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
• This unit will become warm when used for a long period of time. This is normal and does not indicate a problem with the unit.

Mains Adapter

• Make sure the unit is not resting on top of the mains cable, as the weight of the unit may damage the cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted sound.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
• Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Service/Maintenance

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user serviceable parts.
• Leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.
• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.

DEVICE DESCRIPTION

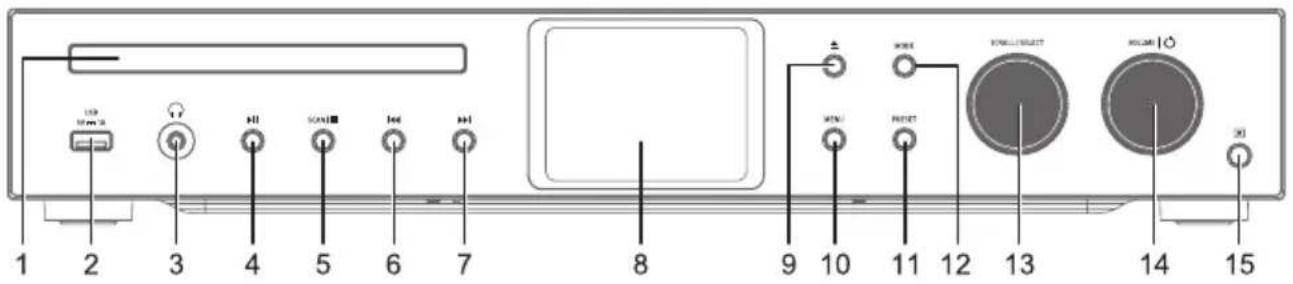

Front

USB 10mm H 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SCAN MINS POTET WIRE STANDARD VOLUME

1 Disk tray 9 Open/Close disk tray button
2 USB 5V 1A charging port 10 MENU button
3 Earphone jack 11 PRESET button
4 Play/Pause button 12 MODE button
5 STOP button 13 SCROLL|SELECT dial
6 Prev. button 14 VOLUME/Standby dial
7 Next button 15 Remote control Sensor
8 Display

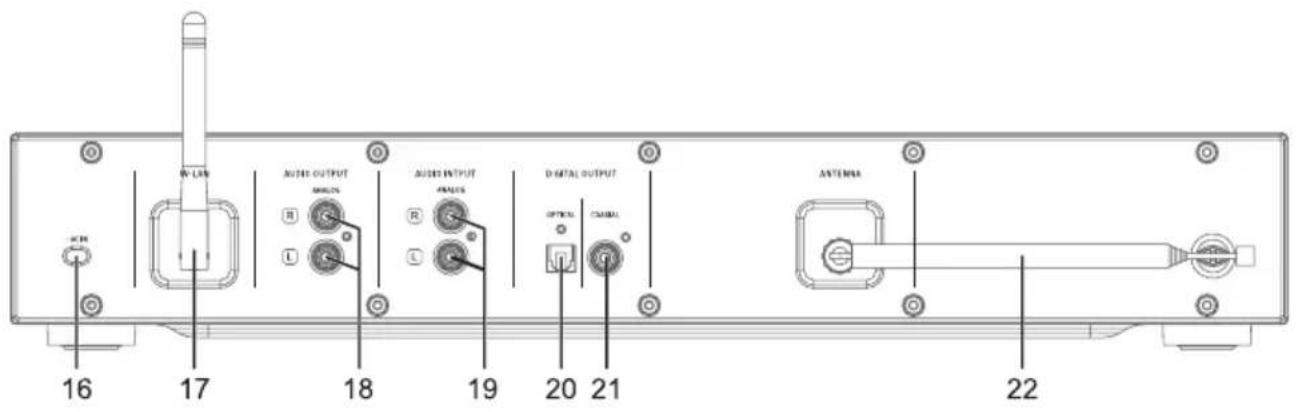

Rear

16 17 18 19 20 21 22 W-LAW AUDIO OUTPUT MOUNTS AUDIO INPUT PARENTS DIGITAL OUTPUT OPTICAL CABBOL ANTenna

16 Mains connection cable 21 Digital output (coaxial)
17 WLAN antenna 22 DAB/FM antenna
18 Audio output L/R (analogue, RCA jack)
19 Audio input L/R (analogue, RCA jack)
20 Digital output (optical)

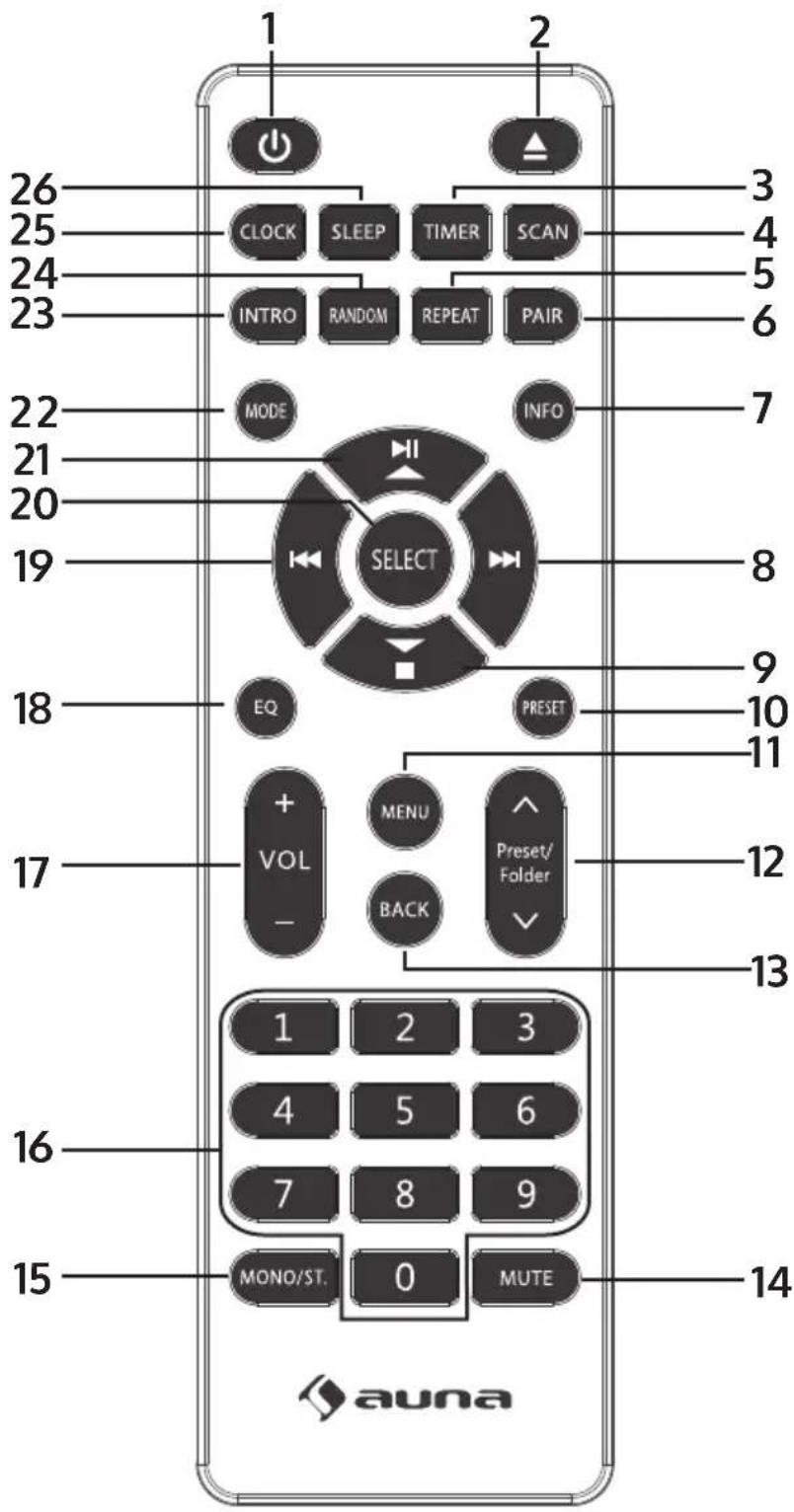

REMOTE CONTROL

1 2 26 CLOCK SLEEP TIMER SCAN 3 25 4 24 5 23 INTRO RANDOM REPEAT PAIR 6 22 MODE INFO 7 21 SELECT 8 20 19 EQ PRESET 9 18 VOL MENU Preset/ 10 17 BACK Folder 11 12 13 16 MONO/ST. 0 MUTE 1 2 3 4 5 6 7 8 9 15 auna

1 STANDBY button 14 MUTE button
2 EJECT CD button 15 MONO/STEREO button
3 TIMER button 16 Number pad
4 SCAN button 17 VOLUME +/- button
5 Playback mode REPEAT 18 Equalizer button
6 BT PAIR button 19 Skip back button Navigate left button
7 INFO button
8 Skip forward button Navigate right button 21 PLAY/PAUSE button
9 STOP button 22 MODE button Navigate down button
10 PRESET button
11 MENU button
12 PRESET UP/DOWN
13 BACK button

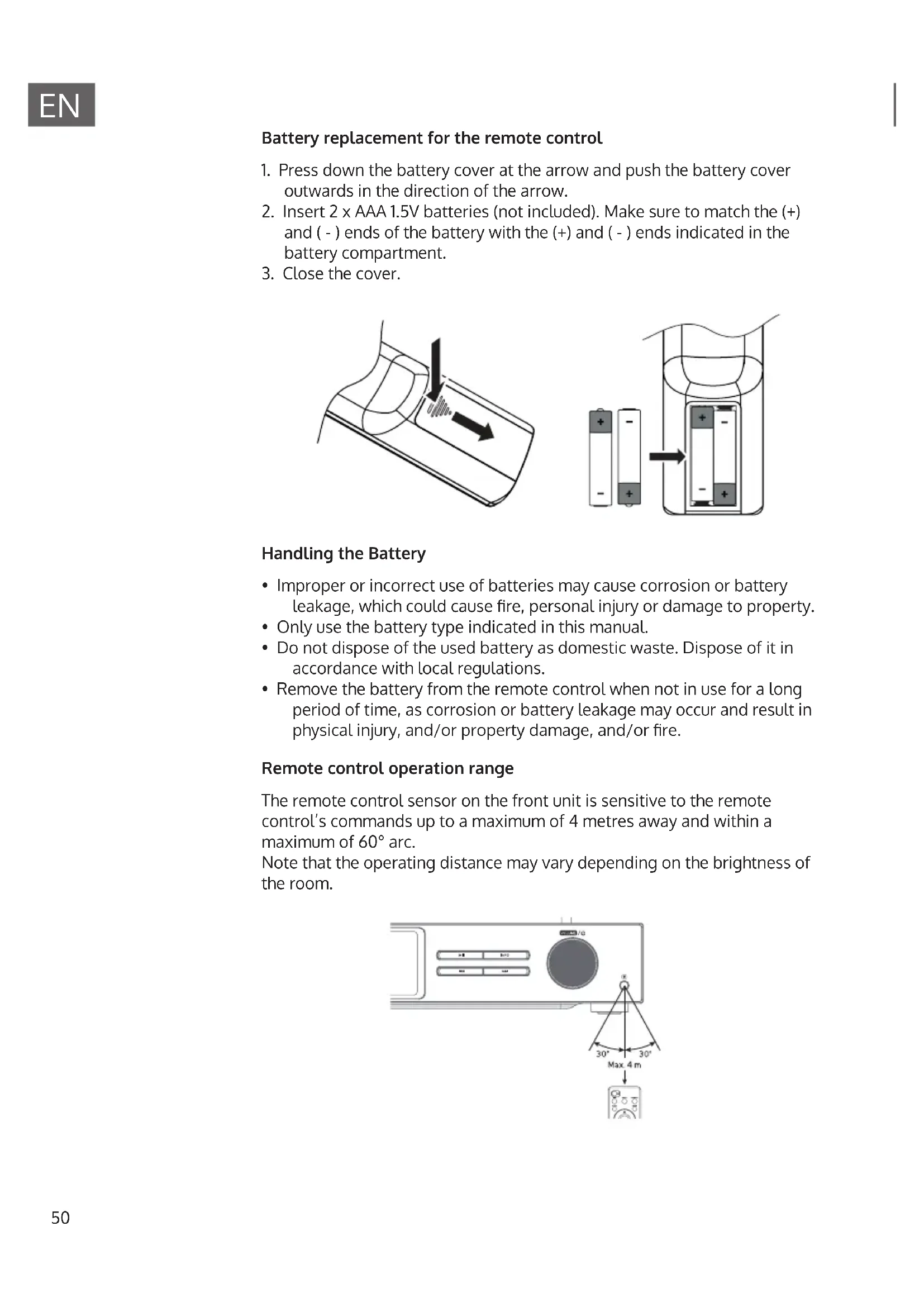

Battery replacement for the remote control

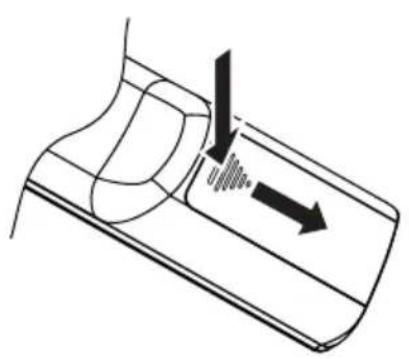

1. Press down the battery cover at the arrow and push the battery cover outwards in the direction of the arrow.

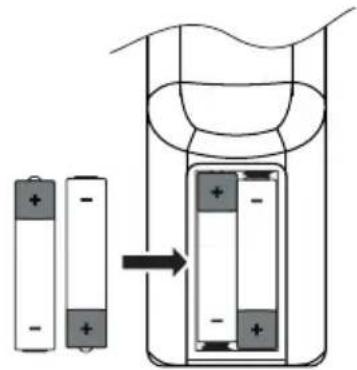

2. Insert 2 x AAA 1.5V batteries (not included). Make sure to match the (+) and (-) ends of the battery with the (+) and (-) ends indicated in the battery compartment.
3. Close the cover.

Diagram of a mechanical component with a tool and directional arrow indicating motion (no text or symbols)

Diagram showing battery charging process with two batteries and a liquid container, illustrating charge distribution.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local regulations.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.

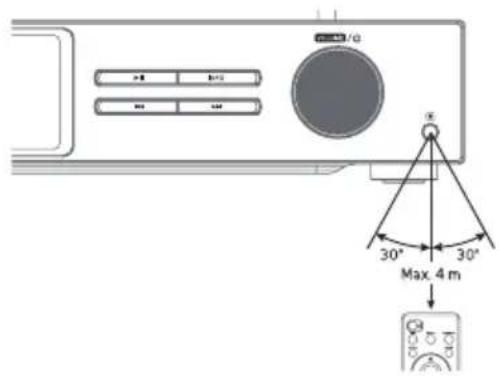

Remote control operation range

The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 4 metres away and within a maximum of 60^ arc.

Note that the operating distance may vary depending on the brightness of the room.

Max. 4 m 30° 30°

CONNECTION

1. The audio input/output (analogue), optical out (digital) and coaxial out (digital) are available on the back of the unit to connect A/V amplifier or HiFi system.
2. Connect the antenna included in the supply to the antenna connection and extend it to the desired length.
3. Connect the WLAN antenna included in the supply to the W-LAN socket at the back of the unit for WIFI connection.
4. Unwind the mains cable to its full length. Connect the mains plug to the mains socket. The unit is now connected and ready to use.

Be sure to connect the power cord to an AC outlet that supplies the correct voltage. Hold the power plug when plugging it into an outlet or unplugging it. Never pull or yank on the power cord.

1. To switch the unit off completely, unplug the mains cable from the mains socket.

Network Connection

This product only supports wireless network connection for network access and does not support wired LAN connection.

Wireless network

1. Check first of all whether the control lamps (LINK/ACT) of your router light up.
2. Proceed with the operations described in the below "Getting Started". It is recommended to run through the setup wizard in the System Settings section.

This unit cannot be connected to a standalone modem directly. A router or a modem incorporated with a router has to be used.

Since there are various connection configurations, follow the specifications and instructions of your telecommunication carrier, internet service provider, and router setting guidebook.

GETTING STARTED

This instruction manual explains the basic instruction for operating this unit. Unless otherwise stated, all operations described are based on remote control use.

Powering ON/OFF

1. Press the Volume| ⏻ dial on the unit or the ⏻ button on the remote control to switch the unit on.
2. Press the Volume| ⏻ dial on the unit or the ⏻ button on the remote control to switch the unit back to standby mode.

Selecting Modes

Press MODE button on unit or remote control to switch between Internet radio, Podcasts, Spotify, DAB Radio, FM Radio, CD, USB, BT Audio and LINE IN modes.

Alternatively

1. Press the MENU button on unit or remote control to display the function main menu, then turn SCROLL|SELECT dial on unit or press ▶|| ▲/▼ ■ buttons on the emote control to select Main menu, and then press SCROLL|SELECT dial on unit or press SELECT button on remote control to confirm.
2. Turn SCROLL|SELECT dial on unit or press the buttons on remote control to select target mode, and then press SCROLL|SELECT dial on unit or press SELECT button on remote control to confirm.

When the unit is idle for approximately 15 minutes, it will automatically switch to standby. To switch the unit off completely, remove the mains plug from the main socket. Turn the unit off completely to save energy when not in use.

Adjusting the Volume

• Turn the Volume| ⏻ dial on the unit or press the VOL +/- buttons on the remote control to adjust the volume.
• If you wish to turn the sound off, press the MUTE button on the remote control. Press the MUTE button again or turn Volume| ⏻ dial on the unit or press the VOL +/- buttons on the remote control to resume normal listening.

Navigating the Menu

1. Press and hold the MENU button on the unit or press the MENU button on the remote control to access the menu.

2. Turn the SCROLL|SELECT dial on the unit or press the ▶|| ▲/▼ ■ buttons on the remote control to select your choice.

3. Press the SCROLL|SELECT on the unit or SELECT button on the remote control to confirm your selection.

Initial Set-Up

When you first connect the unit to the mains socket, the display will show the welcome screen then with language menu shown up, turn SCROLL|SELECT dial on unit or press ▶|| ▲/▼ ■ buttons on remote control to change the display language of your choice and press the SCROLL|SELECT dial on unit or SELECT button on remote control to confirm.

Then the privacy policy page will come up. Please visit the website mentioned in the page for the details of the privacy policy. Press SCROLL|SELECT dial on the unit or SELECT button on the remote control to accept for next step.

1. To launch the initial Setup wizard, turn the SCROLL|SELECT dial on the unit or ◀/▶▶ buttons on the remote control to confirm.
2. In the next step you can select the time format. Select the desired setting [12] or [24] and press the SCROLL|SELECT dial on the unit or SELECT button on the remote control to move on to the next step.
3. Here it is possible to select which source (DAB/FM/Network/No update) the unit uses to obtain and update the time and date. If "Update from Network" selected, proceed to the next step to select time zone to ensure that the time is displayed correctly. And then select the "Daylight savings" is [ON] or [OFF].
4. In the next step you can specify whether the product should remain connected to the Internet when on standby. Turn the SCROLL|SELECT dial on the unit or press ◀/▶buttons on the remote to select [YES], then press the SCROLL|SELECT dial on the unit or press SELECT button on the remote to confirm.
5. Your radio will now scan for your wireless network, this may take a few seconds then a list of all the wireless networks will appear on the screen. Select the WLAN network you know and whether to use WPS (Push Button/Pin) or Skip WPS to enter the password using the displayed keyboard.

Connecting using the WPS button on your router

Connecting using the WPS (Wi-Fi Protected Setup) button on your router is a quick and easy way to connect your radio without having to type in a password. Select one of the following connection methods:

Push button

If your router has a WPS button you will notice [WPS] at the front of your network name.

1. Press the ▶||▲/▼■ buttons to select Push Button, then press SELECT button to confirm.
2. You will now see a message on the screen telling you to press the WPS button on your router. Press the WPS button on your router. Check your routers instruction manual if you are unsure which button is the WPS button.
3. Press the SELECT button to confirm. Your radio will now connect to your router, this may take a few seconds.

Pin (code number)

The radio generates an 8-digit code number. Enter this code number into the wireless router or access device.

Connecting using your wireless network password

If your router has not got a WPS button you will now be asked to enter your wireless network password, or you can select SKIP WPS which also take you to the password screen.

1. Press ▶||▲/▼■ buttons to select each letter/number of your password. Then press SELECT button to enter the selected letter/number.

2. When you have entered your password, press buttons to select OK on the right of the screen.

3. After your radio has connected, press SELECT button to exit the setup.

Settings can be changed at any time in Menu-System Settings - Network - Network wizard: This instruction manual explains the basic instruction for operating this unit. Unless otherwise stated, all operations described are based on remote control use.

SYSTEM SETTINGS

Press and hold the MENU button on the remote control to display the menu. Turn the SCROLL|SELECT dial on the unit or the Buttons in the remote control to select System settings. Then press the SCROLL|SELECT dial on the unit or the SELECT button on the remote control to confirm.

Equalizer

This system supports a variety of equalizers and sound effects. Press the EQ button to access the Equaliser menu.

Alternatively:

During System settings mode, press the ▶|| ▲/▼ ■ buttons to select Equaliser and then press the SELECT button to confirm.

1. The display will show : FLAT > CLASSIC > ROCK > POP > JAZZ:
2. Press the Buttons to select and then press the SELECT button to confirm.

Streaming audio quality

This system supports different audio quality for available streaming services. The actual bit rate for each level depends on the service being used.

1. During System settings mode, press ▶|| ▲/▼ ■ buttons to select Streaming audio quality and then press the SELECT button to confirm.
2. The display will show : Low quality / Normal quality/ High quality. Press ▶|| ▲/▼ ■ buttons to select and then press the SELECT button to confirm.

Network

1. During System Settings mode, press the ▶||▲/▼■ buttons to select Network and press the SELECT button to confirm.
2. Press the button to select from the following settings, and then press the SELECT button to confirm.

Network wizard	SSID – select the desire wireless network. Rescan – Scan for available networks. Manual config – select wireless network with DHCP enable/disable.
PBC Wlan setup	Select WPS on the unit and press the WPS button on the modem device that you wish to connect with. Press SCROLL|SELECT dial on unit or SELECT button on remote control to continue.
View settings Display the setting on the unit.
Manual settings	Select wireless network with DHCP enable/ disable.
NetRemote PIN Setup	To define a PIN number to be entered before being able to connect to the unit remotely over a network.
Network profile View the connected network.
Keep network connected	Allows you to define whether the device remains connected to its network in Standby mode and when not in Network radio mode.

1. Press the BACK button on the unit or remote control to cancel the setting and return back to the previous menu.

Time/Date

The Time/Date can be automatically set once it has been connected to the Internet, DAB or FM radio station with time/date information. You may also adjust the Time/Date manually.

Press CLOCK button on remote control can access Set Time/Date menu to adjust Time/Date.

During System settings mode, press ▶|| ▲/▼ ■ buttons to select Time/Date and press the SELECT button to confirm. Press ▶buttons ■ select Set Time/Date and press the SELECT button to confirm.

1. The date digits will flash on the display.
2. Press the ▶buttons to adjust the day and then press the SELECT button to confirm.
3. Repeat above Step (2) to set the Month/Year/Hour/Minute.
4. The date and time settings are now complete.

For the other settings under Time/Date, press ▶buttons ■ select from the following options and then press the SELECT button to confirm.

Auto update DAB / FM /	Network / No update.
Set format 12 / 24 hour format.
Set timezone	Select a time zone. (Only available when Auto update from Network is on.)
Daylight savings	Select daylight savings. (Only available when Auto update from Network is on.)

The default auto time update setting is "Update from Network". If you would like to manually set the time, it is recommended to turn the Auto update function off.

Inactive Standby

Use the Inactive Standby to turn off the unit after a certain time in play mode.

1. During System settings mode, press the ▶|| ▲/▼ ■ buttons to select Inactive Standby and then press the SELECT button to confirm.
2. The display will show : Off > 2 hours > 4 hours > 5 hours > 6 hours
3. Press the buttons to select and then press the SELECT button to confirm.

Language

1. During System settings mode, press the ▶||▲/▼■ buttons to select Language and then press the SELECT button to confirm.
2. Press the buttons to change the display language of your choice.
3. Press the SELECT button to confirm.

Factory Reset

There may be times when you need to reset your unit back to the factory settings especially when you have moved house. If you experience reception problems you may want to reset and try again. If you move to another part of the country and pick up the local and national DAB+ stations in that area, your previously tuned channels may no longer be available.

1. During System settings mode, press the ▶||▲/▼■ buttons to select "Factory reset", and press the SELECT button to confirm.
2. Press the ◀/▶▶ buttons to select Yes, and press the SELECT button to confirm or select No to cancel.

Note: After the system reset, all the tuned stations, Internet, DAB & FM preset stations will be erased.

Software update

1. During System settings mode, press the ▶||▲/▼■ buttons to select

Software update and then press the SELECT button to confirm.

1. Press the ▶buttons to select Auto-check setting or Check now, and then press the SELECT button to confirm.

Before downloading software, ensure that the radio is plugged into a stable mains power connection. Interrupting the mains supply during software download can lead to functional disturbances and/or damage to the unit!

Setup wizard

The setup wizard is available in the system settings section; you can run through this to configure settings for date/time and network. Once this has finished, your radio is ready to use.

Info

1. During System settings mode, press the ▶|| ▲/▼ ■ buttons to select Info and then press the SELECT button to confirm.
2. The software version, Radio ID and Friendly Name will show on the display.

Privacy policy

1. To see the Privacy policy page, press MENU to go to System settings - Privacy policy.
2. After Factory reset, you need to accept the Privacy policy again.

Backlight

1. During System settings mode, press the ▶|| ▲/▼ ■ buttons to select Backlight and then press the SELECT button to confirm.
2. For the other settings under Backlight, press the buttons to select the following options and then press the SELECT button to confirm.

Operation Mode High /	Medium/ Low
Standby Mode	Timeout Off/ 10 sec / 30 sec / 60 secStandby Level High/Medium/Low/Off

Alternatively, press DIMMER button on remote control repeatedly can adjust the Backlight level under ON mode and Standby mode.

If Timeout set Off, the display brightness at standby will keep as operation mode not able to adjust by DIMMER button on remote control.

INTERNET RADIO

To listen to internet radio your radio must be connected to the internet. Try to position your radio as close as possible to your router to get the best connection speeds. When Internet Radio mode is selected, the radio connects with the Frontier Silicon Internet radio portal to download a list of stations. Once a station is selected, the radio will connect directly to that station.

Press MODE button on unit or remote control to select Internet radio mode.

During Internet Radio mode, press the MENU button on the unit or MENU on the remote control to access the menu. You can choose between: Last listened, Station list, System settings and Main menu.

Press the ▶buttons to select and press the SELECT button to confirm.

When internet radio is restarted, the last listened stations is automatically selected. To return to [Station List], press BACK button.

Last listened

1. Press the ▶|| ▲/▼ ■ buttons to select the history of stations that you have listened to before.
2. Press the SELECT button to confirm.

Station list

If it is the first time listen Internet radio, the radio will be in [Station List]. Press the ▶|| ▲/▼ ■ buttons to select from the following options, and then press the SELECT button to confirm.

"Countries"	You can search specifically for stations from your country. Within this scope, it will display local radio.
Search	You can search stations using various keywords. The name and a description of your selected station will show on the display.
Location	You can select for stations from a list of countries available.
Popular	Select station from a list of the most popular internet stations from around the world.
Discover	Select stations from various categories in the menu: Country, Genre or Language

Internet radio

Save to Preset
1.	[Not set]
2.	[Not set]
3.	[Not set]
4.	[Not set]
5.	[Not set]

Press the BACK button on the unit or remote control can move back a menu level.

Preset Stations

The preset Internet radio stations are stored in the radio and cannot be accessed from other radios.

1. To store an Internet radio preset, you must first be listening to the station that you would like to save. Press and hold the MEMORY button on unit or PRESET button on remote control until the display shows the "Save to Preset".
2. Select one of the 30 presets to store the current station by turning SCROLL|SELECT dial on unit or pressing ▶|| ▲/▼ ■ buttons on remote control to select the number, then press SCROLL|SELECT dial on unit or SELECT button on remote control to confirm.

Recalling a Stored Station

1. To select a preset, press the MEMORY button on unit or PRESET button on remote control, and then turn SCROLL|SELECT dial on unit or press the ▶|| ▲/▼ ■ buttons on remote control to select one of the listed preset stations.

2. Press SCROLL|SELECT dial on unit or SELECT button on remote control to confirm the selection.

Alternatively, on remote control,

• Press Preset v/∧ buttons to switch through the preset stations.
• Or press the number keys (0-9) on remote control can switch to preset station 1-10 directly.
• If there no station be saved, it will show Preset empty.

Operation of Preset and Recall stations are same for Internet Radio/Podcasts, DAB and FM.

Internet Radio Display Modes

Every time you press the INFO button on the remote control, the display will show the following display modes:

Channel Info/Description → Language/Location → Bit rate/Sound format/Sampling rate → Playback buffer → Date

PODCASTS

To listen to Podcasts your radio must be connected to the internet. Try to position your radio as close as possible to your router to get the best connection speeds.

Press MODE button on unit or remote control to select Podcasts mode.

During Podcasts mode, press the MENU button on the unit or remote control to access the menu. You can choose between: Last listened, Podcast list, System settings and Main menu.

Press 1 buttons to select and press the SELECT button to confirm.

Last listened

Press ▶|| ▲/▼ ■ buttons to select [Last listened], then press SELECT button to confirm.

Podcast list

When radio is restarted, the last listened stations is automatically selected. To return to [Podcast list], press BACK button.

If it is the first time listen Podcasts radio, the radio will be in [Podcast list].

Press the ▶|| ▲/▼ ■ buttons to select from the following options, and then press the SELECT button to confirm.

"Countries"	You can search specifically for stations from your country. Within this scope, it will display local radio.
Search	You can search stations using various keywords. The name and a description of your selected station will show on the display.
Location	You can select for stations from a list of countries available.
Discover	Select stations from various categories in the menu: Country, Genre or Language

Saving and Recalling Preset Station

Refer to "Preset Stations" and "Recalling a Stored Station" under Internet Radio for instruction.

SPOTIFY CONNECT

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

Spotify\*

Licenses

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses

DAB RADIO

Press MODE button on unit or remote control to select DAB Radio mode. The unit will enter DAB mode and perform the auto scan function. During the scan the display will show "Scanning..." together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far. Once the scan has finished, the unit will select the first alphanumerically found station. To explore the found stations, press the ▶■▲/▼ ■ buttons to select and press the SELECT button to confirm.

Station List

1. During DAB mode, press the MENU button to access DAB menu.
2. Press the ▶|| ▲/▼ ■ buttons to select "Station List" and then press the SELECT button to confirm.
3. A list of DAB+ stations will show on the display.

Auto Scan

• Press the SCAN|■ button on unit or SCAN on remote control to activate auto scan.

• Alternatively, press the MENU button, and then press ▶|| ▲/▼ ■ buttons to select Scan. Press the SELECT button to confirm.

• The display will show "Scanning..." and a progress slide bar.

• All the stations that have been found will be stored automatically. To explore and listen to the found stations, press the buttons to select and the press the SELECT button to confirm.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press MENU to display the menu.
2. Press the ▶||▲/▼■ buttons to select "Manual tune", and press the SELECT button to confirm.
3. The display will show the multiplex 5A to 13F.
4. Press the Buttons to select the channel, and press the SELECT button to confirm.
5. To listen to any stations found, return to the now playing screen and press buttons to select the required station from the station list and press SELECT button to confirm.

Prune Invalid

You may remove all unavailable stations from the list.

1. During DAB mode, press the MENU button and press the ▶|| ▲/▼ ■

DAB DAB Radio DAB radio

Scan Stations: 0 Scanning /

buttons to select Prune invalid and then press the SELECT button to confirm.

1. Press the ▶buttons to select [YES] and press the SELECT button to confirm, or select [NO] to cancel.

DRC (Dynamic Range Compression)

If you are listening to music with high dynamic range in a noisy environment, you may wish to compress the audio dynamic range.

1. During DAB mode, press the MENU button and press the ▶||▲/▼■ buttons to select DRC and press the SELECT button to confirm.
2. Press the Buttons to select DRC high/low/off and press the SELECT button to confirm the setting.

Station Order

You may wish to arrange the station listing order.

1. During DAB mode, press the MENU button and press the ▶|| ▲/▼ ■ buttons to select Station Order and press the SELECT button to confirm.
2. Press the buttons to select Alphanumeric/Ensemble/Valid order and press the SELECT button to confirm the setting.

DAB Display Modes

Every time you press the MENU button on the unit or INFO on the remote control, the display will show the following display modes: DLS – Programme Type – Ensemble/Frequency – Signal error/Strength – Bit rate/Codec/Channels – Date

DLS (Dynamic Label Segment)

This is a scrolling message giving real-time information, e.g. song titles, news headlines, etc.

Programme Type

This describes the "style" or "genre" of the programme that is being broadcast.

Ensemble Name/Frequency

This display the name of the multiplex that contains the station you are listening to and the frequency. A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

Signal Error/ Signal Strength

The error is shown as a number. If the number is 0, it means the signal received is error free and the signal strength is strong. If the error rate is

high, it is recommended to reposition the radio aerial or reposition the unit. The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

Bit Rate / Codec / Channels

The display will show the digital audio bit rate being received with additional information about the audio codec and channel configuration.

Date

This displays the current date provided automatically by the broadcaster.

Saving and Recalling Preset Station

Refer to "Preset Stations" and "Recalling a Stored Station" under Internet Radio section for instruction.

FM radio

FM OPERATION

Press MODE button on unit or remote control to select FM Radio mode.

Auto Scan

Press SCAN|■ button on unit or SCAN button on remote control to start searching for a station.

Once a station has been found, the scanning will stop automatically. Alternatively, press and hold ▶|| ▲/▼ ■ buttons to start searching for a station.

Note: The search may not stop at a station with a very week signal.

Manual Tuning

To search for FM stations manually, turn the SCROLL|SELECT dial on unit or press the ▶|| ▲/▼ ■ buttons on remote control repeatedly until your desired frequency is reached.

Note: With FM radio, it may be necessary to fine tune each station by turning the SCROLL|SELECT dial on unit or pressing ▶|| ▲/▼ ■ buttons on remote control repeatedly. Each press will adjust the frequency by 0.05 MHz. If reception is still poor, adjust the position of the aerial or try moving the radio to another location.

FM Display Modes

Every time you press the MENU button on unit or INFO button on remote control, the display will show the following display modes: Radio Text – Programme Type – Frequency – Date

RDS Radio Text	This is a scrolling message information about the current programme.
Programme Type	This describes the "Style" or "Genre" of music that is being broadcast.
Station Name / Frequency	When an RDS station is received, the name of that station will be displayed, or if not the frequency will bedisplayed.
Date This displays the current date provided automatically by the broadcaster.

Scan Setting

1. Press the MENU button to access FM menu.
2. Press the ▶|| ▲/▼ ■ buttons to select Scan setting and then press the SELECT button to confirm.
3. Press the ◀◀/▶◀ buttons to select YES to receive Strong stations only and then press the SELECT button to confirm.

Audio Setting

1. Press the MENU button to access the main menu.
2. Press ▶|| ▲/▼ ■ buttons to select Audio setting and press the SELECT button to confirm.
3. Press ◀◀/▶◀ buttons to select [Yes] to listen in mono only or [NO] to let the unit select Stereo or Mono automatically.
4. Press the SELECT button to confirm.

Alternatively, press the MONO/ST. button on the remote control to toggle between the Mono only or Mono/Stereo selection.

Saving and Recalling Preset Station

Refer to "Preset Stations" and "Recalling a Stored Station" under Internet Radio section for instruction.

CD OPERATION

Compatible disc types

Disc type Disk-Logo Medieninhalt
CD-Recordable		Audio
CD-RW(CD Rewritable)		Audio
Audio CD (Compact Disc Digital Audio)		Audio

Press MODE repeatedly on the unit or the remote control to select CD mode.

Playback

1. Press the OPEN/CLOSE Disk Tray (▲), um die CD-Lade zu öffnen.
2. Place the CD with the label side up into the CD compartment, and then press the OPEN/CLOSE Disk Tray ▲button to close the disc tray.
3. If there is no disc or the disc can't be read, "No disc" will show on the display.
4. When the playback is stopped, the total number of tracks will display on the display, then press the ▶II button to play the first track of CD/ MP3 disc automatically.

To pause playback: Press the ▶ II button to pause the playback. And resume playback by press this button again.

To stop playback: Press the ■ button to stop playback.

Skipping to another track: Press the ◀◀/▶◀ buttons to skip backwards to the beginning of the track or previous track or skip forwards to the next track. Press and hold the ◀◀/▶◀ buttons to perform fast forward/reverse playback.

Alternatively, press number keys in sequence on remote control can skip to the target track directly.

Press and hold ◀◀/▶◀ buttons on remote control to perform fast forward/reverse playback. When playing MP3 disc with music grouped in different folder, press Preset/ Folder ∧/∨, buttons on remote can switch to next/previous folder.

Repeat playback

1. Press the REPEAT button repeatedly to choose a function.

	It will play the current track repeatedly.
	It will play all les in the current folder repeatedly (for data CDs only).
	Alle Titel wiederholen.

1. Press the REPEAT button once more again, the REPEAT function will turn off.

Random playback

All tracks on the disc can be played in a random order.

1. Press the RANDOM button on the remote control. The . indicator will show on the display. All tracks will be played randomly.
2. Press the ◀◀/▶◀ buttons to playback the next random track.
3. After all the tracks have played once, the playback will stop automatically.
4. To cancel random playback, press the RANDOM button during Random playback. Normal playback will resume.

Intro playback

1. Press the INTRO button on the remote control. The "INTRO" indicator will show on the display. The unit will play the rst 10 seconds of each track.
2. Press the INTRO button on the remote control again to resume normal playback.

Programme setting

User can program up to 20 tracks in any desired order. And Programme mode is activated while in STOP mode.

1. Press the PRESET button to enter programme mode.
2. Press the ◀◀/▶◀ buttons to select the track that you want to preset.
3. Press the SELECT button to confirm the track.
4. Repeat steps 2-3 to programme more tracks. When nished selecting tracks, press the ▶II, button to start playback of the programmed tracks.

Programme cancel: Press the ■ button twice, or open the disk tray and close it again to erase the memory.

USB OPERATION

1. There is a USB socket located at the front of the unit. When a USB device is connected to the unit, press the MODE button on unit or remote control repeatedly to select USB mode.
2. The unit will automatically playback the tracks.
3. All playback features are the same as if you were playing an MP3 CD.

The unit can only play MP3 file formats in USB operation. The unit can support USB devices with up to 32GB of memory. The unit may not compatible with all USB devices; this is not an indication of a problem of the unit.

Charge Your Device

You can charge your device through the USB socket on this unit with a USB cable (not supplied).

• The maximum current for USB charging is 1 A.
• All devices for USB charging are not guaranteed.

BT OPERATION

The unit has a BT function that can receive a signal within 8 metres.

Pair the unit with a BT device to listen to music:

1. Press MODE button on unit or remote control to select BT Audio mode.
2. If the unit is not paired with any BT device, the BT logo will start to flash to show the unit in pairing mode.
3. Activate your BT device and select the search mode.
4. "iTunerCD" will appear on your BT device list.
5. Select "iTunerCD" and enter "0000" for the password if necessary. Once connected the BT logo on the screen will stop flashing. Your device is now paired with the unit.
6. Pressing and hold PRESET button on unit or remote control or pressing PAIR button on remote control can disconnect existing BT connection, with other BT devices able to locate and make connection with the unit.
7. To disconnect the BT function, switch to another function on the unit or disable the function from your BT device.

Playing Music via BT

You may need to adjust the volume on your radio and BT device.

Press the ▶ button on the unit or on the remote control to play/pause music or press ◀ / ▶ buttons on unit or remote control to skip to the previous/ next track.

Notes:

• The operational range between the unit and the device is approximately 8 metres.
• If the signal strength is weak, your BT receiver may disconnect, but it will re-enter pairing mode automatically.
• For better signal reception, remove any obstacles between the unit and the BT device.
• Compatibility with all devices and media types is not guaranteed.
• Some mobile phones with the BT function may connect and disconnect as you make and end calls. This is not an indication of a problem with your unit.

AUDIO INPUT

You can play sound from an external device via the device.

1. Connect the external device to the Analog Audio Input on the device through suitable RCA cable (not included).
2. Press MODE button on unit or remote control repeatedly to select Line In mode.
3. Turn the VOLUME|q dial on the unit or press the VOL +/- buttons on the remote control to adjust the volume control for your desired sound output level. Set the desired volume on the radio and the external audio device if necessary.
4. In Line In mode, operate your audio device directly for playback features.

When connecting the external audio device, refer to the owner's manual of the external device.

NETREMOTE

The device gives a feature of NetRemote by smartphone or tablet in iOS or Android system. By downloading the app named UNDOK, you can view all the modes of Internet radio, Spotify, Music player, DAB and FM. And select the mode on your smartphone or tablet.

Before using the UNDOK app, make sure the device and the smartphone or tablet are in the same WiFi network. Launch the app. The app initializes and scans for the device in the network. Tap the device to make the NetRemote connection.

• Once the smartphone or tablet has already accessed the device, they will automatically connect the next time when you open the app again.
• Be aware that if another smartphone or tablet with the app in the same network has access with the device; the original connection will be cut off.
• When it is the first time that you connect the device to Internet Radio, the app may ask you to enter the PIN. Default PIN is "1234". For details of changing the PIN for security, please refer to System Settings section: Network - NetRemote PIN Setup.
• Select your desired mode in the main page. You may then control the selected mode on your smartphone or tablet and on the device simultaneously.

USING HEADPHONES

Do not listen to music at high volume when using headphones. Doing so can cause permanent hearing impairment. Turn the tuner volume level to the lowest before using headphones.

• Only use headphones with a 3.5-mm jack plug.
• Insert the headphone connector in the headphone socket in front of the unit.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods of time.

SLEEP SETTING

This function allows you to program the unit to turn to standby mode by itself after a set period of time.

1. To activate the sleep function, press the SLEEP button repeatedly. The time will change in the below sequence on every press:

Sleep OFF → 15 minutes → 30 minutes → 45 minutes → 60 minutes → 90 minutes → 120 minutes

1. When your desired sleep time appears in the display, stop pressing the button and the sleep function will be activated in two seconds. "C" will show on the display. Also the time remaining until switch off is displayed next to the symbol in the display.

2. When the sleep timer counts down to zero, the unit will turn to standby mode. To turn the sleep function off while the sleep timer is still counting down, press the SLEEP button repeatedly to select "SLEEP OFF".

Alternatively:

1. Press the MENU button on the remote control to display the function main menu. Press the ▶|| ▲/▼ ■ buttons to select Main menu, and then press the SELECT button to confirm.
2. Press the 🎨 buttons to select Sleep mode, and then press the SELECT button to confirm.
3. Press the buttons to select sleep timer, and then press the SELECT button to confirm.

SETTING THE ALARM

1. Press the TIMER button on the remote control, the display shows "Alarm (1 or 2): Off [hh:mm]".
2. Press the Buttons to select the Alarm number (1 or 2) and then press the SELECT button to start the setting of the following parameters.

Press the ▶buttons ▶ select then press the SELECT button to confirm.

Enable Off/ Daily/	Once/ Weekends/ Weekdays
Time (Alarm On time)
Mode Buzzer/ Internet radio/ Spotify/ DAB/ FM
Preset Last Listened/ (Preset station)
Volume Muted, 1-32
Save Save and confirm the alarm setting

1. Finally, select "Save" and press the SELECT button to save the alarm setting. When the alarm is set, the alarm icon will appear on the display.
2. To turn off the alarm when it sounds, press the Volume| dial on the unit or the or ALARM button on the remote control.

Cancelling the Alarm

1. Press the TIMER button on the remote control, the display shows "Alarm (1 or 2): On [hh:mm]".
2. Press the ▶||▲/▼■ buttons to select the Alarm number (1 or 2) and then press SELECT to start the setting of the timer.
3. Press the buttons to select "Enable" then press the SELECT button to confirm.
4. Press the Buttons to select "Off" then press the SELECT button to confirm.
5. Finally, select "Save" and press the SELECT button to save the setting.
6. Alternatively, during Standby mode, press the TIMER button on remote control repeatedly can turn the saved Alarm 1/2 on/off sequentially.

If no button is pressed within approx. 15 seconds, the unit exits timer setting mode automatically.

Chal-Tec

Chal-Tec GmbH

Wallstr. 16 10179 Berlin, Germany

www.chal-tec.com

The Spotify software is subject to third party licenses found here:

https://www.spotify.com/connect/third-party-licenses

All listed brands are trademarks of their companies. Errors and omissions excepted, and subject to technical change. Our general terms of delivery and payment are applied.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type iTuner is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10032753

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type iTuner is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10032753

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 78

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing battery charging process with two batteries and a submerged container, illustrating charge distribution.

Manipulation des piles

https://www.spotify.com/connect/third-party-licenses

RADIO DAB

Scan Stations: 0 Scanning /

DLS (Dynamic Label Segment)

Sleep OFF → 15 minutes → 30 minutes → 45 minutes → 60 minutes → 90 minutes → 120 minutes

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

DÉCLARATION DE CONFORMITÉ

CE UK CA

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

https://www.spotify.com/connect/third-party-licenses

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Datos técnicos 116

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing battery charging process with two batteries and a submerged container, illustrating charge distribution.

Manejo de las pilas

https://www.spotify.com/connect/third-party-licenses

RADIO DAB

Scan Stations: 0 Scanning /

Sleep OFF → 15 minutes → 30 minutes → 45 minutes → 60 minutes → 90 minutes → 120 minutes

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

https://www.spotify.com/connect/third-party-licenses

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 154

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing battery charging process with two batteries and a submerged container, illustrating charge distribution.

https://www.spotify.com/connect/third-party-licenses

RADIO DAB

Scan Stations: 0 Scanning /

DLS (Dynamic Label Segment)

Sleep OFF → 15 minutes → 30 minutes → 45 minutes → 60 minutes → 90 minutes → 120 minutes

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

https://www.spotify.com/connect/third-party-licenses

QR code image containing encoded data, no visible human-readable text

INHOUD

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing battery charging process with two batteries and a submerged container, illustrating charge distribution.

https://www.spotify.com/connect/third-party-licenses

DAB RADIO

Sleep OFF → 15 minutes → 30 minutes → 45 minutes → 60 minutes → 90 minutes → 120 minutes

INSTRUCTIES VOOR AFVOER

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

https://www.spotify.com/connect/third-party-licenses

Abstract white logo design on dark background, resembling stylized letter 'S' or wave form (no text or symbols)
