Berklee TT-Play - Hi-fi system Auna - Free user manual and instructions

Product Type	Hi-fi system with turntable and integrated passive speakers
Brand	Auna
Model	Berklee TT-Play
Power supply	Power adapter 100-240 V~ 50/60 Hz, output 5 V DC / 1.5 A
Playback speeds	33, 45, 78 rpm
Automatic stop	ON/OFF switch
Main functions	BT IN, AUX IN, PHONO, BT OUT, Audio Out, Headphone jack
Bluetooth connectivity	Frequency 2402-2480 MHz, max transmission power 4 dBm
Inputs	AUX IN (3.5 mm jack)
Outputs	Headphone jack (3.5 mm), RCA audio output (line level), passive speakers (L/R terminals)
45 RPM adapter	Included
Safety	Unplug during storms or prolonged non-use; do not open the device; avoid liquids and foreign objects
Care and cleaning	Clean with a dry cloth; do not use chemical products; protect the stylus
Spare parts and repairability	Use only parts provided by the manufacturer or equivalent; entrust any repair to a professional
General information	Manual available in several languages; article numbers 10040460, 10040461

Frequently Asked Questions - Berklee TT-Play Auna

How to connect my smartphone via Bluetooth to the turntable?

Turn the mode knob to BT IN. The indicator blinks blue. Activate Bluetooth on your smartphone and search for 'Berklee' in the device list. Select it to pair. A tone confirms the connection and the indicator turns solid blue.

How to play a vinyl record?

Turn the mode knob to PHONO. Select the speed (33/45/78 rpm) with the selector. Place the record on the turntable, use the 45 rpm adapter if needed. Remove the stylus guard, release the tonearm, then use the lever to gently lower the arm onto the record.

How to use the AUX input?

Turn the mode knob to AUX IN. Connect a 3.5 mm audio cable (not included) from your device (phone, MP3) to the AUX IN jack on the back of the device. You can then listen to music from your external device.

How to stream music from the turntable to an external Bluetooth speaker?

Turn the mode knob to BT OUT. The indicator blinks blue. Put your external BT speaker in pairing mode. The two devices connect automatically within 30 to 45 seconds. A tone confirms the connection and the indicator turns solid blue. The vinyl music will then be streamed to the external speaker.

What should I do if there is no sound from the speakers?

First check that the speakers are properly connected to the OUT-L and OUT-R jacks on the back. Make sure the volume is high enough and the device is powered on. If using Bluetooth, verify that the source device is connected and playing.

How to change the playback speed of a record?

Use the speed selector located near the turntable. You can choose between 33, 45, and 78 rpm depending on the record.

Can I plug headphones into the device?

Yes, there is a headphone jack on the front or back of the device. Plug in your headphones to listen to music without disturbing others.

Why does the record stop before the end?

This is probably due to the automatic stop. If the automatic stop switch is ON, the record stops at the end of playback. To avoid this, set the switch to OFF.

How to clean the turntable stylus?

Use a small antistatic brush specially for styli (not included). Gently brush the stylus tip in the direction of playback, from back to front. Avoid touching the stylus with your fingers.

What safety precautions should I observe?

Unplug the device during storms or prolonged non-use. Do not overload power outlets. Do not spill liquid or insert objects into openings. Do not attempt to repair the device yourself, contact a qualified professional.

USER MANUAL Berklee TT-Play Auna

INHALTSVERZEICHNIS

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

CONTENTS

Safety Instructions 16

Device Overview 18

Getting started 20

BT IN mode 20

AUX IN mode 20

PHONO mode (record player) 21

BT OUT mode 21

Audio Out mode 22

Headphone mode 22

Troubleshooting 23

Disposal Considerations 24

Declaration of conformity 24

TECHNICAL DATA

Article number 10040460, 10040461
Power supply	Input power: 100-240 V ~ 50/60 HzOutput power: DC 5 V / 1.5 A
BT frequency 2402-2480 MHz
BT transmission power (max.) 4 dBm

SAFETY INSTRUCTIONS

General instructions

• Lightning - If you do not use the device for a longer period of time or in the event of electrical storms, unplug the device from the power outlet or disconnect the device from the antenna connection. This prevents damage to the product due to lightning and overvoltage.
  • Overloading - Do not overload electrical outlets, extension cords or integrated sockets as this may result in a fire or electric shock.
• Foreign objects and liquid entry - Never push objects of any kind into the unit through openings as they may touch dangerous voltage points or short out parts that could cause a fire or electric shock. Never spill liquids of any kind on the unit.
• Repair and maintenance - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages or other hazards. Leave all maintenance work to qualified service personnel.
• Damage requiring servicing - Unplug the appliance from the wall outlet and refer servicing to qualified service personnel when any of the following situations occur:

a) If the power cable or plug is damaged
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a significantly reduced performance.

- Spare parts - If spare parts are needed, make sure that the specialist company replacing the parts only uses spare parts that are approved by the manufacturer or have the same characteristics as the original part. Unauthorised substitutions may result in fire, electric shock or other hazards.

- Heat - Do not install near any heat sources such as radiators, heat registers, stoves, or other products (including amplifiers).

Special notes

• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Children should be supervised to ensure that they do not play with the device. Make sure that children and babies do not play with plastic bags or other packaging materials.
• Make sure that the mains adapter/mains plug always remains easily accessible so that the unit can be quickly disconnected from the mains in an emergency.
• When you are no longer using the device, switch it off and pull the plug out of the socket.

DEVICE OVERVIEW

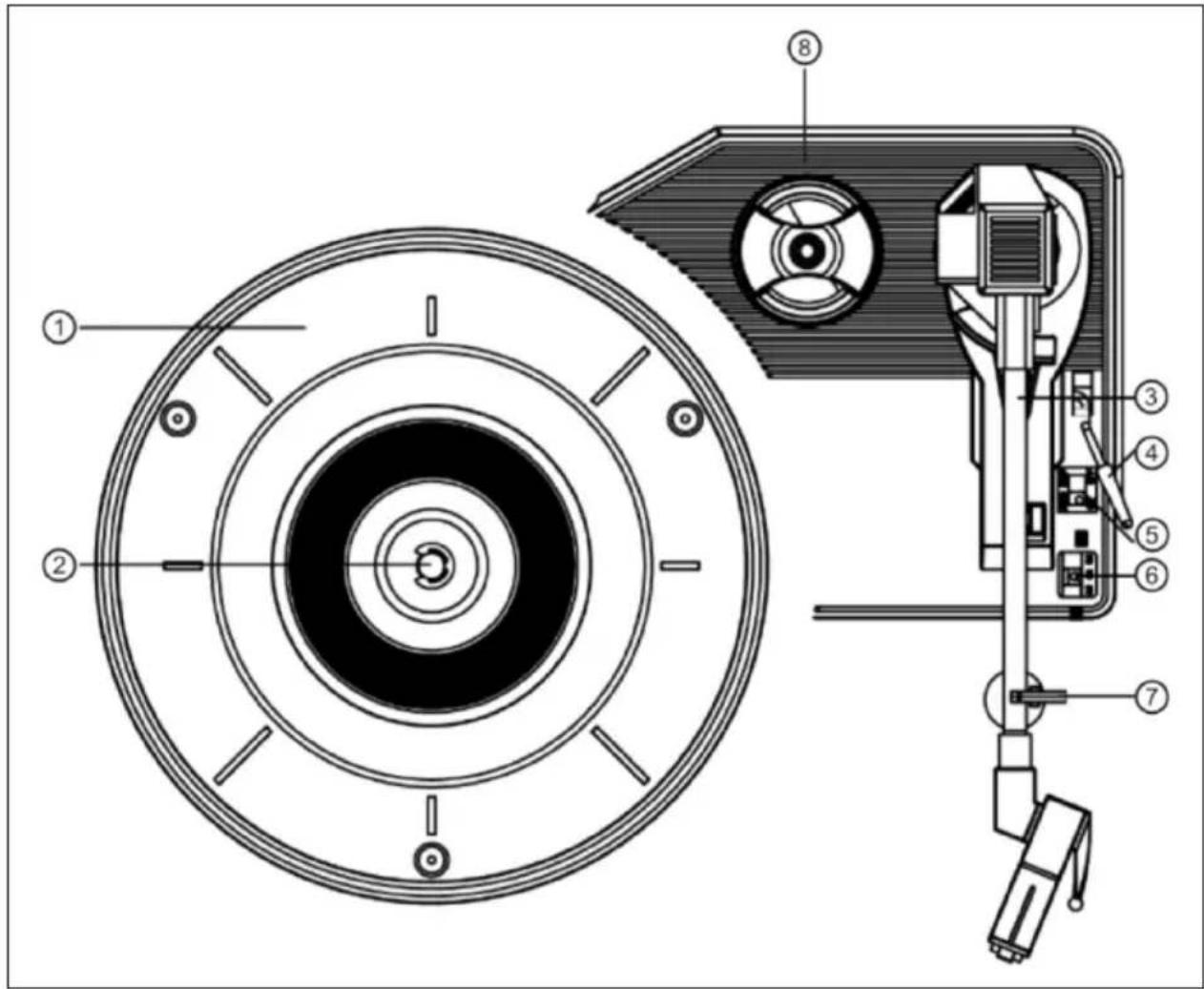

Record player

1 Turntable 5 Auto-stop switch
2 Record player spindle 6 Speed switch
3 Tone arm 7 Push down clip
4 Tone arm lever 8 45 RPM adapter

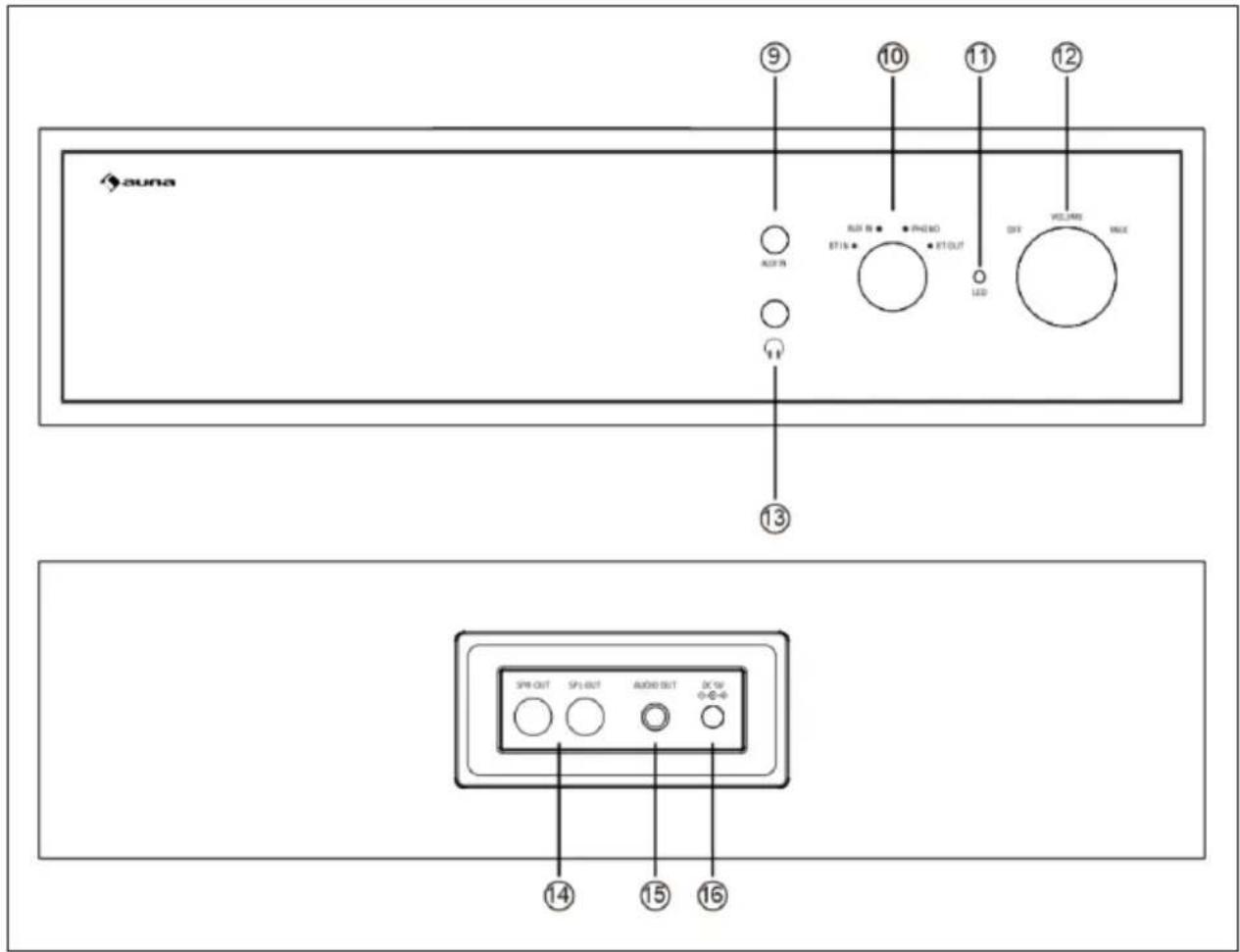

Device overview

9 AUX IN socket 13 Left/right speaker input
10 Mode knob 14 Audio output socket
11 LED indicator 15 Power input socket
12	On/Off (OFF) and volume control

GETTING STARTED

1. Connect the left and right speakers to the OUT-L/OUT-R jacks on the back of the unit.
2. Place the speakers on a flat and level surface. The chosen location should be stable and free from vibrations.
3. First connect the mains cable to the unit and then connect the power supply unit to the mains socket.
4. Turn the on/off volume control on the unit to switch the unit on and off.

BT IN MODE

1. Turn the mode knob to BT IN. The mode indicator turns blue and flashes.
2. Switch on the BT function of your audio device or mobile phone Search for "Berklee" in the BT device list and pair your device with the record player.
3. Once your device is successfully connected to the speakers, you will hear a short confirmation tone from the speakers and the function indicator will light up blue.
4. Play and stream music from your device to the speakers.

AUX IN MODE

Turn the function knob to AUX IN. Connect a 3.5 mm audio cable (not included) to the AUX IN jack of the speaker and the other end to the output jack of your audio device (mobile phone/MP3 player). Now you can play music from your external device.

PHONO MODE (RECORD PLAYER)

1. Turn the mode knob to PHONO.
2. Select the desired speed (33/45/78 RPM) and place the record on the turntable. If you are playing a 45 RPM record, use the 45 RPM adapter.
3. Remove the needle guard from the needle. Release the tone arm from the tone arm clamp.
4. Operate the tone arm lever to raise the tone arm. Gently move the tone arm to the desired position over the record. Press the tone arm lever again to slowly lower the tone arm to the desired position on the record and start playback.
5. When the record has finished playing, press the tone arm lever again to raise the tone arm. Put the tone arm back on the armrest. Operate the tone arm lever to lower the tone arm.

Please note:

• When the Auto Stop switch is ON, the record will automatically stop when it is finished. When the Auto Stop switch is OFF, the record will not stop when playback is finished.
• Do not touch the tip of the needle with your fingers.

BT OUT MODE

This function allows music played on the unit to be transmitted to an external BT speaker or BT headphones via a wireless BT connection.

1. Turn the mode knob to the BT OUT position. The mode indicator turns blue and flashes.
2. Switch on the external Bluetooth receiving device (BT speaker or BT headphones) and enter pairing mode.
3. The record player and the external Bluetooth receiver are automatically connected. This process can take up to approx. 30-45 seconds. To establish a good connection, do not place the BT receiver more than 1 m away from the unit.
4. Once the record player is successfully connected to the external BT speakers, you will hear a short confirmation tone from the speakers and the function indicator will light up blue.
5. Select the desired speed (33/45/78 RPM) and place the record on the turntable. The music is played through the external BT speaker/headphones.

AUDIO OUT MODE

The audio jacks output analogue line-level signals and can be connected directly to a pair of powered speakers or to the corresponding input of your stereo system.

Note: The audio sockets are not intended for direct connection to passive speakers. When connected to the passive speakers, the volume level is very low.

HEADPHONE MODE

This unit can be connected to headphones via the headphone jack.

TROUBLESHOOTING

Problem Possible cause and solution
Device does not turn on.	The power cable is not connected properly.
	The socket has no power.
No sound from the speakers	The speakers have not been connected properly.
The speakers could not be connected to my BT device	The BT function of the unit is not switched on.
	The speakers are actively connected to another BT device.
The record player speaker stops before the record is over.	Set the Auto Stop switch to the OFF position.
In BT OUT mode, the unit and the BT receiver cannot be connected successfully	Switch the unit and the BT receiver off. Attempt the pairing step again from the beginning.
	Check if the record player is connected to another BT receiver.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Berklee TT Play is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10040460

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Berklee TT Play is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10040460
