UHF450 - Microphone Malone - Free user manual and instructions

Product type	UHF Wireless Microphone
Brand	Malone
Model	UHF450
Receiver power supply	AC adapter 120/230 V AC to 13-15 V DC (300/500 mA)
Microphone power supply	2 AA batteries per microphone/transmitter
Modulation type	FM
Transmission frequency	UHF (823-832 MHz), specific frequency on sticker
Transmission range	Approximately 50 m (depending on local conditions)
Intended use	Transmission of speech and singing indoors
Audio outputs	Balanced XLR connector and 1/4" jack
Settings	Volume, channels (up/down), Lavalier/Headset mode
Display	LCD screen on receiver and microphone/transmitter
Antenna	Antenna on receiver (45° angle recommended)
Maintenance and cleaning	Clean with a dry cloth; avoid moisture
Safety	Not suitable for persons with reduced capabilities without supervision; keep out of reach of children
Spare parts and repairability	Replaceable AA batteries; AC adapter included; contact manufacturer for other parts
General information	Compliant with European standards; requires frequency authorization in Germany

Frequently Asked Questions - UHF450 Malone

How to connect the receiver to an amplifier?

Use an audio cable to connect the XLR or 1/4 output of the receiver to the input of your amplifier or mixer. Make sure the receiver is powered on and the microphone is turned on.

How to change the frequency or channel?

On the receiver or microphone, use the UP and DOWN buttons to browse channels. The LCD screen shows the frequency and selected channel. Make sure the transmitter and receiver are set to the same channel.

What is the battery life?

Battery life depends on the type of batteries and usage. With new alkaline batteries, it can reach about 8 hours. The red LED on the transmitter lights up when batteries are low.

What is the maximum range of the system?

The range is approximately 50 meters indoors, but it may vary depending on obstacles (walls, metal surfaces) and interference.

What to do in case of interference or signal loss?

Check that the antennas are at 45° and unobstructed. Move the receiver away from metal surfaces. Try changing the channel. If the problem persists, move the receiver or microphone.

How to clean the microphone?

Use a soft, dry cloth to wipe the grille and body. Avoid liquid or abrasive products. Never immerse the device in water.

Are there safety precautions to follow?

Do not let children use the device unsupervised. Do not use near water or heat sources. Replace batteries when low to avoid leakage.

Can I use this system with other brands of microphones?

This system is designed to work with Malone UHF450 series transmitters. Using other brands may not be compatible due to frequencies and protocol.

How to store the system when not in use?

Remove batteries to prevent leakage. Store the receiver and microphones in a dry, dust-free place. Avoid extreme temperatures.

What to do if the receiver does not turn on?

Check that the AC adapter is properly connected to the receiver and the power outlet. Test another outlet. If the problem persists, the adapter or receiver may be defective.

USER MANUAL UHF450 Malone

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

CONTENTS

Intended use 14

Approval 14

Device overview 15

System connection 18

Connecting the pocket wireless transmitter 18

Inserting batteries 19

Tips for achieving optimal performance 19

Disposal considerations 20

Declaration of conformity 20

TECHNICAL DATA

Article number 10010793, 10010794	10010795
Power supply receiver 120 V / 230 V AC to 13-15 VDC adapter (300/500 mA)
Power supply microphone 2x AA batteries
Modulation type microphones FM
Transmission frequency microphones	UHF (823-832 MHz), for specific frequency see sticker on microphone

INTENDED USE

This unit is used to transmit speech and singing. It is intended exclusively for this purpose and may only be used for this purpose. It may only be used in the manner described in these instructions for use.

This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device.

The microphone system comes with microphones with integrated transmitters that are used for wireless signal transmission to the receiver unit. The systems operate within the UHF spectrum (823 MHz - 832 MHz). The transmission range is approx. 50m and depends on the local conditions. The units are designed for indoor use.

APPROVAL

The radio microphone system has been tested according to the European standards EN 300422-1 V1.3.2, EN 300422-2 V1.2.2, EN 301489-9-1 V1.9.1, EN 301489-9-1 V1.4.1 and EN 60065:2002+A1, EN 60065: 2006+A11, EN 60065: 2008+A2: 2010, EN 62479: 2010.

This product therefore complies with the RED Directive of the European Union and therefore does not require an individual EC type examination of each member country. The inspection body is

CE1622 ①

This radio equipment corresponds to equipment class 2 and requires an individual frequency allocation for operation in the Federal Republic of Germany. The forms for frequency allocation can be found online on the website of the Federal Network Agency: www.bundesnetzagentur.de.

It may also be necessary to apply for approval from national authorities to operate in another country.

DEVICE OVERVIEW

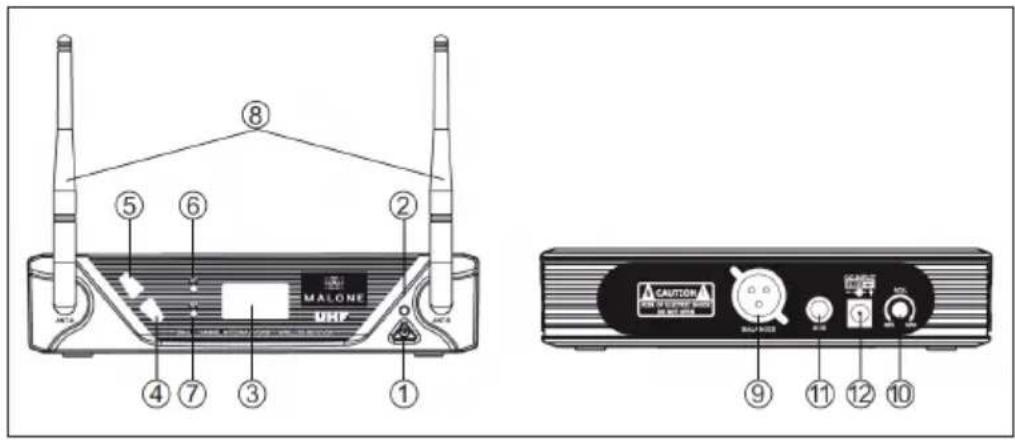

Single-channel receiver

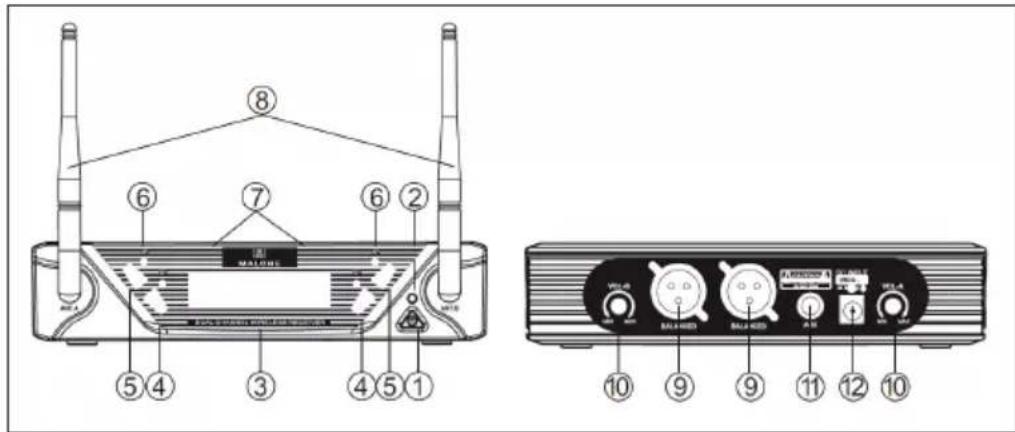

Two-channel receiver

1 Power switch: Switch receiver ON/OFF.
2 Mains indicator: ON/OFF indicator light
3 LCD display: Shows reception frequency, channel, etc.
4 DOWN key: Set descending channel data.
5 UP key: Set ascending channel data.
6 AF audio level indicator: Displays the audio level of the wireless system.
7 RF signal indicator: Lights up when the receiver receives an RF signal from the transmitter.
8 Antenna
9 Balanced XLR output jack: Connect the audio cable from this jack to the input jack of the amplifier/mixer.
10 Volume control: Adjust the volume of the receiver.
11 1/4" Audio out jack: Connect the audio cable from this jack to the input connector of the amplifier/mixer.
12 Mains connection: Connect the AC/DC adapter to the receiver.

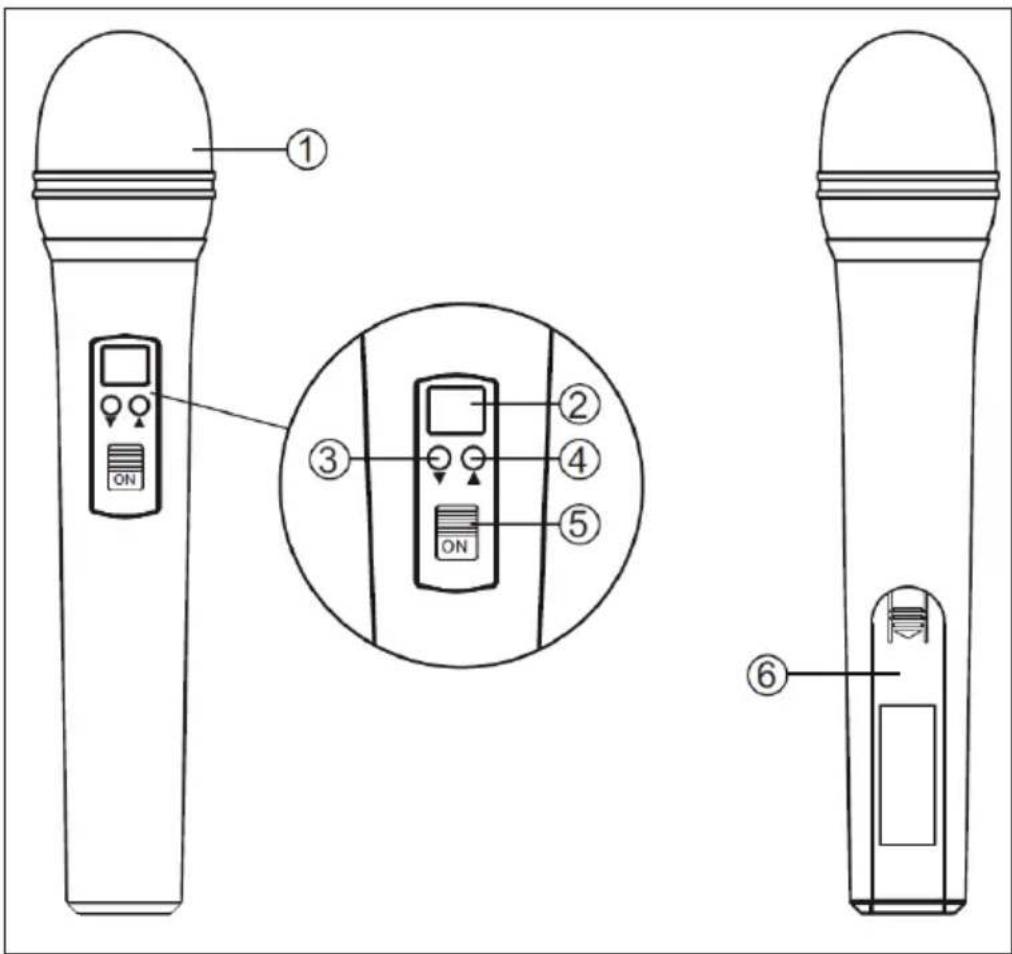

Microphone

1 Microphone grill: Protects the transducer and helps reduce breath and wind noise.
2 LCD display: Shows reception frequency, channel, etc.
3 DOWN key: Set descending channel data.
4 UP key: Set ascending channel data.
5 Power and audio mute switches.
6 Battery cover

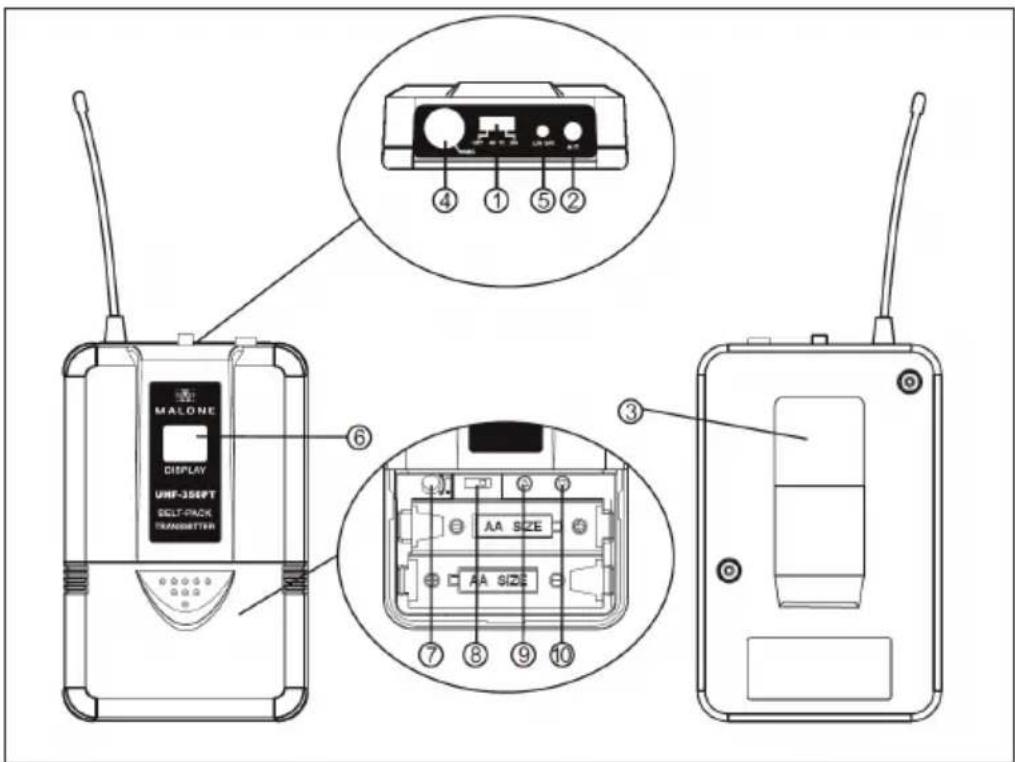

Pocket radio transmitter

1 Power and audio mute switches.
2 Antenna: Transmits the RF signal of the transmitter
3 Belt clip: For attaching the transmitter to the belt
4 Audio input socket: It is suitable for the lavalier system / headset system.
5 Battery indicator: The red lamp lights up when the battery is low and should be replaced.
6 LCD display: Shows reception frequency, channel, etc.
7 Input volume setting: To set the audio input gain of the transmitter.
8 Mode switch: To switch operation with lavalier system (L) / headset system (H).
9 UP key: Set ascending channel data.
10 DOWN key: Set descending channel data.

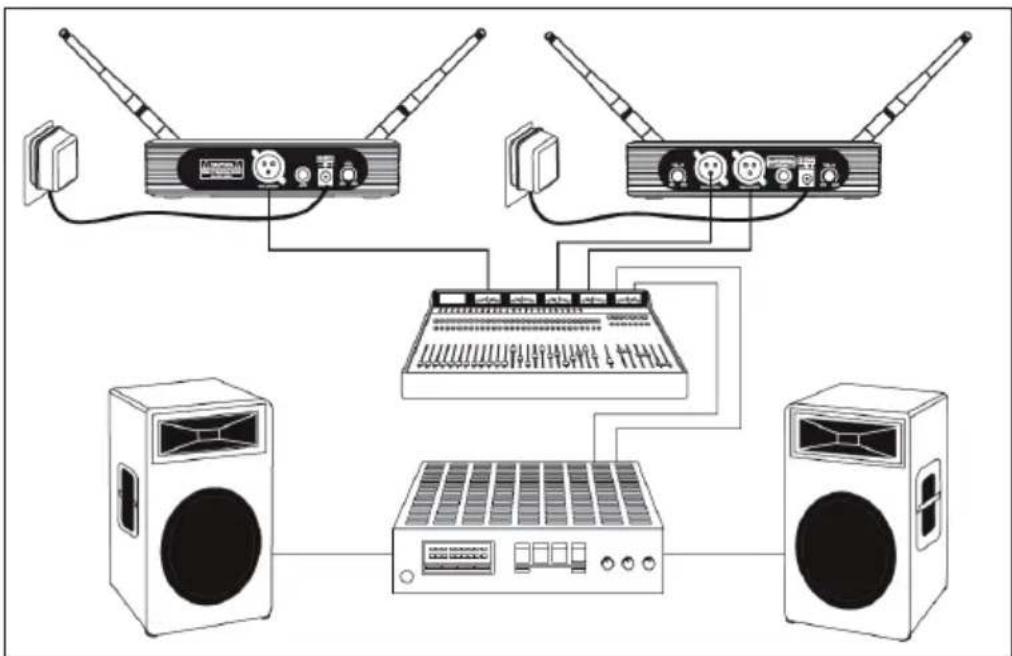

SYSTEM CONNECTION

1. Connect the AC adapter to the DC connector on the back of the receiver. Plug the AC adapter into an AC 120V / 220V 50Hz socket.
2. Set the antenna at a 45^ angle from vertical.
3. Use the audio cable to connect the audio output of the receiver to the input of your amplifier system.

CONNECTING THE POCKET WIRELESS TRANSMITTER

Connect the plug of the supplied lavalier microphone to the connection socket of the transmitter (as shown on the left). Set the operating mode (L) on the transmitter of the lavalier system.

Headset connection

Connect the plug of the supplied headset to the connection socket of the transmitter (as shown on the left). Set the operating mode (H) on the transmitter for the headsets.

Inserting the batteries into the microphone and transmitter:

Slide open the battery compartment cover, insert the supplied batteries into the battery compartment, observing the polarity, and close the cover again.

TIPS FOR ACHIEVING OPTIMAL PERFORMANCE

• Make sure that you can always see one of the receiving antennas from the transmitting position.
• Keep the distance from the transmitter to the receiver as short as possible.
• Set the receiving antennas at an angle of 45^ from vertical.
• Make sure that the receiving antenna is not near any metal surfaces.
• Check the battery level and replace the batteries when the red lamp lights up.
• When using the receiver on a rack or a PA system, make sure that the antennas do not touch or cross each other.
• Test the system out before a demonstration or presentation. If there are any radio holes, change the location of the receiver. If the dead spots still remain, mark them and work around them.

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom

Chal-Tec GmbH hereby declares that the radio system type UHF-450 Duo complies with Directive 2014/53/EU. The complete text of the EU declaration of conformity is available at the following internet address: use.berlin/10010793

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type UHF-450 Duo is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10010793
