DX1200 - Receiver Malone - Free user manual and instructions

Product type	Power amplifier
Brand	Malone
Model	DX1200
Stereo power (4 ohms)	2 × 600 W
Stereo power (8 ohms)	2 × 400 W
Bridge power (8 ohms)	1200 W
Frequency response	10 Hz ~ 20 kHz (±1.2 dB)
Signal-to-noise ratio	> 90 dB
Damping factor	> 250
Slew rate	30 V/µs
Input sensitivity	0.77 V
Input impedance	20 kOhms
Power supply	220-240 V ~ 50 Hz
Dimensions (W × H × D)	482 × 314 × 88 mm
Weight	9.5 kg
Audio inputs	2 × 6.3 mm jack, 2 × RCA
Speaker outputs	2 × NL4, 2 × screw terminals, 2 × 6.3 mm jack
Operating modes	Stereo, Bridge
Protection	Mains fuse
Cleaning	Dry, non-abrasive cloth
Repairability	No user-serviceable parts
Operating temperature	Temperate climate use only

Frequently Asked Questions - DX1200 Malone

How to connect the amplifier in stereo mode?

Set the mode selector to Stereo. Connect your audio sources to the 6.3 mm jack or RCA inputs. Connect the speakers to the NL4 or screw terminal outputs, respecting polarity (+/-). Each channel is independent.

How to use bridge mode (Bridged)?

Set the mode selector to Bridge. Connect the input signal only to the left channel (input 1). Volume is controlled by the left channel knob. Connect the speaker between the + terminals of both outputs (do not use the - terminals).

Which cable to use for speakers according to distance?

For distances less than 10 m, use cable with cross-section 1.5 mm². Between 10 and 20 m, choose 2.5 mm². Beyond 20 m up to 30 m, opt for 4.0 mm².

What to do in case of ground loop (hum)?

Use the Ground Lift switch located on the rear of the amplifier. It isolates the circuits from the ground to eliminate ground loop noise.

What are the important safety precautions?

Never open the enclosure (risk of electric shock). Avoid humidity, water splashes, and heat sources. Ensure adequate ventilation (minimum 5 mm space around the device). Unplug during thunderstorms or prolonged non-use.

How to clean the amplifier?

Unplug the device before cleaning. Use a soft, dry cloth. Never use abrasive products, solvents, or liquids. Avoid water penetrating the inside.

Can I repair the device myself?

No, the device contains no user-serviceable parts. Any attempt to open or modify it voids the warranty and presents a risk of electric shock. Contact customer service or a qualified professional.

What is the required power supply voltage?

The amplifier operates on a mains voltage of 220-240 V~ / 50 Hz. Check that the wall outlet matches before connecting the device.

What to do if the fuse blows?

Unplug the device. Replace the fuse with an identical model, located in the fuse holder next to the mains input. If the problem persists, consult a qualified technician.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to an approved collection point for waste electrical and electronic equipment (WEEE). Any batteries must be removed and recycled separately.

USER MANUAL DX1200 Malone

INHALTSVERZEICHNIS

Technische Daten 4

Pure electrical circuit lines without any symbols

2. Brückenbetrieb

Pure electrical circuit lines without any symbols

NETZANSCHLUSS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

CONTENTS

Technical Data 14

Safety Instructions 15

Device Overview 16

Output connection 17

Line-up 17

Power supply 18

Disposal Considerations 19

Manufacturer & Importer (UK) 19

TECHNICAL DATA

Designation DX800 DX1200	DX1500 DX2000	DX3000I
Product code 10021665 100	21666 100216	67 10021668 1	0021669
4 Ohm stereo power 2 x 400	W 2 x 600 W 2	x 750 W 2 x 100	0 W 2 x 1500 W
8 Ohm stereo power 2 x 240	W 2 x 400 W 2	x 450 W 2 x 600	W 2 x 900 W
8 Ohm bridge power	800 W	1200 W	1500 W	2000 W	3000 W
Frequency range	10 Hz ~ 20 kHz (±1.2 dB)
Attenuation factor	>250
S/R distance	>90 dB
Slew Rate	30 V/ uSec
Input sensitivity	0.77 V
Input impedance	20 kOhm
Supply voltage	220-240 Vac / 50 Hz
Dimensions (W x H x D)	482 x 314 x 88 mm
Weight	9.0 kg	9.5 kg	10.0 kg	10.5 kg	11.5 kg

SAFETYINSTRUCTIONS

• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Observe all the instructions given in the operating instructions.
• The unit must not be used near water or in a humid environment.
• Take care not to spill any liquid over the appliance and the appliance openings.
• Move the unit carefully so as not to damage it.
• Do not block the unit outputs.
• Do not place the unit near heat sources (e.g. heating). Do not expose the device to direct sunlight.
• Plug the power plug of the device into the mains socket.
• Insert the mains plug of the device into the socket in the intended way.
• Under no circumstances should you attempt to service or repair the device yourself. In this case, the warranty becomes void.
• The mains plug is used to disconnect the unit from the mains after it has been switched off. Make sure that the mains plug is always freely accessible.
• Do not expose the appliance to splashing water and do not place objects filled with liquids, such as vases, on the appliance.
• Do not expose the batteries to extreme heat such as sunlight or fire.
• Never obstruct the ventilation of the appliance by blocking the ventilation openings with objects such as newspapers, tablecloths, curtains etc.
• Make sure that a minimum distance of 5 mm is maintained to all sides of the unit.
• Do not place any sources of ignition with an open flame, such as lit candles, on the device.
• Only use the unit in a temperate climate, not in a tropical climate.

WARNING

Danger of injury! To reduce the risk of electric shock, do not open the unit cover or the back of the unit. The unit does not contain any parts that could be serviced by the customer. Please contact customer service or similarly qualified personnel for maintenance and repair.

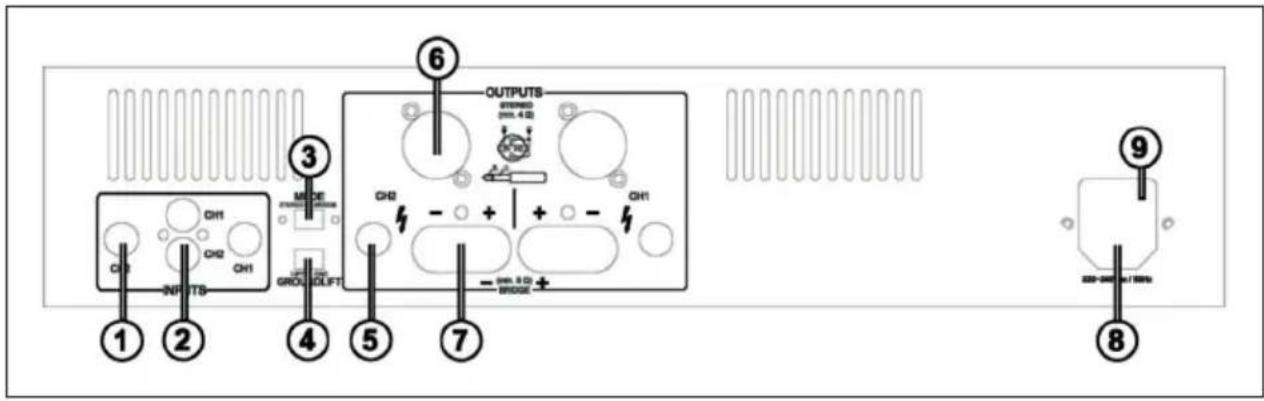

DEVICE OVERVIEW

1 6.3 mm jack inputs: Two 6.3 mm jack sockets for connecting a signal source (mixer, etc.). RCA
2 Inputs: Two RCA input sockets for connecting a signal source (mixer etc.)
3 Mode switch: The amplifier can operate in 2 modes: Stereo and Pressed. Select one of these modes: Stereo mode: Standard left/right stereo mode. Bridge mode: This mode of operation combines both channels on one channel, resulting in doubling the power of that channel. Connect the signal to the left input channel and the output level can now be adjusted with the left volume control.
4 Ground Lift Switch: Disconnects the circuits from the ground in case of problems with ground loops.
5 6.3 mm output: In stereo mode, the load impedance is 4 ohms per channel.
6 NL4output: In stereo mode, the load impedance of each channel is 4 ohms. Pin +1 & +2 = + output, Pin -1 & -2 = - output
7 Screw connections Loudspeaker outputs: 4 Ohm per channel. In bridge mode 8 Ohm.
8 Mains input: First plug the IEC plug into the socket on the appliance and then plug the other end into a power socket
9 Fuse holder: The fuse protects the amplifier and the connecting wires against defects. Replace only with a completely identical fuse.

OUTPUT CONNECTION

The amplifier must be switched off while making the connections. The speakers can be connected via the NL4 sockets or via wires to the screw terminals. In the table below, select the appropriate wire gauge that corresponds to the distance between the amplifier and the speaker.

Distance Strength
< 10 m 1.5 mm ^2
> 10 m < 20 m 2.5 mm ^2
> 20 m < 30 m 4.0 mm ^2

LINE-UP

The amplifier can be set to 2 operating modes:

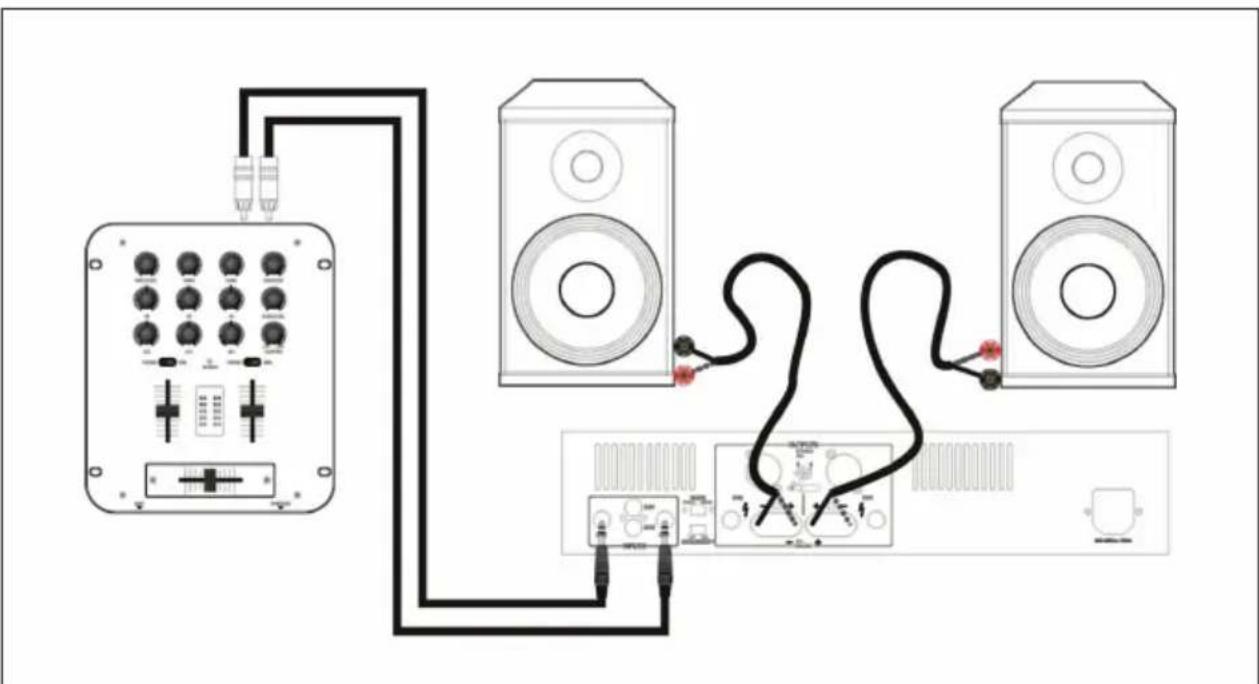

1. Stereo connection

Set the mode switch (3) to stereo. In this mode, the amplifier has two independent channels, each with its own input and volume controls.

Pure electrical circuit lines without any symbols

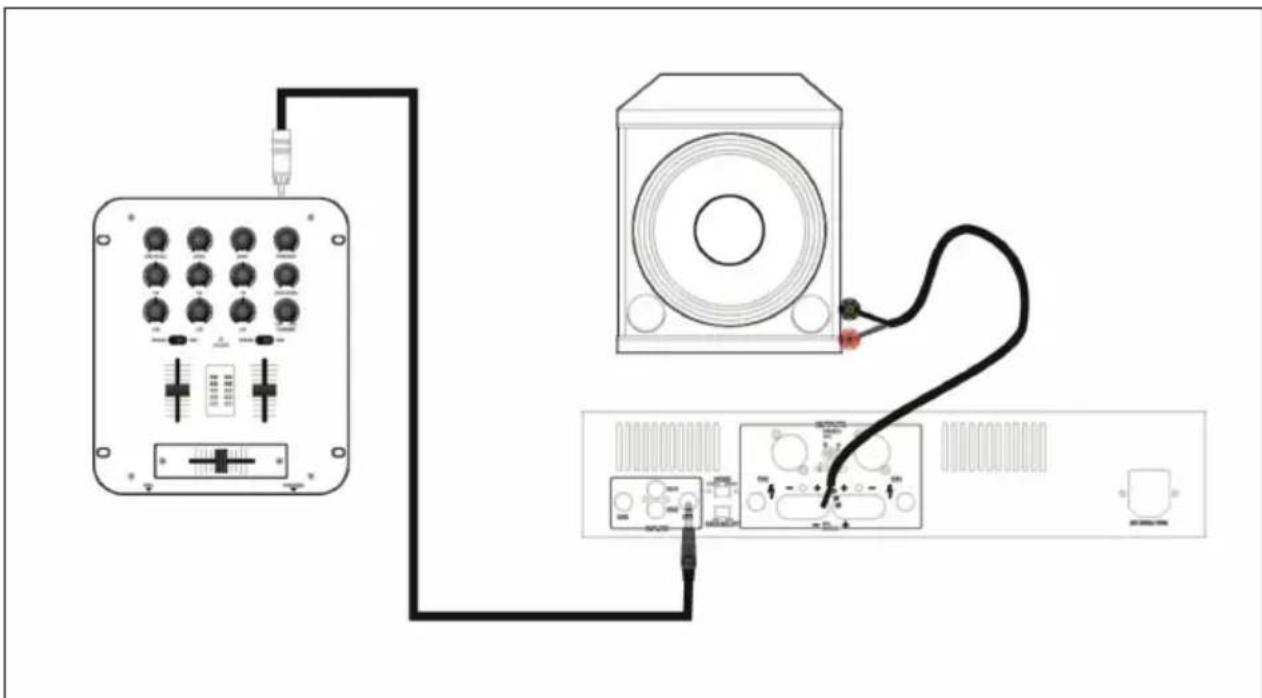

2. Bridge operation

Set the mode switch (3) to 'Bridged'. As already described, the output power is doubled. Connect the audio cable to input 1 and the output signal can now be adjusted with the volume control of channel 1. Connect the speakers to the positive (+) outputs of both outputs and not to the (-) output or ground. The negative outputs must NOT be used in bridge mode.

Pure electrical circuit lines without any symbols

POWER SUPPLY

Before connecting the amplifier to the power supply, make sure that the voltage of the power supply corresponds to the supply voltage of the amplifier. First connect the IEC end to the appliance and then the power cord.

Important instructions

• Make sure that all cables are connected correctly!
- Check whether the speakers are suitable for this amplifier!
- Never cover the ventilation grids!
- Protect from rain and moisture!
- Do not plug in or unplug speaker cables during operation!

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
