Product type	Mobile sound system
Brand	Malone
Model	Bushfunk 45
Article numbers	10029252 / 10029253
Dimensions (10029252)	309 x 376 x 583 mm
Dimensions (10029253)	358 x 451 x 685 mm
Weight (10029252)	12.5 kg
Weight (10029253)	16.6 kg
Mains power supply	AC 110-220 V, 50-60 Hz
Battery power supply	Rechargeable internal battery (charging time 5-8 h)
Power consumption	Not specified
Power	Not specified
Wireless microphones	2 VHF microphones (frequencies: 202.75 / 208.6 MHz)
Microphone range	Approximately 100 m
Frequency response	60 Hz - 20 kHz
Sensitivity	92 dB
Impedance	4 Ω
Woofer	12" woofer (10029252) or 15" (10029253)
Media player	SD/MMC, USB, Bluetooth, Line in, AUX, Radio
Outputs	MIX OUT (RCA)
Inputs	LINE IN (RCA), AUX-IN (3.5 mm jack), MIC 1/2 (6.3 mm jack)
Audio functions	Equalizer (bass/treble), Echo effect, Microphone priority (VCA)
Cleaning	With a dry cloth only
Repairs	By a qualified specialist only
Safety instructions	Do not expose to moisture, do not open the housing, disconnect during thunderstorms

Frequently Asked Questions - Bushfunk 45 Malone

How to charge the internal battery of the Bushfunk 45?

Connect the device to a mains socket using the supplied power adapter. Charging time is approximately 5 to 8 hours. The CHARGE LED turns off when the battery is fully charged.

How to connect a smartphone via Bluetooth?

Press the MODE button several times to select BT mode. Enable Bluetooth on your smartphone and search for the device named PSP-6AK. Connect.

How to use the wireless microphones?

Turn the microphone volume (MIC VOL) completely down before turning on the microphones. Insert batteries respecting polarity. Use the MIC ON/OFF switch to turn on/off.

What to do if the sound is distorted or weak?

Check the volume (VOLUME) and equalizer (EQ) settings. Make sure the microphones are not too close to the speakers to avoid feedback. Replace the microphone batteries if necessary.

How to adjust the echo effect?

Turn the ECHO knob located on the front or rear panel depending on the model. Adjust according to your preferences.

The device does not turn on, what should I do?

Check that the power cable is properly connected and that the POWER ON/OFF switch is in the ON position. If the battery is discharged, plug the device into a mains socket. Also check the fuse.

How to clean the device?

Use a dry, soft cloth. Never use liquids or abrasive cleaners. Do not clean the interior of the device.

Can I use a guitar with this system?

Yes, on model 10029253, the MIC/Guitar Input allows you to connect a guitar (6.3 mm jack). Adjust the volume with MIC VOL.

How to recycle the device at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic equipment. Batteries must be removed and recycled separately.

What is the range of the wireless microphones?

The range is approximately 100 meters indoors, but it may vary depending on local conditions (walls, obstacles).

USER MANUAL Bushfunk 45 Malone

Black plastic speaker device with mesh grille and handle (no text or symbols visible)

INHALTSVERZEICHNIS

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

CONTENTS

Intended use 16

Safety Instructions 16

Operating elements 10029252 18

Operating elements 10029253 20

Operation 22

Disposal considerations 24

Declaration of Conformity 24

TECHNICAL DATA

Article number 1002925	2 10029253
Microphone frequency 2	202.75 Mhz,208.6 Mhz	202.75 Mhz,208.6 Mhz
Woofer ∅ 12" 15"
Sensitivity 92 dB 92 dB
Impedance 4 Ω 4 Ω
Frequency range 60 Hz -	20 kHz 60 Hz - 20 kHz
Dimensions: 309 x 376 x	583 mm 358 x 451 x 685 mm
Weight 12.5 kg 16.6 kg

INTENDEDUSE

This unit is used to transmit speech and singing.

It is intended exclusively for this purpose and may only be used for this purpose. It may only be used in the manner described in these instructions for use.

This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device.

The Malone device comes with microphones with integrated transmitters that are used for wireless signal transmission to the receiver unit. The system operates within the VHF spectrum (174 MHz - 216 MHz). The transmission range is approx. 100 m and depends on the local conditions. The units are designed for indoor use.

SAFETYINSTRUCTIONS

CAUTION

Risk of electric shock! To reduce the risk of fire and electric shock, do not remove the speaker cabinet. This device contains parts that are not accessible to the user. Repairs may only be carried out by qualified specialists.

• Read all instructions carefully and keep the user manual in a safe place for future reference.
• To prevent electric shock, do not expose the unit to moisture or wetness.
• Do not place the unit near liquids.
• Only clean the device with a dry cloth.

• Do not place the unit near any heat sources. This includes heaters or other devices (including amplifiers) that generate heat.

• To reduce the risk of electric shock in the event of a fault or malfunction, the unit must be connected to a grounded outlet. If you are not sure whether your outlet meets the requirements, seek advice from an electrician.

• Lay all cables so that no one steps on them and take care to lay the cables so that they are not kinked. This applies especially to all places where cables come out of the unit or the wall.
• Pull the plug out of the socket if there is a thunderstorm or if you will not be using the device for a long time. Do not pull the plug out of the mains socket by the cable, but hold it with your hand.
• Make sure that the unit is switched off when you connect it or connect it to other devices.
• When the unit is connected and wired, first turn the volume down completely. Then slowly turn the volume up until it reaches the desired level.
• When earthing the unit, be careful not to damage the built-in earthing.
• Inspect cabinets, shelves, casing, brackets and accessories for possible damage before hanging or installing the unit. Missing, corroded, deformed or unstable parts pose a safety risk and reduce the stability of the furniture.
• If you want to hang up the unit, have this done by a professional.
• Repairs may only be carried out by qualified personnel and are required when the device
• has been damaged, the power cord or plug is damaged, liquid has been spilled or objects have fallen on it, the device has been exposed to water or moisture, it has been dropped, or it does not operate normally.

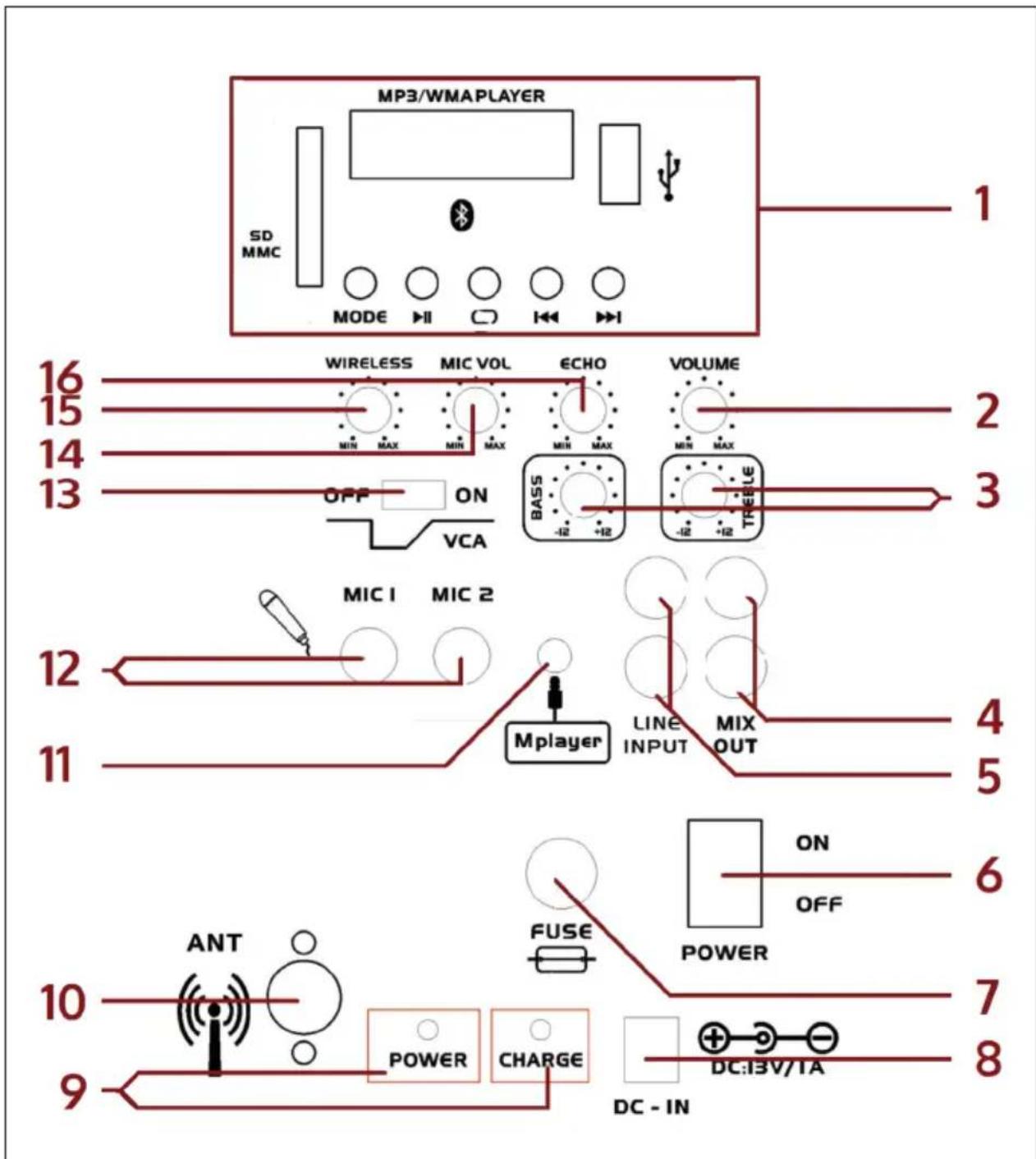

1 Player section	SD/MMC Connection for SD cards
	(nwn)	Connection for USB storage media (USB sticks, portable USB hard disks, MP3 players)
	MODE Press repeatedly for mode selection (SD/USB/BT/LINE-in/AUX/radio)
	▶II Play/Pause
	REPEAT Press repeatedly for repeat modes
	◀◀ / ▶◀	Back/Forward
2 VOLUME Volume control
3 EQ Bass and treble adjustment
4 MIX OUT Output (RCA) of the total (for example for recording purposes)
5 LINE INPUT Audio input (RCA)
6 POWER ON/OFF Power switch
7 Fuse
8 DC-IN Power supply connection
9 Status LEDs POWER = operation LED; CHARGE = charging LED
10 ANT Connection for microphone antenna
11 AUX-IN Audio input (3.5 mm jack) for connecting external devices (MP3 player, smartphone, laptop)
12 MIC1 / MIC2 Microphone connections (6.3 mm jack)
13 VCA ON/OFF Turning VCA on/off
14 MIC VOL Microphone volume
15 WIRELESS Wireless microphone volume
16 ECHO Control for the built-in echo effect

OPERATING ELEMENTS 10029253

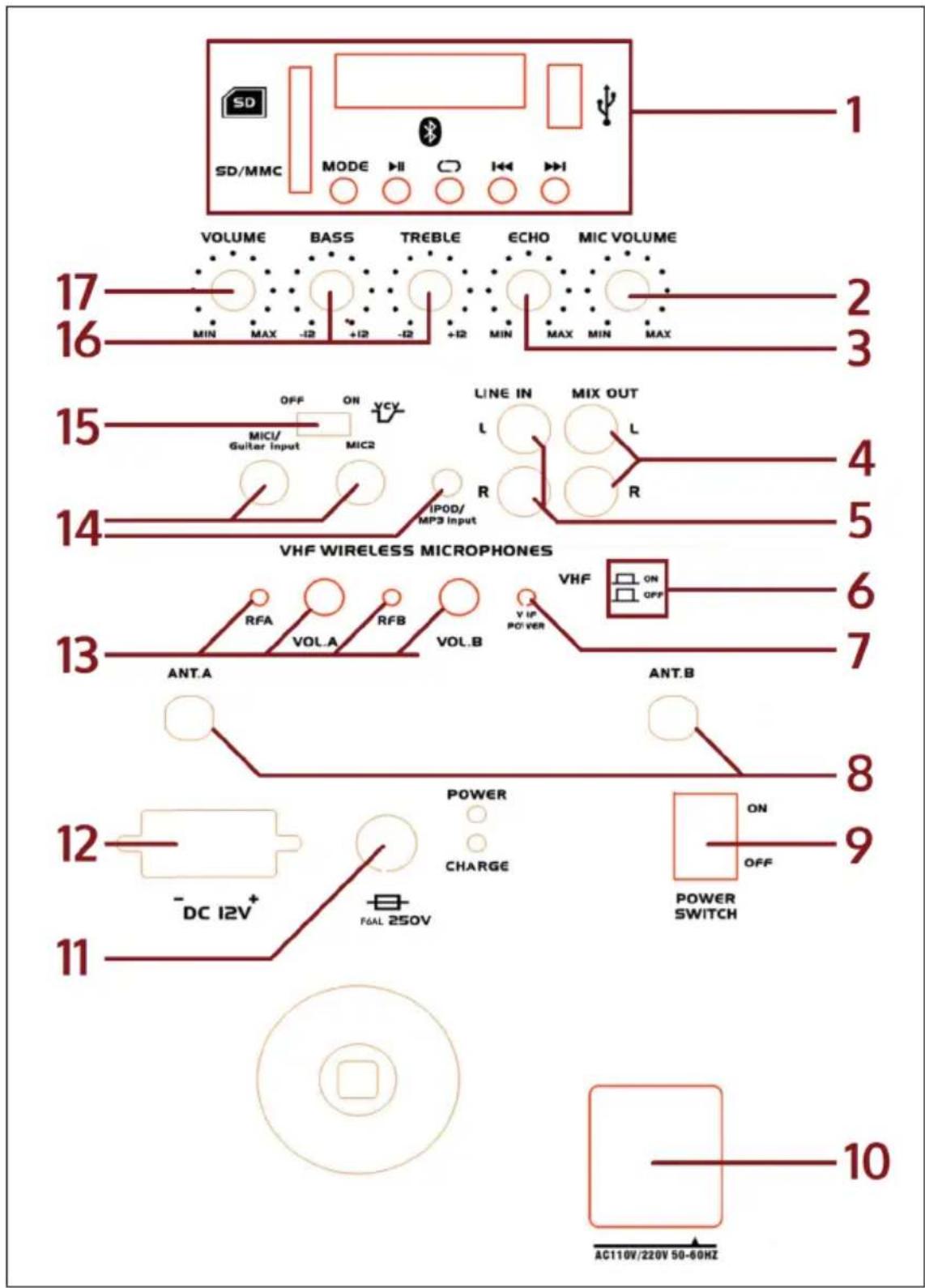

1 Player section	SD/MMC Connection for SD cards
	[4A24]	Connection for USB storage media (USB sticks, portable USB hard disks, MP3 players)
	MODE Press repeatedly for mode selection (SD/USB/BT/LINE-in/AUX/radio)
	▶II Play/Pause
	REPEAT Press repeatedly for repeat modes
	◀◀ / ▶◀◀	Back/Forward
2 MIC VOLUME Microphone volume
3 ECHO Control for the built-in echo effect
4 MIX OUT Output (RCA) of the total (for example for recording purposes)
5 LINE IN Audio input (RCA)
6 VHF ON/OFF Turning VHIF on/off
7 VHF LED
8 Antennas for MIC A / MIC B
9 POWER ON/OFF Power switch
10 Mains socket For cold appliance cable (AC 110/220 V 50~60 Hz)
11 Fuse
12 DC 12 V Power supply connection
13 VOL A/B + RFA Volume control for microphones A and B, status LEDs
14 Audio inputs MIC 1 / Guitar: For microphone or guitar
15 VCV ON/OFF Switch MIC priority on/off
16 EQ Bass and treble adjustment
17 VOLUME Volume control

OPERATION

Initial start-up / charging the battery

Be sure to fully charge the internal battery of the unit before first mobile use (without mains power). To do this, connect the device to a standard household mains socket using the power supply unit.

The charging time is about 5 - 8 hours. The charging status is indicated by the charging LED ("CHARGE") on the back. The LED goes out as soon as the battery is fully charged.

Establishing a BT connection

Select the BT mode by pressing MODE several times. Activate BT on your smartphone/tablet/laptop. Connect to PSP-6AK.

Using the wireless microphones

Turn down the microphone volume (MIC VOL) completely before switching on the microphones. Replace the batteries with identical models as soon as you hear more noise or crackling.

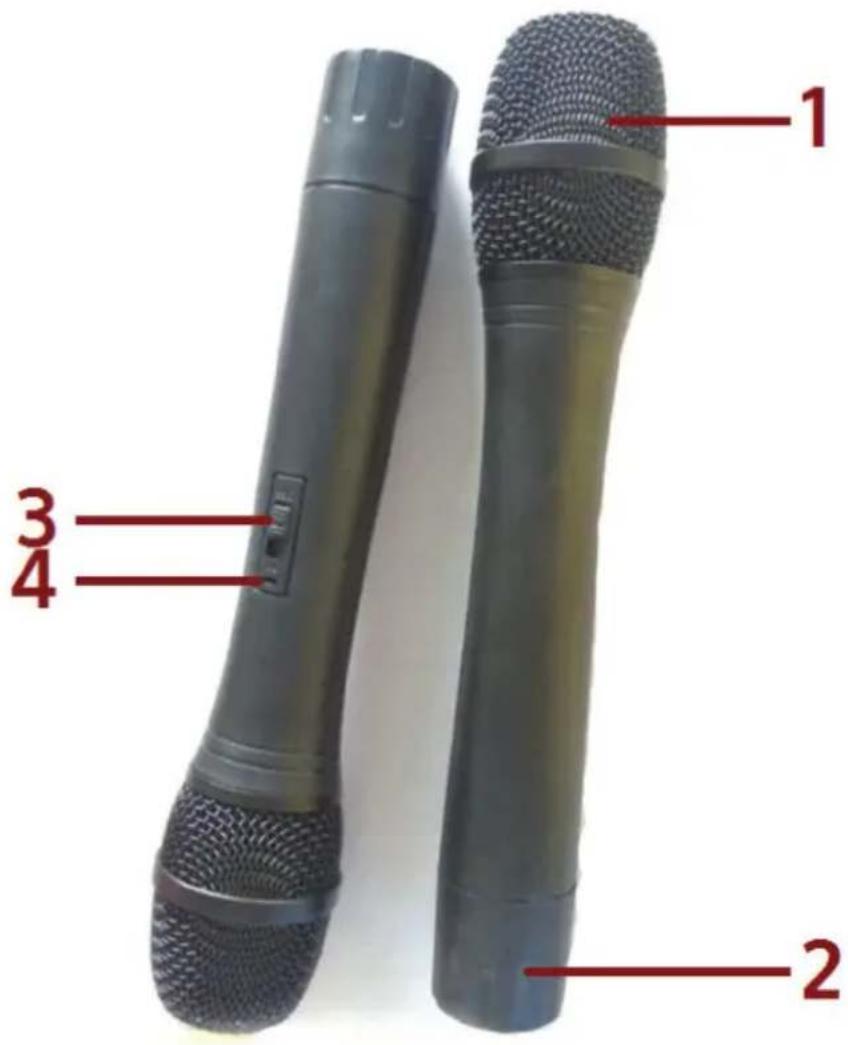

1 Capsule
2 Battery compartment		Turn counterclockwise to open. Insert batteries in the correct (indicated) polarity!
3 Switch: MIC ON Microphone switched on
4 Switch: MIC OFF Microphone switched off

DISPOSALCONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom

Chal-Tec GmbH hereby declares that the radio equipment type Bushfunk complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10029252

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Bushfunk is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10029252
