Product Type	Power Amplifier
Brand	Malone
Model	DX800
Dimensions (W x H x D)	482 x 314 x 88 mm
Weight	9.0 kg
Power Supply	220-240 VAC / 50 Hz
Stereo power 4 ohms	2 x 400 W
Stereo power 8 ohms	2 x 240 W
Bridge power 8 ohms	800 W
Frequency response	10 Hz ~ 20 kHz (±1.2 dB)
Signal-to-noise ratio	> 90 dB
Input impedance	20 kΩ
Input sensitivity	0.77 V
Operating modes	Stereo, Bridge
Audio inputs	6.3 mm jack, RCA
Speaker outputs	NL4, Screw terminals
Protection	Fuse, short-circuit protection
Maintenance and cleaning	Dust regularly with a soft, dry cloth
Safety	Do not expose to water or humidity; do not block ventilation grilles
Spare parts and repairability	Contact customer service; do not open the casing
General information	Manufacturer: Malone; Use: professional sound reinforcement

Frequently Asked Questions - DX800 Malone

How to connect a microphone to the DX800?

The DX800 is a power amplifier, it does not have a direct microphone input. You must connect your microphone to a mixing console, then connect the console's output to the amplifier's 6.3 mm jack or RCA inputs.

What is the difference between stereo mode and bridge mode?

In stereo mode, each channel operates independently with its own input and volume. In bridge mode, the two channels are combined to provide double power on a single channel (800 W under 8 ohms for the DX800). Use the left input and adjust the volume with channel 1 knob.

How to choose the right speaker cable?

The cable gauge depends on distance: for less than 10 m, use 1.5 mm²; between 10 and 20 m, use 2.5 mm²; between 20 and 30 m, use 4.0 mm². Ensure polarity is respected.

Can I use the DX800 with 4 ohm speakers?

Yes, in stereo mode, each channel can handle a 4 ohm impedance (2 x 400 W). In bridge mode, the minimum impedance is 8 ohms (800 W). Do not go below.

What to do if the amplifier does not turn on?

First check the fuse located on the rear of the device. If necessary, replace it with an identical fuse. Also ensure the mains socket is functional and the power cable is properly connected.

What is the Ground Lift switch for?

The Ground Lift switch disconnects the chassis ground connection to eliminate hum and ground loops. If you hear a hum, try toggling this switch.

How many channels does the DX800 have?

The DX800 is a 2-channel amplifier. Each channel has its own inputs (Jack and RCA) and an independent volume control.

Can I stack multiple amplifiers?

Yes, but be careful not to block the ventilation grilles. Leave at least 5 mm of space around the device for proper heat dissipation.

How to clean the DX800?

Dust the casing and ventilation grilles regularly with a soft, dry cloth. Never use liquid or abrasive products that could damage the device.

What to do in case of failure?

Do not attempt to repair the device yourself, this would void the warranty. Contact Malone customer service or a qualified technician. Keep the manual and proof of purchase.

USER MANUAL DX800 Malone

INHALTSVERZEICHNIS

Technische Daten 4

Pure electrical circuit lines without any symbols

2. Brückenbetrieb

Pure electrical circuit lines without any symbols

NETZANSCHLUSS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

CONTENTS

Technical Data 14

Safety Instructions 15

Device Overview 16

Output connection 17

Line-up 17

Power supply 18

Disposal Considerations 19

Manufacturer & Importer (UK) 19

TECHNICAL DATA

Designation DX800 DX1200	DX1500 DX2000	DX3000I
Product code 10021665 100	21666 100216	67 10021668 1	0021669
4 Ohm stereo power 2 x 400	W 2 x 600 W 2	x 750 W 2 x 100	0 W 2 x 1500 W
8 Ohm stereo power 2 x 240	W 2 x 400 W 2	x 450 W 2 x 600	W 2 x 900 W
8 Ohm bridge power	800 W	1200 W	1500 W	2000 W	3000 W
Frequency range	10 Hz ~ 20 kHz (±1.2 dB)
Attenuation factor	>250
S/R distance	>90 dB
Slew Rate	30 V/ uSec
Input sensitivity	0.77 V
Input impedance	20 kOhm
Supply voltage	220-240 Vac / 50 Hz
Dimensions (W x H x D)	482 x 314 x 88 mm
Weight	9.0 kg	9.5 kg	10.0 kg	10.5 kg	11.5 kg

SAFETY INSTRUCTIONS

• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Observe all the instructions given in the operating instructions.
• The unit must not be used near water or in a humid environment.
• Take care not to spill any liquid over the appliance and the appliance openings.
• Move the unit carefully so as not to damage it.
• Do not block the unit outputs.
• Do not place the unit near heat sources (e.g. heating). Do not expose the device to direct sunlight.
• Plug the power plug of the device into the mains socket.
• Insert the mains plug of the device into the socket in the intended way.
• Under no circumstances should you attempt to service or repair the device yourself. In this case, the warranty becomes void.
• The mains plug is used to disconnect the unit from the mains after it has been switched off. Make sure that the mains plug is always freely accessible.
• Do not expose the appliance to splashing water and do not place objects filled with liquids, such as vases, on the appliance.
• Do not expose the batteries to extreme heat such as sunlight or fire.
• Never obstruct the ventilation of the appliance by blocking the ventilation openings with objects such as newspapers, tablecloths, curtains etc.
• Make sure that a minimum distance of 5 mm is maintained to all sides of the unit.
• Do not place any sources of ignition with an open flame, such as lit candles, on the device.
• Only use the unit in a temperate climate, not in a tropical climate.

WARNING

Danger of injury! To reduce the risk of electric shock, do not open the unit cover or the back of the unit. The unit does not contain any parts that could be serviced by the customer.

Please contact customer service or similarly qualified personnel for maintenance and repair.

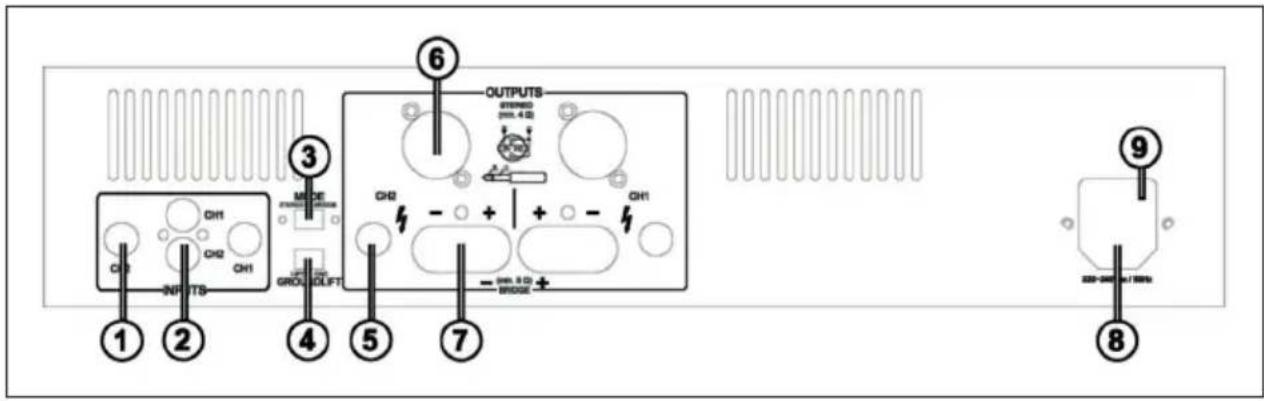

DEVICE OVERVIEW

1 6.3 mm jack inputs: Two 6.3 mm jack sockets for connecting a signal source (mixer, etc.). RCA
2 Inputs: Two RCA input sockets for connecting a signal source (mixer etc.)
3 Mode switch: The amplifier can operate in 2 modes: Stereo and Pressed. Select one of these modes: Stereo mode: Standard left/right stereo mode. Bridge mode: This mode of operation combines both channels on one channel, resulting in doubling the power of that channel. Connect the signal to the left input channel and the output level can now be adjusted with the left volume control.
4 Ground Lift Switch: Disconnects the circuits from the ground in case of problems with ground loops.
5 6.3 mm output: In stereo mode, the load impedance is 4 ohms per channel.
6 NL4output: In stereo mode, the load impedance of each channel is 4 ohms. Pin +1 & +2 = + output, Pin -1 & -2 = - output
7 Screw connections Loudspeaker outputs: 4 Ohm per channel. In bridge mode 8 Ohm.
8 Mains input: First plug the IEC plug into the socket on the appliance and then plug the other end into a power socket
9 Fuse holder: The fuse protects the amplifier and the connecting wires against defects. Replace only with a completely identical fuse.

OUTPUT CONNECTION

The amplifier must be switched off while making the connections. The speakers can be connected via the NL4 sockets or via wires to the screw terminals. In the table below, select the appropriate wire gauge that corresponds to the distance between the amplifier and the speaker.

Distance Strength
< 10 m 1.5 mm ^2
> 10 m < 20 m 2.5 mm ^2
> 20 m < 30 m 4.0 mm ^2

LINE-UP

The amplifier can be set to 2 operating modes:

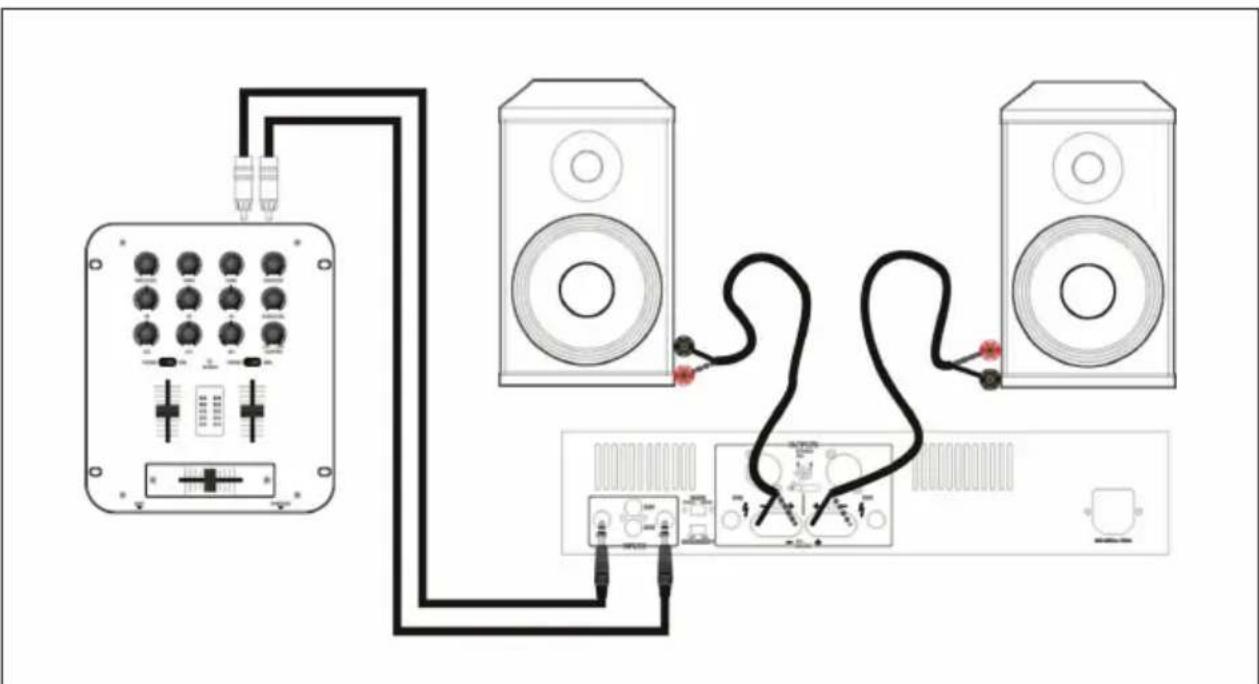

1. Stereo connection

Set the mode switch (3) to stereo. In this mode, the amplifier has two independent channels, each with its own input and volume controls.

Pure electrical circuit lines without any symbols

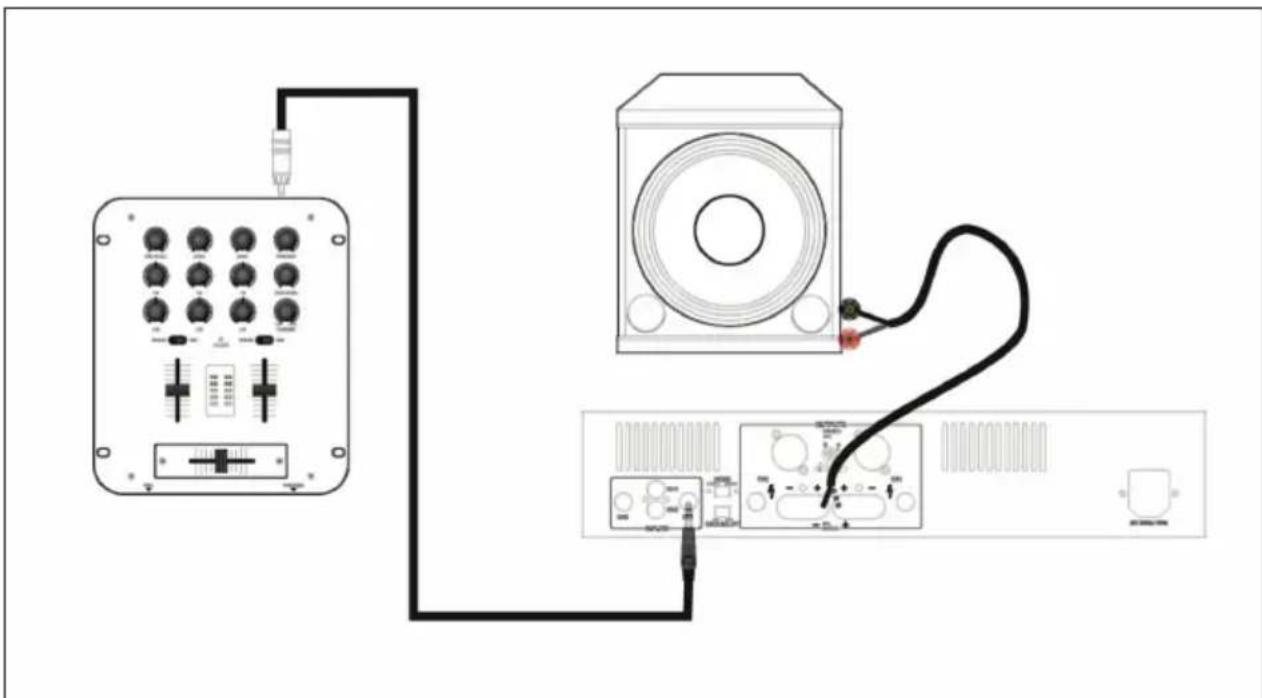

2. Bridge operation

Set the mode switch (3) to 'Bridged'. As already described, the output power is doubled. Connect the audio cable to input 1 and the output signal can now be adjusted with the volume control of channel 1. Connect the speakers to the positive (+) outputs of both outputs and not to the (-) output or ground. The negative outputs must NOT be used in bridge mode.

Pure electrical circuit lines without any symbols

POWER SUPPLY

Before connecting the amplifier to the power supply, make sure that the voltage of the power supply corresponds to the supply voltage of the amplifier. First connect the IEC end to the appliance and then the power cord.

Important instructions

• Make sure that all cables are connected correctly!
- Check whether the speakers are suitable for this amplifier!
- Never cover the ventilation grids!
- Protect from rain and moisture!
- Do not plug in or unplug speaker cables during operation!

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
