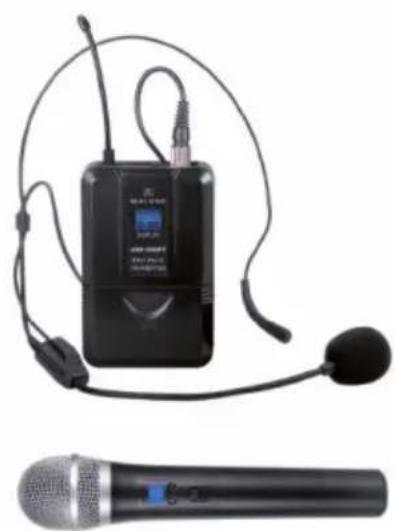

Product Type	UHF wireless microphone system (handheld mic and beltpack)
Brand	Malone
Model	Duett Pro V1
Frequency band	823-832 MHz (UHF)
Maximum range	50 m
Frequency response	100 Hz - 18 kHz (±3 dB)
Total harmonic distortion (THD)	< 1%
Signal-to-noise ratio (receiver)	> 85 dB
Receiver power supply	13-15 V DC, 300-500 mA (230 V / 50 Hz mains adapter)
Transmitters power supply (handheld mic and beltpack)	2 AA 1.5 V batteries each
Transmitters RF output	≥ 10 dBm
Maximum deviation	± 70 kHz
Receiver dimensions (WxDxH)	215 x 170 x 50 mm
Handheld mic dimensions (Dia. x H)	250 x 50 mm
Beltpack dimensions (WxDxH)	100 x 65 x 30 mm
Connectors	Balanced XLR outputs, beltpack audio input (3.5 mm jack)
Intended use	Wireless transmission of speech and singing indoors
Maintenance and cleaning	Clean with a soft dry cloth. Avoid moisture and shocks.
Safety	Do not use near water. Keep out of reach of children. Observe battery polarity.
Spare parts and repairability	Contact Malone after-sales service. Do not open the device.
General information	Article numbers: 10026454, 10026455, 10026456. GB importer: Berlin Brands Group UK Ltd.

Frequently Asked Questions - Duett Pro V1 Malone

How to install the Duett Pro V1 system?

Plug the receiver into the mains using the supplied power adapter. Connect the antennas to the marked sockets and tilt them at 45°. Connect the XLR outputs of the receiver to your mixer or active speakers. Insert 2 AA batteries into the transmitter (handheld mic or beltpack) respecting polarity. Turn on the transmitter with the POWER/MUTE button.

What is the maximum range of the microphone?

The range is approximately 50 metres, but it may vary depending on local conditions (obstacles, interference). For optimal performance, maintain line of sight between the transmitter and receiver.

What to do if the sound is distorted or weak?

First check the battery level: replace them if the red indicator is on. If the sound is distorted, adjust the transmitter gain (GAIN control on the beltpack) and the receiver volume. Also ensure the transmitter is not too far from the receiver.

How to avoid interference and dead zones?

Identify interference sources (other transmitters, metal structures). Turn off unused transmitters. If dead zones persist, move the receiver. Tilt antennas at 45° and avoid nearby metal surfaces.

Batteries: how long do they last and how to replace them?

AA batteries provide about 6 to 8 hours of operation depending on usage. When the LOW-BATT (red) indicator lights up, replace both batteries. Open the compartment on the back of the transmitter and insert the batteries observing the indicated polarity.

Can I use a lavalier microphone with this system?

Yes, the beltpack (models 10026455 and 10026456) has an audio input for lavalier or headset microphones. Use the STATE switch to toggle between the appropriate input modes.

How to clean the Duett Pro V1 microphone?

Use a soft dry cloth to clean the housing. Do not use solvents or abrasive products. Avoid moisture and never immerse the device in water.

What to do if the receiver does not turn on?

Check that the mains adapter is properly connected to the mains (230 V / 50 Hz) and to the receiver. Ensure the socket works. If the power indicator remains off, contact Malone customer service.

Is it possible to connect multiple microphones simultaneously?

The Duett Pro V1 receiver is designed for a single channel. For multiple microphones, you will need to use several systems on different frequencies. Avoid using two transmitters on the same frequency.

How to recycle the product at end of life?

Do not dispose of the device or batteries with household waste. Take them to a collection point for electrical devices and batteries in accordance with local regulations. Contact your local council for more information.

USER MANUAL Duett Pro V1 Malone

Front view of a Malone wireless audio receiver with two antennas and digital displays (no readable text or symbols on main body)

Black audio earbuds and a separate black microphone device (no visible text or symbols)

INHALTSVERZEICHNIS

Technische Daten 4

Illustration of a handheld electronic device (a) and a person wearing a headset (b), both without any text or symbols.

FEHLERBEHEBUNG

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

CONTENTS

Technical Data 16

Intended use 17

Tips for achieving optimal performance 17

Device Overview 18

Getting Started 21

Troubleshooting 23

Disposal Considerations 24

Declaration of conformity 24

TECHNICAL DATA

Item number(s) 10026454, 10026455, 10026456
Frequency frame 823-832 MHz
Range max. 50 m
Frequency response 100 Hz - 18 kHz, +/- 3 dB
THD < 1%
Receiver
Power supply unit: Power supply 230 V / 50 Hz
Receiver: Power supply 13 - 15 V DC, 300-500 mA
Signal/Noise Ratio > 85 dB
Dimensions (W x D x H) 215 x 170 x 50 mm
Item number(s) 10026454, 10026456
Microphone
Power supply 2 x 1.5 V AA battery
Broadcast band FM
RF Output ≥ 10 dBm
Maximum deviation ± 70 kHz
Dimensions (∅ x H) 250 x 50 mm
Item number(s) 10026455, 10026456
Belt-Pack
Power supply 2 x 1.5 V AA battery
Broadcast band FM
RF Output ≥ 10 dBm
Maximum deviation ± 70 kHz
Dimensions (W x D x H) 100 x 65 x 30 mm

INTENDED USE

This unit is used to transmit speech and singing. It is intended exclusively for this purpose and may only be used for this purpose. It may only be used in the manner described in these instructions for use.

This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device.

The microphone system comes with microphones with integrated transmitters that are used for wireless signal transmission to the receiver unit. The systems operate within the UHF spectrum (823 MHz - 832 MHz). The transmission range is approx. 50 m and depends on the local conditions. The units are designed for indoor use.

TIPS FOR ACHIEVING OPTIMAL PERFORMANCE

• Make sure that you can always see one of the receiving antennas from the transmitting position.
• Keep the distance from the transmitter to the receiver as short as possible.
• Set the receiving antennas at an angle of 45^ from vertical.
• Make sure that the receiving antenna is not near any metal surfaces.
• Watch the battery indicator and replace the batteries when the red light is on.
• When using the receiver on a rack or a PA system, make sure that the antennas do not touch or cross each other.
• Test the system out before a demonstration or presentation. If there are any radio holes, change the location of the receiver. If the dead spots still remain, mark them and work around them.

DEVICE OVERVIEW

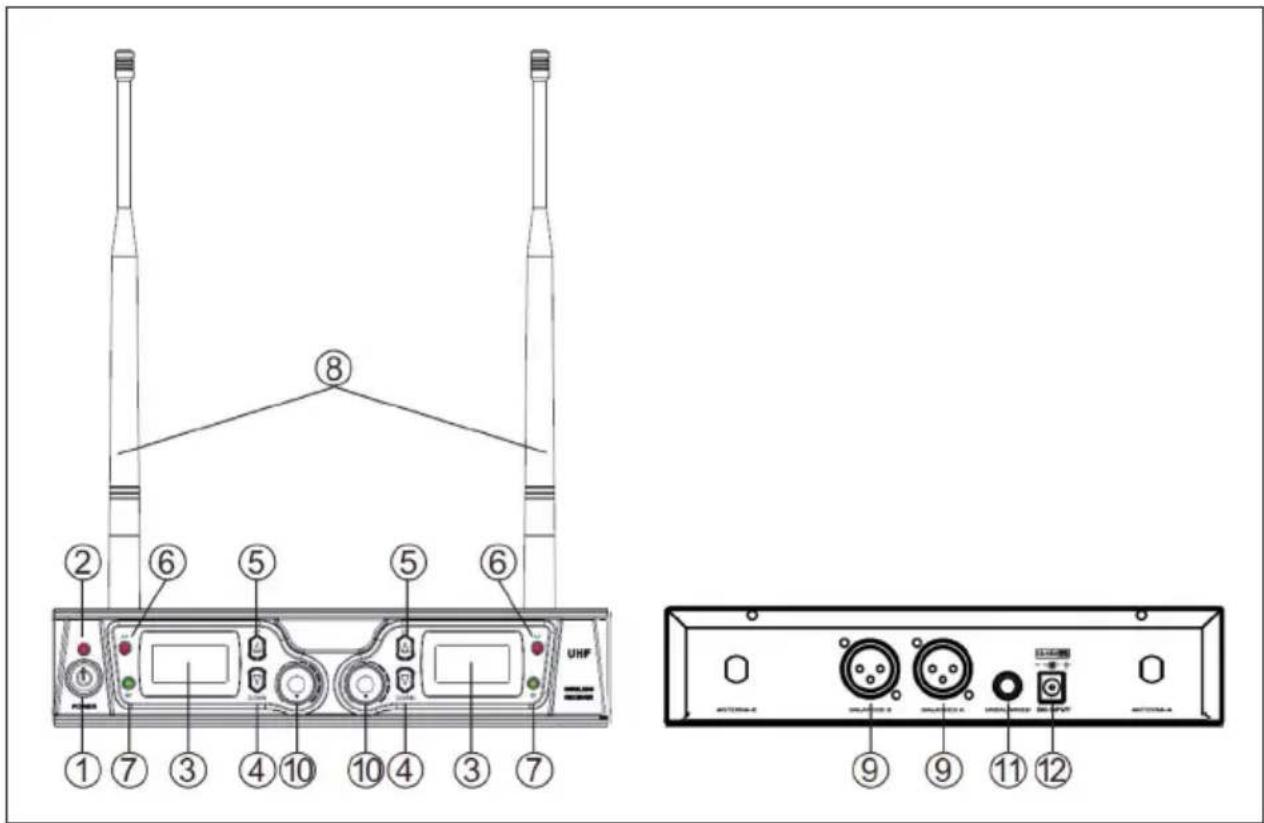

Reception unit

1 Power: On/Off switch 7 RF LED - indicates reception
2 Power LED 8 Antenna
3 LCD display 9 Balanced XLR output
4 DOWN (Down) 10 VOLUME (Output volume)
5 UP (Up) 11		6.3 mm jack output, unbalanced
6 AF LED 12 Power supply connection

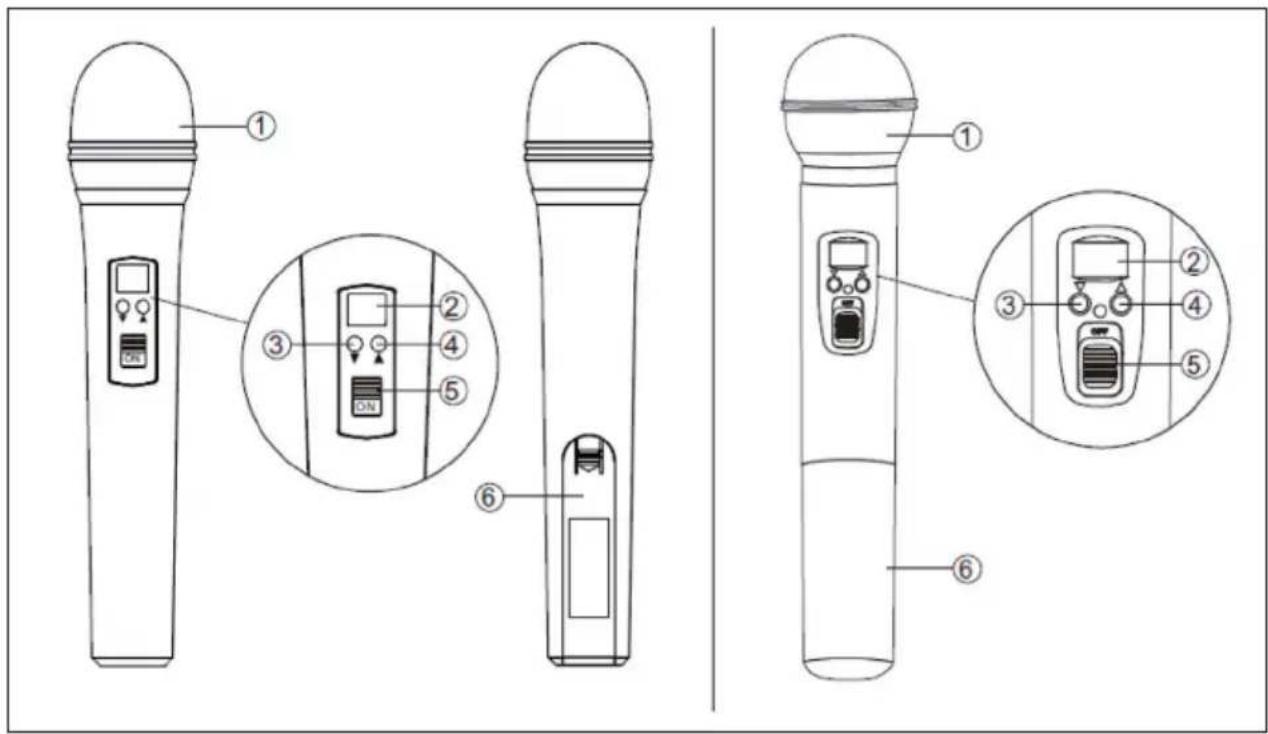

Microphone

1	Microphone basket: Protects the capsule and reduces popping and breathing noises
2	LCD display: Displays frequency/channel
3	DOWN (Down)
4	UP (Up)
5	POWER/MUTE (switch on/off / mute)
6	Battery compartment

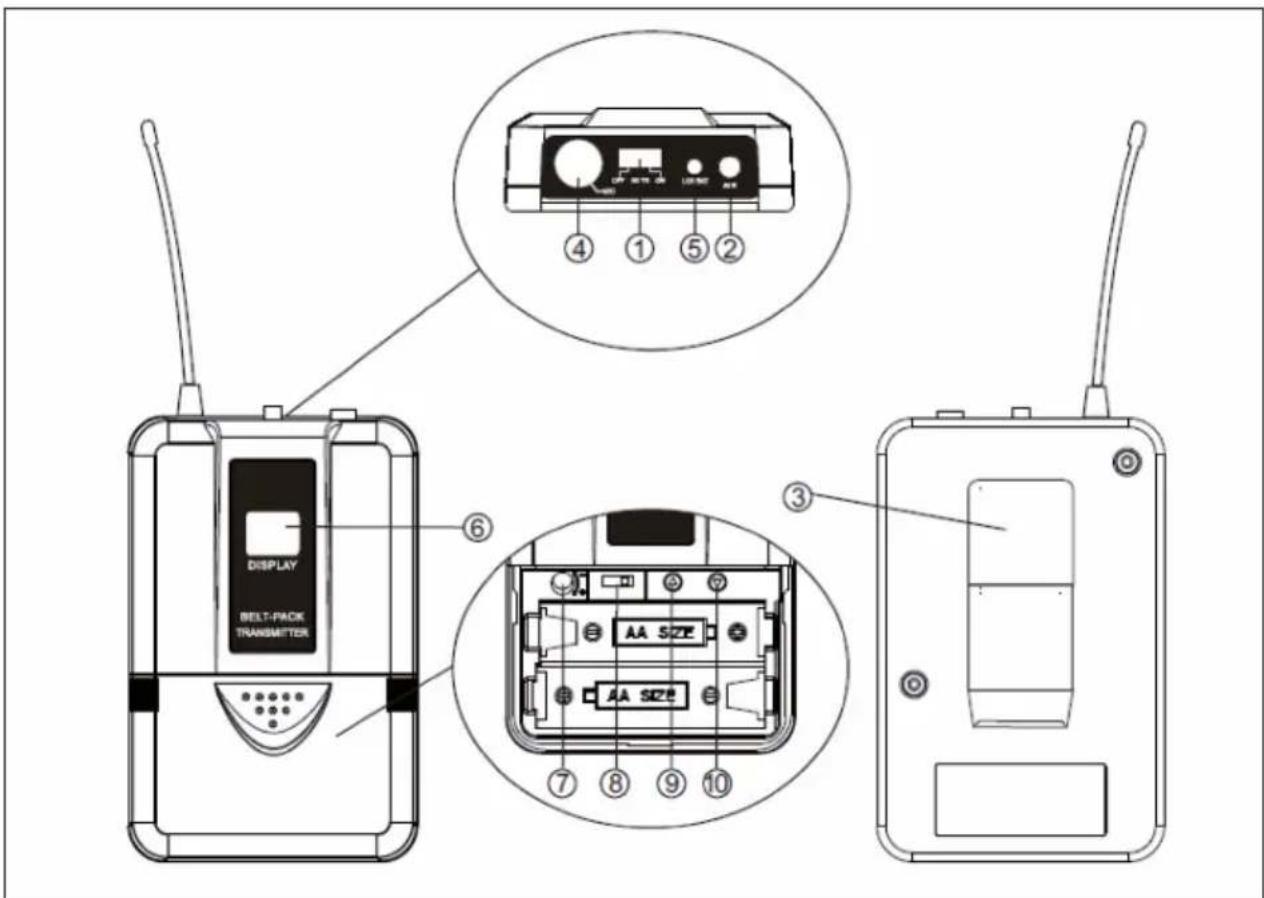

Belt pack

1 POWER/MUTE (switch on/off / mute)
2 Antenna
3 Belt clip
4 Audio-In (suitable for lavalier and headset microphones)
5 LOW-BATT LED: Indicates low battery
6 LCD display: Displays frequency/channel
7 GAIN: Adjusts the input sensitivity
8	STATE: Switches between input modes for headset or lavalier microphone
9/10 UP/DOWN: Up/down (adjust channel/frequency)

GETTING STARTED

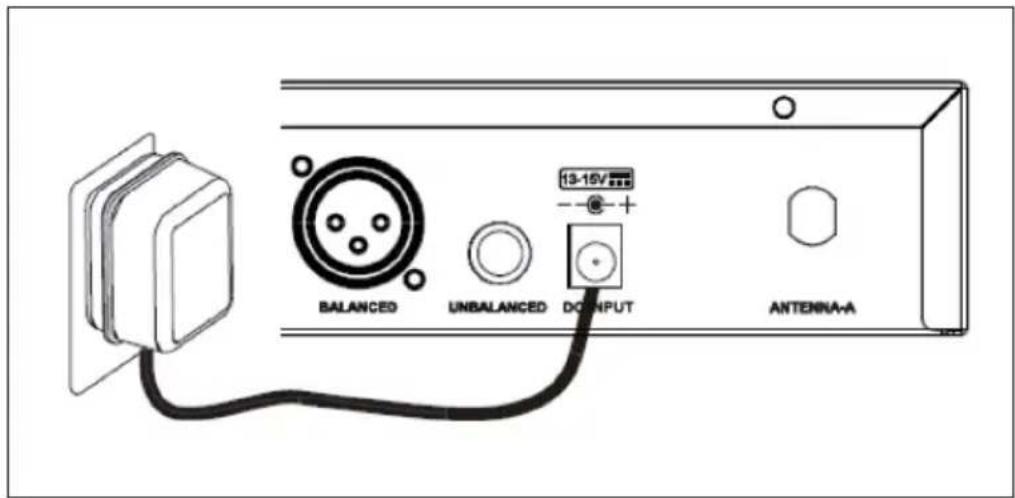

Connect the receiving unit to a mains socket using the supplied mains adapter.

Connect the antennas to the correspondingly marked connectors on the back.

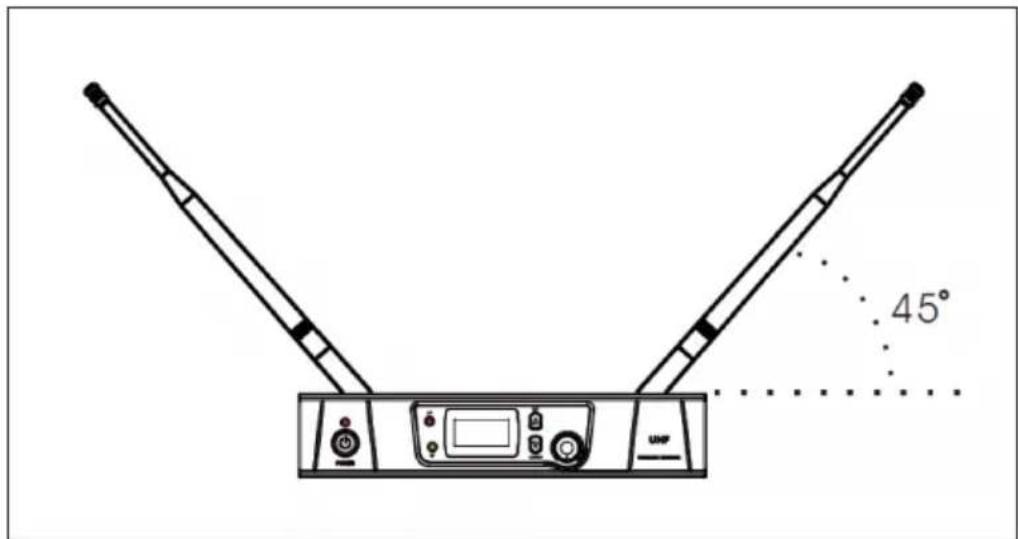

Set the antennas at an angle of about 45^ to guarantee the best possible reception.

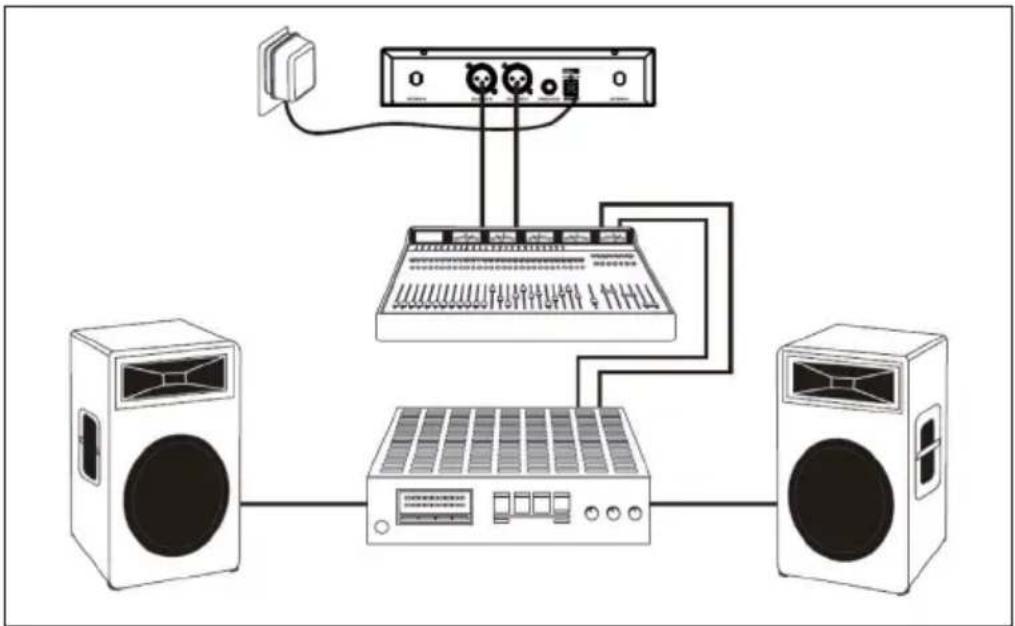

As indicated on the diagram, connect the balanced outputs of the receiver to corresponding inputs of your mixing console, active speakers or similar.

Diagram of audio equipment connections showing speaker, audio jack, keyboard, and two speakers (no text or labels)

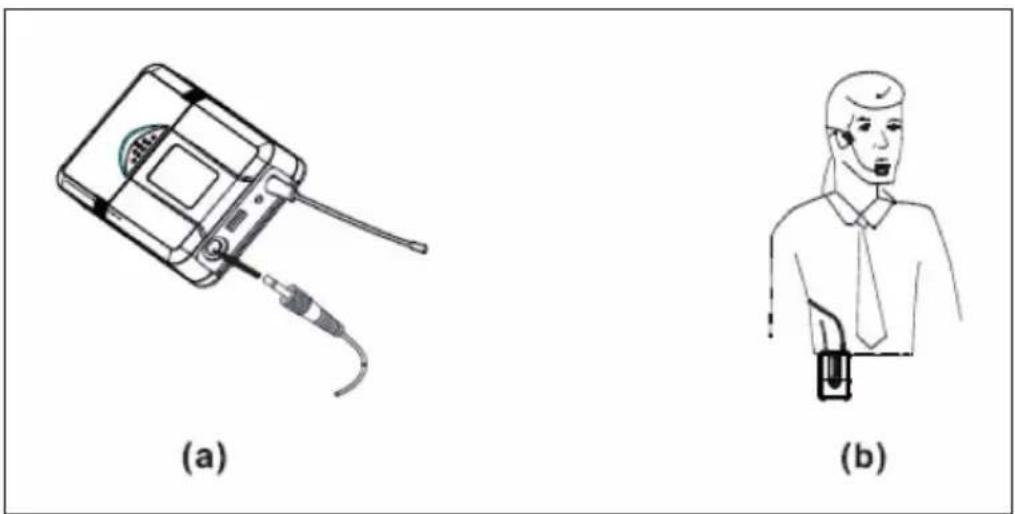

Connect the supplied headset (10026455 / 10026456) to the belt pack as shown in the picture.

Two technical illustrations: (a) a handheld device with cable and earpiece, (b) a person wearing a headset (no text or symbols)

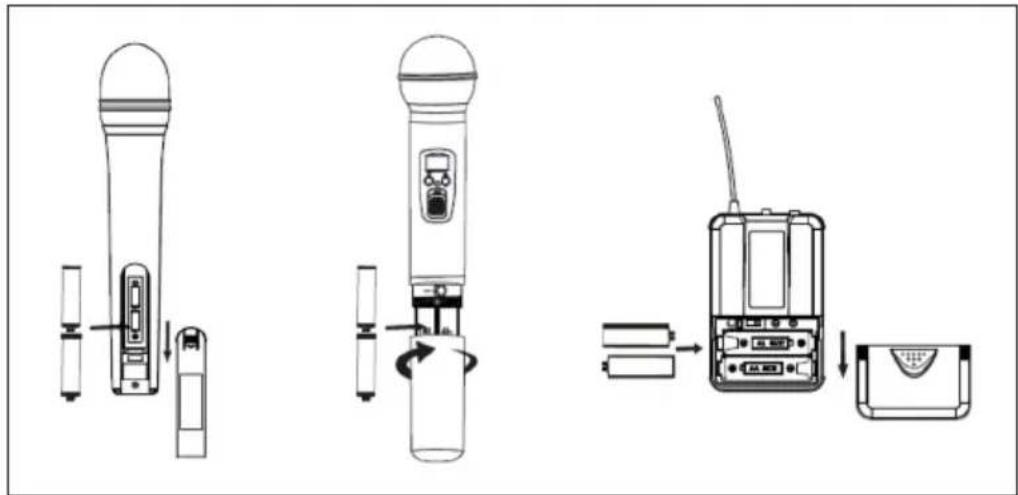

Inserting the batteries

When inserting the batteries, make sure to observe the polarity. To do this, look at the diagrams on the inside of the battery compartments.

TROUBLESHOOTING

Problem Indicator Possible solution
No sound. The red transmitter	LED does not light up.	Switch on the transmitter. Make sure charged batteries are installed correctly.
	The transmitter LED lights up.	Is the mute function activated?
	The receiver LEDs light up.	Turn up the volume. Make sure that the connection from the audio outputs to your mixing console or similar is working.
	The transmitter LEDs light up, the receiver LEDs do not light up.	Make sure that the frequencies on the transmitter and receiver are set the same.
The signal strength is significantly weaker than with conventional cabling / Different guitars are at different volumes.	The receiver LEDs light up.	Compensate for the problem using the GAIN control on the transmitter and the volume control on the receiver.
Sound increasingly distorted.	The receiver LEDs light up.	The batteries are dead. Change them.
Interferences are disturbing the sound.	The signal LEDs light up.	Locate possible sources of interference (other transmitters, steel reinforcements). Switch off transmitters that are not needed. Mark "dead spots".

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

The complete manufacturer's declaration of conformity can be found at the following link:

https://use.berlin/10026454
