Dear customer,

Congratulations on the purchase of your unit. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

CONTENTS

Safety Instructions 16

Overview and remote control 18

Control panel and remote control 19

Filling 19

Operation 20

Cleaning and care 22

Troubleshooting 23

Disposal considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL INFORMATION

Product code 10029735, 10029736, 10029740
Power supply 220-240 V ~ 50-60 Hz
Nominal power 65 W
Water tank capacity 8 L
Water consumption 1 L/h

SAFETY INSTRUCTIONS

• Check the voltage on the rating plate before use. Only connect the appliance to sockets which correspond to the voltage of the appliance.
• Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
• Do not place the cord under carpets. Do not cover the cord with small clothes, shirts or other similar elements. Place the cord away from traffic areas in order to avoid any risk of tripping over.
• Do not operate the appliance if the cable or plug is damaged.
• If the supply cord or plug is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Indoor use only.
• Do not cover the machine during using.
• Place the appliance on a stable flat horizontal surface. Make sure the appliance is in an upright position during use.
• Ensure the appliance is switched off before connecting to the mains power supply.
• Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and mains supply connections.
• Do not leave this appliance unattended when it's in use. Turn off and disconnect the appliance when you leave the room for an extended period.
• Switch off the appliance and unplug from the mains socket when not in use, before filling, cleaning or other maintain.
• To disconnect the appliance, switch it "OFF", and then remove the plug from outlet. Do not pull the cord to disconnect the plug.
• Use the appliance only as described in this manual.
• Do not insert your fingers in the openings of the guard.
• Do not leave hair, tissue, tablecloths, clothes or curtains near all openings of the fan, they could be sucked into the fan and be taken within the internal moving parts that could cause injury or damage.
• Do not use the appliance in wet or damp locations such as bathrooms.
• Do not operate the appliance when it's not mounted on its wheels or if it's lying on the side.
• Make sure the cord is completely extended before use.

• When in operation, evaporative coolers moisturize the ambient air. Overhumidification of residential rooms should be avoided. Recommendation: 40 - 50% relative humidity. Excessive humidity of the air can damage the home and cause health problems.

• The appliance may only be set up on water- and moisture-proof flooring materials (spilling some drops of water is unavoidable when the content of the tank is changed).

• With each and every change of tank content, completely remove residual water from the equipment. To prevent nucleation, remove residual water from the equipment and water tank every time after three days of use.
• This device can be used by children over 8 years of age and persons with limited physical, sensory or mental abilities or lack of experience and knowledge, if they have been supervised or instructed in the safe use of the device and understand the dangers involved. Children must not play with the device. Cleaning and maintenance of the air cooler must not be performed by children without supervision.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product.
• The batteries contain environmentally hazardous substances. They must be removed from the product before it is scrapped and disposed of safely.

WARNING

Danger of injury! Make sure that children do not swallow the battery. If the button cell battery is swallowed, it can cause severe internal burns in only 2 hours and lead to death. If you think that batteries may have been swallowed, consult a doctor immediately.

Special notes on use

• Note that high humidity can encourage the growth of biological organisms in the environment.
• Make sure that the area around the humidifi er does not get damp or wet. If humidity occurs, turn down the power of the humidifi er. If the humidifi er output cannot be reduced, use the humidifi er intermittently. Make sure that absorbent materials such as carpets, curtains, drapes or tablecloths do not get wet.
• Disconnect the device from the power supply while fi Iling and cleaning.
• Never leave water in the holder when the appliance is not in use.
• Empty and clean the humidifi er before storage. Clean the humidifi er before the next use.

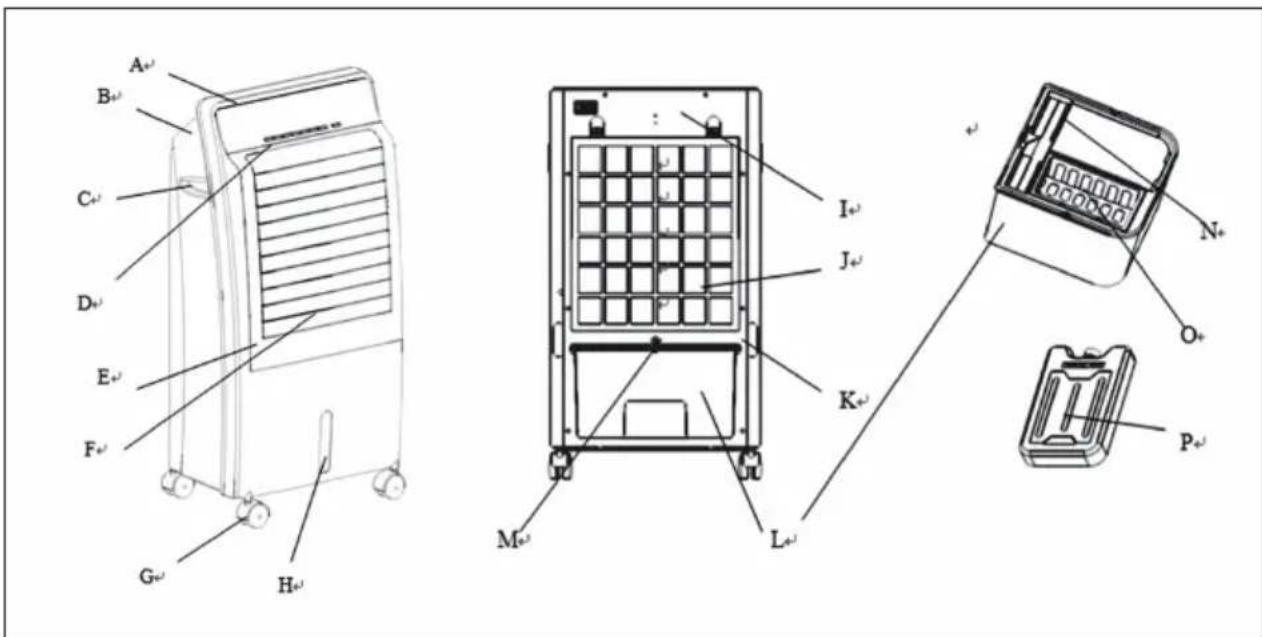

OVERVIEW AND REMOTE CONTROL

A Upper aperture I Flashback
B Side panel J Dust filter
C Handle K Cable outlet
D Control panel L Water tank
E Front panel M Lock
F Ventilation grille N Tank cover
G Transport wheel O Ice compartment
H Water level indicator	P Cooling pad

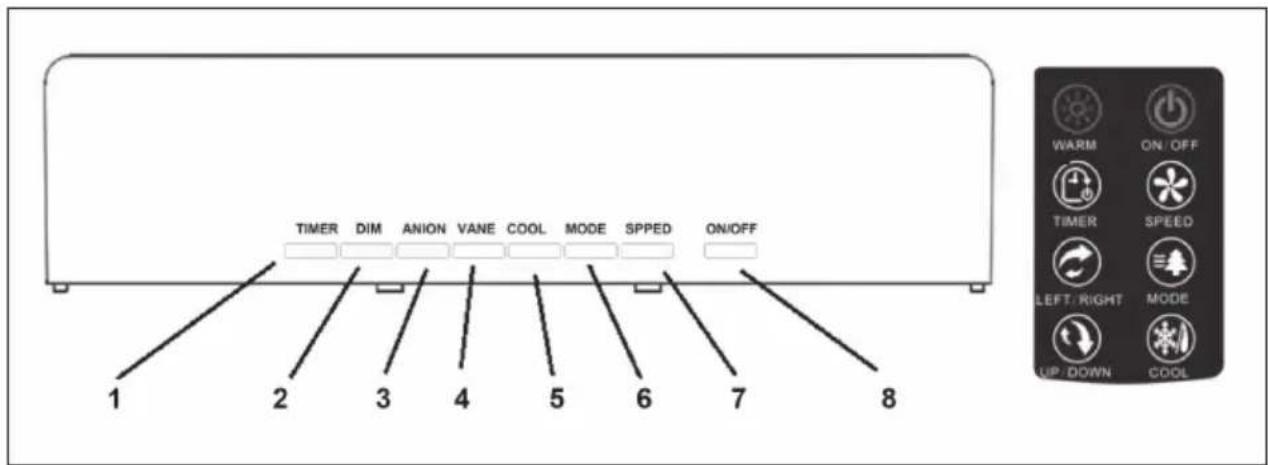

CONTROL PANEL AND REMOTE CONTROL

1 Timer 5 Cooling mode
2 Saving energy 6 Wind modes
3 loniser 7 Speed
4 Activate air guide fins 8 Device on/off

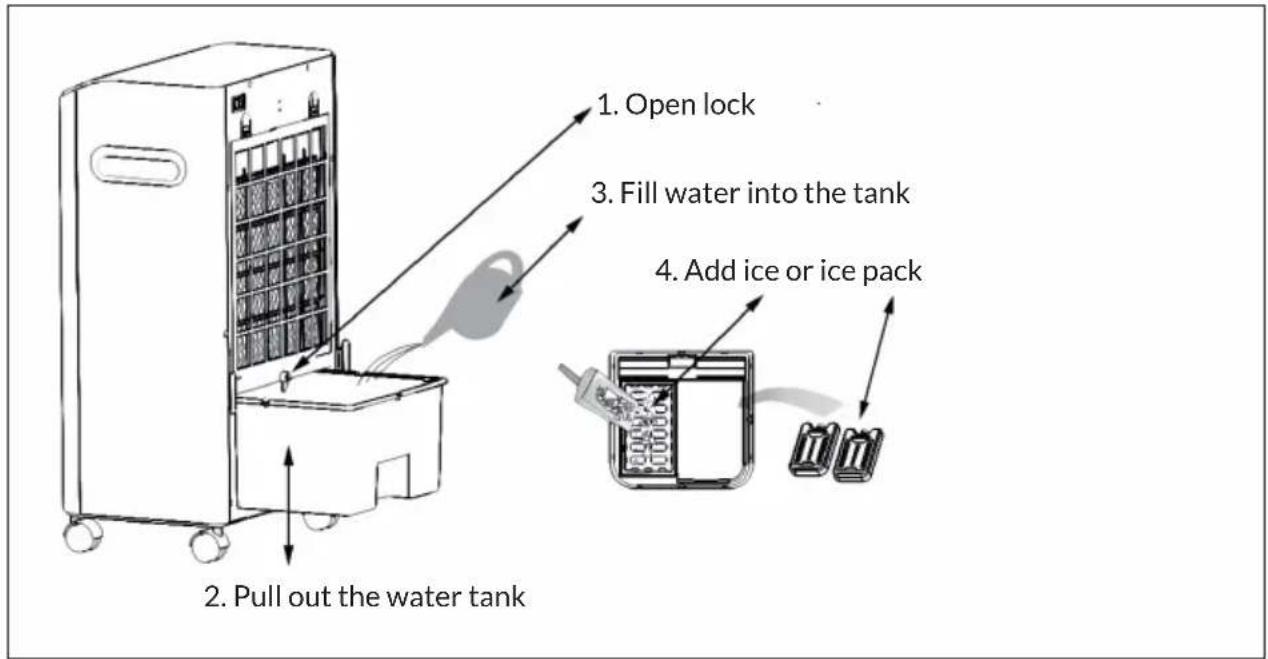

FILLING

OPERATION

ON/OFF button

Switches the appliance on and off.

SPEEDbutton

Press this button several times to switch between the 3 speed levels.

VANE button

Press this button to vary the orientation of the slats.

TIME button

Press this button several times to set the switch-off timer to a time between 0.5 to 7.5 hours.

MODEbutton

Press this button to switch between the three operating modes Normal, Natural and Sleep.

COOL button

Note: The cooling function can only be switched on when the fan is in operation.

Before operating the appliance in cooling module, make sure that the tank vent valve is closed. Fill clean water into the water tank. Make sure that the tank is not over- or underfilled. After filling the water, press the COOL button and the appliance starts blowing out cooler air. If you feel that it is still insufficiently cool, open the water tank lid and place additional ice cubes or the frozen cooling pad in the water tank.

Notes: Before using the cooling pad you must first unscrew the lid of the cooling pad and fill clean water into the cooling pad until the filling mark is reached. Screw the lid onto the cooling pad and place it in the freezer for at least 1-2 hours.

ION button

Switches the ionisation function on and off. This function is used to freshen the air in your room

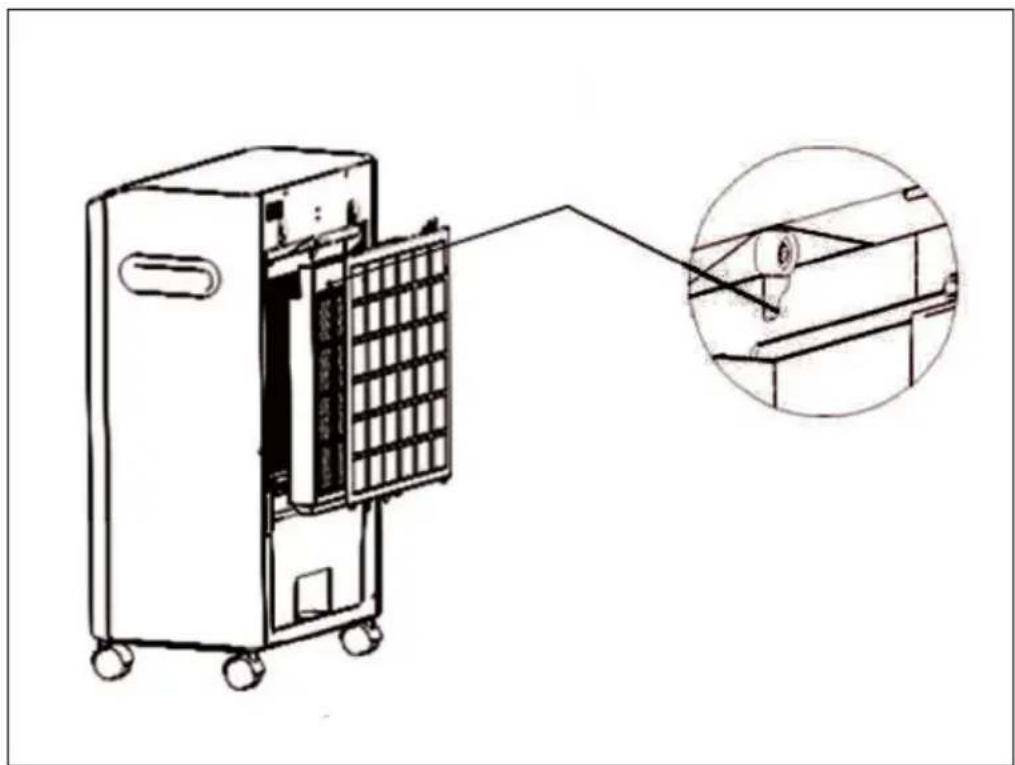

To remove the filters for cleaning

1. Remove the dust filter.
2. Turn the filter knobs outwards (see illustration on the right).
3. Remove the honeycomb filter.

CLEANING AND CARE

Before cleaning

• Switch off the device and unplug the power cord. Always disconnect the mains plug before cleaning to avoid electric shocks or mechanical damage.
• Use a commercially available cleaning agent and a soft brush for cleaning.
• Do not use chemical cleaners for cleaning.

Cleaning the outer surface

• Wipe the surface with a damp cloth. Do not use water, as it could enter the unit and damage the electronics.
• Do not use corrosive cleaning agents or solvents.

Storage

• If the product will not be used for a long time, unplug it from the mains and pack it away to prevent dust from getting into the housing.
• After packing, store it in a dry, ventilated place.

TROUBLESHOOTING

Problem Possible cause	Solution approach
The appliance does not work.	The plug has not been inserted correctly.	Plug the power plug securely into the wall socket.
	The nebuliser unit has not been installed correctly.	Install the nebuliser unit correctly.
	The unit is switched off.	Switch the device on.
	The wiring in the unit has come loose.	Contact a specialist company for repairs.
The humidifier does not work / The pump makes strange noises.	No water in the water tank or the water level is below the MIN mark.	Switch off the machine and fill water into the water tank.
	The filter screen of the submersible pump is clogged.	Clean the filter screen.
	The water outlet hole of the nebuliser unit is blocked.	Clean the nebuliser unit.
	The pump or the wiring in the unit has come loose.	Contact a specialist company for repairs.
Abnormal noises. Deposits in the nebuliser unit.		Remove the nebuliser unit and clean the components.
		Contact a specialist company for repairs.
		Clean the filter screen.
		Contact a specialist company for repairs.

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom
