RKM124E - Kettle Redmond - Free user manual and instructions

Product type	Electric kettle
Brand	Redmond
Model	RKM124E
Capacity	1.5 L
Power	1800 – 2150 W
Voltage	220 – 240 V, 50/60 Hz
Housing material	Plastic and stainless steel
Dimensions (L × W × H)	235 × 205 × 150 mm
Net weight	0.89 kg
Power cord length	0.7 m
Rotation on base	360°
Automatic shut-off	At boiling and in case of no water
Overheat protection	Yes
Heating element	Disc
Contact group	STRIX®
Operating indicator	LED
Cord storage compartment	Yes, in the base
Level indicators	Min (0.5 L) and Max (1.5 L)
Package contents	Kettle, base, user manual, service booklet
Electrical safety	Class I

Frequently Asked Questions - RKM124E Redmond

How to use the kettle for the first time?

Before first use, boil water several times and discard it to remove odors. Wipe the base with a damp cloth. Do not fill above the MAX mark or below the MIN mark.

How much water should I put in the kettle?

The water level should be between the MIN (0.5 L) and MAX (1.5 L) marks. Insufficient level may cause premature shutdown, excess may splash boiling water.

Does the kettle shut off automatically?

Yes, it shuts off automatically when boiling. It also has dry boil protection that turns it off if there is no water.

What to do if the kettle turns off while there is still water?

This may be due to scale on the heating element. Descale the appliance with a non-abrasive product. If the problem persists, contact an authorized service center.

How to clean the kettle?

Unplug it and let it cool. Clean the exterior with a damp cloth. Never immerse the base or kettle in water. Use a descaling product for the interior.

How to descale the kettle?

Use a non-abrasive descaling product for kitchen utensils. Fill with water, add the product, boil, let it sit, then rinse thoroughly. Follow the product instructions.

Why does the kettle turn off within seconds?

If the dry boil protection was activated due to lack of water, unplug it, let it cool, then fill above the MIN mark. If the problem persists, contact a service center.

Can I use the kettle on any base?

No, use only the provided base. The kettle rotates 360° on its base for easy handling.

How to store the power cord?

The cord can be wound into the storage compartment located under the base. Leave only enough length for use.

Is the kettle safe for children?

The appliance can be used by children aged 8 years and older under supervision. Keep the kettle and its cord out of reach of children under 8. Do not let children play with the appliance.

USER MANUAL RKM124E Redmond

White modern white water heater with 'REDOMOK' branding and 'ECOLOK BY Diner' text, shown against black background (no other signage)

GBR 4
FRA 8
DEU 13
ITA 18
ESP 23
PRT 28
DNK 33
NOR 37
SWE 41
FIN 46
LTU 50
LVA 54
EST 58

ROU 62
HUN 67
BGR 72
HRV 77
SVK 82
SVN 87
CZE 91
POL 96
GRE 101
SRB 106
RUS 111
UKR 116
KAZ 121

MAX 1.5 L MIN 0.5 L 1 2 3 4 5 6 A1

REDMOND

Carefully read all instructions before operating the appliance and save them for future reference. By carefully following these instructions you can considerably prolong the service life of your appliance.

The safety measures and instructions contained in this manual do not cover all possible situations that may arise during the operation of the appliance. When operating the device the user should be guided by common sense, be cautious and attentive.

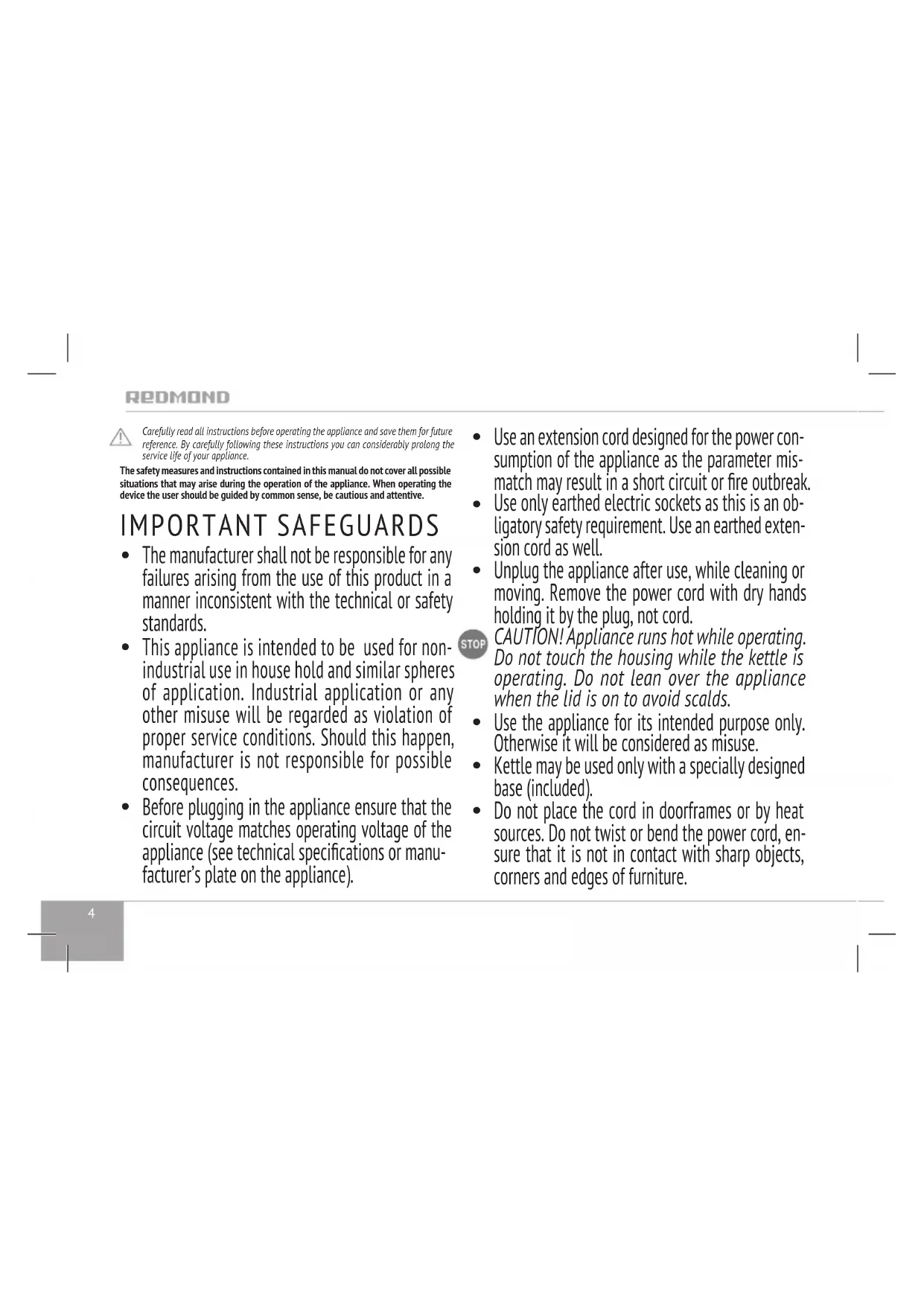

IMPORTANT SAFEGUARDS

• The manufacturer shall not be responsible for any failures arising from the use of this product in a manner inconsistent with the technical or safety standards.
• This appliance is intended to be used for non-industrial use in house hold and similar spheres of application. Industrial application or any other misuse will be regarded as violation of proper service conditions. Should this happen, manufacturer is not responsible for possible consequences.

• Before plugging in the appliance ensure that the circuit voltage matches operating voltage of the appliance (see technical specifications or manufacturer's plate on the appliance).

• Use an extension cord designed for the power consumption of the appliance as the parameter mismatch may result in a short circuit or fire outbreak.

• Use only earthed electric sockets as this is an obligatory safety requirement. Use an earthed extension cord as well.
• Unplug the appliance after use, while cleaning or moving. Remove the power cord with dry hands holding it by the plug, not cord.
  CAUTION! Appliance runs hot while operating. Do not touch the housing while the kettle is operating. Do not lean over the appliance when the lid is on to avoid scalds.
• Use the appliance for its intended purpose only. Otherwise it will be considered as misuse.
• Kettle may be used only with a specially designed base (included).
• Do not place the cord in doorframes or by heat sources. Do not twist or bend the power cord, ensure that it is not in contact with sharp objects, corners and edges of furniture.

STOP

STOP

REMEMBER! Accidental damage to the power cord may cause electric shock or breakdown not covered by the terms of warranty. Promptly contact the service centre to have the damaged power cord replaced. Do not place the appliance on soft, unstable surface.

• Do not put the kettle on temperature-sensitive surface, do not cover the appliance while it is in operation as it may result in a fault or breakdown of the appliance.
• Do not use the appliance outdoors as ingress of moisture or foreign objects inside the housing can result in damage.
• Before cleaning the appliance ensure that it is unplugged and has cooled down. Follow the instructions while cleaning the device.

STOP

DO NOT immerse the device in water or wash it in running water!

- Do not spill liquid on the connector.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the packaging (film, foam plastic and other) out of reach of children as they may choke on them.
• No kind of modification or adjustment to the product is allowed. All the repairs should be carried out by an authorized service centre. Failure to do so may result in the device breakage, property damage or physical injury.

STOP

CAUTION! Do not use the appliance in case any defect has been noticed.

REDMOND

Technical characteristics

Model....RK-M124-E

Power....1800-2150 W

Voltage 220-240 V, 50/60 Hz

Electrical safety......class I

Capacity 1.5 L

Body material....plastic, stainless steel

Descale filter ...... removable

Automatic shut-off

- when boiling

• in the absence of water

Heating element....disk

Rotation on the base 360°

Contact group STRIX®

Operation indication......LED

Compartment for electrical cord storage....available

Net weight 0.89 kg

Dimensions....235 × 205 × 150 mm

Power cord length 0.7 m

Package contents

Electric kettle 1 pc.

Kettle base....1 pc.

User manual....1 pc.

Service booklet....1 pc.

In accordance with the policy of continuous improvement, the manufacturer reserves the right to make any modifications to design, packaging arrangement, or technical specifications of the product without prior notice. The specification allows an error of ±10% .

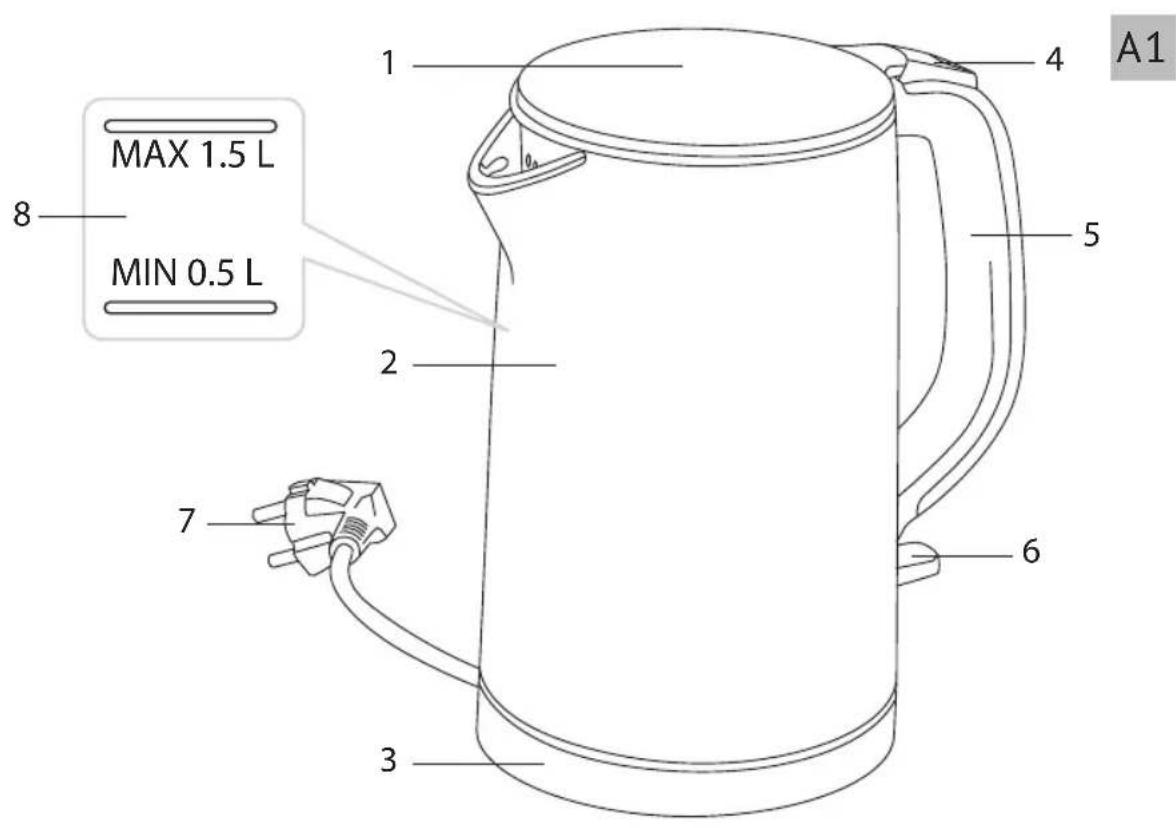

Parts of the Appliance (scheme A1, p. 3)

1. Electric kettle lid 6. Switch with operation indication
2. Kettle body 7. Power cord
3. Base with recess for electric cord storage 8. 0.5 L Min and 1.5 L MAX markers
4. Lid release button
5. Handle

I. PRIOR TO THE FIRST USE

Carefully take the appliance and its detachable parts out of the package. Remove all wrapping materials and stickers except for the serial number identification sticker.

Keep all warning labels, warning stickers (if any), and serial number identification label located on the housing.

After the appliance transportation or storage at low temperature keep it at room temperature for at least two hours before plugging in.

Wipe the base of the appliance with a damp cloth, then let it dry. You may notice foreign smell when using the appliance for the first time. This does not mean its malfunction.

You are advised to boil water in the kettle a few times before the first use to get foreign smell out and disinfect the appliance.

II. APPLIANCE OPERATION

1. Place the kettle and base on a hard, flat, dry, horizontal surface. When installing, make sure that the steam escaping from boiling does not fall on wallpaper, decorative coatings, electronic devices and other objects that may be affected by high humidity and temperature.
2. Unwind the cord to the desired length. Place the excess part in the recess at the bottom of the base. If necessary, use an extension cord of suitable power (at least 2.5 kW).
3. Remove the kettle from the base. Press the button to open the lid.
4. Pour water into the kettle. The water level should be between 0.5 L MIN and 1.5 L MAX level. If you fill the kettle with water above the MAX level, then boiling water may be sprayed. If there is too little water, the appliance may shut down prematurely.

ATTENTION! The appliance is intended only for heating and boiling water.

1. Close the lid of the kettle tightly and place it on the base. The appliance will only operate if it is installed properly.
2. Plug in the appliance. Press the switch. The indicator comes on and the water heating process will start. After the water boils, the appliance will automatically turn off.
3. To interrupt the water heating process, put the switch to the upper position.

ATTENTION! If you remove the kettle from the base during heating, the switch will remain in the on position. If you then place the kettle on the base, the water heating process will

continue. When removing the kettle from the base, always turn it off by putting the switch to the upper position.

1. At the end of operation, unplug the appliance from the outlet.

Safety system

• The kettle is equipped with an automatic shut-off system after boiling water.
• If there is no water in the electric kettle or not enough of it, the automatic overheating protection will operate and turn off the kettle power. Wait for the appliance to cool down, and it will be ready for use.

III. CLEANING AND MAINTENANCE

Regularly clean the kettle housing and wipe the base with a damp cloth. Let the kettle and kettle base dry thoroughly before use.

CAUTION! Before cleaning the kettle or the kettle base unplug the appliance, drain water and let the unit cool down.

DO NOT immerse the base of the appliance in water or keep in running water!

DO NOT use coarse tissues or sponges, abrasive pastes for cleaning. It is also not recommended to use any chemically aggressive or other substances, not recommended for use with items which contact with food.

Descaling

While in operation scale deposits may form on both the heating element and the housing inner walls of the appliance depending on water type being used. Use special nonabrasive cleaning substances for kitchen utensils and appliances.

1. Let the kettle cool down before cleaning.
2. Follow the product cleaning and application instructions.
3. Thoroughly wash the kettle with water after cleaning.
4. Wipe the appliance with a damp cloth.

CAUTION! Before use ensure that electric contacts of the appliance are dry.

Transportation and Storage

Before repeated operation or storage completely dry all parts of the appliance. Store the assembled appliance in a dry, ventilated place away from heating appliances and direct sunlight.

During transportation and storage, do not expose the device to mechanical stress, that may lead to damage of the device and/or violation of the package integrity. Keep the device package away from water and other liquids.

IV. BEFORE CONTACTING SERVICE CENTRE

Problem Possible cause Solution
Kettle does not switch on (inner illumination is off)	No electric power supply	Connect the appliance to a properly working electric socket
Early switch-off	There is scale on the heating element	Descale the heating element (see "Cleaning and Maintenance")
Kettle switches off in a few seconds	There is no water in the kettle, boil-dry protection system has gone off	Unplug the appliance, let it cool down. Fill the kettle up above MIN (0.5 L) mark

In case you didn't manage to eliminate the defects, please, refer to the authorized service centre.

Environmentally friendly disposal (WEEE)

The packaging, user manual and the device itself shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw away the electronic waste to help protect the environment.

Old appliances must not be disposed with other household waste but must be collected separately. Municipal disposal of recyclable wastes is free of charge. The owners of old appliances are required to bring it to a waste facility centre. With this little extra effort, you can help to ensure that valuable raw materials are recycled and pollutants are treated as appropriate.

This appliance is labelled in accordance with European Directive 2012/19/EU – concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
