USER MANUAL Clean Turbo OneConcept

Cyclonic hand vacuum cleaner

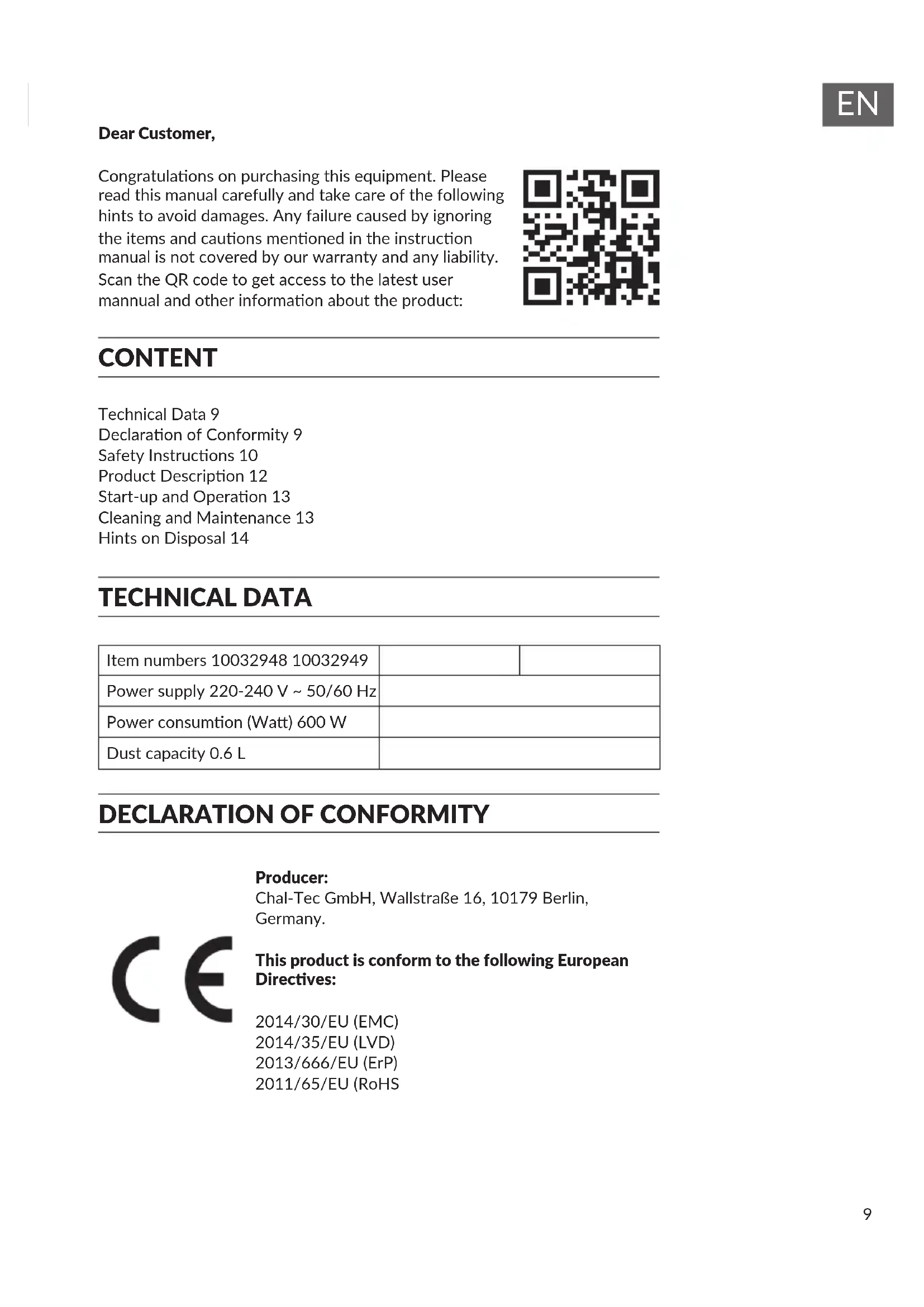

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user mannual and other information about the product:

CONTENT

Technical Data 9

Declaration of Conformity 9

Safety Instructions 10

Product Description 12

Start-up and Operation 13

Cleaning and Maintenance 13

Hints on Disposal 14

TECHNICAL DATA

Item numbers 10032948 10032949
Power supply 220-240 V ~ 50/60 Hz
Power consumption (Watt) 600 W
Dust capacity 0.6 L

DECLARATION OF CONFORMITY

Producer:

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2013/666/EU (ErP)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Read all instructions before using the vacuum cleaner and save for future reference. To reduce the risk of personal injury or damage to your vacuum, use only recommended accessories.
• Do not leave vacuum unattended when it is plugged in and/or operating. Unplug unit when not in use.
• Never operate this unit when flammable materials or when vapors are present because electrical devices produce arcs or sparks that can cause a fire or explosion.
• Always disconnect the plug from the wall outlet before removing the tank cover.
• Do not allow to be used as a toy. Close attention is necessary when vacuum is in use by or near children.
• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• The plug must be removed from the socketoutlet before cleaning or maintaining the appliance.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord, plug, or other parts.
• If your vacuum is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, call customer service.
• Sparks inside the motor can ignite flammable vapors or dust. To reduce the risk of fire or explosion, do not use near combustible liquids, gases, dusts, gasoline or other fuels, lighter fluid, cleaners, oil-based paints, natural gas, coal dust, magnesium dust, grain dust, aluminum dust or gun powder.
• Do not pull or carry the appliance by cord and make sure the cord cannot become entangled. Do not close a door on cord, or pull cord around sharp edges or corners.
• Do not unplug by pulling on cord. To unplug, grasp the plug firmly.

• Do not handle plug or appliance with wet hands.

• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked; keep free of dust, lint, hair, or anything that can reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off the control before unplugging.
• Use extra care when cleaning stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Always unplug this appliance before connecting or disconnecting vacuum hose.
• Store the vacuum indoors. Put the vacuum away after use to prevent tripping accidents.

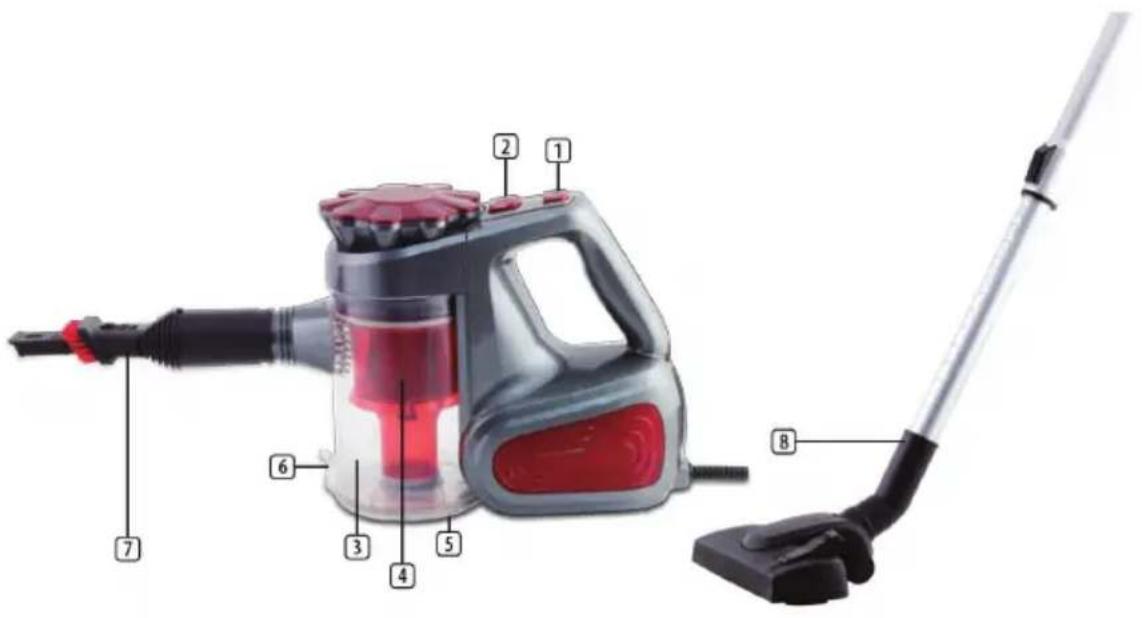

1 On/off button + handle
2 Dust container release button
3 Dust container
4 Filter
5 Dust container cover
6 Dump button
7 Combi brush
8 Large floor brush

START-UP AND OPERATION

Before the first Use

• Take the appliance and accessories out of the box. Remove the stickers, protective foil or plastic from the device.
• Only use the device if all the filters included the dust compartment are placed properly, a damaged or improperly installed filter or dust compartment may damage the unit.

Use

• Choose the desired brush: the combi nozzle for narrow surfaces or the tube together with the floorbrush.
• Insert the plug into the power socket. Make sure that the power supply corresponds to the required power mentioned on the rating label.
• Press the on/off button to turn on the power.

CLEANING AND MAINTENANCE

Emptying the Dust Container

• Hold the dust container above an open dustbin.
• Use the dump button to open the bottom plate of the dust container, the dust container will open and the dirt will fall out.

Cleaning the Filter

• Take out the dust container by pushing the dust container release button.
• Turn the lid of the dust container anticlockwise and remove it.
• Carefully remove the cyclone filter from the dust container.
• Remove the foam filter holder from the cyclone filter.
• Remove the foam filter from the filter holder. Please note: the thin fabric filter is firmly attached to the filter holder and cannot be taken out of the holder!
• Thoroughly rinse all the parts with clear, lukewarm water. Do not use any cleaning agent.
• Shake off any excess water and allow all the parts to dry completely before reinserting them.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service..
