Congratulations on the purchase of your unit. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 12

Device Overview 13

Assembly 14

Use 15

Maintenance 16

Disposal Considerations 16

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

Basic safety precautions must be taken when using the vacuum cleaner. Read all operating instructions before using the vacuum cleaner.

• The device is intended for household use only.
• Do not leave the vacuum cleaner unattended when the power cord is plugged in. Unplug the device when not in use.

- Do not use outdoors or on wet surfaces.

- Make sure that children do not play with the unit.

- Only use the device as described in these operating instructions. Only use accessories from the manufacturer.

- Do not use the device with a damaged cable or mains plug. If the vacuum cleaner is not working properly, has been dropped, damaged, left outdoors or dropped into water, take the device to a repair service.

- Do not carry the device by the power cord or pull on the power cord. Do not close any doors on the power cord, and do not route the power cord around sharp edges or corners. Do not run the vacuum cleaner over the power cord. Keep the mains cable away from hot surfaces.

- Do not pull out the mains plug by the mains cable. Hold the mains plug while pulling it out.

- Do not touch the power plug or vacuum cleaner with wet hands.

- Do not insert any objects into the device openings. Do not operate the device with the openings in the housing blocked. Keep the device free of dust, lint, hair, and anything that restricts air flow.

- Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

- Switch off the device before pulling out the mains plug.

- Be careful when vacuuming stairs.

- Do not use around flammable or explosive liquids.

- Do not vacuum up burning or smoking objects such as cigarettes, matches or ashes.

- Do not use without a filter in place.

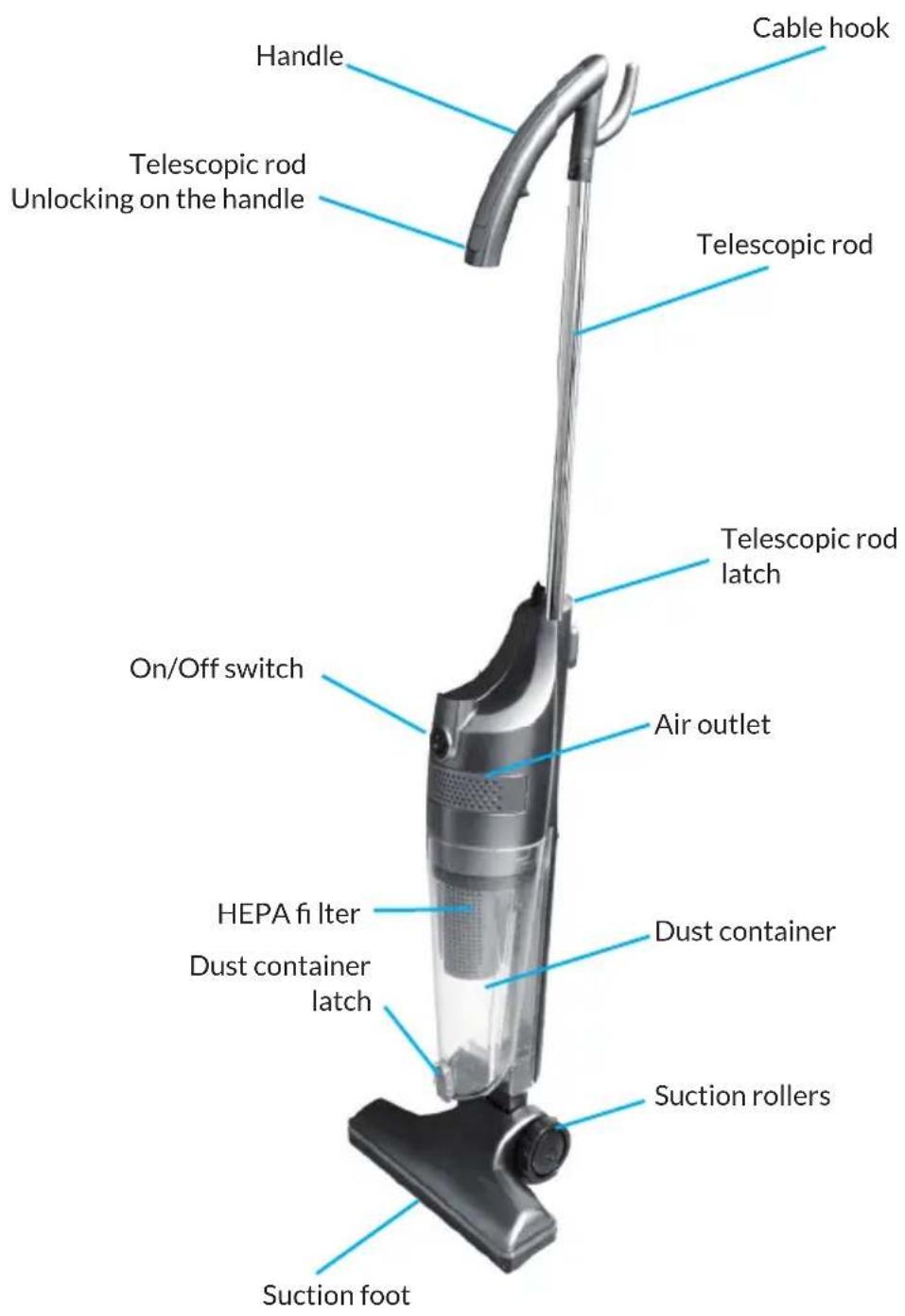

DEVICE OVERVIEW

Handle Cable hook Telescopic rod Unlocking on the handle Telescopic rod Telescopic rod latch On/Off switch Air outlet HEPA fi lter Dust container latch Dust container Suction rollers Suction foot

ASSEMBLY

1

Close-up of a mechanical component with a cylindrical body and flanged top, no visible text or symbols.

2

Two black plastic cylindrical devices with internal components, one partially open and one closed (no visible text or symbols)

Insert the HEPA filter into the permanent filter. Turn clockwise to the right until the HEPA filter is tight.

Now place the permanent filter in the dust container.

The notch must match the bar.

3

Close-up of a black handheld vacuum cleaner with visible mesh and ventilation slots (no text or symbols)

4

Exterior view of a modern vacuum cleaner (no text or symbols visible)

Now place the dust container slightly offset to the left on the motor housing. Turn clockwise until the parts snap into place.

Now insert the desired attachment (suction foot or crevice nozzle) into the suction shaft on the underside.

USE

Exterior view of a modern vacuum cleaner (no text or symbols visible)

Press the telescopic rod release on the handle to extend the rod.

Exterior view of a modern vacuum cleaner (no text or symbols visible)

To retract the rod, press the centre of the telescopic rod latch.

Black vacuum cleaner with attached cable and power cord (no visible text or symbols)

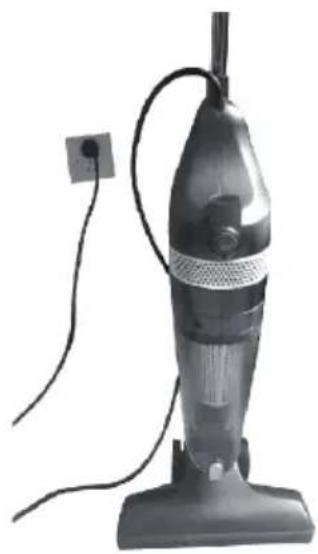

Insert the mains plug into a socket.

Exterior view of a modern vacuum cleaner (no text or symbols visible)

Press the on/off switch.
Now the vacuum cleaner is in operation.

MAINTENANCE

The HEPA filter must be washed at least every 6 months. If there is visible dust in the HEPA filter, wash it immediately.

Do not open the vacuum cleaner when it is connected to the power supply.

Do not put the HEPA filter in the washing machine.

Disassemble the vacuum cleaner

1. Pull out the handle. (Otherwise you cannot detach the dust container.)
2. Open the dust container below.
3. Remove the dust from the dust container.
4. Turn the dust container counterclockwise. Now you can remove the dust container. (The handle must be extended!)
5. Remove the HEPA filter. Clean the HEPA filter.
6. Store the vacuum cleaner in a dry environment.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.
