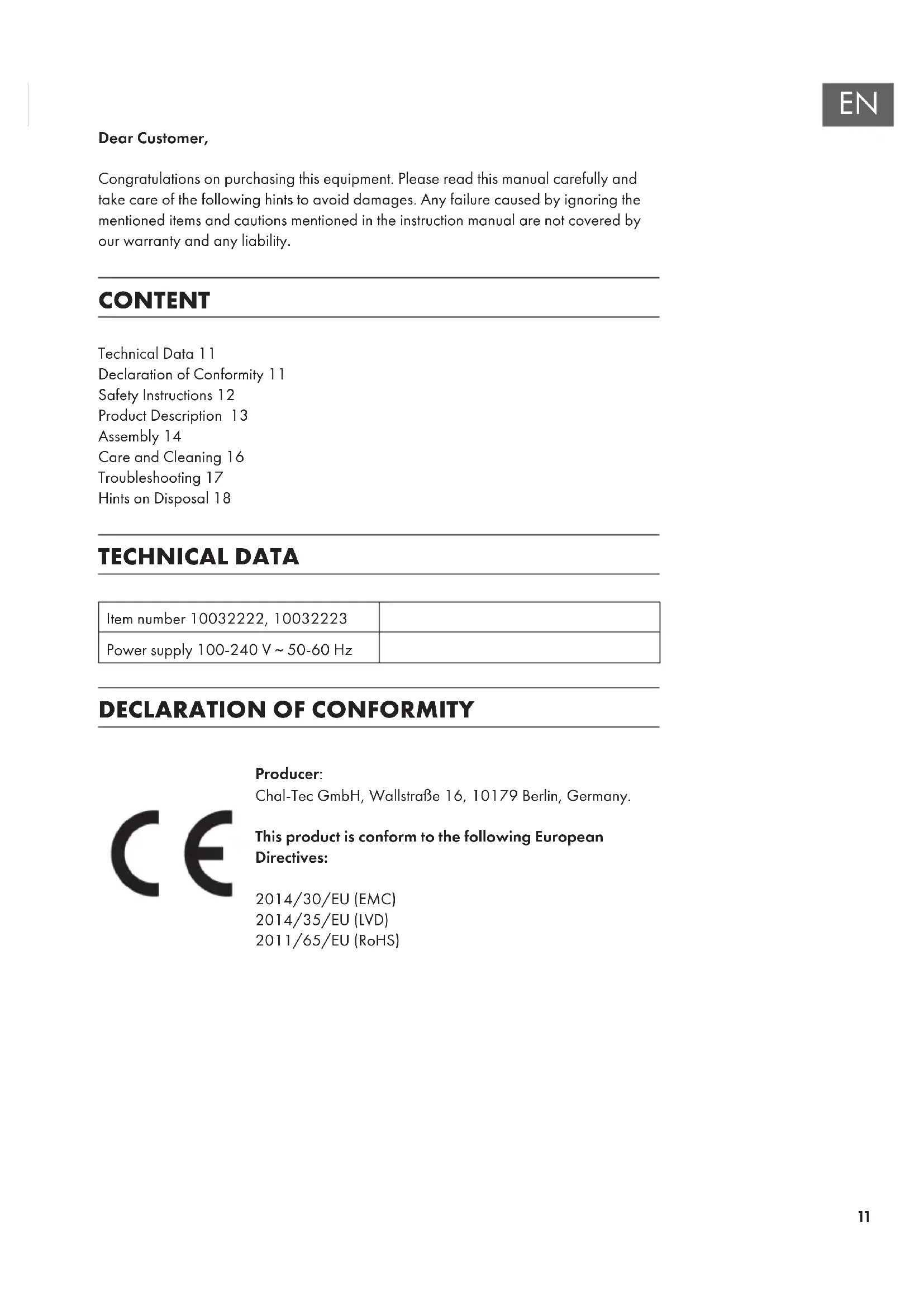

USER MANUAL Primo OneConcept

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 11

Declaration of Conformity 11

Safety Instructions 12

Product Description 13

Assembly 14

Care and Cleaning 16

Troubleshooting 17

Hints on Disposal 18

TECHNICAL DATA

Item number 10032222, 10032223
Power supply 100-240 V ~ 50-60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Do not use outdoors or on wet surfaces
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use vacuum if it has been dropped, damaged, left outdoors, or dropped in water. Return it to an authorized service center.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or got ashes.
  Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Look on your vacuum and follow all label and marking instructions.
• Keep end of hose, wands and other openings away from your face and body.
• Do not use the vacuum cleaner without dust cup filter in place.
  Always unplug this appliance before connecting or disconnecting vacuum hose.
• Store the vacuum indoors. Put the vacuum away after us to prevent tripping accidents.
• Use the incorrect battery will damage motor and users. Please use the recommended batteries.
• Use only on dry, indoor surfaces.
• Do not use for any purpose other than described in this user's guide.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Precautionary Measures

If the opening that sucks in the air, the brush or the flexible hose are blocked, you should switch off the vacuum cleaner at once. First clear the blocked substance before you attempt to start the vacuum cleaner again.

• Do not operate the vacuum cleaner too close to heaters and like radiators, cigarette butts etc.
• Before you start using the vacuum cleaner, please remove large or sharp objects from the floor in order to prevent that the filter is damaged. Do not use the vacuum to clean anything that is easy to burning, such as gas and cigarettes.

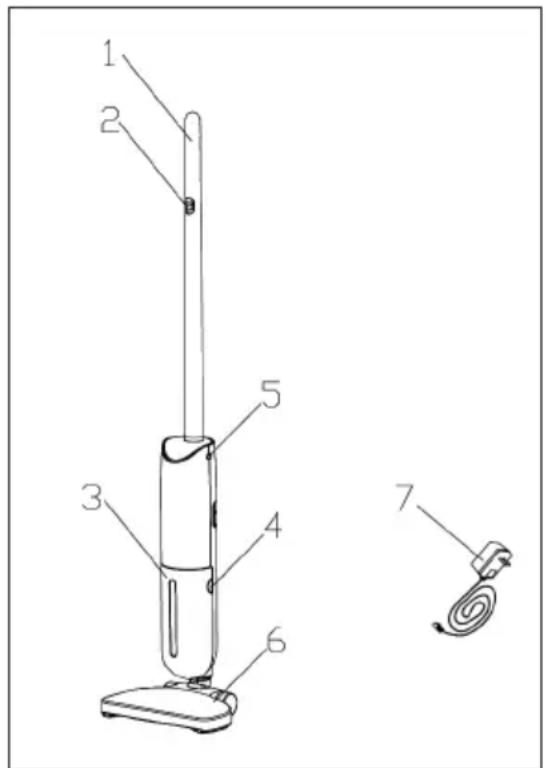

PRODUCT DESCRIPTION

1 Handle
2 Switch pusher
3 Dust cup
4 Dust cup release button
5 Handle lock button
6 Brush
7 Charger

ASSEMBLY

1	2
Fitting the vacuum cleaner When you begin to use the Stick-Vac, you must Install the brush into the body first. Install the brush as the fig, after you hearing “kata” voice.	Foldable handle Push the lock of handle to make the handle foldable.

1

2

Remove the dust cup

Push the release buttons (1) of dust cup to inside. Then take out the dust cup (2) from body.

Install the dust cup

First make the upside of dust cup to connect with the body. (pls pay attention to the fitting position and direction). Then push the dust cup to close with the body. The dust cup will be loacked after a voice of "kata".

CARE AND CLEANING

1	2
Remove the dust cup. Take out the filter frame. Then drop the dust into waste container. You can use water to clean the dust cup and filter. Please dry them completely before use them again.	You can clean the dust cup, filter frame with soft brush or soft water. (they can be used again after dried.)

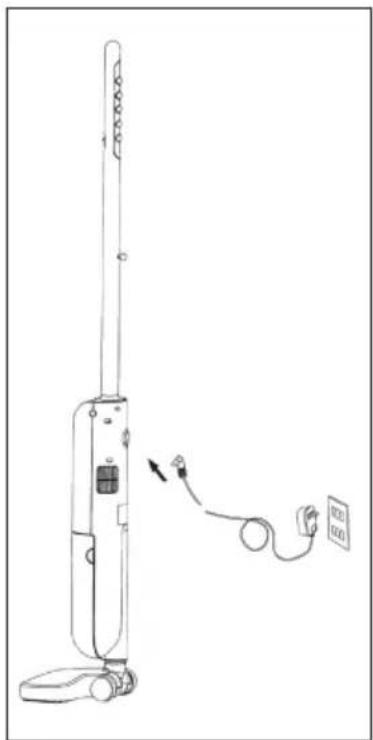

Charging the Product

1 When charging, put the charger connected to the outlet in the home. Charging a place near the corner edge, lest produce harm such as tripping.
2 The indicator light will flash red during charging. Once the red indicator light stops flashing, and show green light, the vacuum is fully charged and ready for use.
3 When the vacuum is working normally, the indicator light is green lighting.

TROUBLESHOOTING

Problem Possible cause	Suggested solution
Hand vacuum will not operate.	No power in electrical outlet supplying transformer.	Check fuse or breaker or replace fuse/reset breaker.
	Unit needs servicing.
Hand vacuum will not pick-up or suction power is weak.	Dust cup is full. Empty dust cup.
	Dust cup filter needs cleaning.	Remove dust cup filter and check for object(s) in air duct and remove.
Dust escaping from hand vacuum.	Dust cup is full. Empty dust cup.
	Dust cup filter is not installed correctly.	Review dust cup filter instruction.
	Puncture/hole in dust cup filter.	Replace dust cup filter.
Hand vacuum brushes will not pick-up.	Dust cup is full. Empty dust cup.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
