GFX320 - Waffle Maker H.KOENIG - Free user manual and instructions

Product Type	Waffle Maker
Brand	H.Koenig
Model	GFX320
Power Supply	230 V, 50/60 Hz
Power	1400 W
Electrical Class	I (with grounding plug)
Plate Type	Non-stick coating
Indicator lights	Power indicator (orange) and heating indicator (green)
Preheating	About 5 minutes
Surface temperature	High during use (side and front surfaces very hot)
Handle material	Insulating material handle (black part)
Recommended utensils	Wood or heat-resistant plastic (no metal)
Maintenance	Exterior cleaning with damp sponge; plates with sponge and dish soap; use vegetable oil for stuck residues
Storage	Vertical, cord wrapped around the appliance
Warranty	2 years
Intended use	Household only
Child safety	Supervision required for children under 8 years
Precautions	Do not immerse, do not use metal utensils, avoid contact with hot surfaces
Included accessories	No additional accessories mentioned
After-sales service	Customer service site: https://sav.hkoenig.com

Frequently Asked Questions - GFX320 H.KOENIG

How to use the H.Koenig GFX320 waffle maker for the first time?

Before first use, clean the plates with a damp sponge, dry them, then apply a thin layer of oil. Plug in the appliance and let it heat for a few minutes to eliminate new odors.

Why does my waffle maker produce smoke during first uses?

It's normal. The smoke comes from manufacturing residues. It will disappear after a few uses.

How to know when the waffle maker is ready?

The power indicator lights up orange, then turns green after about 5 minutes of preheating, indicating the appliance is ready for use.

Can I use metal utensils on the plates?

No, metal utensils scratch the non-stick coating. Use wood or heat-resistant plastic.

How to clean the plates if batter is stuck?

Apply a little vegetable oil on the stuck batter, wait 5 minutes, then remove it. Wipe with a damp sponge and dish soap.

Is the waffle maker safe for use by children?

The appliance can be used by children over 8 years old under supervision. Children should not play with it, and cleaning should only be done by children over 8 years old under guidance.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger.

Can I leave the waffle maker unattended?

No, never leave the appliance unattended during use. There may be a risk of fire.

How to store the waffle maker after use?

Let the appliance cool completely, wrap the cord around it, and store it vertically to save space.

What is the warranty period for the GFX320?

The warranty is 2 years from the date of purchase or delivery. It covers breakdowns in normal use, but excludes wear parts and external damage.

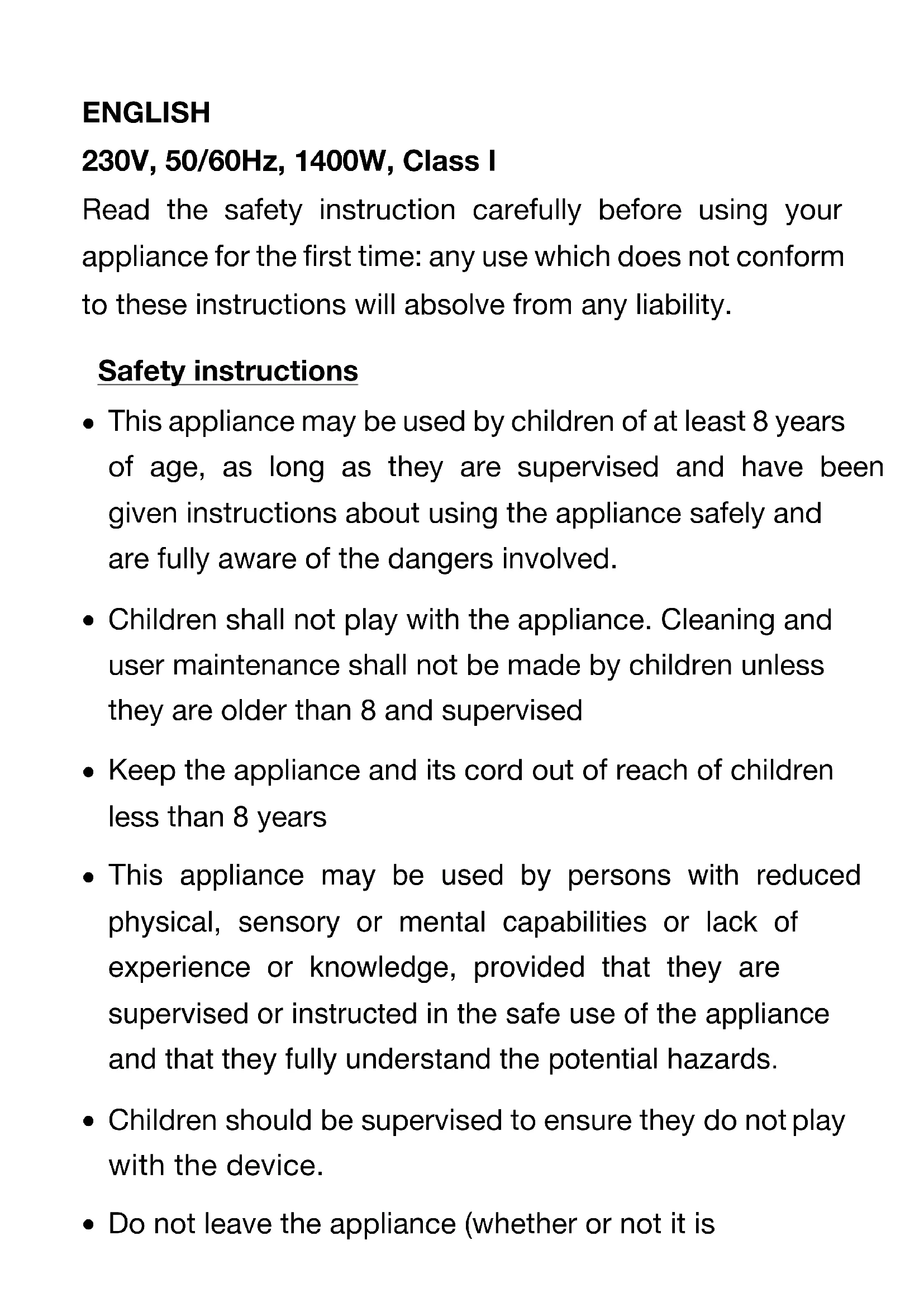

USER MANUAL GFX320 H.KOENIG

230V, 50/60Hz, 1400W, Class I

Read the safety instruction carefully before using your appliance for the first time: any use which does not conform to these instructions will absolve from any liability.

Safety instructions

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised
• Keep the appliance and its cord out of reach of children less than 8 years
• This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.
• Children should be supervised to ensure they do not play with the device.
• Do not leave the appliance (whether or not it is

switched on) within reach of children unsupervised.

• The use of this appliance by young children or disabled persons must be supervised at all times.
• Check that specifications of your appliance are compatible with those of your electrical system.
• Any connection error will render the guarantee null and void
• If your system does not include an earthed socket, before you plug in the appliance it is vital that you call in an approved body to bring your electrical system up to standard.
• Any intervention other than normal cleaning and maintenance by the customer must be carried out by an approved.
• Never place the appliance, the power cord or the plug in water or in any other liquid.

• Do not allow the power cord to hang down within reach of children.

• Always keep the appliance well away from children.

• Never leave your appliance unattended whilst in use.
• The power cord must never be close to or in contact with the hot parts of your appliance, close to a source of heat or resting on a sharp edge.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly

qualified person in order to avoid a hazard.

• Place your appliance on a stable, horizontal surface which is heat resistant.
• Do not use attachments not recommended for use with this product by the product manufacturer. Attachments may become hot during use, so allow them to cool before handling.
• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
• Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit
• Never open the appliance from the front, always position yourself slightly to the side to avoid burning yourself with steam.

• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

• Please keep this document at hand and give it to the future owner in case of transfer of your device

• Use in a well-ventilated area. Keep at least 4-6 inches of space on all sides to allow adequate air circulation.
• Do not place the product on or near a hot gas or electric burner, or in a heated oven.
• Do not touch the plates with the non-stick coating when the appliance is switched on. The external surface may become hot when the appliance is in use.
• The appliance should not be kept or used in a humid environment.
• Allow the appliance to cool down before handing it in any way.
• All appliances are subject to strict quality control.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• The temperature of accessible surfaces may be high when the appliance is operating.
• Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

Warning: The surfaces are liable to get hot during use.
The side and front surface is hot, should not be touched.

WARNING: This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. Since temperatures are differently perceived by different persons, this equipment shall be used with CAUTION. The equipment shall be touch only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to the cool down before getting touched.

• Your appliance has been designed for household use only. It was not designed to be used in the following cases which are not covered by the warranty:
• in kitchen areas reserved for staff in shops, offices and other professional environments,
  -in farm inns,
• by customers of hotels, motels and other residential environments,

• in bed and breakfast type environments.

• When symbol is used, it means “Caution: Hot surface”

Before using your appliance for the first time

Clean the plates using a damp sponge rinse and dry carefully.

After applying a fine coating oil to the plates, close the appliance and plug it in. The indicator light (red) will come on. Allow it to heat up for several minutes to get rid of the new smell.

To Use

CAUTION:Do not use this product to cook or defrost frozen food.

NOTE: During the initial uses of this product, it may produce some smoke. This is normal and will subside with further use.

1. Before using this product for the first time, clean it as described in the "Care and Maintenance" section.
2. Open the unit by pulling the Handle up.
3. Close the Plates and turn the unit on by plugging it into a standard electrical outlet. Verify that the Power Indicator Light illuminates in orange.

WARNING: The Cooking Plates and metal surfaces of the unit will become extremely hot when in use. To avoid a burn hazard, wear heat resistant mitts or gloves and touch only the black portion of the Handle.

1. After the unit preheats for approximately five minutes, the Ready Indicator Light will illuminate in green, indicating the product is ready for use.
2. Use the Handle to lift the Upper Plate. Place food on the Lower Plate using wooden or plastic heat-resistant utensils.

CAUTION: Do not use metal utensils on this product, as they will scratch and damage the Plates' non-stick coating.

1. Use the Handle to lower and rest the Upper Plate on top of the food.

NOTES:

• The cooking time for different foods depends on the type and thickness of the foods.

• Foods should be cooked thoroughly before consumption.

• When the food is cooked as desired, lift the Handle to open the Plates, then remove the food using the utensils. If more cooking will be done at this time, close the Plates to conserve heat.

• Repeat Steps 5-6 until all cooking is complete
• Turn off the product by unplugging the Power Cord from the electrical outlet. When the unit has completely cooled, clean and dry it.

Cleaning

• Before cleaning the appliance, unplug it and allow it cool down.
• Never place the appliance in water or under running water.
• To clean the outside of the appliance, use a damp sponge and dry carefully.
• To clean the plates, use a damp sponge with washing up liquid. Rinse and dry them with care.
  . If there is any batter backed onto the plate, we would advise using vegetable oil to soften it and waiting 5 minutes before removing it.
• Never use a scouring pad or powder.

Storage

Wind the cord around the appliance and store the appliance vertically to save space.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

Correct Disposal of this product

This marking indicates that this product should not be disposed with oth
household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com - [e-mail] - [e-mail] - Tél: [phone]
