USER MANUAL GFX800 H.KOENIG
Read the safety instruction carefully before using your appliance for the first time: any use which does not conform to these instructions will absolve from any liability.
Safety instructions
- This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised
- Keep the appliance and its cord out of reach of children less than 8 years
- This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.
- Children should be supervised to ensure they do not play with the device.
- Do not leave the appliance (whether or not it is switched on) within reach of children unsupervised.
- The use of this appliance by young children or disabled persons must be supervised at all times.
- Check that specifications of your appliance are compatible with those of your electrical system.
-
Any connection error will render the guarantee null and void
-
If your system does not include an earthed socket, before you plug in the appliance it is vital that you call in an approved body to bring your electrical system up to standard.
-
Any intervention other than normal cleaning and maintenance by the customer must be carried out by an approved.
-
Never place the appliance, the power cord or the plug in water or in any other liquid.
-
Do not allow the power cord to hang down within reach of children.
-
Always keep the appliance well away from children.
-
Never leave your appliance unattended whilst in use.
-
The power cord must never be close to or in contact with the hot parts of your appliance, close to a source of heat or resting on a sharp edge.
-
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
-
Place your appliance on a stable, horizontal surface which is heat resistant.
-
Do not use attachments not recommended for use with this product by the product manufacturer.
Attachments may become hot during use, so allow them to cool before handling.
-
When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
-
Make sure that the voltage rating on the typeplate corresponds to your main voltage of your
installation. If this is not the case, contact the dealer and do not connect the unit
-
Never open the appliance from the front, always position yourself slightly to the side to avoid burning yourself with steam.
-
The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
-
Please keep this document at hand and give it to the future owner in case of transfer of your device
-
Use in a well-ventilated area. Keep at least 4-6 inches of space on all sides to allow adequate air circulation.
-
Do not place the product on or near a hot gas or electric burner, or in a heated oven.
-
Do not touch the plates with the non-stick coating when the appliance is switched on. The external surface may become hot when the appliance is in use.
-
The appliance should not be kept or used in a humid environment.
-
Allow the appliance to cool down before handing it in any way.
-
All appliances are subject to strict quality control.
-
Children should be supervised to ensure that they do not play with the appliance.
-
The appliances are not intended to be operated by means of an external timer or separate remote-control system.
-
The temperature of accessible surfaces may be high when the appliance is operating.
-
Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
Warning: The surfaces are liable to get hot during use.
The side and front surface is hot, should not be touched.
WARNING: This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. Since temperatures are differently perceived by different persons, this equipment shall be used with CAUTION.
The equipment shall be touch only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to the cool down before getting touched.

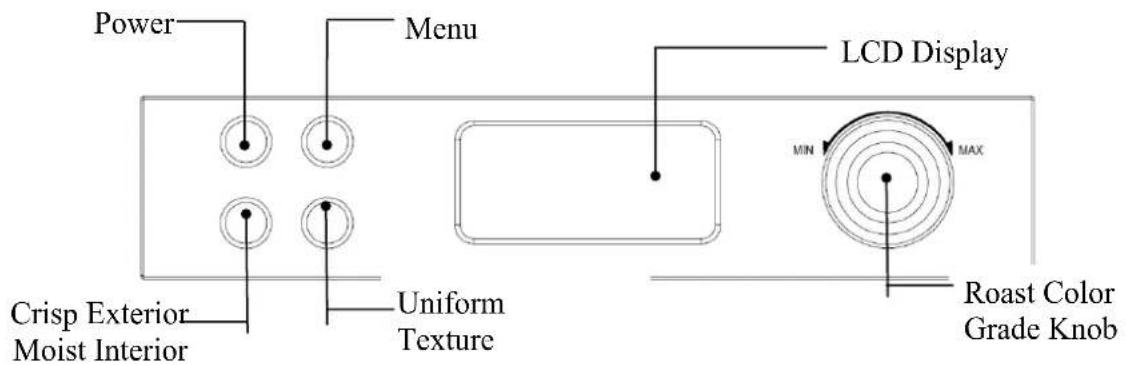

Control plate introduce

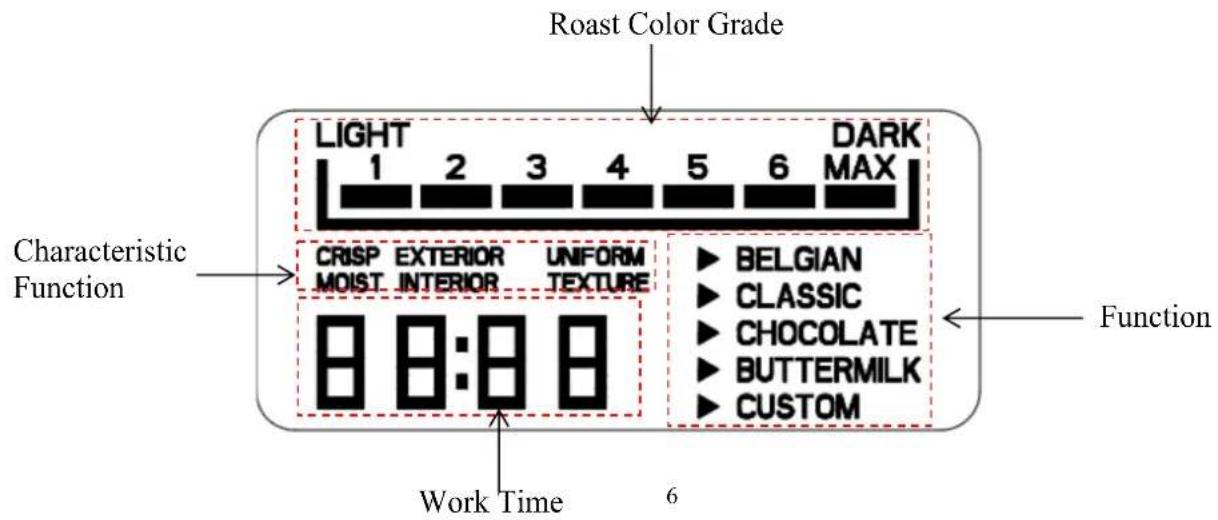

LCD display introduce

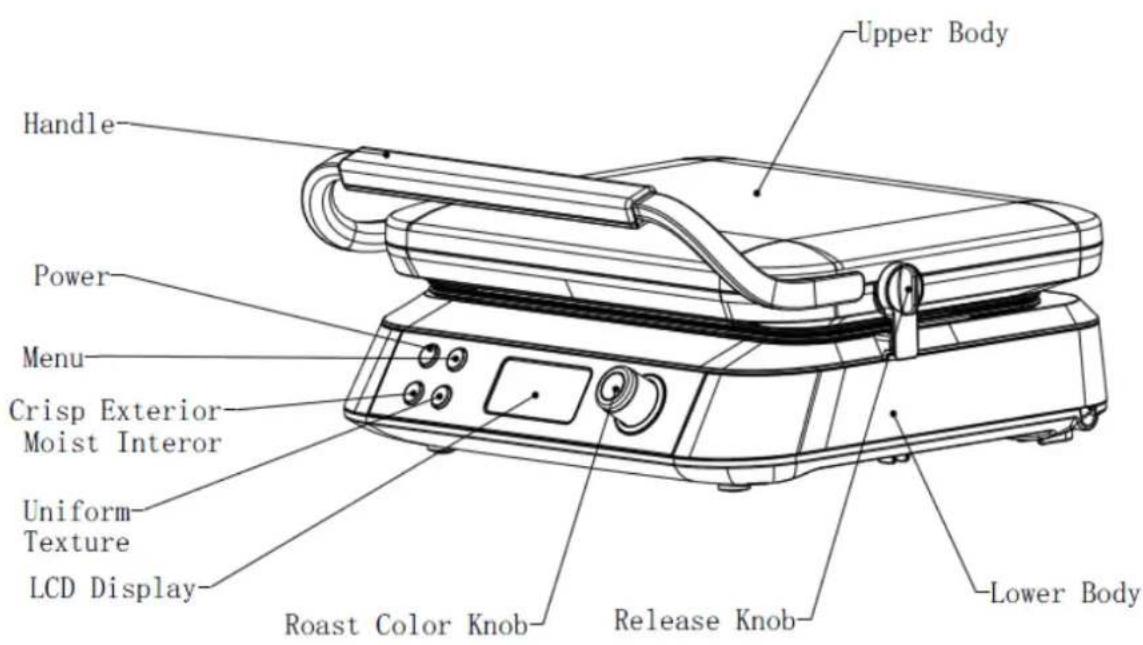

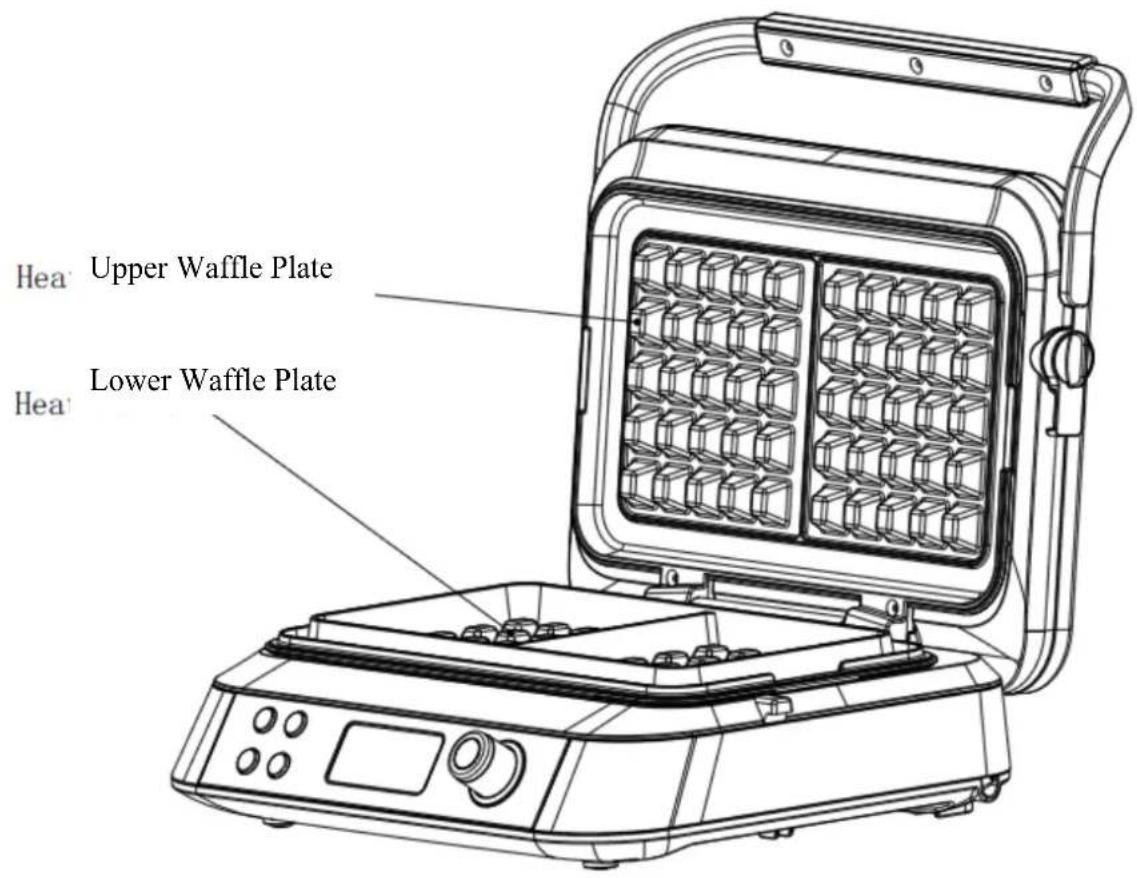

KNOW YOUR WAFFLE MAKER
Before your first using
Please use a wet cloth to clean the waffle plates.
Prepare to grill
1.prepare waffle-powder.
2.Waffle-powder to be paste.
Set up the temperature
- Connect the power, press the POWER button, the appliances power on and LCD display brighten.
- Press the Menu button to select the function (BELGIAN, CLASSIC, CHOCOLATE, BUTTERMILK, or CUSTOM).
- Press the Crisp Exterior Moist Interior button or Uniform Texture button to choice difference texture.
- Turn the knob to select roast color grade from 1 to MAX, 7 roast color grades can be chose. When have chosen roast color grade, the appliances would start preheating, and the roast color grade indicate twinkle.
5.When the temperature arrive the designed value preheating finished, the buzzing sounds "bi..." one times, and the roast color grade indicate stopping twinkle.
Put on the food
- When achieve to the preheating time, the temperature is the highest one.
- Put food onto waffle plate, and cover them properly. The appliance start to work, and the working time begin countdown, and the roast color grade indicate sequence twinkle.
Cooking time
According to the function and toast color grade the cooking time is difference,about 2-10 minutes.
When the work finished, the buzzing sounds 6 times "bi...". And then the appliances will go on preheating.
Put out the food
- Check the food whether is cooked. If not confirm, the food should be cooked for longer time.
- Take out food by clip or plastic/wooden tool.
After the food cooked
When the food has cooked, Pull off the plug (if the plug is switch style, switch off the plug switch)
The "CUSTOM" FUNCTION
Selecting the CUSTOM function, and the waffle maker will enter the preheating. when the preheating is completed and put the waffle powder is put in, the display will start from 00:00 to time the baking time, and the user can press the "power" button to finish the baking on his own.
Other
- When the appliances continuous work 2 hours, the program would auto control to power off.
- When not be used, it could circle power cord into the base of wire button.
- Note: The temperature of the waffle plate is still high, it should be cooled for a little time.

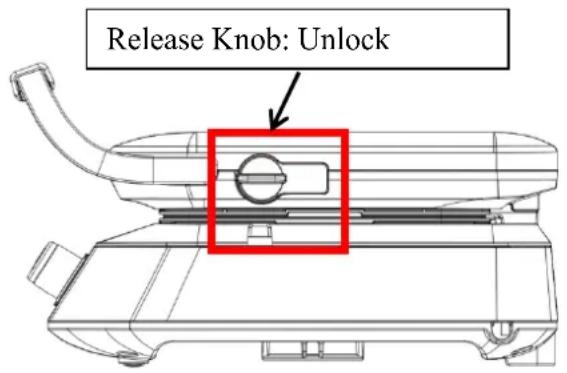

- Note: Unlock the Release Knob when the appliances is working.

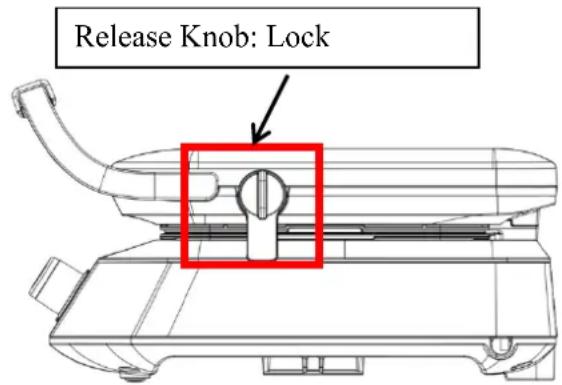

- Storage: Lock the Release Knob, the whole machine should be vertical placed .
Cleaning and maintenance
- Cut the power and cool the grill before cleaning and accumulating
- Ping the grill plate or other parts with a clean wet cloths,
- Wipe off the hard-cleaning dirt with a paper which is added some oil.
The unit must not immerse into the water or other liquid.
The unit must not be cleaned with the rough or abrasive cleanser or solvent cleanser.
The unit must not be clean with the cleaning tool, steel velour or soap ban.
WARRANTY
The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.
If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.
By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.
If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?". This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.
WARRANTY CONDITIONS
The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.
This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.
EXCLUSION OF WARRANTY
- Accessories and wearing parts (^*)
- Normal maintenance of the device.
- All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
- Damage of external origin: fire, water damage, electrical surge, etc.
- Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
- The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
- The products subjected to leasing, demonstration, or exhibition.
(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.
The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.
ENVIRONMENT
CAUTION:
Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health should be recycled. The symbol here indicates that electrical and electronic equipment should be carefully, a wheeled waste container is marked with a cross.
Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France
www.hkoenig.com - sav@hkoenig.com - contact@hkoenig.com - Tél: +33 164 67 00 05
FRANÇAIS
CONDITIONS DE GARANTIE
Handle = Griff / Upper Body = Oberkörper / Lower Body = Unterkörper / Power = Power / Menu = Menu
/ Crisp Exterior - Moist Interior = Knusprig AuBen - Innen weich / LCD Display = LCD Anzeige
