USER MANUAL Perfect Health VO3000 Concept

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the Instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Battery 2x 1,5 V AAA
Weighing range 2 - 180 kg
Step 100 g
Unit kg, lb, st
Memory 10 users
User mode Adult, child (10-85 years)
Measured body parameters	Weigh, body fat, body water, muscle mass, bone mass, BMI, BMR
Measurement range	Body fat: 0-46.4% Body water: 37.8-66% Muscle mass: 20-56% Bone mass: 2-20%

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Observe the marked polarity of the batteries when inserting and replacing them.
• If you do not use the appliance for a long time, remove the battery from the appliance.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Only use the appliance on a horizontal, stable surface.

concept

concept

EN

• Before cleaning, installing and dismantling the appliance covers, switch off the appliance and remove the batteries!
• Do not use coarse and chemically aggressive substances to clean the appliance.
• If the segments or digits are displayed incorrectly, try to reset the appliance. Remove the batteries, wait a few seconds, and insert the battery again. If this does not work, contact your dealer or an authorized service centre.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• The appliance is only suitable for home use and is not intended for commercial use.
• Keep the appliance away from heat sources such as radiators, ovens, etc. Protect it from direct sunlight and humidity.
• Do not place the appliance in a microwave or other oven.
• Do not touch the appliance with wet hands.
• The appliance is a fragile measuring device. Prevent shocks and falls.
• Do not repair the appliance yourself. Contact an authorized service centre.
• The data measured by this scale are for information purposes only. They are not a medical advice.
• Do not use this appliance if you have a pacemaker, ECG or any other internal medical device.
• Do not use if you are pregnant.
• Do not use on a slippery floor or if you have wet feet.
• The data accuracy may vary if you weigh yourself after exercise.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

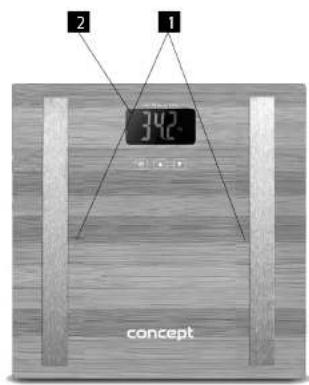

PRODUCT DESCRIPTION

1 Weighing area
2 Display

Control

3 Settings button
4 Move up
5 Move down

OPERATING INSTRUCTIONS

BATTERY INSTALLATION

• Open the battery compartment cover on the bottom of the appliance.
• Insert 2 AAA batteries into the battery compartment and close the cover properly.

WEIGHTUNITSELECTION

• Step on the scale to switch it on and use the down arrow to select the weight unit (kg, lb, st).

PERSONAL DATA SETTING

User number

Press the settings button and use the arrows to select the user number (options P0-P9), press the settings button to confirm and move to the next step.

Gender

The male/female icon flashes on the display, use the arrows to select the desired gender and press the settings button to confirm.

Age

Age flashes on the display, use the arrows to select your age (10-85 years), press the settings button to confirm.

Height (cm)

Height flashes on the display, use the arrows to and set your height [75-225 cm], press the settings button to confirm.

EN

concept

concept

EN

WEIGHING

• Place the scale on a hard, even floor.
• Stand with your bare feet in the middle of the scale, as shown in the Fig. 1.
• Your weight will appear on the display and flash.
  The scale switches off automatically after a few seconds.

Fiq.1

BODY PARAMETERS MEASUREMENT

• Set personal data according to the instructions above.
• Wait until 0.0 kg (lb, st) appears on the display.
• Stand with your bare feet on the metal bars and wait, the body parameters are being measured.
  Body parameters gradually start to appear on the display.
  The parameters are measured using bioelectrical impedance analysis (BIA).

Comparison of BF (body fat) and BW (body water)

	Woman Man
Age	Fat %	Water %	Fat %	Water %	Note
≤30	4.0-20.5 66.0	54.7 4.0-15.5 66.0	58.1 Underweight
	20.6-25.0 54.6	51.6 15.6-20.0 58.0-55.0 Healthy weight
	25.1-30.5 51.5	47.8 20.1-24.5 54.9-51.9 Overweight
	30.6-80.0 47.7	13.8 24.6-80.0	51.8-13.80	Obesity
>30	4.0-25.0 66.0	51.6 4.0-19.5 66.0	55.4 Underweight
	25.1-30.0 51.5	48.1 19.1-24.0 55.3-52.3 Healthy weight
	30.1-35.0 48.0	44.7 24.1-28.5 52.2-49.2 Overweight
	35.1-80.0 44.6	13.8 28.6-80.0	49.1-13.80	Obesity

Comparison of the percentage of muscle and bone mass

Age	Woman		Man
	Muscles (%)	Bones (%)	Muscles (%)	Bones (%)
16-50	>34	>8	>40	>10
>50	>29	>8	>35	>10

Measured values are for information purposes only. If you have any questions concerning your health, consult your doctor.

DISPLAY

Err

overload

LO

replace the batteries

CLEANING AND MAINTENANCE

To clean the surface of the appliance, use only a damp cloth, no detergents or hard objects, as they can damage the surface of the appliance!

Never clean the appliance under running water, do not rinse it or immerse it in water!

Store the appliance in a dry place!

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

Disposal of batteries and power supplies

If the appliance contains an accumulator or a battery cell, these components contain substances which may be harmful to the environment when disintegrated. Before disposing of the appliance or replacing the accumulator or the battery cell, it is necessary to remove the original component and hand over to a suitable collection point.

CAUTIONI

Accumulator or battery cell:

Do not throw into a fire!
- Never disassemble!
- Never shorten the wires!
If leakage occurs when the accumulator is damaged, the electrolyte is of an alkaline character. If the electrolyte gets on your skin, wash it gently with soap and water and seek medical attention.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

VO3000V03000
