USER MANUAL CMW20TNMB CANDY

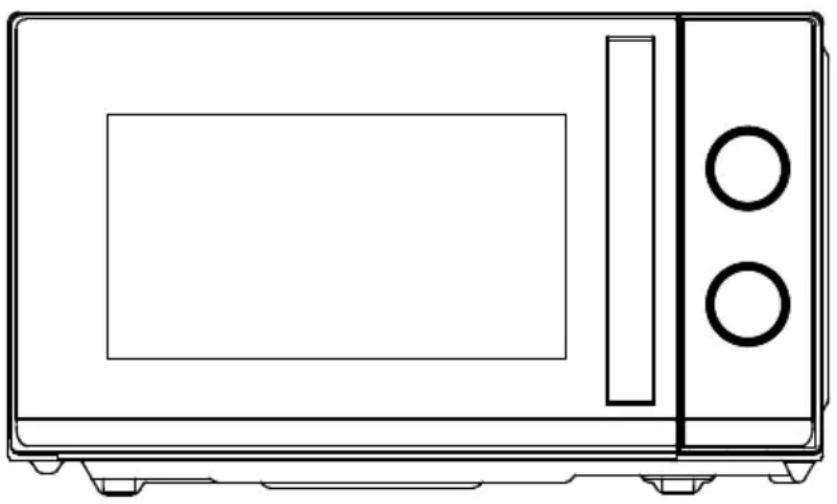

Microwave Oven Instructions

Model: CMW20TNMB

Please read these instructions carefully before installing and operating the oven.

CONTENT

SPECIFICATIONS 2

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2

IMPORTANT SAFETY INSTRUCTIONS 3

INSTALLATION GUIDE 5

RADIO INTERFERENCE 6

MICROWAVE COOKING PRINCIPLES 6

GROUNDING INSTRUCTIONS 7

BEFORE YOU CALL FOR SERVICE. 7

UTENSILSGuide 8

PART NAMES. 9

CONTROL PANEL 10

Power/Action Selector. 10

Timer Knob 10

Microwave Cooking 10

OPERATION 11

CLEANING AND CARE 11

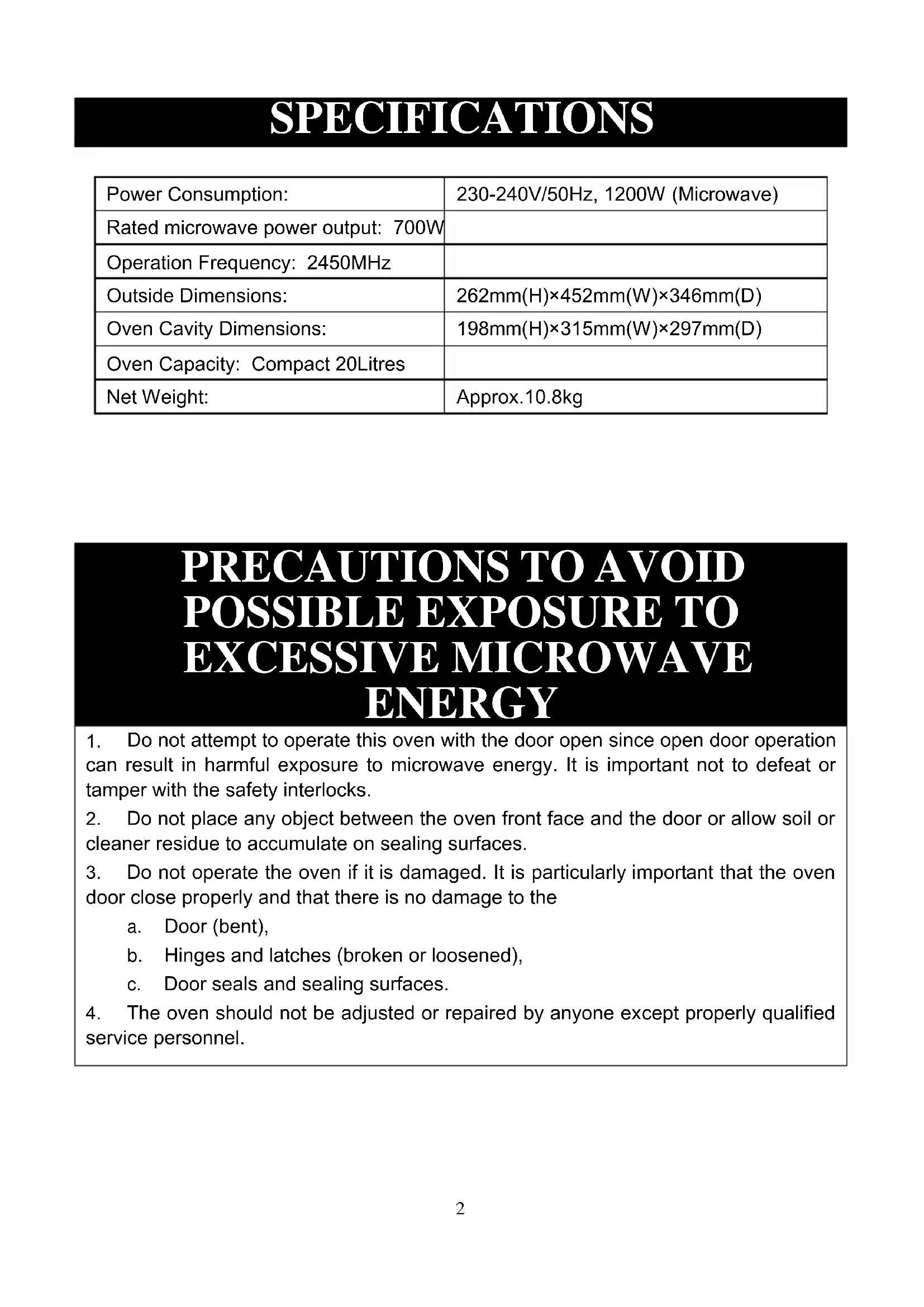

SPECIFICATIONS

Power Consumption:	230-240V/50Hz, 1200W (Microwave)
Rated microwave power output: 700W
Operation Frequency: 2450MHz
Outside Dimensions:	262mm(H)×452mm(W)×346mm(D)
Oven Cavity Dimensions:	198mm(H)×315mm(W)×297mm(D)
Oven Capacity: Compact 20Litres
Net Weight:	Approx.10.8kg

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
2. Do not operate the oven when empty.
3. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

4. WARNING!--Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

5. To reduce the risk of fire in the oven cavity:

When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
Remove wire twist-ties from paper or plastic bags before placing bag in oven.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

1. WARNING!--Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
8. Utensils should be checked to ensure that they are suitable for use in microwave oven.
9. WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
10. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. The microwave oven is only used in freestanding.
14. WARNING!--Do not install oven over a range cook top or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.
15. The microwave oven shall not be placed in a cabinet.
16. WARNING!--The appliance and its accessible parts become hot during use.
17. WARNING!--Accessible parts may become hot during use. Young children should be kept away.
18. During use the appliances becomes hot. Care should be taken to avoid touching heating elements inside the oven, for cooking ranged and ovens.
19. The temperature of accessible surfaces may be high when the appliance is operating.
20. The appliance shall be placed against a wall.
21. Appliance is not to be used by children or persons with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

1. WARNING!--If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
2. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
3. The microwave oven is for household use only and not for commercial use.
4. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
5. Please secure the turntable before you move the appliance to avoid damages.
6. CAUTION!--It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
7. The microwave oven is intended for defrosting, cooking and steaming of food only.
8. Use gloves if you remove any heated food.
9. Caution! Steam will escape, when opening lids or wrapping foil.
10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
11. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

INSTALLATION GUIDE

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add

more as needed. Food severely overcooked can smoke or ignite.

1. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
2. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
3. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.

2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

UTENSILS GUIDE

1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE	MICROWAVE
Heat-Resistant Glass	Yes
Non Heat-Resistant Glass	No
Heat-Resistant Ceramics	Yes
Microwave-Safe Plastic Dish	Yes
Kitchen Paper	Yes
Metal Tray	No
Metal Rack	No
Aluminum Foil & Foil Containers	No

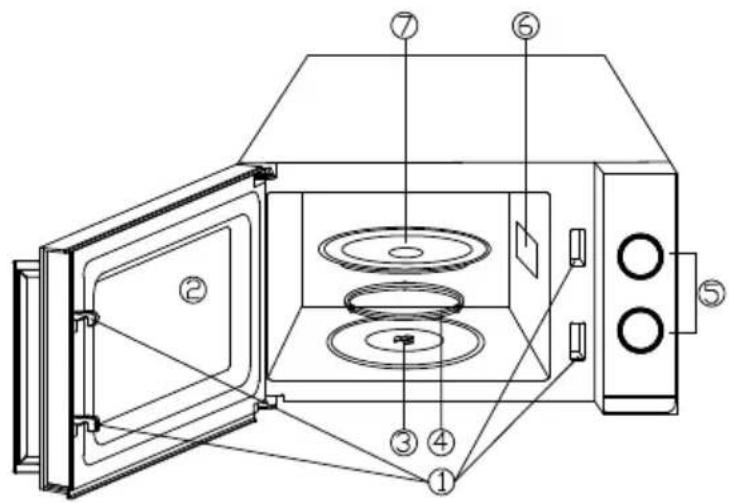

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Shaft
4. Roller Ring
5. Control Panel
6. Wave Guide (Please do not remove the mica plate covering the wave guide)
7. Glass Tray

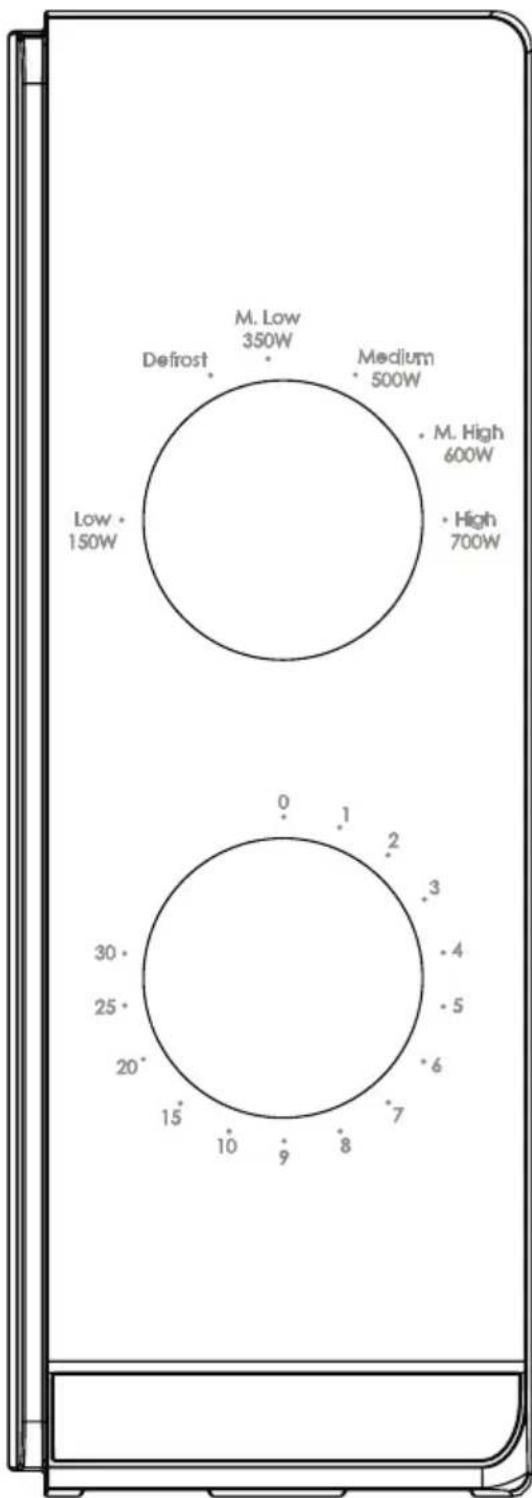

CONTROL PANEL

The control panel consists of two function operators. One is a timer knob, and another a power knob.

You use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

TIMER KNOB

Offer visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

MICROWAVE COOKING

For pure microwave cooking, there are six power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

	Power Output Description
1	700W	HIGH
2	600W M.HIGH	HIGH
3	500W MED
4	350W M.LOW
5	DEFROST
6	150W	LOW

OPERATION

To start a cooking session,

1. Place food in oven and close the door.
2. Turn Power Selector to select a power level.
3. Use Timer knob to set a cooking time

NOTE:

As soon as the timer is turned, oven starts cooking.

When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION: ALWAYS RETURN TIMER BACK TO ZERO POSITION if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, push the door release button or open the door by the handle.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. A steam cleaner is not be used.
6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray

in warm sudsy water or in a dishwasher.

1. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
2. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
3. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
4. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
5. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

VOLIC VYKONU/ČINNOSTI

Marron = SOUS TENSION

AVANT D'APPELER LE SERVICE CLIENT

$$ B a r n a = E L O $$

MIELÖTT SZERVIZT HÍVNA

VOLIC VYKONU/ČINNOSTI

VAŽNA BEZBEDNOSNA UPUTSTVA 3

UPUTSTVOZA INSTALACIJU 5

RADIO INTERFERENCE 6

PRINCIPIMIKROTALASNOG KUVANJA 6

UPUTSTVO ZA UZEMLJENJE 7

PRE NEGO STO POZOVETE SERVIS. 7

VODIC ZA POSUDE 8

NAZIVI DELOVA 9

KONTROLNA TABLEA 10

3ACTEPEXJEHH: 3ABKIN NOBEPTAITE TAIMEP Y HUJBOBE IOJIOXEHN, kxO iKy BuaJeHo

3 duXOBKn Do 3aBepWeHn BCTaHOBHeHOrO yacy npriToYBaHHa 6o KOJIu duXOBKa He BnKOpNCTObYeTbC. 3o6 3ynHHTn duXOBky iD qac npriToYBaHHa iKi, HATNCiTB KhoNkBy BiUnHeHHa DBePzT a6o BiKpnTe DBePzTa 3a pyKy.

OuHsEHHa TAdOgJaI

1. Перед очшени вимкитб пч та вд'сдане кабель живлени вд розетк.
2. TpimaiTe BnutypiHIO qactHy neyi nuCTOIO.KoIb6pn3Kn Biid iKi a6o po3nnti piINHN npINnnaTOb Do CTiHOK nei, npotpiTB IX BOJoroTO TKaHNOHO. JaKIO nIcNtBnHO 3a6pydHeHa, MoXHa BnKOpNCTOyBaTn M'aki MnHi 3acO6N. YHnKaIte BnKOpNCtAHnpo3nnIOBAuA a6o IHx arpeCnBnX OUnSyBaYIB, ockIbKn BOHm MOKyb 3aJIuShaTn PJIaMn Ta CMyrNa HdBePzTaX a6o npnrLyuHTN KoIip ix nobepxHi.
3. 3obhihi nobepxhi cniD ouuCyBaTu BOIoroTO TkaHnHOU. 06 3anobirno IooKOJKeHHo poOoux qactnH BCEpeDiHi neyi, He donyckaTe nOTpanJIaHHa BOi y BeHTnlaui Hi OTBOpN.
4. YacTo npotnpaTe DBePraTa Ta BIKHO 3 oOx 6oKiB, a TakoX yuINbHeHnY DBePcT Ta npInerIy cactHHN BOJOrOIO TKaHNHOIO, 0o6 ycHyTu 6yd-ayi po3JIbN a6o 6pn3Kn. He BIKOpncTOByte abpa3NBHI OOnuBaui.
5. He cπiδ BnKOpncToBvBaTn npooUncHnk.
6. 3anobiraTe notpannHIO BOJOr Ha naHeIb ynpablinHry. OunuBaHHra 3diChIOte M'koIO BOJoroIO TkaHNOIO. Iid Yac OOnuEHHra naHeIy npablinHry 3aIIwTe DBePcTa nei BiKpITmN, 0o6 3anobirn BInpaKOBomy II BBIMKHeHHIO.

7.Якwo npa hakonnyecbca BCEpeDiHi a6o HABKOIO 3OBHIshix DBepaT nei, npotpiB ix M'koHO TKaHInHO. Lc MoKe BnHKHyTu, KOJI MikpoxBnIbOBA nIpy npaioe B yMOBaX BnCOKoi BONorOCTi. I ce HopMaIbHo.
8. IHOdi notpi6HOBnIMaTHNCKJHnPiDDOHdJaOChUeHHa. MnTePiDoH y TePiIMMbHi BODi a6oB NocydOMnHi MaunHi.
9. Poinkobe kiIbue ta ochoby neci cnid peryIaHIO ouNuaTn, 0o6 yHnKHyTu NaIdmipHorO uMy. IpoCTO npOTpiTB HIXHIO NOBepXHIO neei M'AKM MMHNM 3acobom. PoInkobe kiIbue moxHa npOMTu B M'AKiIMNbHi BODi a6o BV nocydomiHni MaunHi. Pic7e BnMaHry poINKOBOrO KJIbuc3 OCHOBn NopoxHHn DJIa OUnSeHHa, o6OB'a3KOBO BCTaHOBITb Ioro Ha3ad y npabnblHe pNOJKeHHra.
10. YcynbTe 3aapan 3 neqi, HaNIBuN yauKy BOni Ta DoaBun cik Ta uKipky NIMOHy B nocyd, npndaTHn npiroTyBaHHra B mIKPOXBnIbOBi neyi. YbIMKnITb MIKPOXBnIbOBy niu Ha 5 XBUNH. PeTeJbHo npoTpItb Ta BncuWitb M'jKOIO TkaHInHOJ.
11. Koli noTpi6Ho 3amHHTn OCBiTneHn neyi, 3BepHiTbCBy Cnyx6y niTpumKn KnieHTiB dIa 3diIcHHeHH TaKOI 3amHn.
12.Пич сдп ретуларно оицати,а 6yd-як iЗалшкxхарчobих npoduktib cnid BndaЯтн. HeniДгимання чстого сану neу може пи3BecTu Do noripшеня сану nobepxhi, zuо може heratNBHO BnHHTu Ha TepmiH cnyx6n npnilady i, moKlnBO, pni3BecTu do He6e3neuhoi cityaui.
13. Byd nacka, He BnndaTe ue npnaD y KOHTeHep dny no6yTOBOrO cMITT; Ioro cnid ytni3yBatn B cneziani3OBaHOMy ceHTpi ytni3aui, CTBOpEHOMy MicbKOHO BnaIOU.

Ley npnad mapkyetbca BiIDOBiHO do CbponecBkoI DpuekTbn 2012/19/CC 0do PeParnameHcy BIXxodib eNEKtpnuHoro Ta eNEKtpoHHoro 6bndHaHHra 2013 pOKy 0do eNEKtpnuHnx Ta eNEKTPoHHnx npnlaqIB (WEEE). BEEO MicTayk 3a6pydHiouqi peOBOHN (aki MOxyTB HeRaTHBHO BnNBatn Ha HABKOINHc cepeDobuue), Tak i 6a3oBi eIemEnTu (ki MOxyTB 6yTN BIKOPNCtAHi NOBTOPO). Baxnbo, 06 BEEO npoxOnn cneiaJbHy o6p6Ky dJa HaneXHORO yCyHeHHra Ta nepepo6Kn 3a6pydHiouchx peOBOHN, a TAKOX dJa BIDHOJIeHHRA BCix MaTePiAniB. Fi3NHi Oco6n MoxyTB BiirpaBatn BaxnBy poJb y 3a6e3neueHHI TORO, 06 BEEO He CTanl npo6NeMoIO dJa HABKOINHbOro cepeDobuua; Heo6xIDHO dOpymyBatncr NeBHNX OCHOBHX npaBIn:

• BEEO He cnid nomiata npa30m 3 no6yTOBIMn BiXdoAMn.
• BEEO cnid donpabntu B cneuaJI3oBaHi nyHKTn 360py, kI ynpabTIObCra McbkoIO BnaIO a60 3apeecTpOBaHO KOMNaHicIO.

Y 6araTbox KpaiaHax IЯьВENKnx BEEO 3diIChIOeTbC8 3a6ip i3 Domy. KoIи Bn KynyTe HOBn npuHa, cTapn MoKe 6yTu nobepHeHH y ToUky po3dpi6HOi TOpriBJI, kka NobHHa 6e3KoWToBHO 3a6pATn NOrO 3a npHHumOM ODNH Do ODNHO, 3a yMOBu JkIo ce aHaJIoHne ObnaHAnHn, kye MaC Ti Jx FyHKuII, loN HOBn npuHa.
