PA100 - Air purifier Bimar - Free user manual and instructions

Product Type	Domestic Air Purifier
Brand	Bimar
Model	PA100
Filters	Pre-filter (mesh) and HEPA filter
Purification Technology	HEPA filtration, UV-C lamp, ionizer
Speeds	3 speeds (low, medium, high) + auto mode
Auto Mode	Air quality sensor with color indicator (blue, orange, red)
Sleep Mode	Yes (activate by pressing ION + SPEED buttons)
Timer	2h, 4h, 8h
Ionizer	Ionizing function activated by ION button
UV Lamp	UV-C lamp for sterilization, activated by UV button
Filter Change Indicators	Indicator lights for pre-filter (PRE) and HEPA filter (HEPA)
Rear Grille Safety	Safety device preventing operation if grille is not properly closed
Power Supply	Mains plug (check voltage on rating plate)
Power Consumption	Not specified in the manual
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual
Pre-filter Cleaning	Every 1500 hours approx., clean with a brush or water, dry thoroughly
HEPA Filter Replacement	Every 3000 hours approx., use original spare part
Exterior Cleaning	Soft cloth slightly damp, non-abrasive soap
Electrical Class	Class II (double insulation)
Intended Use	Indoor domestic use only
Supplied Accessories	HEPA filter, UV lamp, pre-filter

Frequently Asked Questions - PA100 Bimar

How to turn the Bimar PA100 air purifier on and off?

To turn on, press the ⏻ button. The symbol changes from red (standby) to blue (on). To turn off, press the same button again; the symbol turns red again. Unplug for complete shutdown.

How to adjust the fan speed?

Use the SPEED button. Press repeatedly to cycle from speed 1 (low) to 2 (medium) to 3 (high), and finally auto mode (AUTO-1). The corresponding indicator lights up.

What does auto mode mean and how does it work?

In auto mode, the built-in sensor measures air quality and adjusts speed accordingly. The indicator color shows the level: blue = good (low speed), orange = insufficient (medium speed), red = very poor (high speed).

How to activate sleep mode?

Press the ION and SPEED buttons simultaneously. The SLEEP indicator lights up and only this light remains visible. To deactivate, repeat the same operation.

How to set the timer?

Press the TIMER button repeatedly to choose 2h, 4h, or 8h. The selected time is displayed. To cancel, press until all durations turn off.

When and how to clean the pre-filter?

The PRE indicator lights up approximately every 1500 hours. To reset, press TIMER + UV simultaneously for 3 seconds, then unplug the appliance. Remove the rear grille and clean the mesh with a brush or water, dry it completely before replacing.

When to replace the HEPA filter and how to reset the indicator?

The HEPA indicator lights up approximately every 3000 hours. Press TIMER + UV for 3 seconds to reset, then unplug the appliance. Replace the filter only with an original part. Never clean the HEPA filter; wash your hands after handling.

Can I use the ionizer and UV lamp at the same time?

Yes, each function is independent. Press the ION button to activate the ionizer and the UV button for the UV-C lamp. The respective indicators light up. You can combine them with other settings.

What to do if the UV lamp breaks?

Unplug the appliance immediately. Keep children and animals away, ventilate the room for 20-25 minutes. Wear gloves, mask, and goggles. Collect fragments with adhesive tape, place in a sealed container. Clean surfaces with a damp cloth. Contact a professional for replacement.

The appliance does not start, what to check?

Ensure the rear grille is properly closed and clipped: a safety device prevents operation if it is incorrectly positioned. Also check that the plug is connected and the cord is not damaged. If the problem persists, contact a qualified professional.

USER MANUAL PA100 Bimar

Prohibition sign indicating no ventilation or cooling system, featuring a fan and smokestack symbol crossed out by a diagonal line.

50cm 50cm

1 3 2 4

Prohibition sign with crossed-out device and diagonal line, indicating no use or prohibition

Simple line drawing of a desktop computer tower emitting smoke (no text or symbols)

Technical line drawing of a portable air purifier with mesh insulation and labeled component (no text or symbols beyond label)

Technical diagram of a portable air conditioner with labeled parts 2 and 3

Technical illustration of a portable electronic device with internal components and a labeled part (4), no text or symbols present.

Pannello comandi:

AUTO 1 2 3 ION SPEED SLEEP 2H 4H 8H TIMER FILTER RESET HEPA UV PRE

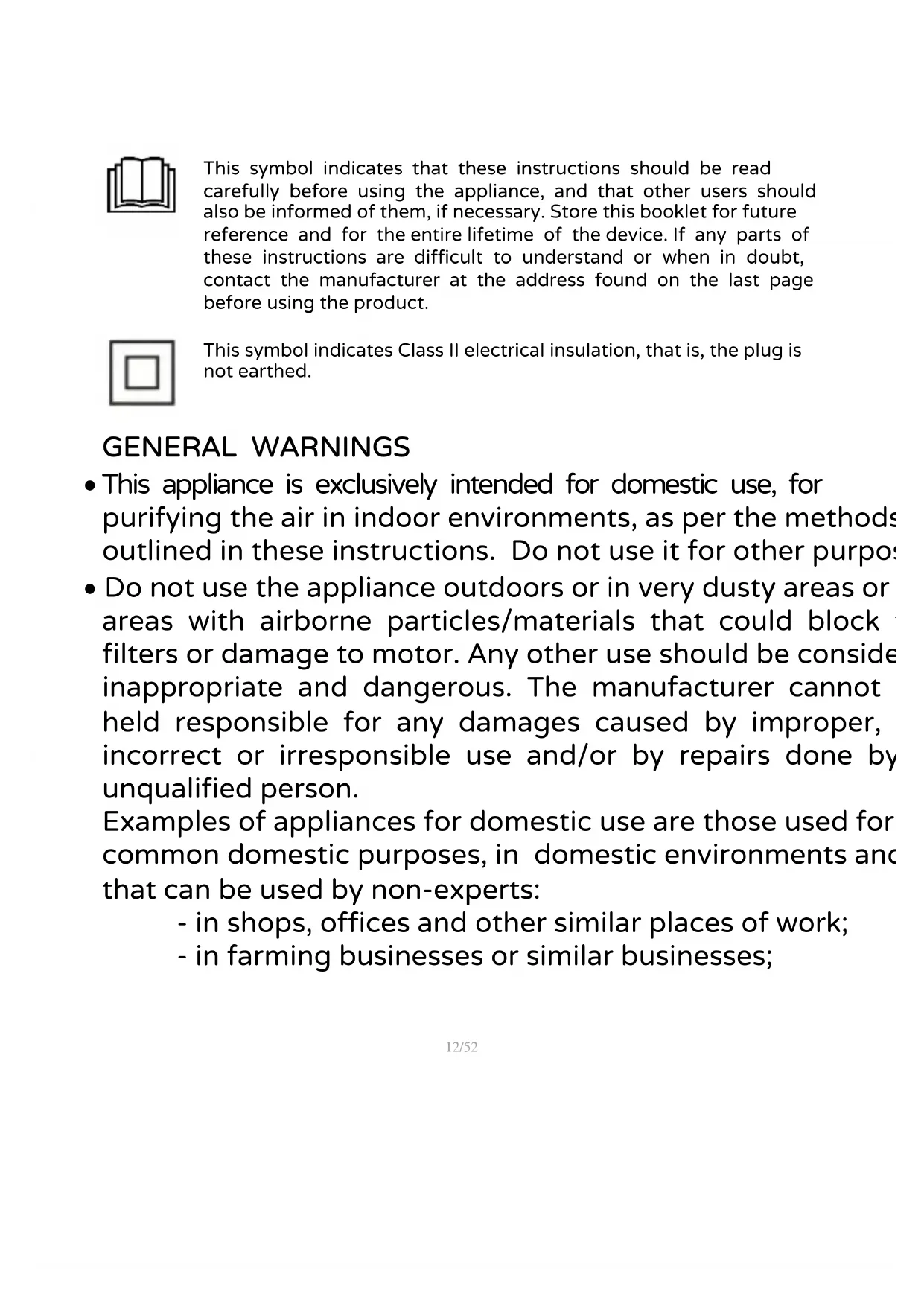

This symbol indicates that these instructions should be read carefully before using the appliance, and that other users should also be informed of them, if necessary. Store this booklet for future reference and for the entire lifetime of the device. If any parts of these instructions are difficult to understand or when in doubt, contact the manufacturer at the address found on the last page before using the product.

This symbol indicates Class II electrical insulation, that is, the plug is not earthed.

GENERAL WARNINGS

• This appliance is exclusively intended for domestic use, for purifying the air in indoor environments, as per the methods outlined in these instructions. Do not use it for other purposes
• Do not use the appliance outdoors or in very dusty areas or areas with airborne particles/materials that could block filters or damage to motor. Any other use should be considered inappropriate and dangerous. The manufacturer cannot hold responsible for any damages caused by improper, incorrect or irresponsible use and/or by repairs done by unqualified person.

Examples of appliances for domestic use are those used for common domestic purposes, in domestic environments and that can be used by non-experts:

• in shops, offices and other similar places of work;
• in farming businesses or similar businesses;

- by guests in hotels, motels and other residential type environments;

- in bed and breakfast accommodation.

- Use the appliance complete with the supplied accessories (t UV lamp and HEPA filter must be correctly assembled). Do use accessories other than those provided as this could hazardous for the user and damage the appliance.

- Always unplug the appliance from the socket if not being used and before assembly, disassembly or cleaning the appliance

- The appliance must be kept out of reach of children.

- The appliance can be used by children over 8 and by people whose physical, mental or emotional capacity is limited or compromised, or who lack the appropriate experience of knowledge, only if they are supervised after receiving instructions about safe use of the appliance and they understand the hazards. Children must not play with the appliance. Cleaning and maintenance that must be carried by the user must not be done by children unless they are supervised.

- Make sure the appliance does not come into contact with water or any other liquid. If water or any other liquid comes contact with the appliance, first turn off the power by switch it off at the distribution board, and only then remove the plug from the socket. Carefully dry both the plug and the socket before restoring power. Plug into the mains and then continue using the appliance. If in doubt consult a qualified profession

Danger:

- Do not put any tools or fingers through the mesh of the protective grilles.

- The plug point must be accessible so as to easily remove the plug in case of an emergency.

- If the power cord is damaged, it must be replaced by the manufacturer or its technical assistance centre or by someone who is similarly qualified, in order to prevent ar risks.

- In order to prevent electric shocks, never immerse the plu the power cord or the appliance in water or any other liq

- Do not use the appliance in very hot or humid environment (bathrooms) (near a bathtub, a shower, swimming pool basin/sink, etc.).

- Do not use the appliance in the kitchen.

- This device is not suitable for use as a fan, for removing due as an extractor fan.

- Do not use this appliance if the following have been used: flammable sprays, gas insecticides for domestic use or places where oily residues, perfumes, lit incense or chemic vapours are present.

- Do not touch the appliance with wet hands or feet.

- Do not move the appliance when it is running.

- Do not allow the appliance to be exposed to the weather (s rain, etc.).

• Should the appliance fail or not work correctly, disconnect power cord immediately. Check that it is not damaged, and thereafter turn it back on: if in any doubt, consult a qualified professional.
• Do not pull on the power cord or the appliance itself to un the appliance from the plug point.
• Do not pull on the power cord to move the appliance.
• Do not use the appliance if it does not work properly or if it appears damaged; when in doubt, contact a qualified technician.
• Check the condition of the appliance periodically. If there is any faults or when in doubt consult a qualified professional
• If the appliance is not being used, unplug it from the plug point.

Warnings and safety of the UV lamp

Only use the appliance with the lamp correctly positioned in its housing. Do not use the UV-C lamp outside of the appliance.

Warning: never directly connect the UV lamp (mod.388L) where is lit; it could damage the skin, or cause temporary loss of and decreased vision.

Look at the lit lamp only through the rear grille.

Any repairs and / or replacements (first remove the plug from 1 socket) must only be done by professionally qualified persons.

INSTALLATION

- After unpacking, check that all parts of the appliance are present; if in doubt, do not use and contact a qualified technician. The packaging materials (plastic bags, polystyrene, metal staples, etc.) must not be left within reach of children, as they are

potentially hazardous and must be disposed of according to applicable regulations in recycling containers. Warning: any stickers or advertising leaflets applied must be removed before using the appliance.

• Before connecting the appliance, check that the voltage on the data plate matches that of the electric system. In the event of incompatibility between the power socket and the appliance's plug, have the plug replaced with a suitable model by a qualified professional, who should ensure that the cable is appropriate for the power rating of the device. The use of adaptors or extensions is generally not advisable; if it is necessary to use them, they must comply with safety regulations and the total current (amps) must not be rated lower than the maximum current of the appliance.
• Before each use, check that the appliance, especially the HEPA filter and UV lamp) is in good condition and that the power cord is not damaged: if in doubt consult a qualified professional.
• The plug point must be accessible so as to easily remove the plug in case of an emergency.

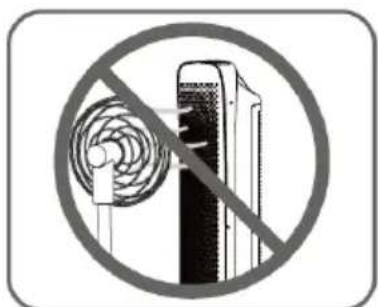

• Stand the appliance on a flat, horizontal and stable surface, and keep it away from:

- fans

• heat sources (e.g. open flames, gas stoves, fire places etc.), flammable gasses or explosive materials
• liquids (e.g. from bathtubs, showers, sinks etc.) to avoid splashing water and to prevent it from falling into them (the appliance should be kept a minimum of 2 metres away).
• fabrics (curtains, etc.) or floating materials/particles that may block the aspiration grid; check also that the front part is free from floating particles (dust, etc.).

Prohibition sign showing a fan with a circular background and crossed-out device, indicating no use or prohibition of the device.

50cm 50cm

Prohibition sign with crossed-out device and diagonal line, indicating no liability or prohibition

Illustration of a portable air conditioner unit emitting smoke next to a small dish (no text or symbols)

- If there is a fault or the appliance is not working correctly, switch it off and have it checked by a qualified professional. Repairs done by an unqualified person can be dangerous and cause the guarantee to become void.

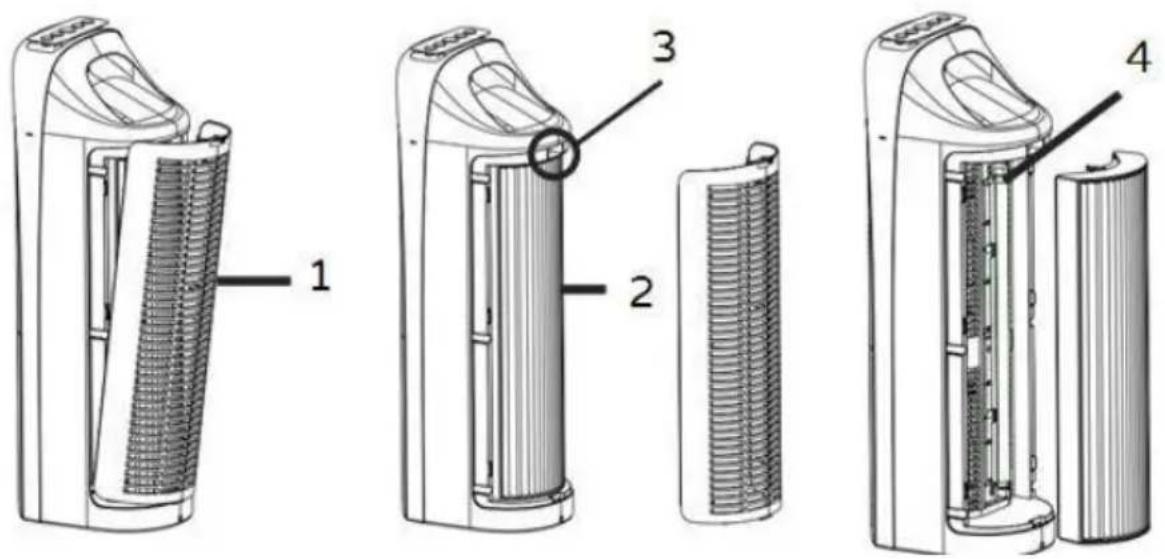

- The appliance comes with the following controls and accessories:

- “ 🕒 ” button: press to turn the appliance on and off

- Normal mode: "SPEED" button: it operates the 3 speeds and the automatic function. Press the button repeatedly and the indicator corresponding to the selected speed will light up on the display

1= minimum speed

2= medium speed

3= maximum speed

AUTO-1= Automatic mode

Automatic mode: the appliance is equipped with a sensor to monitor air quality.

The purifier in this mode automatically adjusts the colour that corresponds to the air quality and the speed. The three levels are indicated as follows:

Colour of indicator according to air quality	Air quality level	Speed
Blue	Good	Minimum
Orange	Insufficient	Medium
Red	Very poor	Maximum

- Sleep mode: it is activated by pressing the "ION" and "SPEED" buttons together. The appliance will run at setting speed and only the "SLEEP" indicator light will appear; to restore normal function (deactivate sleep mode), repeat operations in reverse.

- "Timer" button: sets the running time, after which the unit will stop. Press the button repeatedly: each time it is pressed the time period changes (from 2h, 4h or 8h) and the selected time will light up on the control panel. To deactivate the timer, press the button until all times disappear.

- "lon" button: this function produces a flow of negative ions, which neutralise positive ions present in the air; this function is activated every time the button is pressed. The corresponding indicator light lights up on the display.

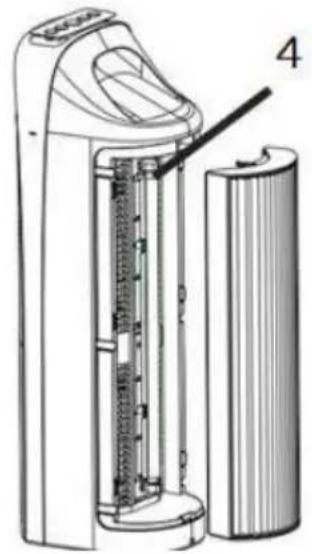

- UV lamp (4): this sterilization system reduces bacteria and germs; the lamp purifies the air and can eliminate bad smells caused by smoke or mould or undesirable animal (pet) odours. It is activated by pressing the button; the corresponding light lights up on the display.

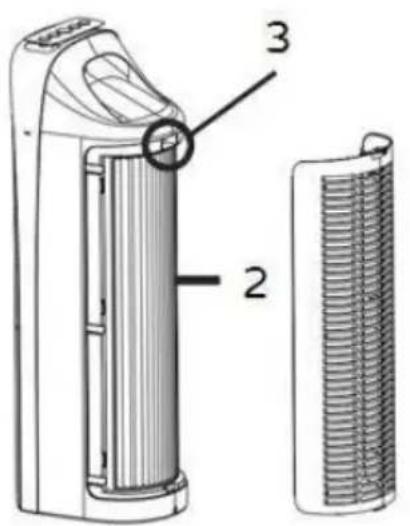

- HEPA filter (2): filters dust, pollen, smoke and particles from the air that can cause allergies or illnesses of the respiratory system.

- HEPA filter replacement indicator light: turns on (red) whenever the HEPA filter needs to be changed. To reset the light, press the "TIMER" and "UV" buttons

simultaneously for 3 seconds, switch off the appliance, remove the plug from the socket and replace the filter.

- Pre filter: it is a mesh found inside the rear grille. It filters fluff or lint.

- PRE filter replacement indicator light: turns on (red) whenever the mesh needs to be cleaned. To reset the light, press the "TIMER" and "UV" buttons simultaneously for 3 seconds, switch off the appliance, remove the plug from the socket and clean the pre-filter.

- Extraction grid removal safety device (3): The appliance is equipped with a safety system that prevents it from running if the rear grill (1) is not correctly positioned and locked on the body.

Description

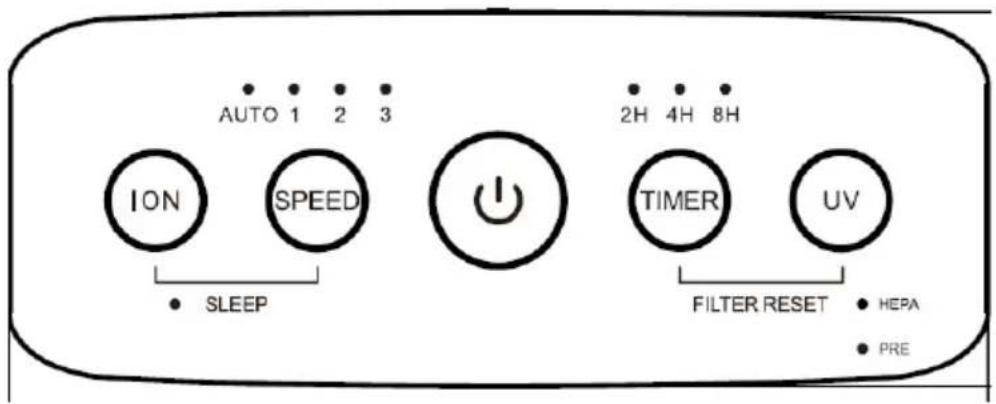

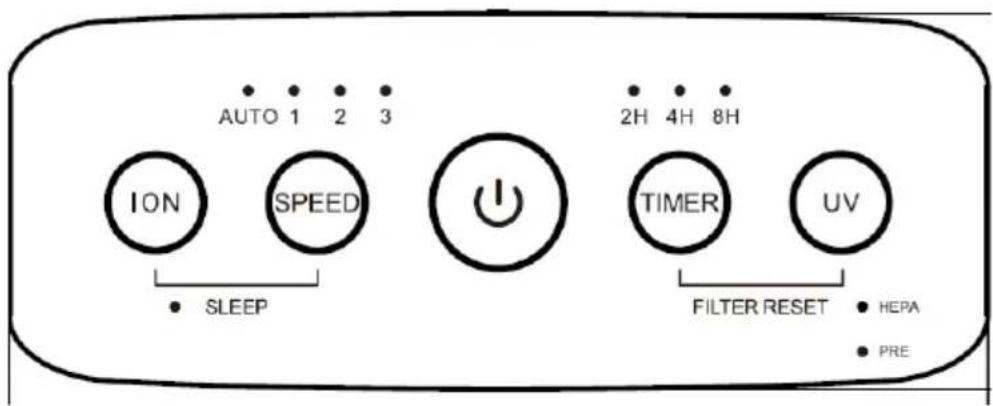

Control panel:

AUTO 1 2 3 ION SPEED SLEEP 2H 4H 8H TIMER FILTER RESET HEPA PRE

To operate the appliance, insert the plug into the wall socket: the “” symbol lights up in red (indicating stand-by mode); to start the purifier, press “” (the blue symbol lights up) and select the required functions.

To stop the appliance, press “” and the symbol will turn red and remain on. To turn off the appliance completely, remove the plug from the plug point.

CLEANING AND MAINTENANCE

Important: before performing routine cleaning, remove the plug from the mains.

• Regularly check that the filters are clean to ensure operation remains as effective as possible.
• PRE-FILTER: clean the filter when the "PRE" light on the control panel lights up (about every 1500 hours of operation, but depends on the air quality of the room); to reset the light, press the "TIMER" and "UV" buttons at the same time for 3 seconds, or periodically ensure that the rear extraction grille is not blocked by fluff or lint. If the filter is dirty, remove the grill and clean the mesh using a brush or water, taking care not to damage it; then dry it completely and put it back in its seat.

- HEPA FILTER:

- replace the filter when the "HEPA" light on the control panel lights up (about every 3000 hours of operation, but it depends on the air quality of the room); to reset the light, press the "TIMER" and "UV" buttons at the same time for 3 seconds, and replace the filter only with original spare parts.

- do not clean the filter with a vacuum cleaner

- do not wash and reuse the filter

• Always wash hands carefully after replacing or cleaning the filter.

- To clean the body, use a soft cloth dampened with water and, if necessary, use also a mild everyday detergent.

- Do not use abrasive or corrosive products.

- Do not immerse any electrical parts in water or another liquid. In the event this occurs, dry carefully and check that the electric parts are completely dry. Only thereafter, plug the appliance into the mains. If in doubt, contact a qualified professional.

- If the appliance is not used for long periods of time, you should store it away from dust and moisture; we recommend using the original packaging.

- If you decide to no longer use the appliance, it is recommended that be made inoperative by cutting the power cord (first ensure that the appliance has been unplugged from the power supply), and ensure that any parts that could represent a risk to playing children are put away.

UV LAMP: any repairs and replacements must be done only by qualified professionals. Never touch or attempt to repair the lamp yourself.

Disposal of the UV lamp

Warning: do not use the appliance if the UV lamp is broken.

Here are some useful tips to keep in mind when the lamp breaks and as protection against any mercury leaks.

1) Disconnect the appliance from the mains.
2) Immediately ensure that children, irresponsible persons, pregnant women, pets, etc. leave the room.
3) Open the windows and ventilate for at least 20-25 minutes. Turn off air conditioning units.
4) Wear gloves, a face mask and safety glasses. Do not use a vacuum cleaner to avoid dispersing mercury into the air.
5) Collect larger pieces by hands and the smaller fragments with the help of adhesive tape.
7) Place the fragments of the lamp into hermetic containers, such as glass jars or plastic packets that can be sealed. They can be handed in to specific collection points set up by the local authority, or to retailers who provide such a service.
8) Clean surfaces with a damp cloth. Dispose of everything used for cleaning, including the cloth, face mask and gloves.
9) If it breaks on a mat or carpet, dispose of it, or at least remove the contaminated part.
10) Immediately wash hands with detergent when everything has been disposed of.
11) The lamp must be replaced by qualified professionals.

Health risks

A broken lamp means that those present will be exposed to mercury, especially the person picking up the fragments and cleaning the room. A healthy adult should not experience immediate side effects to mercury exposure. However, exposure to toxic vapours can have minor or more significant effects on health. If in doubt consult your medical doctor, especially if you are particularly sensitive to chemical substances. This product complies with the maximum allowable ozone concentration of 0.050 parts per million volume (ppmv) over a 24-hour period.

Correctly disposing of the product as per European Directive 2011/65/UE.

At the end of its lifespan, the product must not be disposed of as part of ordinary waste. It can be handed in to specific collection points set up by the local authority, or to retailers who provide such a service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and human health resulting from inappropriate disposal and allows to recover the materials from which it is made in order to obtain significant savings in energy and resources. As a reminder of the obligation to dispose of appliances separately, the product is marked with a crossed-out wheelie bin symbol. Incorrect disposal of the product by the user will lead to sanctions according to current law.
