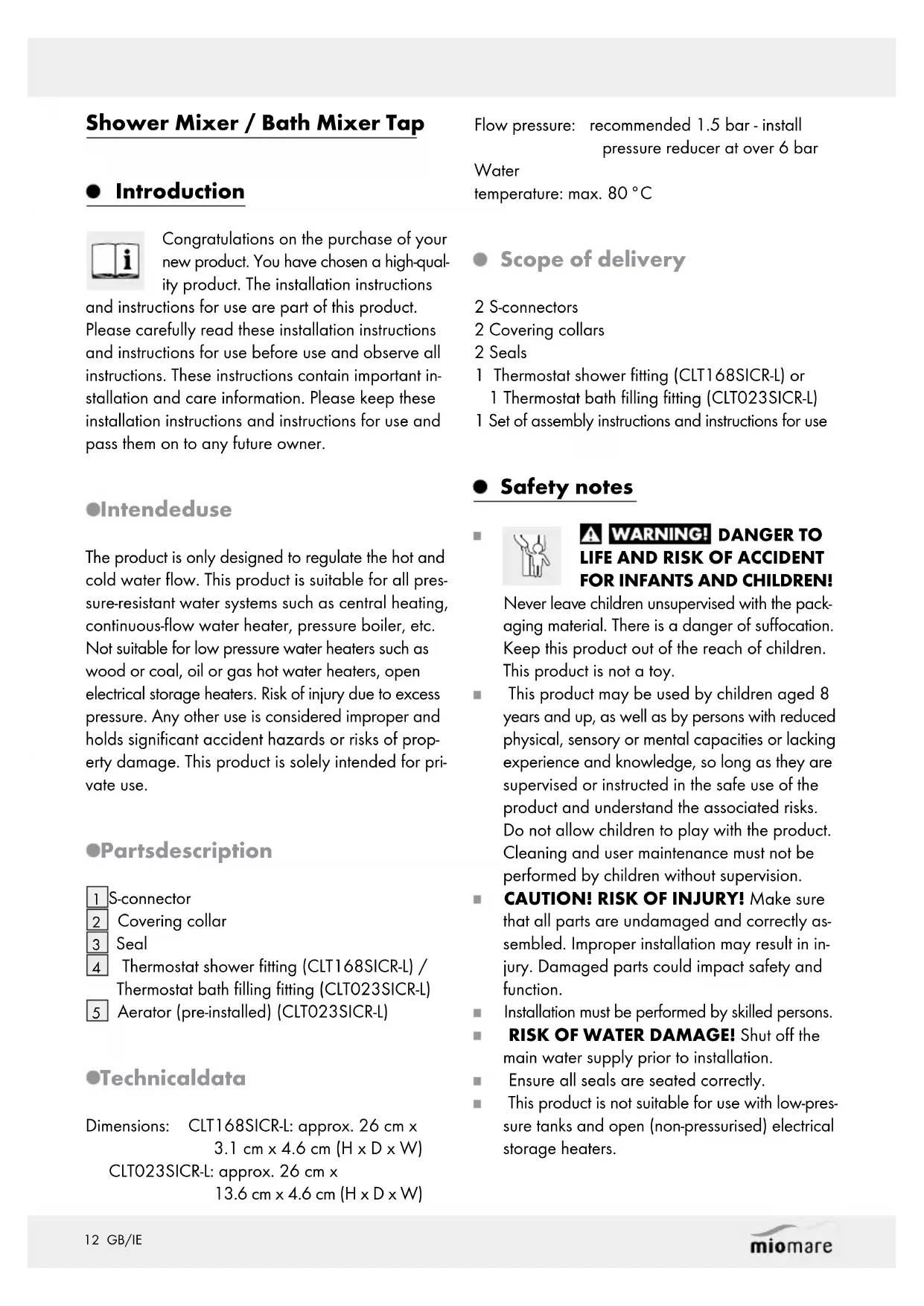

Shower Mixer / Bath Mixer Tap

Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. The installation instructions

and instructions for use are part of this product.

Please carefully read these installation instructions and instructions for use before use and observe all instructions. These instructions contain important installation and care information. Please keep these installation instructions and instructions for use and pass them on to any future owner.

Intendeduse

The product is only designed to regulate the hot and cold water flow. This product is suitable for all pressure-resistant water systems such as central heating, continuous-flow water heater, pressure boiler, etc. Not suitable for low pressure water heaters such as wood or coal, oil or gas hot water heaters, open electrical storage heaters. Risk of injury due to excess pressure. Any other use is considered improper and holds significant accident hazards or risks of property damage. This product is solely intended for private use.

-Partsdescription

1 S-connector
Covering collar
3 Seal
4 Thermostat shower fitting (CLT168SICR-L) / Thermostat bath filling fitting (CLT023SICR-L)
5Aerator(pre-installed) (CLTO23SICR-L)

-Technicaldata

Dimensions: CLT168SICR-L: approx. 26 cm x

$$ 3. 1 \mathrm {c m} \times 4. 6 \mathrm {c m} (\mathrm {H} \times \mathrm {D} \times \mathrm {W}) $$

CLTO23SICR-L: approx. 26 cm x

$$ 1 3. 6 \mathrm {c m} \times 4. 6 \mathrm {c m} (\mathrm {H} \times \mathrm {D} \times \mathrm {W}) $$

Flow pressure: recommended 1.5 bar - install pressure reducer at over 6 bar

Water

temperature: max. 80^

- Scope of delivery

2 S- connectors
2 Covering collars
2 Seals

1 Thermostat shower fitting (CLT168SICR-L) or 1 Thermostat bath filling fitting (CLTO23SICR-L)
1 Set of assembly instructions and instructions for use

Safety notes

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. There is a danger of suffocation. Keep this product out of the reach of children. This product is not a toy.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.
CAUTION! RISK OF INJURY! Make sure that all parts are undamaged and correctly assembled. Improper installation may result in injury. Damaged parts could impact safety and function.
Installation must be performed by skilled persons.
RISK OF WATER DAMAGE! Shut off the main water supply prior to installation.
Ensure all seals are seated correctly.
This product is not suitable for use with low-pressure tanks and open (non-pressurised) electrical storage heaters.

We recommend installing a filter during installation or at least using angle valves with filter to avoid foreign objects from entering.
Only use the product in rooms with temperatures above 0^ . In case of potential frost, shut off the water supply and drain the product.
Careful when adjusting the water temperature: risk of scalding!
Please note that the seals are wear parts and must be changed from time to time.
Incorrectly installed hand shower sets can cause water damage!
Even careful production can result in sharp edges. Therefore proceed with caution during installation.

- Installation

Note: carefully check all connections for leaks after first use.

Note: incorrect installation will void the warranty, particularly with respect to consequential damage!

Note: following installation, unscrew the aerator and flush the pipe and tap fitting well (hot / cold water supply) to flush out contaminants (shavings and hemp residues). After flushing the tap fitting, reattach the aerator to the tap fitting.

Note: thoroughly flush the lines after extended periods of non-use to remove stagnant water and residues.

Roughen the (smaller) 12 thread of the S- connectors 1 with a saw (see Fig. A).
Wrap the 12 threads of the S- connectors 1 with sealing tape (not included) (see Fig. B).
Screw the two S- connectors 1 clockwise into the wall connections. When doing so, be sure the S- connectors 1 are square with the wall and must be screwed in equally (see Fig. C).
Adjust the S- connectors 1 so the distance of the S- connectors 1 is the same as the connectors on the fitting 4. Ensure the S- connectors 1 are horizontal (see Fig. D).
Screw one covering collar 2 clockwise over each (larger) thread of the installed S-connec-tors 1 so they are flush with the wall (see Fig. E).
Insert the seals 3 in the union nuts. Secure the fitting 4 by screwing the union nuts onto the

threads of the two S- connectors 1. Be sure the union nuts are easy to turn and must not be tilted to avoid leaking connections (see Fig. F).

For the thermostat bath filling fitting (CLTO23SICR-L), unscrew the aerator 5 anti-clockwise following installation, flush the pipes and the tap fitting well (hot/cold water supply) to flush out contaminants (shavings and hemp remains). After flushing the tap fitting, reinstall the aerator 5 in the tap (see Fig. G).
- Switching between bath filling / shower (only CLTO23SICR-L)
With the water running, turn the diverter knob clockwise to switch to the shower function (see Fig. H).
Turn the diverter knob anti-clockwise to end the shower function (see Fig. 1).

Note: turning off the water automatically ends the shower function.

- Cleaning and care

• Never clean with petrol, solvents or aggressive cleaners or hard bristled brushes, etc. These could damage the product surface.
  Clean the product with a damp, soft cloth or chamois.
  Remember to regularly unscrew aerator and remove any limescale deposits or foreign objects. We recommend replacing the aerator if it is very dirty.

- Maintenance

Please note, a bonnet is a wear item and the valve may need to be replaced every 1-2 years if your water is very hard or dirty.
Regularly check all connections and joints for leaks or visible damage.
Have leaks or visible damage to the shower set or hoses checked or replaced by a professional immediately.

- Removal

Shut off the water supply before removing the product.
Watch for residual water draining from the product.
Remove the product in the reverse order specified in the installation instructions.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Note: images are for illustration purposes only and may differ from the actual product. Subject to technical changes without notice.

Service

GB:

Eisl Sanitar GmbH

Your purchase is protected by a manufacturer warranty by Eisl Sanitär GmbH in Bergheim as outlined in the following warranty terms. This warranty does not limit your legal warranty rights arising from the purchase contract with the seller or your legal rights.

Warranty terms:

1. Scope of warranty

Eisl Sanitär GmbH guarantees proper material quality and material processing for the intended purpose, proper assembly, tightness and function.

The warranty is only valid in the country where the product was purchased.

The warranty includes a 1 year warranty on the durability of surfaces without high-gloss chrome plating, such as bronzed or coloured surfaces.

The warranty does not cover:

Corrosion in the aerators (mesh screens)
Thermostat
Bonnet
- Damages due to improper installation, initial operation and handling
- Damages caused by external factors such as fire, water, chemical effects
- Mechanical damage due to accident, falling or shock
- Negligent or malicious damage
Normal wear or lack or maintenance
- Damages due to repairs by unqualified persons
- Improper handling, insufficient care and the use of unsuitable cleaning agents
- Chemical or mechanical factors during product transport, storage, connection, repair or use

2. Activated guarantee

The performance applies to, at our discretion, free repair, free delivery of replacement parts or an equivalent product against return of the defective party or defective product.

If the respective type is no longer produced, we reserve the right to deliver a replacement product of our choosing from our product range as close to possible to the returned type. Replaced products or parts become our property. When sending in the product, the buyer bears the transport costs and the transport risk unless warranty under the legal warranty provisions also applies. In the latter case, we will refund the transport costs. Compensation for the cost of removal and installation, inspection, claims for lost profits and indemnity are excluded from warranty, as well as additional claims for

damages and loss of any type caused by the product or use thereof.

3. Warranty claims

The warranty claim must be submitted to Eisl Sanitar GmbH, Mattseer Landesstraße 8, 5101 Bergheim, AUSTRIA, within the warranty term, along with the original receipt of purchase.

4. Warranty period

The warranty period is the period specified on the label or the packaging of the respective product. If a product-specific warranty period is not specified, the warranty period is 2 years from the date of purchase as determined by the date of the receipt of purchase. Exception: Durability of any high-gloss chrome plated surfaces such as bronze or coloured surfaces, which are covered by a 1 year warranty, again determined by the date on the receipt of purchase.

Services performed under warranty do not extend or renew the warranty period of the product. Services performed under warranty also do not suspend the warranty period unless warranty under the law in addition to other legal requirements for suspension apply.

5.

This warranty is subject to German law under exclusion of the United Nations Convention on Contracts for the International Sale of Goods (CISG).

6. Severability clause

In the event a term of these provisions is or becomes void or unenforceable in whole or in part or the parties accidentally overlooked a provision pertaining to an item under this contract, the validity of the remaining provisions in this contract shall remain unaffected. The void or unenforceable term or lacuna in the contract shall be replaced by a valid or enforceable term as close as possible to the spirit and objective of the invalid or unenforceable term. In the event of lacuna, the parties agree to use the term corresponding with the spirit and objective of this contract which would have been stipulated had the matter been considered. This also applies if the invalidity of a term is based on a measure of

performance or time standardised in this contract. In this case the agreed term shall be replaced by a lawful measure of performance or time as close as possible to the stipulation.

This warranty card is only valid with the associated original receipt of purchase.
