Product type	Immersion blender / electric mixer
Brand	Gorenje
Model	M460CDC
Intended use	Domestic use: mix, beat, whip, knead, blend
Speeds	4 speeds + Turbo function
Included accessories	2 whisks, 2 dough hooks
Removable blender foot	Not included for this model (available on M550CSDC)
Accessory ejection	Yes, dedicated button for whisks/hooks and for blender foot
Noise level	72 dB(A)
Maximum usage time (whisks)	10 continuous minutes
Maximum usage time (hooks)	2 continuous minutes
Cooling required	10 minutes before reuse
Cleaning the motor unit	Wipe with a damp cloth; do not immerse
Cleaning the accessories	Wash with hot water and detergent
Safety	Turn off before plugging/unplugging, do not touch moving parts
Repairs	Reserved for qualified technician; cord replaced by professional
Warranty	According to international warranty card; contact Gorenje customer service
End of life	Do not throw away with household waste; dispose at WEEE collection point

Frequently Asked Questions - M460CDC GORENJE

How to install the whisks or dough hooks?

Ensure the appliance is unplugged and in the Off position. Insert the stem of a whisk into one of the motor unit's openings, push and turn until locked. Repeat for the second.

How to remove the whisks or dough hooks?

Stop the appliance and press the Ejection button. Then pull the accessories out of the openings.

What is the maximum speed and how to use the Turbo function?

The speed selector has 4 positions from 1 (slow) to 4 (fast). The Turbo button allows you to reach maximum speed instantly. Release it to return to the selected speed.

Can this appliance blend hot liquids?

The manual does not recommend blending hot liquids. Always use at low speed to avoid splashes and burns.

How to clean the motor unit?

Unplug the appliance. Wipe the motor unit with a damp cloth. Do not use abrasive detergents or solvents. Never immerse the motor unit in water.

What is the recommended continuous usage time?

With the whisks, do not exceed 10 minutes continuously. With the dough hooks, do not exceed 2 minutes. Then let the appliance cool down for at least 10 minutes before reuse.

What to do if the appliance does not start?

Check that the appliance is plugged in and that the speed selector is not on 0. If the problem persists, unplug and contact Gorenje customer service. Do not attempt to repair it yourself.

How to use the dough hooks?

Attach the dough hooks like the whisks. Use them only for kneading dough. Do not exceed 2 minutes of continuous use. Attention: the hook with a marker ring must be inserted into the corresponding hole.

Is the blender foot included with the M460CDC model?

No, the blender foot is not included with this model. It is available only on certain models like the M550CSDC.

How to store the appliance after use?

After use, stop the appliance and unplug it. Store it in a dry place, out of reach of children. Clean the accessories before storing.

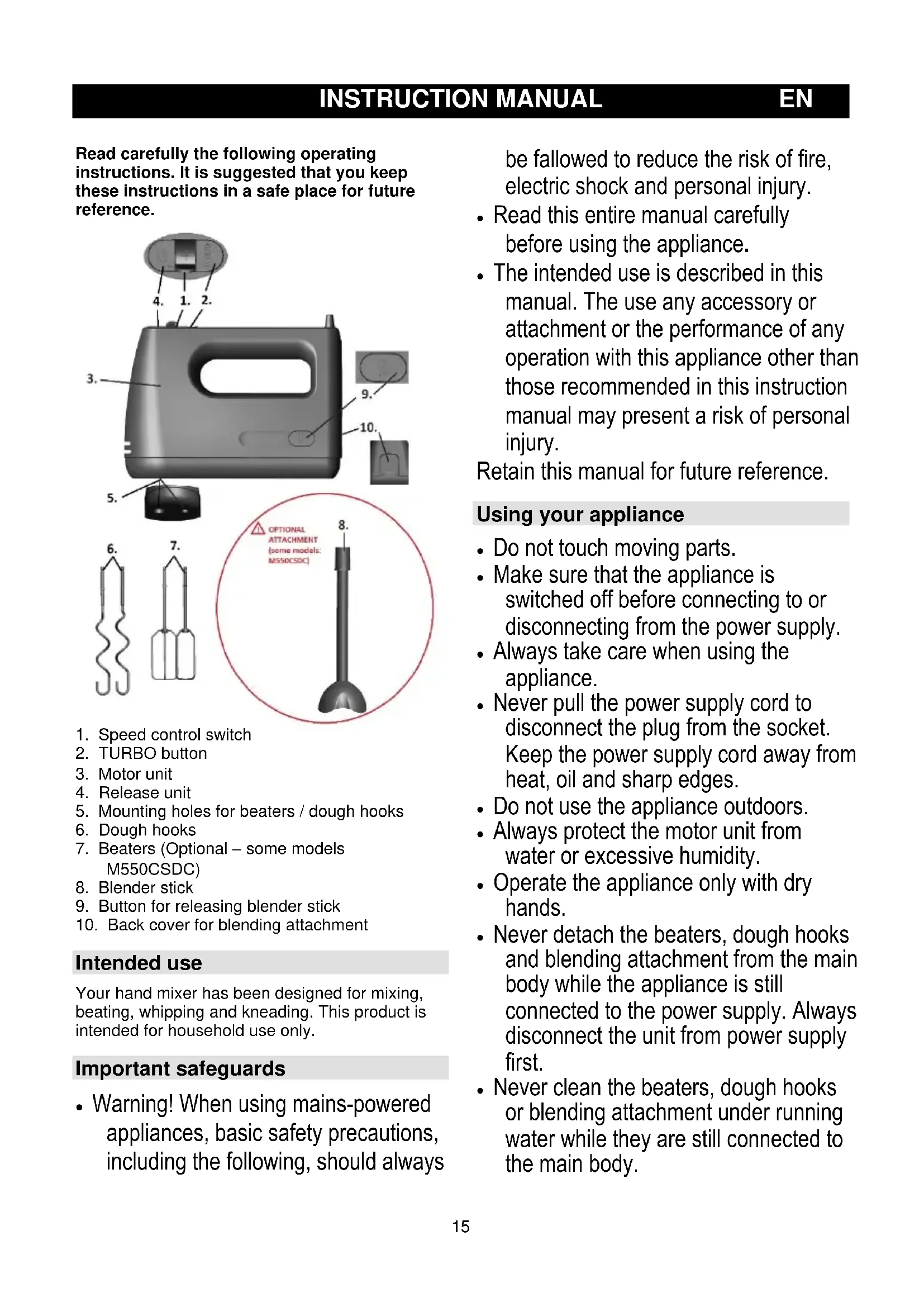

USER MANUAL M460CDC GORENJE

Instructions for use GB

Instructions for use RO

Instructions for use SK

Read carefully the following operating instructions. It is suggested that you keep these instructions in a safe place for future reference.

1. Speed control switch
2. TURBO button
3. Motor unit
4. Release unit
5. Mounting holes for beaters / dough hooks
6. Dough hooks
7. Beaters (Optional - some models M550CSDC)
8. Blender stick
9. Button for releasing blender stick
10. Back cover for blending attachment

Intended use

Your hand mixer has been designed for mixing, beating, whipping, and kneading. This product is intended for household use only.

Important safeguards

• Warning! When using mains-powered appliances, basic safety precautions, including the following, should always

be followed to reduce the risk of fire, electric shock, and personal injury.

• Read this entire manual carefully before using the appliance.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.

Retain this manual for future reference.

Using your appliance

• Do not touch moving parts. Make sure that the appliance is switched off before connecting to or disconnecting from the power supply. Always take care when using the appliance.
• Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil, and sharp edges.
• Do not use the appliance outdoors. Always protect the motor unit from water or excessive humidity.
• Operate the appliance only with dry hands.
• Never detach the beaters, dough hooks, and blending attachment from the main body while the appliance is still connected to the power supply. Always disconnect the unit from the power supply first.
• Never clean the beaters, dough hooks, or blending attachment under running water while they are still connected to the main body.

Take care that the beaters, dough hooks, and blending attachment do not touch the power cable while operating the unit. - If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply. - Disconnect the appliance from the power supply when not in use, before fitting or removing parts, and before cleaning. - All repairs of electrical appliances must only be performed by skilled personnel. Improper repairs can result in considerable hazards for the user. - In case of damage, the power cord must be changed only by skilled service personnel. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. - Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised. - Noise level: Lc = 72 dB(A).

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

After use

• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• Never attempt to remove or replace any parts other than those specified in this manual.

ASSEMBLY

Before assembly, make sure that the appliance is switched off and unplugged.

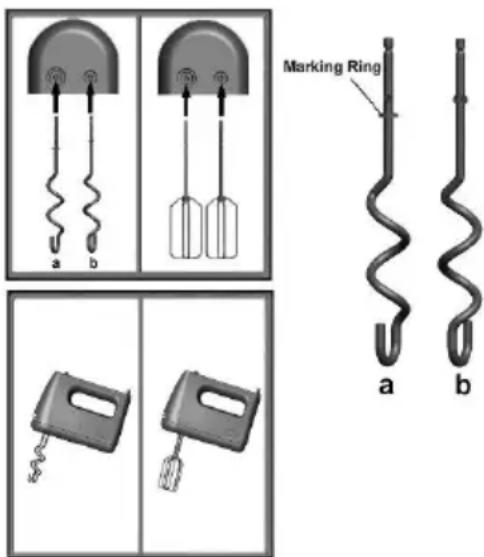

Choosing beaters, dough hooks or blending attachment

• Use beaters for mixing, beating, whipping and creaming liquids and mixtures.
• Use dough hooks for mixing and kneading dough.
• Use blending attachment for blending.

Caution:

• Only hook (a) has a marking ring. Don't install the hooks wrongly!

Fitting the beaters or dough kneaders

• Switch the appliance off.
• Insert the stem of beater into one of the mounting holes in the motor unit.
• Push and turn the beater until in locks into place.
• Repeat for the other beater.

Removing the beaters or dough hooks

• Switch the appliance off.
• Keep the release button depressed.
• Pull the beaters or dough hooks out of the motor unit.

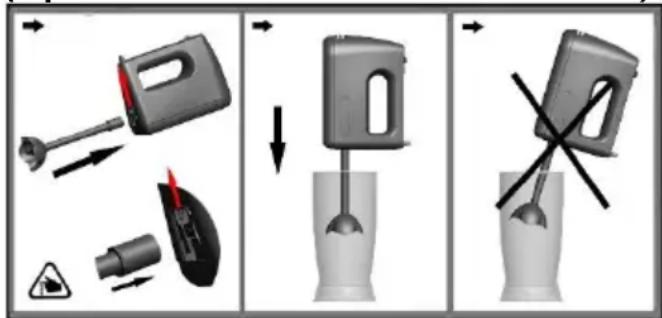

How to install/remove blender stick: (Optional - some models M550CSDC)

Open back cover (10), and then insert the assembled blender stick on the hand mixer. A sound "click" will be heard if the blender stick is well installed in position.

Caution:

• The blade is very sharp! Handle it carefully!
• To remove blender stick:
• Firstly press button (9), secondly draw out the blender stick.

USE

• To switch on, slide the speed control switch to one of the positions "1" (lowest speed) to "4" (highest speed). It is recommended to start at a low speed, then change to a higher speed if necessary. To switch off, slide the switch to position "0".
• Do not operate the appliance continuously for more than 5 minutes (with beaters) or 2 minutes (with dough speed)! After working with appliance continuously for this period of time, let it cool down for at least 10 minutes before operating it again.
• When working with liquids, use a low speed in order to avoid splashing liquid onto the appliance.
• Firmly hold the container that you are using with the mixer.

CLEANING AND MAINTENANCE

!!!Before cleaning and maintenance, switch the appliance off and unplug it.

• Wash the beaters, dough hooks or blending attachment in warm soapy water and dry well.
• Wipe the motor unit with a damp cloth. Do not use any abrasive or solvent-based cleaner.

Do not immerse the motor unit in water or any other liquid.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

Do not dispose of the appliance with household waste.

Environmental protection

At the end of its service life, do not dispose of the appliance with normal household waste, but take it to an official collection point for recycling. This way you help protect the environment.

Guarantee and service

If you have a problem with the appliance, contact the Gorenje Customer Care Center in your country (the telephone number can be found on the international warranty card). If there is a Customer Care Center in your country, contact the local Gorenje dealer or get in touch with the Service Department of Gorenje Domestic Appliances.

For personal use only!

Gorenje wishes you pleasant hours with your appliance.

Changes to the rights for issuing modifications!

Please read these instructions for use carefully. Keep these instructions in a safe place for future reference.

1-Liquid container 2-TURBO button 3-Main switch 4-Suction adjustment 5-Opening for installing universal nozzles/nozzles for suction 6-Nozzles for suction 7-Universal nozzles 8-Blender nozzle (attention - some models M550CSDC) 9-Button for releasing the blender nozzle 10-Lid for closing the blender nozzle

Warning! When using electrical products, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, and personal injury.

Read this manual carefully before using the appliance.

• The intended use of the appliance is described in this manual. The use of any accessories or attachments, or the use of the appliance in ways not described in this manual, may cause a risk of personal injury. Keep this manual for future reference.
• Using the appliance

Do not touch the appliance with wet hands. - Unplug the appliance before cleaning or when not in use. Keep the appliance dry. Never pull the power cord to disconnect it from the outlet. Keep the power cord away from heat, oil, and sharp edges. Do not use the appliance outdoors. Always protect the motor from water or excessive moisture. - Operate the appliance only with dry hands. Never disconnect the attachments, mixing bowls, or blades from

the appliance while it is plugged into the outlet. Always unplug the appliance before removing attachments.

Never clean the attachments, mixing bowls, or blades under running water while they are attached to the appliance. - Ensure that the attachments, mixing bowls, and blades do not touch the power cord during operation. Unplug the appliance when not in use, before assembling or disassembling parts, and before cleaning. All repair work on electrical appliances must be performed by a qualified specialist. Improper repair may cause significant injury to the user. - In case of damage, the power cord may only be replaced by a qualified service specialist. - Children under 8 years of age should not be allowed near the appliance unless under constant adult supervision. Keep the appliance out of reach of children. Under no circumstances should children play with the appliance. Under the instructions, the appliance can be used by children over 8 years of age and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Noise level: Lc = 72 dB (A)

This appliance is marked in accordance with European Directive 2012/19/EU regarding waste electrical and electronic equipment (WEEE). This directive defines the possibilities for the return and recycling of used appliances within the European Union.

After use

Turn off the appliance and unplug it from the outlet before leaving it unattended, before assembly, cleaning, or checking parts. - The appliance should be stored in a dry place. During storage, the appliance must be inaccessible to children.

Inspection and repair

Before use, check the appliance for damage and defects in parts. Inspect parts for damage, broken fasteners, and any other aspects that may affect proper operation. Do not use the appliance if any part is damaged or defective.

• Before operation, check the device for damage and defects in parts. Check parts for damage, damage to the housing, and any other aspects that may affect its operation. Do not use the device if any part is damaged or defective.
• Before use, check the power cord for signs of damage or wear. Do not use the device if the power cord or plug is damaged or has defects. Never remove or replace any parts except those specified in the manual.

ASSEMBLY

Before assembling the device, make sure it is switched off and disconnected from the power supply.

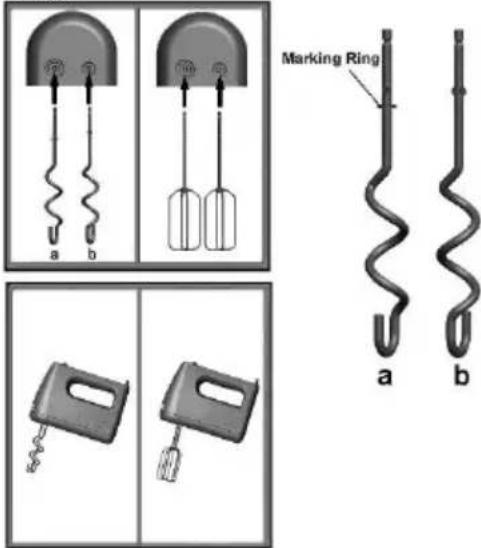

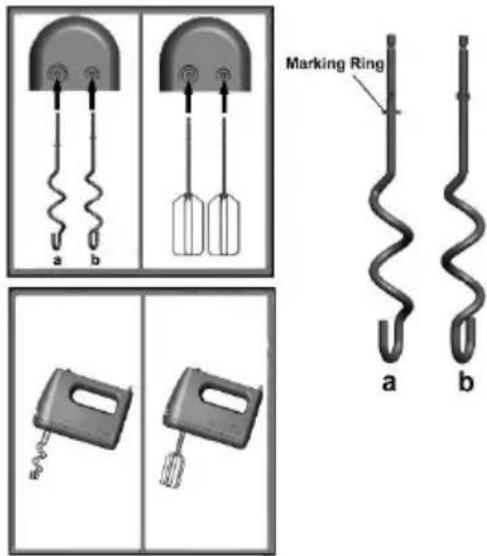

Selecting the attachments: mixing whisk, dough hook, or blender.

Attach the whisk attachment to mix, whisk, or whip cream and similar substances. Attach the dough hook for kneading and mixing dough. Attach the blender for blending.

Caution!

Only insert the attachment (a) with the marking ring. Do not install it incorrectly!

Installing the attachments for mixing.

Switch on the device.

Insert the attachment shaft into one of the motor openings.

Turn and press the attachment until it locks into place.

Repeat with the other attachment.

Dough hook

Switch on the device.

Insert the base of the double-sided mixer (with the large plastic part) into the large motor opening.

Insert and turn the lid so that the blender does not move into place.

Install the base of the right-side blender (with the large plastic part) into the small mounting hole of the motor.

Insert and turn the lid so that the blender does not move into place.

Operation

To turn on the device, turn the speed regulator to position 1 (minimum speed) to 4 (maximum speed).

It is recommended to start at the minimum speed, then increase if necessary. To turn off, turn the regulator to position 0.

Use the turbo button (pulse) for maximum speed immediately.

Do not use the device for more than 15 minutes continuously!

The speed regulator is used to activate the blending of the product.

Securely fix the container in which you work with the mixer.

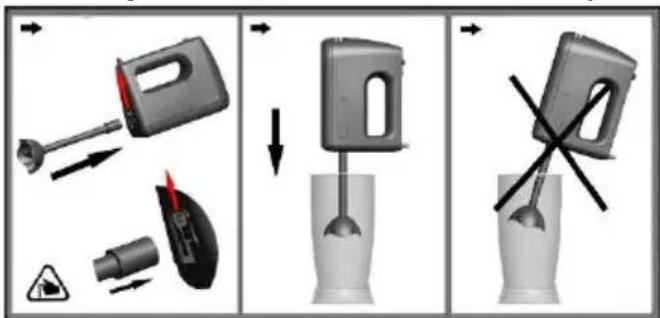

How to install / remove the blender attachment (Note: some models - M550CSDC):

Open the lid (10), then insert the blender attachment into the mixer coupling.

The blender attachment is correctly installed in place, the valve is already closed.

Note:

• The blade is very sharp! Be careful!! To remove the blender attachment: first press the button (9), then pull out the blender attachment.

Before cleaning, unplug the appliance and switch it off.

• Rinse the attachment with warm water and dry it well.
• Clean the motor with a damp cloth. Do not use abrasive or solvent-based cleaning agents.

Do not immerse the motor in water or any other liquid.

Disposal

Do not dispose of the appliance with household waste; take it to an official collection point for recycling. In this way, you help protect the environment.

Warranty and service

If you need service or if a problem occurs, contact the Gorenje customer care center in your country (the phone number can be found on the warranty card). If there is no customer care center in your country, contact the local dealer or the technical service department of Gorenje Domestic Appliances.

GORENJE

WE WISH YOU SATISFACTION

AND PLEASURE IN USING THE APPLIANCE

INSTRUCTIONS FOR USE

Read these operating instructions carefully.

It is recommended to keep these instructions in a safe place for future use.

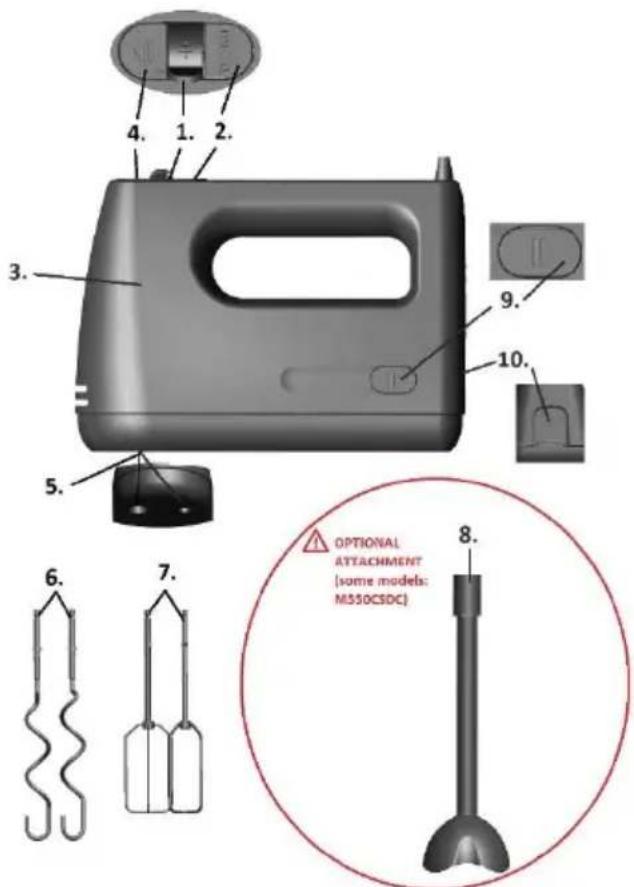

1. BkHouaTeNb/BbIKHouaTeNb, speed selection, and pulse modes
2. Button, turbo
3. Motor block, removable block
4. Mounting holes for beaters / dough hooks
5. Dough hooks
6. Beaters
7. Blender attachment (warning - some models - M550CSDC)
8. Blender attachment release button
9. Blender attachment socket cover

Intended use

The hand mixer is intended for mixing, whipping, kneading, and stirring food and ingredients. This product is intended for household use only.

Important safety measures

Attention! When using appliances that operate on electricity,

Always follow basic safety precautions, including the following, to reduce the risk of fire, electric shock, and injury.

Read all instructions carefully before using the appliance. The intended use is described in this manual. Use of any accessory or attachment or performance of any operation with this appliance, other than those recommended in this manual, may present a risk of personal injury.

Keep this instruction for future use.

Operating the appliance

Do not touch the blades. - Make sure the appliance is unplugged before connecting to or disconnecting from the mains. Always be careful when using the appliance. Never pull the power cord to disconnect the plug from the socket. Keep the power cord away from heat sources, oil, and sharp edges. Do not use the appliance outdoors. Always protect the motor unit from water or excessive humidity. - Operate the appliance only with dry hands. Never remove the blades, dough hooks, and blender attachment from

the main body of the appliance while it is still plugged in. Always unplug the appliance from the mains first.

• Never remove the blades, dough hooks, and blender attachment under running water while they are still attached to the main body.
• Make sure that the blades, dough hooks, and blender attachment do not come into contact with the power cord while the unit is operating.
• If the power cord is damaged during operation, immediately disconnect the appliance from the mains. Do not touch the power cord until it has been disconnected from the mains.
• Disconnect the appliance from the mains when it is not in use, before inserting or removing parts, and before cleaning.
• Any repair of the electrical appliance must be carried out only by a qualified specialist. Unprofessional repair may lead to serious dangers for the user. If the power cord is damaged, it must be replaced only by a qualified specialist.
• This appliance can be used by children aged 8 and above, and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, only under supervision or after receiving instructions concerning safe use and understanding the associated risks.

Make sure children do not play with the appliance. - Cleaning and maintenance must not be performed by children younger than 8 years old without adult supervision. Noise level: Lc = 72 dB (A)

This appliance is marked in accordance with European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). This directive defines the requirements for the collection and disposal of waste electrical and electronic equipment applicable in all EU countries.

After use

• Unplug and disconnect the plug from the socket before leaving the appliance unattended and before replacing, cleaning, or inspecting any part of the appliance. When not in use, store the appliance in a dry place. Children should not have access to the stored appliance.

Inspection and repair

• Before using the appliance, check it for damage or manufacturing defects. Check that no parts are broken, that the switches and other items that could adversely affect its operation are not damaged.
• Do not use the appliance if any of its parts are damaged or defective.
• Before using, check the power cord for signs of damage, wear, and fraying. Do not use the appliance if the power cord or plug is damaged or defective.
• Never attempt to remove or replace any parts other than those specified in this manual.

Assembly

Before assembly, make sure the appliance is unplugged and disconnected from the power supply.

Choosing beaters, dough hooks, and blender attachment

• Use the beaters for mixing, whisking, kneading, pureeing, and blending liquids and mixtures.
• Use the dough hooks for mixing and kneading dough.

Use the blender attachment for pureeing (mixing homogeneous masses).

Warning!

The hook (a) has a marking ring. Insert the hooks into the corresponding sockets; otherwise, the hooks will not work correctly.

Installing the beaters or dough hooks

• Unplug the appliance. Insert the shaft of the beater into the mounting hole in the motor block. Press and turn the beater until it locks into place.
• Repeat the procedure for the other beater.

Installing and removing the blender attachment (warning - some models - M550CSDC):

Open the lid of the socket (10) and insert the assembled blender attachment into the socket. If the blender attachment is installed correctly, a click will be heard.

Warning!

• Sharp blades! Handle them with care!

To remove the blender attachment, press the button (9) and pull out the blender attachment.

USE

- To switch on, set the speed switch to one of the positions: from 1 (lowest speed) to 4 (highest speed). Start mixing products at low speed. After some time, switch the appliance to a higher speed. - To switch off, set the speed switch to position 0. - Continuous operation should not exceed 10 minutes (with attachments for whipping) and 2 minutes (with attachments for dough).! After continuous operation for this time, let the appliance cool down for at least 10 minutes before starting work again. - Mix liquids at low speed so they do not splash onto the appliance. - While the appliance is working, hold the bowl in which you are mixing the products.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, switch off the appliance and disconnect it from the mains.

Wash the beaters, dough hooks, or blender attachment in warm, soapy water and rinse thoroughly. - Wipe the motor unit with a damp cloth. Do not use any abrasives or solvents.

Do not immerse the motor unit in water or any other liquid.

Environmental protection

After the end of the product's service life, do not throw the appliance away with household waste. Take it to a specialized collection point for recycling. This way you will help protect the environment.

Warranty and service
