USER MANUAL CEH9062IX CONTINENTAL EDISON

INSTALLATION AND MOUNTING 11

FIND INFORMATION For information on the necessary space for the installation and mounting of the device, refer to the "INSTALLATION AND MOUNTING” section

For detailed information on the dimensions and position of the means to support and attach the device in this space, refer to the "INSTALLATION AND MOUNTING” section For detailed information on the minimum distances between the different parts of the device and the surrounding structure, refer to the "INSTALLATION AND MOUNTING” section For detailed information on the minimum dimensions of the ventilation openings and their correct arrangement, refer to the "INSTALLATION AND MOUNTING” section

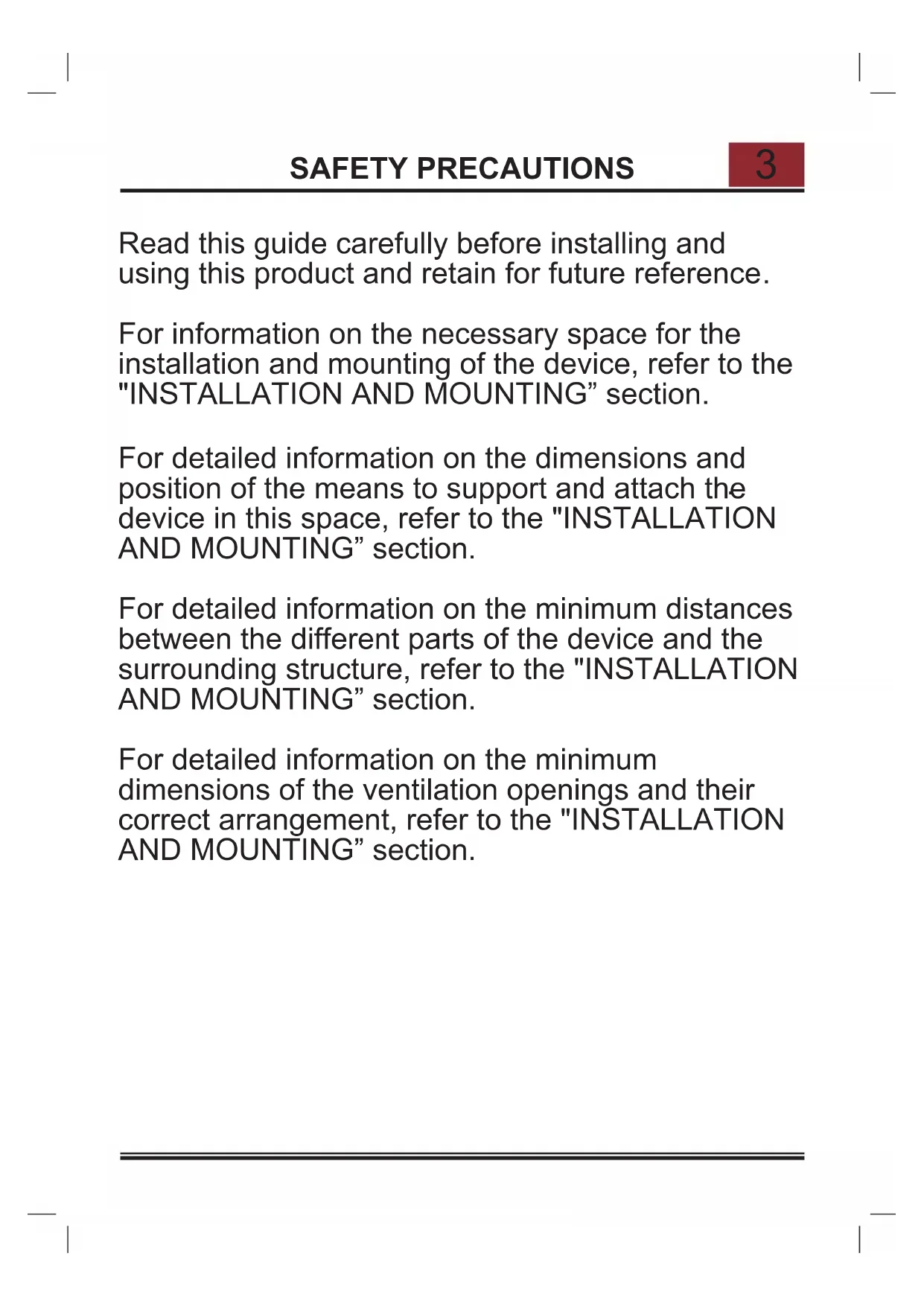

SAFETY PRECAUTIONS Read this guide carefully before installing and using this product and retain for future reference

• The range hood must be installed in accordance with the installation instructions and all measures must be observed

• The entire installation must be entrusted to a competent person or to a professional electrician

• Please dispose of packaging materials carefully They are dangerous for children Check that the ducts do not have bends greater than 90 degrees This would reducetheefciency of the range hood

• This range hood is intended exclusively for domestic use

• Do not blaze food under the hood

• Do not try to use the kitchen hood without thegreaseltersorif theltersaretoofull of grease!

• The air must not be discharged into a uethatisusedfor exhausting fumes from appliances burning gas or other fuels

• Do not leave frying pans unattended during use as overheated fats or oils maycatchre.

• Always turn off the power before installing or servicing, including replacing a bulbunderthe range hood

• If the hood is damaged, do not attempt to use it

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarlyqualied persons in order to avoid a hazard

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision

• Watch your children to make sure they do not play with the device

• The plug must be easily accessible after installation There is minimum distance between the support surface of cookware on the cook top and the lowest part of the cooker hood (When the range hood is placed over a gas appliance, this distance must be at least 65 cm

• Never leave naked ames• There is a risk of if the cleaning is not done according to the instructions.

• Regulations regarding the discharge of air must be respected.

• In the absence of an outward exit, the hood can be used in air recycling mode with carbon filters. The assembly is identical to what is described above, except for the installation of the expandable hose that should not be used.

• Clean the grease every month to prevent

• The charcoal traps odors and must be replaced at least once a year depending on the frequency of use of the range hood.

• WARNING: Accessible parts of this appliance may become hot when used with cooking appliances.

method suggested in the MAINTENANCE chapter

Proper ventilation of the room must be provided when a kitchen hood is used simultaneously with appliances using gas or other fuel.

• Clean your appliance periodically using the If the installation instructions for the gas cook top specify a larger distance, this should be taken into accountbeasefcient as possible, use a straight duct or with a minimum of elbows Number of technicians recommended for installation: 2 to 3 Use appropriate wall plugs and screws on the wall where the hood is to be installed Ask a qualiedinstalleror technician to select the right dowels and screws In a cold climate, it is advisable to install an additional check valve to minimize cold air return, as well as a nonmetallic thermal barrier to minimize heat transfer by conduction to the outside The valve must be installed on the side of the thermal barrier where the air is cold

• The thermal barrier must also be installed as close as possible to the point where the duct enters the heated part of the building

• For air extraction toTO REDUCE FIRE HAZARDS, USE ONLY METALLIC DUCTS Installthishoodinaccordancewithallspecied requirements Toreducetheriskofreandextractaireffectively, make sure the exhaust duct faces out The extraction mouth must not be open on a space between two walls, ceilings, attics, reduced spaces or garages LIGHTING - Non-replaceable LED lamp. - Max. power 1.5W per lamp. -ILCOS D code is DSR-1.5/65-S-64.

SAFETY PRECAUTIONSPresentation Thank you for choosing this range hood This user manual is designed to provide all necessary instructions for the installation, operation and maintenance of this appliance In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage

Warning:Failuretoinstallthescrewsorxing

device in accordance with these instructions may result in electrical hazards PARTS SUPPLIED Description Drawing QTY(pc/set) Cooker Hood

outside chimney bracket

COMPONENT LISTDisadvantage: Wall penetration (core drilling) of 15.5 cm diameter with compatible hose connection required. Usage of open fires in the same room is only somewhat possible. Recirculation mode In recirculation mode, the cooking fumes are sucked up and feed back into the room after filtration through the upper air outlet. The air is cleaned by the grease filter and then by the carbon filter (fume filter with activated charcoal).

INSTALLATION AND MOUNTING

Information on Mounting Your cooker hood can be used in extraction mode and recirculation. Extraction mode In extraction mode, the cooking fumes are sucked up, led through the grease filter, and released outside through an expansion pipe. Advantage: No carbon filter required, fume contamination always very low.Advantage: Easy installation. Disadvantage: As the carbon filter becomes dirtier, it becomes less efficient at cleaning and sucking. The carbon filter must be replaced approximately every three months, depending on use. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, pipe or material with an interior diameter of 150mm) Extraction mode

INSTALLATION AND MOUNTING

121 Before installation, turn the unit off and unplug it from the outlet

INSTALLATION AND MOUNTING

2 The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best effect Pic 1 133 After fix the installation height of the cooker hood, measure the position of the holes for hook, inside chimney bracket, outside chimney bracket and safety hole. And drill 9 pcs φ8 holes.Put wall plugs into those 9pcs φ8 holes. Fix the hook onto the wall by three ST4*40mm screws, fix the inside chimney bracket onto the wall by two ST4*40mm screws. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.

INSTALLATION AND MOUNTING

Pic 24. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely. See Pic 3. Afterwards, install the v-flap and expansion pipe on the cooker hood, see Pic 4-1. And fix the expansion pipe by the cable tie, see Pic 4-2.

INSTALLATION AND MOUNTING

Pic 4-2 expansion pipe V-flap5. Place the hood on the hook. See Pic 5-1. Secure the body of the hood with the 2 screws of secondary fixation. See Pic 5-2

7. Adjust the height of the inside chimney to the

position of the inside chimney bracket and fix on it by2 ST4*8mmscrews.See Pic 7. . Adjust the cooker hood position, and fix the cooker hood with 2 ST4*30mm safety screws. Then put the chimneys on the cooker hood. See pic 6. Pic 5-1 Pic 5-2 Pic 6 Pic 7

INSTALLATION AND MOUNTING

1. Before installation, turn the unit off and unplug it

2. The cooker hood should be placed at a distance

of 65~75cm above the cooking surface for best effect.

3. After fix the installation height of the cooker hood,

measure the position of the holes for hook, inside chimney bracket, outside chimney bracket and safety hole. And drill9pcs φ8 holes. Put wall plugs into those 9pcs φ8 holes. Fix the hook onto the wall by three ST4*40mm screws, fix the inside chimney bracket onto the wall by two ST4*40mm screws. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.

INSTALLATION AND MOUNTING

174. Fix the outside chimney bracket on the outside

chimney, and be sure that the inside chimney can be adjusted the height in it freely. See Pic 3. Afterwards, install the v-flap on the cooker hood. See Pic4.

5. Place the hood on the hook. See Pic 5-1.

Secure the body of the hood with the 2 screws of secondary fixation. See Pic 5-2

INSTALLATION AND MOUNTING

186. Adjust the cooker hood position, and fix the

cooker hood with 2 ST4*30mm safety screws. Then put the chimneys on the cooker hood. See pic 6.

1. Adjust the height of the inside chimney to the

position of the inside chimney bracket and fix on it by 2 ST4*8mmscrews.See Pic 7. Pic 5-1 Pic 5-2

INSTALLATION AND MOUNTING

192. Carbon filter Installation.

Remove the grease filter.Press the lock and pull it downward.See Pic 8. Put on the carbon filter by rotating the carbon filter clockwise. See Pic 9.

INSTALLATION AND MOUNTING

pic.7 pic.8 20Install the grease filter. See Pic 10.

INSTALLATION AND MOUNTING

Case of use in air recycling: In the absence of an outward exit, the hood can be used in air recycling mode with carbon filters. The assembly is identical to what is described above, except for the installation of the expandable hose that should not be used.OPERATION There are touch buttons: (Low), (Mid), (High), (Light), (Power). See Pic above.

1. After connecting to power, indicator light will lit

on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation.

2. Power on: Press power button

one time, its indicator light will lit on, the hood works at low speed. Indicator light of low speed will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of the hood will be closed, the hood enters into standby mode, and recycle by circle. The speed buttons and lamp button can work separately and not controlled by the power button. Press one function button, the hood will work at that function status. Press power button at any status will close all function operation.

3. Press lamp button

once; lights will be turn on. Indicator light of lamp button and power

button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button and power button will be off. And recycle like this.4 Press the (High) button one time, motor runs on high speed, the indicator light of high button and power button will beam Press high button again and the motor will stop Indicator light of high button and power button will be off, and recycle by circle 5 Press the (Mid) button one time, motor runs on middle speed, the indicator light of middle button and power button will beam Press middle button again and the motor will stop Indicator light of middle button and power button will be off,and recycle by circle 6 Press the (low) button one time, motor runs on low speed, the indicator light of low button and power button will beam Press low button again and the motor will stop Indicator light of low button and power button will be off,and recycle by circle 7 Low speed, mid speed and high speed cannot work at the same time When hood is on high speed, press low speed, it will turn to low speed at once; when it is in low speed, press middle speed, it will turn to middle speed immediately, and so on OPERATION

CARBON FILTER REPLACEMENT

Activatedcarbonltercanbeusedtotrapodors. Normallytheactivatedcarbonltershouldbe changed at three or six months according to your cooking habit The installation procedure of activatedcarbonlterisasbelow. (1)Thealuminumltershouldbedetachedrst. Press the lock and pull it downward (2)Takeoutthecarbonlterbyrotatingthecarbon lteranti-clockwise. (3)Replacethenewcarbon

3MAINTENANCE Before cleaning, switch the unit off and unplug the appliance.

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for metallic anti-grease

ESSENTIAL: Clean the every month can prevent any risk of The collects grease, smoke and dust. So the is directly affecting the of the cooker hood. If not cleaned, the grease residue (potential will saturate on the Clean it with household cleaning detergent.

• Makesurethelterissecurelylocked.Otherwise, it would loosen and cause dangerous

• Whenactivatedcarbonlterattached,the suction power will be loweredINFORMATION FOR COOKER HOOD

The measurement and calculation method of the above table was done in accordance with commission regulation (EU) No 65/2014 & 66/2014 Symbol Unit Reference CEH6062IX CEH9062IX Model identification SY-3503C-E1- C59-L52-600 SY-3503C-E1- C59-L52-900 Annual Energy Consumption AEC hood kWh/a Energy Efficiency class Time increase factor f Fluid Dynamic Efficiency FDE hood Fluid Dynamic Efficiency class Energy Efficiency Index EEI hood Measured airflow rate at the best efficiency

Measured air pressure at best efficiency point

Measured electric power input at best efficiency point

Nominal power of the lighting system

Average illumination of the lighting system on the cooking surface

hood 36 28 Lux/W Light Efficiency Class A B Grease Filtering Efficiency (GFE hood) class Measured power consumption on off mode

Noise emission at maximum speed in normal use

INFORMATION FOR COOKER HOODNote: The following shows how to reduce total environmental impact (eg energy use) of the cooking process) (1) Installthecookerhoodinaproperplacewherethereisefcientventilation. (2) Clean the cooker hood regularly so as not to block the airway (3) Remember to switch off the cooker hood light after cooking (4) Remember to switch off the cooker hood after cooking Information for dismantling Do not dismantle the appliance in a way which is not shown in the user manual The appliance could not be dismantled by user At the end of life, the appliance should not be disposed of with household waste Check with you Local Authority or retainer for recycling advice

INFORMATION FOR COOKER HOOD

28ENVIRONMENTAL PROTECTION This product is marked with the symbol on the selective sorting of waste electronic equipment Environment friendly disposal! You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre. The packaging material is recyclable Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service. IMPORTE PAR: A.M.C 123 quai Jules Guesde 94400 VITRY SUR SEINE FRANCE

CONTINENTAL EDISON 120-126 Quai de Bacalan CS 11584 33000 Bordeaux This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EC It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances For more information, please contact your local or regional authorities
