Product type	Wall-mounted decorative hood
Brand	Continental Edison
Model	CEH90GS
Color	Glass, stainless steel
Power supply	220-240 V ~ 50/60 Hz
Motor power	177 W (max)
Lighting	LED 1 x 2 W (not user-replaceable)
Number of speeds	3 (low, medium, high)
Max air flow	304.1 m³/h
Max noise level	63 dB(A)
Energy class	B
Annual consumption	29.4 kWh/year
Recommended installation height	65-75 cm above the hob
Gas safety distance	800 mm
Electrical safety distance	700 mm
Grease filter	Metallic, dishwasher safe
Charcoal filter	Replacement every 3-6 months (optional)
Evacuation mode	Ducted or recirculation
Duct diameter	150 mm
Dimensions (W x D x H)	90 x 50 x 38 cm (approximately)
Net weight	Approximately 8 kg
Warranty	2 years

Frequently Asked Questions - CEH90GS CONTINENTAL EDISON

What is the recommended installation height for the CEH90GS hood?

The hood must be installed at a distance of 65 to 75 cm above the cooking surface. For gas hobs, observe a minimum distance of 800 mm, and for electric hobs, 700 mm.

How to clean the metallic grease filter?

The grease filter should be cleaned every month. You can wash it by hand with soapy water or in the dishwasher. Use a household detergent and avoid metal pads or abrasive products.

When to replace the activated charcoal filter?

The charcoal filter must be replaced every 3 to 6 months depending on usage frequency. You can buy replacement filters on the website http://www.eurosav.eu/continentaledison.

Can I use the hood in recirculation mode?

Yes, the CEH90GS hood can operate in recirculation mode. In this case, you must install an activated charcoal filter (sold separately). The air is then filtered and returned to the room.

How to replace the LED bulb?

The LED bulb is not user-replaceable. If defective, contact after-sales service or a qualified professional. The bulb type is DBS-2/65-H-120/33, 2 W, 110-240 V.

What is the noise level of this hood?

The noise level varies by speed: 57 dB(A) at low speed and 63 dB(A) at high speed.

What is the annual electricity consumption?

The annual energy consumption is 29.4 kWh/year, which corresponds to energy class B.

Is the hood equipped with a backdraft damper?

Yes, the hood comes with two 150 mm V-flaps to prevent backflow of outside air.

What are the control buttons?

The hood has 5 buttons: Stop, Low, Medium, High and Light. The speeds are controlled individually.

What to do in case of power failure or electrostatic discharge?

The appliance may stop during an electrostatic discharge. Turn it off, unplug it, wait one minute, then plug it back in. If the problem persists, contact customer service.

USER MANUAL CEH90GS CONTINENTAL EDISON

Abstract geometric shapes in gray, no text or symbols present

Continental Edison

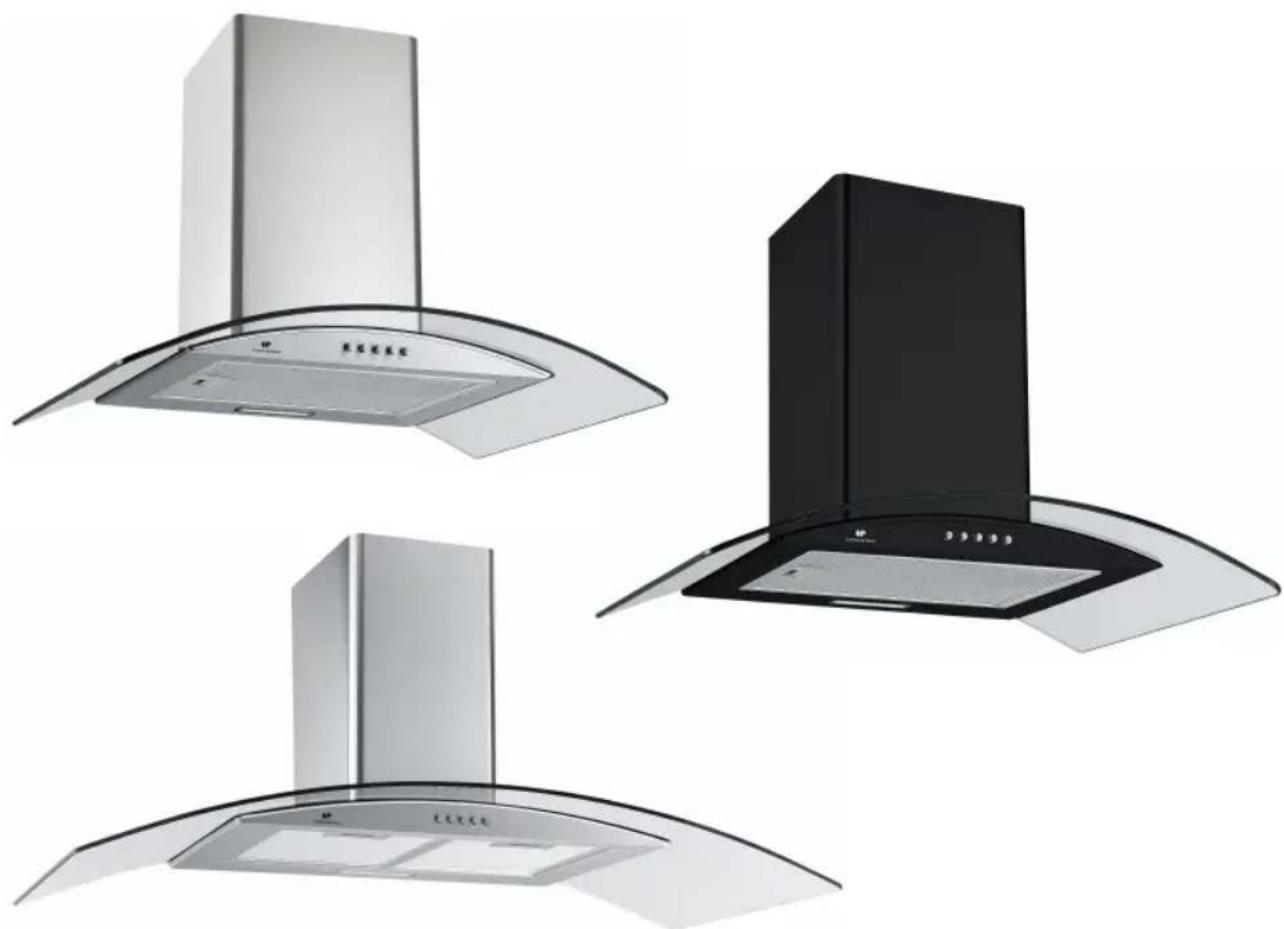

Three stainless steel kitchen appliances with curved glass covers, displayed against a white background (no text or symbols visible)

CEH60GS/CEH60GB/CEH90GS

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Image 3

Diagram of a brick wall with a cylindrical component mounted on a base, showing airflow or force directions (no text or symbols)

Image 5 Image 6

Diagram of a brick wall with a box and support structure, showing upward arrows (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Image 1

Diagram showing a cable being inserted into an electronic device (no text or symbols present)

Image 2

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Image 3

Diagram of a lampshade with a base and cable, showing an arrow indicating light path (no text or symbols)

Image 4 Image 5

Diagram of a mechanical device with a lever and curved arrow indicating rotation (no text or symbols)

Two overlapping gray semicircles on white background (no text or symbols)

Continental Edison

www.continentaledison.fr

Abstract geometric shapes in gray, no text or symbols present

Continental Edison

Three stainless steel kitchen appliances with curved glass covers, displayed against a white background (no text or symbols visible)

CEH60GS/CEH60GB/CEH90GS

Cooker Hood Instruction Manual

Contents

FIND INFORMATION 2

SAFETY PRECAUTIONS ....3

COMPONENT LIST....9

INSTALLATION AND MOUNTING 11

OPORATION 17

CARBON FILTER REPLACEMENT 18

LAMP REPLACEMENT 19

MAINTENANCE 21

INFORMATION FOR COOKER HOOD 22

ENVIRONMENTAL PROTECTION ....26

Read this guide carefully before installing and using this product and retain for future reference.

For information on the necessary space for the installation and mounting of the device, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on the dimensions and position of the means to support and attach the device in this space, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on the minimum distances between the different parts of the device and the surrounding structure, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on the minimum dimensions of the ventilation openings and their correct arrangement, refer to the "INSTALLATION AND MOUNTING" section.

• When using electrical appliances, basic safety precaution should always be followed, including the following:
  • These instructions are for your safety. Please read through them thoroughly prior to installation.
• This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.
• All installation work must be carried out by a qualified person or qualified electrician.
• This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer's instructions.
• ATTENTION: Accessible parts may become hot during use.
• Keep children away from this device.
• The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Regularly check the power plug and power cord for signs of damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not allow the electric cables to touch the hot parts of the appliance.
• Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable.
• Do not use flammable sprays in close vicinity to the appliance.
• Please dispose of the packing material carefully.

• We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section.
  • A steam cleaner is not to be used.

• The appliance is not intended to be operated by means of external timer or separated remote-control system.

• Warning: When using for extraction, refer to the national regulations for building ventilation systems. Do not connect the exhaust pipe to a VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disturbance with the ventilation of the room when there are gas appliances (water heater, gas stove, ...). If in doubt, use the hood in recycling mode.
• Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.
• Air must not be discharged into a flue that is used for exhaustingfumes from appliances burning gas or other fuels. The rules concerning the evacuation of the air must be respected.
• Warning: The hood may stop working during an electrostatic discharge (e.g.lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.

7

SAFETY PRECAUTIONS

• To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.
• Do not flame under the range hood.
• Do not use the hood if it shows signs of damage or imperfection. Contact customer services.
• When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

Gas hobs: 800mm

Electric hobs: 700mm

- Warning : There is a risk of electric shock and fire if cleaning is not carried out in accordance with the instructions.

- Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

- Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.

• Electrical Shock Hazard Failure to follow these instructions can result in death, fire, or electric shock.

• The available lamps and the correspondenceIL COS D codes and lamp pictures: Use type lamp (or use in alternative type lamp) DBS-2/65-H-120/33. (ILCOS D code in according to standardIEC 61231).

• Non-replaceable LED lamp

• Max wattage: 1 × 2 W
• Voltage range: AC 110-240V
• Dimensions:

- Note: If the supply LED bulb is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Presentation

Thank you for choosing this range hood. This user manual is designed to provide all necessary instructions for the installation, operation and maintenance of this appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

PARTS SUPPLIED

Description Drawing QTY(pc/set)
Cooker hood body 1
Glass 1
Chimney 2
extension pipe - 150 mm × 2 m 1
Air outlet 1
Valve (150) 2
chimney bracket 1
Glass anti vibration ring 4
Glass mounting pad 4
Countersunk machine thread (M4X20)		4
Large flat head self tapping (ST4X40)		2
Large flat head self tapping (ST4X30)		4
Glue particles entering the wall	6
screw (ST4X8) 4
cable tie 1

Information on Mounting

Your cooker hood can be used in extraction mode and recirculation.

Extraction mode

In extraction mode, the cooking fumes are sucked up, led through the grease filter, and released outside through an expansion pipe.

Advantage: No carbon filter required, fume contamination always very low.

Disadvantage: Wall penetration (core drilling) of 15.5 cm diameter with compatible hose connection required. Usage of open fires in the same room is only somewhat possible.

Recirculation mode

In recirculation mode, the cooking fumes are sucked up and feed back into the room after filtration through the upper air outlet. The air is cleaned by the grease filter and then by the carbon filter (fume filter with activated charcoal).

Advantage: Easy installation.

Disadvantage: As the carbon filter becomes dirtier, it becomes less efficient at cleaning and sucking. The carbon filter must be replaced approximately every three months, depending on use.

Extraction mode

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or non-arterial with an interior diameter of 150mm)

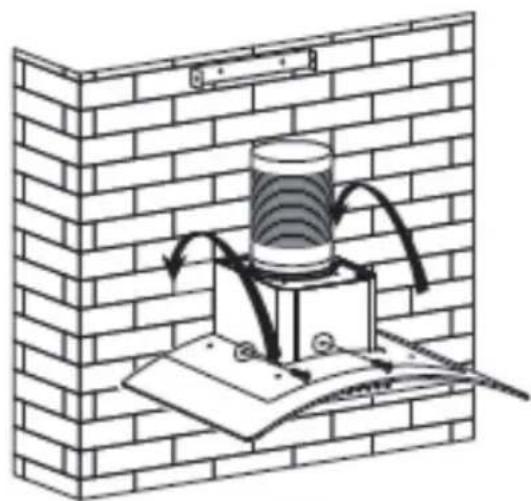

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface.

Pic 1

1. After decide the cooker hood height, measure the position of the holes for hanging hood and inside chimney bracket. Drill 4 φ8 holes, 2 for inside chimney bracket and 2 for hanging the hood, and keep the hood level. The fixed position of the inside chimney bracket is the highest place of chimney. See pic 2.

2. Screw two 4 x 30mm screws on the wall with wall plugs to fix the hood, then use two 4mm x 40mm screws to fix the inside chimney bracket. See Pic 2.

Pic 2

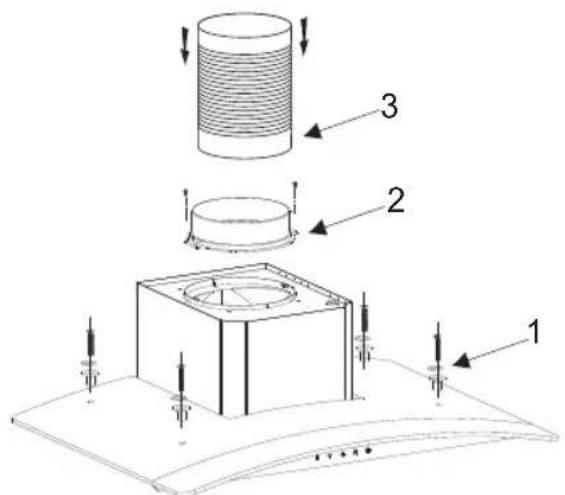

1. Put the glass, oultet and expansion pipe on the cooker hood according to the guide direction, and then use the screws to fix the glass. See step 1/2/3 of pic 3.

Attach the expansion pipe onto the outlet, and fix the pipe on the outlet with a cable tie, then lay the expansion pipe to the wall outlet. See step 4 of pic 3.

Pic 3

1. Dress the inside chimney into the outside chimney. See Pic 4.

2. Make the hood hang on the wall in the fixed position, adjusting the cooker hood position, fix the cooker hood with safety screws. Note: The two safety vents are positioned on the back housing, with a diameter of 6mm.See Pic 5.

3. Put the two chimneys together onto the cooker hood body, meanwhile adjust the height of the inside chimney into the suitable height, and fix the inside chimney to the inside chimney bracket with screws, here should be sure the inside chimney can be flexed freely. See Pic 6.

Pic 4

Diagram of a brick wall with a cylindrical component mounted on a base, showing airflow or ventilation (no text or symbols)

Diagram of a brick wall with a chimney and support structure, showing directional arrows (no text or symbols)

Pic 5 Pic 6

Stop Low Mid High Lamp

Push button

1) Push the stop button, and the motor will stop.
2) Push the low button, and the motor will run at low speed.
3) Push the middle button, and the motor will run at mid speed.
4) Push the high button, and the motor will run at high speed.
5) Push the light button and the two lights will illuminate. Push it again and the light will turn off.

CARBON FILTER REPLACEMENT

Activated carbon filter can be used to trap odors.

Normally the activated carbon filter should be changed at three or six months according to your cooking habit.

The installation procedure of activated carbon filter is as below:

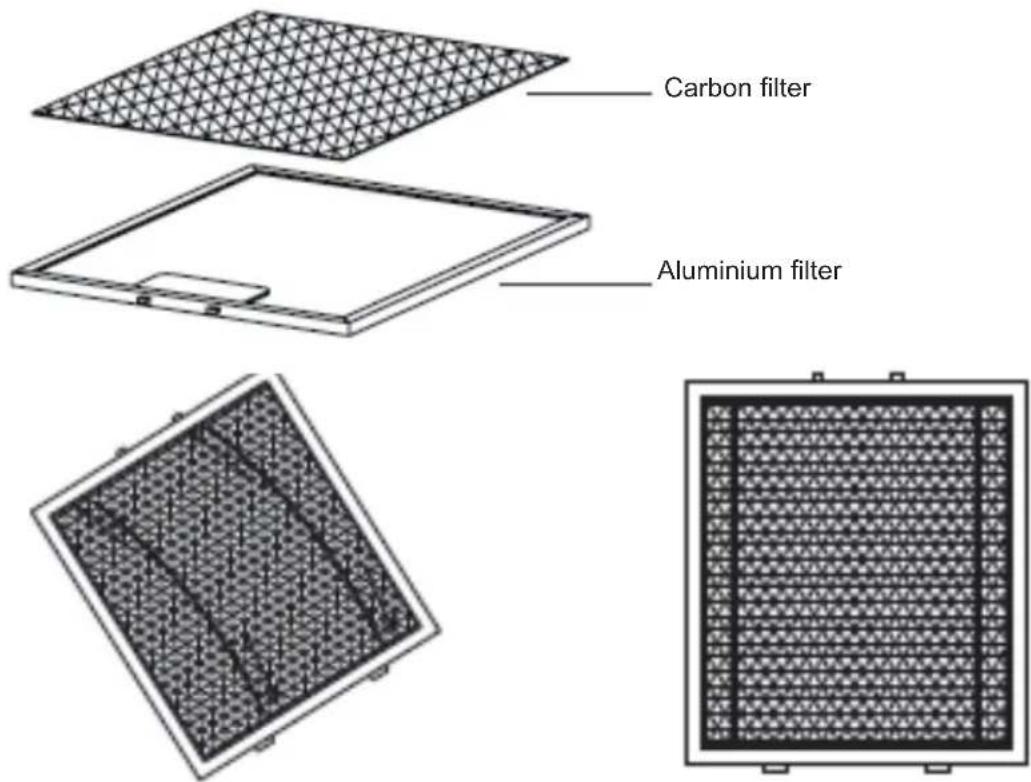

1. Put the carbon filter on the back side of the aluminium filter.

muinim

filter, one on each side. You need to bend it to insert into the other end of the frame.

1. Make sure the steel stick fix the carbon filter onto the aluminium filter.

NOTE:

- Make sure the filter is securely locked. Otherwise, it would loosen and cause danger.

- When activated carbon filter attached, the suction power will be lowered.

- It is suggest to replace the carbon filter around 3 months, you may go to below website to purchase it for replacing:

http://www.eurosav.eu/continentaledison

REPLACING THE BULB:

• Remove the grease filter.
• Find out the junction box, unscrew the screws on the junction box cover, then take down the junction box cover. See pic 1. The junction box has version a and b, depending on different models.
• Find out the terminal of the light connecting wire and pull it out. See pic 2.
• Way 1. Use a tool or the hand to press the spring splinterof both sides of LED light to the inside, until the light is pressed out, see pic 3. Then slightly pull the light connecting wire out, see pic 4.
  Way 2. Use straight screwdriver to prize up the LED light bottom edge, see pic 5, then slightly pull out the light connecting wire, see pic 4.
• Apply the reverse procedure to reinstall the light.
  • ILCOS D code for this lamp is: DBS-2/65-H-120/33
• LED modules –rectangle lamp
• Max wattage: 1×2 W
• Voltage range: AC 110-240V
• Dimensions:

Diagram of a mechanical assembly with an upward arrow indicating motion or force (no text or symbols present)

Pic 1

Diagram showing a cable being inserted into a connector socket (no text or symbols present)

Pic 2 Pic 3

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Diagram of a mechanical assembly with a downward arrow indicating force or direction (no text or symbols present)

Pic 4 Pic 5

Diagram of a mechanical device with a lever and curved arrow indicating rotation (no text or symbols)

Before cleaning, switch the unit off and unplug the appliance.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for metallic anti-grease filter ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust. So the filter is directly affecting the efficiency cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter clean it with household cleaning detergent.

	Symbol Unit Value
Trade Mark	[AWSW] Continental Edison
Address	120-126 Quai de Bacalan CS 11584 33000 Bordeaux
Reference CEH60GS/CEH60GB
Model identification SY-3388A8-P1-C13-L121-600
Annual Energy Consumption	AEChood	30,1	kWh/a
Energy Efficiency class		B
Time increase factor f		1,6
Fluid Dynamic Efficiency	FDEhood	9,9
Fluid Dynamic Efficiency class		E
Energy Efficiency Index	EEIhood	69,4
Measured airflow rate at the best efficiency	QBEP	139,1	m3/h
Measured air pressure at best efficiency point	PBEP	125	Pa
Maximum airflow	Qmax	294,9	m3/h
Maximum airf low/ air flow at working point(in normal use)		highest setting: 285,1 lowest setting: 194,3	m3/h
Measured electric power input at best efficiency point	WBEP	49,0	W
Nominal power of the lighting system	WL	2,0	W
Average illumination of the lighting system on the cooking surface	Emiddle	100	lux
Light Efficiency	LEhood	50	Lux/W
Light Efficiency Class A
Grease Filtering Efficiency	GFEhood	65,5
Grease Filtering Efficiency (GFE hood) class		D
Measured power consumption on off mode	PO	0,00	W
Sound power level	LWA	highest setting: 62 lowest setting: 56	dB

The measurement and calculation method of the above table was done in accordance with commission regulation (EU) No 65/2014 & 66/2014.

23 INFORMATION FOR COOKER HOOD

	Symbol Unit Value
Trade Mark	[72x7] Continental Edison
Address	120-126 Quai de Bacalan CS 11584 33000 Bordeaux
Reference CEH90GS
Model identification		SY-3388C8-P1-C13-L121-900
Annual Energy Consumption	AEChood	29,4	kWh/a
Energy Efficiency class		B
Time increase factor f		1,6
Fluid Dynamic Efficiency	FDEhood	9,8
Fluid Dynamic Efficiency class		E
Energy Efficiency Index	EEIhood	68,9
Measured airflow rate at the best efficiency	QBEP	135,7	m3/h
Measured air pressure at best efficiency point	PBEP	124	Pa
Maximum airflow	Qmax	304,1	m3/h
Maximum airf low/ air flow at working point(in normal use)		highest setting: 295,4 lowest setting: 214,3	m3/h
Measured electric power input at best efficiency point	WBEP	47,9	W
Nominal power of the lighting system	WL	2,0	W
Average illumination of the lighting system on the cooking surface	Emiddle	80	lux
Light Efficiency	LEhood	40	Lux/W
Light Efficiency Class A
Grease Filtering Efficiency	GFEhood	65,5
Grease Filtering Efficiency (GFE hood) class		D
Measured power consumption on off mode	PO	0,00	W
Sound power level	LWA	highest setting: 63 lowest setting: 57	dB

The measurement and calculation method of the above table was done in accordance with commission regulation (EU) No 65/2014 & 66/2014.

25 INFORMATION FOR COOKER HOOD

Note:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

Information for dismantling

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EC. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human

health due to the presence of hazardous substances.

For more information, please contact your local or regional authorities.

Environment friendly disposal! You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre. The packaging material is recyclable.

Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.

Continental Edison

120-126 Quai de Bacalan

CS11584

33000 Bordeaux

IMPORTÉ PAR

A.M.C

Two overlapping gray semicircles on white background (no text or symbols)

Continental Edison

www.continentaledison.fr
