USER MANUAL CEHDI60B CONTINENTAL EDISON

Abstract geometric shapes resembling partial arcs or crescent, rendered in grayscale with no text or symbols.

Continental Edison

Exterior view of a black stainless steel kitchen range hood (no text or symbols visible)

CEHDI60B & CEHDI90B

Hotte Décorative En Verre Noir - Decorative Black Glass Hood

Installation (Mode extraction)....14

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

notte on. te

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTE :

Illustration of hands holding a plug with an arrow indicating direction (no text or symbols)

Diagram showing a brick wall with electrical outlets and a separate 3D schematic of a water tank (no text or symbols)

Line drawing of a rectangular metal frame with two screws attached (no text or symbols)

Two technical line drawings showing a tool inside a box and a drill bit being inserted into a rectangular block (no text or symbols)

Technical line drawing showing two views of a brick wall structure with a chimney and a cabinet with a handle (no text or symbols)

Technical line drawing showing a mechanical component being inserted into a housing (no text or symbols present)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Read this guide carefully before installing and using this pro and keep it for future reference

Thank you for choosing Oceanic. This Use and Maintenance G is designed to provide you with all the necessary information regarding the installation, use and maintenance of the appliance.

In order to operate the unit properly and securely, read this user guidecarefully before installing and using the product.

Contents

Find some informations....28

Important safety instructions....29

Lamp.... 35

Description of the pieces....37

Installing the hood....39

Preparation before installation....39

Installation (Mode extraction)....40

Carbon filter installation....40

Recommendations for mounting....42

Installation....43

Cleaning....48

Control Panel Functions....49

Technical informations.... 51

Further information.... 54

IMPORTANT: Keep this guide for the electrical control agency

When using electrical appliances, basic safety precaution should always be followed including the following:

• These instructions are for your safety. Please read through them thoroughly prior to installation.
• This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.
• All installation work must be carried out by a competent person or qualified electrician.
• This appliance must be installed correctly by suitably qualified person, strictly following the manufacturer's instructions.
• ATTENTION: Accessible parts may become hot during use.

• Keep children away from this device.

• The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.

• This appliance can be used by children age from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Regularly check the power plug and power cord for signs of damage. If the supply cord is damaged, it must be replaced by themanufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not allow the electric cables to touch the hot parts of the appliance.

• Make sure that the power cord is not caug under or in the appliance and avoid damage the power cable.

• Do not use flammable sprays in close vicini to the appliance.
• Please dispose of the packing material carefully.
• We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section.
  ● A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of external timeror separated remote-control system.

- Warning: When using for extraction, refer to the national regulations for building ventilation systems. Do not connect the exhaust pipe to VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disturbance with the ventilation of the roof when there are gas appliances (water heater gas stove, ...). If in doubt, use the hood in recycling mode.

- Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.

- Air must not be discharged into a flue that is used for exhaustingfumes from appliances burning gas or other fuels. The rules concerning the evacuation of the air must be respected.

• Warning: The hood may stop working during electrostatic discharge (e.g.lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.
• To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.
• Do not flame under the range hood.
• Do not use the hood if it shows signs of d or imperfection. Contact customer services.
• When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

Gas hobs: 800mm

Electric hobs: 700mm

• Warning: There is a risk of electric shock an fire if cleaning is not carried out in accordance with the instructions.
• Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
• Warning: Failure to install the screws or fixi device in accordance with these instructions may result in electrical hazards.
• Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.

Electrical Shock Hazard

Failure to follow these instructions can result in death, fire, or electric shock.

The available lamps and the correspondenceILCOS D codes and lamp pictures:Use type lamp (or use in alternative type lamp)DBR-0.5-H-68 (ILCOS D code in according to standardIEC 61231).

• Max wattage: 0.5 W
• Voltage range: ≤250V

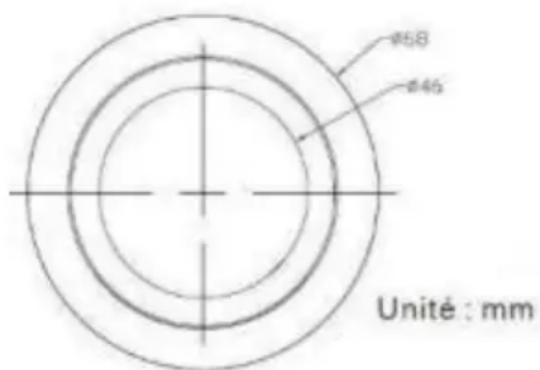

• Dimensions:

Note: If the supply LED bulb is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Replacement of accessories:

Some accessories and spare parts can be ordered on the website bel http://www.eurosav.eu/continentaledison

Information on the meaning of the conformity marking

The marking indicates that the product complies with the main requirements of the European Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), and 2011/65/EU (Restriction of the Use of Certain Hazardous Substances in Electrical and Electron Equipment).

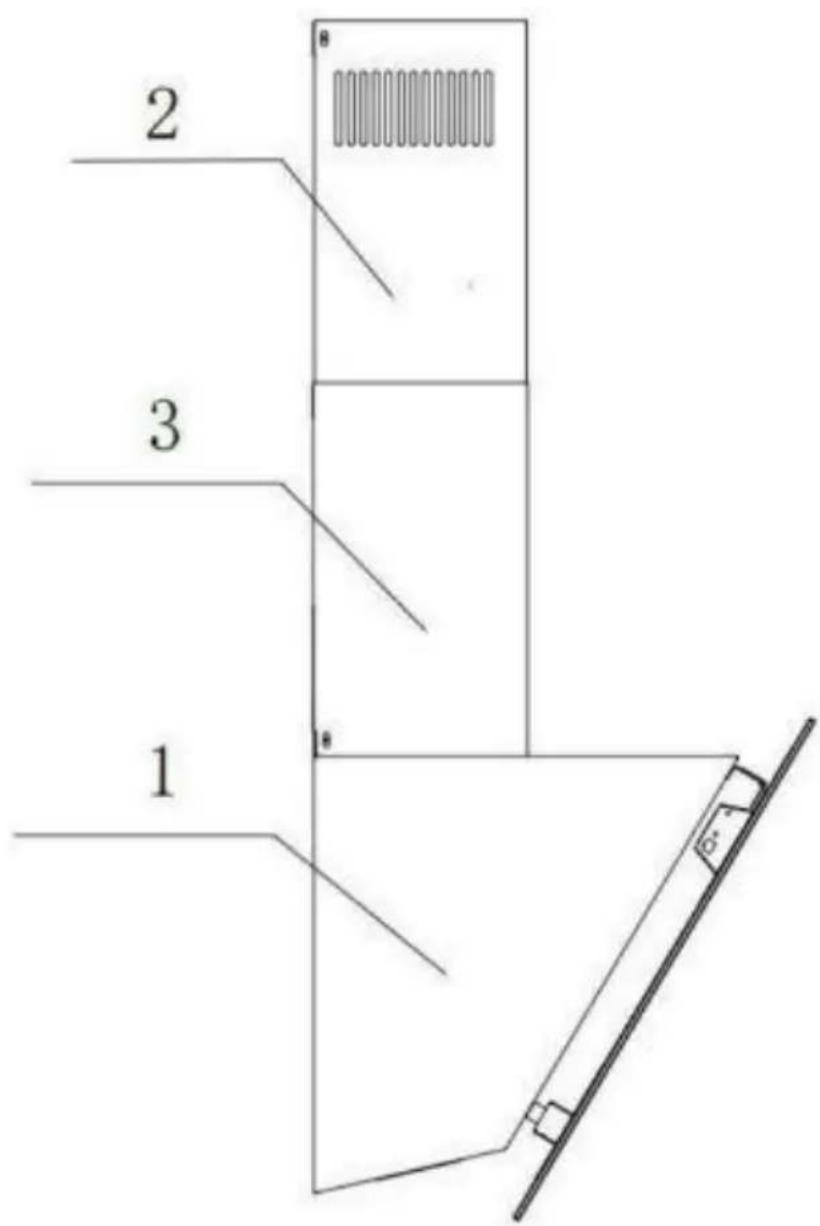

Description of the product

1. Hood body
2. Upper chimney
3. Lower chimney

2 3 1

Index	Description Illustration Quantity
PL-1	Hood body 1
PL-2	Upper chimney (300mm)
PL-3	Lower chimney (300mm)
PL-4	Upper chimney bracket
PL-5	Lower chimney bracket
PL-6	Cooker hood bracket
PL-7	Screw (ST4 x 8 mm)
PL-8	Screw (ST4 x 30 mm)
PL-10	Carbon filter
PL-11	Plastic pipe(Φ 150-153mm; 1.5 meter flexible tube)
PL-12	Non-return valve

Preparation before installation

ATTENTION :

Carefully remove the carton. Wear gloves to protect your hands from sharp edges.

ATTENTION :

Remove the protective film from the product before putting it into service.

Unpacking the device and disposing of packaging materials

Remove all packaging materials around the device, as well as the protective elements located inside the compartments of the device.

■ The cardboard packaging and paper sheets are recyclable. They should be disposed of in the designated recycling bins.

■ Other packaging materials (adhesive tape, cable ties, etc.) should be disposed of with household waste. For more information:

www.quefairedemesdechets.fr

FR + + + + +

After unpacking the various parts, ensure that the stove is in good condition

Do not use the stove if there is any doubt about its condition, consult qualified personnel.

The packaging components (polystyrene, bags, cardboard, etc.) must be kept out of the reach of children, as they pose potential hazards.

Installation (Mode extraction)

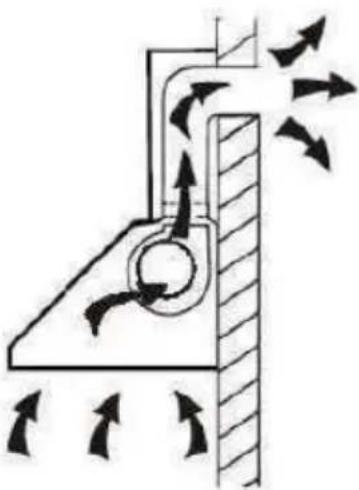

1. Extraction Mode (to the outside):

If the wall has an opening to the outside hood may be connected as shown in the diagram below using the suitable exhaust (not supplied), such as ductwork, flexible aluminum or other nonflammable material an inside diameter of less than 150mm.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

2. Recirculation Mode (Charcoal Filters):

If you do not have an external vent, the hood must be used with charcoal filters. The installation of the product remains similar to described in the installation chapter.

Simple line drawing of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

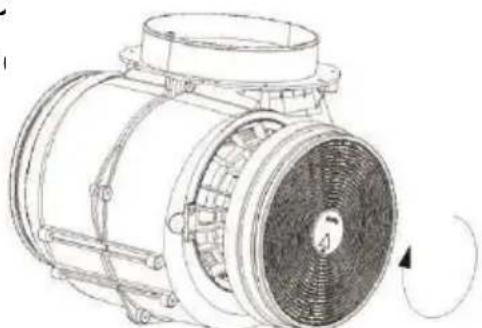

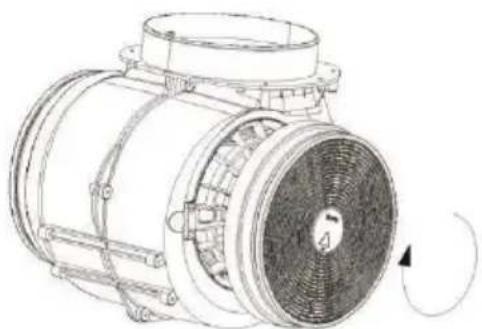

Place the charcoal filter in the unit as show the diagram below, then secure it by turning clockwise. Repeat the same operatic install the charcoal filter on the other side of the unit.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTE:

Make sure the filter is securely locked. Otherwise, it can fall and cause danger

When charcoal filters are used, the suction power is decreased.

The carbon filter must be replaced at least once a year depending on how frequent the cooker hood used.

Recommendations for wall mountig

Do not make any changes to the unit or its mounting bracket on the wall!

Before installing the device, check the condition of the wall on which it will be fixed: the wall must be in good condition, it must not show any damage (cracks, sagging, humidity, ...).

Do not drill a hole near old holes, even plugged

It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.) appropriate to the material that constitutes your wall, as well as to the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual.

Do not modify the holes for securing the unit or its mounting bracket to the wall.

Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust.

Regularly check the mounting points of the device on the wall. Tighten them if necessary.

INSTALLATION

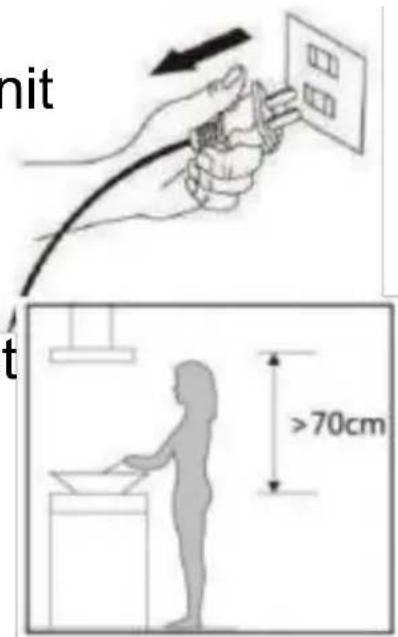

Before installing, make sure the unit is not plugged into an electrical outlet.

The hood must be placed at least 70 cm above the hob.

nit t >70cm

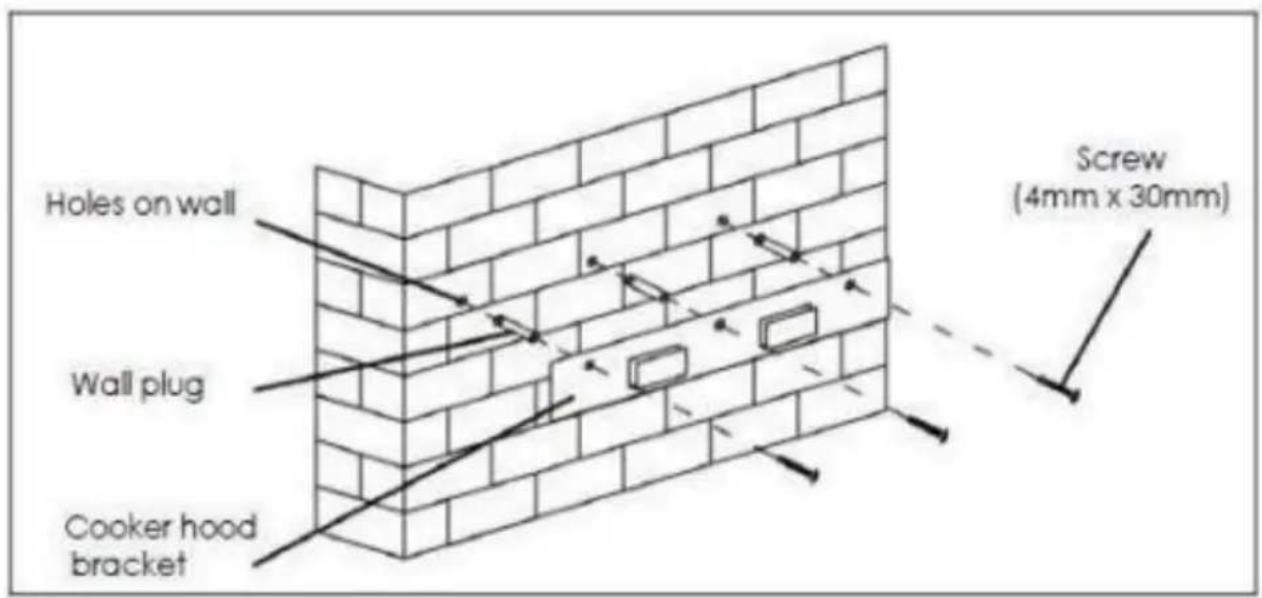

Step1.Drill 3 holes (Φ8mm to adapt your wall pluto place the bracket. Screw and tighten the brackto the wall with the screws 3 Screws (ST4x30mmand 3 wall plugs (not supplied).

Holes on wall Wall plug Cooker hood bracket Screw (4mm x 30mm)

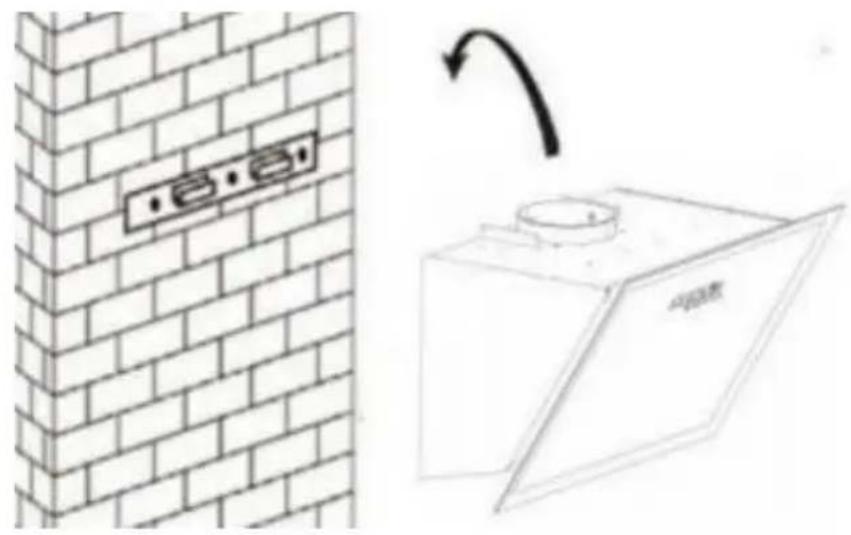

Step2. Place the range hood and hook it by using the two notches on the wall bracket

·8·8 产品库

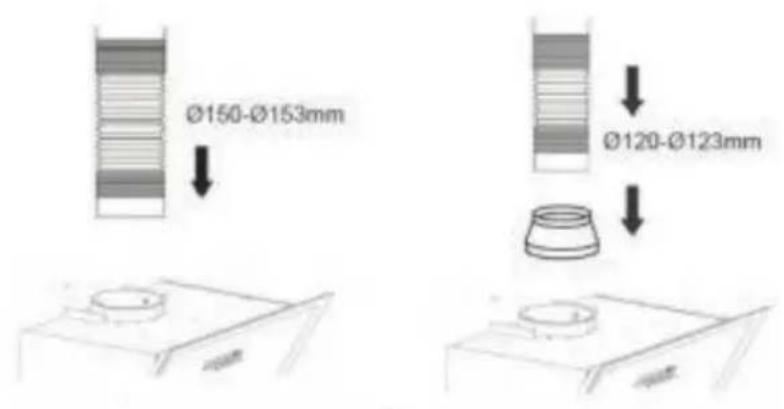

Step 3. (If the extraction installation mode is chosen) Place the ∅150-∅153mm plastic pipe (supplied) on the air outlet as shown below. If the size of your plastic pipe is ∅120 - ∅123mm, you must firstly assemble the adapter to the air outlet, as shown below.

Ø150-Ø153mm Ø120-Ø123mm

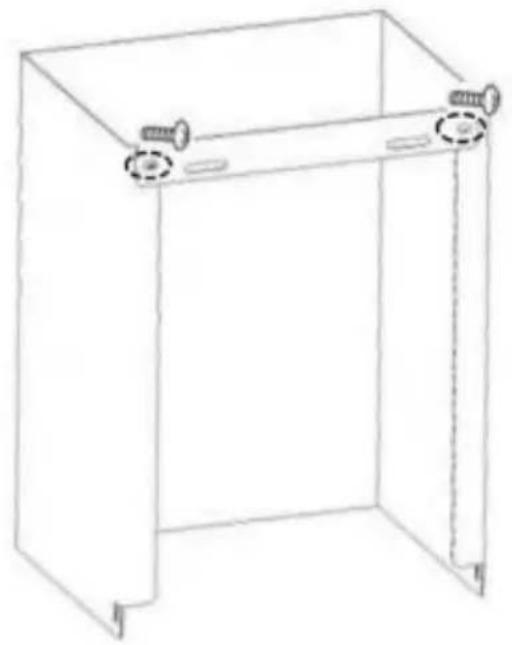

Step 4. Screw the lower chimney bracket on the lower chimney by using 2 screws(ST4x8mm)

Line drawing of a rectangular metal frame with two screw holes and a horizontal bar (no text or symbols)

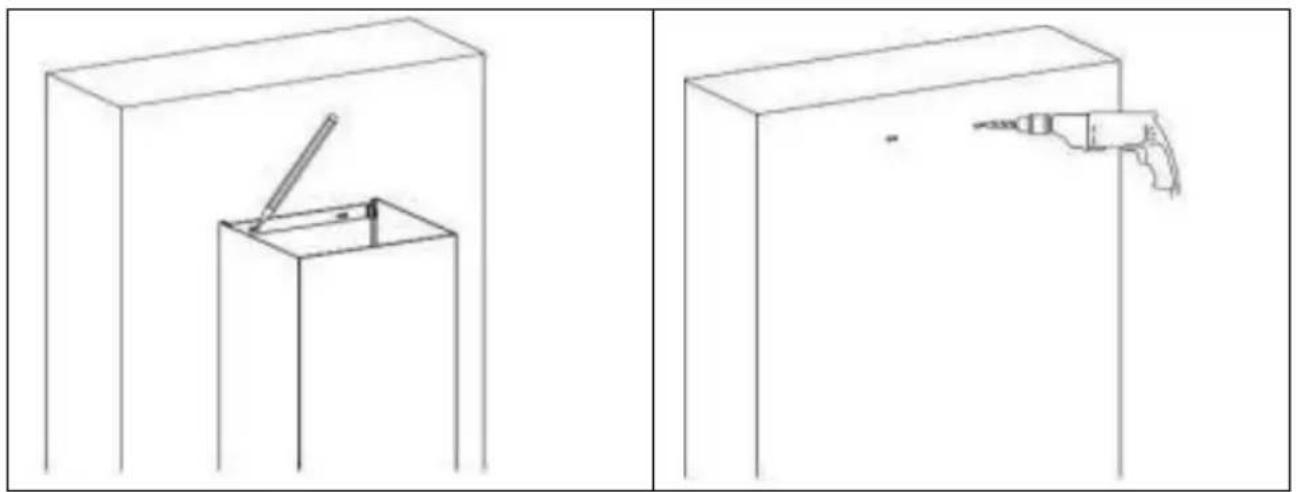

Step 5. Install the lower chimney on the appliance and mark the holes position on the wall.

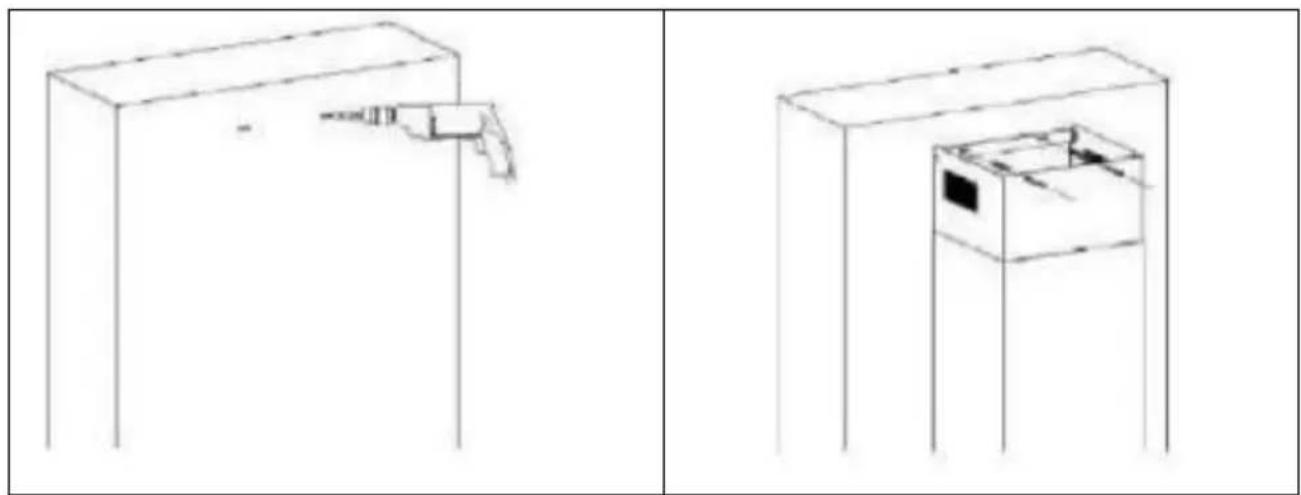

Step 6. Remove the lower chimney, then drill hole in the wall: hole with diameter 4 mm screw.

Two technical line drawings showing a mechanical assembly inside a box, with one being inserted and the other holding a tool (no text or symbols present)

Step7. Install the lower chimney on appliance again, then screw it to the wall with 2 screws of diameter 4 mm and the corresponding wall plugs (not supplied). Also screw the chimney and the hood with 2 screws(ST4x8)mm

Simple line drawing of a rectangular box with a smaller 3D cube below, no text or symbols present.

Pure geometric diagram showing a circle intersecting a right-angled rectangle and a diagonal line, without any text, numbers, or symbols.

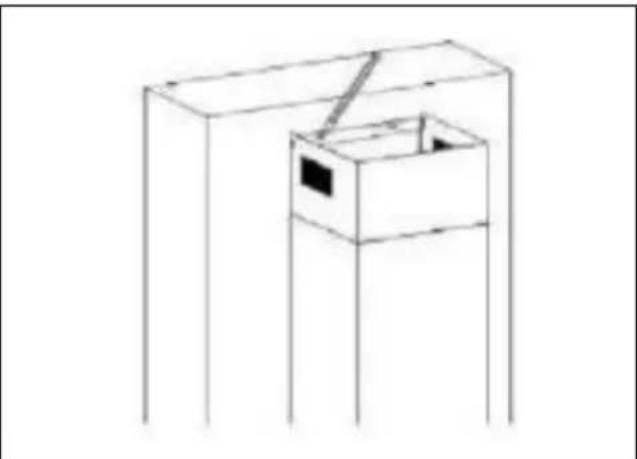

Step 8.Fix the upper chimney bracket on the upper chimney by 2 screws .ST4 x 8 mm Step 9.Pull the upper chimney upwards to the target height and mark the holes on the wall.

Line drawing of a brick wall structure with support beams and a door, no text or symbols present

Simple line drawing of a box with a diagonal line and a small square inside, placed on a stand (no text or symbols)

Step 10. Release the upper chimney and then drill holes on the wall.

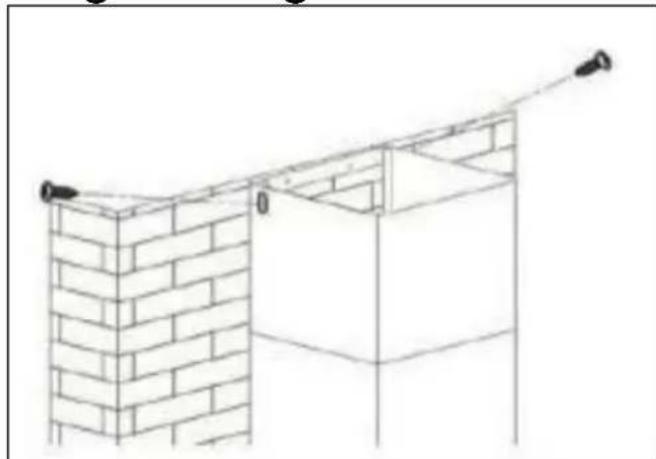

Step 11.Pull out the upper chimney again, then fit to the wall with 2 screws ST4x30mm

Cleaning and Maintenance:

Attention! Before cleaning switch the unit off and pull the plug.

Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soa water or household cleaning detergent. Never use meta pads, chemical, abrasive material or stiff brush to clean the unit.

Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust. It is directly affecting the efficiency of the cooker hood. If not clean the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent

Attention!

The lamp must not be covered by thermal insulation or other materials.

Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room.

control pand

- 8 + *

On/Off key: It's used for turning on/off the fan.

+ Speed plus key: For increasing the speed of the fan

- Speed decrease key: For decreasing the speed of the fan.

Light key: Allows you to turn the LED lighting on a off

8

Digital display

Fan speed display:

"1" for Low speed,
"2" for Medium speed,
"3" for High speed.

timer: Press + & - simultaneously for 1 second. The digital display flashes & the

countdown starts for 5 minutes. After 5 minutes, the motor & light will turn off automatic & Buzzer sound for 1 second

Booster function: Long press the + button once to set the highest speed. "b" for the booster function flashes in the display. After 5 minutes, the speed automatically changes to level 3.

Informationstechniques

Brand	Continental Edison
References	CEHDI60B (Model BX2-5G-C3G6C27) CEHDI90B (Model BX2-5G-C3G9C27)
	Symbol Value Unit
Annual Energy Consumption	AEC_hotte	8,8 kWh/a
Energy Efficiency class		A+++
Time increase factor	f 0,8
Fluid Dynamic Efficiency	FDE_hotte	32,4
Fluid Dynamic Efficiency class		A
Energy Efficiency Index	EEI_hotte	29,5
Measured air flow rate at best efficiency point	QBEP	158,5 m	^3/h
Measured air pressure at best efficiency point	PBEP	176	Pa
Maximum air flow(Boost setting)	Qmax	416,5 m	^3/h
Maximum air flow(highest setting)		347,5 m	^3/h
Air flow at working point(highest setting)		337,6 m	^3/h
Air flow at working point(lowest setting)		238,7 m	^3/h
Measured electric power input at best efficiency point	WBEP	23.9	W
Nominal power of the lighting system	WL	2,5	W
Average illumination of the lighting system on the cooking surface	Emoyen	80 lux
Lighting Efficiency	LEhotte	32 lux/W
Lighting efficiency class		A
Grease Filtering Efficiency Grease Filtering Efficiency class	GFEhotte	59
Measured power consumption off mode		E
Sound power level	Po	0,44 W
Niveau de puissance acoustique	LWA	- Réglage Boost : 63 - Réglage le plus élevé : 58 - Réglage le plus bas : 51	dB

The method of measurement and calculation of the above table is in accordance with Commission Regulation (EU) No 65/2014 and 66/2014.

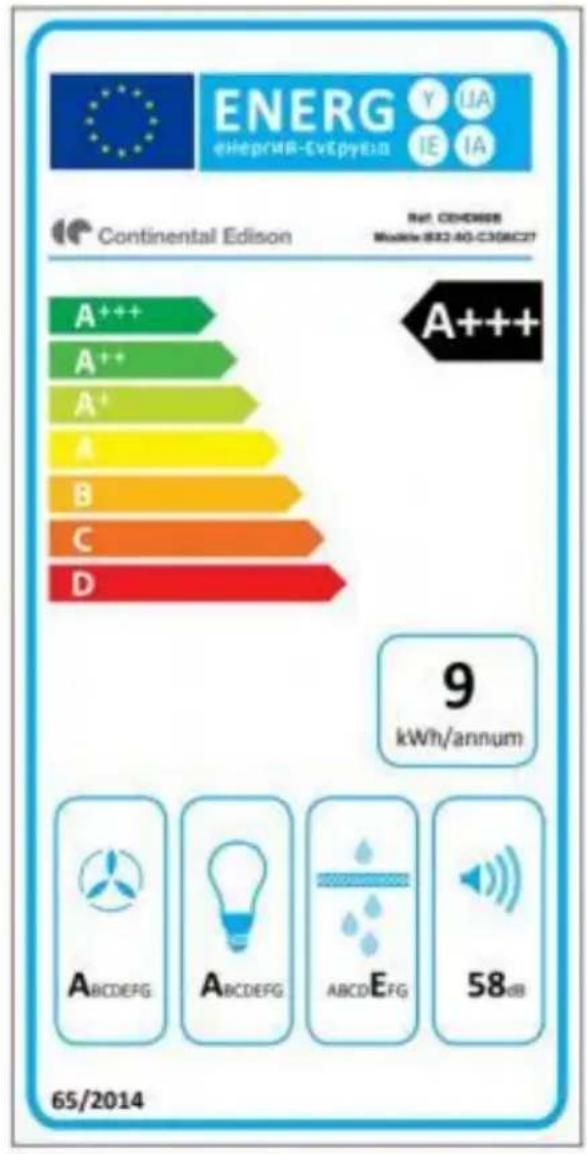

ENERG energria-Europenia Y IJA IE IA Continental Edison Nat: CGHD8888 Modine: BK3-6G-C30HC27 A++ A++ A* A B C D 9 kWh/annum 65/2014

Warranty exclusion liability:

The warranty does not cover worn parts of the product, nor does it cover problems or damages caused by the following reasons:

(1) Surface damage caused by normal wear and tear of the product;
(2) Defects or damages caused by contact between the product and food or liquids, as well as corrosion caused by rusting;
(3) Any unauthorized accident, abuse, misuse, modification, disassembly or repair;
(4) Any incorrect maintenance operation, failure to use according to product instructions, or connection to incorrect voltage;
(5) Use attachments that have not been provided or approved by Edison in mainland China.

If the nameplate and/or product serial number are missing, the warranty will be invalid.

ENVIRONMENTAL PROTECTION

Symbol of a trash bin crossed with a diagonal line, no text or labels present

This device has a selective classification symbol for Waste Electrical and Electronic Equipment (WEEE).

This means that according to EU Directive 2012/19/EU, the product must be processed through a selective collection system in order to be dismantled or recycled, thereby reducing its impact on the environment.

For more information, please contact your local (city hall) or regional government.

Due to the presence of hazardous substances, electronic products that have not been selectively classified may be harmful to the environment.

Under no circumstances should you throw this device onto public road

FR

Two overlapping gray semicircles of different sizes, no text or symbols present

Continental Edison

Creative Commons recycling symbol with icon of person recycling and waste sorting

www.continentaledison.fr

CE
